Product Detail
Details
KATO Design High Vacuum Sweeper Master ISUZU
Areas of Application and Use:
◆ urban road and square cleaning
◆ High way and airport cleaning
◆ School area cleaning
◆ Dock and stadium cleaning
◆ Other hardened cement pavement that need to keep clean
Features:
◆ Easy operation and easy maintenance!
◆ Combined suction and sweeping, wet methods of dust elimination, make sure swept clean and also prevent dust from spread
◆ The dustbin is made of stainless steel, corrosion resistance and large capacity, which can last for a long time without stop
◆ With imported PLC (programmable logic controller) for integrated control
◆ Sub-engine drive blower and working equipment which ensure that power can meet the work demands in any case
◆ Rotating speed of sweeping tray can be adjusted according to working condition
◆ The sweeping broom has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically
◆ The whole reasonable distribution structure, nice look, complete functions and sound stability
◆ The cab with air-conditioner creates a comfortable operating condition, and centralized electric Control box has a human-oriented design for convenient operation
◆ Imported hydraulic-driving broom provides powerful sweeping performance with three-step adjustable brush.
◆ Multi-level spray system can effectively limit a second dust pollution
![]() |
![]() |
![]() |
![]() |
Main specifications:
PT5100TSL |
||
Driving Type |
4x2 (Left hand drive) |
|
Wheelbase |
4175 mm |
|
Overall Dimension |
6925X2200X2550 mm |
|
Cab |
Forward control over engine, all-steel-welded construction |
|
Sweeping System |
Auxiliary engine |
Isuzu tech engine |
Stainless Steel Hopper Effective Volume |
6~8 CBM |
|
Stainless Steel Water Tank Volume (L) |
2000 |
|
Sweeping Width (mm) |
3200 |
|
Sweeping speed (km/h) |
3~25 |
|
Sweeping Capacity (m2/h) |
16500~82500 |
|
Blower rated rotation speed (rpm) |
1800 |
|
Blower air capacity (m3/h) |
8000 |
|
Blower air pressure (Pa) |
7000 |
|
Side Brush Sweeping Brush Drive and Control |
Electric control lever and switch control, Hydraulic driving |
|
Engine |
Model |
4HK1-TCG40 |
Type |
Diesel, turbo charged inter-cooled, 4 cylinder |
|
Max. Power |
139 KW (195 HP) |
|
Gearbox |
MLD 6-shift, mechanical type, 6 forward and 1 reverse with |
|
Tire |
8.25-20 |
|
Color |
Red (Any color & logos up to wish) |
|
Max Speed |
100 km/h |

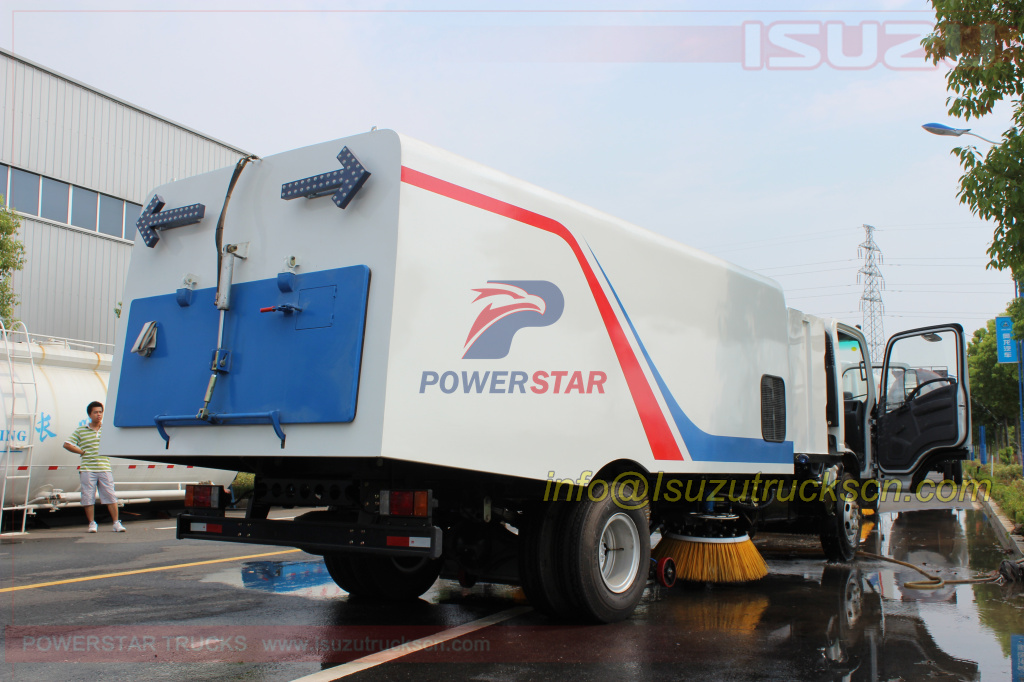

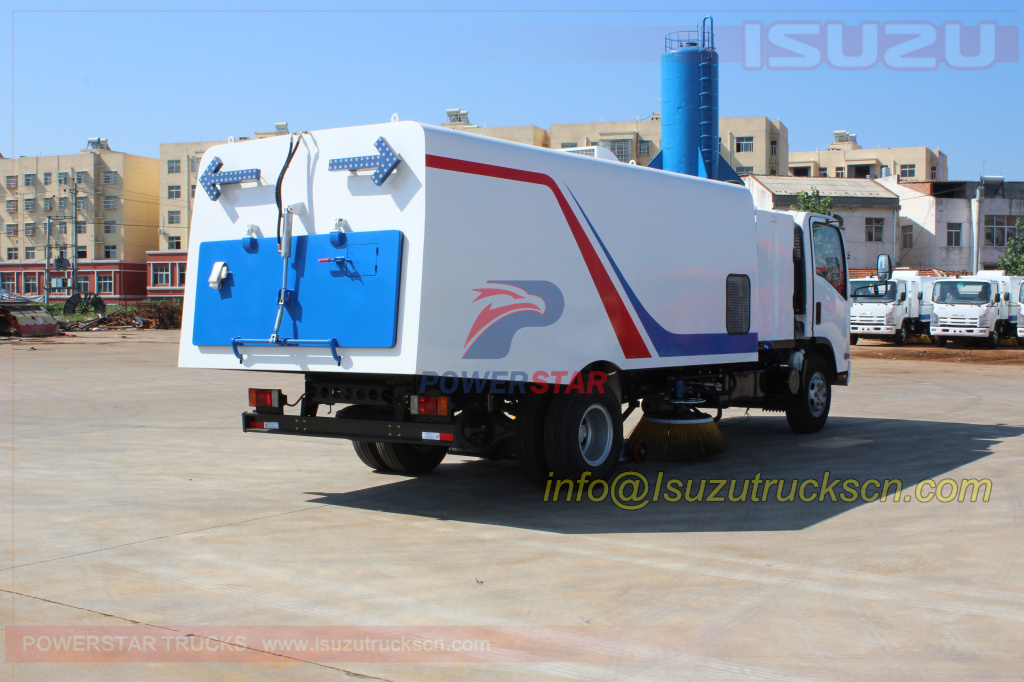

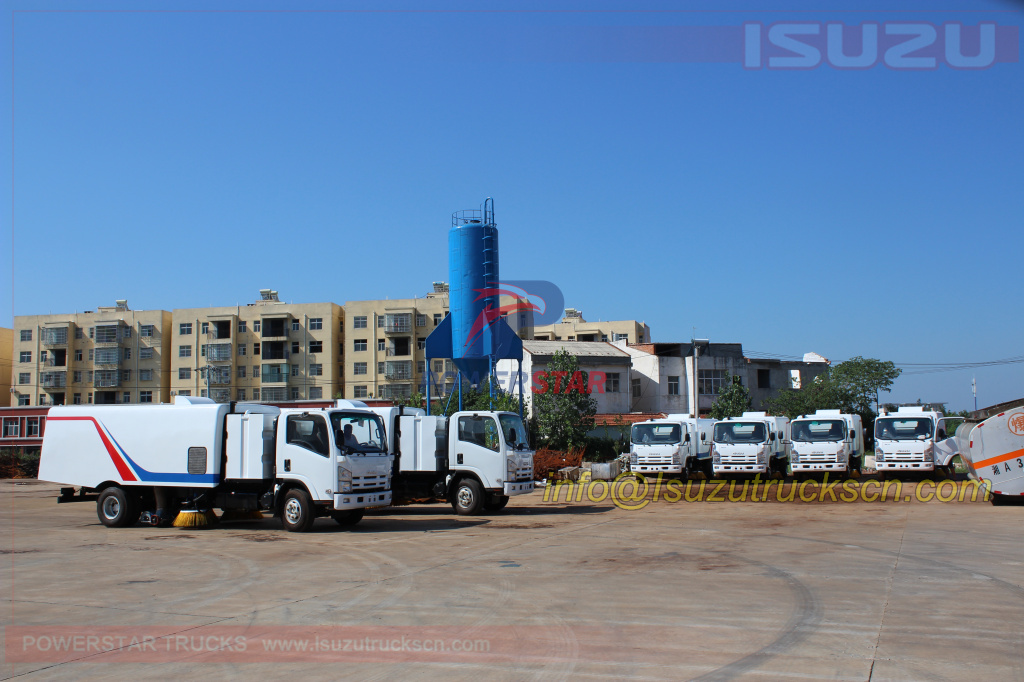

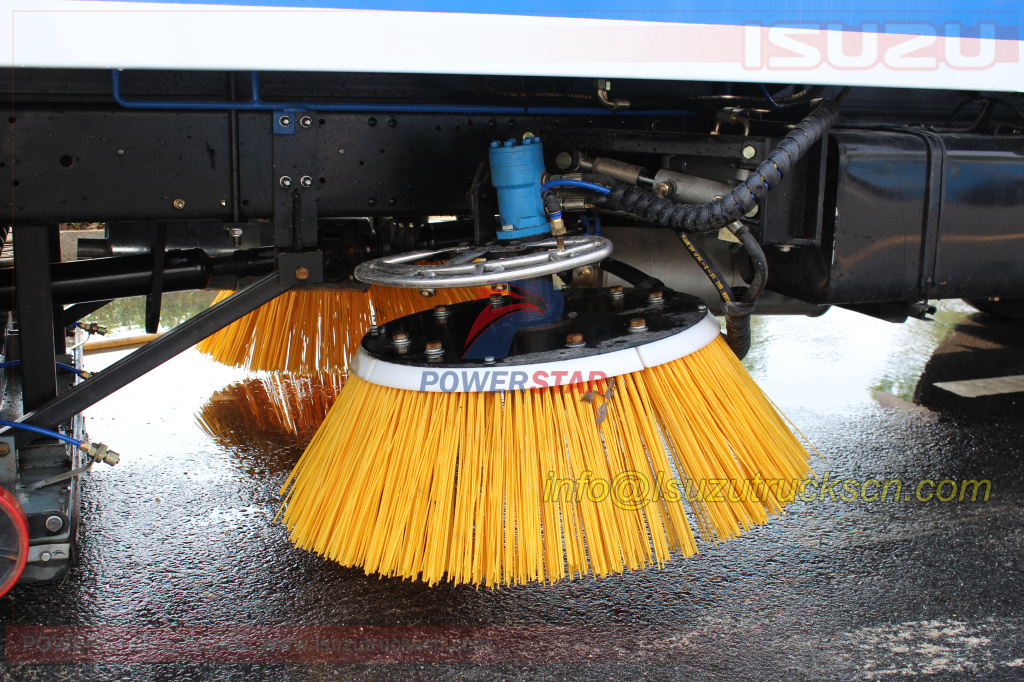

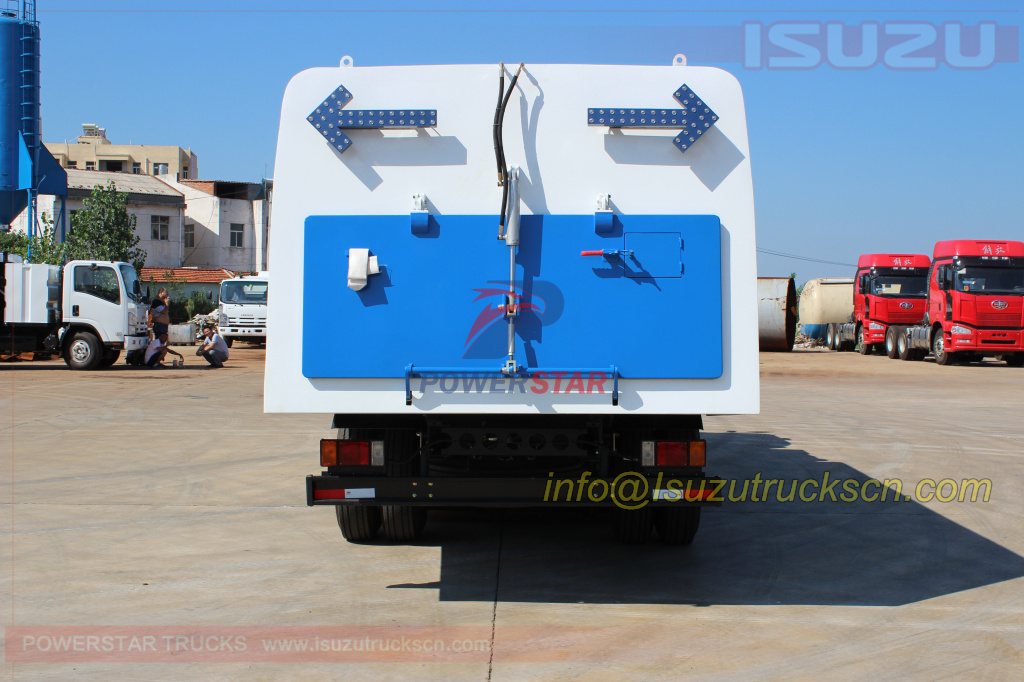

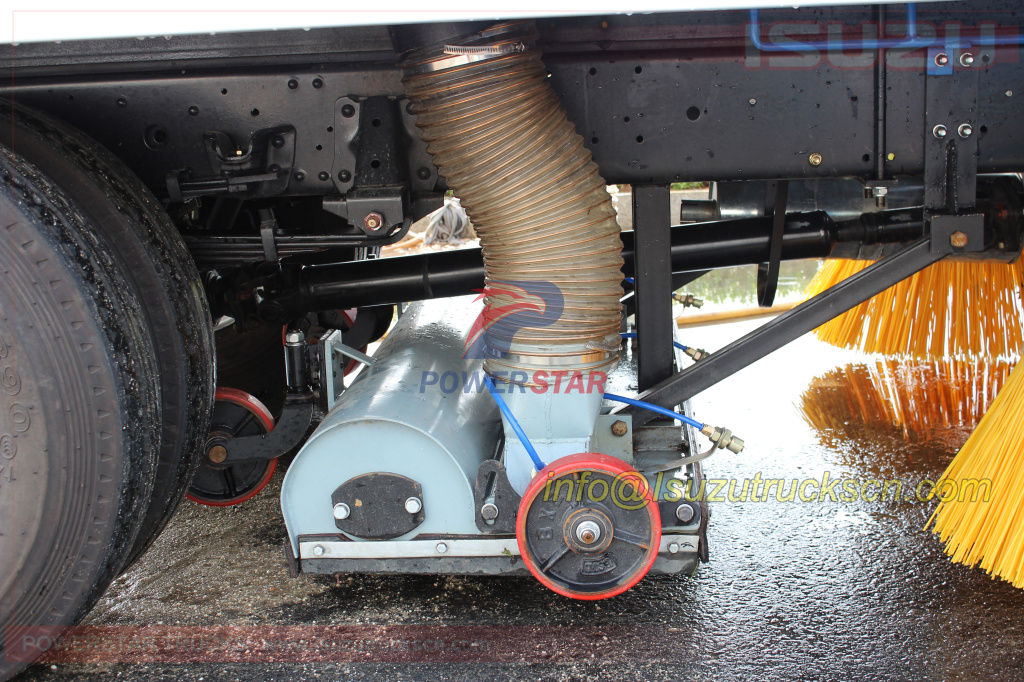

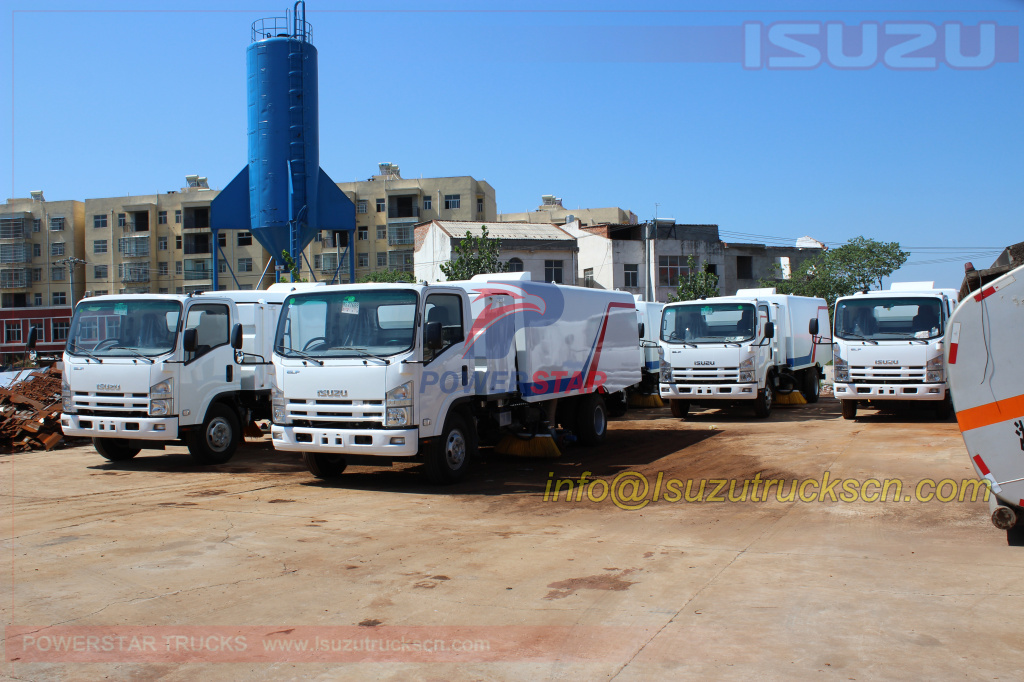

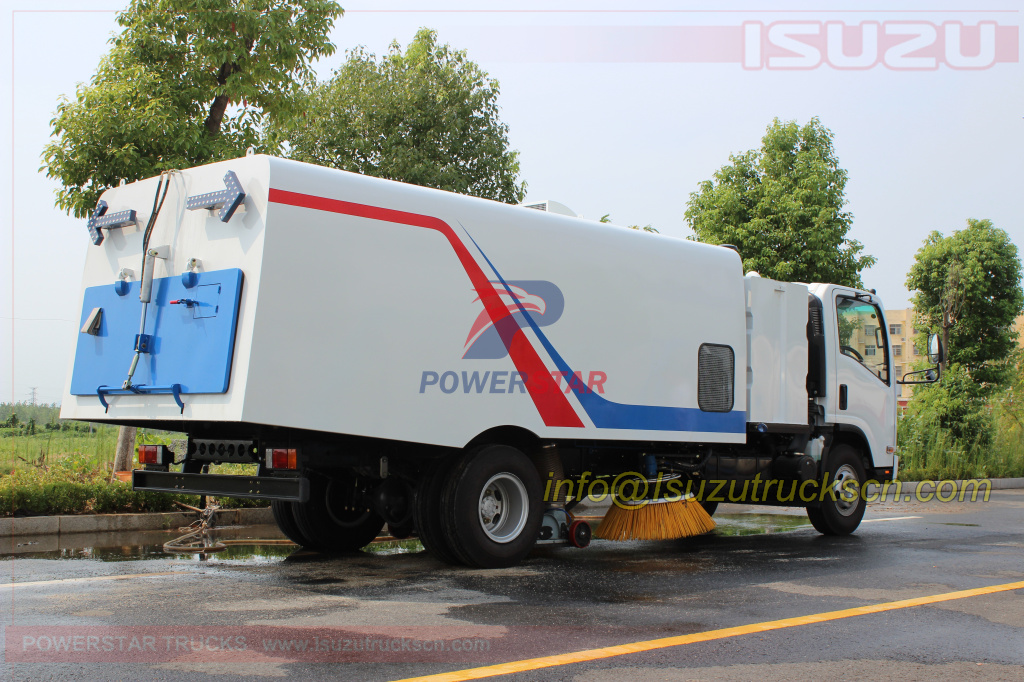

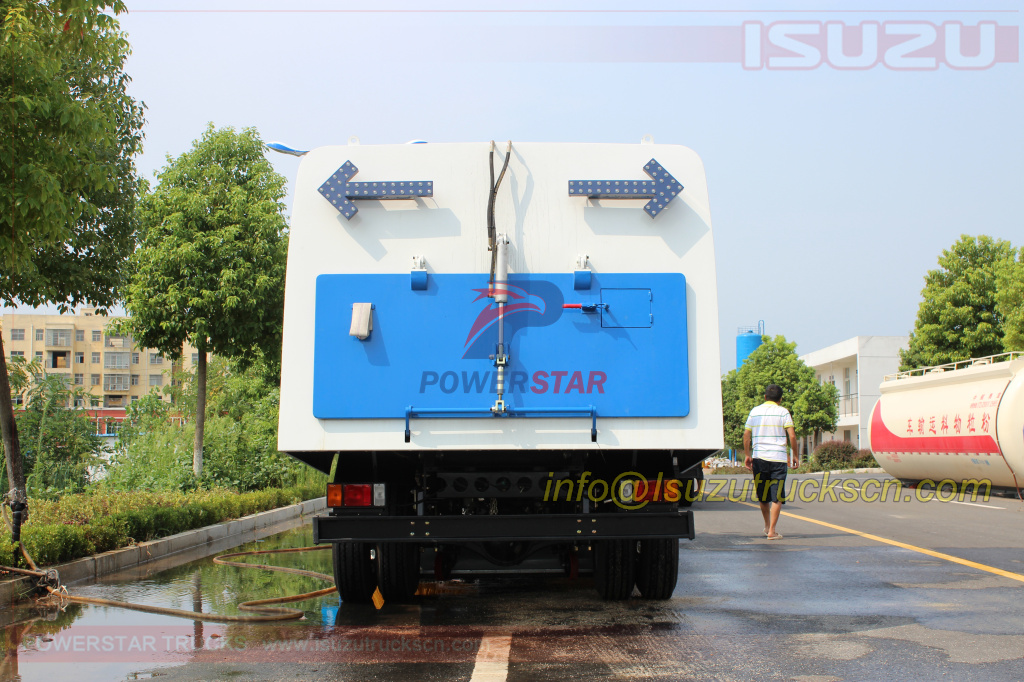

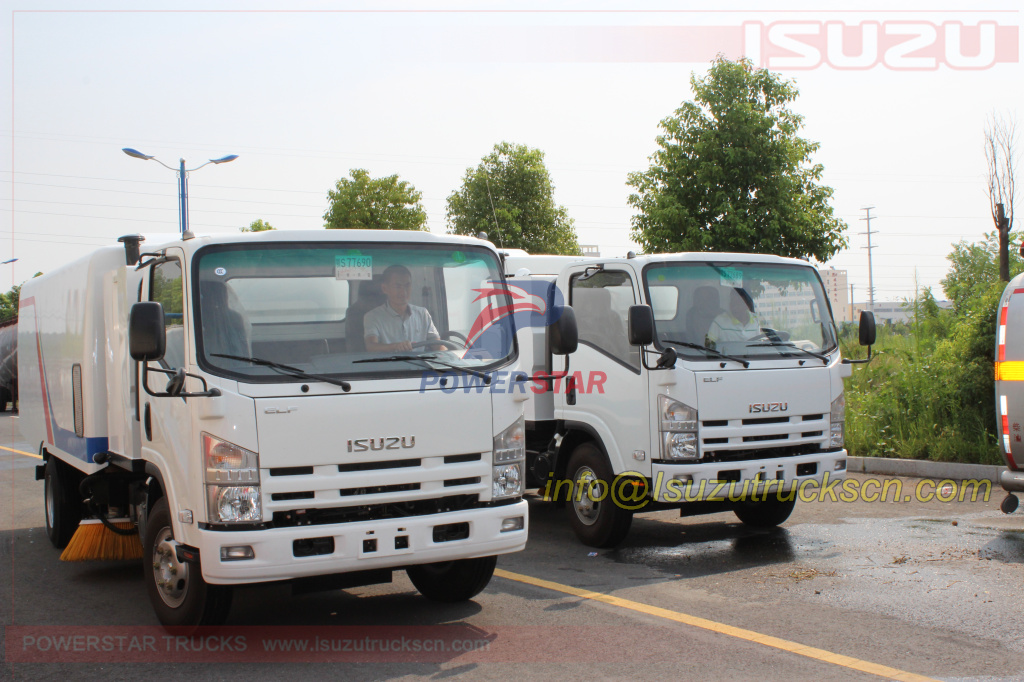

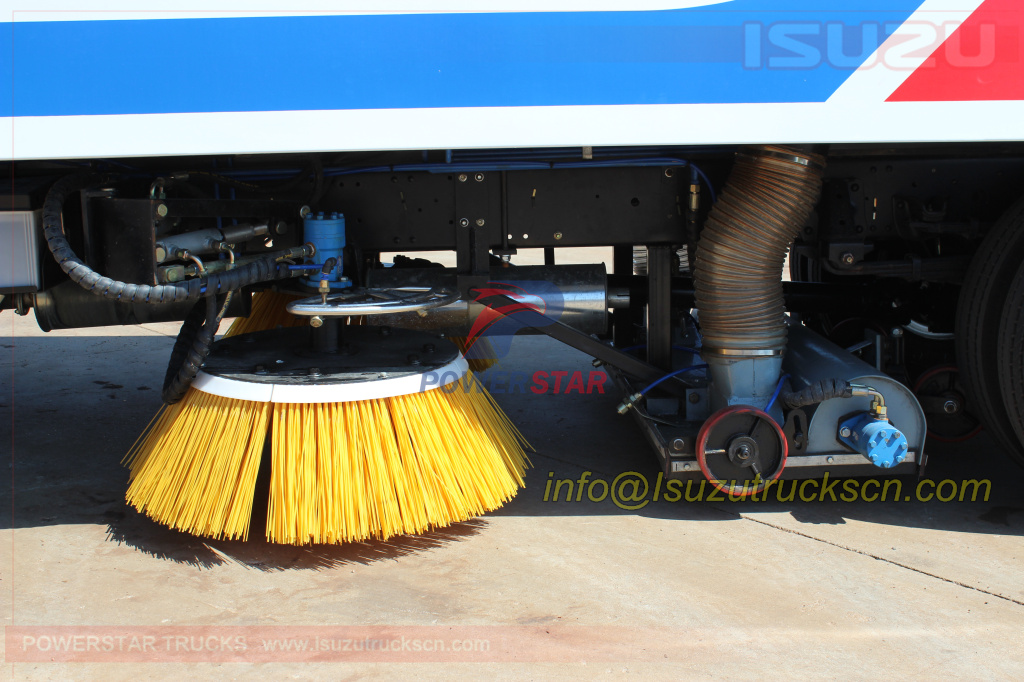

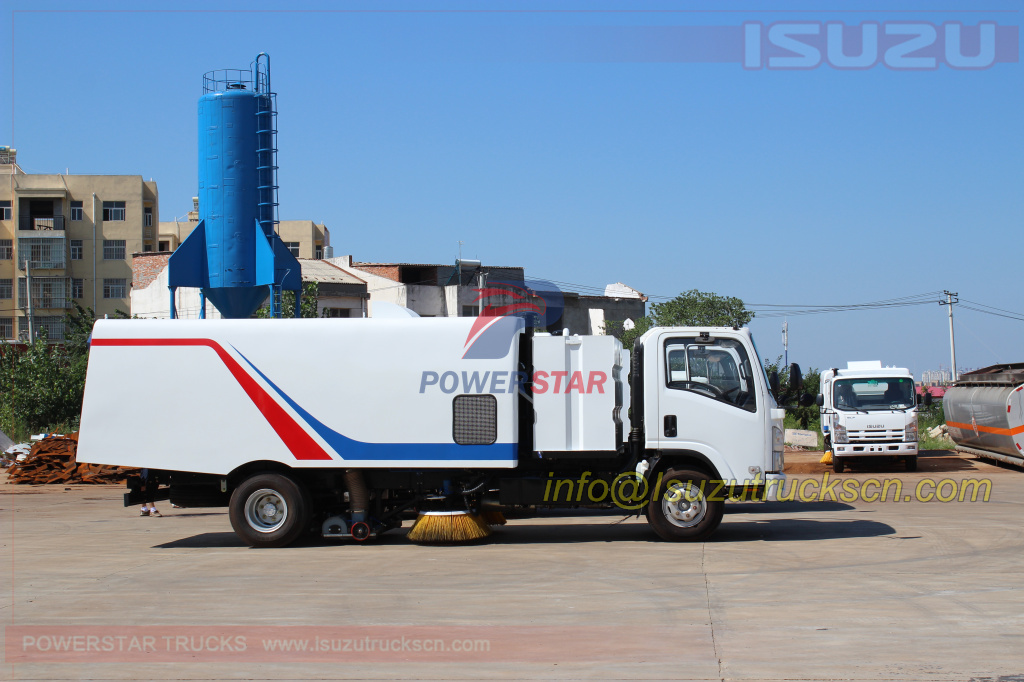

Detail pictures:
