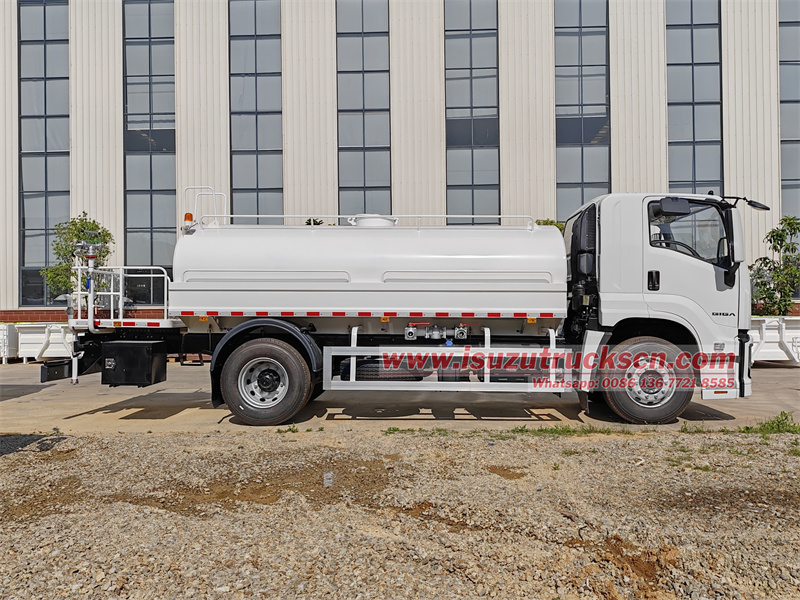

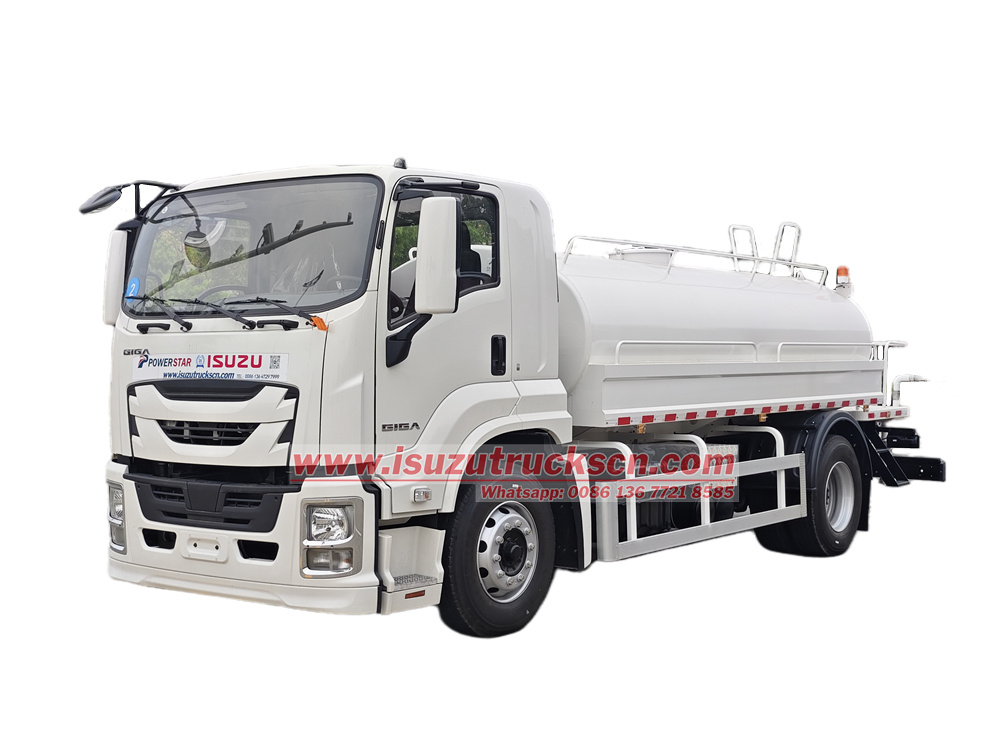

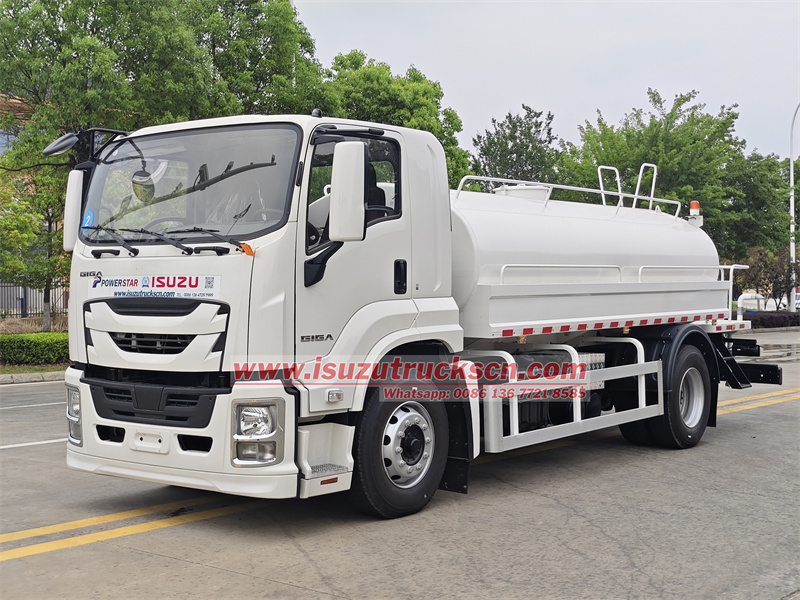

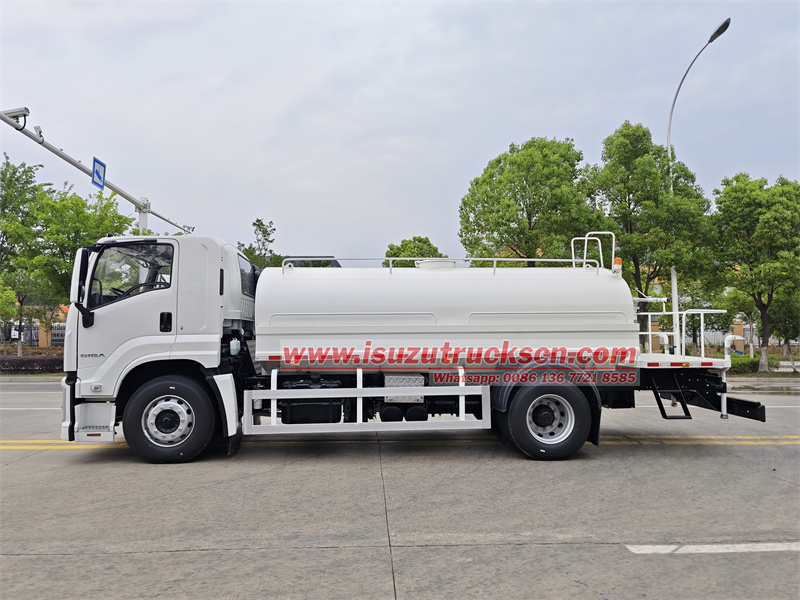

Isuzu 10 cbm water sprinkler truck is modified based on the new FTR GIGA 4X chassis. The half-row cab can accommodate 3 people, and the 4500mm wheelbase ensures stable driving and flexible operation. Equipped with Isuzu 4HK1 - TCG60 205HP engine, it is powerful and fuel-efficient, matched with Isuzu MLD 6-speed gearbox, and the gear shifting is smooth. The upper body is equipped with a 10 cubic meter carbon steel water tank, which is sturdy and durable. The tail is equipped with a working platform with forward rush, rear sprinkler, and rear side spray functions, which can meet various needs such as road dust reduction and greening irrigation. Equipped with Weilong 80QZB - 60/90N self-priming sprinkler pump, it has strong self-priming power, large flow, high head, and efficient and reliable operation.
Manufacturer:
Powerstar TrucksWork capacity:
10cbmDimension:
8570 x 2500 x 3000mmCabin type:
Isuzu FTR GIGA 4X chassis,one and half rowWheelbase:
4500mmEngine power:
205 HP/151kWEngine type:
Isuzu 4HK1-TCG60Axle drive:
4x2,LHDGear box:
Isuzu MLD 6-speed,manualRemarks:
Equipped with WEILONG 80QZB-60/90N self-priming sprinkler pumpAs a professional vehicle widely used in sanitation, municipal administration and other fields, Isuzu 10 cbm water hauling bowser truck has become the first choice of many users for its excellent performance and reliable quality. It is carefully modified by POWERSTAR based on the new Isuzu FTR GIGA 4X chassis, integrating Isuzu's advanced technology and exquisite craftsmanship, showing strong comprehensive strength. The 10 square carbon steel water tank is sturdy and durable, and with the functions of front flushing, rear sprinkling and rear side spraying, it can cope with a variety of operating scenarios. The Weilong self-priming sprinkler pump has excellent performance and ensures efficient watering.
● China best Isuzu water bowser truck factory
● 30 years experience on water sprinkler truck designing
● Professional sales team which will help you to choose suitable truck
● Build strict QC team to guarantee the quality
● Promptly delivery. any order is welcome
|
Product Name |
ISUZU GIGA 10000L Water Bowser Tanker Truck |
||
|
Vehicle Brand Series |
ISUZU |
||
|
Chassis |
Overall dimensions |
8570x2500x3000mm |
|
|
Gross weight |
18000kg |
||
|
Kerb weight |
7340kg |
||
|
Wheelbase |
4500mm |
||
|
Driving type |
4*2,LHD |
||
|
Chassis model |
ISUZU NEW FTR GIGA |
||
|
Front/rear overhang |
1335/2735mm |
||
|
Front/rear track |
1960/1855mm |
||
|
Tire size |
295/80R22.5 |
||
|
Number of Tires |
6+1 |
||
|
Passengers in cab |
3 |
||
|
Gearbox |
Isuzu MLD 6-speed,manual |
||
|
Max speed |
105Km/h |
||
|
Engine |
Engine model |
Isuzu 4HK1-TCG60 |
|
|
Type of fuel |
Diesel, Inline 4-cylinder, 4-stroke, supercharged, intercooled, water-cooled |
||
|
Power |
205 HP/151kW |
||
|
Displacement |
5.193L |
||
|
Rated speed |
2600rpm |
||
|
Max torque |
647N.m |
||
|
Max torque speed |
1600rpm |
||
|
Emission standard |
EURO 6 |
||
|
Water Tanker performance |
Tanker Body |
10,000Liters |
|
|
Body Material |
Carbon Steel |
||
|
Tanker Shape |
Ellipse as standard |
||
|
Water Pump |
China Famous Brand WEILONG 80QZB-60/90N self-priming sprinkler pump |
||
|
Optional Italy, Euro brand |
|||
|
Flow |
60 m³/h |
||
|
Head |
90m |
||
|
Input speed |
1450r/min |
||
|
Self-priming performance |
1.5min/4m |
||
|
Shaft power |
26Kw |
||
|
Washing Width |
≥20 M |
||
|
Washing Speed |
5~20 km/h |
||
|
Rear Nozzle Spray Range |
≥50 M |
||
|
Hose & Hose-carrier |
Factory standard |
||
|
Control Panel |
English |
||
|
Walkway and Hand rail |
Yes |
||
|
Painting |
Two primers, and one final paint coating |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |
"U" shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
|
Optional equipment |
1. Stainless steel tank, Aluminum alloy tank |
||
★ Excellent chassis performance, strong and stable power

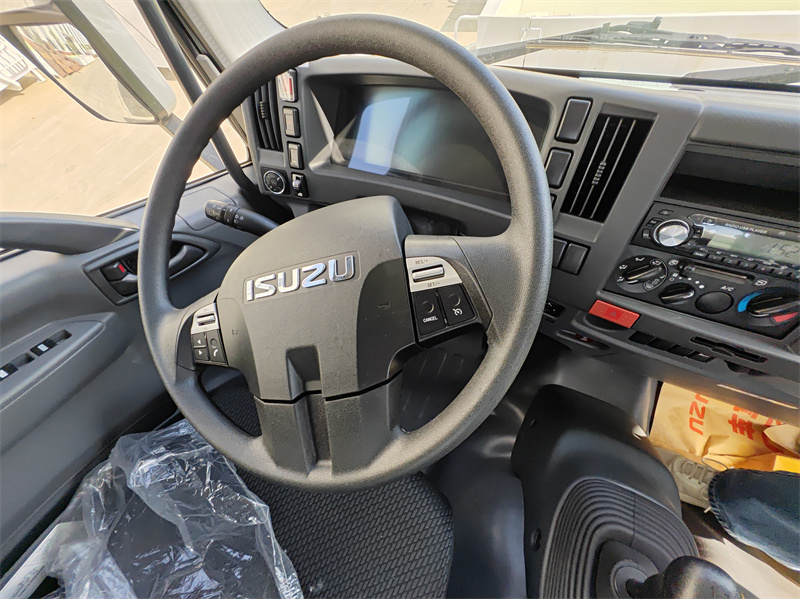

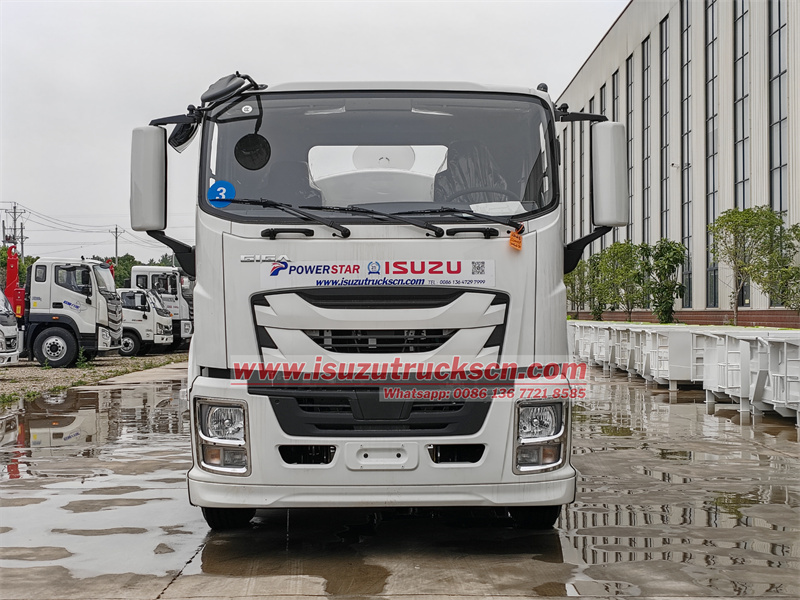

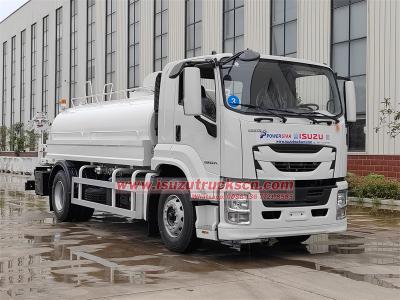

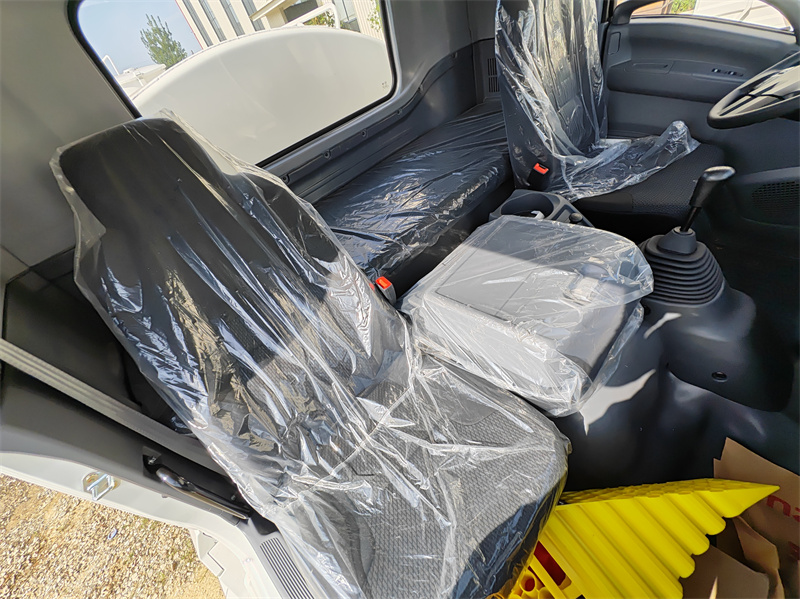

The ISUZU GIGA 10000L Water Bowser Tanker Truck adopts Isuzu's new FTR GIGA 4X chassis, with a half-row cab design that can accommodate 3 people, providing a spacious and comfortable driving space for drivers and staff. The 4500mm wheelbase not only ensures the stability of the vehicle's driving, but also makes the vehicle more flexible and free when turning, turning, etc.
In terms of power, it is equipped with Isuzu's original 4HK1-TCG60 inline four-cylinder diesel engine with a displacement of 5.2L and a maximum power of 205 horsepower (151kW). It can burst out a maximum torque of 647N.m at 1600-2600rpm. This engine adopts a high-pressure common rail fuel injection system and turbocharged intercooling technology. It not only has strong power output, but also excellent fuel economy, meeting the National VI emission standards. The matching Isuzu MLD 6-speed gearbox has smooth shifting and convenient operation, which further improves the driving comfort and vehicle handling.
★ The upper part is reasonably designed, Diverse in functions.

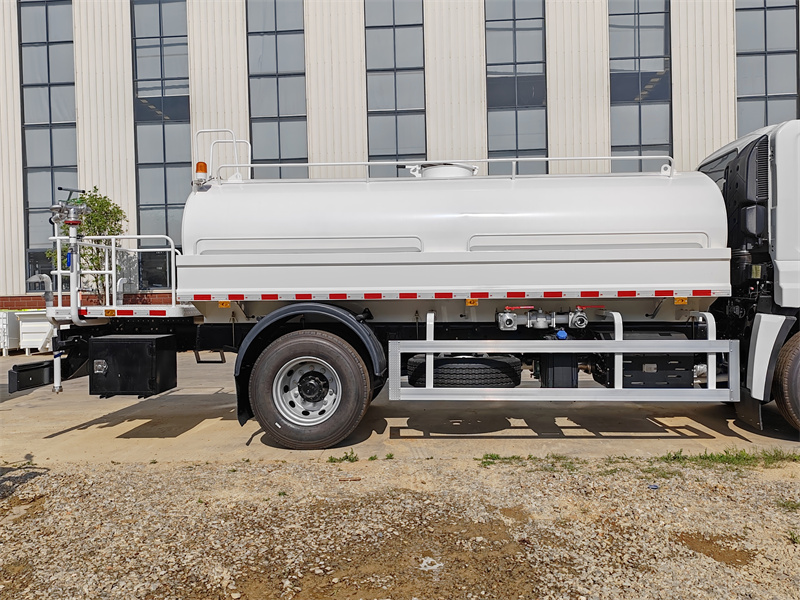

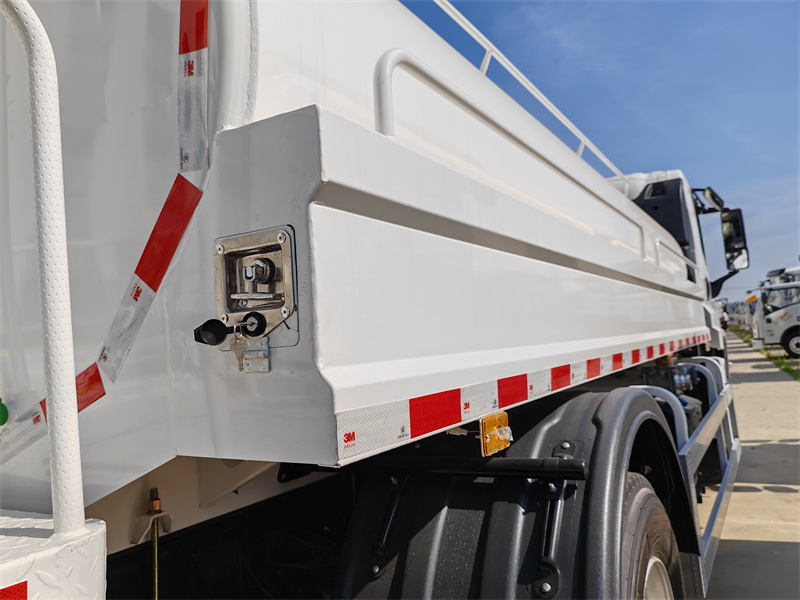

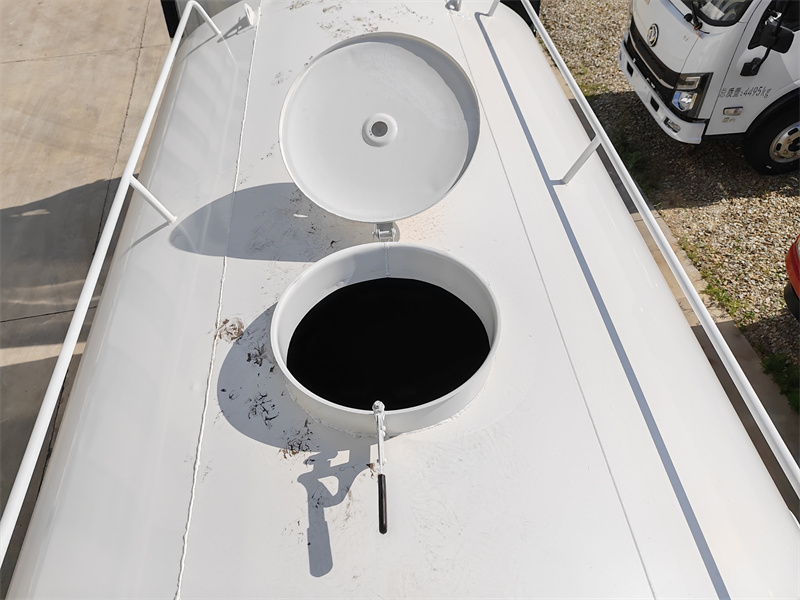

The upper part is a 10-cubic-meter carbon steel water tank. The carbon steel material has good strength and corrosion resistance, which can ensure that the water tank will not leak, rust or other problems during long-term use, ensuring the reliability and safety of the watering operation. A wave-breaking plate is set inside the tank to reduce the shaking of the water body during vehicle driving and improve driving stability. The capacity of the water tank is reasonably designed to meet daily watering needs without affecting the maneuverability of the vehicle due to its large size.

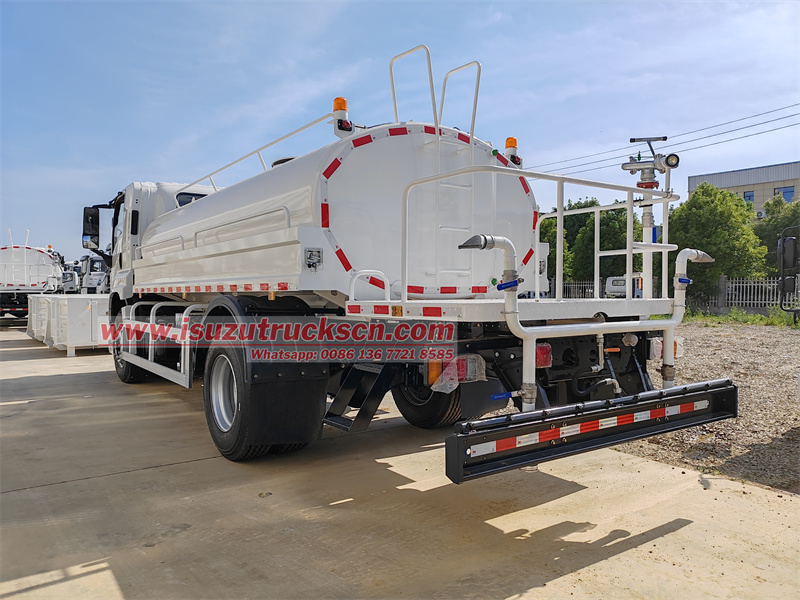

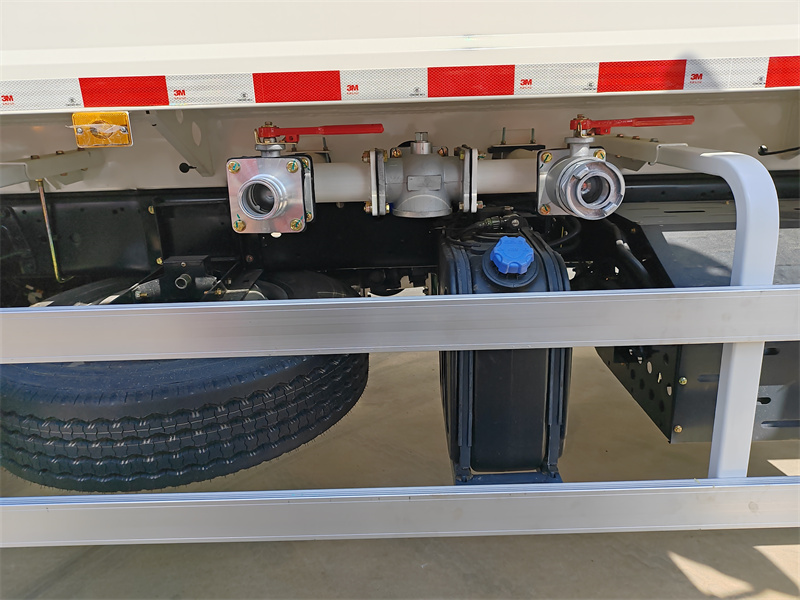

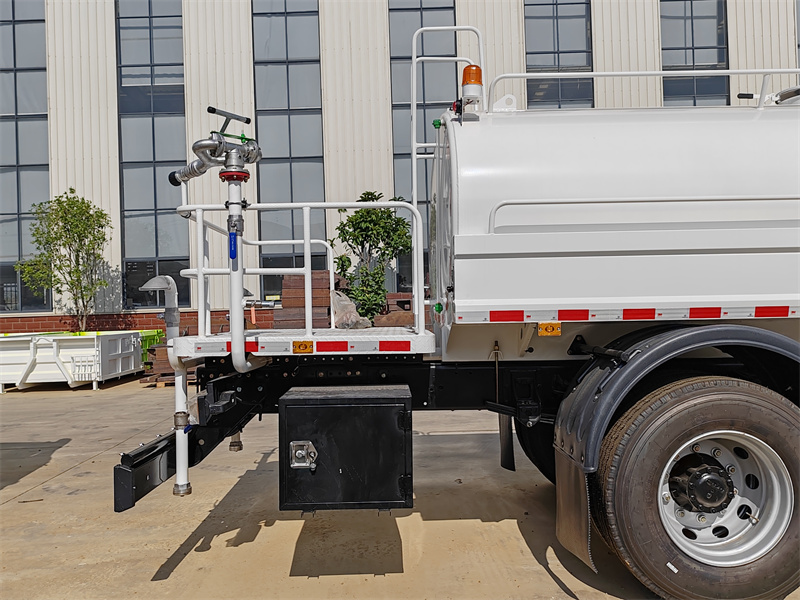

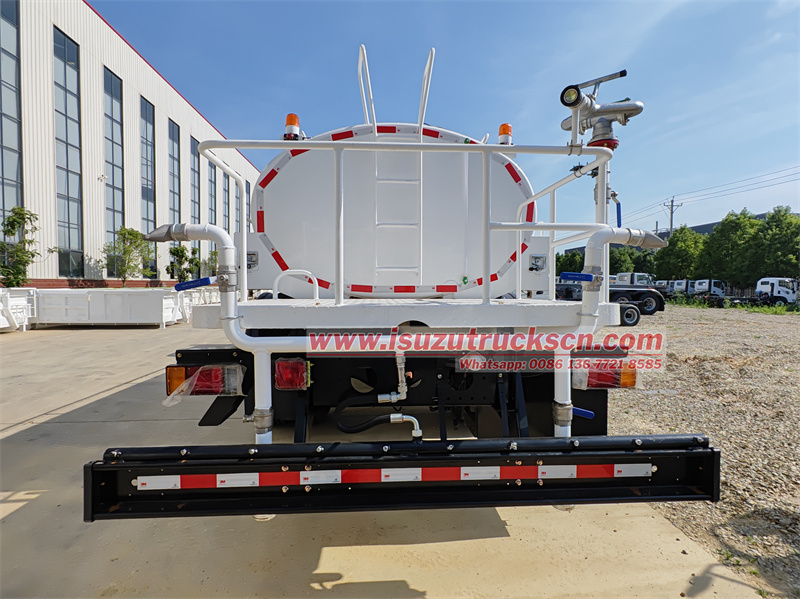

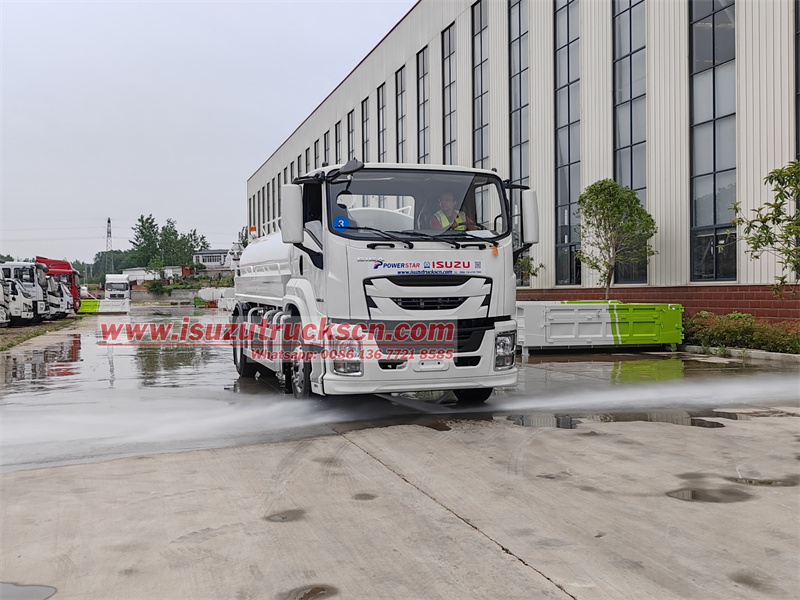

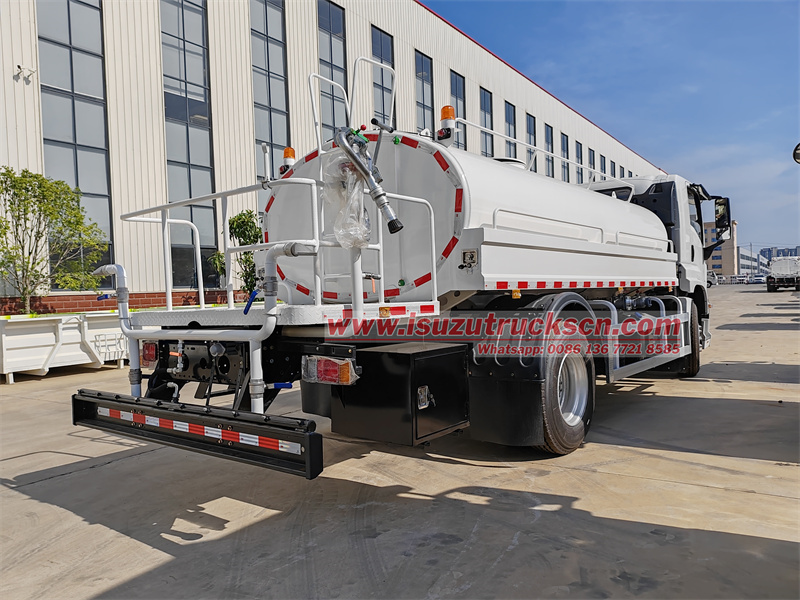

A working platform is set at the rear of the vehicle to facilitate operation and maintenance by staff. At the same time, the Isuzu New FTR 10cbm water tanker truck has multiple functions such as front flushing, rear sprinkling, and rear side spraying. The front flushing function uses high-pressure water flow to effectively wash away stubborn stains on the road surface; the rear side spraying function can spray the road surface evenly in a large area in a fan-shaped manner, which is suitable for road dust reduction and cooling; the rear sprinkling function can be used for irrigation of green belts to provide sufficient water for plants. The whole vehicle spraying system is easy and reliable to operate, and the water spraying width and flow rate can be adjusted according to actual needs to achieve refined operations.
★ The water sprinkler pump has excellent performance and operates efficiently and reliably

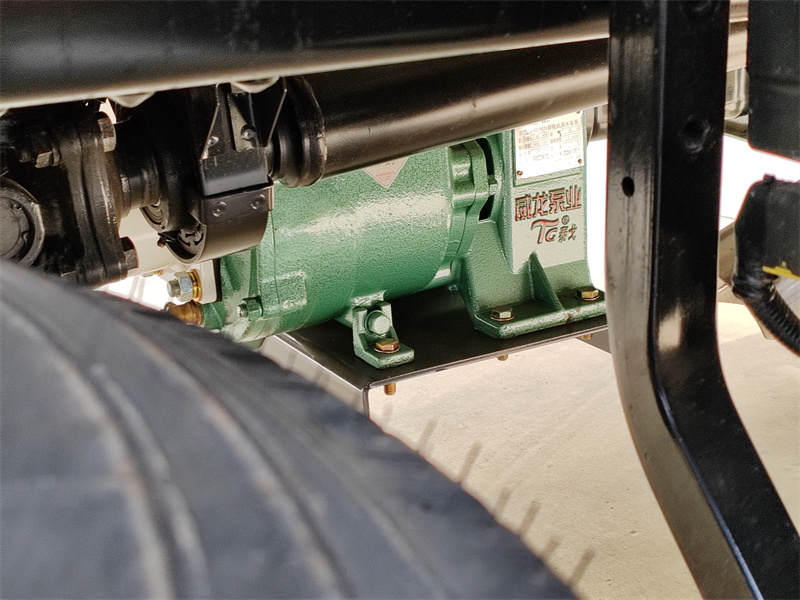

The equipped Weilong 80QZB - 60/90N self-priming water sprinkler pump is one of the core components of the Isuzu FTR GIGA 10cbm water spray truck. This sprinkler pump has the advantages of strong self-priming ability, large flow rate and high head. The self-priming ability enables the sprinkler pump to quickly suck water into the water tank without external water diversion, which improves the operation efficiency. The design of 60 m³/h large flow rate ensures the coverage area and uniformity of the sprinkler operation, and can complete the sprinkler task of a large area in a short time. The 90m high head allows the sprinkler truck to transport water to a higher position to meet the sprinkler needs of some special scenes, such as cleaning of high-rise buildings and watering of trees.
★ Excellent performance: efficient and reliable city guard

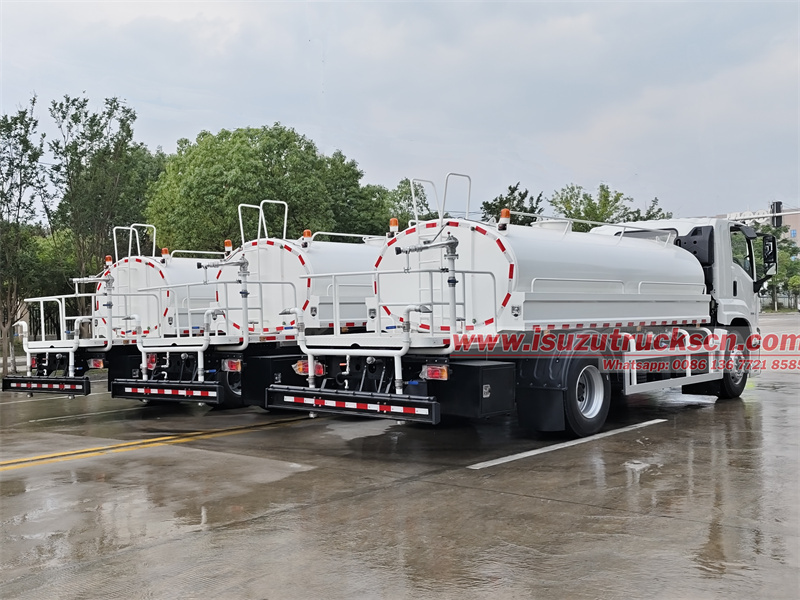

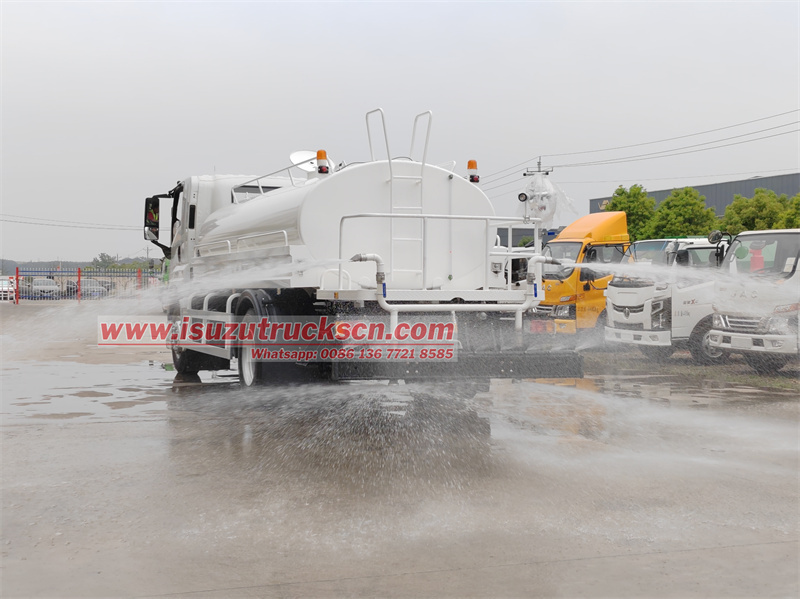

In actual operation, the Isuzu GIGA 4X2 10CBM water sprinkler vehicle has shown many excellent performances: its maximum sprinkler width can reach more than 20 meters, and the pressure of front rush and rear sprinkler is large, which can meet the cleaning needs of various intensities. The water tank adopts a large volume design, and a single water filling can cover a longer operating distance, reduce the number of round-trip water filling, and improve work efficiency. It is widely used in various scenarios such as urban road washing, dust reduction and cooling, landscaping irrigation, emergency fire fighting water supply, etc.
