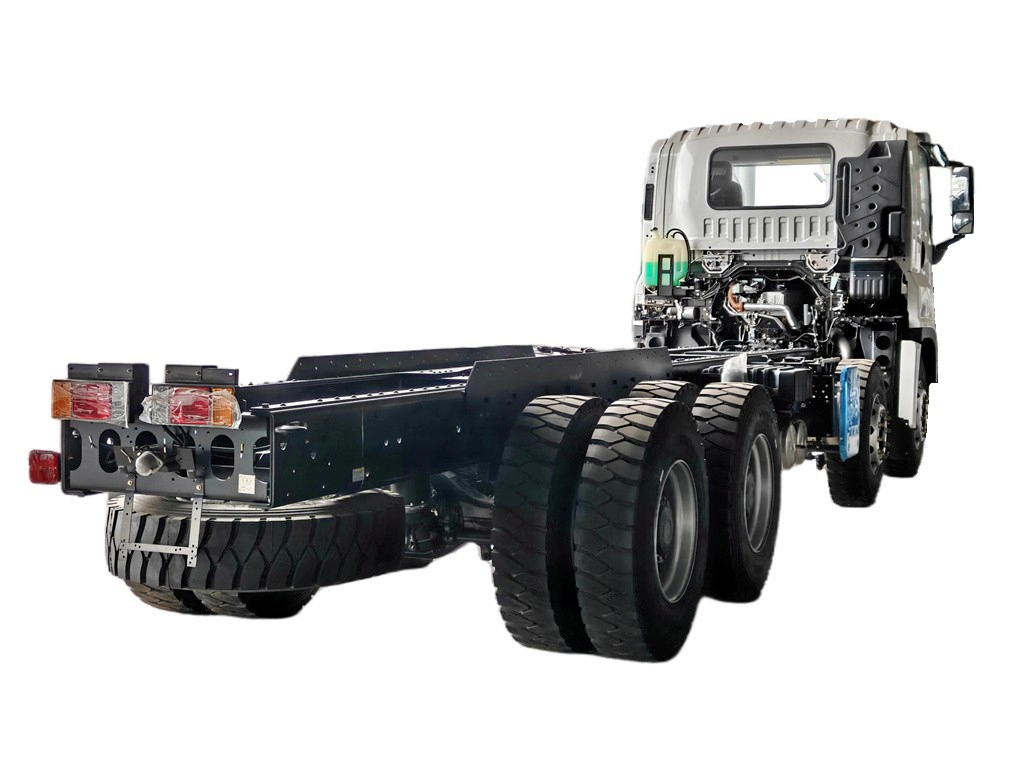

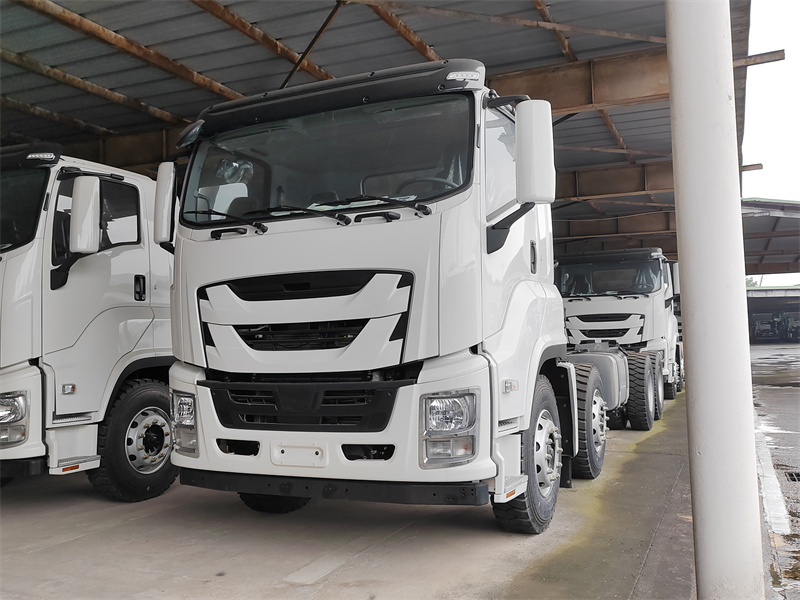

Isuzu GIGA 8x4 chassis, extended cab, 2100+4325+1370mm wheelbase, 9000/9000/26000kg front/rear axles, ZF 12TX2420TD automatic transmission, Isuzu 6WG1-TCG62 engine, 12R22.5 tires, 400L fuel tank, maximum speed 85km/h.
Manufacturer:
Powerstar TrucksWork capacity:
30～40 tonsDimension:
10965 × 2540 × 3010 mmCabin type:
Isuzu GIGA 8X4 cab,with A/CWheelbase:
2100+4325+1370 mmEngine power:
382Kw / 520HPEngine type:
Isuzu 6WG1-TCG62Axle drive:
8x4Gear box:
ZF 12TX2420TD automatic transmissionThis Isuzu 12 wheeler rigid truck with AMT transmission is a top-of-the-line modification platform designed for demanding engineering projects and heavy-duty transportation. It features a 460-horsepower Isuzu 6WG1 engine and a ZF AMT transmission, delivering powerful and reliable performance. With a front 9+9 ton and rear 26-ton axle and a three-section wheelbase design, it offers a load capacity of up to 40 tons, making it suitable for heavy-duty superstructures such as concrete mixer trucks, truck-mounted cranes, fire trucks and wrecker trucks.
▶ Features:
★ Isuzu GIGA 8X4 type,ZF Automatic transmission
★ Isuzu 6WG1 520HP engine
★ Payload capacity 30-40 tons
★ Suitable for modification of various special vehicles
▶ Product Parameters:
|

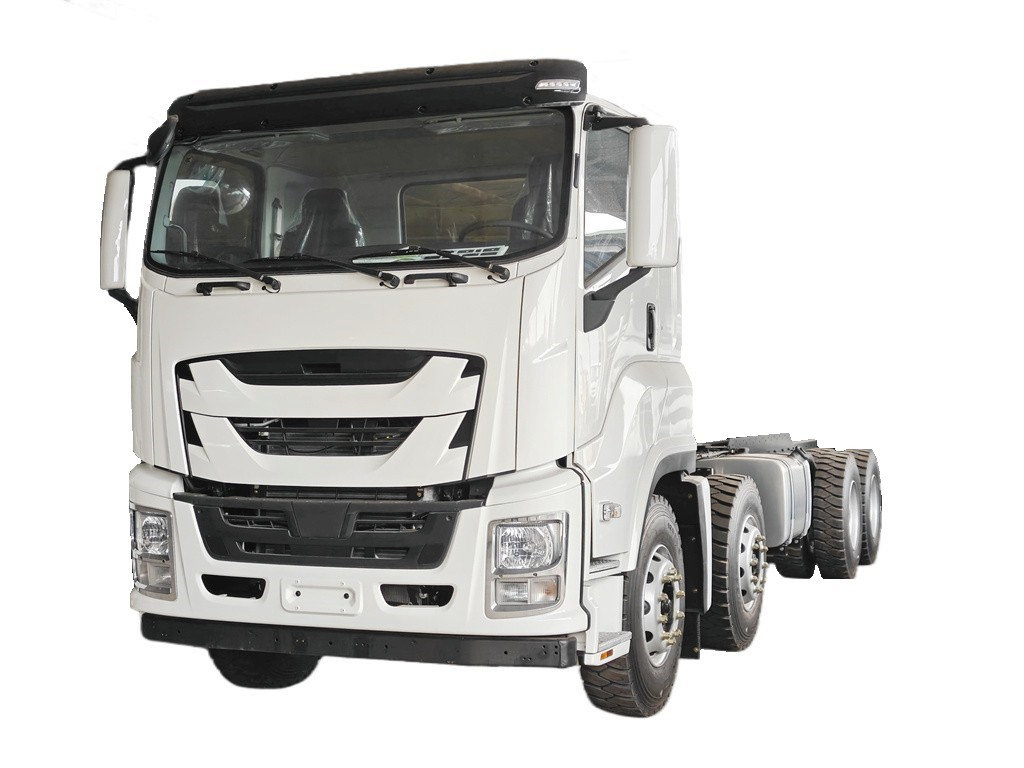

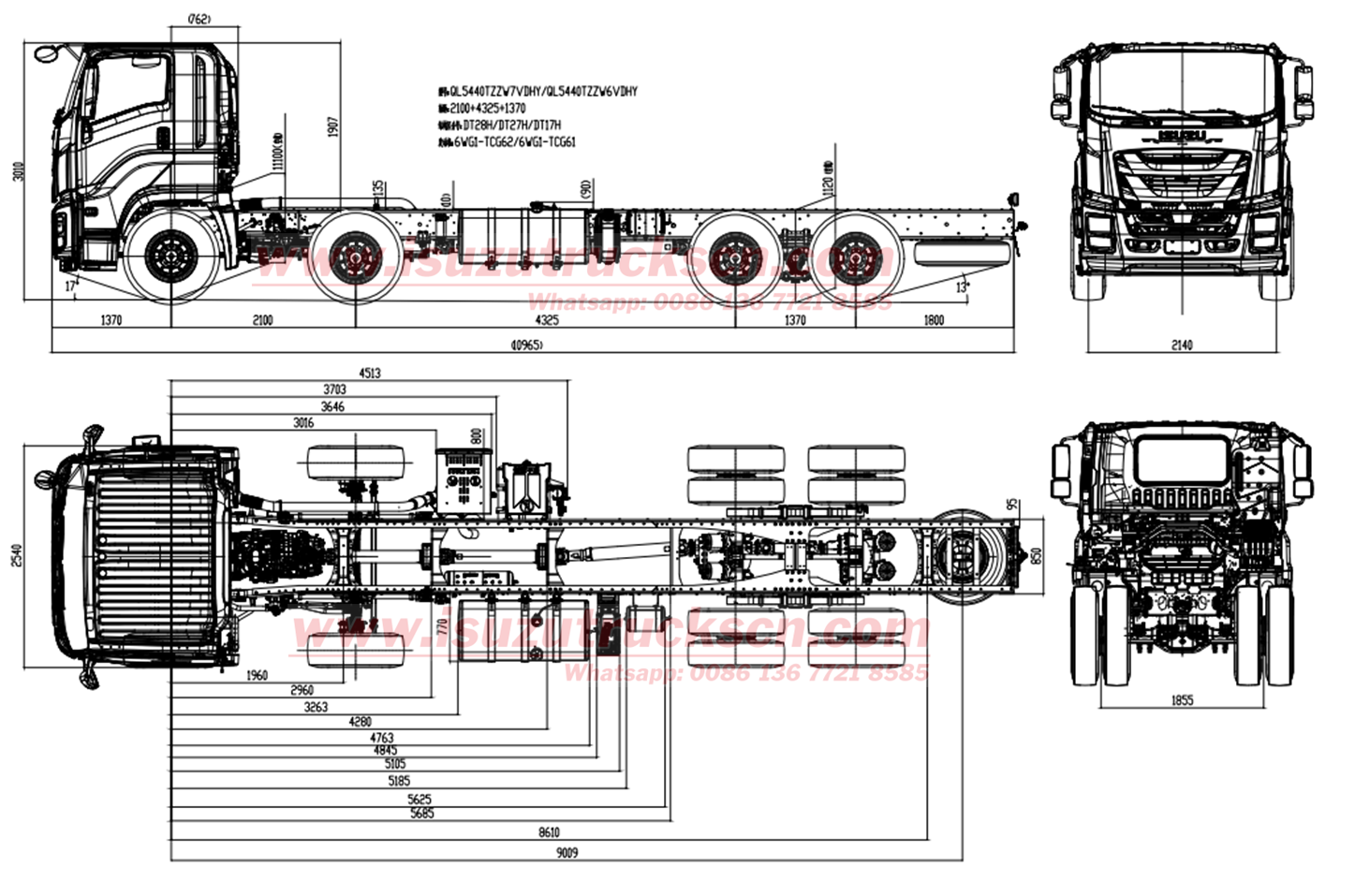

Isuzu 8x4 cargo truck with Automatic transmission |
||
|
Vehicle Model: |
PT5440DHY |
|
|
Dimensions and Parameters |
Overall Dimension(L x W x H) |
10965×2540×3010mm |
|
Wheelbase: |
2100+4325+1370mm |
|
|
Front /Rear track: |
2140/1855mm |
|
|
Front/Rear Suspension: |
1370/1800mm |
|
|
Approach/Departure angle: |
17/24° |
|
|
Weights and Capacities |
GVW: |
44000kg |
|
Curb Weight: |
10690kg |
|
|
Payload: |
30～40T |
|
|
Axle Loads: |
9000/9000/ 26000(2 axles)kg |
|
|
Engine |
Engine Model: |
Isuzu 6WG1-TCG62 |
|
Type: |
Inline six-cylinder, water-cooled, direct-injection, high-pressure common rail, turbocharged intercooled diesel engine with SCR+DPF |
|
|
Max output: |
382Kw/520HP |
|
|
Max Torque |
2256N·m |
|
|
Max Torque speed |
900-1300rpm |
|
|
Rated speed |
1800rpm |
|
|
Displacement: |
15681ml |
|
|
Transmission |
Transmission: |
ZF 12TX2420TD Automatic |
|
Clutch |
Model: |
Φ430 pull clutch |
|
Operation method |
Hydraulic control system with pneumatic assistance, diaphragm spring clutch. |
|
|
Front and Rear Axles |
Front Axle: |
HDZ9.5t (Front Drum) |
|
Leaf Spring Suspension |
4/4 |
|
|
Rear Axle: |
HDZ300 (Hande Drum Type Dual Rear Axle, Single Axle Load 13t) |
|
|
Leaf Spring Suspension: |
5 |
|
|
Brake |
Service Braking System Type: |
Dual-circuit air brake |
|
Parking Braking System Type: |
Spring-charged air brake |
|
|
Auxiliary Braking System Type: |
Engine exhaust brake |
|
|
ABS |
||
|
Chassis |
Drive Type: |
8x4 |
|
Cab |

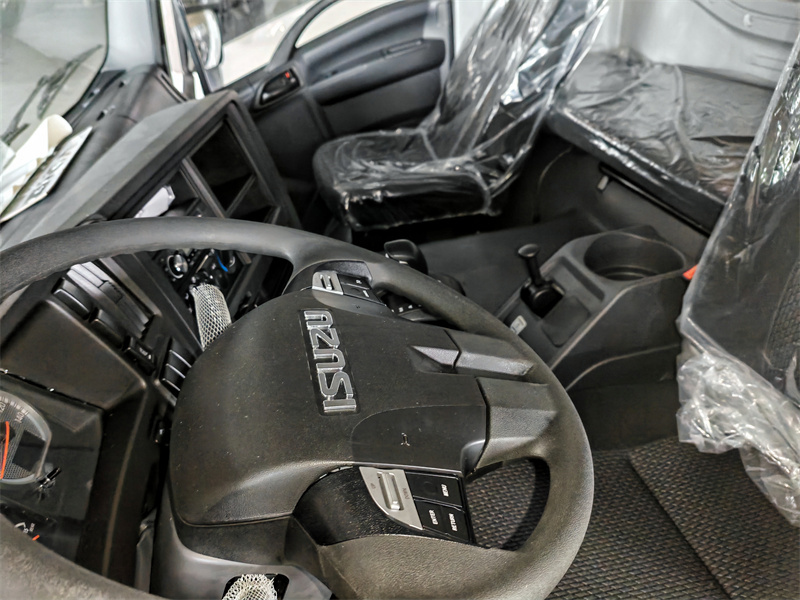

One and half row,with A/C,USB,direction assistance,Electric tilt |
|
|
Tires: |
12 (Including Spare Tire) |
|
|
Tire Model: |

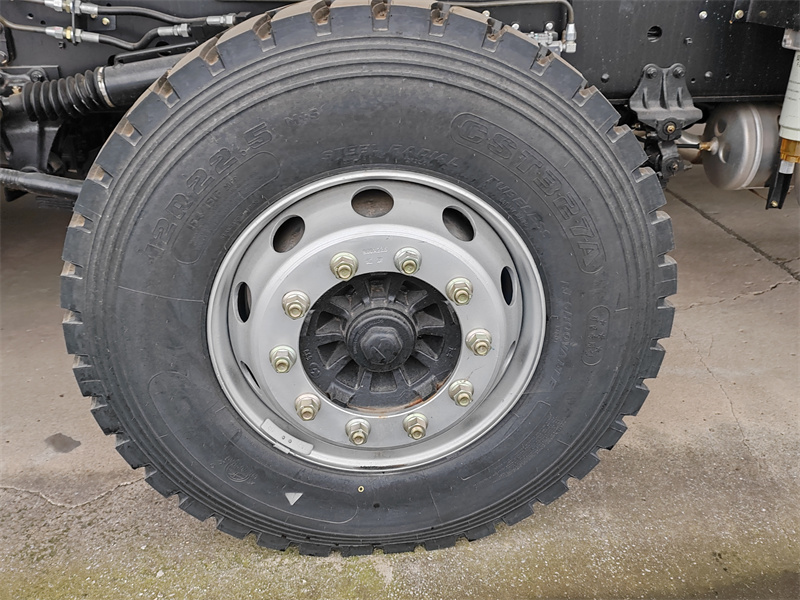

12R22.5-20PR |
|
|
Max speed |
85km/h |
|
|
Full-load climbing ability |
≥30% |
|
|
Minimum turning radius |
12m |
|
|
Minimum ground clearance |
265mm |
|
|
Fuel Tank |
Number: |
1 |
|
Capacity: |
400L, Optional 600L |
|
|
Electrical System |
Generator Power: |
24V 60Ah |
|
Battery: |
24V-120Ah battery (2 in series), 150Ah or 180Ah optional |
|
|
Other: |
24V DC outlet inside |
|
▶ Chassis System:

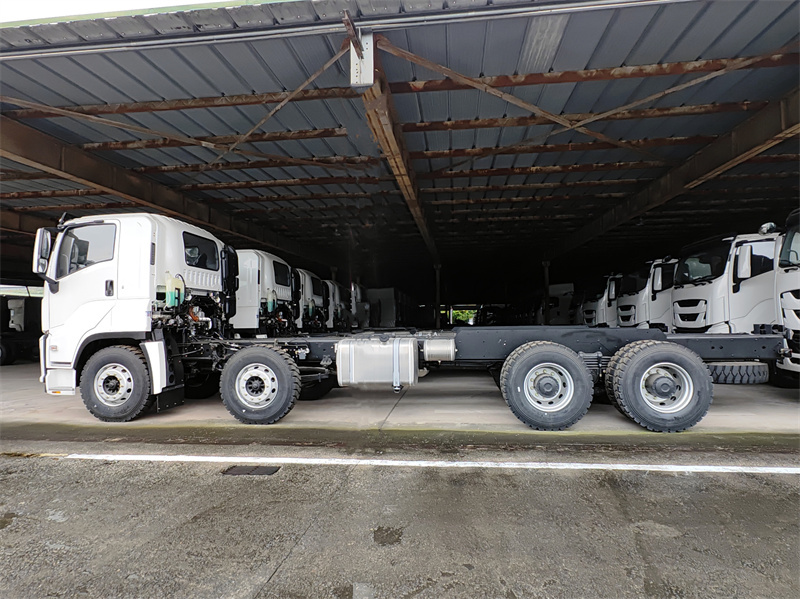

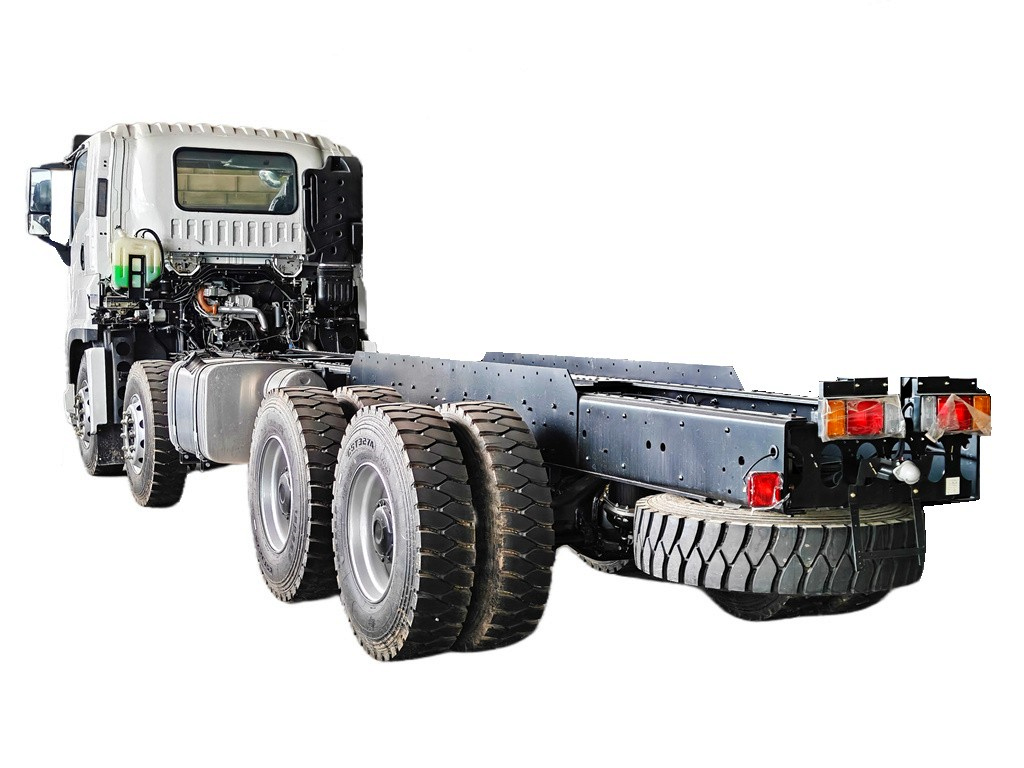

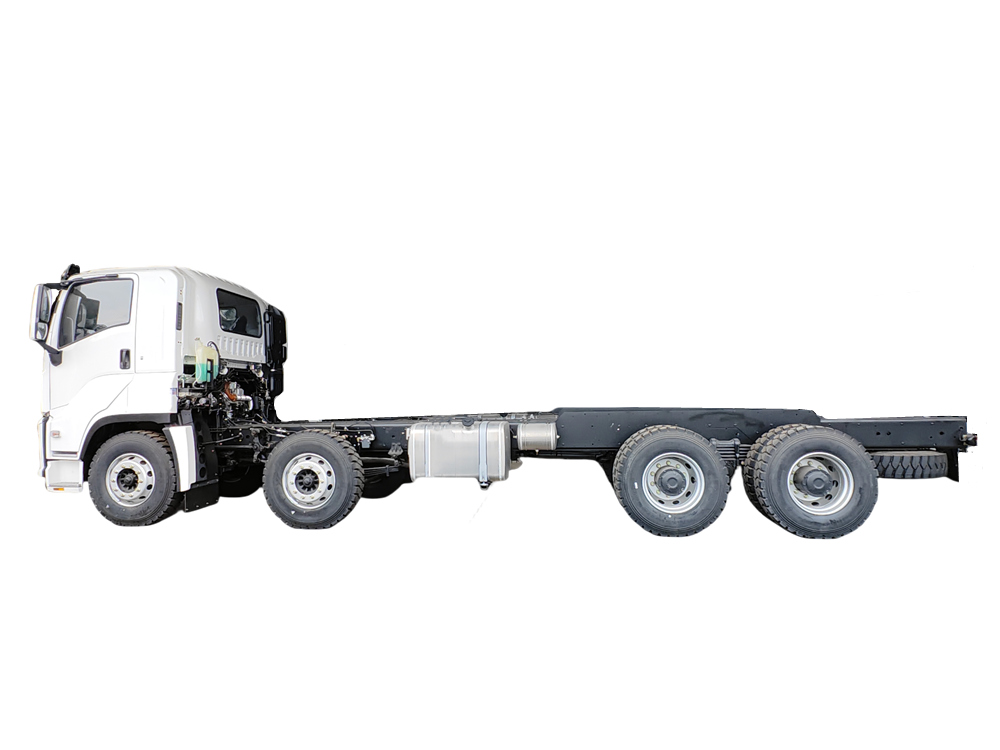

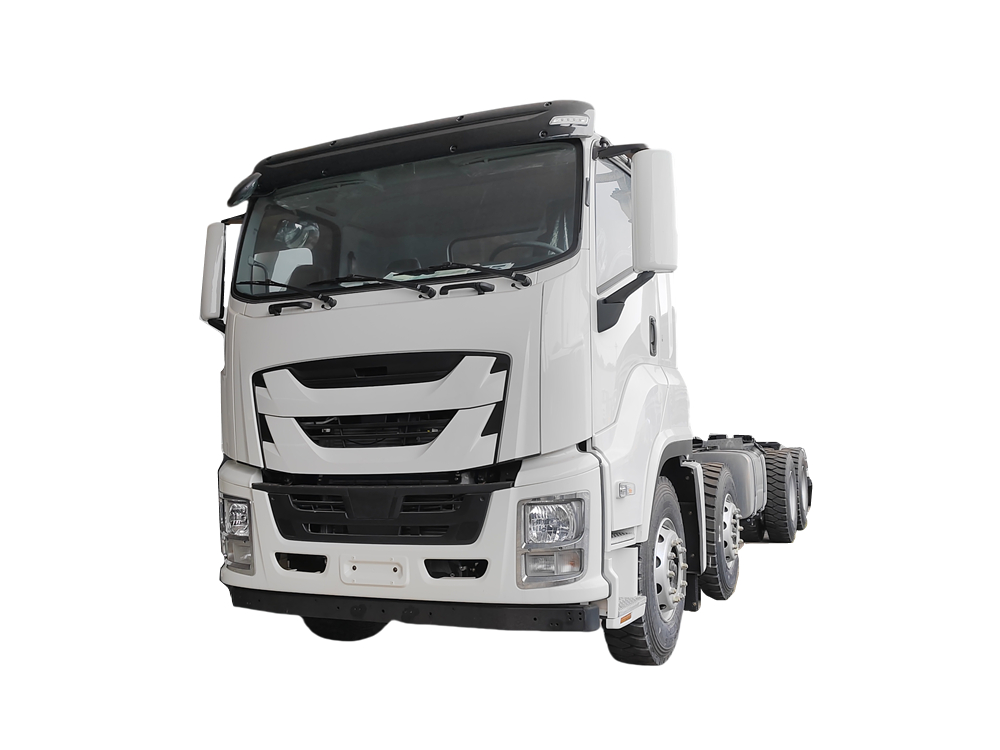

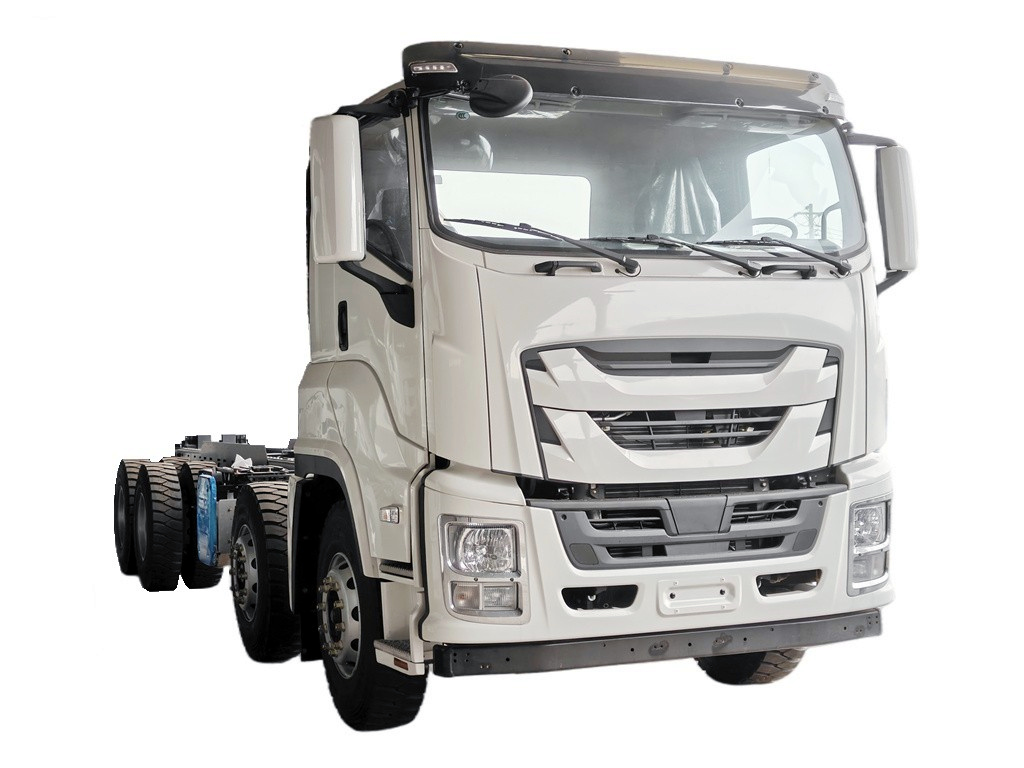

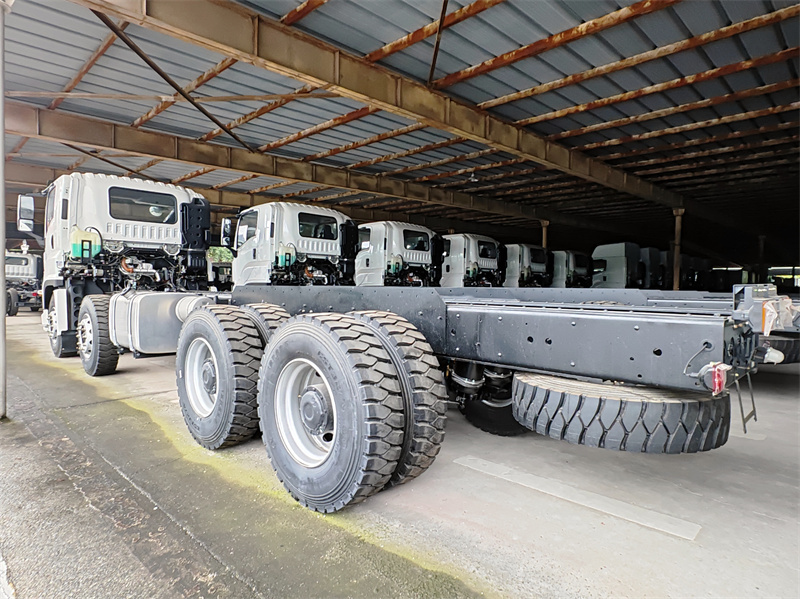

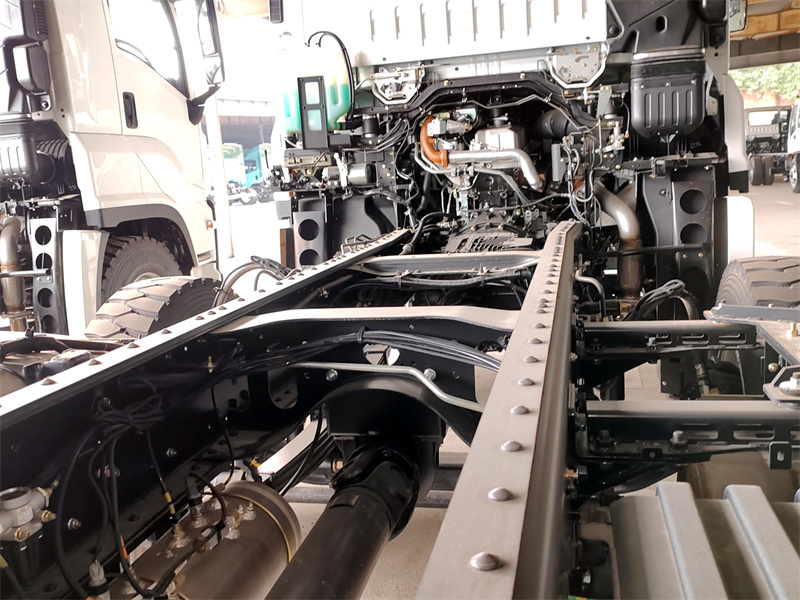

• Vehicle Type: Isuzu GIGA 8X4 Heavy-Duty Truck Chassis, Extended Cab, 8×4 Drive
• Wheelbase: 2100 + 4325 + 1370mm
• Front and Rear Axle Load Capacity: 9000/9000/26000 (Dual Rear Axles) kg, with superior load-bearing capacity suitable for heavy-duty transport.
• Curb Weight: 10690kg, capable of carrying a 35-ton load.
• Maximum Speed: 85km/h
• Fuel Tank Capacity: 400L

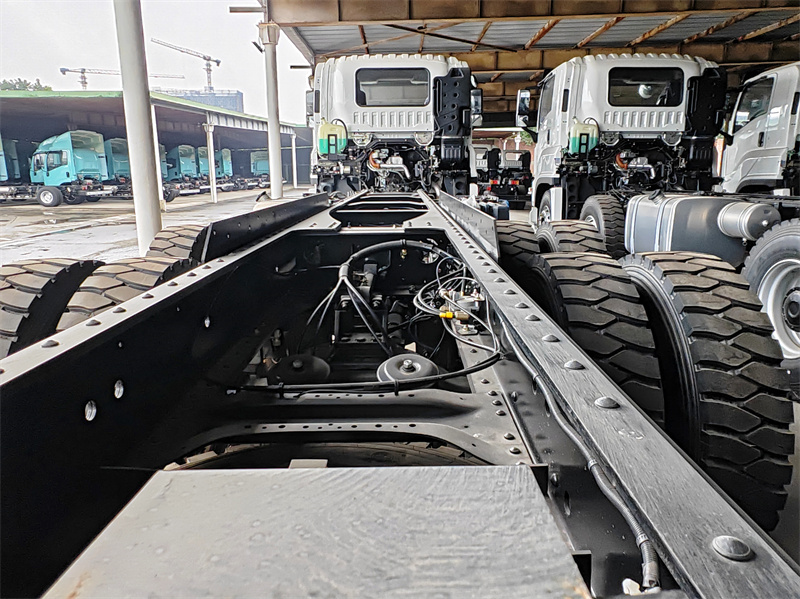

• Chassis Suspension: High-strength leaf spring suspension, providing strong load-bearing capacity and excellent impact resistance.
▶ Powertrain System:
• Engine: Isuzu 6WG1-TCG62
o Type: Inline six-cylinder diesel engine
o Performance: 520HP/382Kw, 2256 Nm torque, rated speed 1800rpm
o Displacement: 15.6 liters, Euro 6 emission standard
o Technical features: Turbocharged intercooled, high-pressure common rail fuel system
• Transmission: ZF 12TX2420TD

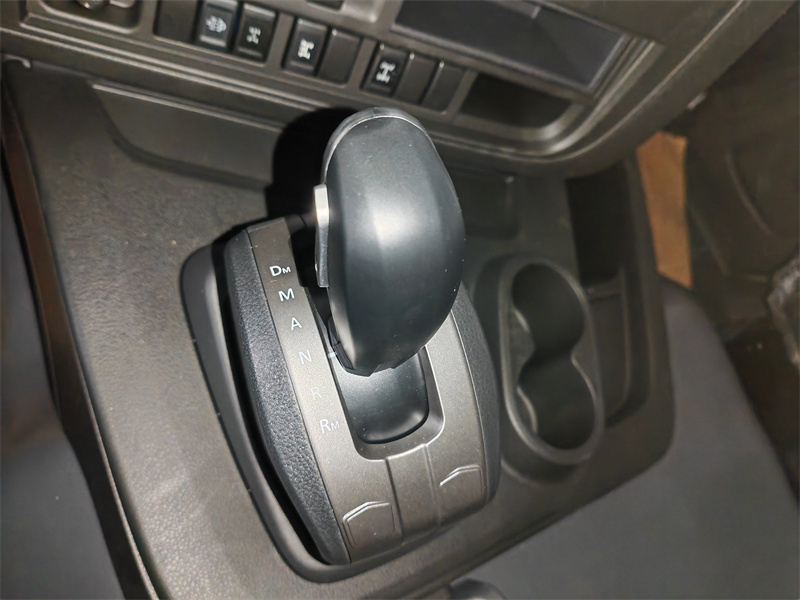

o Type: 12-speed automatic transmission (AMT), quick and smooth shifting, intelligently matches power demand

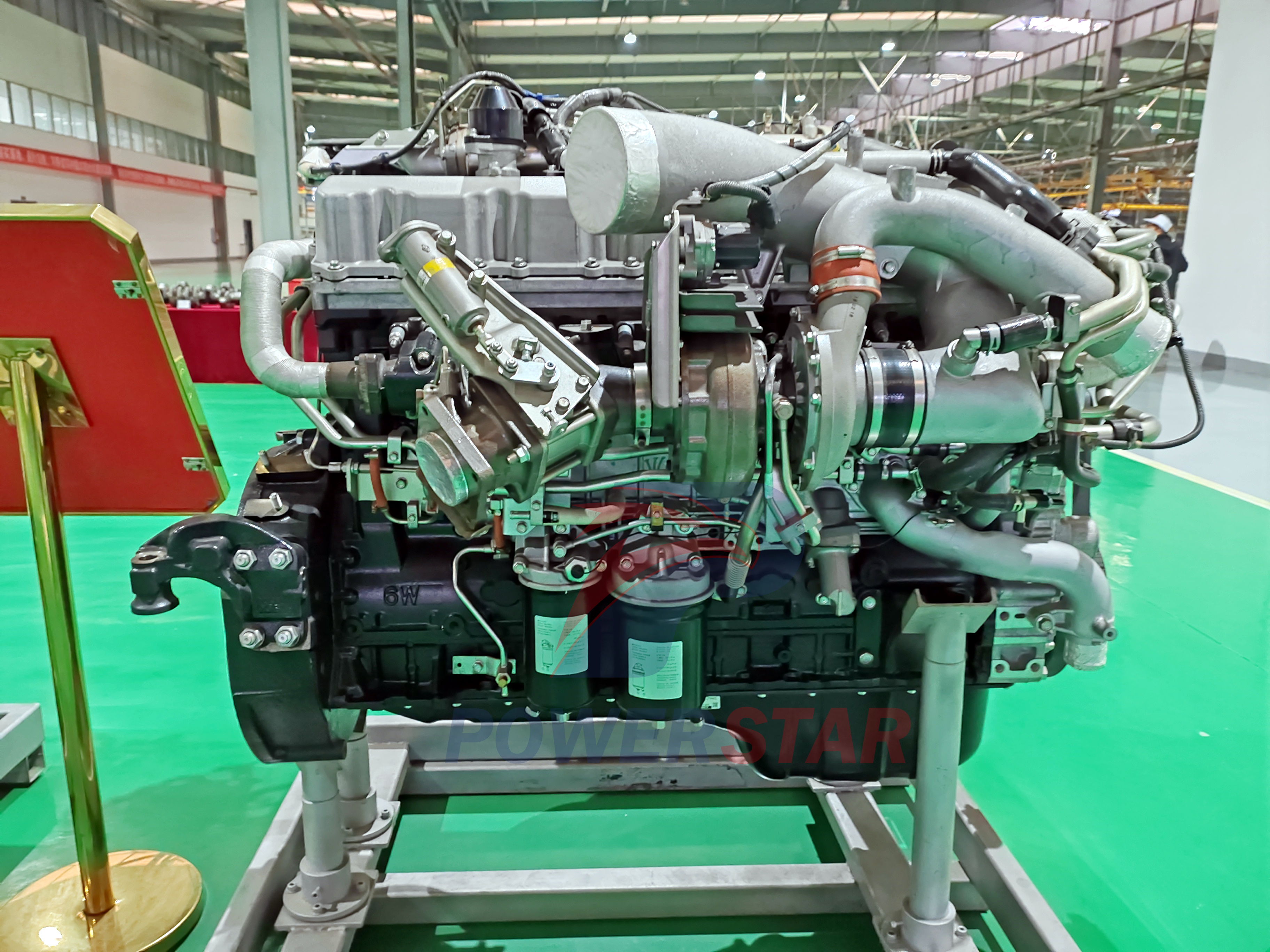

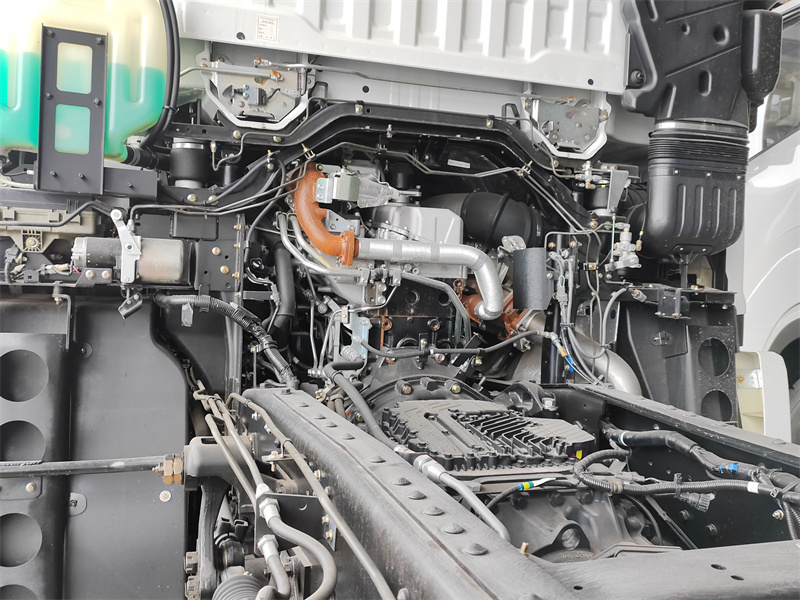

ISUZU 6WG1-TCG62 engine

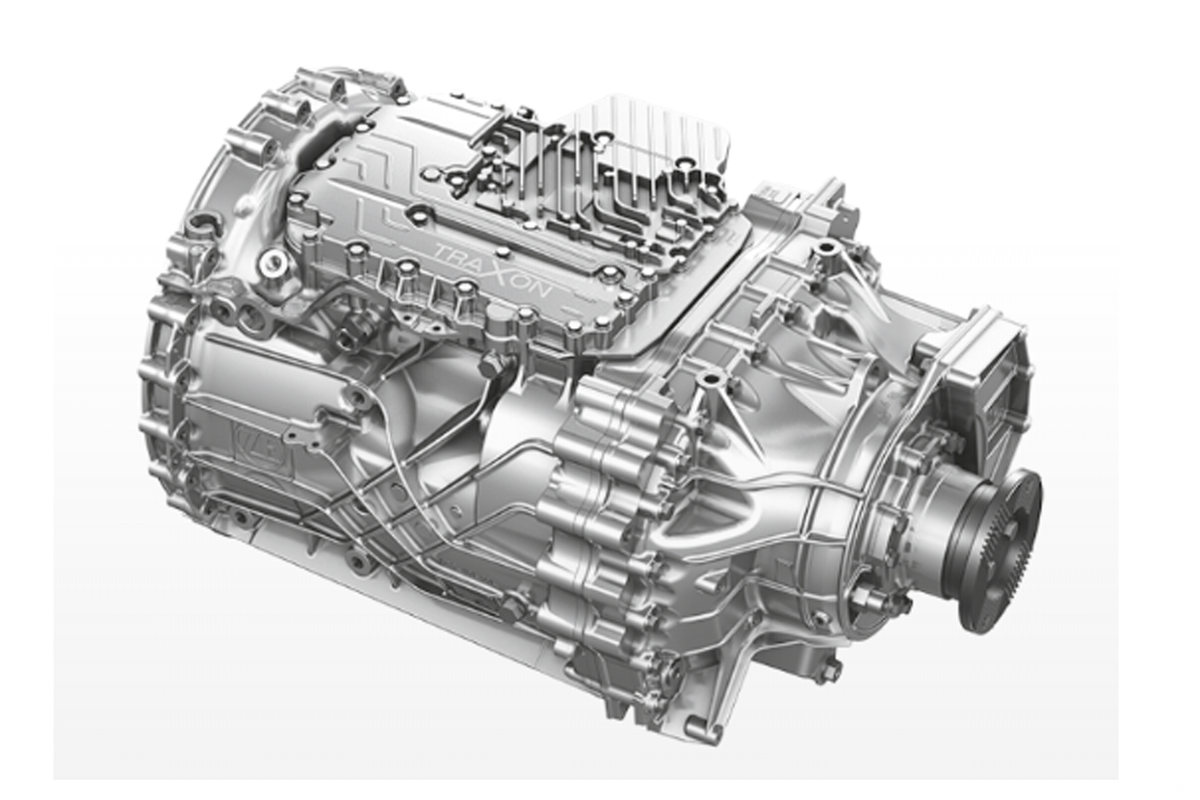

ZF 12TX2420TD AMT transmission
▶ Axles:
Front Axle: HDZ9.5t (Front Drum)
Manufacturer: Shaanxi Hande Axle Co., Ltd.

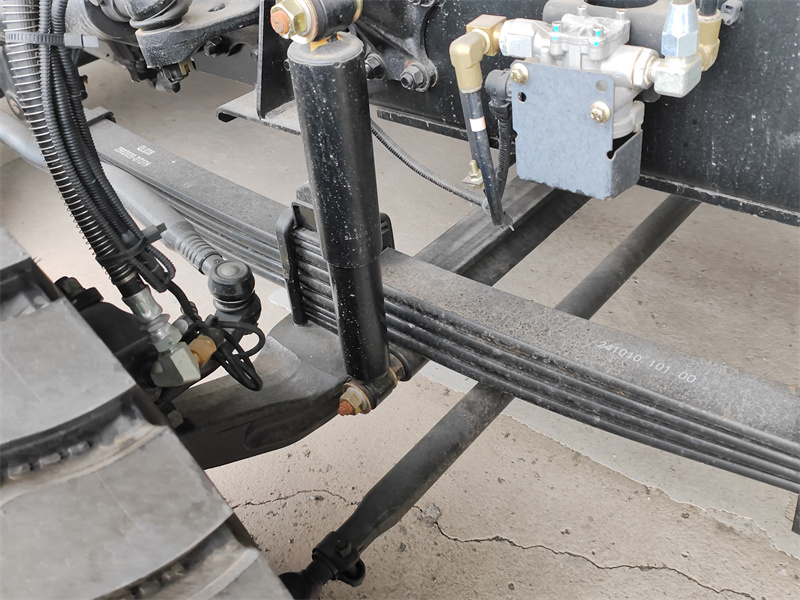

Leaf Spring Suspension: 4/4

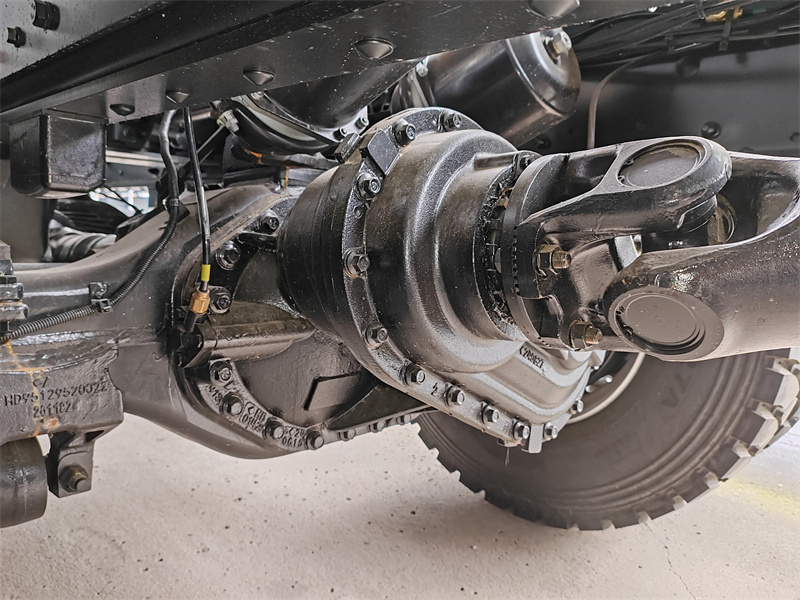

Rear Axle: HDZ300 (Hande Drum Type Dual Rear Axle, Single Axle Load 13t)
Leaf Spring Suspension: 5

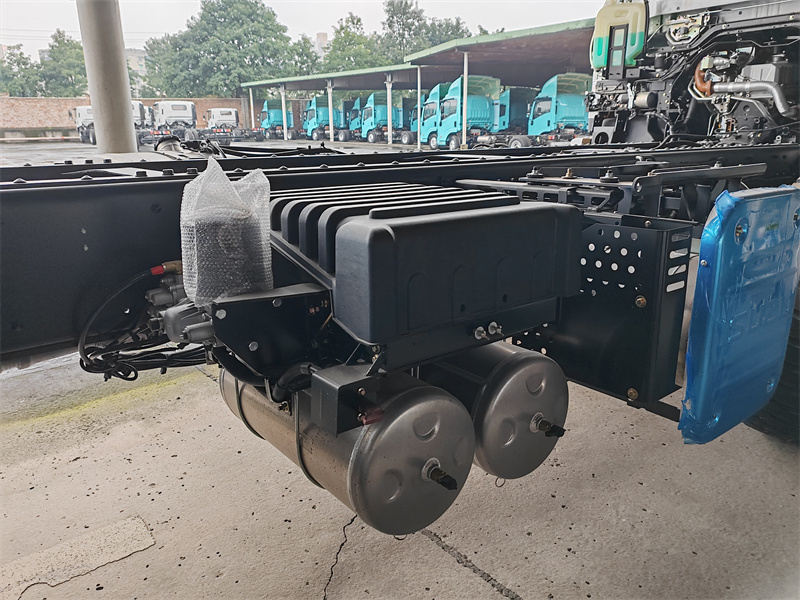

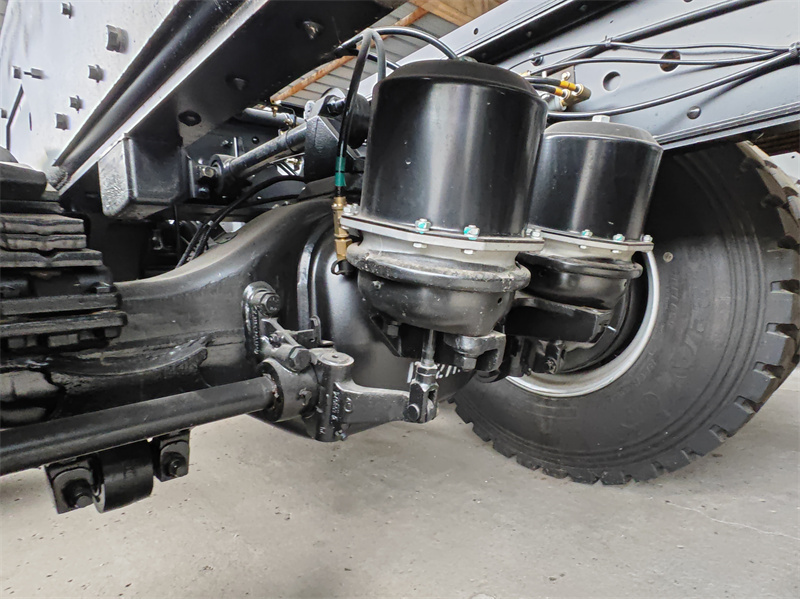

▶ Braking System:
ABS (Anti-lock Braking System)
Service Braking System Type: Dual-circuit air brake
Parking Braking System Type: Spring-charged air brake
Auxiliary Braking System Type: Engine exhaust brake
▶ Modification Advantages:
• Stable Structure, High Modification Potential: The Isuzu 8x4 heavy-duty chassis features a long wheelbase, a rational structure, ample frame allowance, flexible space layout, and a 35-ton load capacity.
• Powerful Engine, Adaptable to Diverse Modification Needs: The Isuzu 6WG1 - TCG62 engine delivers abundant power, with its large displacement providing strong torque output and excellent climbing and acceleration capabilities.
• Excellent Braking and Suspension, Ensuring Modification Safety: Equipped with large-size brake discs and high-performance brakes, combined with an ABS anti-lock braking system, it offers rapid braking response and strong braking force.
▶ Applicable Vehicle Types for Modification:

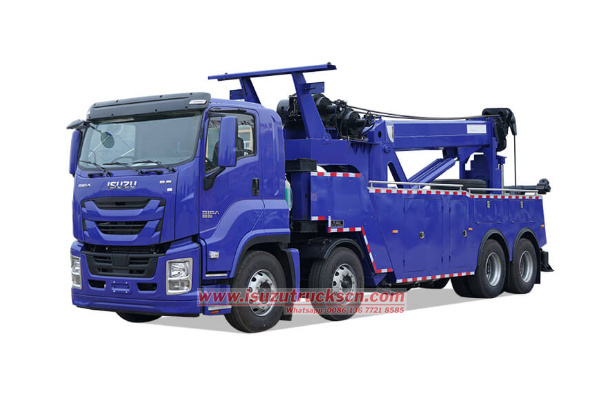

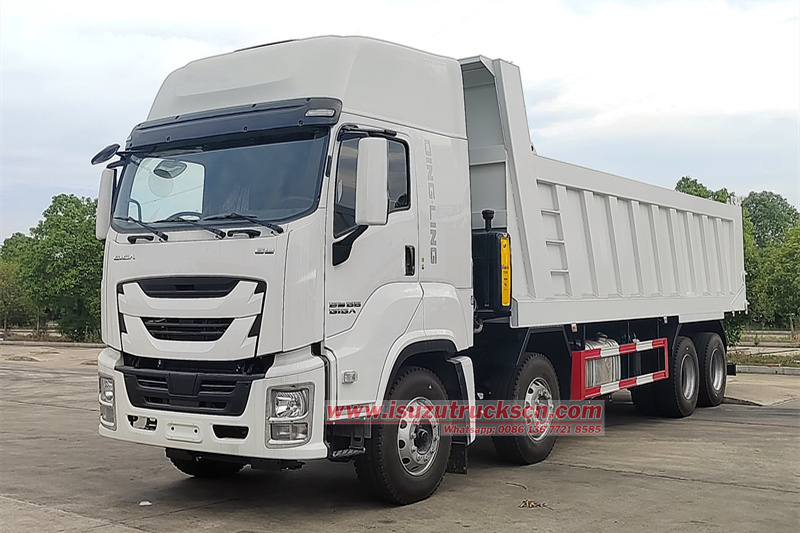

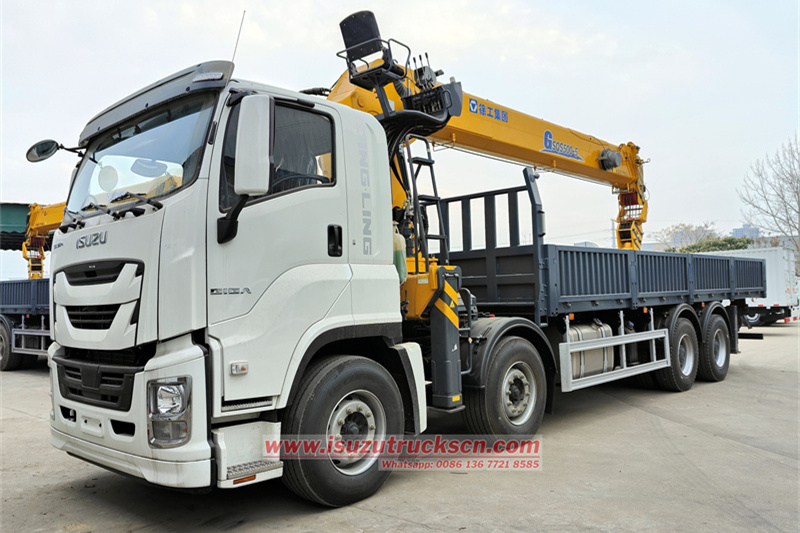

• Heavy-duty engineering vehicles ( dump trucks, mixer trucks, concrete pump trucks, wrecker vehicles, cranes, etc.)

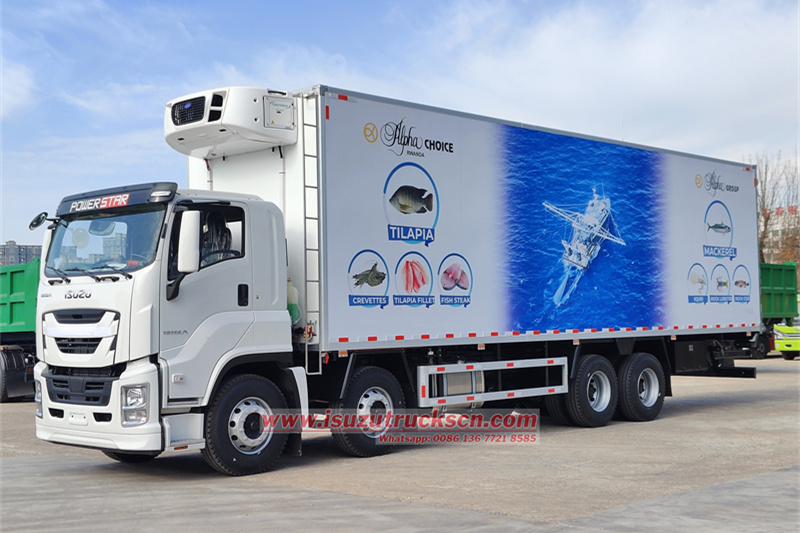

• Long-distance heavy-duty freight transport (refrigerated trucks, logistics vans, flatbed trucks)

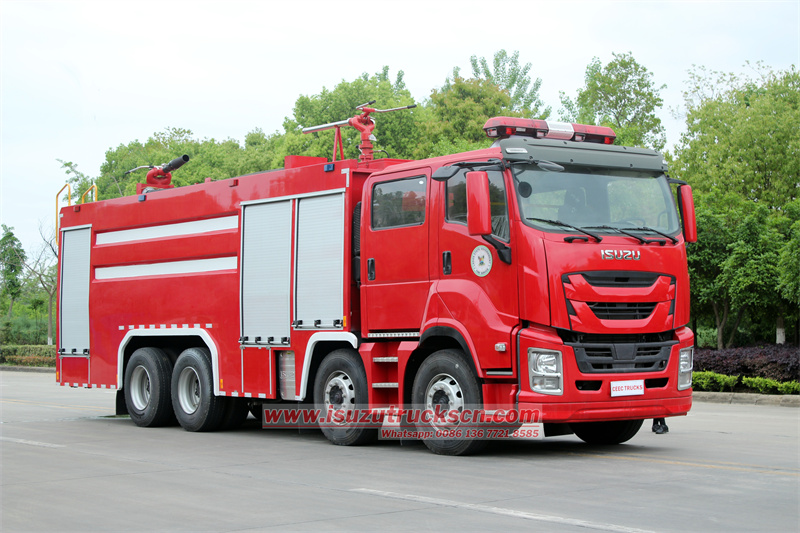

• Fire and rescue equipment: Modifications to various heavy-duty fire trucks

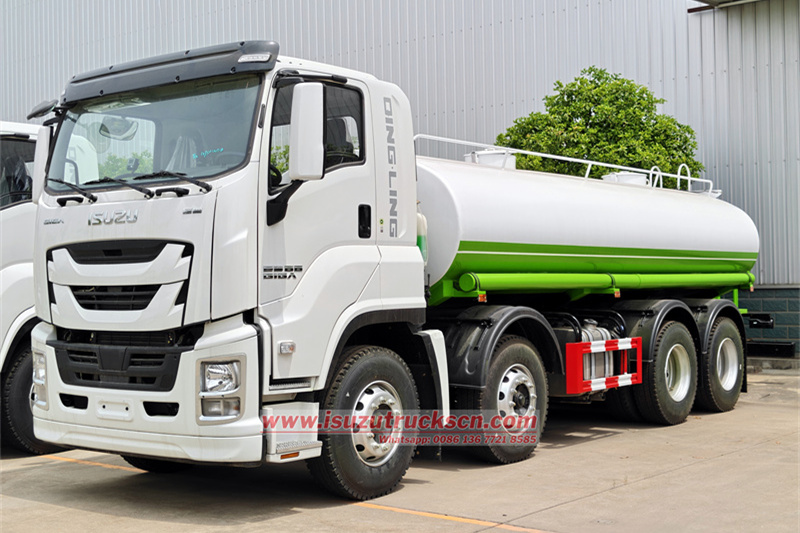

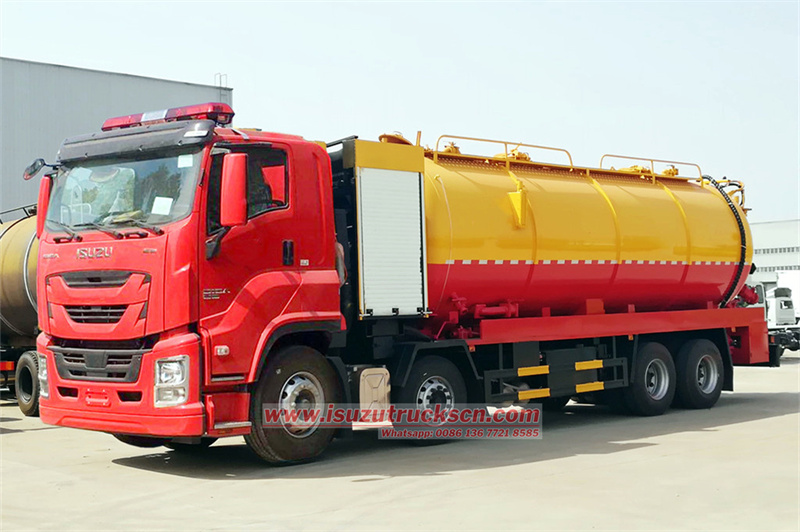

• Sanitation vehicles: Water trucks, road sweepers, sewage suction trucks, garbage compactor trucks
POWERSTAR's Isuzu GIGA 8x4 chassis uses an Isuzu VC66 6x-level cab, air conditioning, power steering, central locking, electric doors and windows, multi-function steering wheel, multi-function LCD instrument, ABS, and air brake. It has a 4-axle design, a wheelbase of 1850+4575+1370mm, and is equipped with a 6WG1-TCG62 520HP inline six-cylinder diesel engine with a displacement of up to 15.681 liters, a maximum output power of 382 kilowatts (520 horsepower), and a maximum torque of 2250 Nm in the speed range of 900 to 1300 rpm. It is matched with a FAST 12-speed gearbox to improve the transmission accuracy and carrying capacity.
