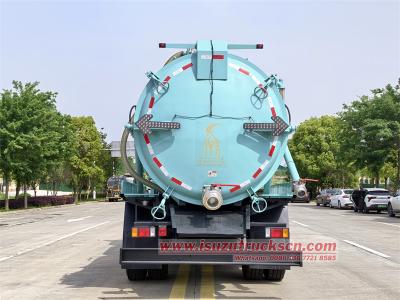

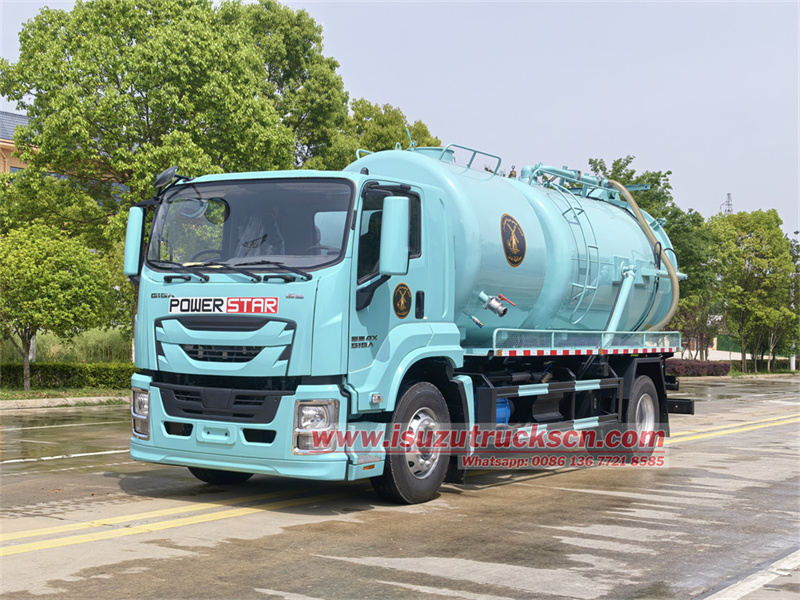

Isuzu 14000 liters combined jetting vacuum truck

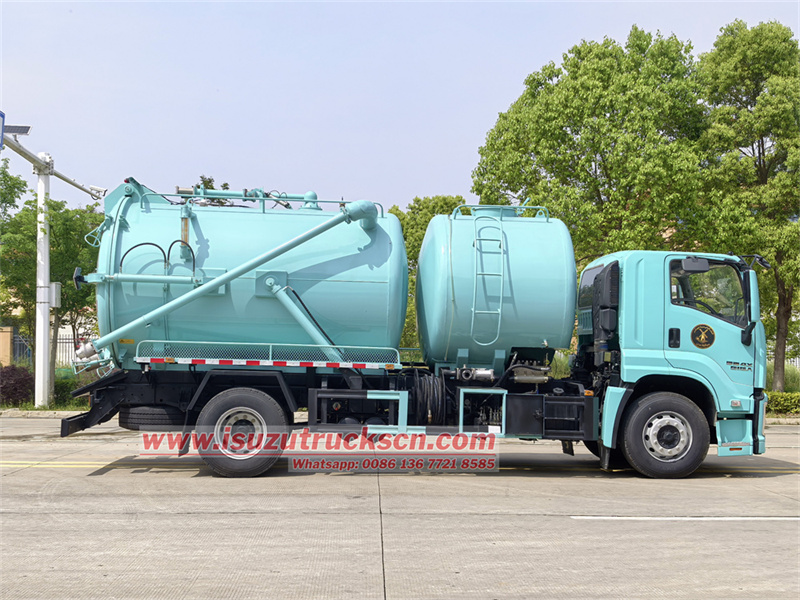

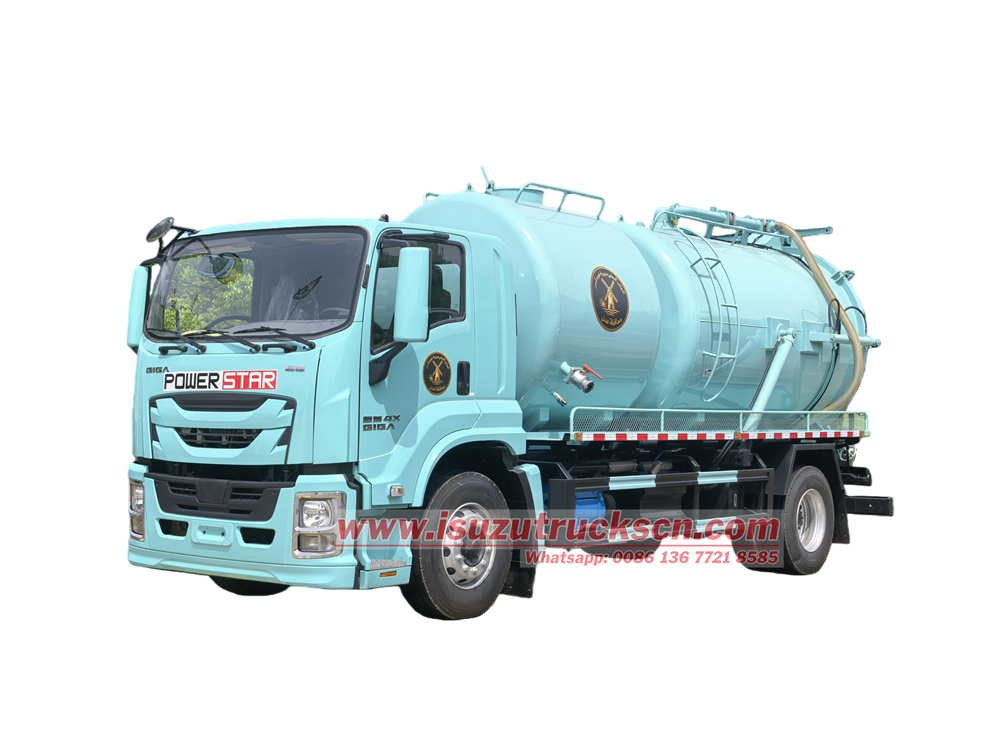

This Isuzu 14cbm combined sewer cleaning truck features a 5,000mm wheelbase, equipped with a 4HK1-TCG60 engine, an MLD 6-speed transmission, a Jiashan power take-off (PTO), and a Zhongmei multi-way valve. The upper structure adopts a split-tank design, comprising a 4-cubic-meter front leaning water tank paired with a 3N2 high-pressure cleaning pump and a 60-meter cleaning hose reel, rear is a 10-cubic-meter sewage tank fitted with an SK-12 water circulation pump. The sewage tank supports hydraulic lifting and the rear cover is hydraulically opened.
Manufacturer:
Powerstar TrucksWork capacity:
14000LDimension:
8550 x 2550 x 3250 mmCabin type:
Isuzu FTR GIGA cabWheelbase:
5000mmEngine power:
205HP/151KwEngine type:
ISUZU 4HK1-TCG60Axle drive:
4x2,LHDGear box:
ISUZU MLD 6-speed,manualRemarks:
Split-type tankThe Isuzu 14000 liters combined jetting vacuum truck is a highly efficient and versatile vehicle specifically designed for municipal pipeline dredging. It is equipped with a robust and stable 4HK1 engine and an MLD 6-speed transmission. The upper structure features a 4m³ freshwater tank and a 10m³ sewage tank. The vehicle integrates dual systems—high-pressure cleaning (with a 24MPa triplex plunger pump) and vacuum sewage suction (powered by an SK-12 water circulation pump)—enabling integrated "flushing-suction" dredging. Design elements such as hydraulic drive, overflow alarm, and safety pressure relief ensure operational safety, making it an ideal choice for urban drainage system cleaning and maintenance.
▶ Product Parameter :
|

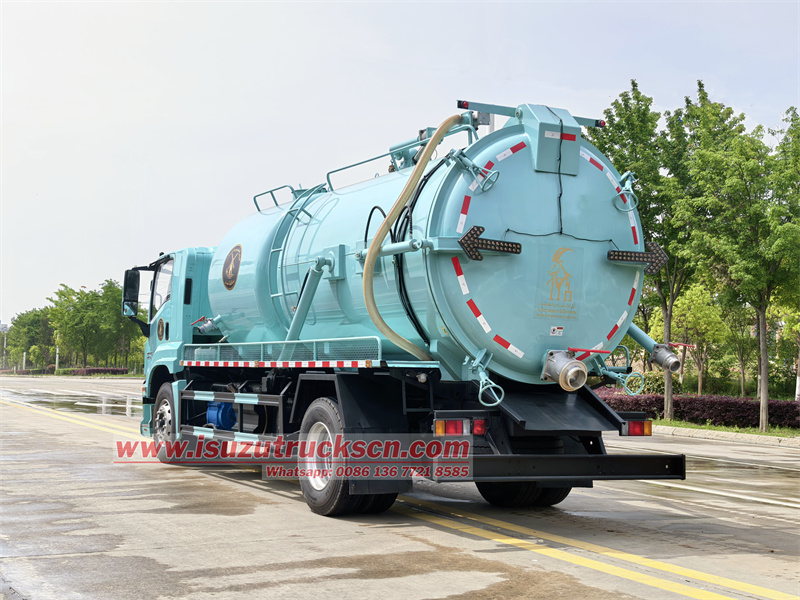

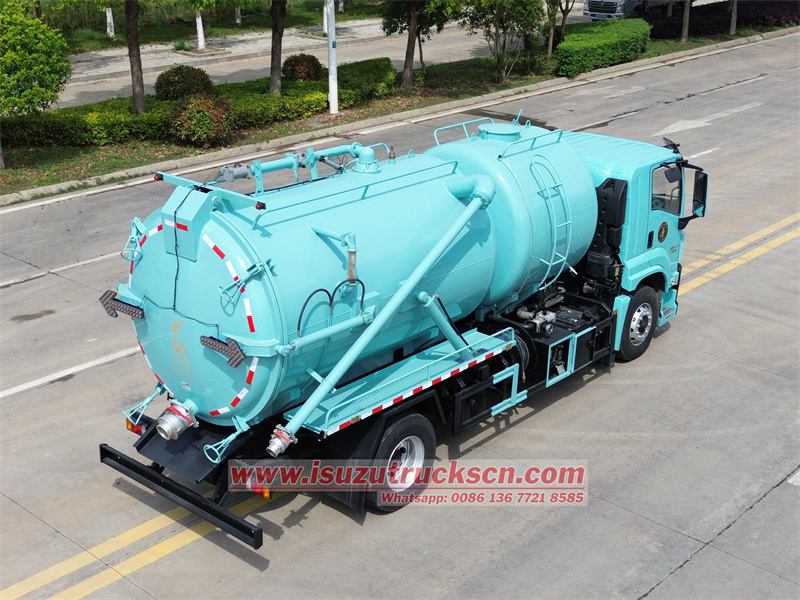

ISUZU FTR GIGA 14m³ combination jetter truck |
|
|
Chassis |
|
|
Dimensions |
8550×2550×3250mm |
|
GVW/Curb Weight |
18000kg / 8,570kg |
|
Wheelbase |
5000mm |
|
Front/Rear Axle |
6.3T / 13T |
|
Tire |
295/80R22.5, 6+1 tires |
|
Engine |
|
|
Model |
ISUZU 4HK1-TCG60 |
|
Power |
205HP/151Kw |
|
Rated speed |
2600rpm |
|
Displacement |
5193ml,Euro 6 |
|
Transmission |
|
|
Model |
ISUZU MLD 6 shift,manual |
|
Upper Body System |
|
|
Capacity |
Cleaning water tank 4000L;sewage tank 10000L |
|
Shape |
2 units separate independent tank |
|
Material |
Q235B Carbon Steel |
|
Thickness |
Sewage tank 6mm,cleaning water tank 4mm |
|
Vacuum Pump |
|
|
Model |
SK-12 water circulation vacuum pump |
|
Flow Rate |
12m³/min |
|
Max Pressure |
8000Pa |
|
Speed |
970rpm |
|
High-Pressure Jetting Pump |
|
|
Model |
3N2 |
|
Drive-By |
PTO |
|
Working Pressure |
24Mpa |
|
Water Flow Rate |
170L/min/GPM |
|
Pump speed |
405min-1 |
|
Reel Hose |
60m ∮19 |
|
Basic Equipment |
Vacuum pump, ball valve, suction pipe, pressure meter, inspect windows, cleaning system, hoist base, oil-water separators, overflow valve, etc. |
|
Optional Equipment |
Tanker material: stainless steel; Vacuum pump: Italy or Spain vacuum pumps; |

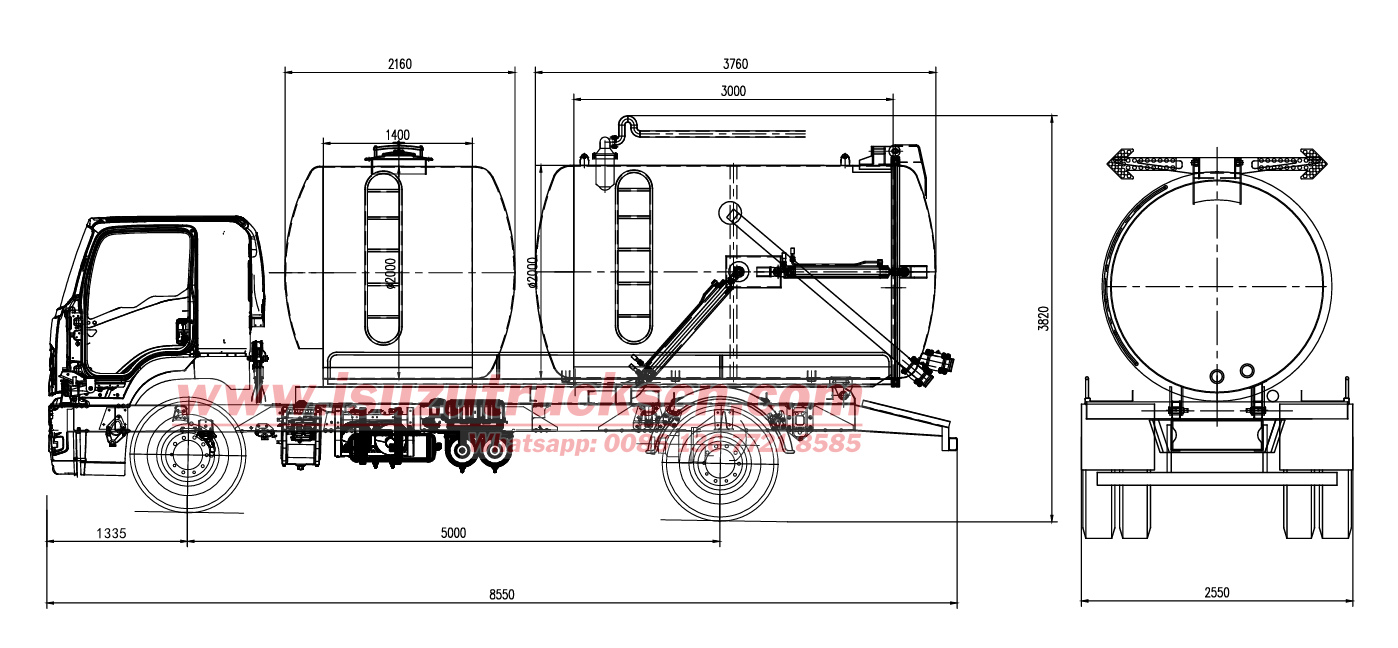

Technical drawing of ISUZU FTR 14cbm combined jetting truck
▶ Chassis Configuration:

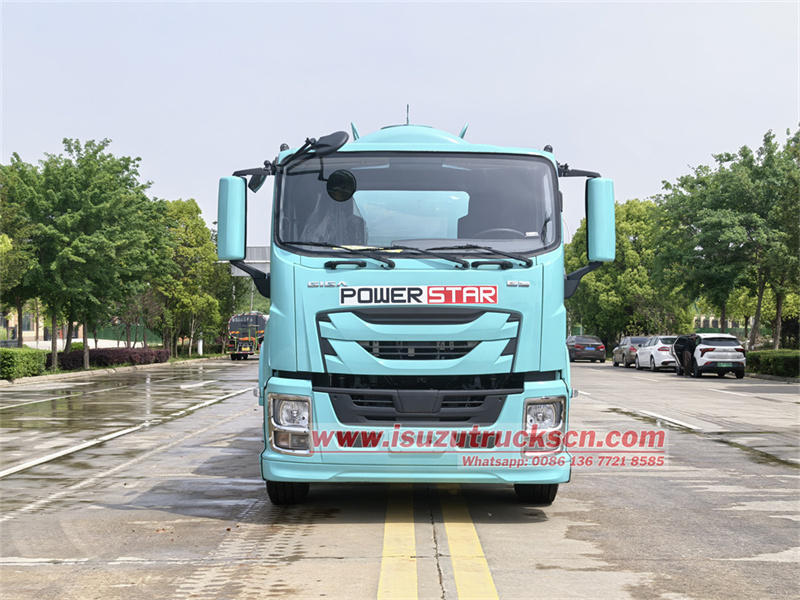

• Model: Isuzu FTR 4X chassis
• Wheelbase: 5000mm
• Engine: 4HK1-TCG60 high-pressure common rail diesel engine, with a power output of 205HP (151kW) and a torque of 647N.m

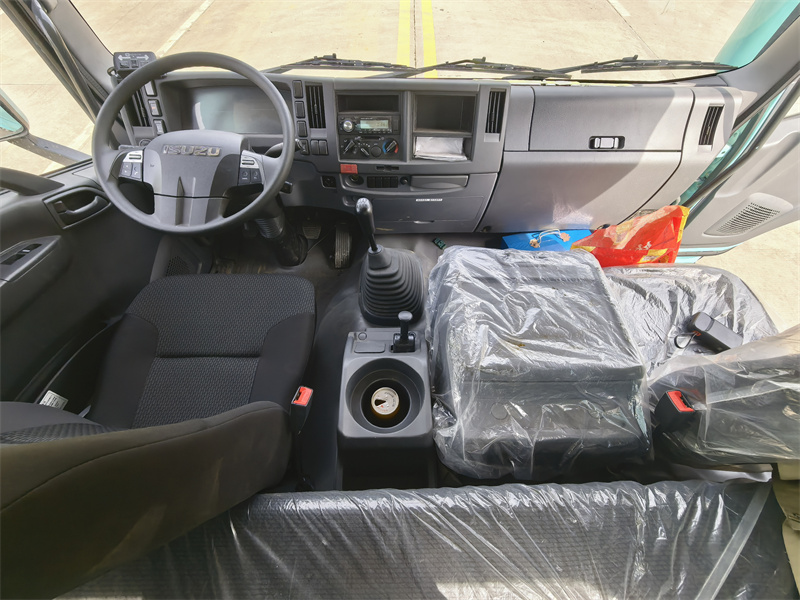

• Transmission: MLD 6-speed manual transmission
• Power Take-Off (PTO): Jiashan brand full-power PTO, featuring high transmission efficiency and meeting the power requirements of both the high-pressure pump and the liquid ring pump.
▶ Superstructure Configuration:
1. Tank Material: Q355 high-strength carbon steel, offering corrosion resistance, impact resistance, and a long service life.
2. Tank Design:

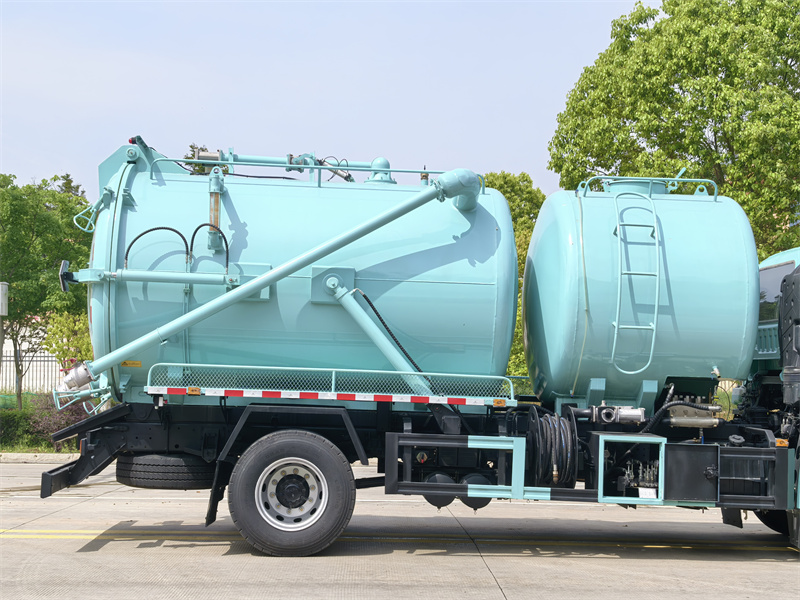

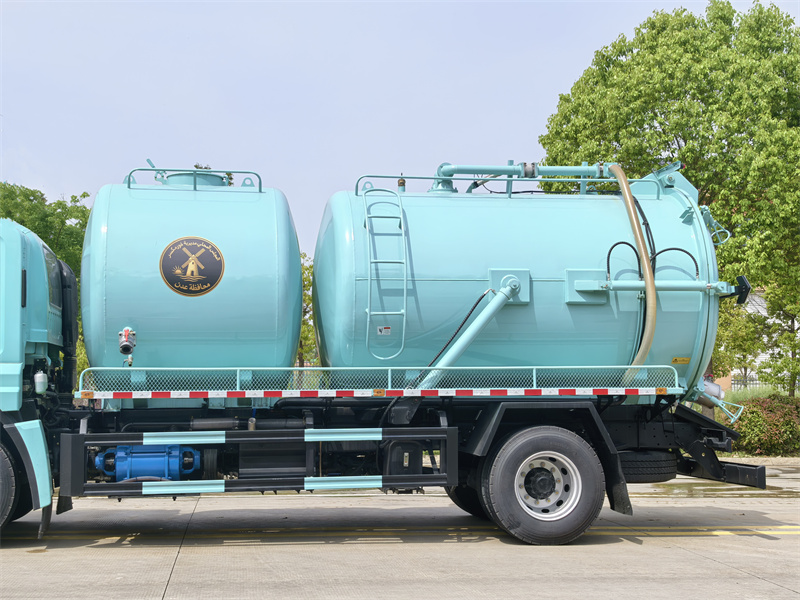

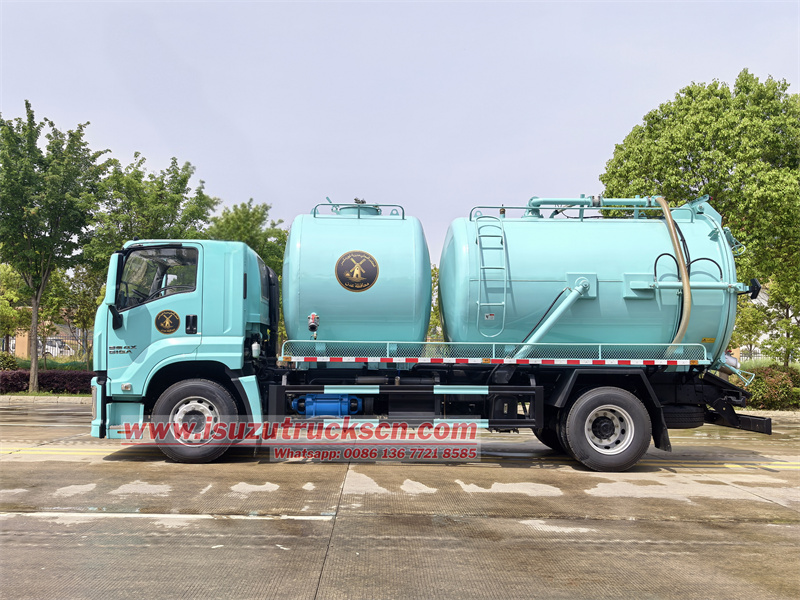

• Dual-Tank Configuration: The vehicle is equipped with two circular tanks—a 4m³ cleaning water tank (4mm thickness) and a 10m³ sewage tank ( 6mm thickness). These tanks operate independently without interference.
• Lifting System: The sewage tank is hydraulically lifted, with a dumping angle of ≥45°, ensuring high emptying efficiency.

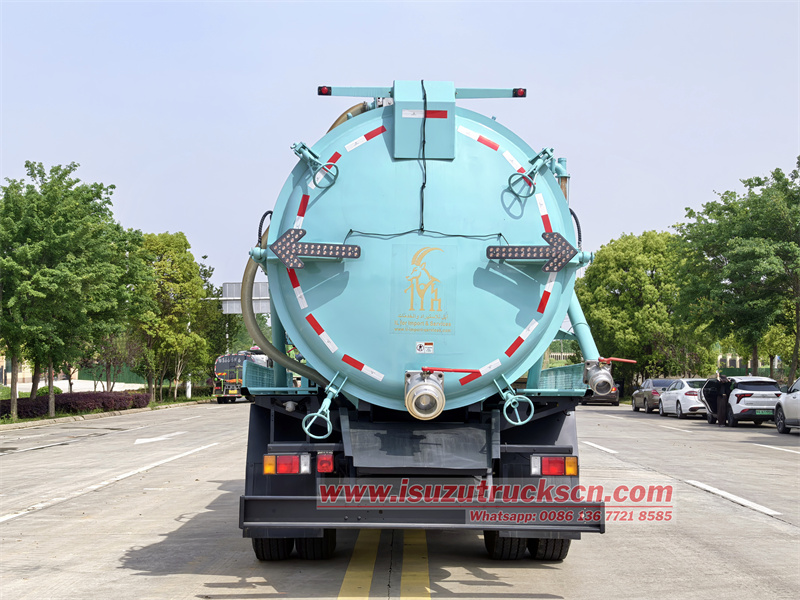

• Rear Cover Opening: The rear cover is hydraulically driven and features a wheel-type manual locking mechanism, providing tight sealing and easy operation.
• Cleaning water Tank Access: The top of the freshwater tank is equipped with a DN500 manhole, and an internal ladder is provided for easy access.
3. Safety Design: The side platforms are fitted with mesh guardrails and anti-slip checkered plates to ensure the safety of operators.

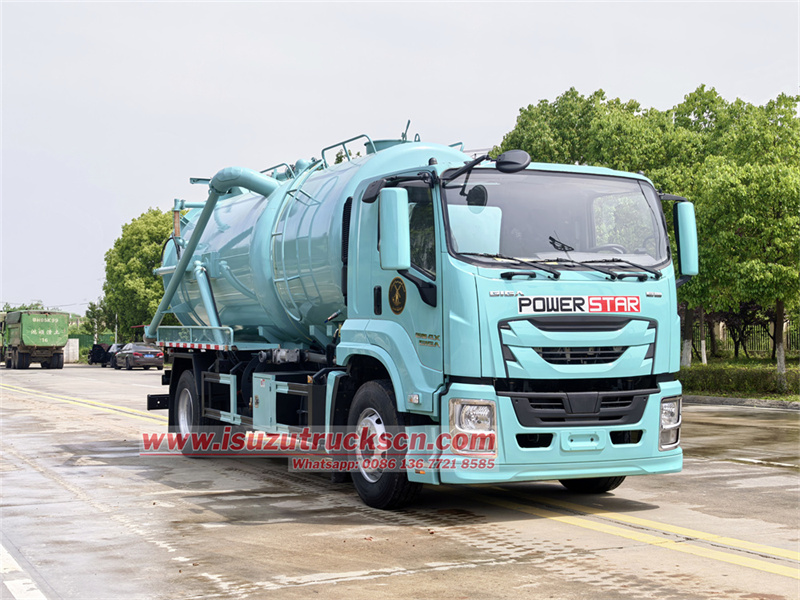

▶ Sewage Suction System:

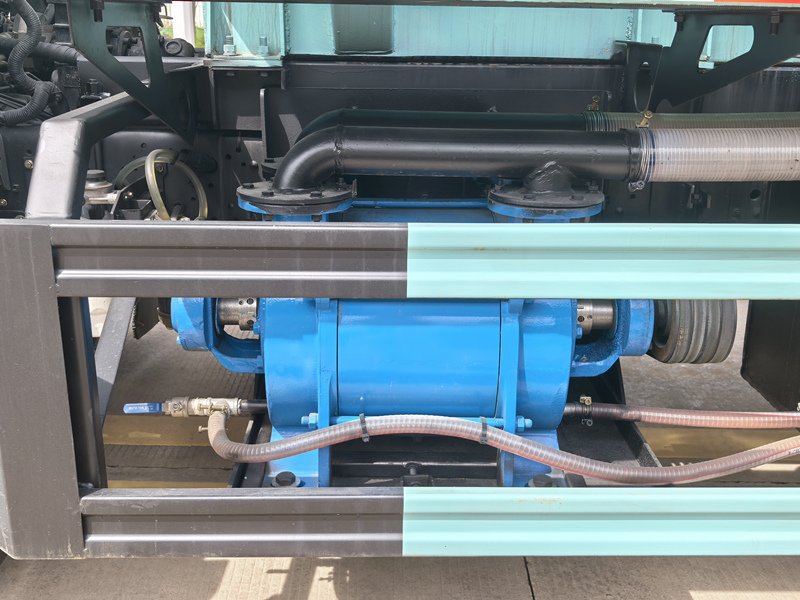

1. Vacuum Pump: SK-12 water circulation vacuum pump
• Air Extraction Rate: 12 m³/min
• Maximum Pressure: 8,000 Pa
• Function: Capable of suctioning sludge containing solid particles and a small amount of moisture.
2. Safety Devices:
• Overflow Prevention: Equipped with a pneumatic anti-overflow valve and a high liquid level alarm in the tank to prevent sewage from entering the vacuum pump.
• Pressure Relief Valve: An safety pressure relief valve is installed to prevent system overpressure.
3. Pipeline Connections:

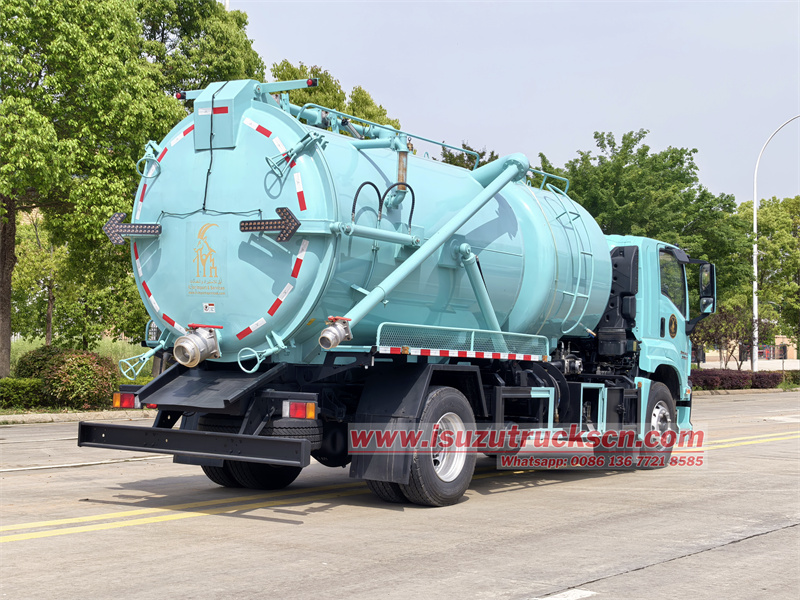

• Suction Port: DN100 (with quick-connect coupling).
• Discharge Port: DN150 large-diameter discharge port for rapid unloading.
▶ High-Pressure Cleaning System:

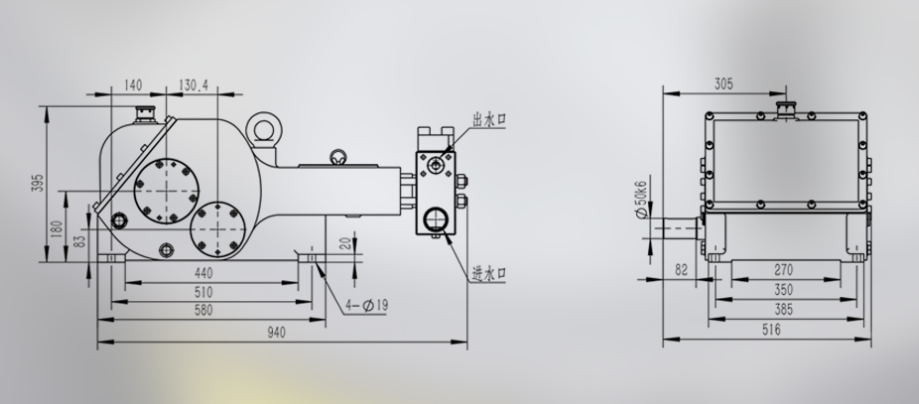

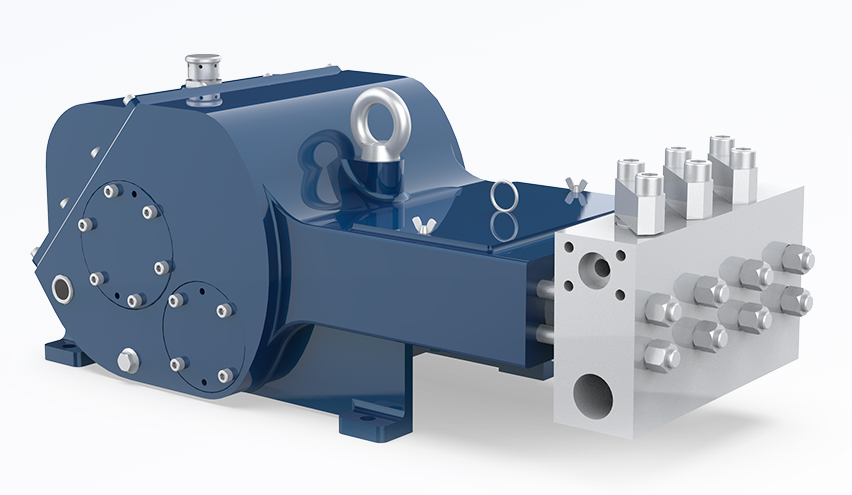

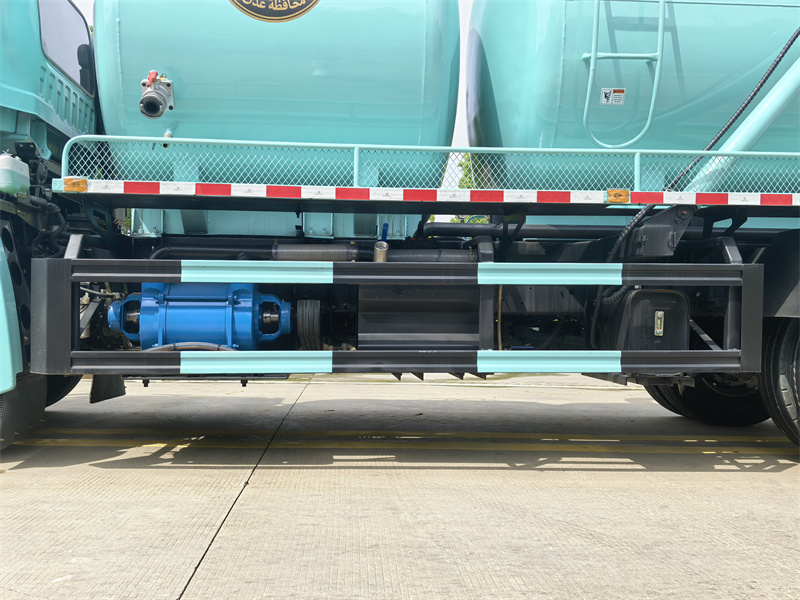

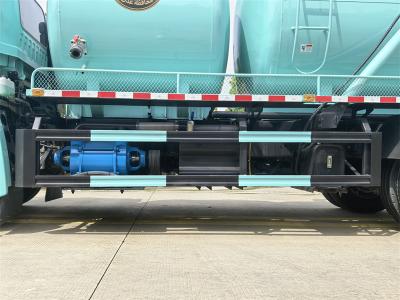

1. High-Pressure Pump: Tianjin Tongjie 3N2 triplex plunger pump, with a rated pressure of 24 MPa and a flow rate of 170 L/min, delivering powerful cleaning performance.

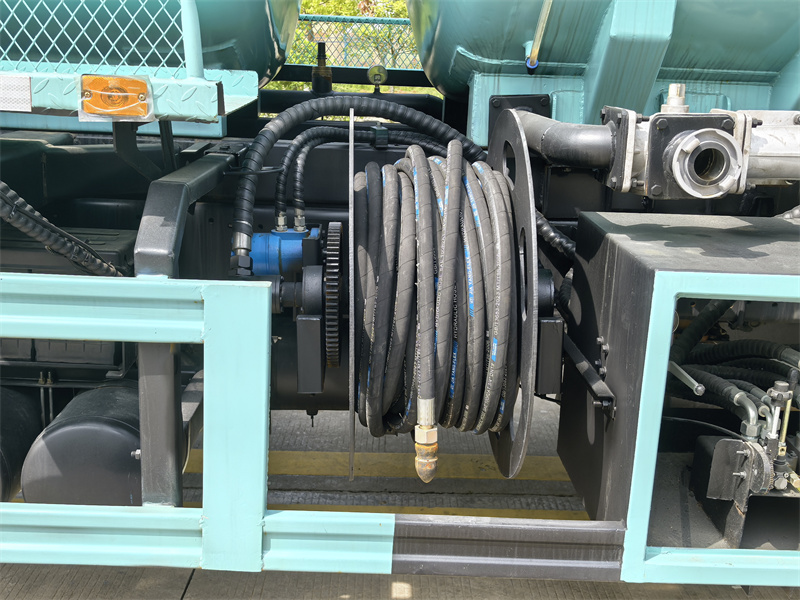

2. Hose Reel and Hose: A 60-meter, ∮19 side-mounted high-pressure hose reel, hydraulically driven, equipped with 10 high-pressure nozzles offering multiple spray patterns for versatile cleaning.
▶ Operation:

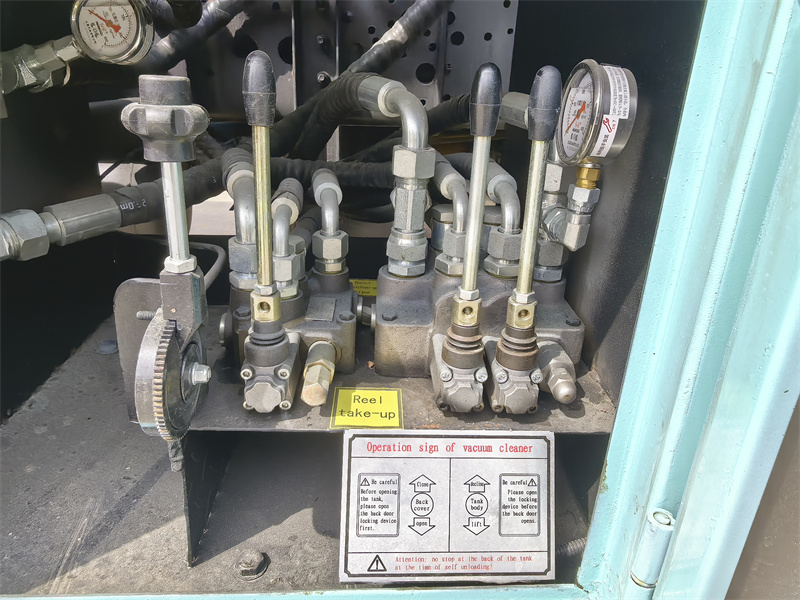

Right-side Multi-way Valve: Equipped with a Zhongmei multi-way valve, enabling sensitive and precise hydraulic control. The lifting of the sewage tank, opening/closing of the sewage tank tailgate, and operation of the high-pressure cleaning hose reel are all stable and free from jams.
▶ Applicable Scenarios:
Isuzu Truck sewer dredging and cleaning vehicle，5-8m3 iSUZU high-pressure sewer dredging and cleaning vehicle，8000l ISUZU FVR sewer dredging and cleaning vehicle
