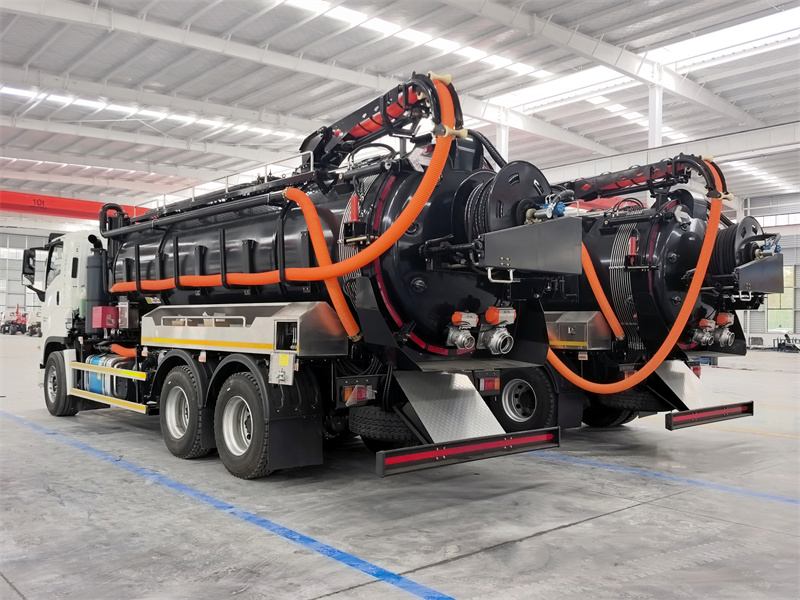

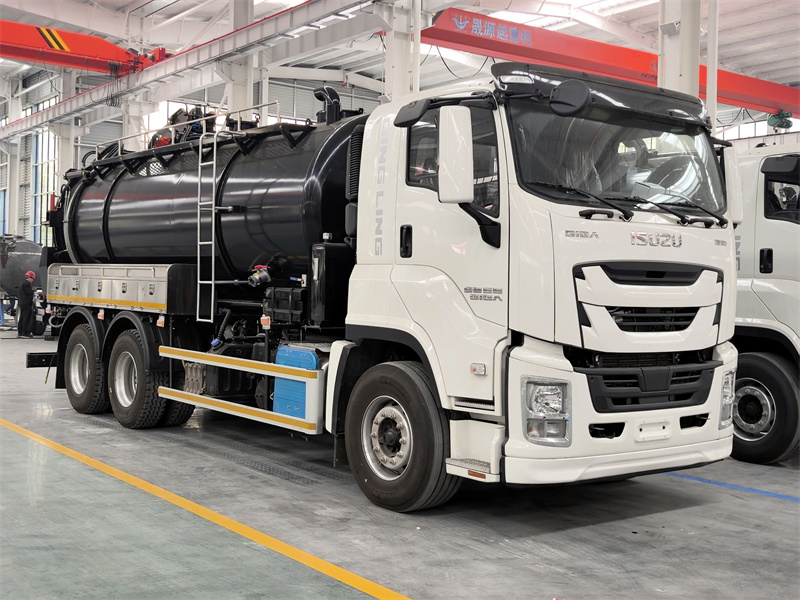

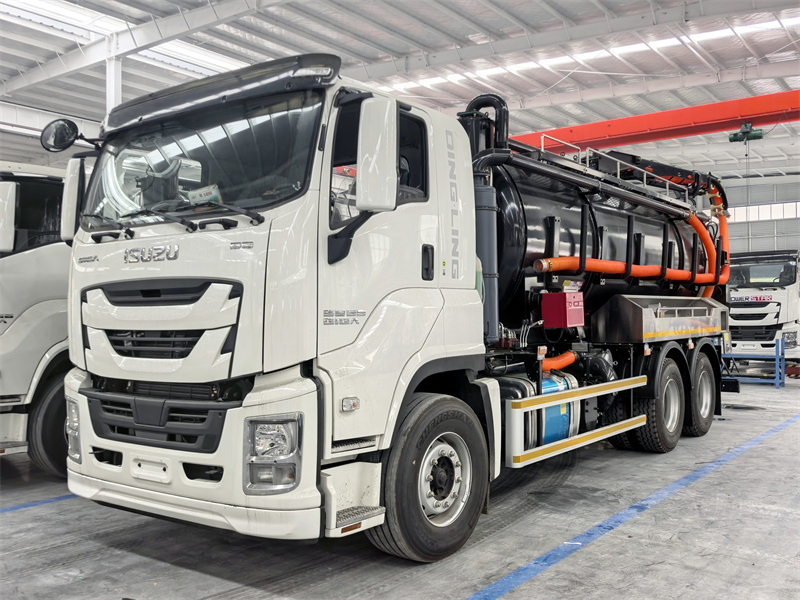

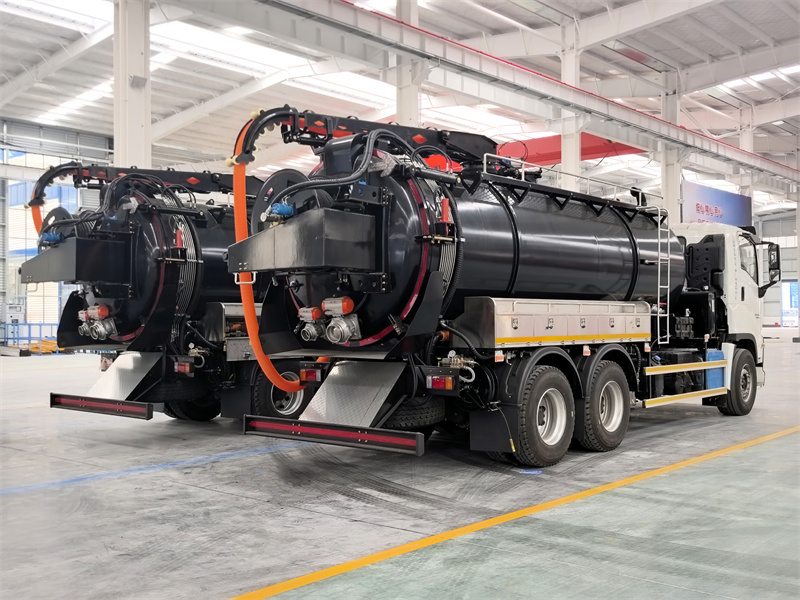

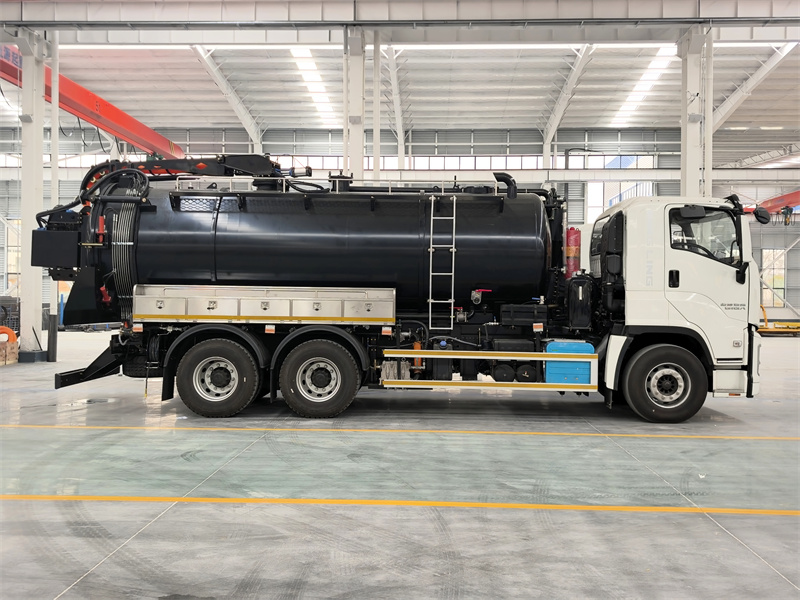

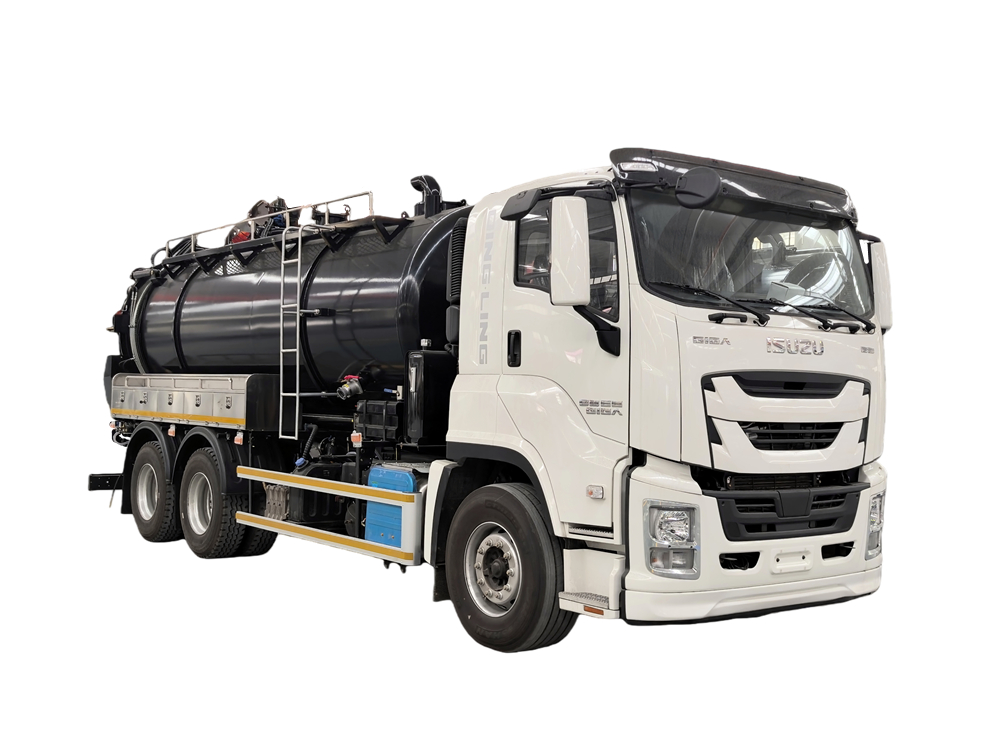

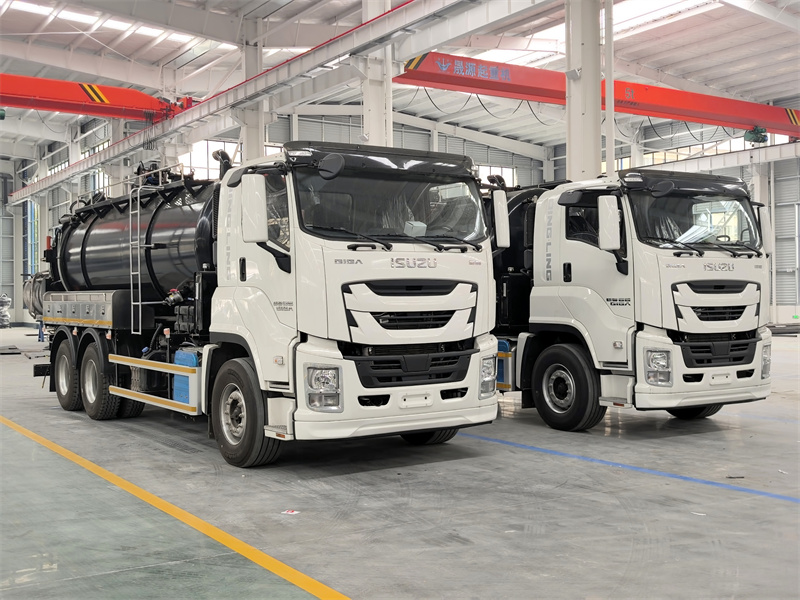

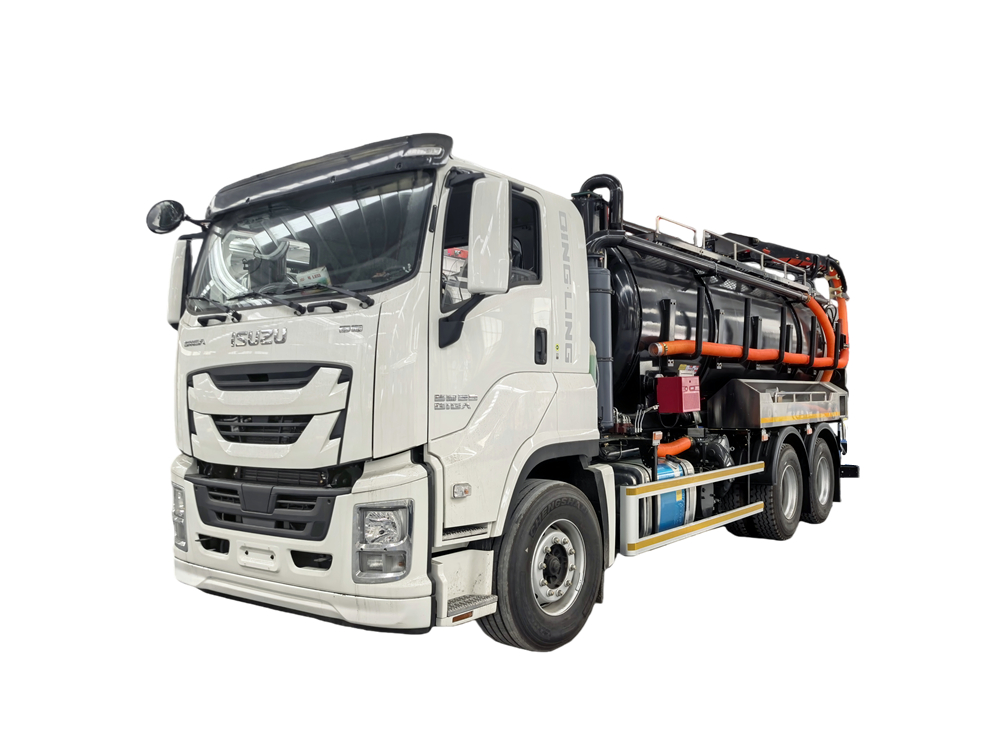

Isuzu 15000 liters combination vacuum jetting truck
The Isuzu GIGA 6X4 combined vacuum truck, 4600+1370mm wheelbase, with Isuzu 6UZ1-TCG61 engine,Fast 12-speed gearbox, a 10CBM carbon steel vacuum tank, a cement tank opening on the top, a built-in cleaning machine, a JUROP PVT 400 Roots pump, a 5CBM high-quality steel clean water tank with a digital display clean water tank heater, a PINFL XO350 high-pressure cleaning pump, a 100-meter high-pressure cleaning reel, 10 high-pressure nozzles, and remote control operation.
Manufacturer:
Powerstar TrucksWork capacity:
10cbm sewage+5cbm cleaning waterDimension:
9980 x 2540 x 3930mmCabin type:
Isuzu GIGA 6X4 cab,2 seats,a sleeperWheelbase:
4600+1370mmEngine power:
380HP/279kWEngine type:
ISUZU 6UZ1-TCG61Axle drive:
6x4,LHDGear box:
FAST 12-speed,manualRemarks:
Customizable structure and functionThis customized Isuzu 15000 liters combination vacuum jetting truck is specially built for customers, designed for heavy-duty operations such as municipal pipeline dredging and sewage transportation.Powered by an Isuzu 6UZ1-TCG61 engine matched with a Fast 12-speed gearbox, featuring strong and reliable power.

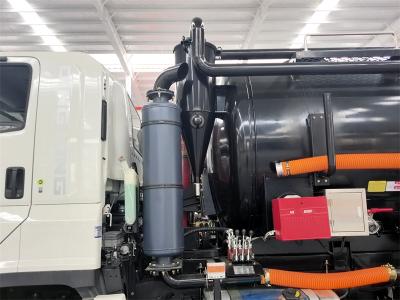

The superstructure is equipped with a 10m³ sewage tank and a 5m³ clean water tank, paired with a JUROP PVT 400 roots pump and a PINFL XO350 high-pressure cleaning pump to fulfill both sewage suction and pipeline dredging functions.Also equipped with a full tank alarm, pressure relief valve, secondary anti-overflow valve and rear door drain outlet, providing comprehensive safety protection.
1. Isuzu heavy-duty chassis + 6UZ1 engine, powerful performance
2. Large capacity combination of 10 cubic meters sewage suction + 5 cubic meters clean water, higher efficiency per operation
3. Imported JUROP Roots pump + Pinfu high-pressure pump, maximizing sewage suction and cleaning performance
4. Multiple safety devices and control valves, ensuring human and machine safety and worry-free operation
5. Advanced overall design, fully functional and aesthetically pleasing
▶ Product Parameter :
|
Isuzu GIGA 6X4 Hydro Jetting Drain Cleaning truck |
|||||
|
General |
Vehicle Brand |
POWERSTAR |
|||
|
Vehicle Model |
PT5250GXW |
||||
|
Chassis Brand |
ISUZU |
||||
|
Overall Dimension |
9980 * 2550 * 3930 mm |
||||
|
GVW / Kerb Weight |
25000 kg / 14500 kg |
||||
|
Axle loads |
7000/18000(Two-axle group) |
||||
|
Engine |
Fuel Type |
Diesel, 6 cylinders in-line |
|||
|
Model |
Isuzu 6UZ1-TCG61 |
||||
|
Power |
380HP(278kW) |
||||
|
Displacement |
9839ml |
||||
|
Emission Standard |
Euro VI |
||||
|
Chassis |
Drive Type |
6x4, left hand drive |
|||
|
Transmission |
FAST 12-speed,manual |
||||
|
Wheelbase |
4600+1370mm |
||||
|
Tyre Specification |
12R22.5，10+1 |
||||
|
High pressure jetting system |
Cleaning water tank |
5000L |
|||
|
6mm premium steel plate |
|||||
|
High pressure pump |
Model |
PINFL XO350 |
|||
|
Flow rate |
350L/min |
||||
|
Power |
126KW |
||||
|
Pressure |
180MPa |
||||
|
Rated speed |
1500rpm |
||||
|
Standard accessories |
10 specialized nozzles for different scenarios |
||||
|
100mo22PVC high-pressure hose |
|||||
|
Remote control operation |
|||||
|
Clean water tank with heater & digital display |
|||||
|
Sewage Vacuum System |
Sewage tank |
10000L |
|||
|
6mm carbon steel Q235 |
|||||
|
Vacuum Pump |
Model |
JUROP PVT 400 Roots Pump |
|||
|
Pumping speed |
2470m³/h |
||||
|
Power |
50kw |
||||
|
Rated speed |
2500-3300rpm |
||||
|
Max. vertical suction depth |
10-12m |
||||
|
Max. horizontal suction reach |
50-100m |
||||
|
Self-priming & self-discharging |
|||||
|
Hydraulic System |
Tank hydraulic lift |
||||
|
Equipment |

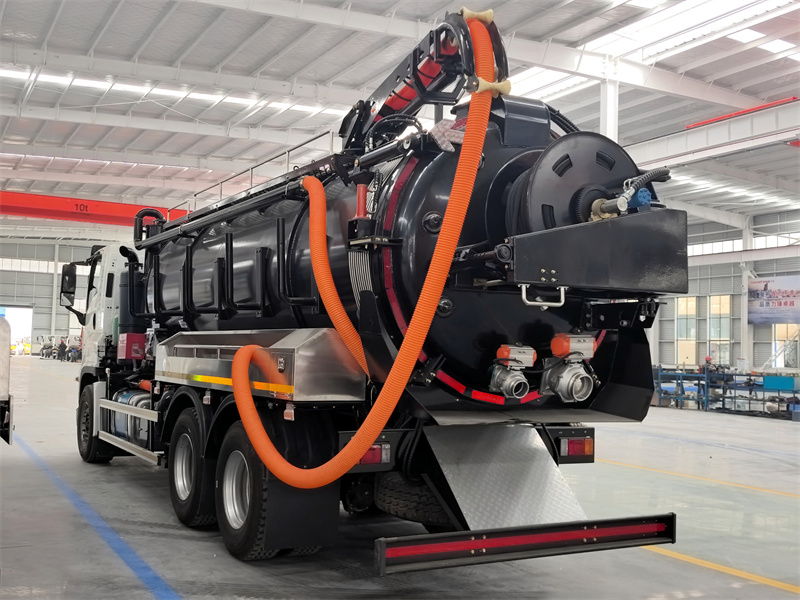

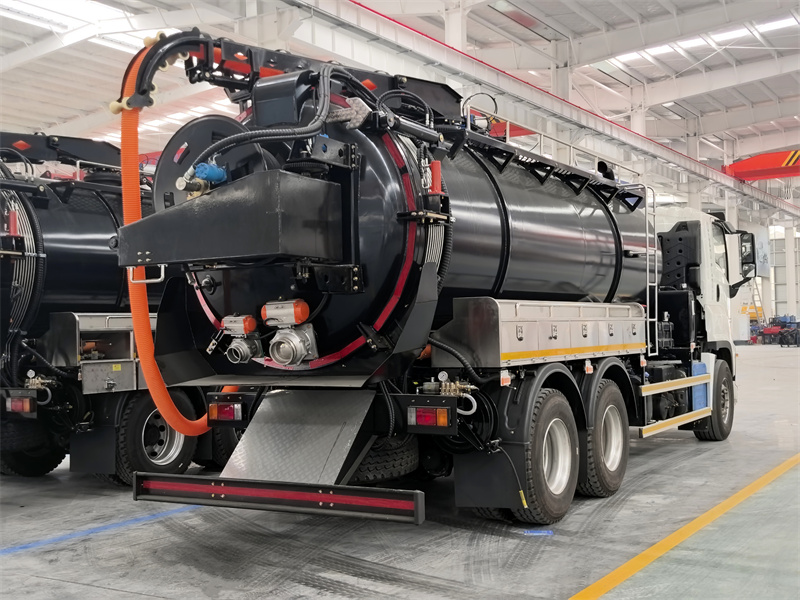

Rear door hydraulic opening and closing , with 75° opening angle. |
||||
|
The rear head features hydraulic opening/closing and integrated hydraulic locking |
|||||
|
Outlet: Stainless steel pneumatic ball valve (100N+150N) |
|||||
|
Sight glass, pressure gauge, hand-washing device，tool box |
|||||
|
Full-tank alarm, Auto pressure relief valve, Secondary anti-overflow valve |
|||||
|
2x transparent suction hoses, ψ102mm x 10m |
|||||
|
Washing machine integrated |
|||||
|
Cement filler port on top |
|||||
|
Internal supports |
|||||
▶ Basic Chassis Configuration:
• Cabin: Left-hand drive, with sleeper berth, standard features include air conditioning, ABS, and power windows
• Engine: Isuzu 6UZ1-TCG61 inline six-cylinder diesel engine
• Transmission: Fast 12-speed manual transmission
• Tires: 12.00R22.5
▶ Upper Structure Tank System:

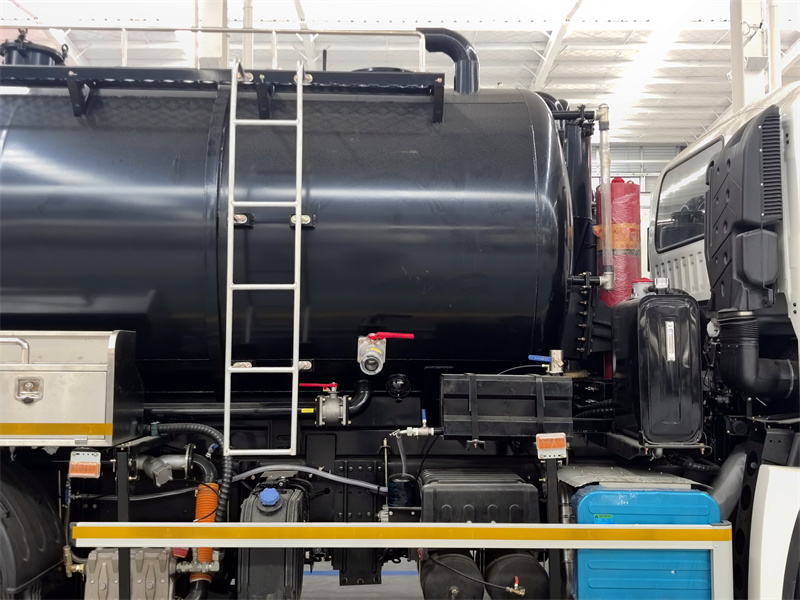

• Sludge Suction Tank: 10 cubic meter carbon steel tank, thickened plates, strong welding, corrosion-resistant and pressure-resistant, suitable for sewage, sludge, and fecal matter.
• Clean Water Tank: 5 cubic meter high-quality steel clean water tank, with anti-corrosion treatment on the inner wall, ensuring stable water supply.

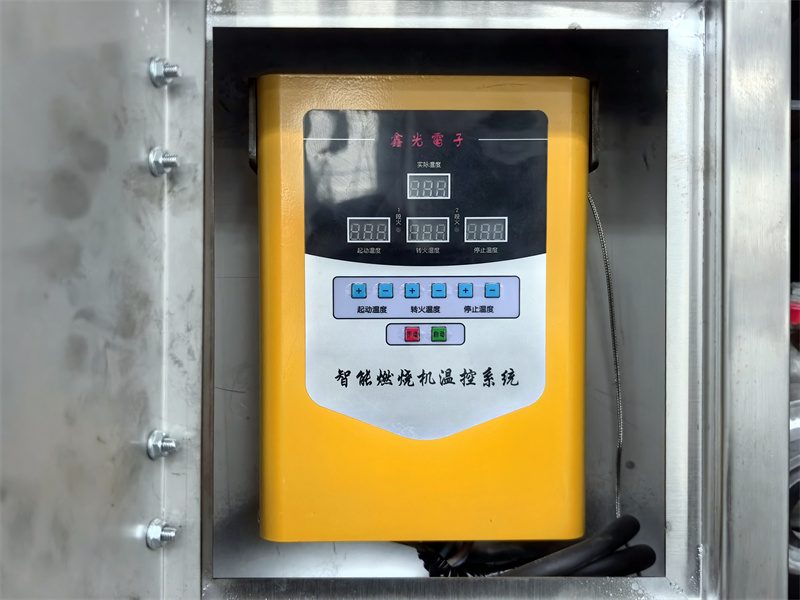

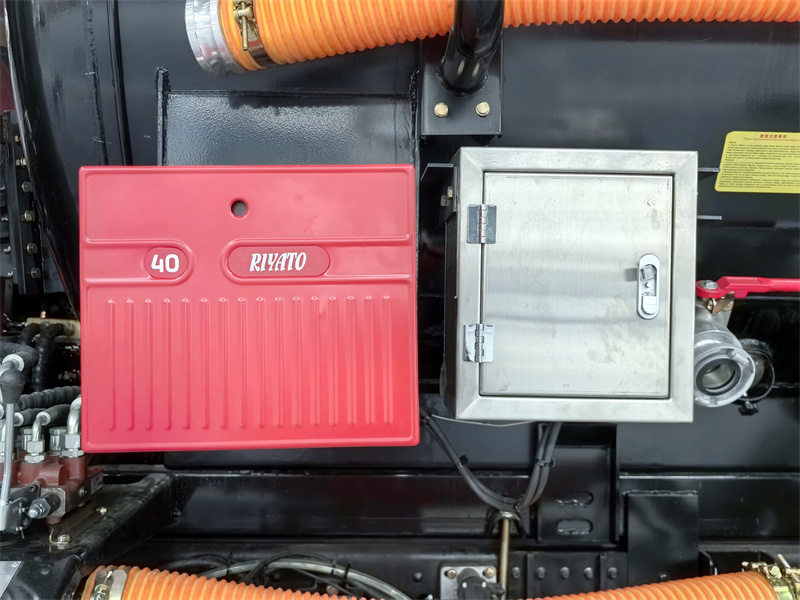

• Clean Water Heating: Equipped with a digital display clean water tank heater, allowing normal operation in low-temperature environments, with visible and controllable water temperature.
▶ Vacuum and Clean System:

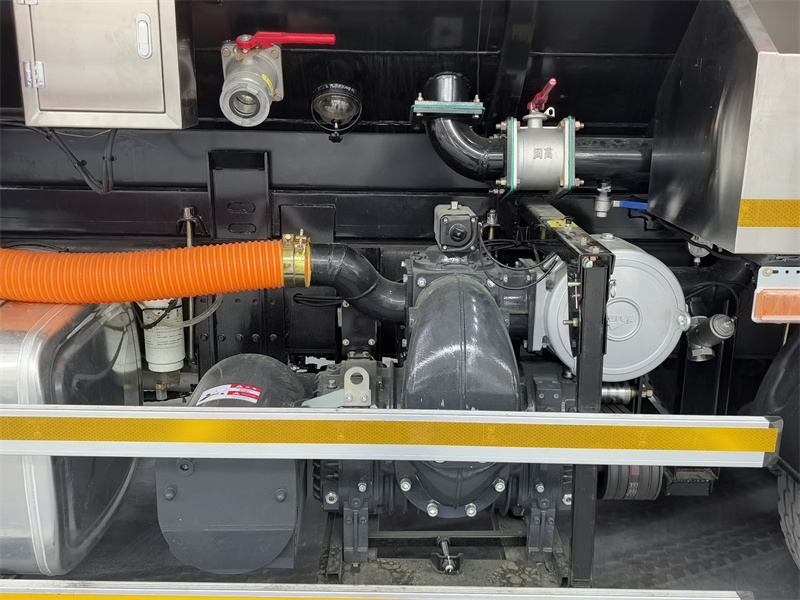

• Vacuum Pump: JUROP PVT 400 Roots Vacuum Pump, oil-free operation, low noise, long service life, high vacuum, and large suction lift
• Suction Capacity: 2470 m³/h, pressure 1.8bar.

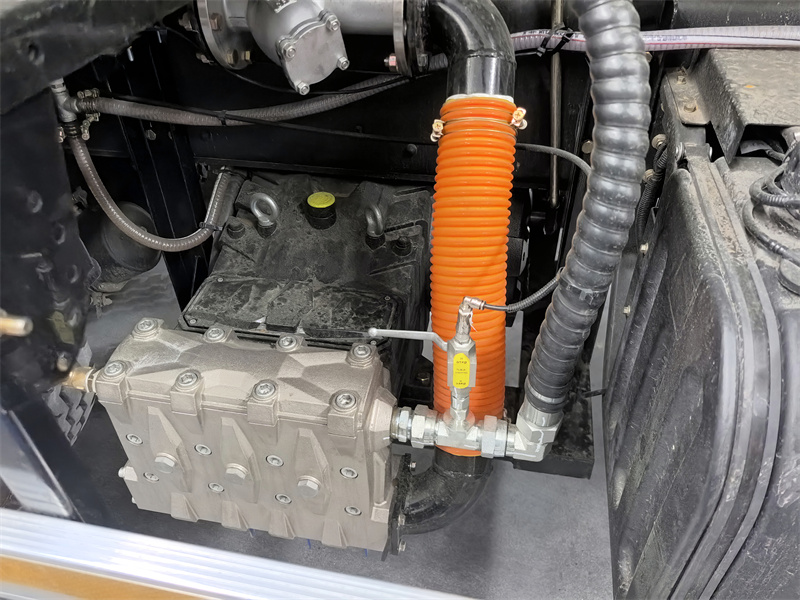

• Cleaning Pump: PINFL XO350 high-pressure cleaning pump, high flow rate and high pressure, powerfully removes scale and blockages from pipes.
Flow rate: 350L/min, speed 1500rpm, pressure 180MPa

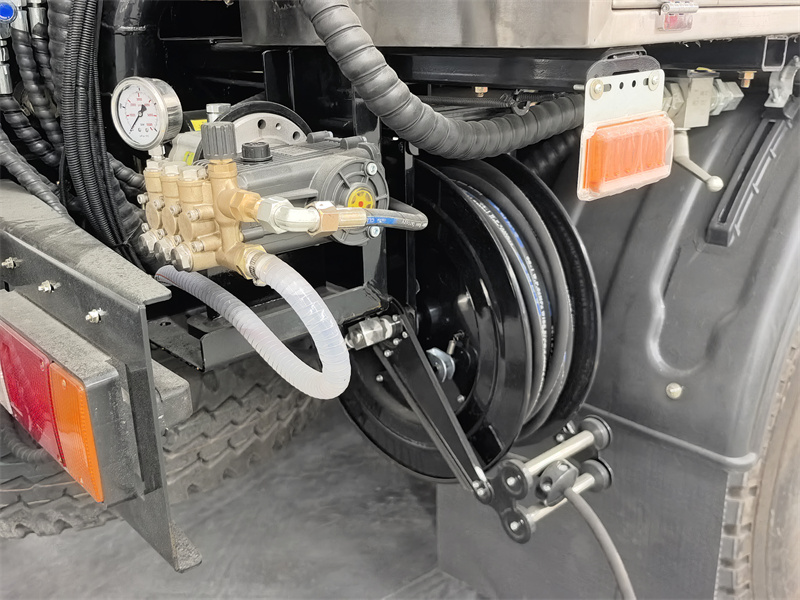

• Cleaning Reel: 100-meter high-pressure cleaning reel, automatic winding and unwinding, large working radius
• Nozzle Configuration: Standard configuration includes 10 high-pressure nozzles, covering various scenarios such as unblocking, flushing, and spraying.
• Remote Control Operation
▶ Safety Features:
• Safety Devices: Triple protection including a full tank alarm, pressure relief valve, and two-stage anti-overflow valve to prevent overflow and tank overpressure.

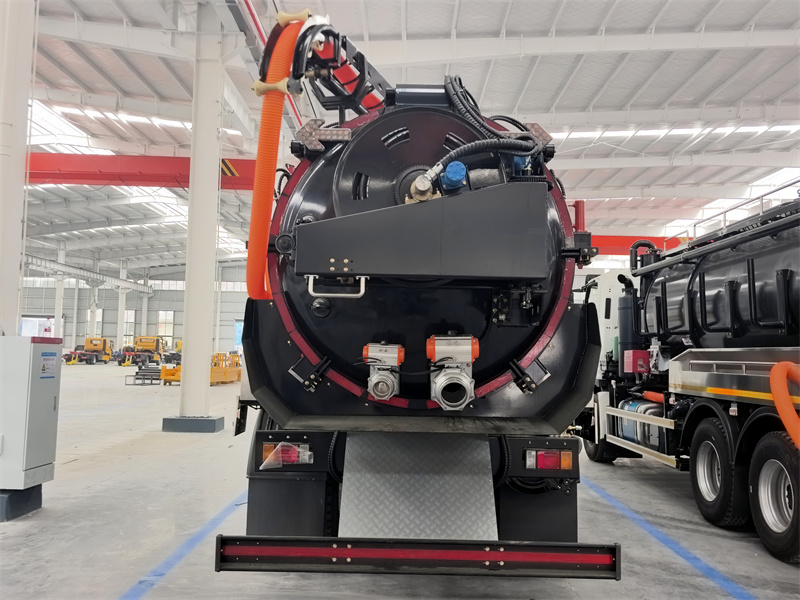

• Drainage Structure: Large-diameter drain outlet at the tailgate for rapid drainage, minimal residue, and easy cleaning.
▶ Applicable Scenarios:
• Dredging and sewage suction in urban sewers and stormwater drainage systems.
• Cleaning and transfer of wastewater from factory and residential wastewater treatment plants.
• River dredging and industrial wastewater collection and transfer.
