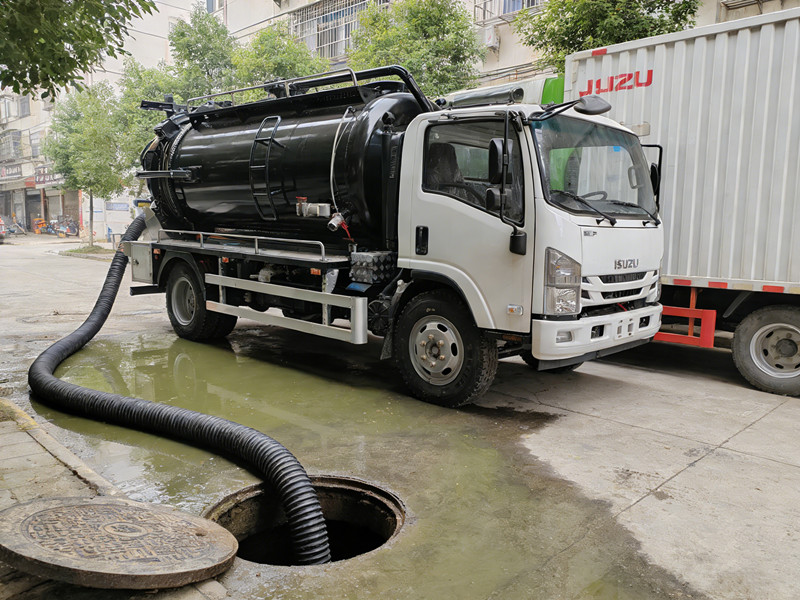

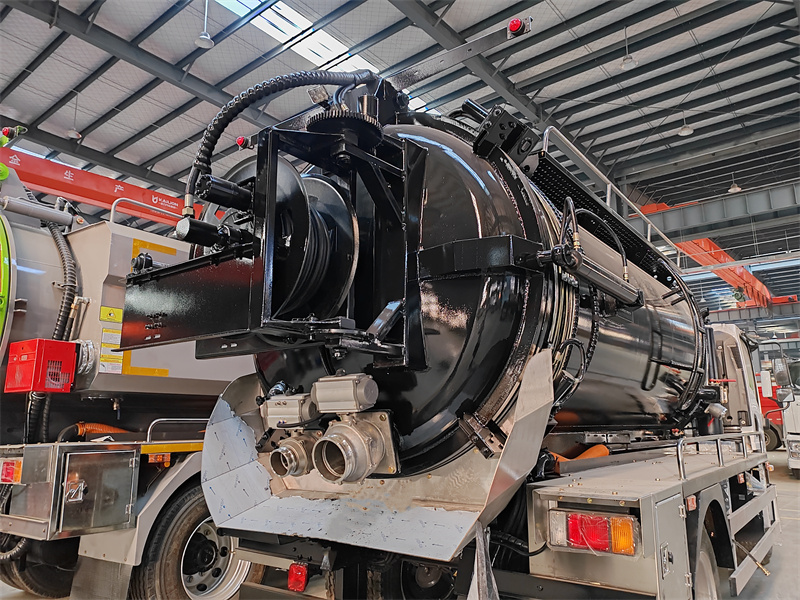

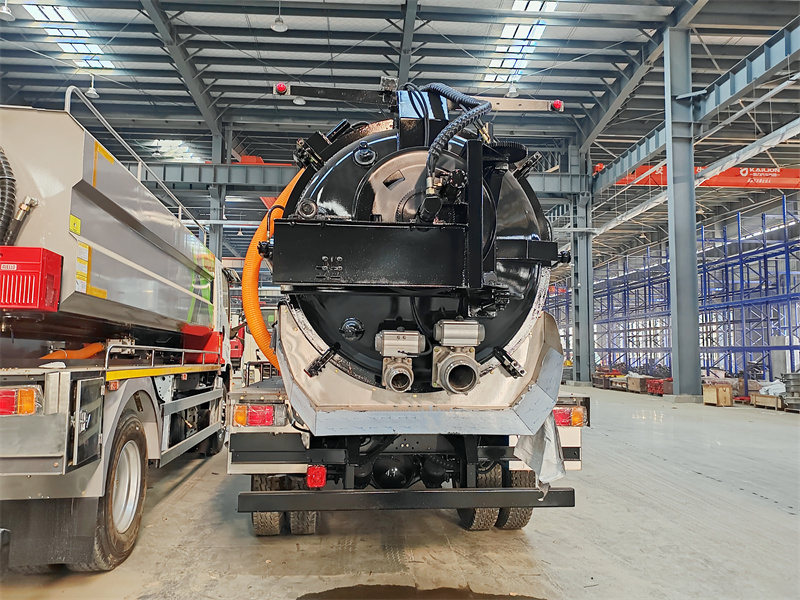

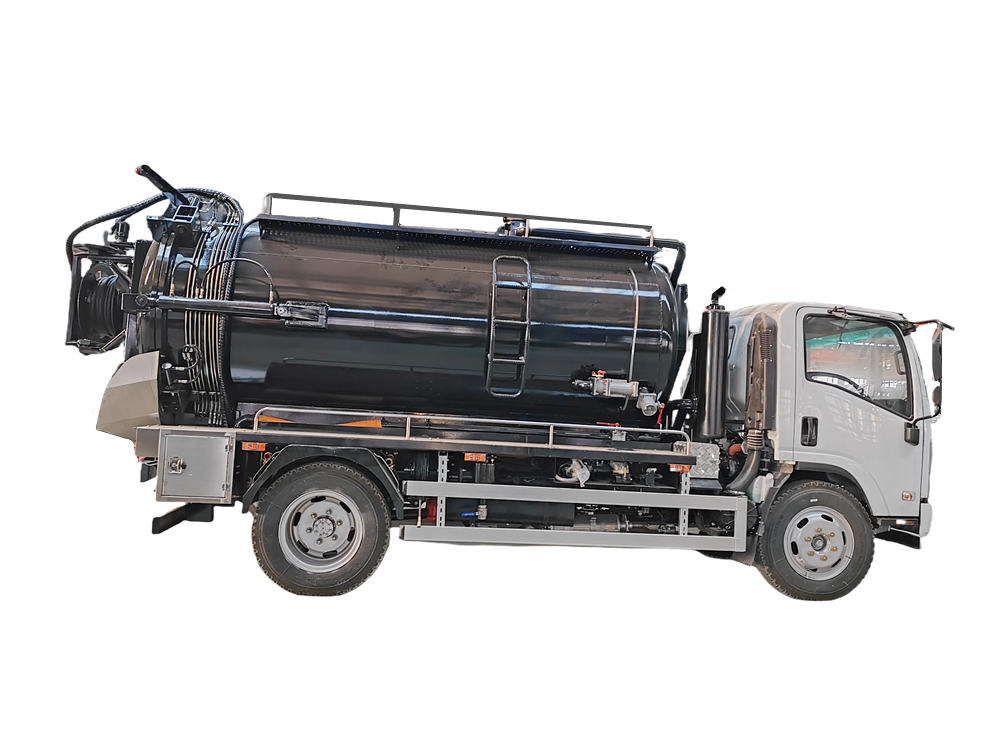

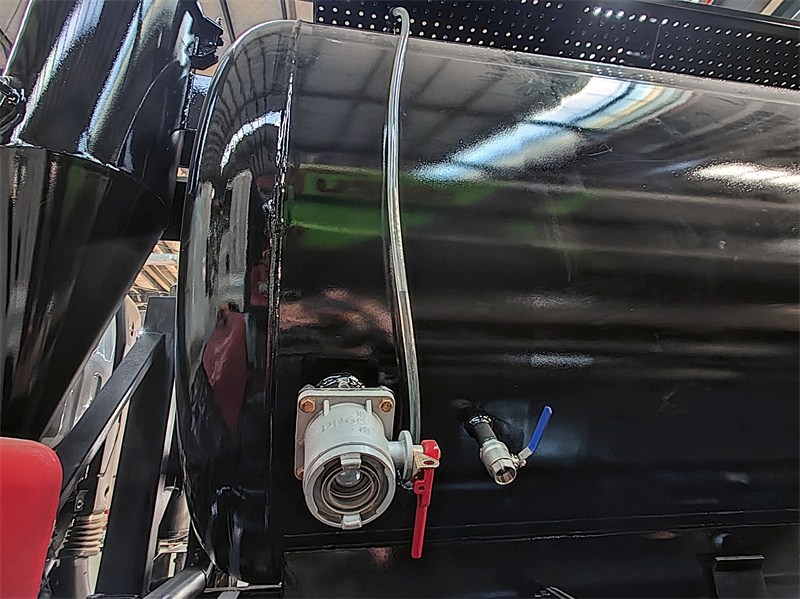

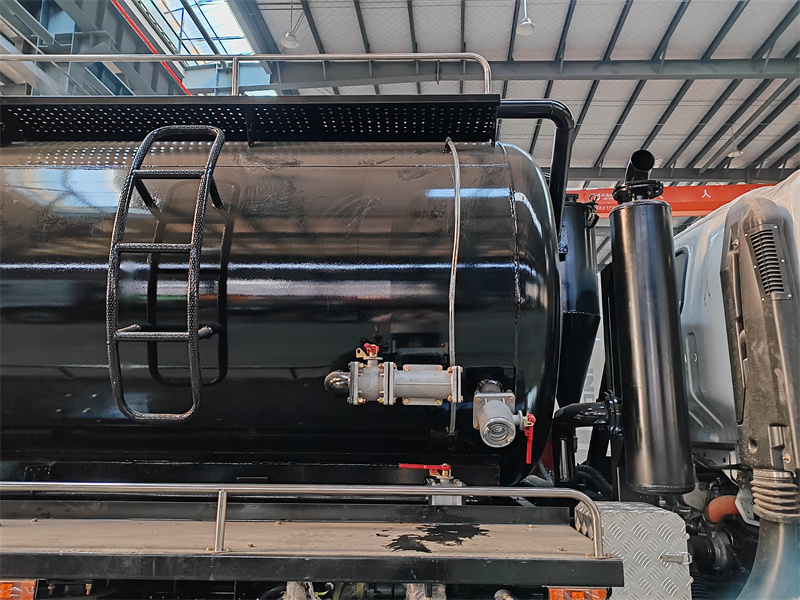

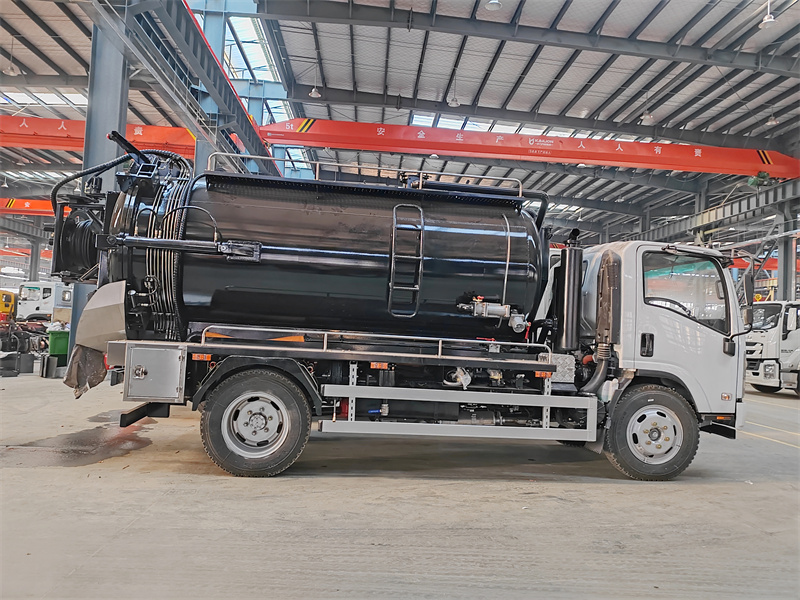

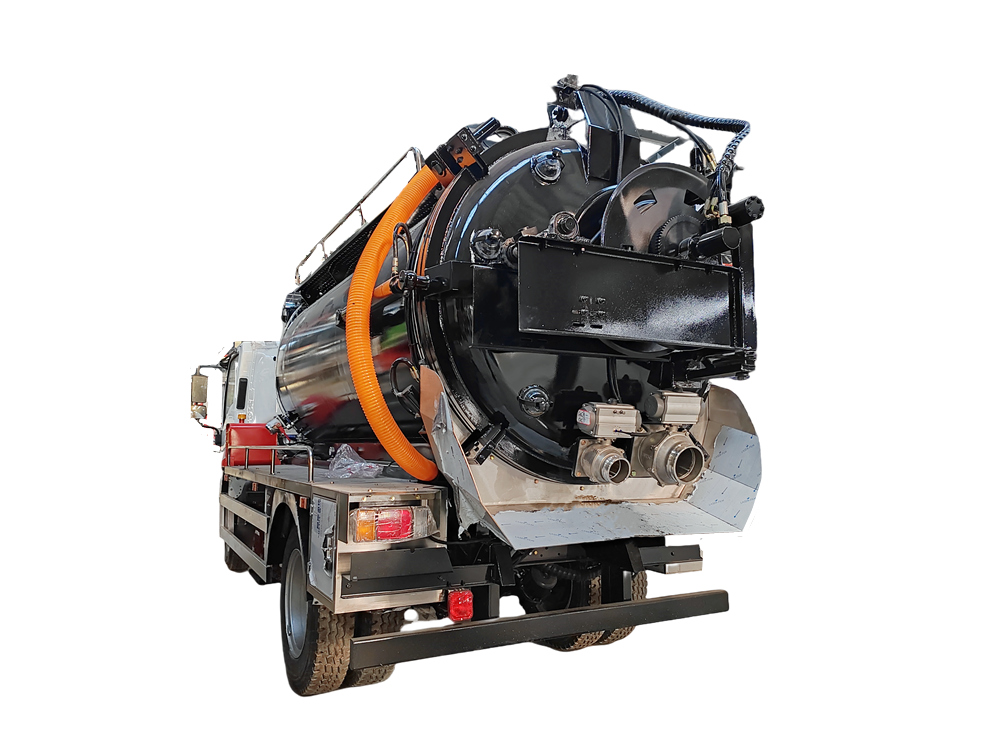

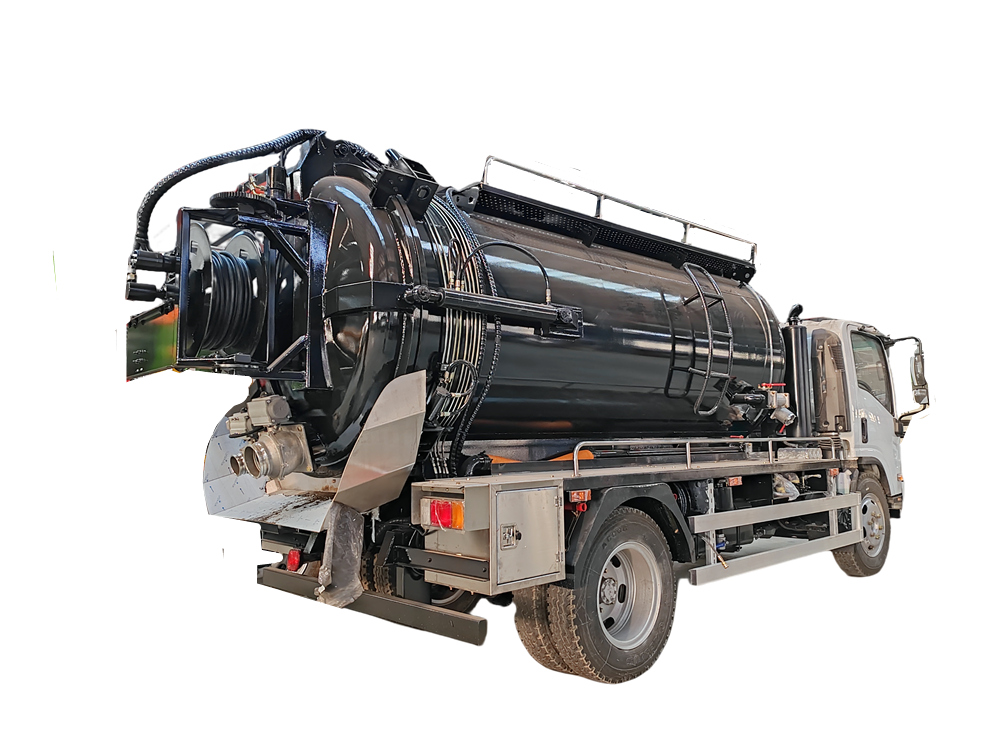

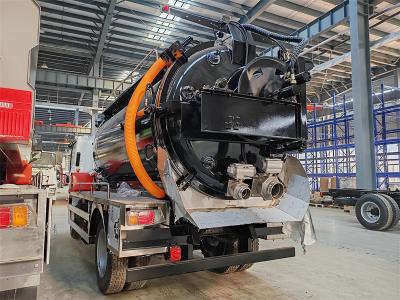

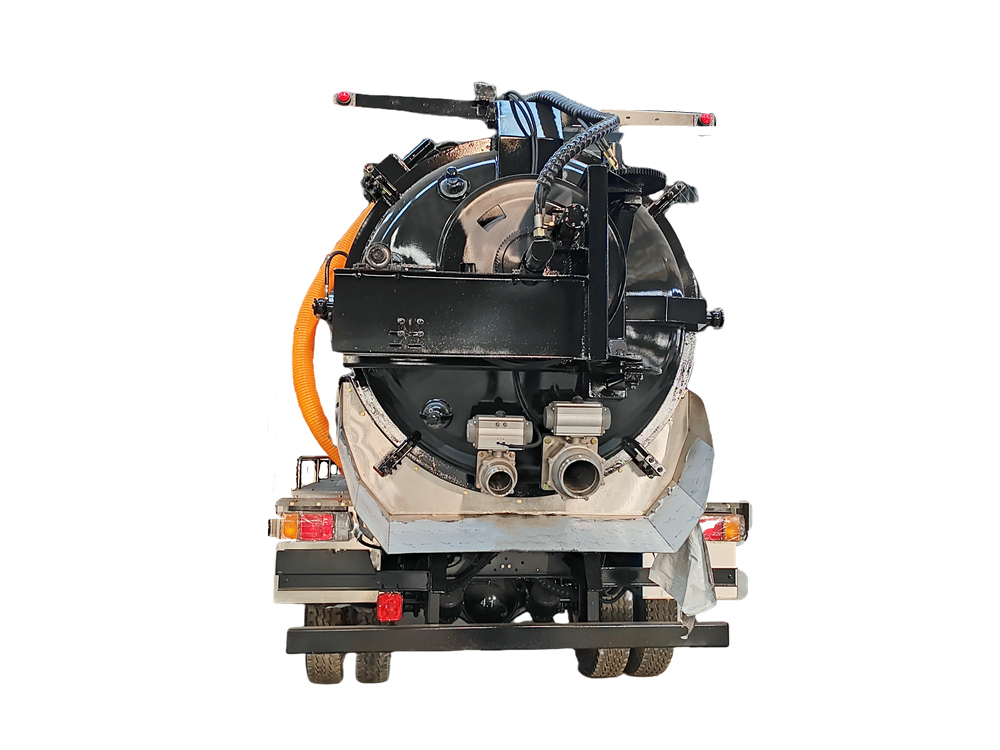

This Isuzu 700P combined vacuum cleaning truck has a 3815mm wheelbase,Isuzu 4HK1-TCG61 engine, MLD 6-speed transmission, and features a tank body including a 6cbm sewage tank and a 2cbm clean water tank. It also includes a Jurop PN155D vacuum pump, a PINFL PF36 high-pressure cleaning pump, a front-mounted lifting cylinder, a right-side control valve for tank lifting, a tailgate with a cleaning hose reel, a ladder, front-side inlet and outlet valves on the tank, a sight glass, a tailgate suction valve, and a drain valve.
Manufacturer:
Powerstar TrucksWork capacity:
6cbm sewage tank，2cbm cleaning water tankDimension:
7250 x 2350 x 2580 mmCabin type:
Isuzu NPR 700P cab,3 passengersWheelbase:
3815 mmEngine power:
190HP/139kWEngine type:
ISUZU 4HK1-TCG61Axle drive:
4x2,LHDGear box:
Isuzu MLD 6-speed,manualRemarks:

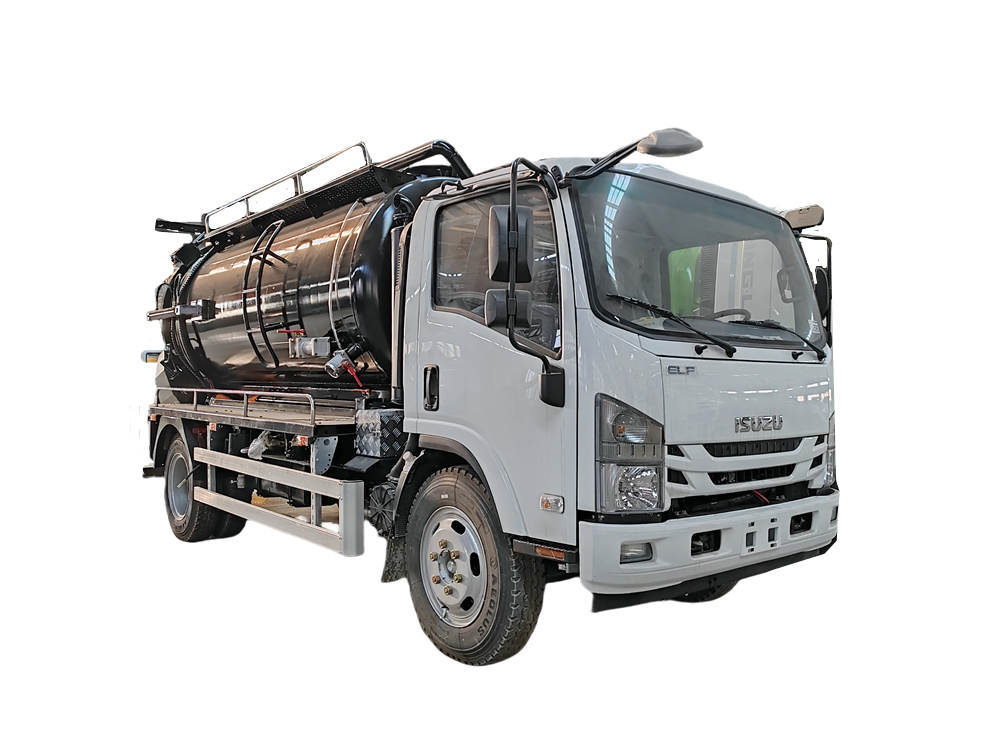

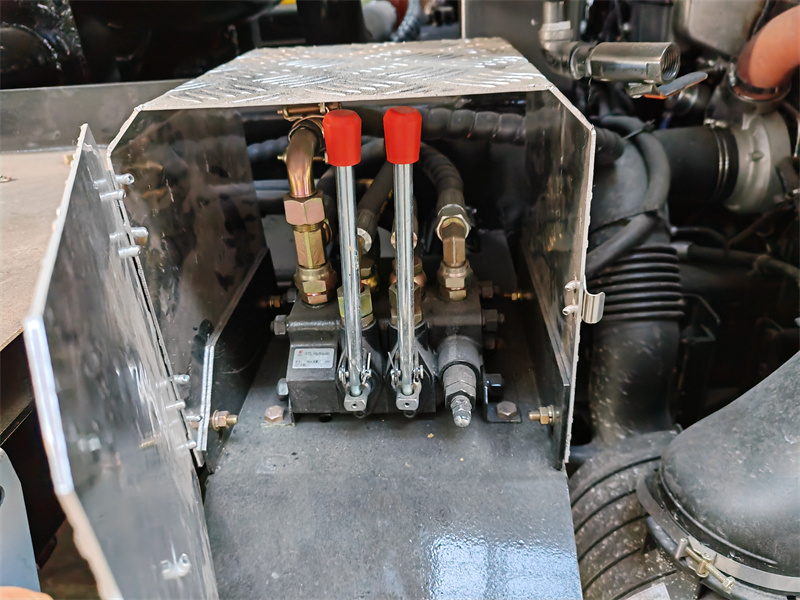

Tank capacity can be customizedThis 8000L Combination Vacuum Jetter Isuzu is a highly efficient sanitation equipment integrating suction, dredging, and washing functions. Based on an Isuzu 700P chassis, it is equipped with a 4HK1 engine and a 6-speed transmission, ensuring ample power and reliable load-bearing capacity. The core functions are achieved through the superstructure: a 6-cubic-meter sewage tank and a 2-cubic-meter clean water tank work in tandem through a Jurop vacuum pump and a PINFL high-pressure pump to complete the "flushing-suction" cycle. Operation is centralized in the valve group on the right side of the vehicle, controlling tank lifting, tailgate opening and closing, and various other operations. The vehicle can flexibly handle various complex working conditions such as municipal pipeline dredging and cleaning, achieving a highly efficient multi-functional operation.
▶ Features:
---- Isuzu NPR 700P chassis, perfect performance
---- Isuzu 4HK1 190HP engine, MLD 6-speed gearbox,super powerful; reliable performance, no overhaul within 100,000 km.
---- Tank body capacity from 2 to 35 Cubic Meter.
---- Easy operation and easy maintenance.
---- Chinese or Spain brand are available.
▶ Product Parameters:
|
Isuzu 700P 8000L combined jetting truck |
|||
|
General |
Vehicle Brand |
POWERSTAR TRUCKS |
|
|
Vehicle Model |
PT5110GMH |
||
|
Chassis Brand |
ISUZU |
||
|
Overall Dimension |
7250 x 2350 x 2580 mm |
||
|
GVW / Kerb Weight |
10550 kg / 5650 kg |
||
|
Axle loads |
4000/7000 kg |
||
|
Cab |
Cab Capacity |
ISUZU 700P cabin,single row, with A/C,USB, direction assistance |
|
|
Engine |
Fuel Type |
Diesel, 4 cylinders in-line, 4-stroke, supercharged, intercooled, water-cooled |
|
|
Brand |
ISUZU |
||
|
Model |
4HK1-TCG61 |
||
|
Power |
190 HP / 139kW |
||
|
Rated speed |
2600rpm |
||
|
Max torque |
507 N·m |
||
|
Max torque speed |
1600-2600rpm |
||
|
Displacement |
5.193L |
||
|
Emission Standard |
Euro 6 |
||
|
Chassis |
Drive Type |
4x2, left hand drive |
|
|
Transmission |
Isuzu MLD 6-speed transmission, manual |
||
|
Wheelbase |
3815mm |
||
|
Number of axle |
2 |
||
|
Tyre Specification |
235/75R17.5 |
||
|
Tyre Number |
6 tyres and 1 spare tyre |
||
|
Max Speed |
110km/h |
||
|
Fuel tank |
100L |
||
|
Paint |
Metallic paint |
||
|
Superstructure |
Tank |
Tank Capacity |
6000L sewage tank,2000L cleaning water tank |
|
Tank Material |
5mm carbon steel with antiseptic treatment |
||
|
Tank lifting angle |
≥45° |
||
|

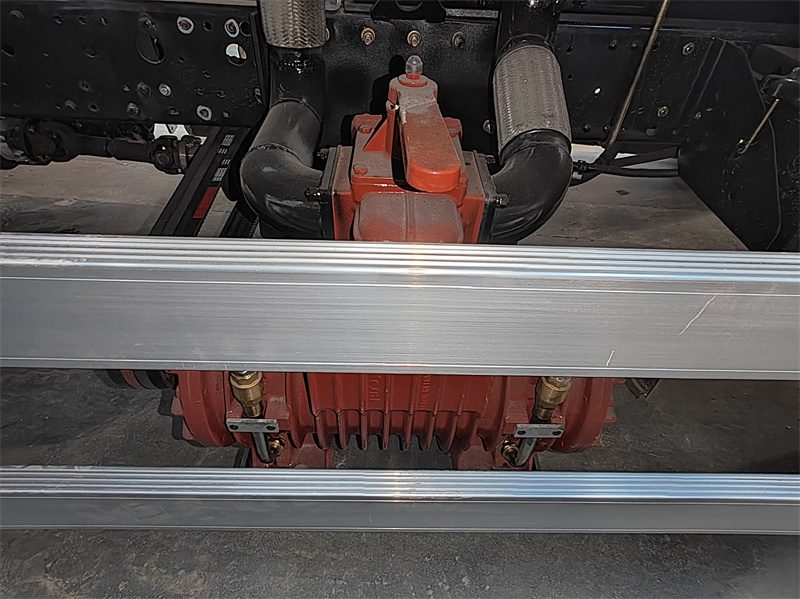

Vacuum Pump |
Vacuum Pump |
Jurop PN155D |
|
|
Pumping rate |
910m³/h,15200L/min |
||
|
Rotation speed |
1150r/min |
||
|
Vacuum |
27.8Hg,93% |
||
|
Continuous vacuum |
18Hg,60% |
||
|
Max Pressure |
2 bar |
||
|
Power Vacuum Max. |
Vacuum pump 19kW, 25.5HP |
||
|

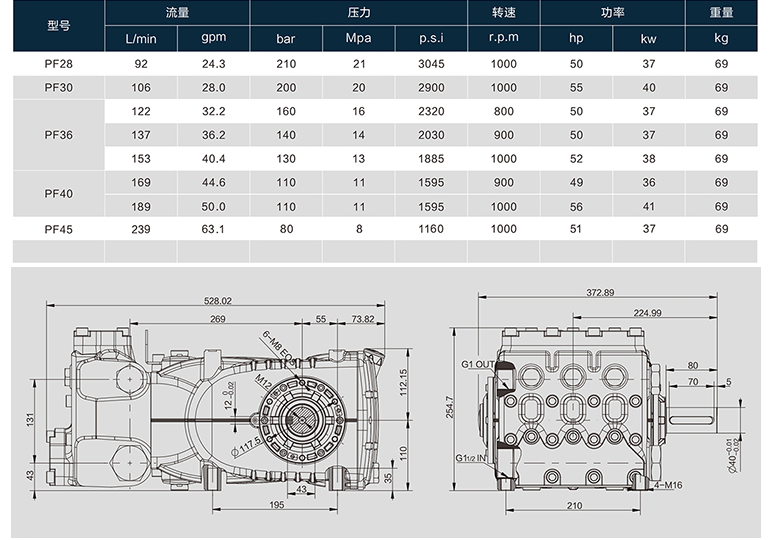

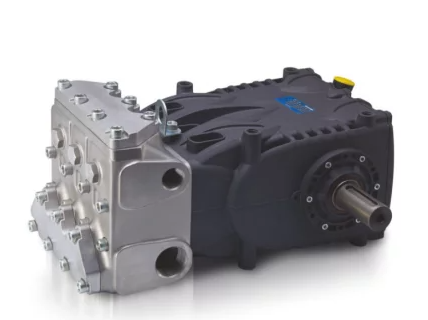

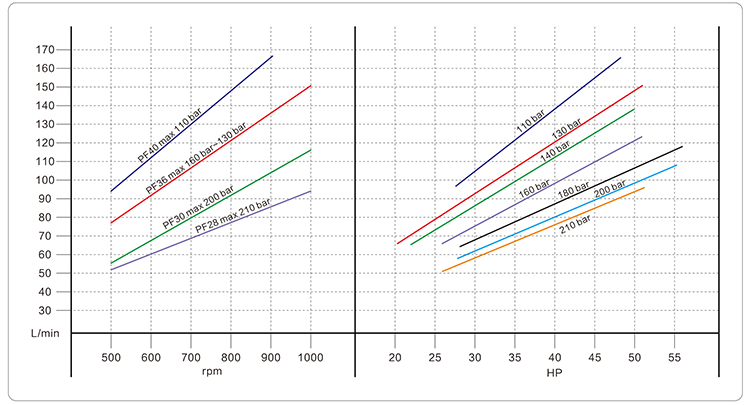

High cleaning water pump |
Water pump brand |
PINFL (German brand) |
|
|
Model |
PF36 |
||
|
Flow rate |
122 L/min |
||
|
Rated pressure |
16 Mpa |
||
|
Speed |
800 r/min |
||
|
Power |
50kw |
||
|
Hose reel |
Rear-mounted hose reel with 60m φ19 high pressure hose |
||
|
Jetting spraying nozzles |
10 pcs carbon steel spraying nozzles |
||
|
All standard accessories: manhole, tool kit, English manual..... |
|||
|
Optional |
** Tank material could be stainless steel. ** Chinese or Spain vacuum pumps |
||
▶ Chassis System:

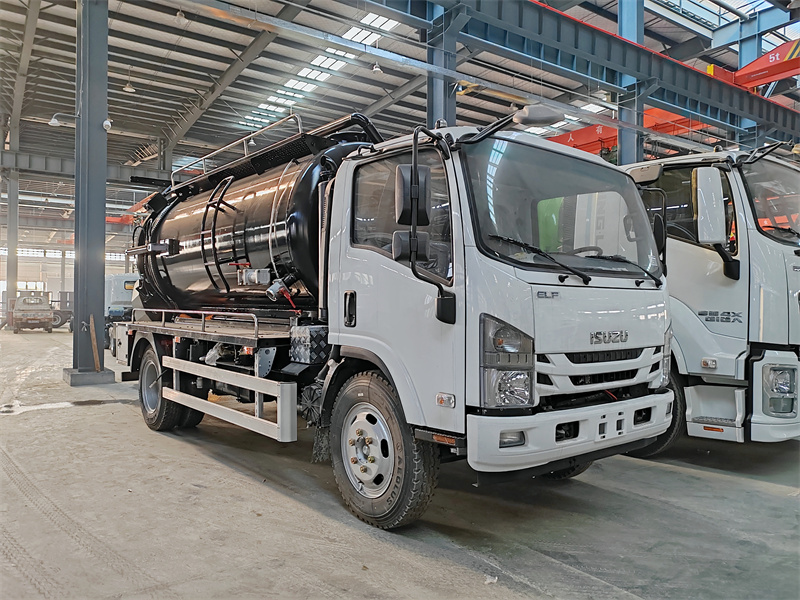

• Chassis model: Isuzu Classic 700P Chassis
• Wheelbase: 3815mm, optimized body layout for improved passability in narrow roads.
• Engine: Equipped with an Isuzu 4HK1-TCG61 inline four-cylinder diesel engine, 5.2L displacement, maximum power 139kW (190hp), peak torque 507N·m, meeting Euro VI emission standards, offering strong power and excellent fuel economy.
• Transmission: Matched with a MLD 6-speed manual transmission.
• Braking System: Air brakes
• Tires: 235/75R17.5, 6+1

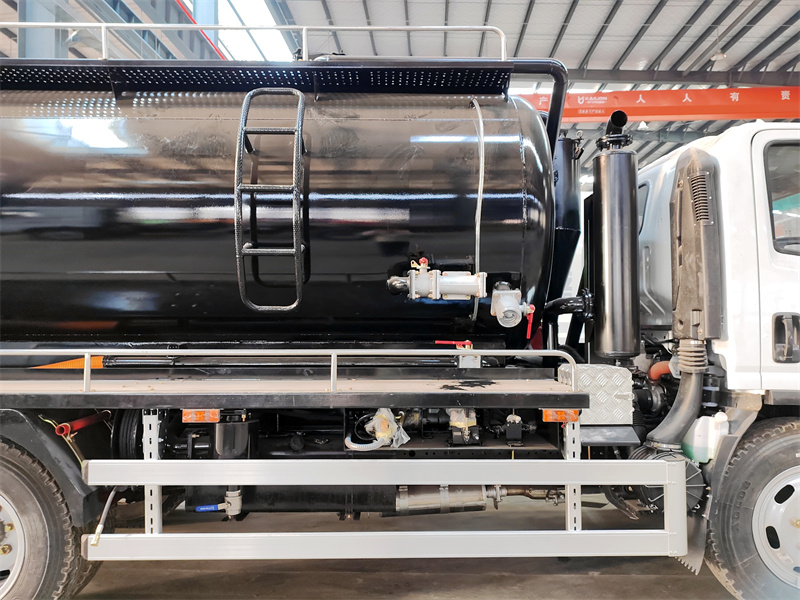

▶ Tank Structure:
