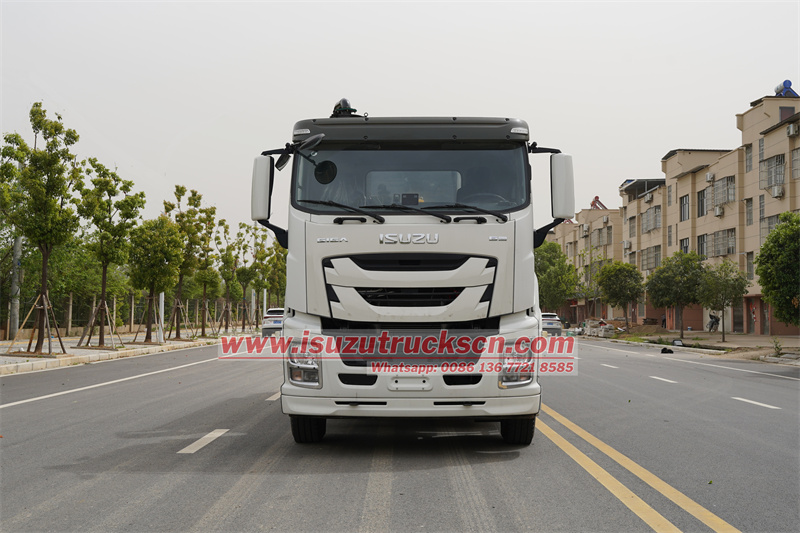

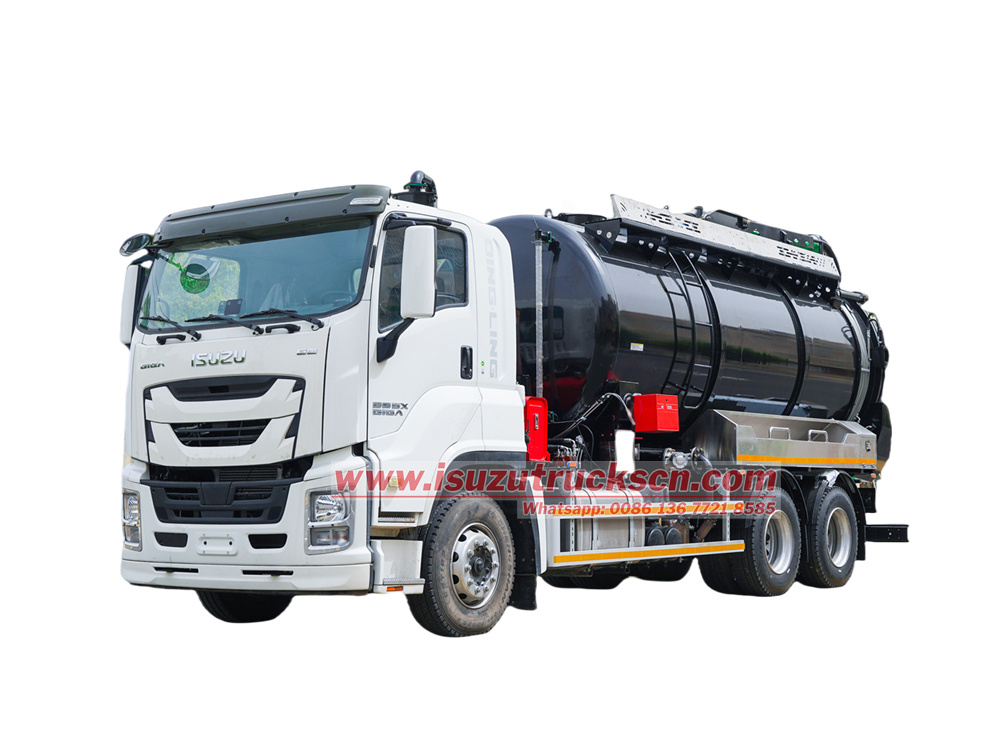

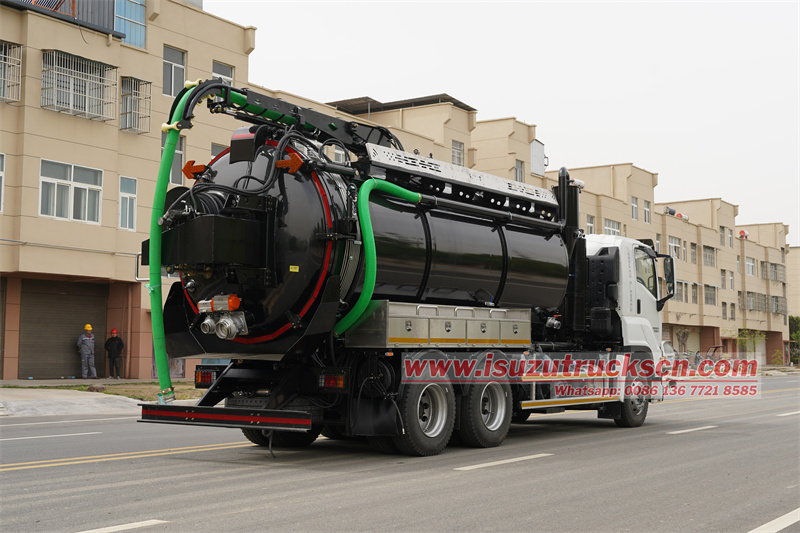

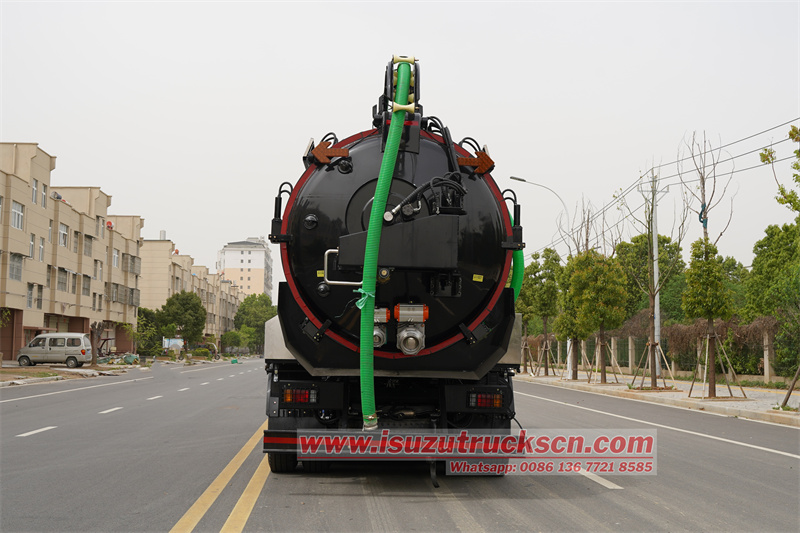

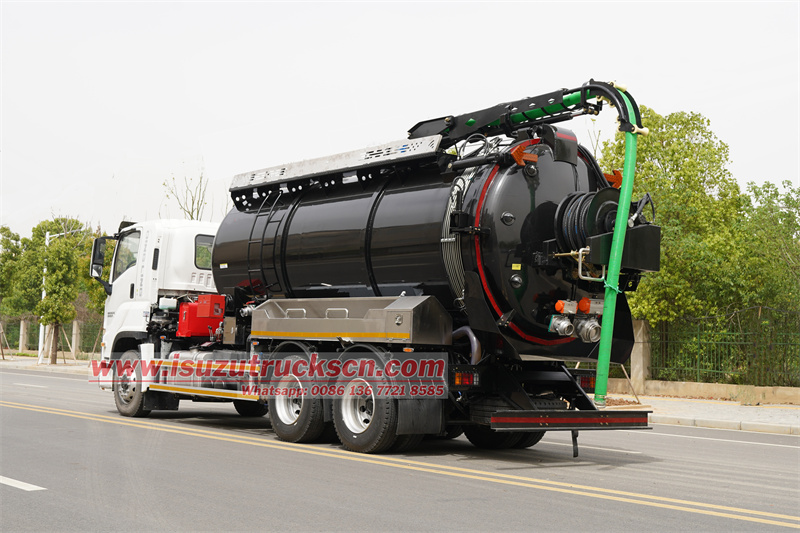

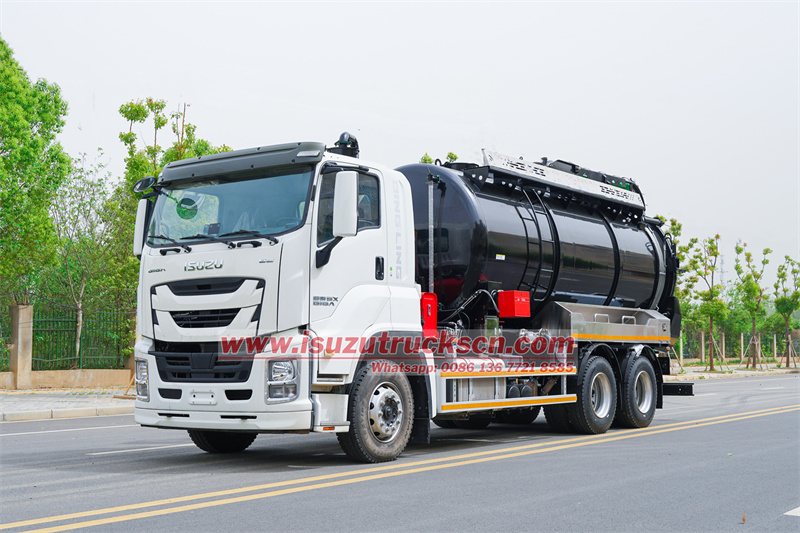

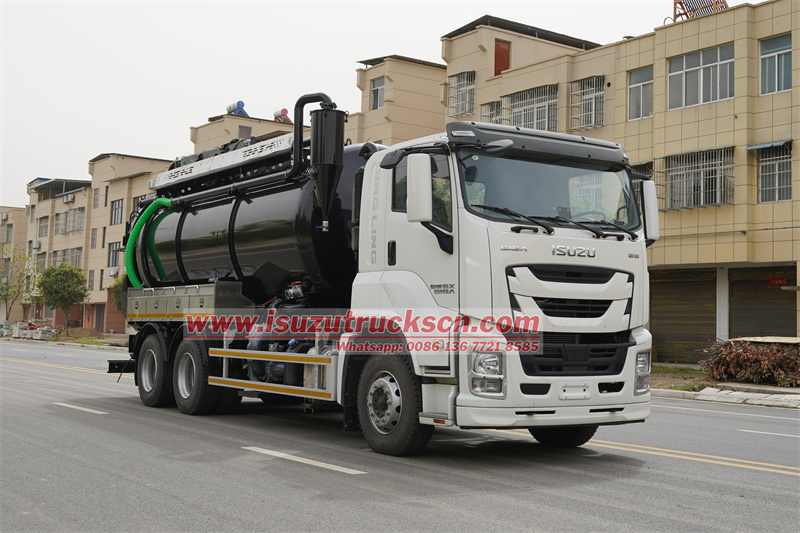

Isuzu 15000 liters hydro jetting drain cleaning truck
The Isuzu FVZ GIGA 6X4 15cbm joint dredging vehicle is modified on the Isuzu FVZ GIGA 5X chassis, with a half-row cab, 4650+1370mm wheelbase, equipped with Isuzu 6HK1-TCG60 Euro VI 300 horsepower engine, FAST 9-speed gearbox, the upper body is a 12 cubic sewage tank, 3 cubic water tank, separate compartment management, the vehicle is equipped with hydraulic oil tank, discharge valve, SK-15 water circulation vacuum pump, sewage suction and discharge pipe, high-pressure cleaning water pump, high-pressure cleaning reel, water vapor separator, oil gas separator, liquid level view window, and of secondary filter etc important components.
Manufacturer:
Powerstar TrucksWork capacity:
15000 litersDimension:
9980 * 2550 * 3930 mmCabin type:
Isuzu FVZ GIGA 5X one and half row cabWheelbase:
4650+1370mmEngine power:
300HP(221kW)Engine type:
Isuzu 6HK1-TCG60Axle drive:
6x4, left hand driveGear box:
FAST 9-speed,manualRemarks:
12000 liters sewage tank,3000 liters cleaning water tankIsuzu 15000 liters hydro jetting drain cleaning truck is a highly efficient and multifunctional sanitation vehicle modified based on the Isuzu FVZ GIGA 5 series chassis. It is suitable for municipal pipe network dredging, industrial sewage transfer, septic tank cleaning and emergency drainage. The vehicle adopts a half-row cab design, equipped with a high-power Euro VI engine, equipped with a 12m³ sewage tank and a 3m³ clean water tank, and adopts compartment management to achieve integrated sewage suction and cleaning functions. The core components include SK-15 water circulation vacuum pump, high-pressure cleaning water pump and automatic reel, which can quickly suck pipe sludge and high-pressure wash the pipe wall. Combined with high-pressure cleaning and vacuum suction dual systems, it realizes the integrated operation of "extraction, drainage and flushing", greatly improving the efficiency of urban sanitation and emergency treatment.
● China best Isuzu combined jetting truck factory
● Professional sales team which will help you to choose suitable truck.
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
|
Isuzu GIGA 6X4 Hydro Jetting Drain Cleaning truck |
||||
|
General |
Vehicle Brand |
POWERSTAR |
||
|
Vehicle Model |
PT5250GXH |
|||
|
Chassis Brand |
ISUZU |
|||
|
Overall Dimension |
9980 * 2550 * 3930 mm |
|||
|
GVW / Kerb Weight |
25000 kg / 10500 kg |
|||
|
Axle loads |
7000/18000(Two-axle group) |
|||
|
Cab |
Cab Capacity |
Isuzu FVZ GIGA 5X 6x4 cabin, one and half row, with A/C,USB,dirfection assistance |
||
|
Engine |
Fuel Type |
Diesel, 6 cylinders in-line |
||
|
Brand |
Isuzu |
|||
|
Model |
6HK1-TCG60 |
|||
|
Power |
300HP(221kW) |
|||
|
Displacement |
7.79L |
|||
|
Emission Standard |
Euro VI |
|||
|
Chassis |
Drive Type |
6x4, left hand drive |
||
|
Transmission |
FAST 9-speed,manual |
|||
|
Wheelbase |
4650+1370mm |
|||
|
Front/rear overhang |
1370/2590mm |
|||
|
Number of axle |
3 |
|||
|
Tyre Specification |
295/80R22.5 |
|||
|
Tyre Number |
10 tyres and 1 spare tyre |
|||
|
Max Speed |
105km/h |
|||
|
Paint |
Metallic paint |
|||
|
Superstructure |
Tank |
Tank Capacity |
12000 liters sewage tank,3000 liters cleaning water tank |
|
|
Tank Material |
Carbon steel |
|||
|
Vacuum Pump |
High Pressure Vacuum Pump |
SK-15 YIFENG Water circulation vacuum pump |
||
|
Max pressure |
8000Pa |
|||
|
Pumping rate |
15m³/min |
|||
|
vacuum level(-450mmHg) pumping rate |
13.5 m³/min |
|||
|
Tank lifting angle |
45 degree |
|||
|
Rated speed |
970r/min |
|||
|
Power |
Vacuum pump |
30Kw |
||
|
Compressor |
37Kw |
|||
|
Suction Head |
7m |
|||
|
Nozzles |
A cluster of nozzles included |
|||
|
Vacuum Pump |
Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m. |
|||
|
High-Pressure cleaning Pump |
Type |
Plunger Pump |
||
|
Flow Rate |
180L/min |
|||
|
Rear door can be hydraulic opened for complete discharge of solid stuff. |
||||
|
All standard accessories: manhole, tool kit, English manual..... |
||||
|
Optional |
** Tank material could be stainless steel. |
|||
As urbanization accelerates, the smooth flow and maintenance of urban underground pipe networks have become the key to ensu the operation of cities. As a professional vehicle designed for municipal dredging, industrial sewage discharge and emergency rescue, the Isuzu FVZ GIGA 6X4 15cbm joint dredging vehicle has become an "all-round player" in the field of urban sanitation with its powerful power performance, efficient operation ability and environmental protection technology.
★ Chassis and power: stable load bea, efficient drive

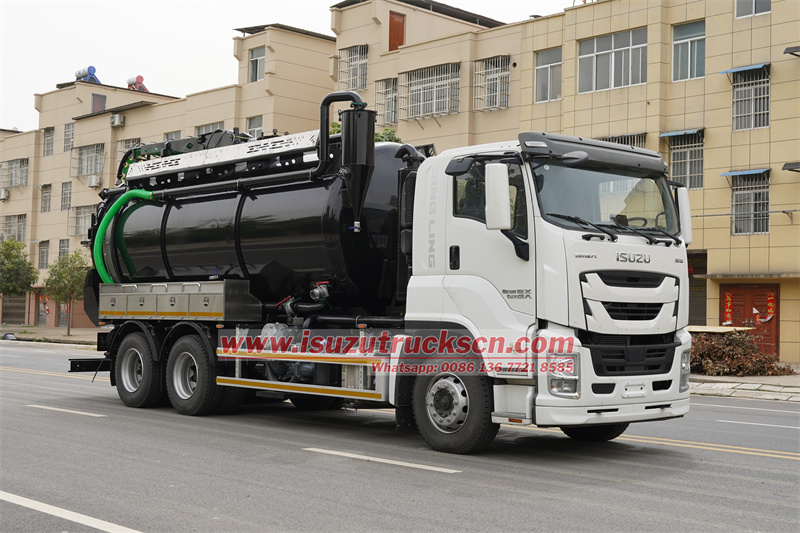

The Isuzu 15cbm combined sewage suction truck adopts the mature FVZ GIGA 5X chassis. Its half-row cab design takes into account driving comfort and operating space. It can accommodate 3 passengers and meet the needs of multi-person collaborative operations. The wheelbase layout of 4650+1370mm optimizes the center of gravity of the vehicle body, which not only ensures the flexibility of the vehicle in narrow streets, but also improves the stability under heavy load. The power system is equipped with Isuzu 6HK1-TCG60 Euro VI emission standard engine, with a powerful output of 300 horsepower (221kW), which enables it to easily cope with complex road conditions such as muddy and ramps, while meeting environmental protection regulations. The matching FAST 9-speed manual transmission achieves a balance between power and fuel consumption through multi-gear switching, adapting to the frequent start-stop operation scenarios in cities.
★ Upper body system: double tank compartments, integrated sewage suction and cleaning

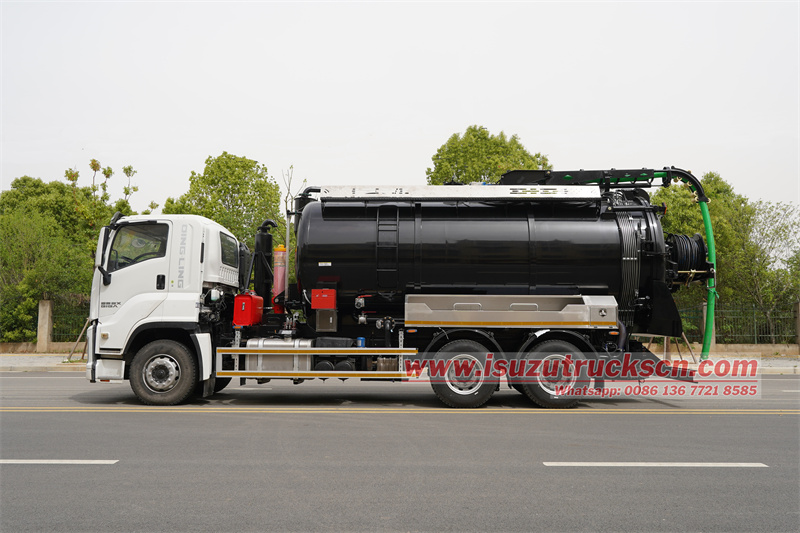

The core of the Isuzu 6X4 High Pressure Sewage Sucker Jetting Truck upper body is the "double tank compartment" design of 12 cubic meters of sewage tank and 3 cubic meters of clean water tank. The sewage tank is made of high-strength carbon steel + anti-corrosion coating, with wave-breaking plates inside to reduce liquid impact, and can accommodate 12 cubic meters of sewage, mud or solid-liquid mixture; the clean water tank is independently divided into compartments with a capacity of 3 cubic meters, which is specially designed for high-pressure cleaning operations to avoid cross contamination. The compartment management is achieved through independent pipes and valve systems, and operators can flexibly switch functions according to operation requirements, such as suction first and then cleaning, or performing dual operations at the same time, which significantly improves efficiency. Equipped with a liquid level observation window and an electronic liquid level sensor to monitor the liquid status in the tank in real time.
★ Vacuum suction system: strong suction, fast silt removal
The core of the suction operation is the SK-15 water circulation vacuum pump, which has a vacuum degree of up to -0.093MPa and a suction range of 7 meters. It can quickly suck out silt, leaves, sewage and other debris in the pipeline. The hydraulic oil tank provides stable power for the vacuum pump, and the discharge valve supports one-button quick emptying of the sewage tank to reduce manual intervention. The suction pipe is made of high-strength pressure-resistant material with a large diameter and few bends to ensure smooth suction of dirt. In addition, the water vapor separator and oil-gas separator can effectively filter the moisture and oil mist in the gas in the pump, extend the life of the equipment and reduce maintenance costs.
★ High-pressure cleaning system: precise dredging, comprehensive coverage
The high-pressure cleaning module consists of a three-plunger high-pressure cleaning water pump, a reel and a secondary filter. The cleaning pump has a rated pressure of 21MPa and a flow rate of 180L/min, which can strongly flush stubborn dirt on the inner wall of the pipeline. The high-pressure cleaning reel supports automatic retraction and release of a 30-meter hose. Operators can cover the working area within a radius of 30 meters without manual dragging, which is especially suitable for deep wells, long pipes and other scenarios. The secondary filter can filter impurities in the cleaning water to avoid nozzle clogging, while protecting the high-pressure pump from particle wear, ensu long-term stable operation of the equipment.
★ Application scenarios and value

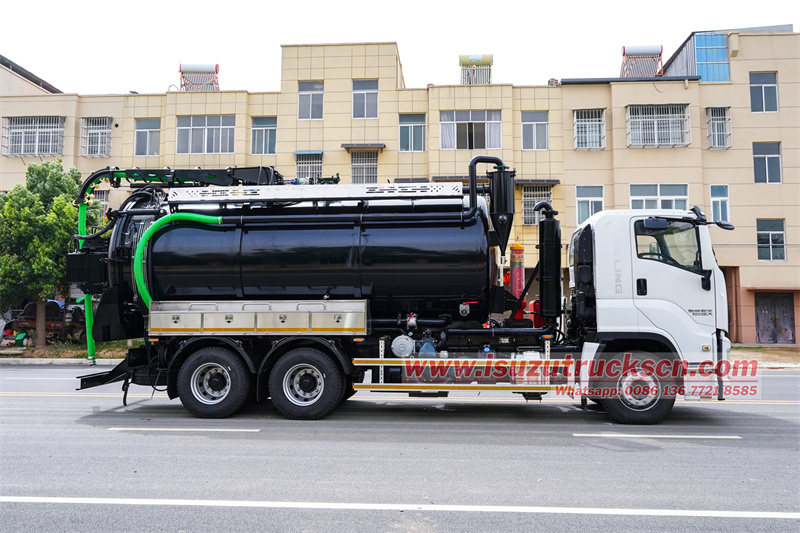

Isuzu FVZ 6X4 15CBM combined jetting truck is widely used in urban sewer dredging, industrial wastewater treatment, construction site silt removal and emergency rescue. It can efficiently clean up municipal sewer blockages and rainwater well silt; handle water accumulation in construction site foundation pits and industrial wastewater; deal with waterlogging in the rainy season, emergency dredging of pipeline ruptures; and can also be used for tasks such as renovation of old pipe networks and cleaning of septic tanks. Its integrated design of sewage suction and cleaning meets the needs of complex working conditions and ensures the smooth flow of urban drainage systems.
