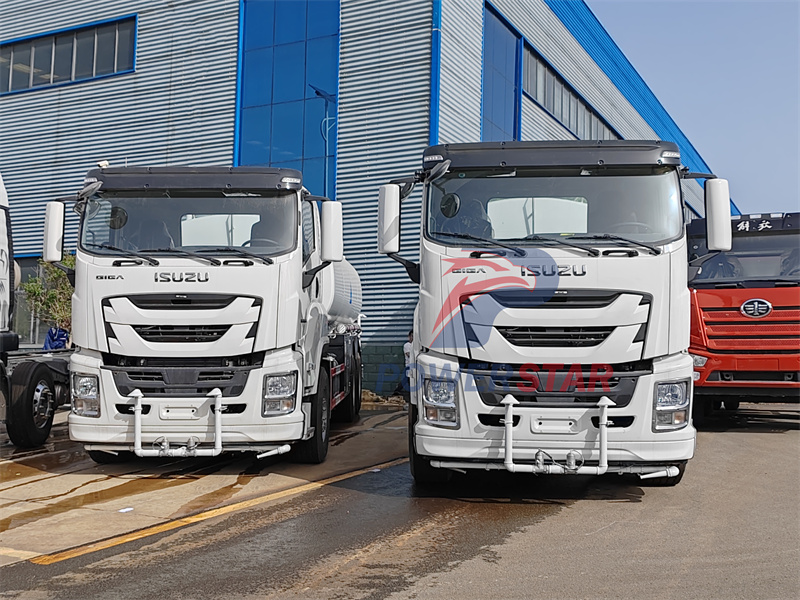

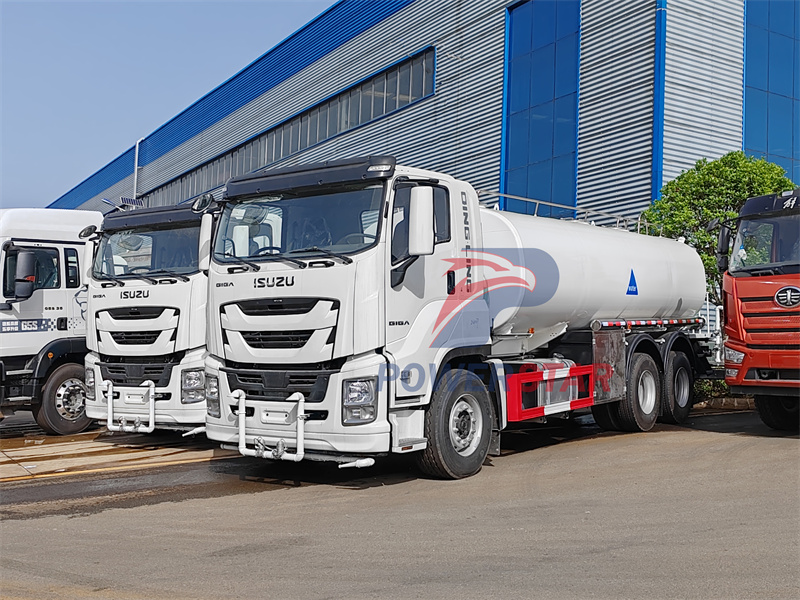

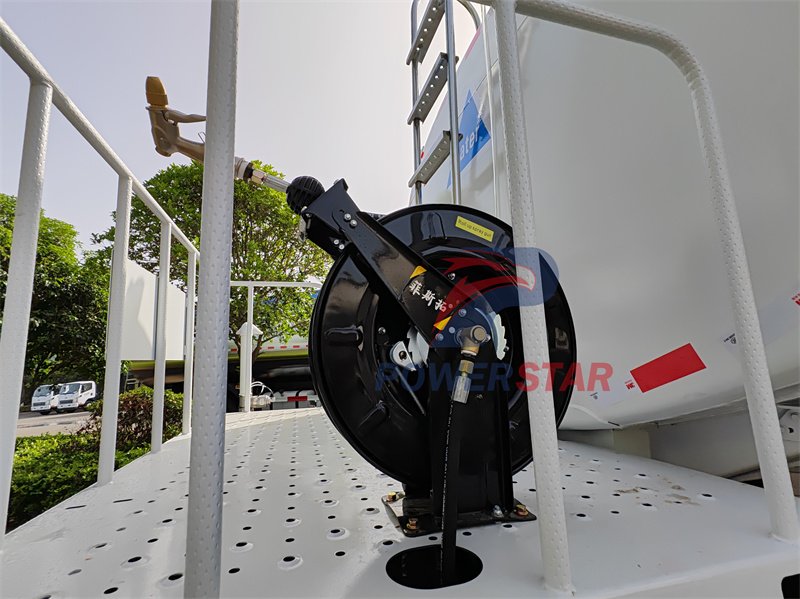

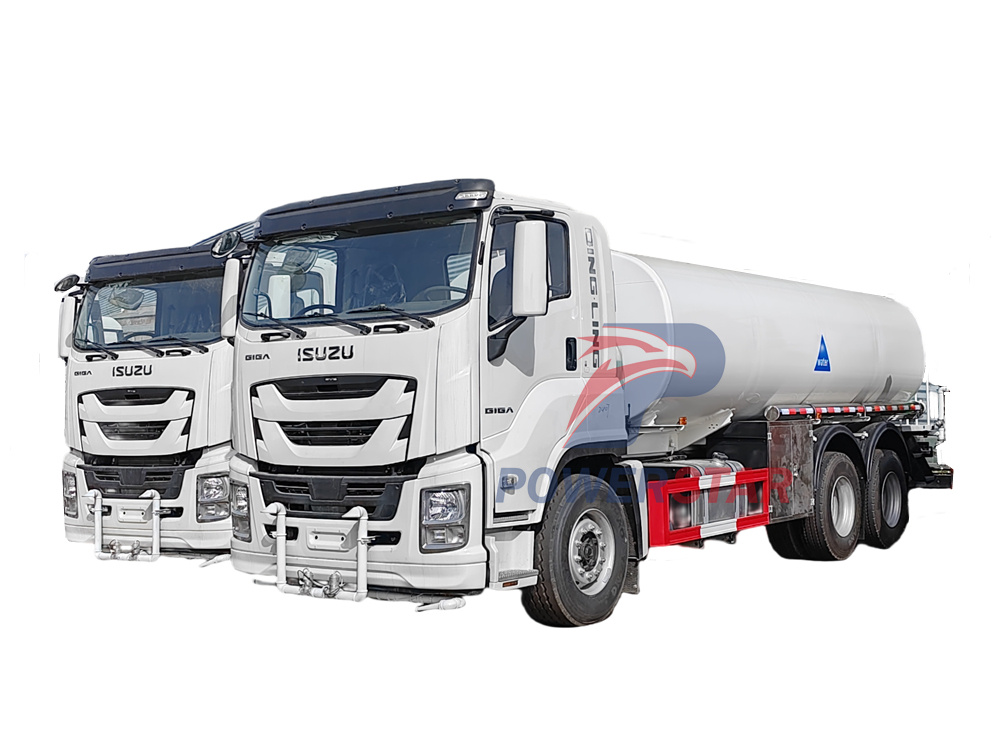

Isuzu GIGA 20 cubic drinking water truck is modified on the basis of Isuzu GIGA 6X4 chassis, 4565+1370mm wheelbase, 6UZ1-TCG61 engine, 380HP, 9839ml displacement, FAST 12-speed gearbox, and a 20 cubic drinking water tank on top. The vehicle can be used for multiple purposes and can be used as a sprinkler. The vehicle is equipped with Weilong 80QZBF-60/90N/S water pump, front nozzle, rear workbench is also equipped with rear sprinkler side sprinkler nozzle, reel sprinkler gun and other sprinkler methods, stainless steel pump inlet and outlet interface, and stainless steel pipe storage box on the side of the water tank.
Manufacturer:
Powerstar TrucksWork capacity:
20cbmDimension:
10100 x 2500 x 3050 mmCabin type:
Isuzu GIGA, 5X luxury cabin, 3 seatsWheelbase:
4565+1370 mmEngine power:
380HPEngine type:
ISUZU 6UZ1-TCG61Axle drive:
6X4Gear box:
FAST 12 speed levers with 2 reverseRemarks:
Equipped with 80QZBF-60/90N/S WEILONG water pumpIn the fields of modern urban construction, emergency rescue, sanitation and cleaning, professional special vehicles play a vital role. As a high-performance water tanker modified based on the Isuzu GIGA 6X4 chassis, the Isuzu 20,000 liters potable water tank truck as a core configuration of a 20 cubic meter food-grade stainless steel water tank, which uses 304 stainless steel and a sealed design to ensure the safety of drinking water transportation. The vehicle is equipped with a Weilong 80QZBF-60/90N/S water pump, which has multiple operating modes such as front flushing, rear sprinkling, side spraying, and handheld spray guns, realizing multiple uses of one vehicle. Not only does it have a strong transportation capacity, but it can also realize multiple functions such as drinking water transportation, road sprinkling, greening irrigation, and emergency water supply through flexible upper configuration. It is an efficient mobile water station integrating transportation, sprinkling, and water supply, which fully meets the needs of modern cities for professional water supply vehicles.
● 30 years experience on potable water truck designing
● Be designed according to your requirements
● Build strict QC team to guarantee the quality
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
|
Isuzu 20,000L drinking tanker Truck |
||
|
General |
Vehicle Brand |
POWERSTAR |
|
Chassis Brand |
ISUZU |
|
|
Overall Dimension |
10100 * 2500 * 3050 mm |
|
|
GVW / Kerb Weight |
25,000kg / 11,800kg |
|
|
Cab |
Cab Capacity |
One and half row,2 persons allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Engine |
Fuel Type |
Diesel, Inline 6 cylinders, 4 stroke, supercharged, intercooled, water-cooled |
|
Engine Brand |
ISUZU |
|
|
Engine Model |
6UZ1-TCG61 |
|
|
Power |
380 HP (279 KW) |
|
|
Max torque |
1800N.m |
|
|
Displacement |
9839 ml |
|
|
Emission Standard |
Euro VI |
|
|
Chassis |
Drive Type |
6X4, (left hand drive) |
|
Transmission |
FAST 12 speed levers with 2 reverse |
|
|
Wheelbase/No. of axle |
4565+1370 mm / 3 |
|
|
Tire Specification |
295/80R22.5 |
|
|
Tire Number |
10 tires and 1 spare tire |
|
|
Max Speed |
90 km/h |
|
|
Paint |
Metallic paint |
|
|
Superstructure |
Tank Capacity |
20,000 Liters |
|
Tank shape |
Ellipse |
|
|
Material |
Stainless steel, 5mm |
|
|
Body Material |
Whether resisting steel |
|
|
Water pump |
China famous brand WEILONG pump |
|
|
Water pump model |
80QZBF-60/90N/S |
|
|
Loading type |
Self loading |
|
|
Rated flow |
60m³/h |
|
|
Rated head |
90m |
|
|
Rated shaft power |
26kw |
|
|
Max self-priming height |
6.5m |
|
|
Self-priming time(min/4m) |
1.5 |
|
|
Front spray bar |
YES |
|
|
Rear spray bar |
YES |
|
|
Fire coupling |
Standard |
|
|
Control |
Manual (Optional air operated) |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… |
||
|
Optional |
** Backup alarm can be equipped. |
|

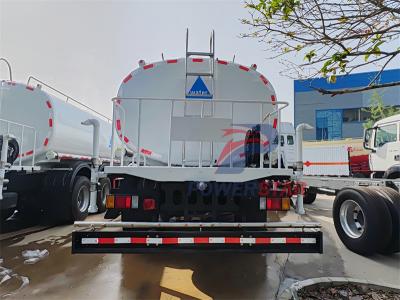

In many fields such as urban construction, environmental governance and emergency rescue, a special vehicle with excellent performance and diverse functions is indispensable. The Isuzu 20cbm tandem axle potable water truck is such a high-quality model that combines efficiency, practicality and reliability. With its excellent design and powerful performance, it has become a powerful assistant in many industries.

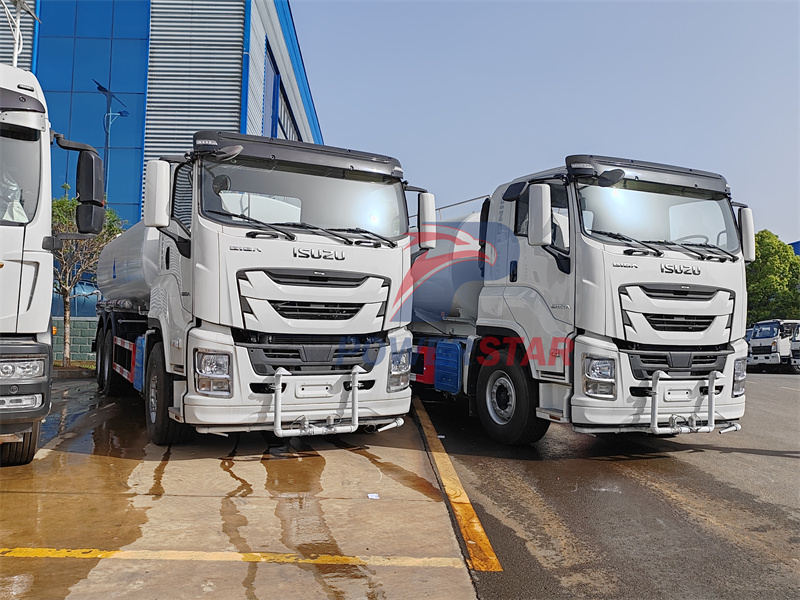

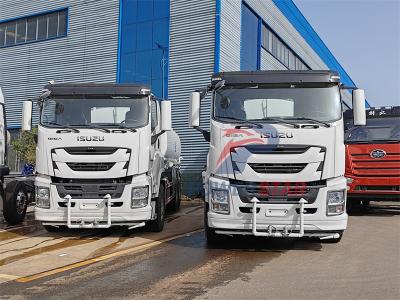

This vehicle is modified on the solid foundation of Isuzu GIGA 6X4 chassis. This chassis has laid a good foundation for the overall performance of the vehicle with its excellent stability and carrying capacity. The wheelbase design of 4565+1370mm not only optimizes the driving stability of the vehicle and reduces the bumpy feeling under complex road conditions, but also provides ample installation space for the upper body, making the installation of 20 cubic drinking water tanks more stable and reasonable.
The power system is the core of the Isuzu GIGA drinking water tanker truck. The 6UZ1-TCG61 engine equipped with Isuzu GIGA 20 cubic drinking water truck is like a strong heart, providing a steady stream of power for the vehicle. The power output of 380HP, combined with the large displacement of 9839ml, allows the vehicle to handle various working conditions with ease, whether it is long-distance transportation of drinking water or watering operations on construction sites and urban roads, it can maintain efficient and stable operation. The FAST 12-speed gearbox further improves the vehicle's handling and fuel economy. The driver can flexibly choose the appropriate gear according to different road conditions and load conditions to keep the vehicle in the best working condition.

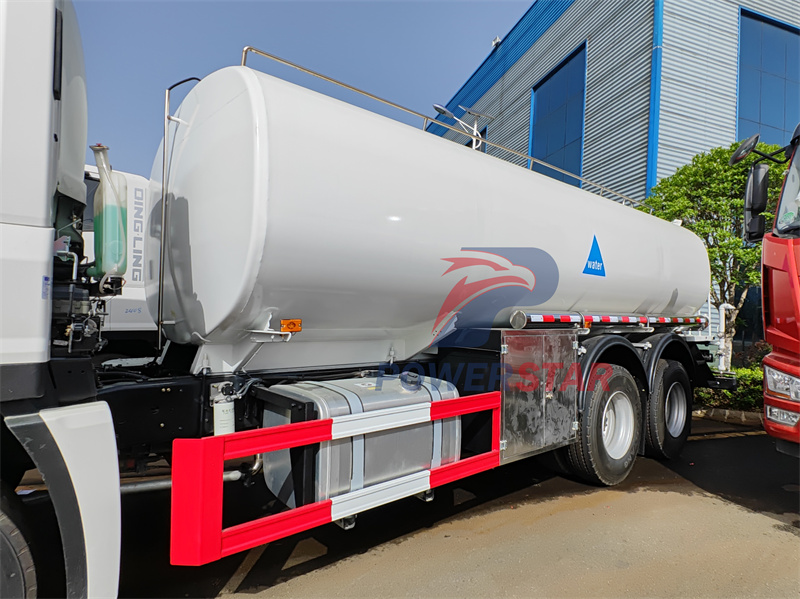

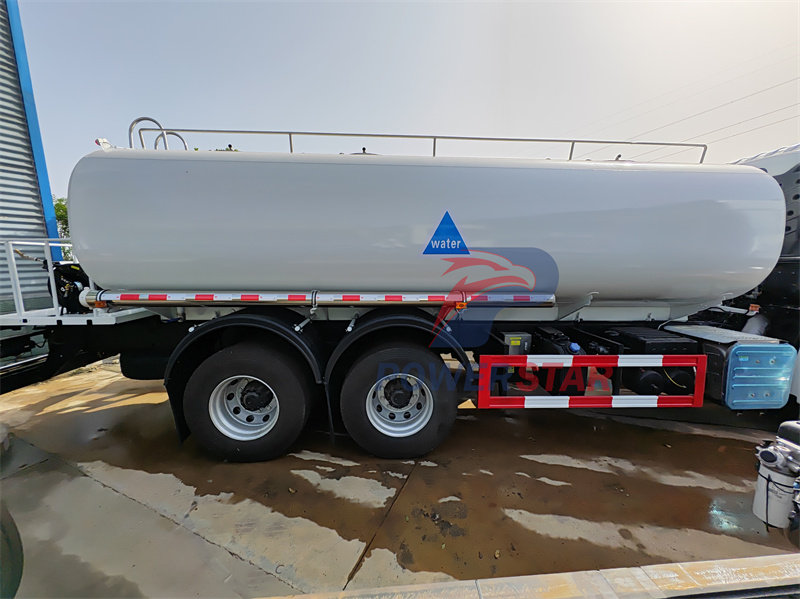

The upper part of the vehicle is a 20-cubic-meter drinking water tank, which is an important carrier of its core function. The drinking water tank is made of high-quality stainless steel and has excellent sealing and corrosion resistance. The sealing design can effectively prevent water from leaking during transportation and avoid waste of water resources; and the corrosion resistance ensures that the drinking water tank will not rust due to long-term contact with water, thereby ensuring the quality and safety of drinking water, so that every drop of water can remain pure and healthy.

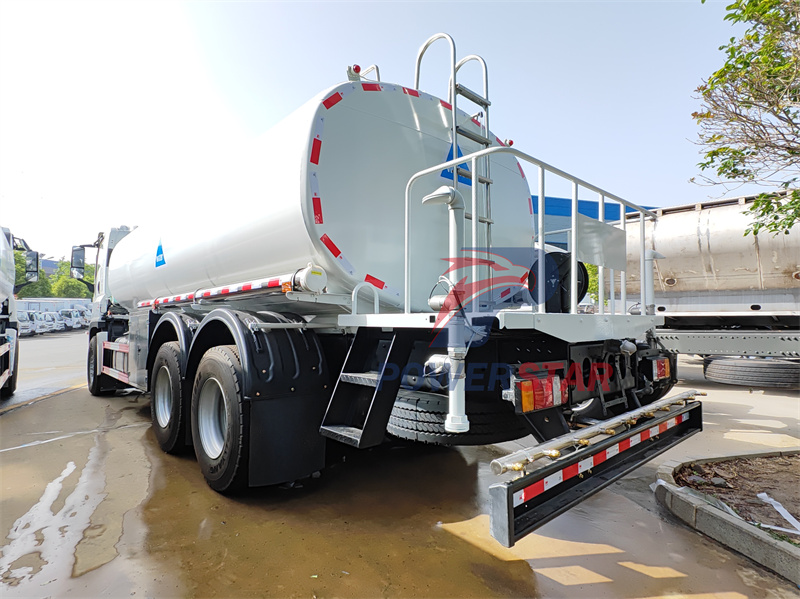

In terms of drinking water transportation function, the Isuzu GIGA 6X4 20CBM potable water delivery truck has demonstrated strong strength. It can quickly and safely transport clean drinking water to every corner of the city, meeting the needs of residents for daily water use, construction water use, emergency rescue water use, and other needs. When the city water supply system fails or encounters sudden natural disasters, this vehicle can respond quickly and become an important force in ensuring residents' basic living water use.

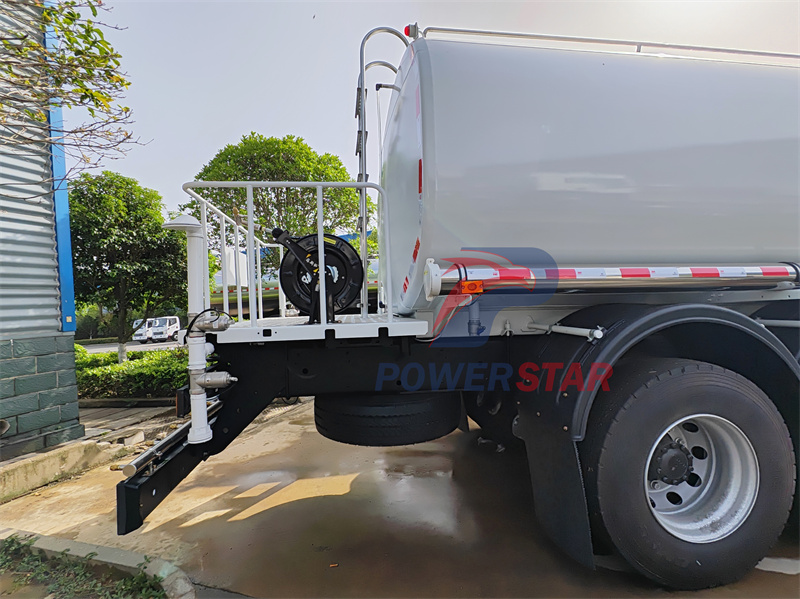

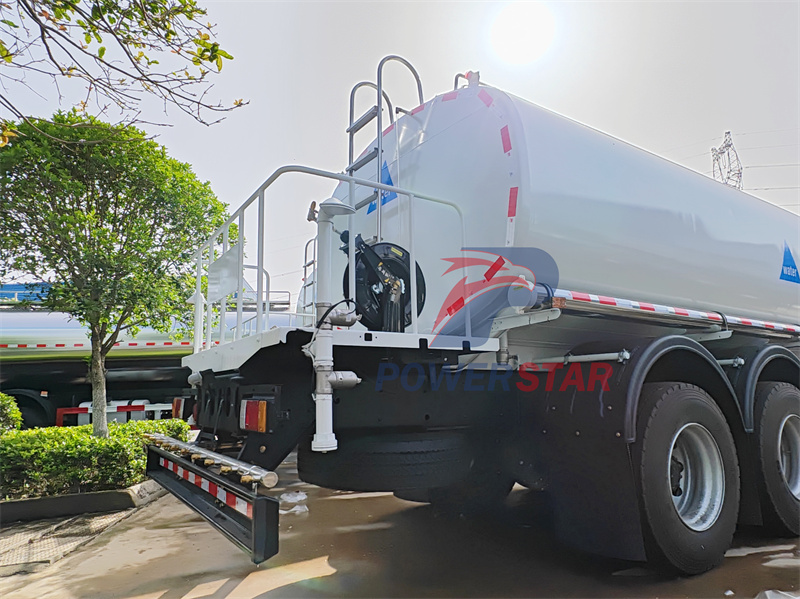

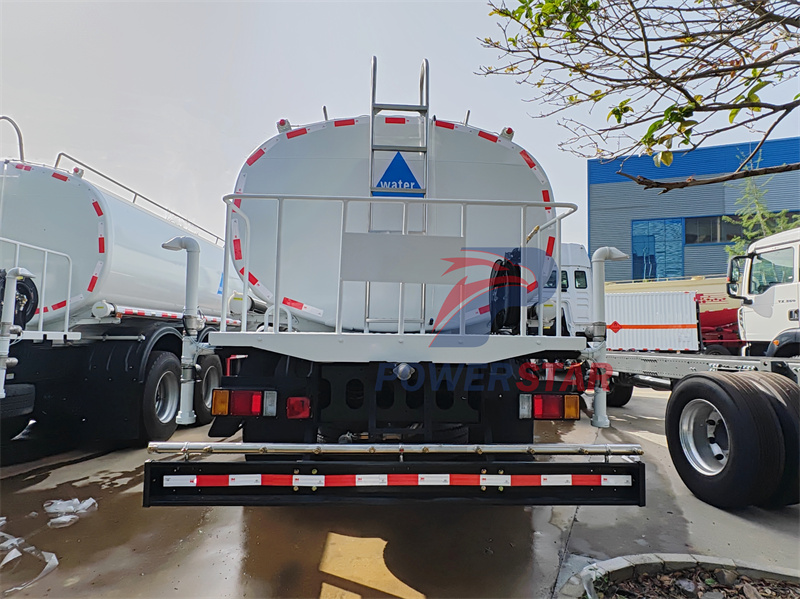

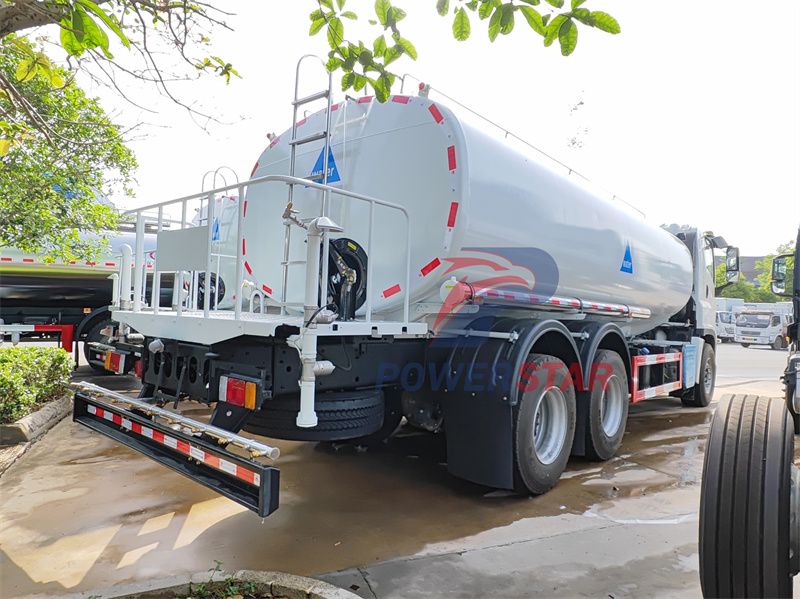

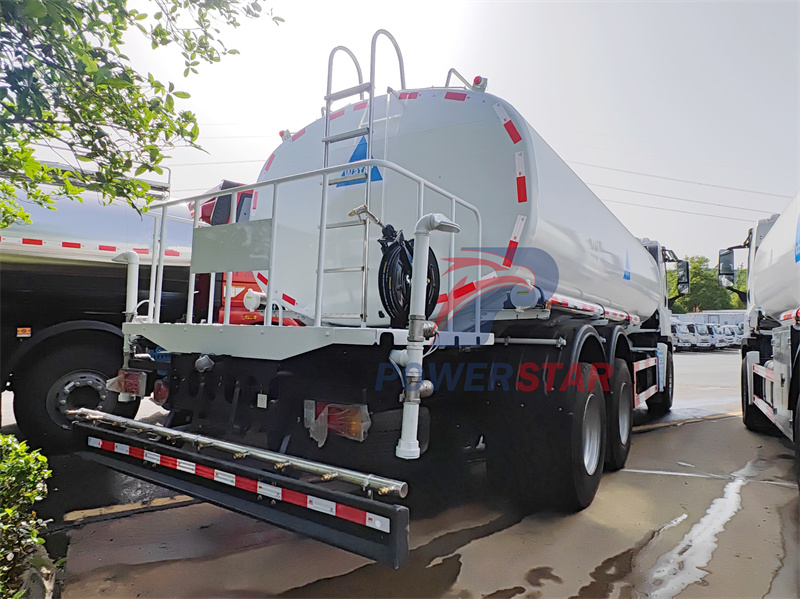

It is worth mentioning that this vehicle has a powerful function of one vehicle for multiple uses. In addition to being a drinking water transport vehicle, it can also quickly transform into a fully functional sprinkler truck. The Isuzu 6x4 water bowser truck GIGA 20000 liters is equipped with a Weilong 80QZBF - 60/90N/S water pump, which provides strong and stable water flow power for sprinkler operations. The design of the forward nozzle can flush the road ahead in a large area and with high efficiency during the vehicle's driving process, effectively remove dust and debris on the road surface, and improve the road environment; the rear sprinkler side sprinkler nozzle installed on the rear workbench has a wide range of sprinkler nozzles, which is suitable for road dust reduction, and the side sprinkler nozzle is used for green belt irrigation or road edge sprinkler; the reel sprinkler gun provides a flexible solution for special operation needs. The driver can adjust the sprinkler angle and distance according to the actual situation to meet the operation requirements under different working conditions.

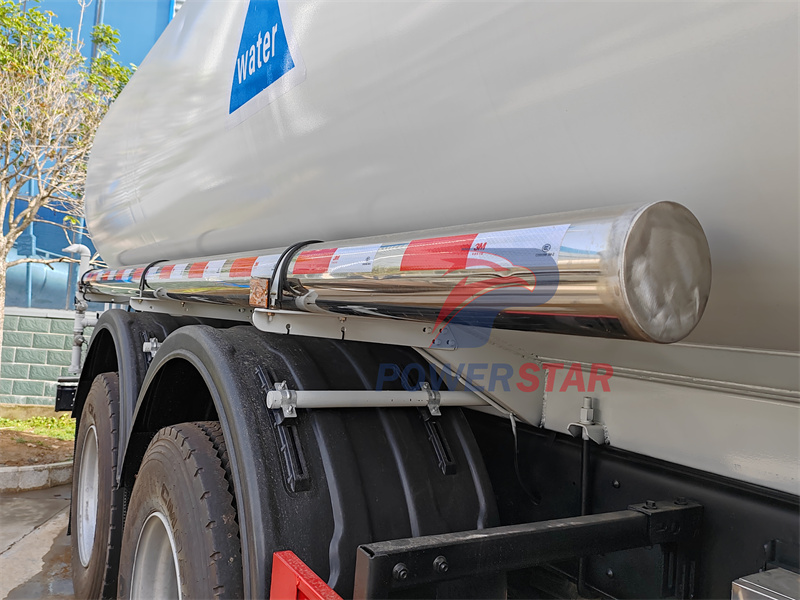

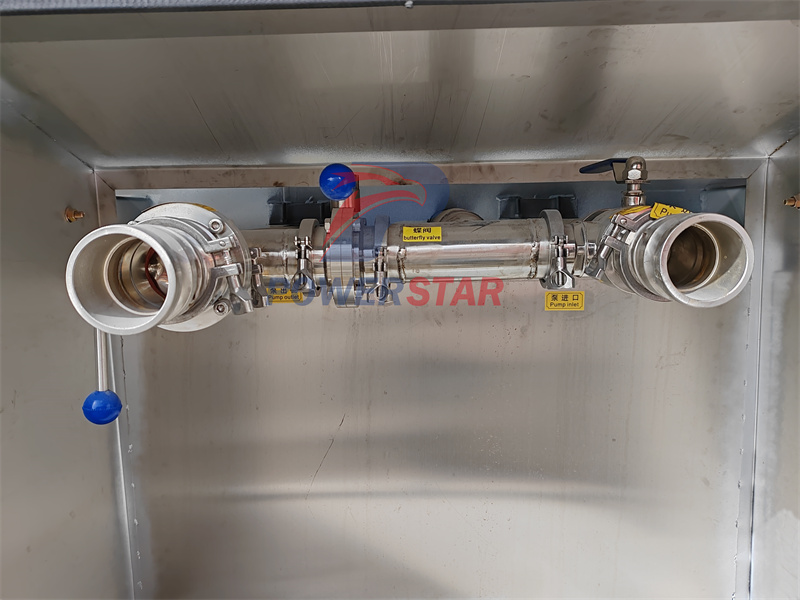

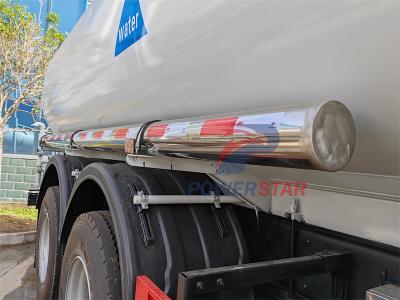

In addition, the vehicle's stainless steel pump inlet and outlet interfaces ensure smooth and hygienic water flow and reduce the risk of water pollution; the stainless steel pipe storage box on the side of the water tank is convenient for storing the pipes required for watering, making the vehicle more convenient and efficient to use and improving operating efficiency.
One vehicle for multiple uses: from drinking water transportation to urban sanitation
The biggest advantage of this Isuzu GIGA drinking water vehicle is its versatility, which can quickly switch roles according to needs:
1. Drinking water transportation
In remote areas, construction sites, disaster areas and other places where there is a lack of stable water supply, the vehicle can be used as a mobile water station to provide safe drinking water for residents or workers.
2. Road watering and dust reduction
In urban construction, the vehicle can switch to watering mode to suppress road dust and improve air quality, which is suitable for municipal sanitation departments.
3. Greening watering
Plant maintenance in parks, highway green belts and other areas requires a large amount of water. The side spraying and spray gun functions of the vehicle can efficiently complete the watering task.
4. Emergency firefighting
Although it is not a professional fire truck, its large-capacity water tank and high-pressure water pump can assist in extinguishing fires in the early stages of a fire, buying time for professional rescue.
