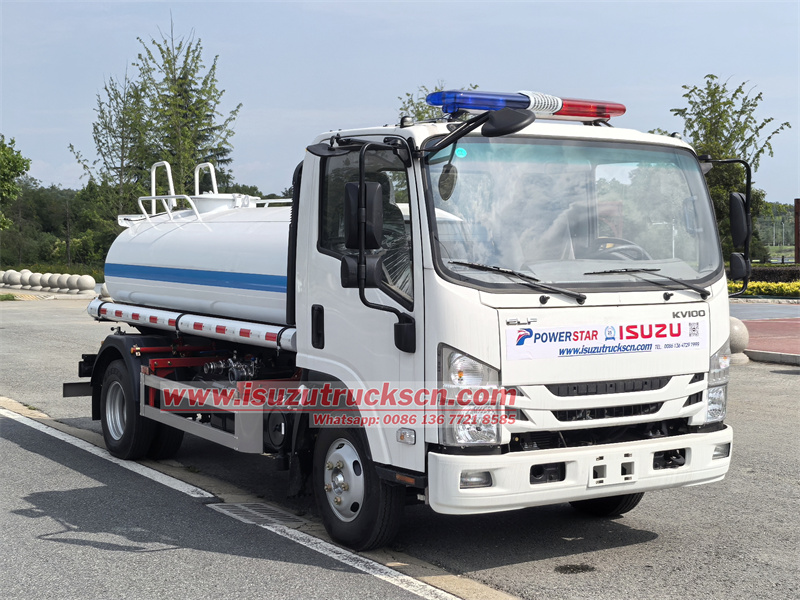

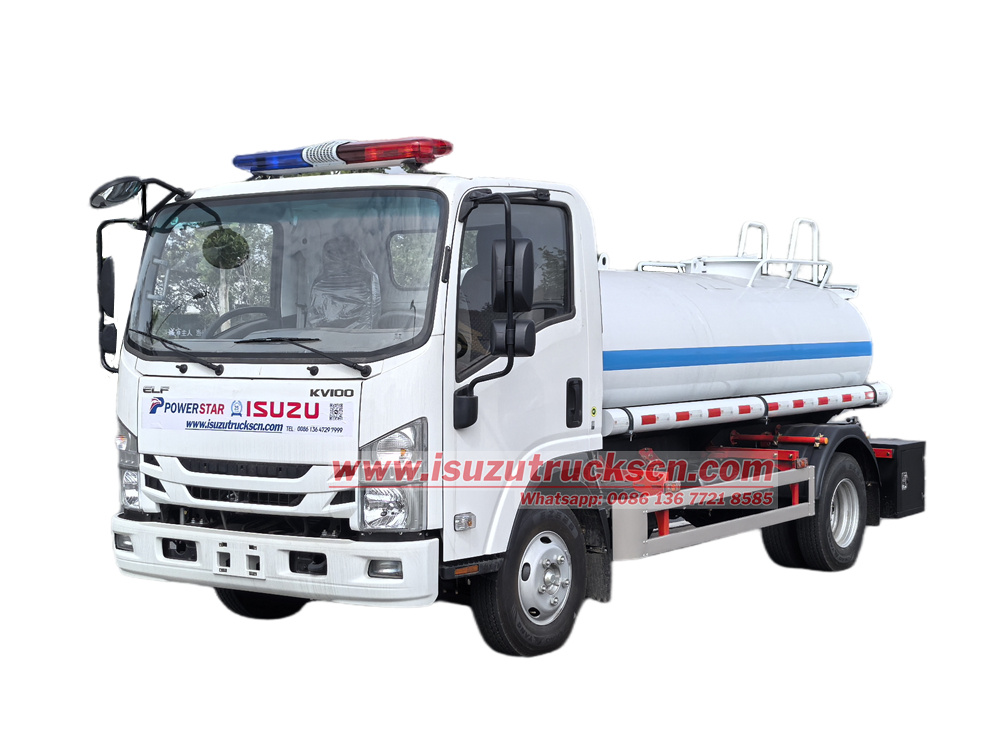

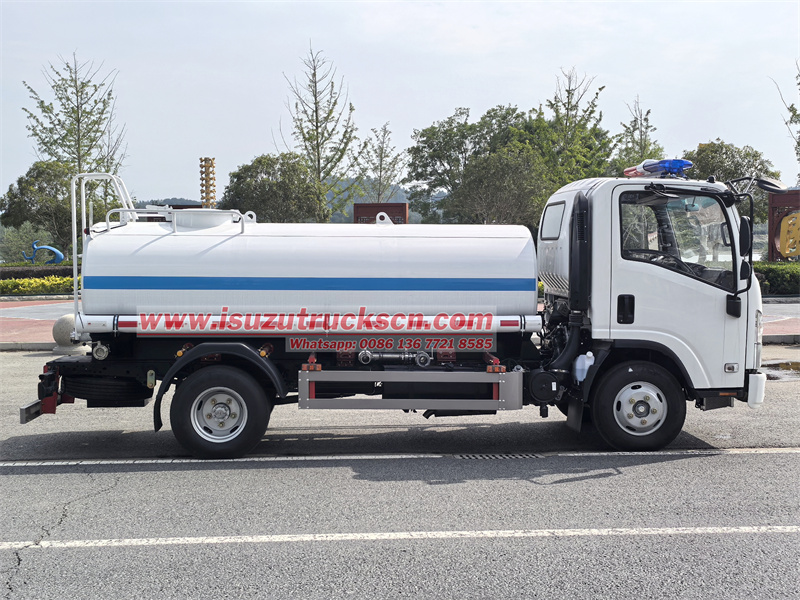

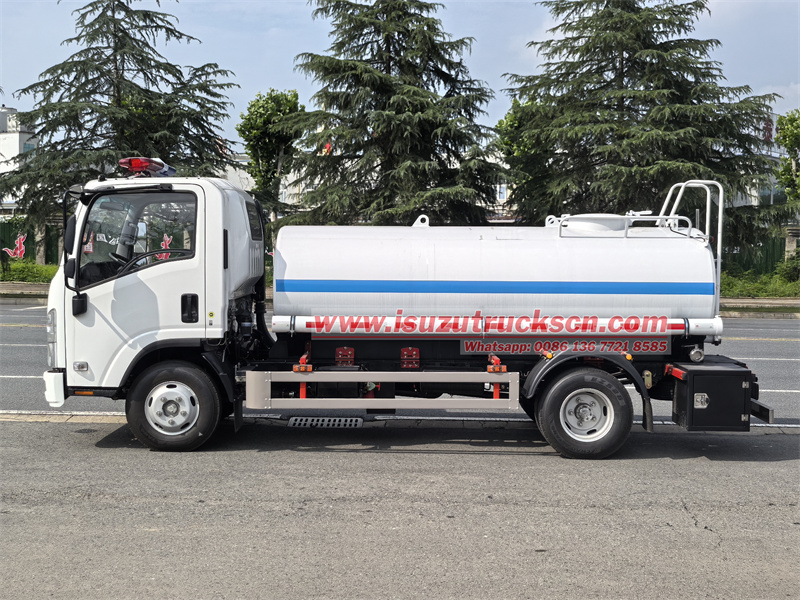

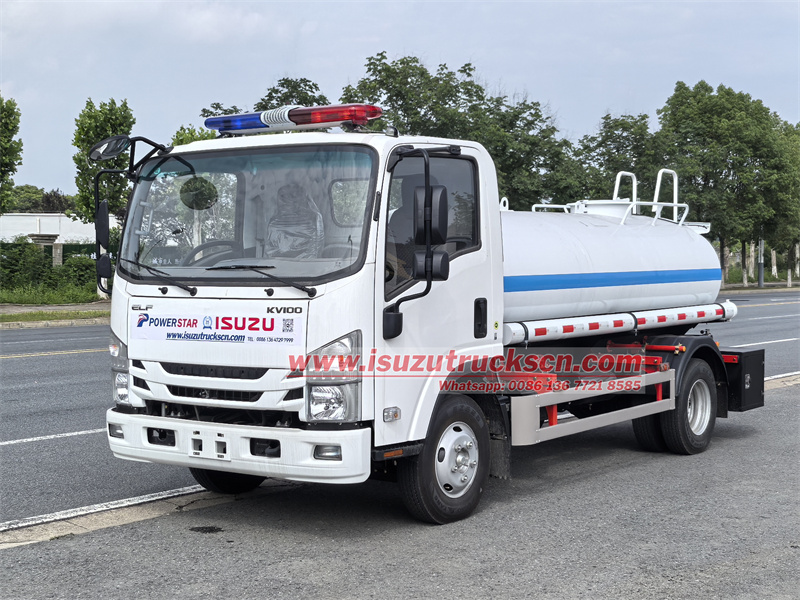

The Isuzu KV100 drinking water truck is modified on the basis of Isuzu KV100 3X wide-body cab chassis, 3 seats, 3360mm wheelbase, equipped with Isuzu 4KH1CN6LB 120HP engine, Isuzu MSB 5-speed manual transmission, the upper body is a 5-cubic stainless steel tank, the vehicle is equipped with 65SQB-40/50L water pump, the right side is equipped with pump inlet and outlet interface, the rear left and right are equipped with 3 water inlets, transparent sight tube, ladder, warning lights, etc.
Manufacturer:
Powerstar TrucksWork capacity:
5tonsDimension:
PT5070GWTCabin type:
Isuzu KV100 3X cabin,with A/C,USB,direction assistanceWheelbase:
3360mmEngine power:
88Kw/120HPEngine type:
Isuzu 4KH1CN6LBAxle drive:
4X2,LHDGear box:
Isuzu MSB 5-speed,manualRemarks:
Equipped with 65SQB-40/50L water pumpIsuzu 5000 liters water cart tanker truck is an efficient special vehicle designed for municipal water supply, emergency rescue and rural drinking water safety. Equipped with a 4KH1CN6LB diesel engine (120HP/290N·m) and a 5-speed manual transmission, it has reliable power and can adapt to complex road conditions. The vehicle uses a 5-cubic-meter stainless steel tank (SUS304 food-grade material) and is equipped with a 65SQB-40/50L water pump with a large head. The water supply system is simple and convenient to operate and can quickly complete the loading and unloading of drinking water. The vehicle is equipped with practical configurations such as a transparent sight tube, ladder, LED warning light, tool box, etc. to ensure transportation safety and convenient operation.
● China best Isuzu drinking water truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
Product Parameters
|
Isuzu KV100 5CBM potable water tanker truck |
|
||
|
General Specification |
|
||
|
Chassis Model |
PT5070GWT |
|
|
|
Series |
Isuzu KV100 |
|
|
|
Wheel Traction / Drive Style |
4X2,LHD |
|
|
|
GVW |
kg |
7300 |
|
|
Curb Mass/ Self Weight |
kg |
3320 |
|
|
Chassis Dimension |
mm |
6010x2040x2340 |
|
|
Max Speed |
105Km/h |
|
|
|
Wheelbase |
3360mm |
|
|
|
Engine |
|
||
|
Model |
4KH1CN6LB |
|
|
|
Brand |
Isuzu |
|
|
|
Net Power |
88Kw/120HP |
|
|
|
Maximum Torque |
290N.m |
|
|
|
Displacement |
2999ml |
|
|
|
Type |
In-line, 4-cylinder, 4-stroke, Water-cooled, Direct Injection, Intercooled Turbocharged Diesel Engine |
||
|
Emission Standard |
EURO VI |
|
|
|
Gear Box |
Isuzu MSB 5-speed,manual |
|
|
|
Gear Speed/Lever |
5 forward/ 1 reverse |
|
|
|
Axle & Steering |
|
||
|
Front Axle |
2580kg |
|
|
|
Rear Axle |
4720kg |
|
|
|
Wheels & Tires |
|
||
|
Wheel Type |
Radial Tires |
|
|
|
Number of Tires |
6+1 (spare tire) |
|
|
|
Tire Type/Size |
700R16 |
|
|
|
Track |
front |
1685 mm |
|
|
rear |
1525 mm |
|
|
|
Suspension |
front |
1110mm |
|
|
rear |
1540mm |
|
|
|
Tank |
|
||
|
Volume |
5cbm |
|
|
|
Thickness |
Side 4 Bottom 5 |
|
|
|
Material |
Stainless steel |
|
|
|
Water pump |
|
||
|
Model |
65SQB-40/50L |
|
|
|
Style |
Self-priming centrifugal |
|
|
|
Material |
S304 stainless steel |
|
|
|
Lift |
45m |
|
|
|
Input speed |
1150-1450 r/min |
|
|
|
Self-priming performance |
1min/5m |
|
|
|
Shaft power |
9.3KW |
|
|
Product Applications
★ Chassis system
● Chassis model: Isuzu KV100 3X wide-body cab chassis

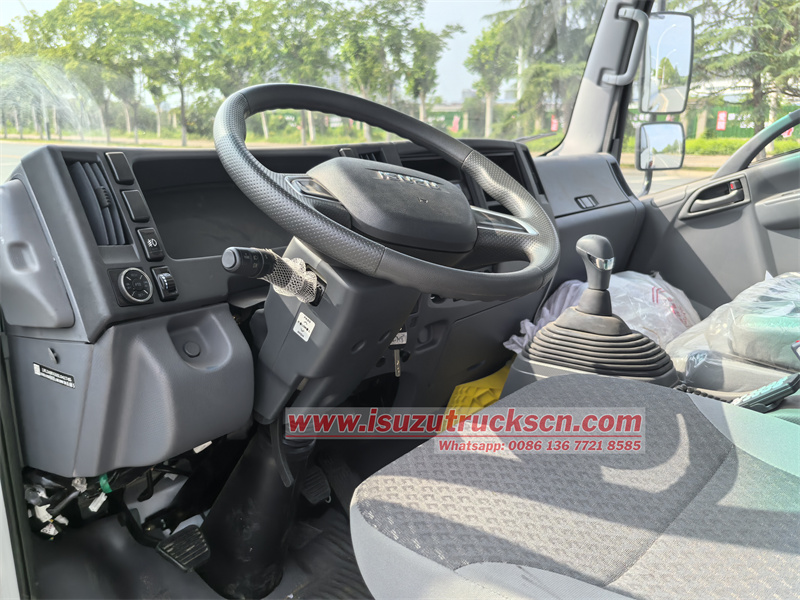

● Cab configuration: 3-seat single-row wide-body cab, ergonomic design
● Powertrain:
◇ Engine: Isuzu 4KH1CN6LB inline four-cylinder diesel engine
◇ Displacement: 2999ml
◇ Maximum power: 120HP (88kW) @2900rpm
◇ Peak torque: 290N·m@1800-2400rpm
◇ Emission standard: National VI (CN6LB logo)
◇ Transmission: Isuzu MSB 5-speed manual transmission, full synchronizer design
● Chassis parameters:
◇ Wheelbase: 3360mm
◇ Front/rear track: 1685mm/1525mm
◇ Minimum ground clearance: ≥200mm
◇ Fuel tank capacity: 100L
★ Top professional configuration: 5-cubic-meter stainless steel tank, safe and durable
● Tank material and craftsmanship

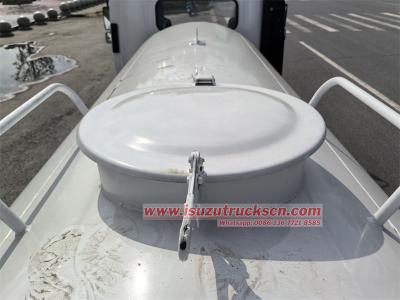

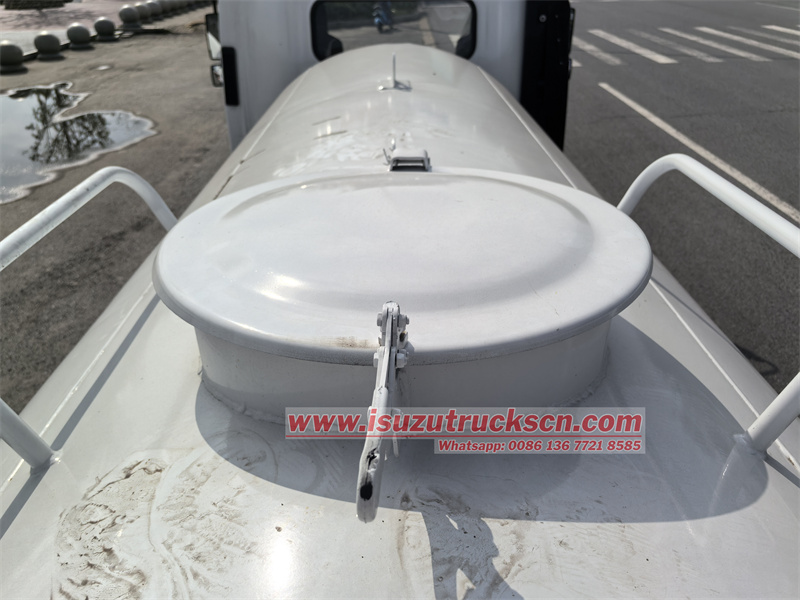

The upper body adopts a 5 cubic meter 304 stainless steel tank body, which is treated with food-grade anti-corrosion. The inner wall is smooth and has no welds to avoid water pollution; the internal wave-breaking board (compartment partition) is installed, and the external tank body is polished and has strong corrosion resistance. The top of the tank body is equipped with a manhole cover (φ450mm, quick-opening type) and an anti-overflow ventilation device.
● Water pump and pipeline system
◇ Water pump: equipped with a 65SQB-40/50L centrifugal water pump with a flow rate of 40m³/h and a head of 45 meters. It has strong power and can quickly complete pumping and drainage operations.

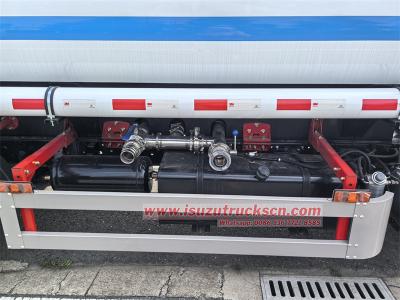

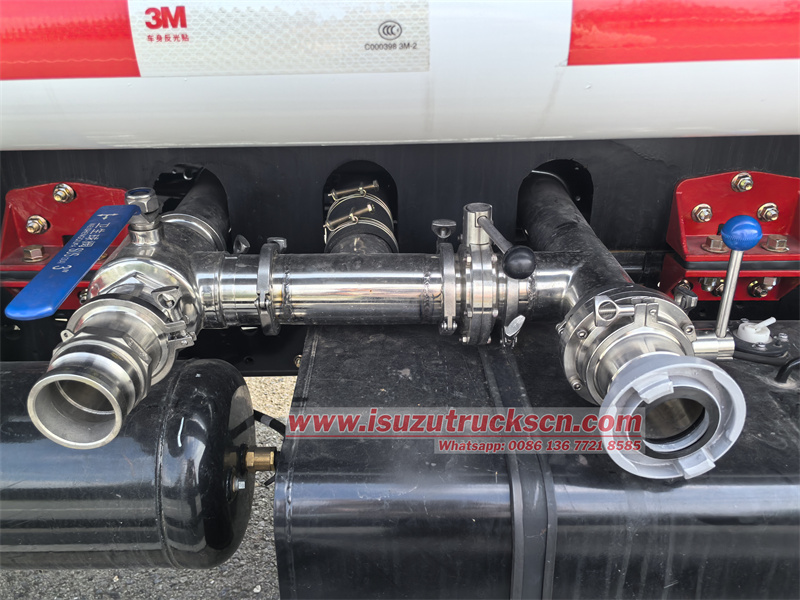

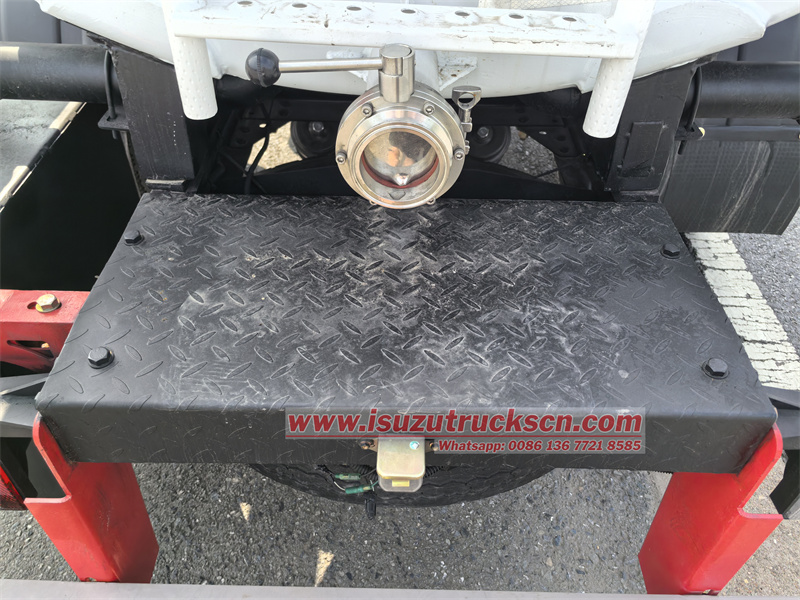

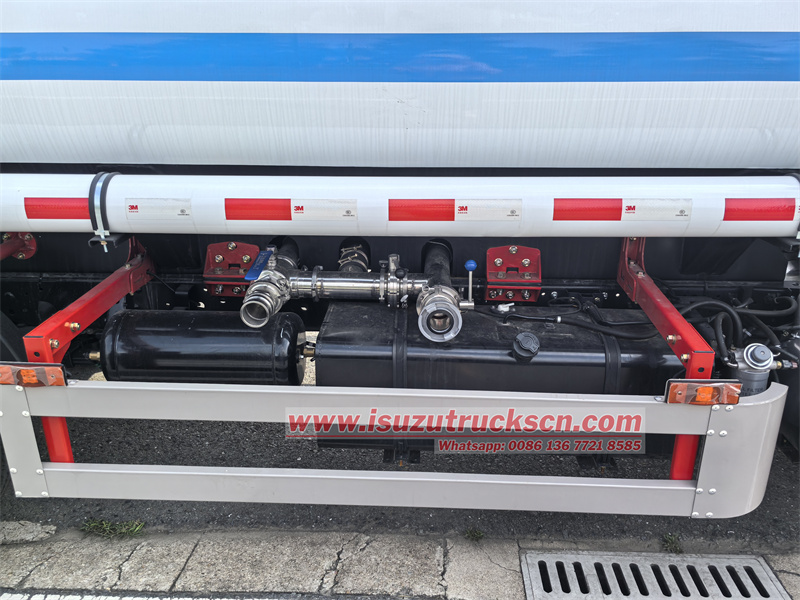

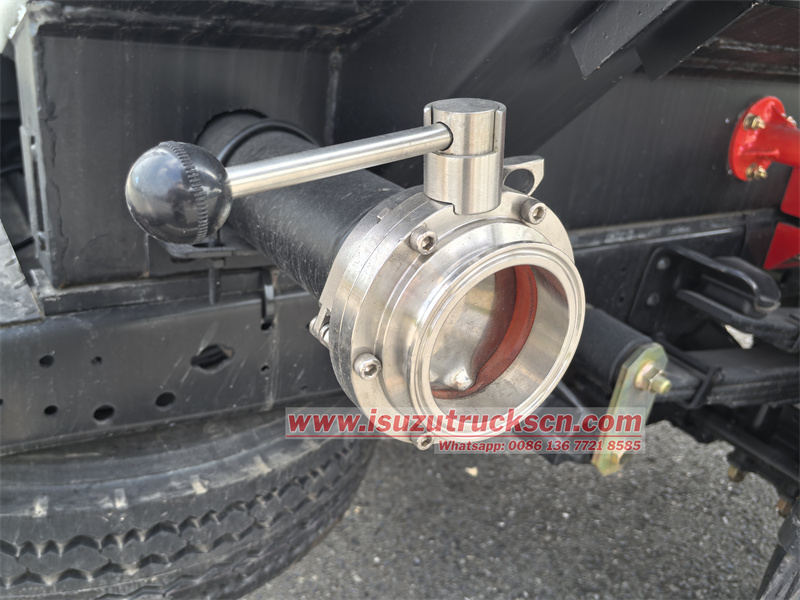

◇ Interface design: The right side is equipped with a pump inlet and outlet quick interface, which supports external water source or direct pumping from the tank body; there are 3 DN65 standard water inlets at the tail and left and right rear parts to meet the water supply needs of multiple scenarios.
◇ Liquid sight tube and safety device: The transparent liquid sight tube displays the water level in real time for easy operation; a drain valve is installed at the bottom of the tank and an overflow valve is installed at the top to prevent overpressure and ensure safety.
● Humanized operation design

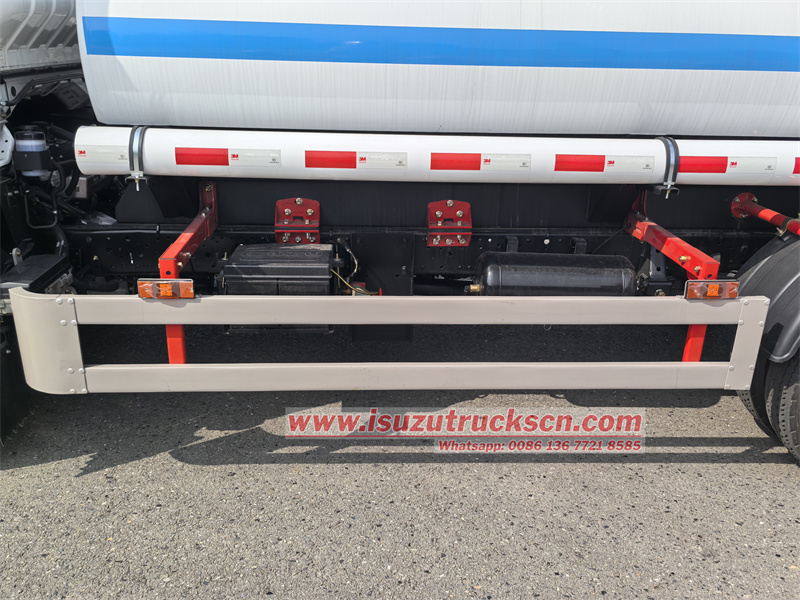

◇ Pipeline storage boxes are installed on both sides of the tank for easy carrying.
◇ A tool box is installed at the left rear of the vehicle for convenient storage of maintenance tools, etc.

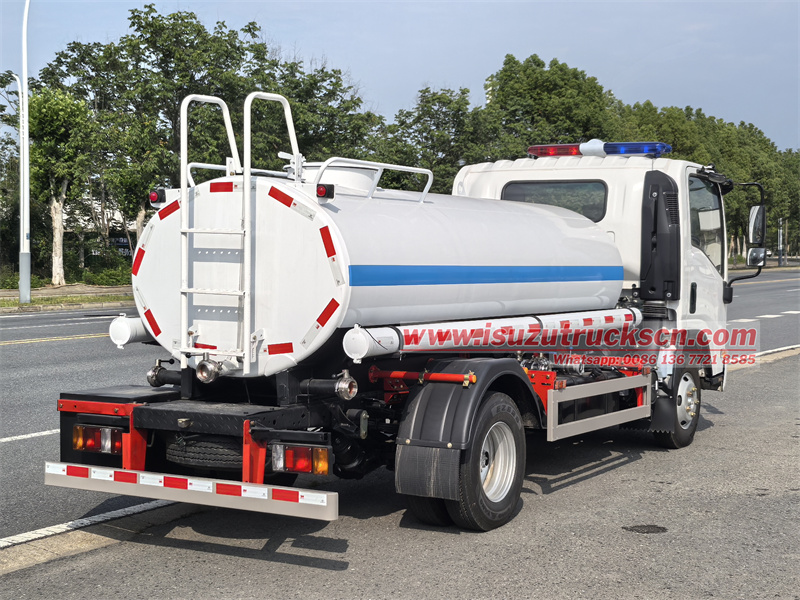

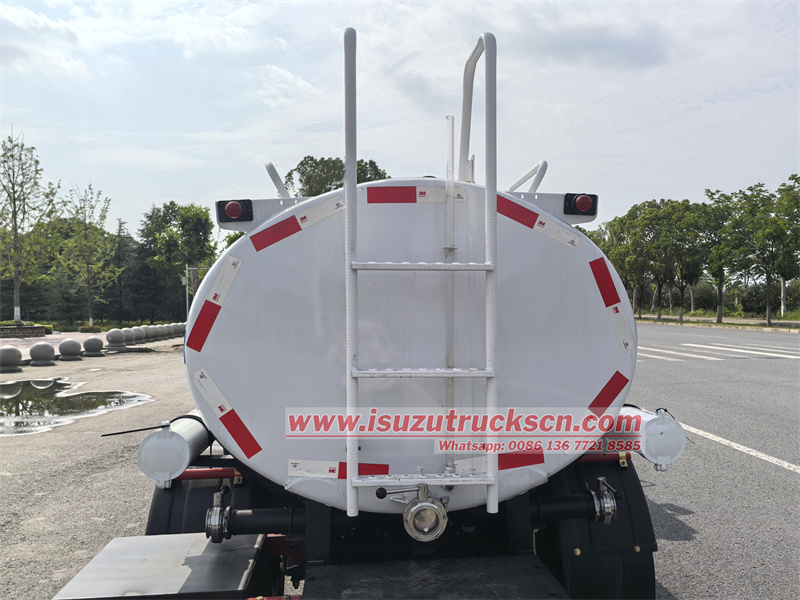

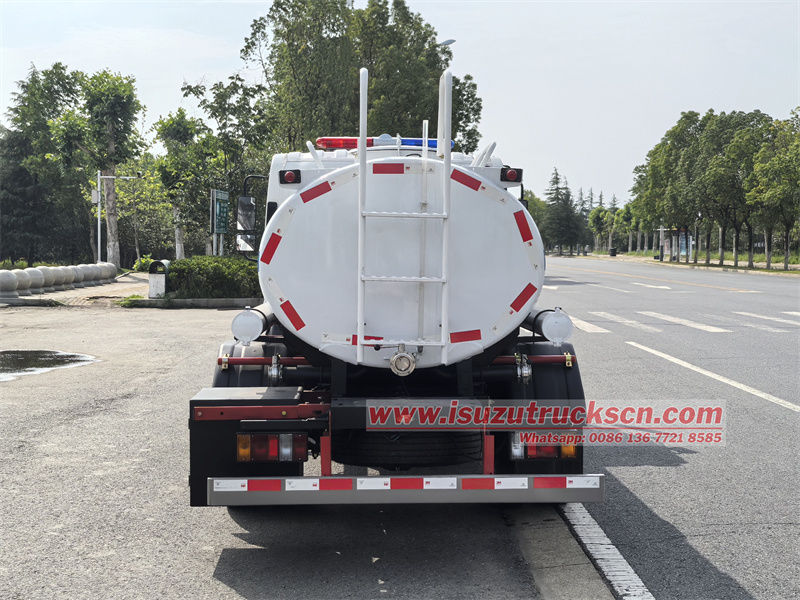

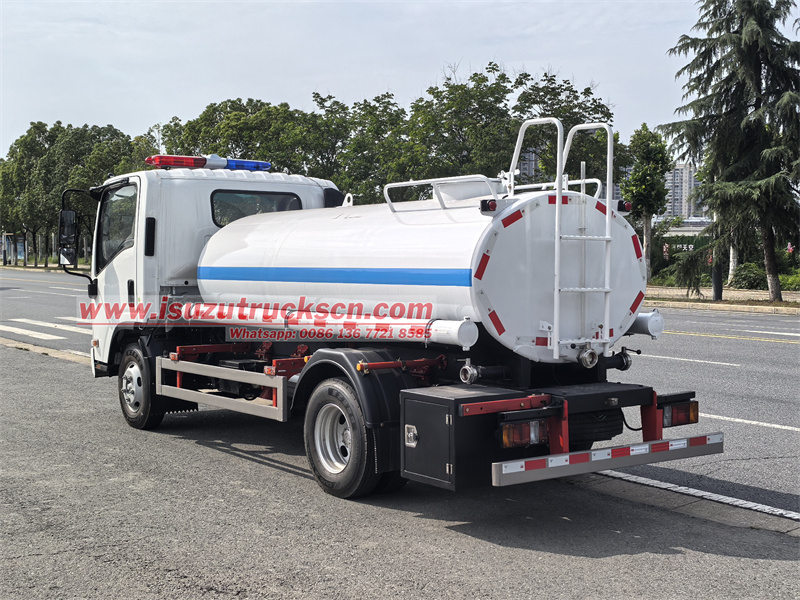

◇ A ladder is installed at the rear of the vehicle for personnel to climb to the top for inspection;
◇ A guardrail is installed on the top of the tank;

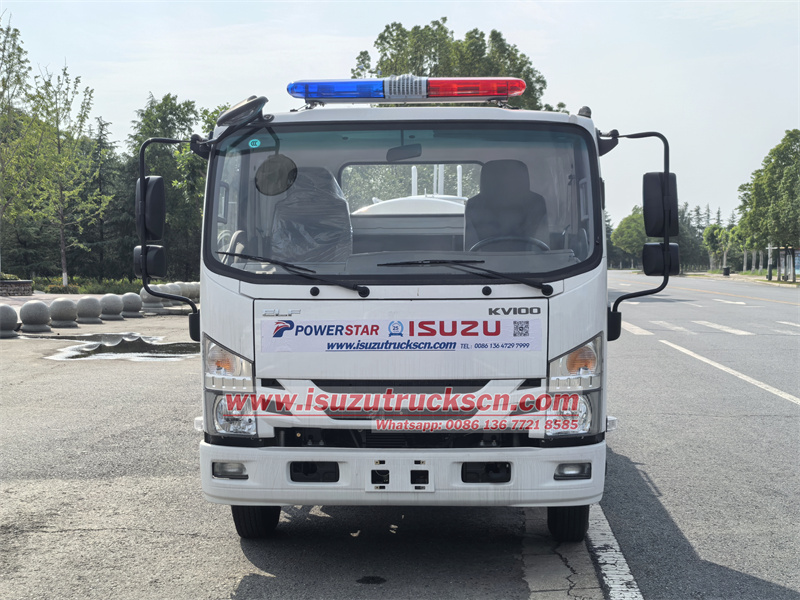

◇ An warning light is installed on the top of the cab, and reflective signs are affixed around the tank to ensure safer operation.
