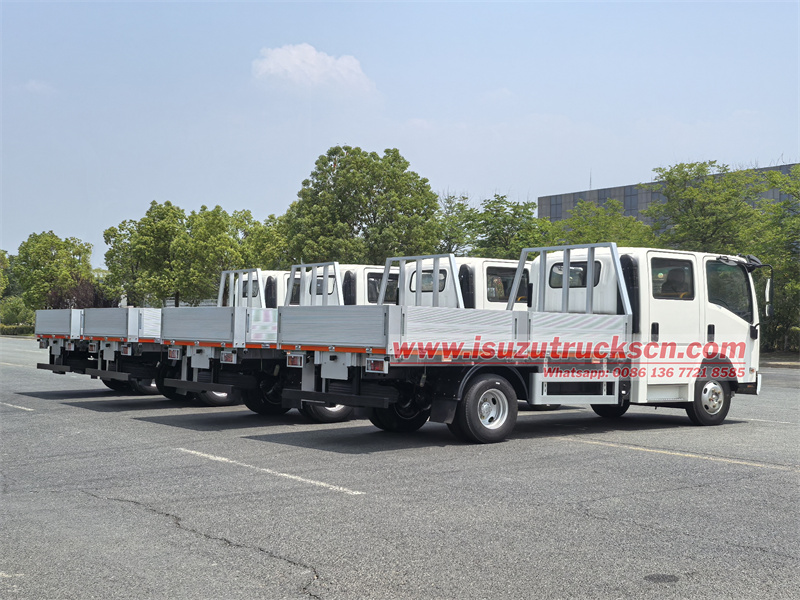

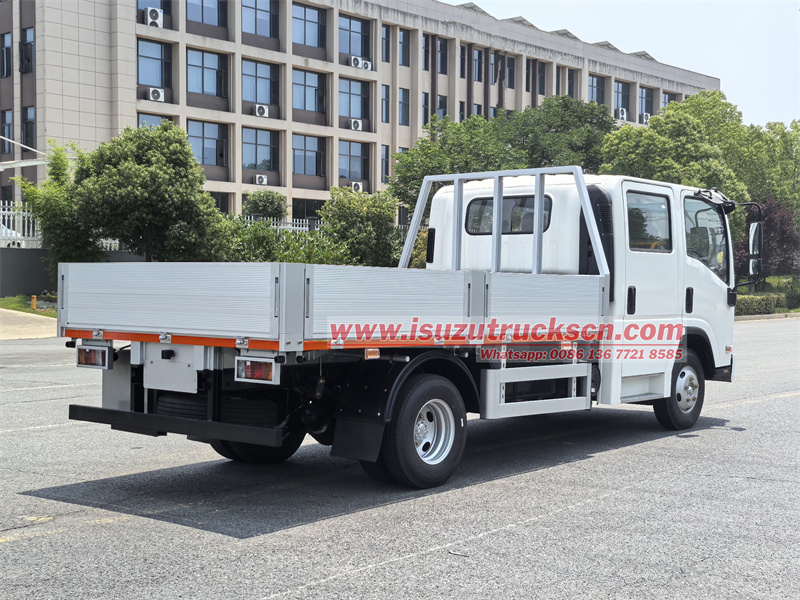

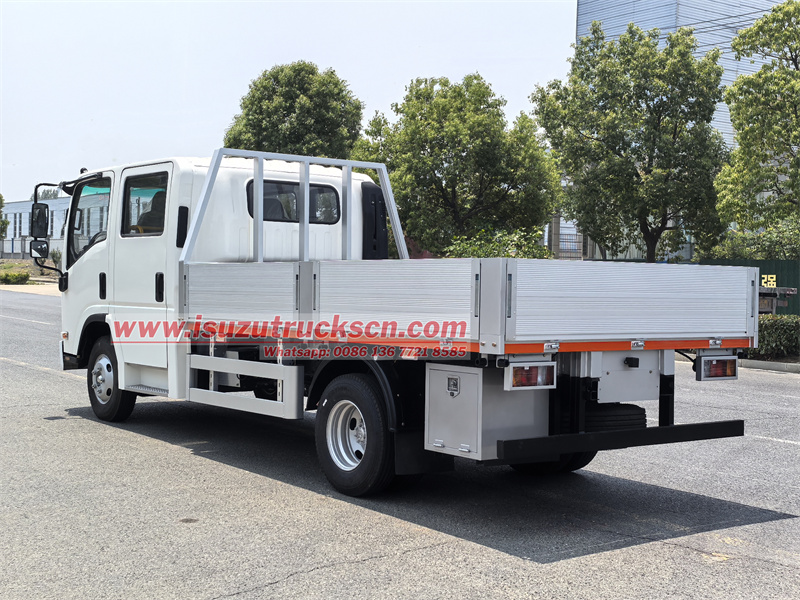

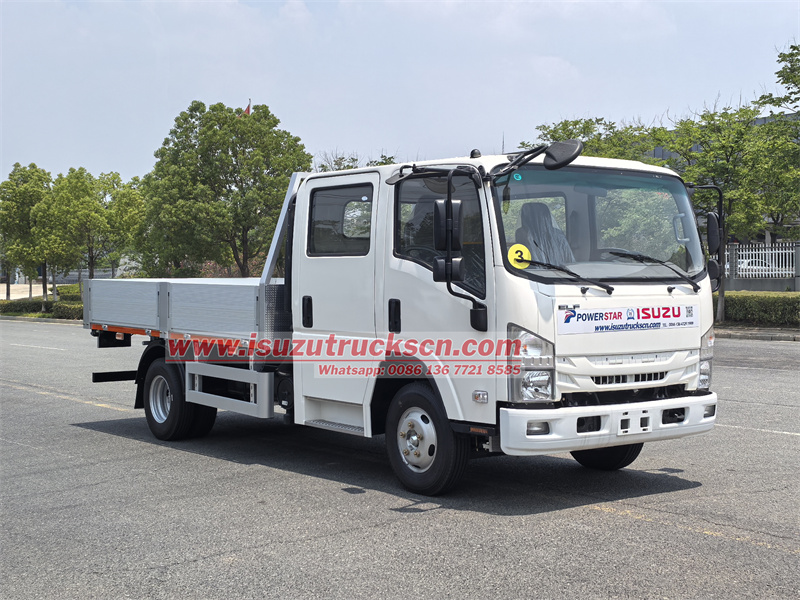

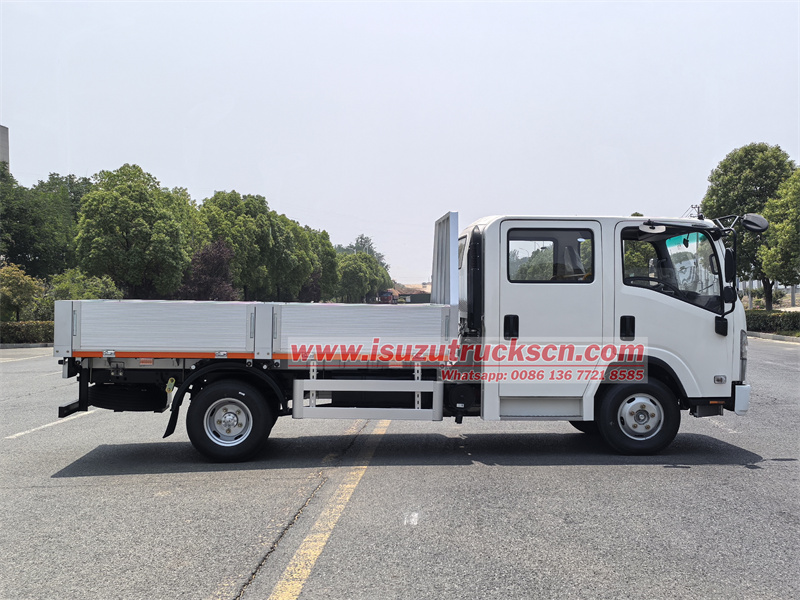

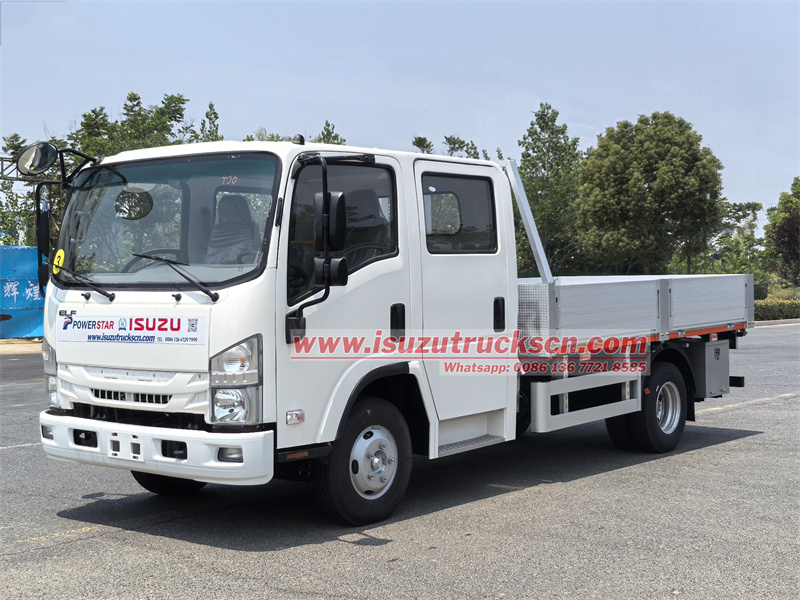

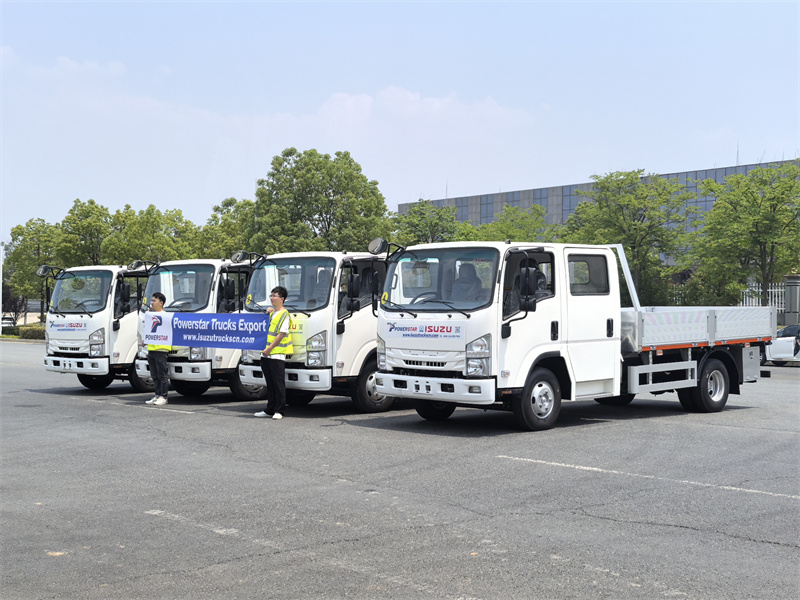

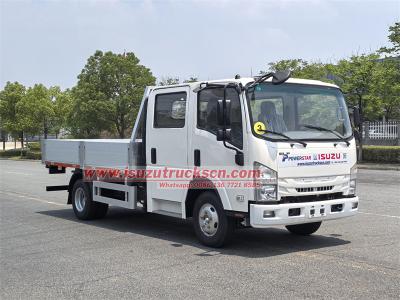

The Isuzu KV100 cargo truck is modified based on the Isuzu KV100 double-row cab. It can accommodate 3+3 passengers, has electric windows, air conditioning, power steering, and is equipped with an Isuzu 4KH1CN6LB Euro 6 120hp engine and an Isuzu MSB 5-speed gearbox. The upper body is an aluminum alloy cargo box, which can be loaded and unloaded on the sides and tailgate. The size is 3850*2100*450mm, the thickness of the side is 3mm and the bottom is 4mm, and it is equipped with a tool box.
Manufacturer:
Powerstar TrucksWork capacity:
2tonsDimension:
6500 x 2200 x 2300mmCabin type:
Isuzu KV100 double row cab,with A/C,USBWheelbase:
3360mmEngine power:
120HP/88KwEngine type:
Isuzu 4KH1CN6LBAxle drive:
4x2,LHDGear box:
Isuzu MSB 5-speed,manualRemarks:

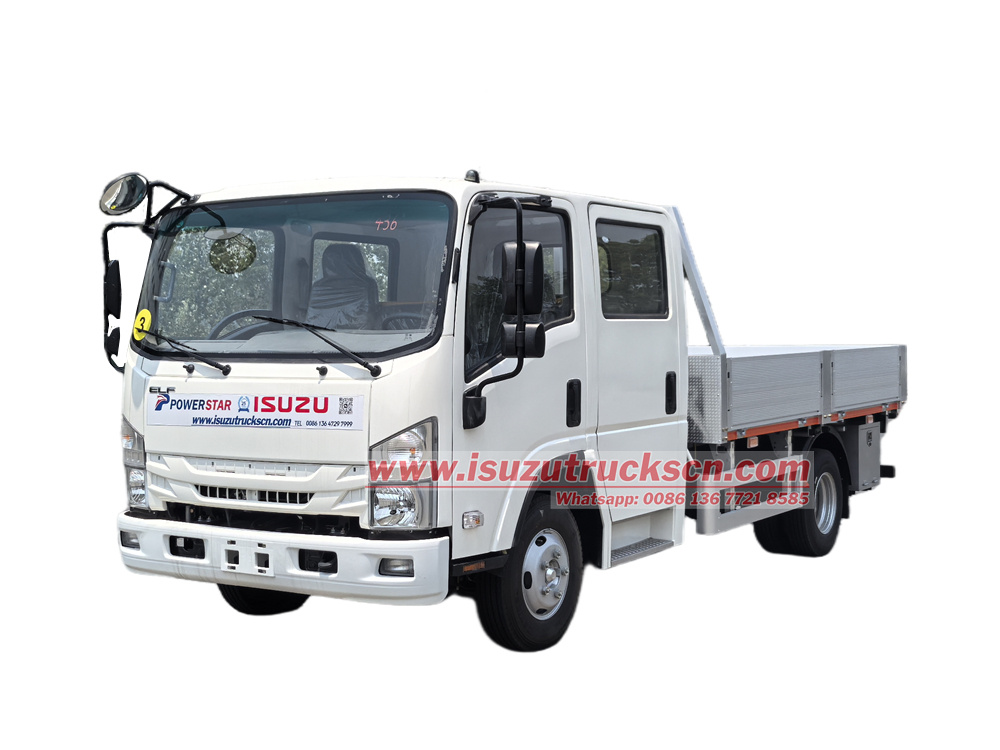

Equipped withIsuzu 2ton crew cabin cargo body truck has a place in the field of urban logistics and short-distance transportation. Its double-row cab is cleverly designed to meet the driver's driving needs while easily carrying team members for travel and collaboration. It comes standard with electric windows, air conditioning and power steering for good comfort. The aluminum alloy cargo box is light and durable, with three sides that can be opened for flexible loading and unloading. It can stably carry fresh fruits and vegetables, hardware and building materials, and logistics goods. The vehicle is powerful and fuel-efficient, and is light and effortless to operate, making it easy to navigate congested city streets or narrow alleys.
● China best Isuzu cargo truck factory
● Professional sales team which will help you to choose suitable truck.
● Build strict QC team to guarantee the quality
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
|
Product name |
ISUZU ELF KV100 double row cargo truck |
|
|
Vehicle Dimensions, Weights & Capacities |
Chassis brand |
ISUZU ELF NPR |
|
Overall dimension (L*W*H) |
6500*2200*2300mm |
|
|
Wheelbase |
3360mm |
|
|
Curb weight |
3800kg |
|
|
Gross weight |
7300 Kgs |
|
|
Axle loads |
2580/4720Kgs |
|
|
Chassis |
Drive mode |
4x2,LHD |
|
Cabin type |
Isuzu KV100 double row cab, |
|
|
Seats |
3+3 seats |
|
|
Steering |
LHD |
|
|
Tyres |
700R16, 6+1 spare tyre |
|
|
A/C |
Air conditioning |
|
|
Gearbox |
Isuzu MSB 5-speed,manual |
|
|
Engine |
Enging model |
Isuzu 4KH1CN6LB |
|
Fuel and engine Type |
Diesel, 4 cylinders in-line |
|
|
Horse power |
120HP/88Kw |
|
|
Max.torque |
290N.m |
|
|
Displacement |
2999ml |
|
|
Emission standard |
Euro 6 |
|
|
Other Standard Configurations |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
ABS for option, Automatically Air-cut Brake/Oil cut for option |
|
|
4 |
Tubeless tyres for option |
|
|
5 |
Retro-Reflective Marking |
|
|
6 |
Free Maintenance Battery |
|
|
7 |
Central Lock |
|
|
8 |
Power Window |
|
|
9 |
USB, Radio |
|
|
10 |
Widened Bumper |
|
|
11 |
Front Chrome Kit for option |
|
|
Cargo body |
Type |
Side Fence |
|
Material |
High-strength aluminum alloy |
|
|
size (L*W*H) |
3850*2100*450mm |
|
|
Thickness |
Side 3mm,bottom 4mm |
|
|
Color |
According to wish |
|
★ Passenger Capacity and Comfort Features:

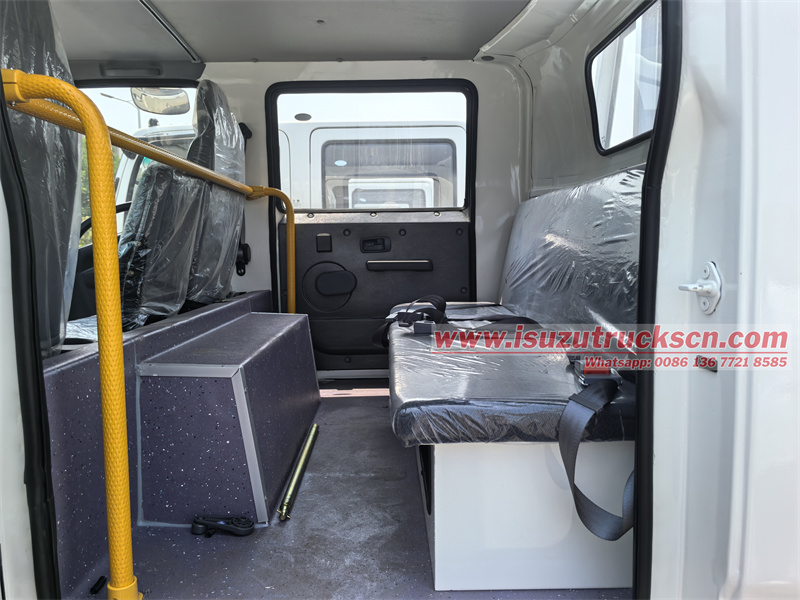

• The vehicle features a spacious double-row design that can accommodate up to 3+3 passengers for a comfortable ride.
• Equipped with electric windows for easy operation and enhanced passenger convenience.
• The air-conditioning system ensures a comfortable driving environment regardless of external weather conditions.
• Equipped with a power steering system (steering assist), it makes maneuvering easier and enhances the overall driving experience.
★ Performance and Powertrain:
The KV100 double row cargo truck is equipped with Isuzu's original 4KH1CN6LB Euro VI engine, which can provide a strong 120 horsepower power. The engine is known for its fuel efficiency, durability and low emissions. The Isuzu MSB five-speed manual transmission provides a smooth shifting experience and can excellently control vehicle speed and torque.

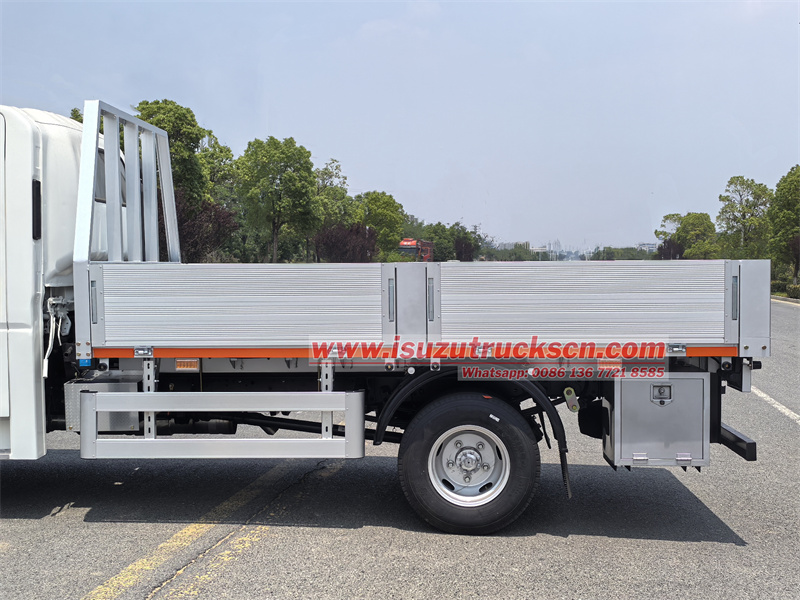

★ Cargo Box Specifications:

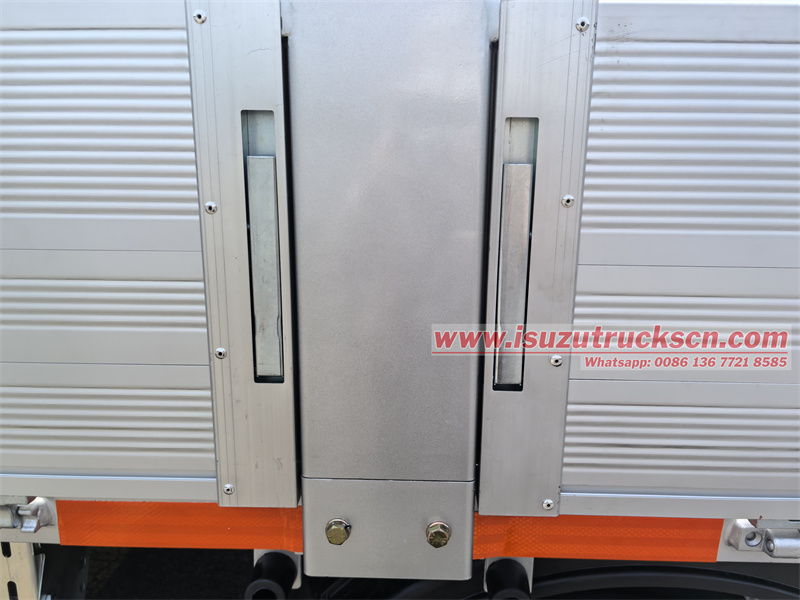

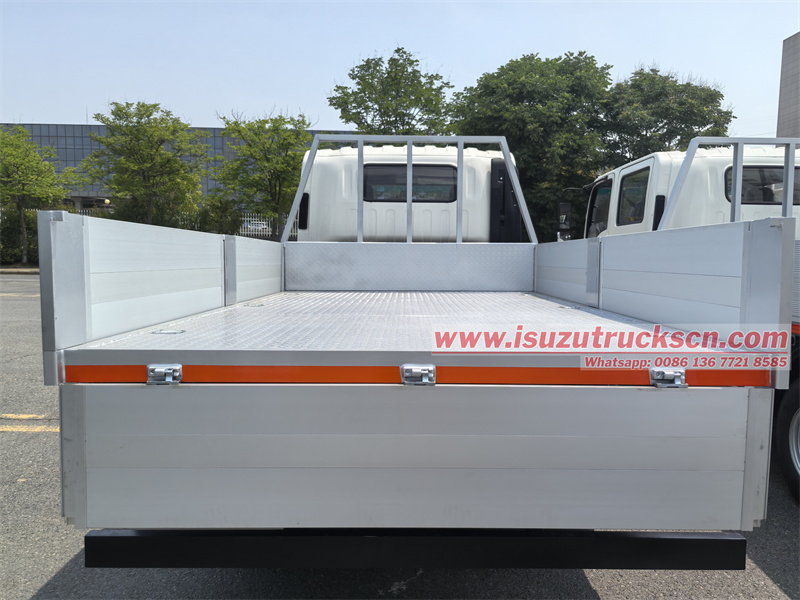

• Aluminum Alloy Cargo Box: The upper part is made of high-strength aluminum alloy, which is not only light in weight but also highly corrosion-resistant, effectively extending the service life of the cargo box.
• Dimensions: The cargo box is 3850mm (length) × 2100mm (width) × 450mm (height), providing ample loading space and capable of carrying 2 tons of cargo, suitable for the transportation of a variety of cargo.

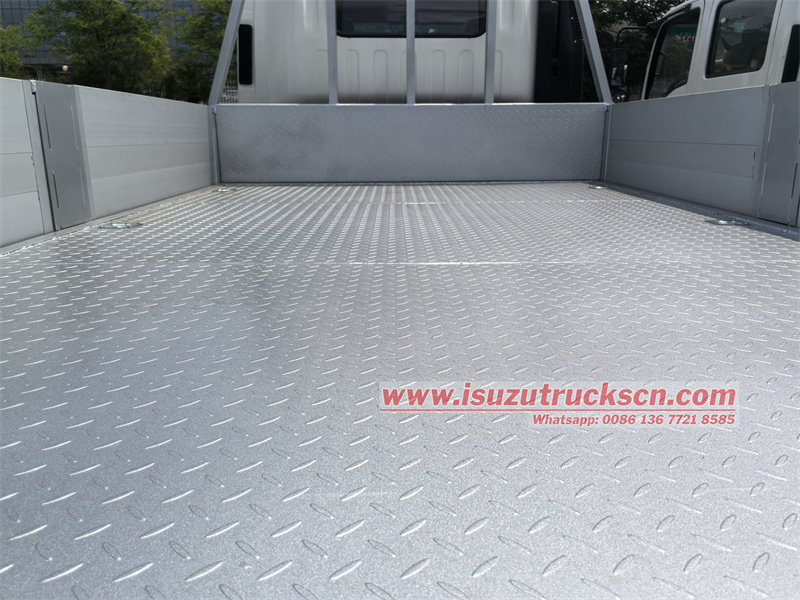

• Thickness of side panels and bottom panels: The thickness of the cargo box side panels is 3mm, and the thickness of the anti-slip pattern bottom panel is 4mm. This structural design not only ensures the durability of the cargo box, but also reduces the weight of the vehicle to a certain extent and improves fuel efficiency.

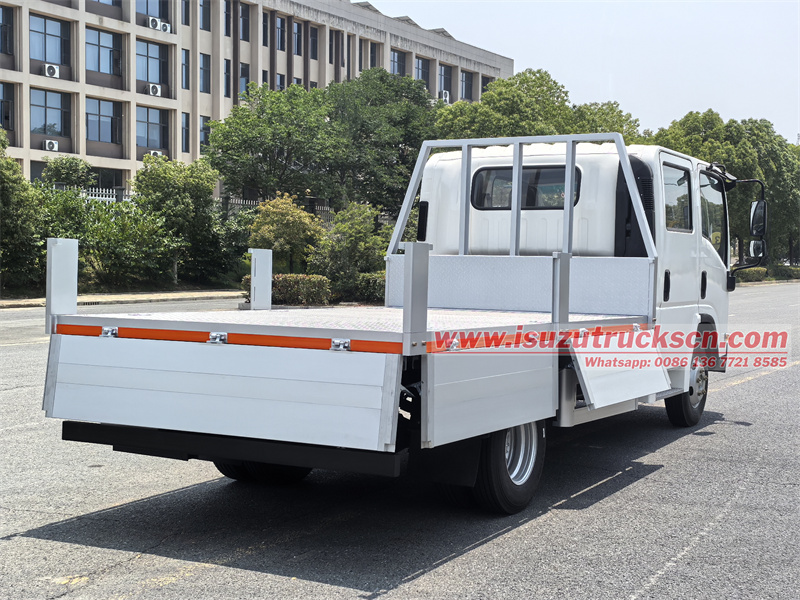

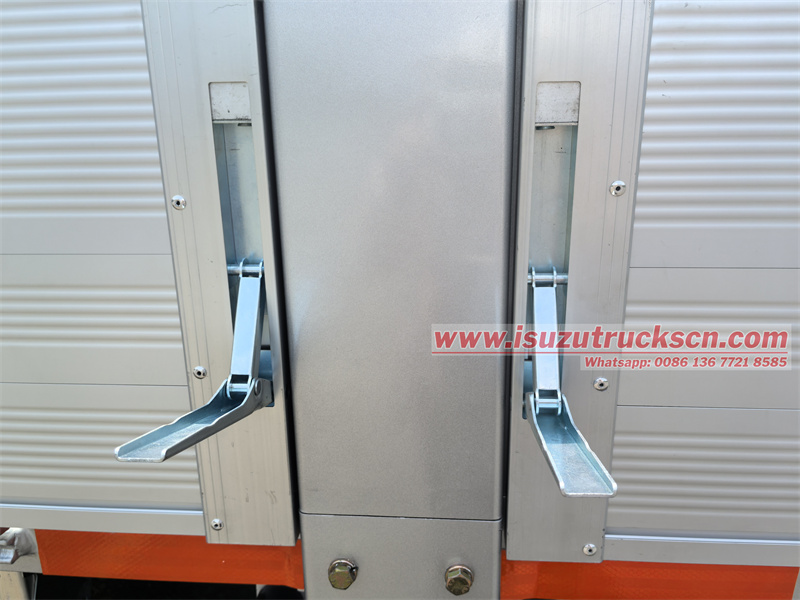

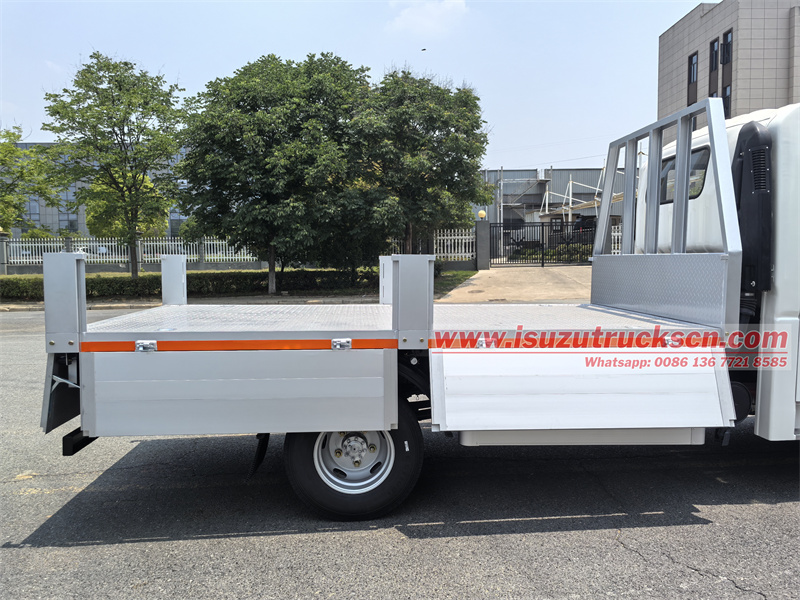

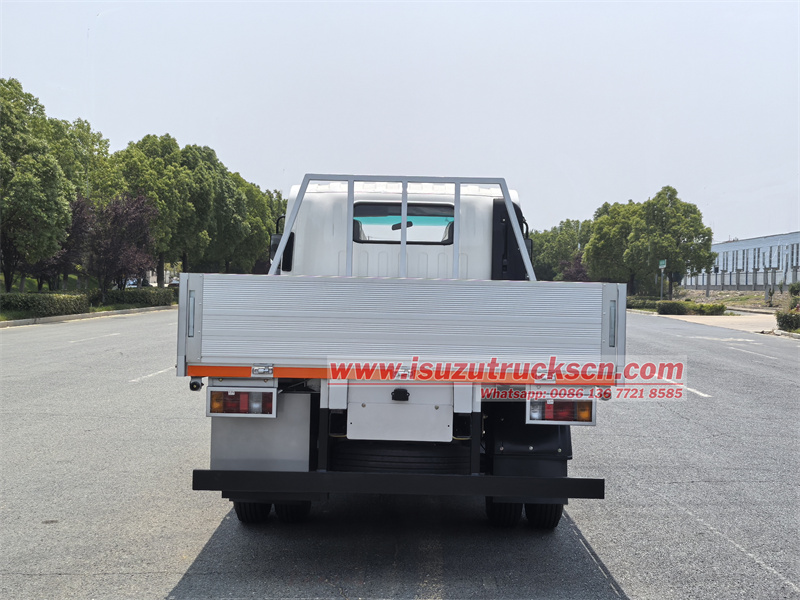

• Convenience of loading and unloading: Both the side and tailgate of the cargo box can be opened, making the loading and unloading process of cargo more efficient and faster, reducing labor intensity and time costs.

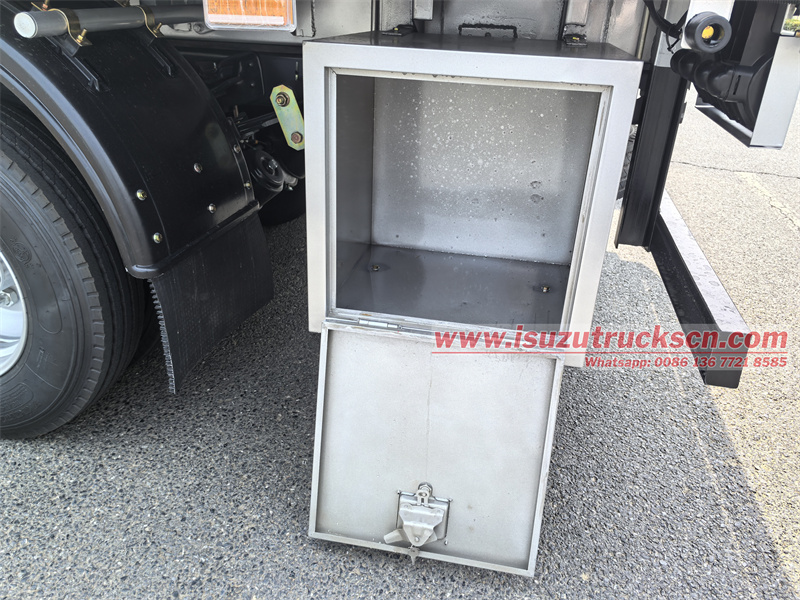

• Toolbox configuration: The vehicle is also equipped with a practical toolbox for convenient storage of common items such as maintenance tools and fasteners, ensuring that various emergencies can be responded to in a timely manner during transportation.
★ Application scenarios
• Applicable fields: urban logistics, building materials transportation, agricultural and sideline products distribution, etc.
• Core advantages:
Double-row seat design takes into account both passenger and cargo needs
Euro VI engine has excellent performance, is environmentally friendly and energy-saving, and is suitable for areas with strict emissions
Aluminum alloy cargo box reduces vehicle weight and increases payload
