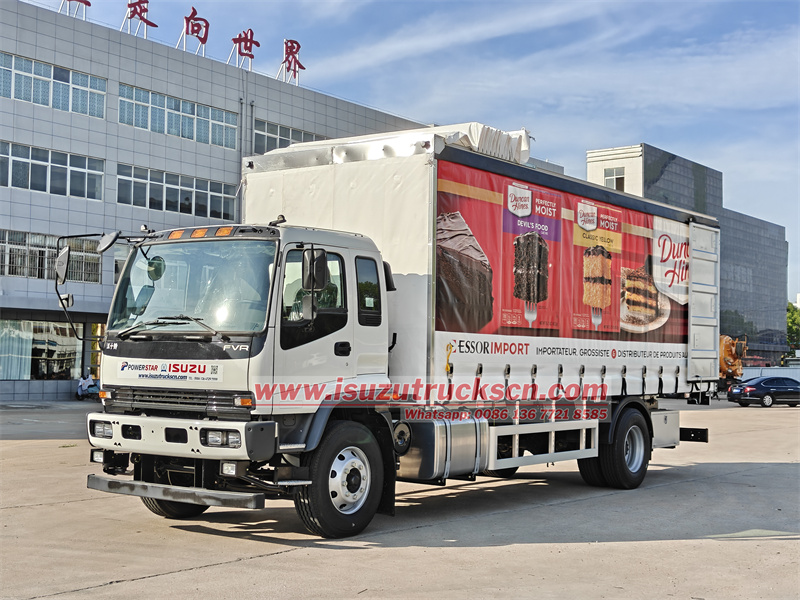

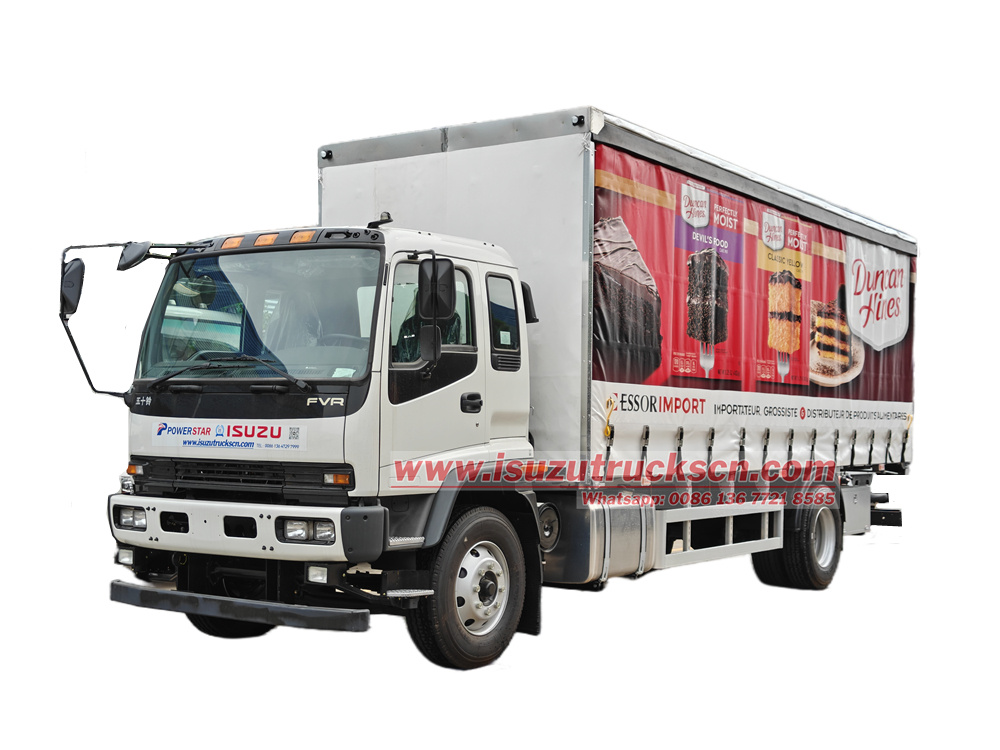

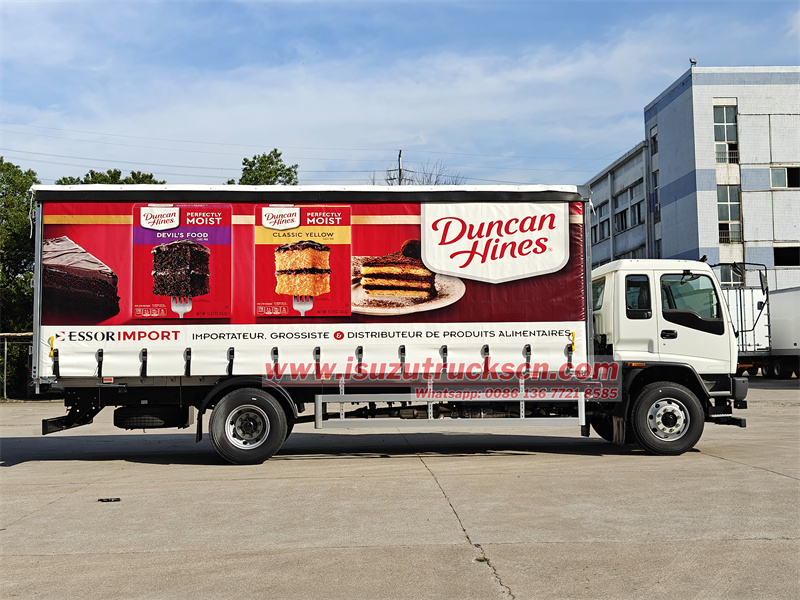

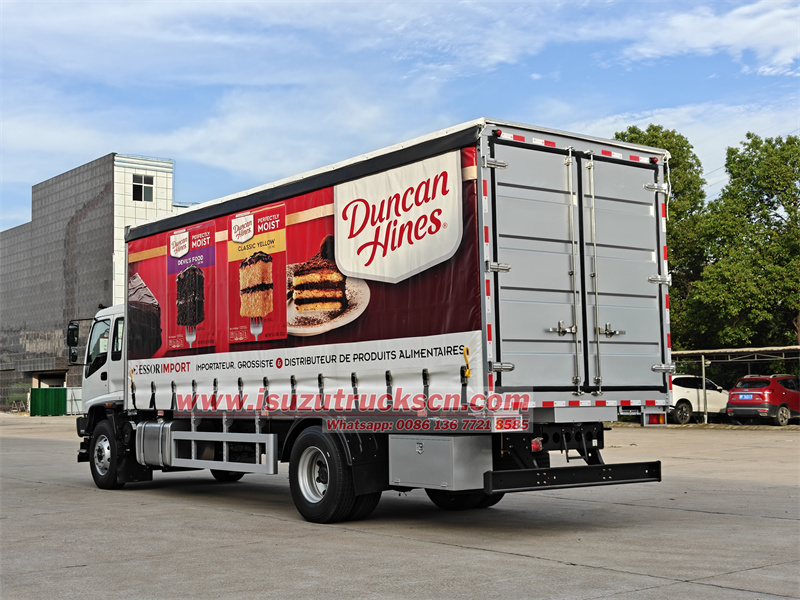

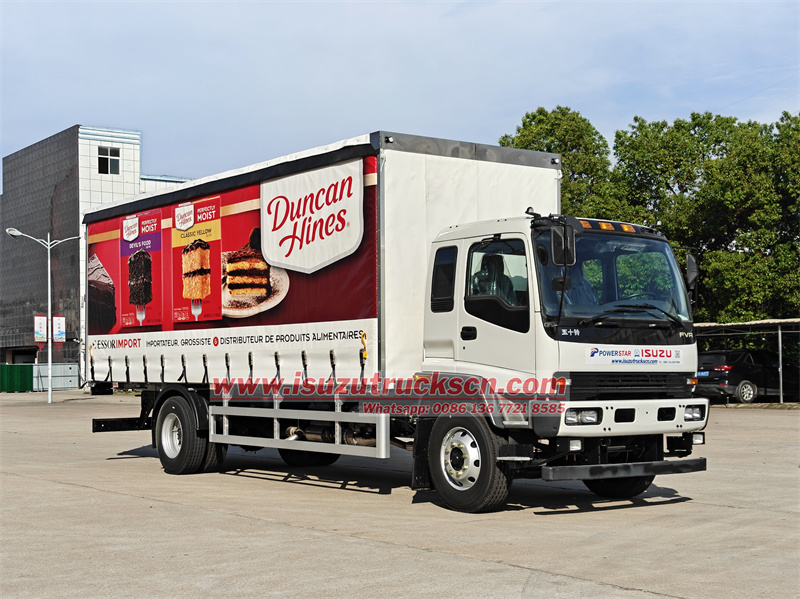

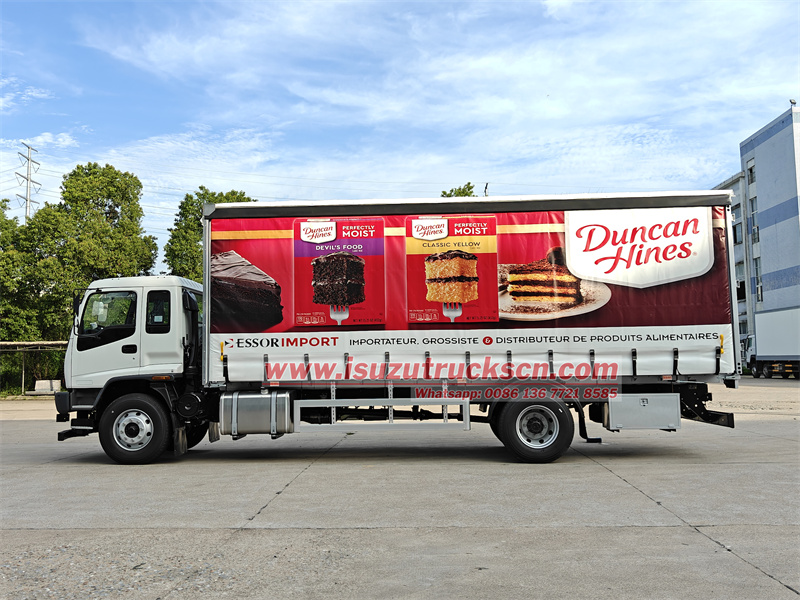

Isuzu FVR 7.5m curtain side truck is modified on the basis of Isuzu National V FVR chassis, with a wheelbase of 5800mm, equipped with Isuzu 6HK1-TCL 240HP engine, isuzu MLD 6-speed gearbox, and a 7.5m curtain side box. The top and side curtains are foldable, and the side protection plates are aluminum plates, which are removable. The cargo box size is 7.5*2.4*2.4m, and the tarpaulin is made of PVC material. The spray style can be customized according to customer needs.
Manufacturer:
Powerstar TrucksWork capacity:
7.5mDimension:
9980x2500x3620mmCabin type:
Isuzu Euro 5 FVR cabin chassis,one and half rowWheelbase:
5800mmEngine power:
175kw / 240HPEngine type:
Isuzu 6HK1-TCLAxle drive:
4X2,LHDGear box:
Isuzu MLD 6-speed gearbox,manualRemarks:
Aluminum fence can be disassemblyIsuzu FVR curtain side truck with tautliner is an efficient and flexible medium-sized logistics transport vehicle, integrating strong power, high load capacity and flexible loading and unloading. It is equipped with Isuzu 6HK1-TCL 240HP engine and 6-speed gearbox, which is powerful. The 5800mm long wheelbase and high-strength frame give the vehicle a maximum load capacity of 10 tons. The upper body adopts a fully foldable PVC curtain-side system, which supports fast loading and unloading, and is equipped with a detachable aluminum protective plate for easy loading and unloading of goods. It is suitable for the transportation of household appliances, building materials, daily necessities, retail, manufacturing and other goods.
● China best Isuzu curtain side truck factory
● Be designed according to your requirements
● OEM customized service, print your company logo
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
*ISUZU FVR curtain side truck with tautliner
FVR 10tons curtain side truck*
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
The chassis, pillars, side fence, top cover and curtains make up the main body of the side curtain vehicle. The curtains on both sides can be quickly pulled open, and the top side protective aluminum plates can be removed, making loading and unloading of goods very convenient. Due to its efficient transportation efficiency and multifunctional cargo fixing device, the side curtain vehicle has unparalleled advantages over ordinary transport trucks in the fields of multimodal transport, household appliances, food, auto parts, plates and packaged goods.
» Ⅱ.Product Parameter for Isuzu FVR 7.5m curtain-side vehicle:
|
Isuzu FVR 10tons curtain side truck |
|||
|
Vehicle parameters |
|||
|
Vehicle Model |
PT5180GXQ |
Vehicle Brand |
POWERSTAR |
|
Overall dimensions |
9980x2500x3620mm |
Van dimensions |
7500x2400x2400mm |
|
Total mass |
18000KG |
Curb weight |
7630kg |
|
Chassis parameters |
|||
|
Chassis brand |
ISUZU |
Wheel base |
5800mm |
|
Front/rear wheel track |
1990/1855mm |
Front/rear suspension |
1335/2815mm |
|
Mass in working order |
10tons |
Maximum speed |
105km/h |
|
Cab |
Configuration |

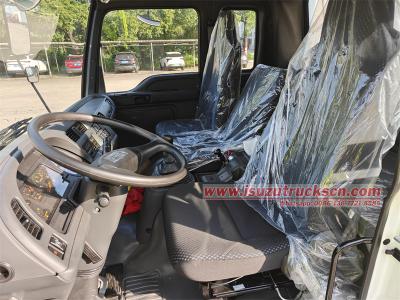

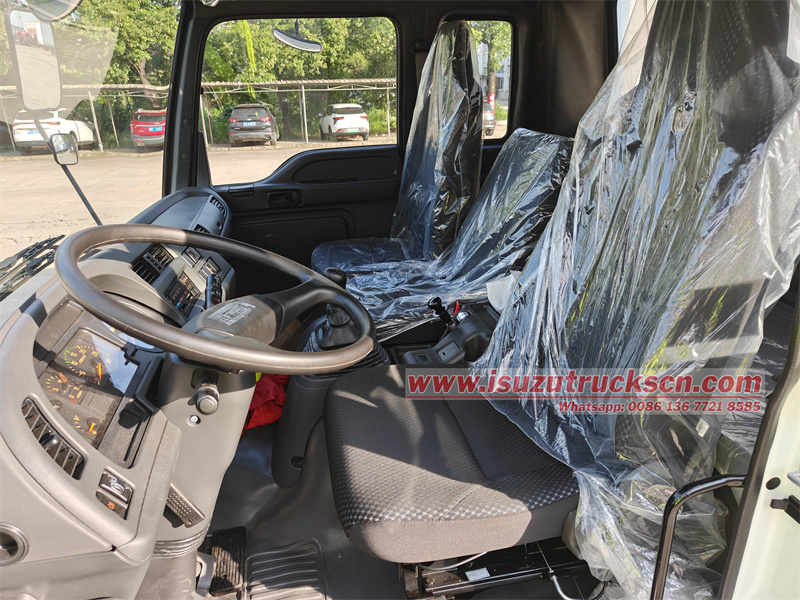

Isuzu Euro 5 FVR cabin chassis,one and half row,allowable 3 passengers, air conditioner, USB radio interface. |
|
|
Engine |
Model |
Isuzu 6HK1-TCL |
|
|
Emission |
Euro 5 |
||
|
Type |
6 cylinders, in-line, diesel engine |
||
|
Rated power |
175kw / 240HP |
||
|
|
Displacement |
7790ml |
|
|
Manufacturer |
Isuzu |
||
|
Tire |
Size |
295/80R22.5 |
|
|
Number |
6+1 nos |
||
|
Front axle |
6500kg |
||
|
Rear axle |
11500kg |
||
|
Drive form |
4X2 |
||
|
Suspension |
Multi leaf springs |
||
|
Rated voltage |
24V,DC |
||
|
Transmissions |
Isuzu MLD 6-speed,6 speed forward 1 reverse,manual |
||
|
Steering device |
Power assisted steering |
||
|
Van body structure parameters |
|||
|
Van dimensions |
7500x2400x2400mm |
Loading capacity |
10tons |
|
Tarpaulin material |
PVC coated awning |
Tarpaulin painting |
According to your wish |
|
Side and top plate material |
Aluminum |
Bottom plate material |

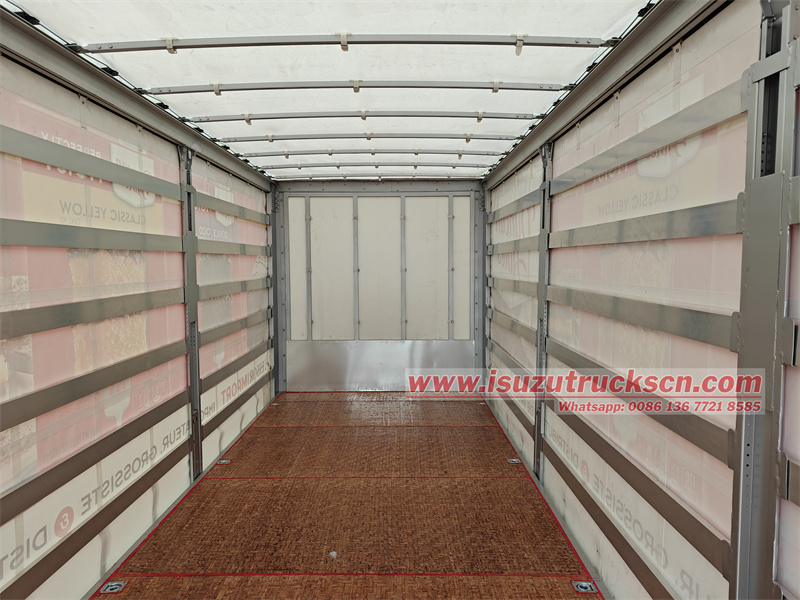

25mm thickness transport plywood |
|
Top cover,side curtain |
Foldable |
Aluminum fence |
Can be disassembly |
» Ⅲ. Product Details & Advantages:
1. Chassis configuration
• Basic chassis: Based on the Isuzu National Five FVR chassis modification, it has strong stability and excellent load-bearing performance, suitable for medium and long-distance logistics transportation.
• Power system: Equipped with Isuzu 6HK1-TCL diesel engine, with a maximum power of 240 horsepower and strong torque (980N·m), it meets the National Five emission standards and takes into account both power and fuel economy.
• Transmission: Matched with Isuzu MLD 6-speed manual transmission, it has smooth shifting, high reliability, and adapts to complex road conditions.
• Wheelbase: 5800mm long wheelbase design ensures vehicle driving stability and provides sufficient space for the 7.5-meter cargo box.
2. Upper structure
• Cargo box size: 7.5 × 2.4 × 2.4 m, with a volume of approximately 43.2 cubic meters, meeting the needs of loading large-volume cargo.
• Side curtain design:

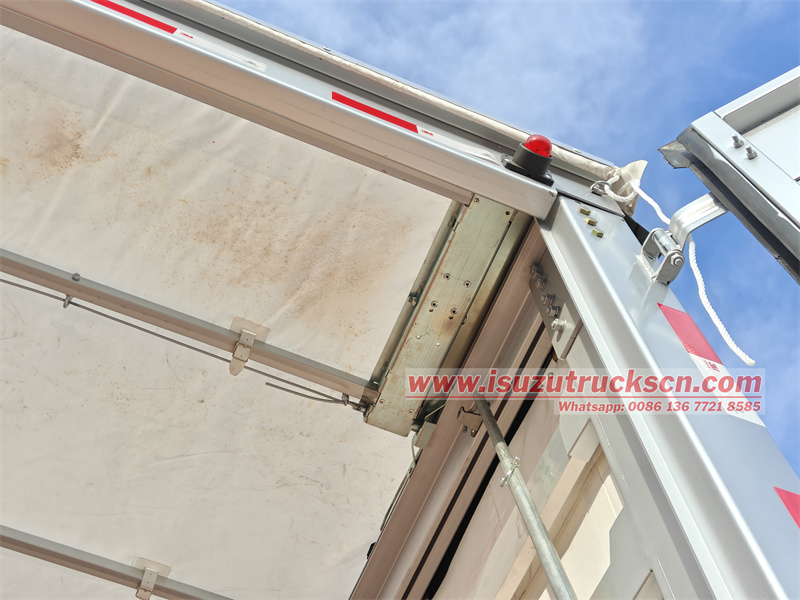

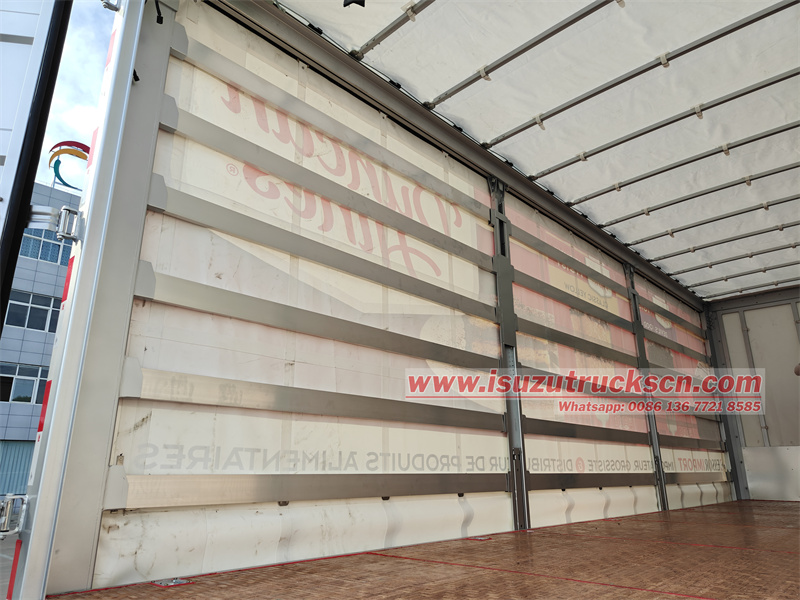

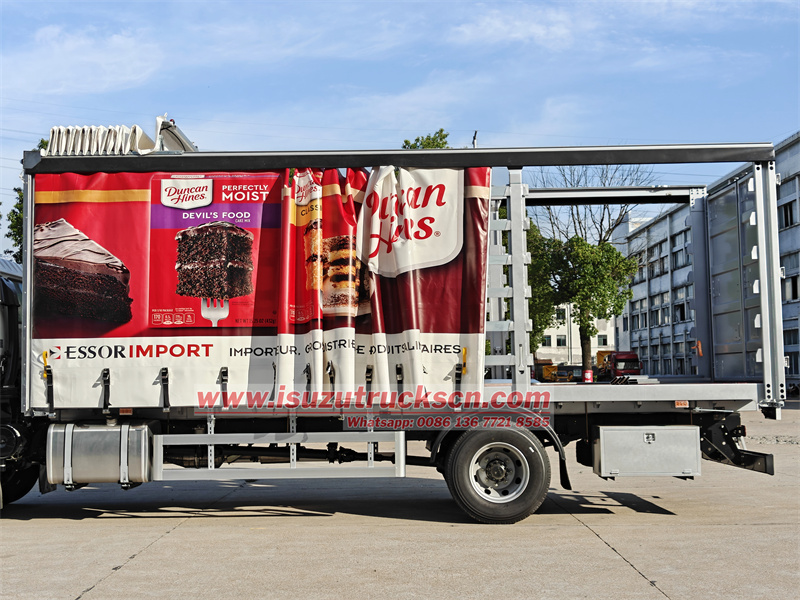

◇ Top and side curtains: High-strength PVC tarpaulin is used, which is waterproof, wear-resistant and UV-resistant; the curtain can be folded or retracted quickly.

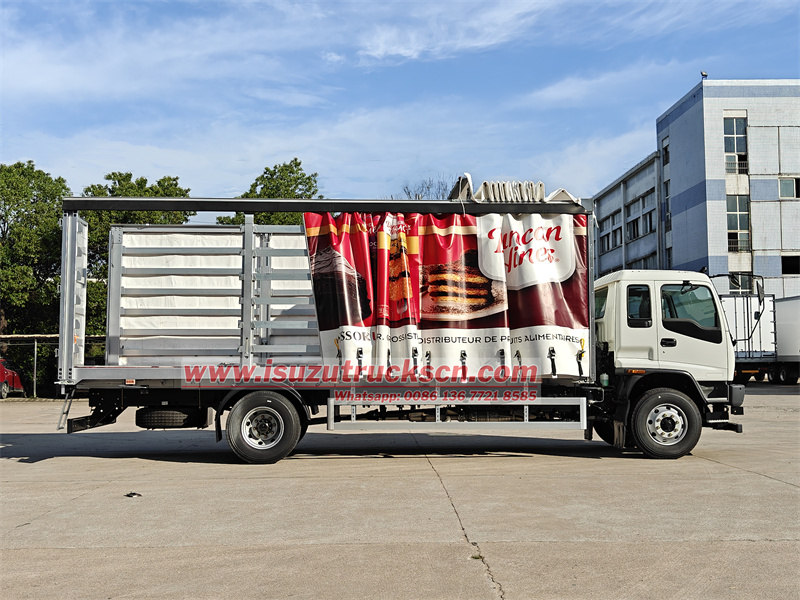

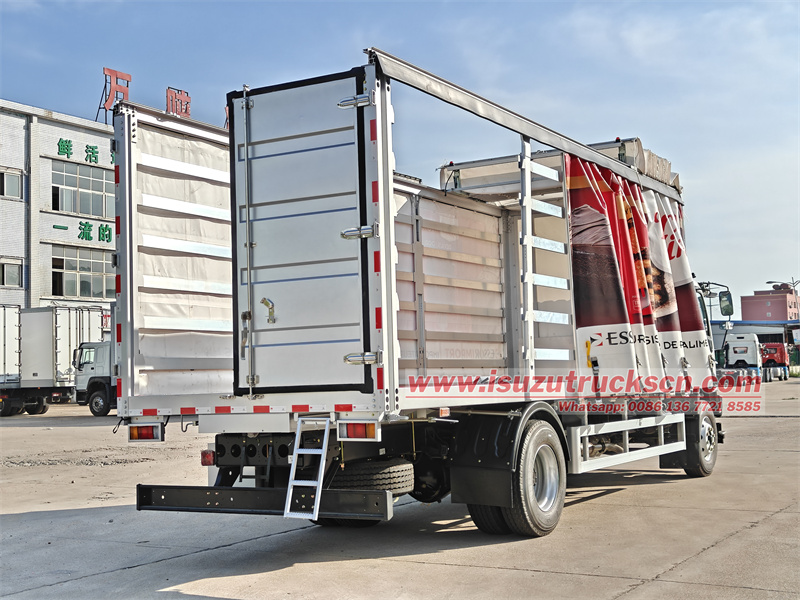

◇ Side protection plate: Lightweight aluminum plate, detachable design, with foldable side curtain tarpaulin, to achieve fast loading and unloading and open cargo platform mode switching, loading and unloading efficiency increased by more than 30%.

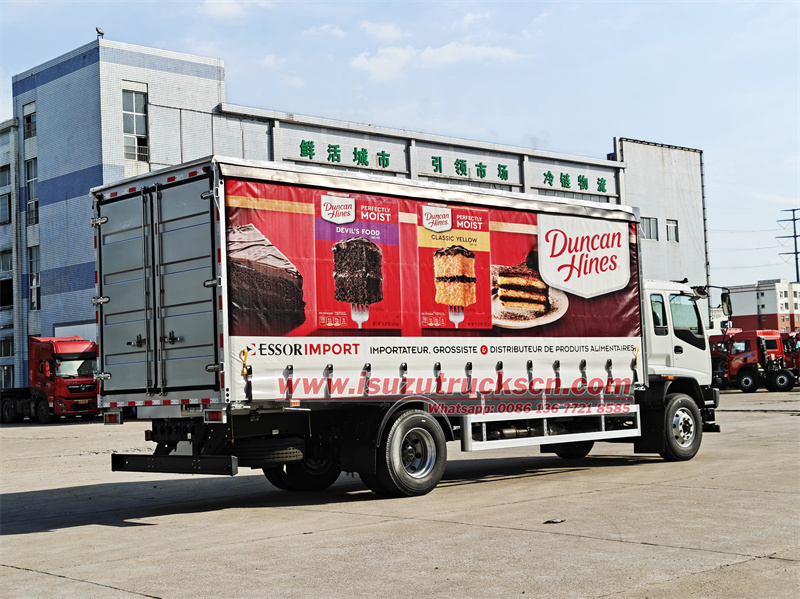

• Customized spraying: The cargo box tarpaulin supports customers to customize patterns, LOGO or corporate logos to enhance brand recognition.
» Ⅳ. Main details
3. Function and convenience
• Efficient loading and unloading: The fully open side curtain mode and the detachable side aluminum plate protection support barrier-free operation on both sides, which is suitable for palletized transportation and greatly improves loading and unloading efficiency.
• Lightweight structure: The aluminum side panels reduce the vehicle's deadweight, improve the compliant load capacity, and reduce fuel consumption.

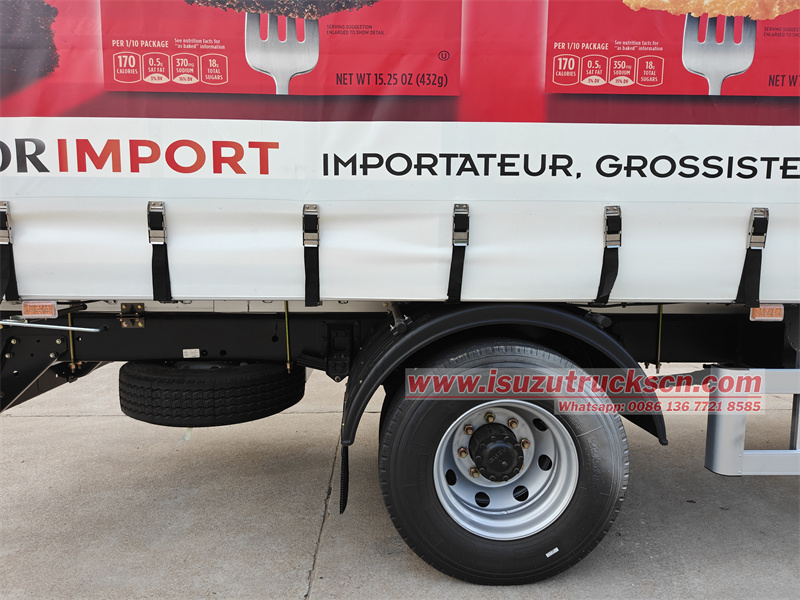

• Safety: The combination of tarpaulin and aluminum plate protection is rainproof and dustproof; the standard fastening device ensures the stability of the goods during transportation.
