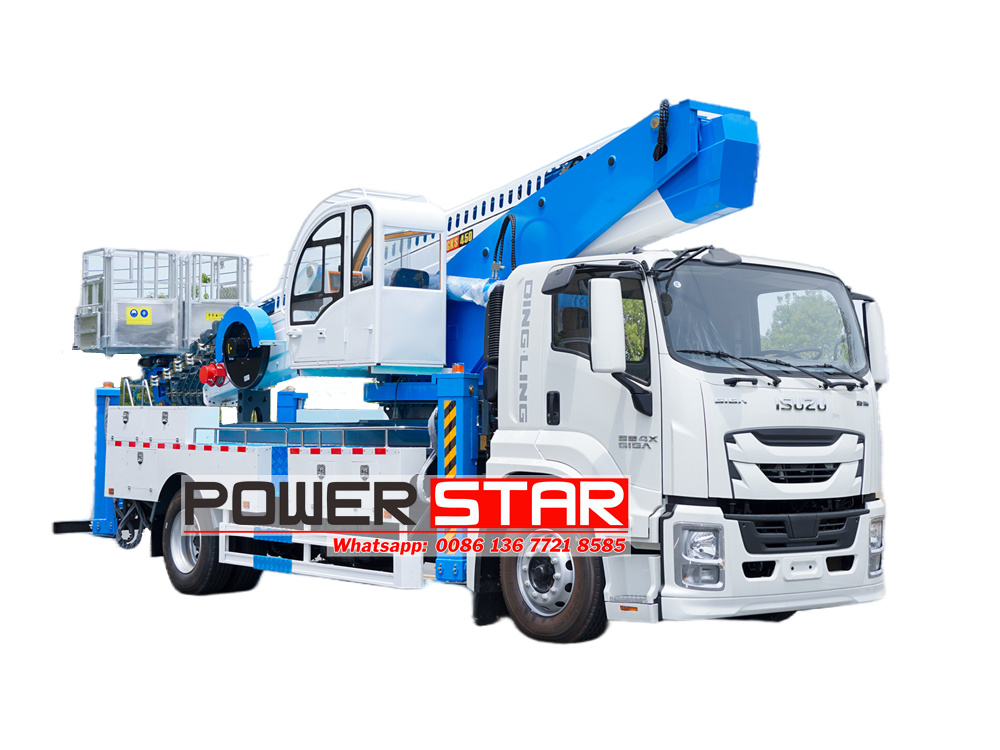

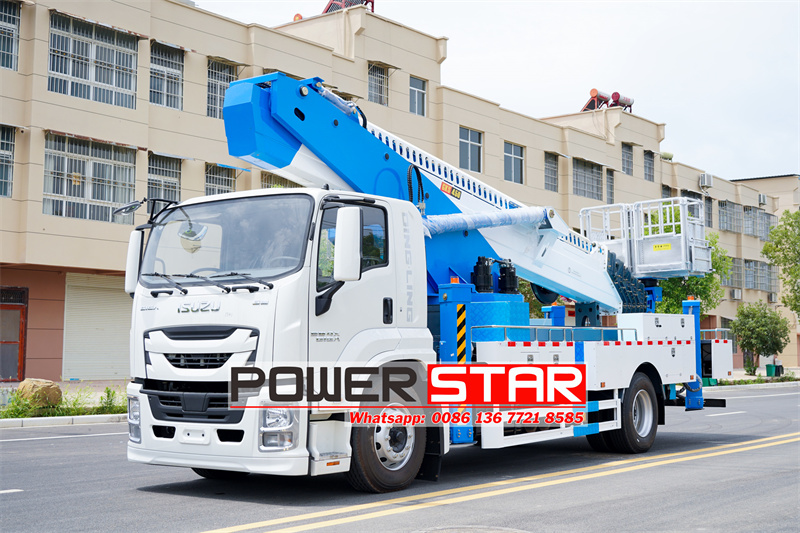

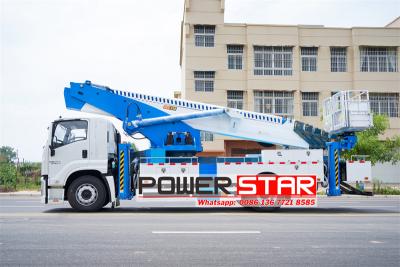

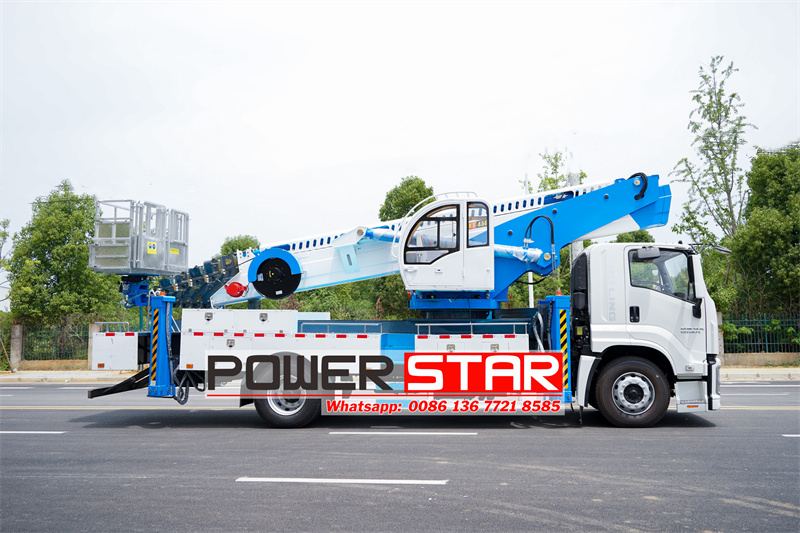

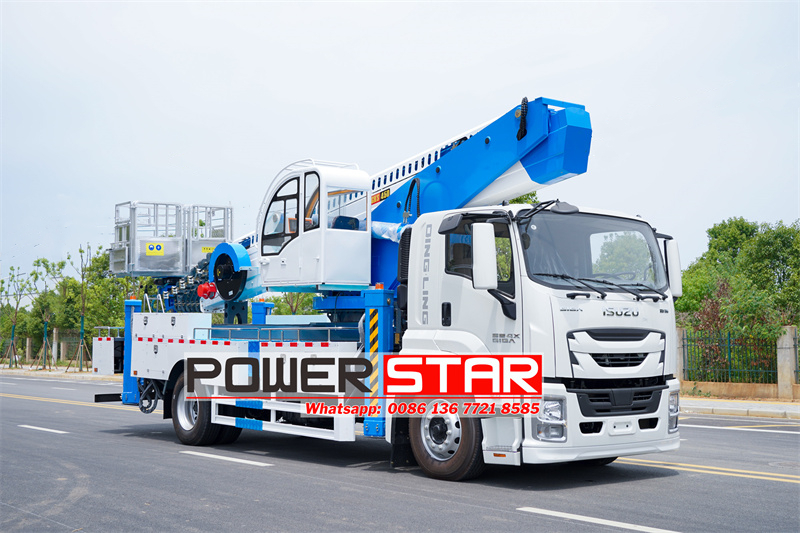

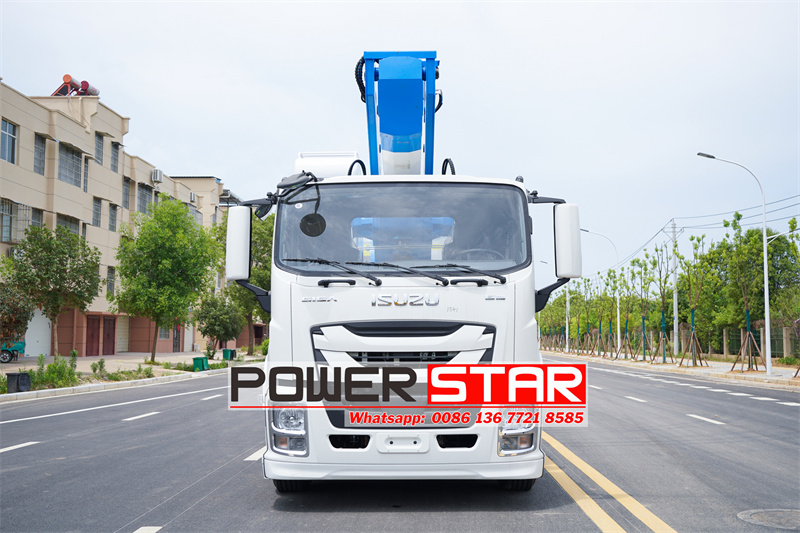

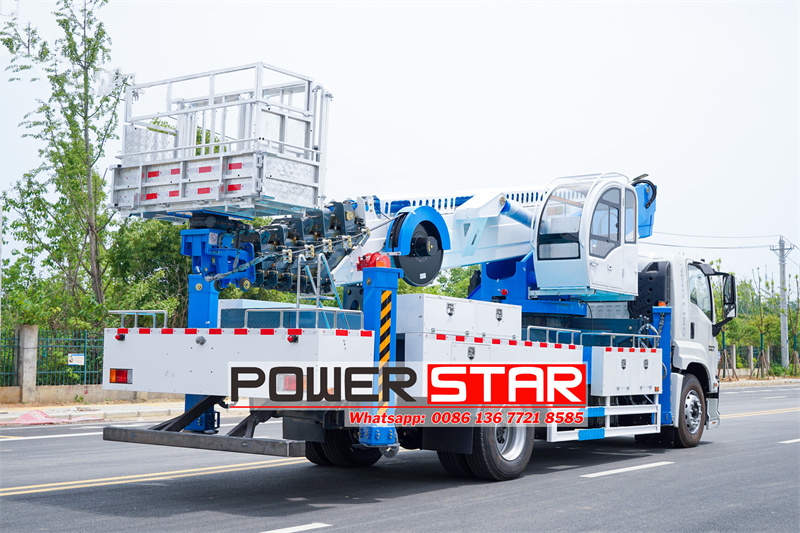

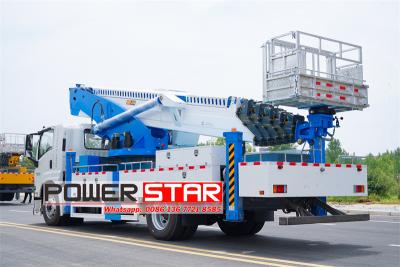

Isuzu 45 meter manlift hydraulic platform truck
POWERSTAR 's Isuzu GIGA 45m aerial platform truck is an aerial work equipment with excellent performance, safety, reliability and convenient operation.It is modified on the Isuzu GIGA 4X cabin chassis,5000mm wheelbase,one and half row,with A/C,USB,direction assistance.Equipped with 4HK1 205HP engine,Euro 6 5193ml displacement,ISUZU MLD 6-shift transmission.The max lifting height is 45m,max aerial range is 27m,with a 200kg capacity manlifter, with 7-section 16-sided synchronous telescopic arm, capable of 360-degree continuous rotation.
Work capacity:
45mEngine power:
205HPEngine type:
4HK1-TC60Axle drive:
4x2,LHDGear box:
Isuzu MLD 6-shift gearbox,manualRemarks:
Seven-section hexadecagonal synchronous telescopic armIsuzu 45 meter manlift hydraulic platform truck has an ultra-long working arm span of 45 meters, equipped with powerful power and advanced hydraulic system to ensure stable and safe aerial work. The vehicle has a humanized design, easy operation, and is equipped with multiple safety protection devices to ensure the safety of operators. It is suitable for various aerial work scenarios, such as aerial equipment installation, maintenance, cleaning and other work in the fields of construction, electricity, communications, municipal administration, etc.
● More than 30 years professional manufacturer experience.
● 50 units Isuzu aerial work truck in stock, 5 cbm, 8 cbm, 12 cbm
● Professional sales team which will help you to choose suitable truck.
● Promptly delivery. any order is welcome.
● 24 months long guarantee time assurance
Features:
★ Adopts world-class lSUZU FTR GIGA 4X chassis, which is powerful, fuel-efficient, reliable and has long uptime;
★ Adopts seven-section hexagonal synchronous telescopic arm;
★ All structures are made of high-strength steel;
★ Easy to install, requiring minimal space for installation;
★ Optional chassis 4x2, 6x4, 8x4 and engine power;
★ Provides wireless remote control system;

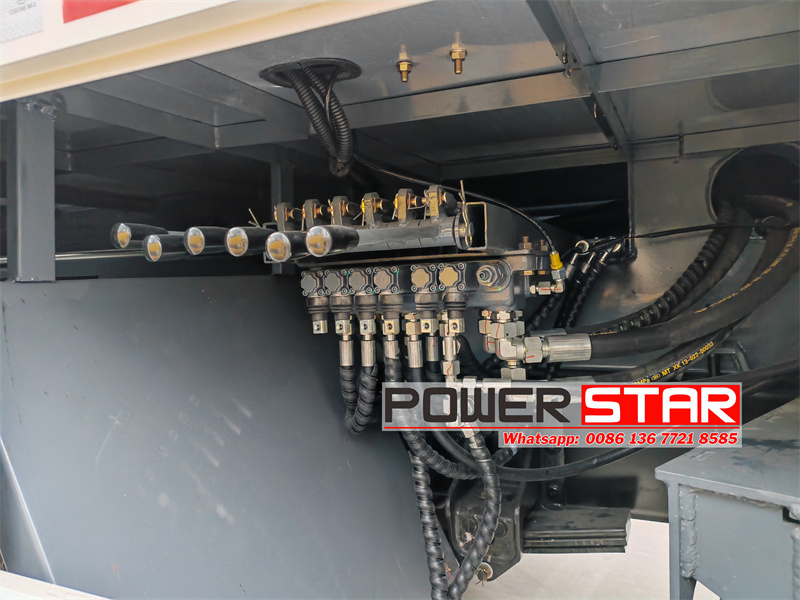

★ Provides safety devices such as pressure relief valve, balance valve, two-way hydraulic lock, motor emergency system, etc.
Product Specifications
|
Isuzu 45 meter manlift hydraulic platform truck |
||
|
Vehicle parameters |
Vehicle brand |
POWERSTAR |
|
Chassis brand |
Isuzu |
|
|
Cabin |
Isuzu FTR GIGA 4X cabin,one and half row,with A/C,USB,direction assistance |
|
|
Persons in cab |
3 |
|
|
Drive Type |
4×2 |
|
|
Overall Dimensions (L*W*H) |
9800*2600*3820mm |
|
|
Gross weight |
18000kg |
|
|
Max speed |
105km/h |
|
|
Chassis |
wheelbase |
5000mm |
|
Front/Rare suspension |
1110/2475mm |
|
|
Approaching/Departure Angle |
20/10(°) |
|
|
Max speed |
105 (km/h) |
|
|
Front axle loading |
6500kg |
|
|
Rear axle loading |
11500kg |
|
|
Tire type/number |
295/80R22.5 |
|
|
Brake |
Air brake |
|
|
Transmission |
Isuzu MLD-shift gearbox,manual |
|
|
Engine |
Brand/Model |
Isuzu 4HK1-TC60 |
|
Type |
Inline 4-cylinder 4-stroke, supercharged and intercooled |
|
|
Power |
151(Kw) |
|
|
Horsepower |
205(HP) |
|
|
Displacement |
5.193(L) |
|
|
Fuel type |
Diesel |
|
|
Emission standard |
Euro VI |
|
|
Rated speed |
2600rpm |
|
|
Max torque |
647N.m |
|
|
Max torque speed |
1600rpm |
|
|
Color |
Customer’s request |
|
|
Upper body configuration |
Platform Working Height |
45 meters |
|
Boom type |
Seven-section hexadecagonal synchronous telescopic arm |
|
|
Working range at maximum working height |
7m |
|
|
Maximum working range |
27m |
|
|
Working height at maximum working range |
6m |
|
|
Boom luffing time |
160～180s |
|
|
Boom extension time |
140～160s |
|
|
Boom rotation speed |
160～180s/r |
|
|
Outrigger retraction time |
100～120s |
|
|

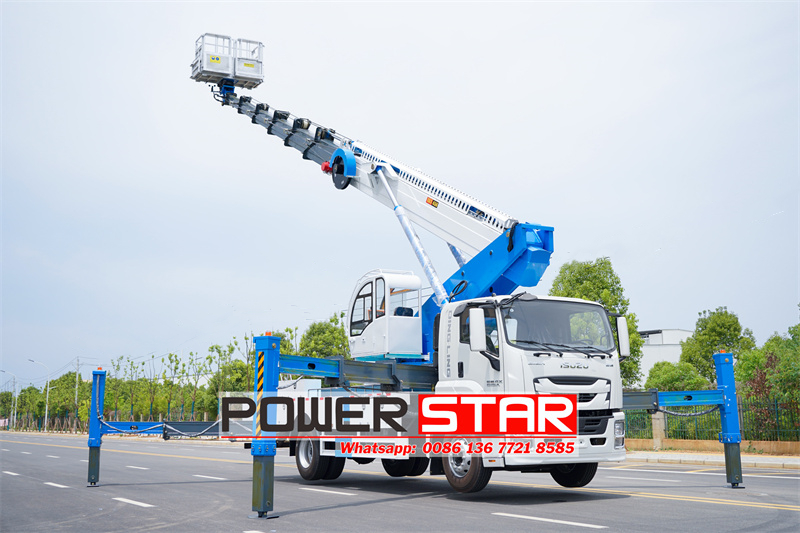

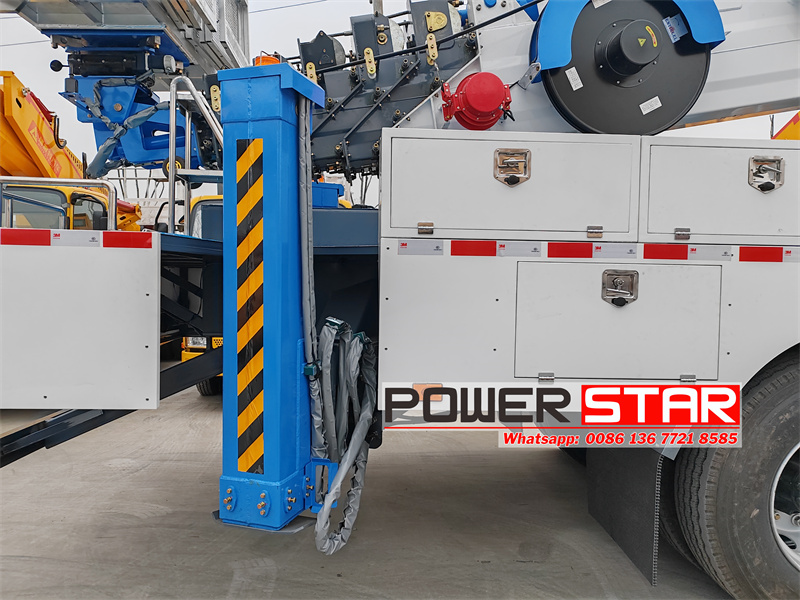

Outrigger |
4 pcs, front V + rear V type hydraulic outriggers |
|
|

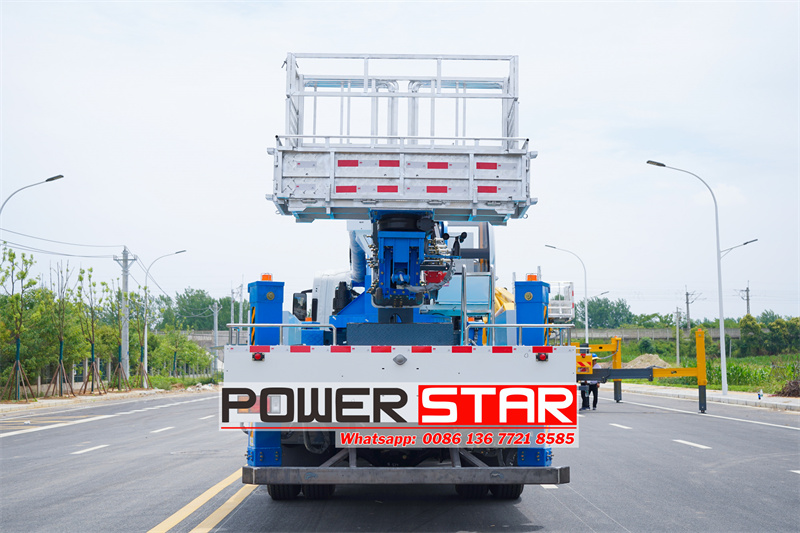

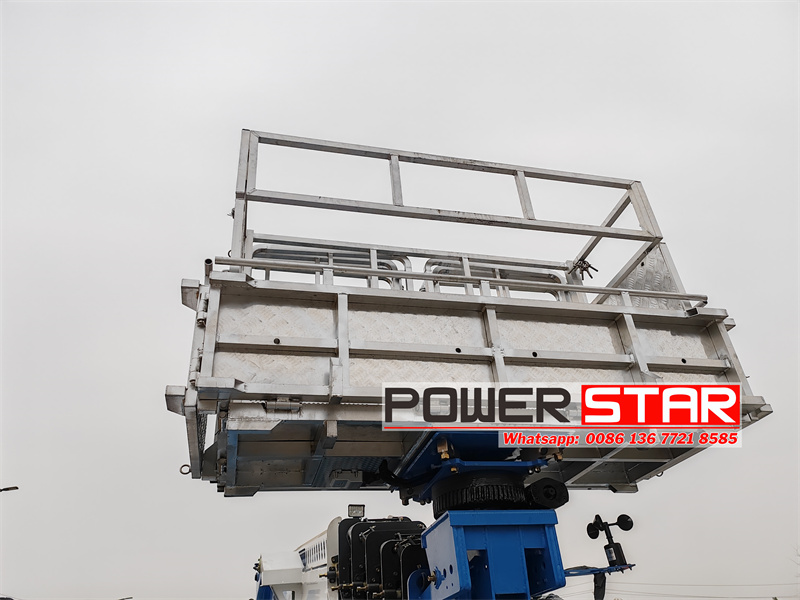

Bucket |
1600×700×1000mm(LWH), 200kg load |
|
|
Slewing device |
Two-way 360° continuous slewing, 360°slewing basket |
|
|
Operating system |
Up and down operation both on ground and in bucket, Wireless remote control + platform operation + manual 3 groups of operating system + manual emergency system |
|
|
Emergency device |
Yes |
|
Isuzu FTR GIGA 4X 45-meter aerial work hydraulic lifting platform vehicle, based on the excellent quality and exquisite craftsmanship of the POWERSTAR brand, adopts advanced hydraulic system and stable support structure to ensure the stability and safety of aerial work. Its 45-meter ultra-long working arm span can meet various aerial work needs and provide operators with an efficient and convenient working platform.
1. Chassis and power:
◆ This aerial work vehicle is built on the solid chassis of Isuzu FTR GIGA 4X, with excellent stability and passability.
◆ Equipped with advanced 4HK1 205HP diesel engine, it provides surging power output while maintaining low noise and environmental protection performance,
◆ Matched with ISUZU MLD 6-speed gearbox, smooth gear shifting.

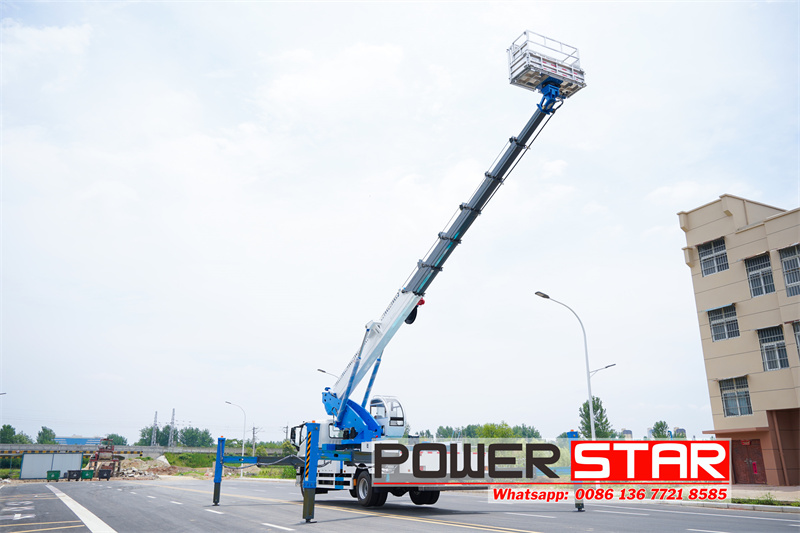

2. Working arm span:

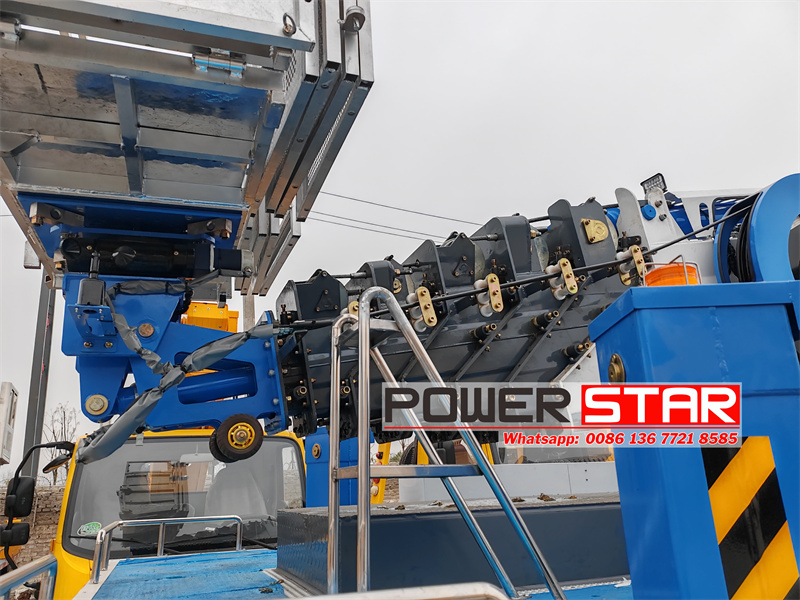

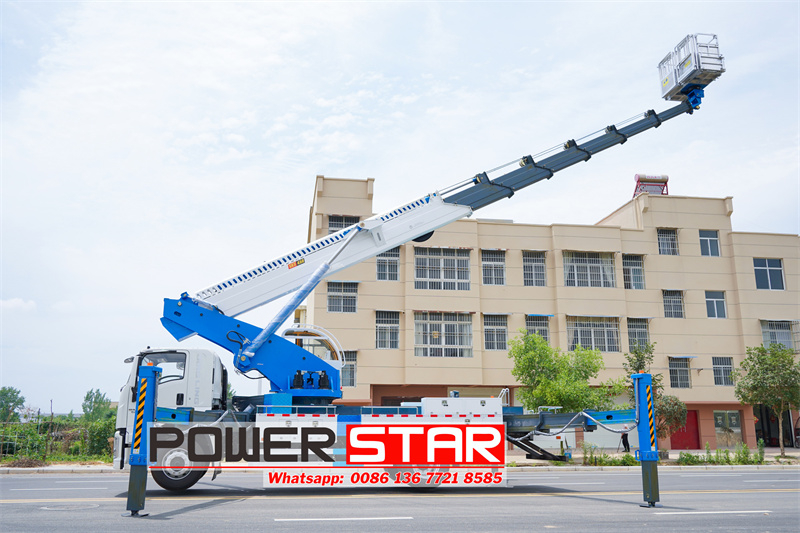

◆ The most eye-catching feature of this model is its 45-meter 7-section hexagonal ultra-long working telescopic arm span, which is the ultimate display of technical strength and a comprehensive improvement of aerial work efficiency.
◆ The boom is made of high-strength materials, with a solid structure and free extension. It can be accurately positioned at various heights and angles to meet various aerial work needs.
3. Humanized design:
◆ The work platform is equipped with complete safety protection devices, including cylinder retraction device, outrigger retraction device, interlocking device for getting on and off, emergency stop device, soft leg protection device, extreme deceleration, emergency manual operation and other safety protection systems to ensure the safety of aerial work
◆ The cab is spacious and practical in interior configuration, including electric rearview mirror adjustment, original air conditioning, electric one-button lifting window and other functions, as well as multiple storage spaces. All buttons are within reach for easy operation.
4. Efficient hydraulic system
Adopting advanced hydraulic system, it provides stable and powerful power output to ensure the smooth lifting and precise positioning of the work platform.

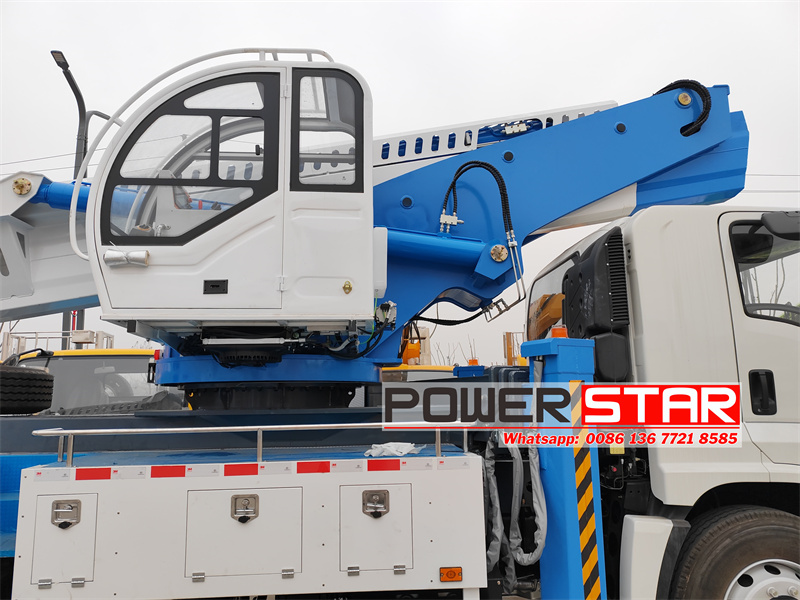

5. Intelligent operation box:
Equipped with an intuitive and easy-to-use operation box, it integrates a variety of control switches and indicator lights, which is convenient for operators to monitor the vehicle status in real time and perform precise operations.
6. Wireless remote control, comfortable and convenient one-hand operation
Wireless remote control technology ensures that the operator can operate flexibly and conveniently in a small working environment, eliminates blind spots, and has a better working field. In addition, it prevents the operator from enduring severe cold or hot weather and allows the operator to complete the operation in a suitable location; all main action operations can be completed with one hand.
