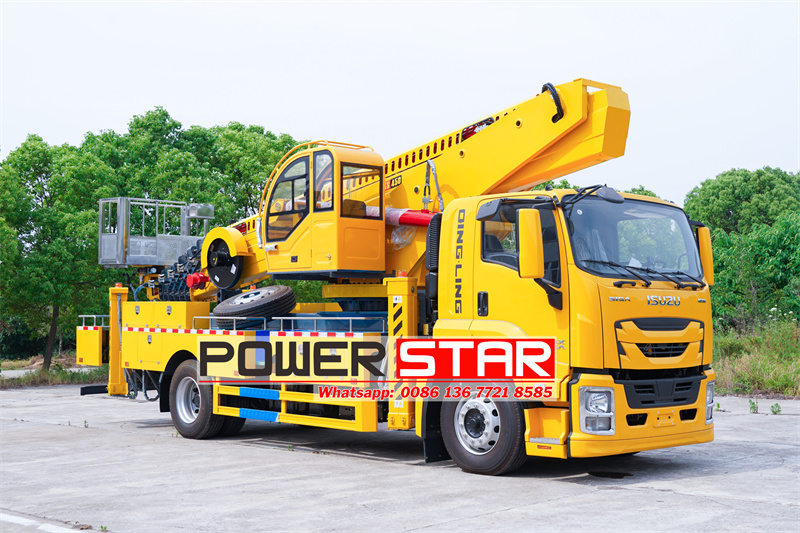

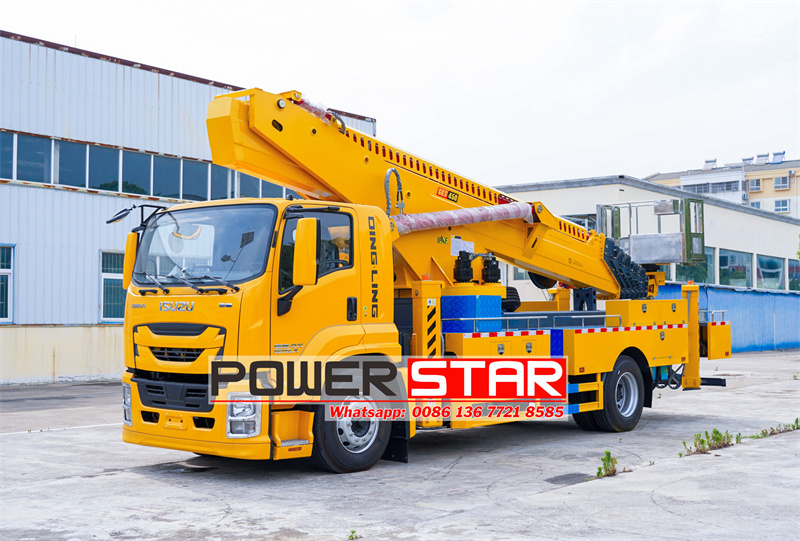

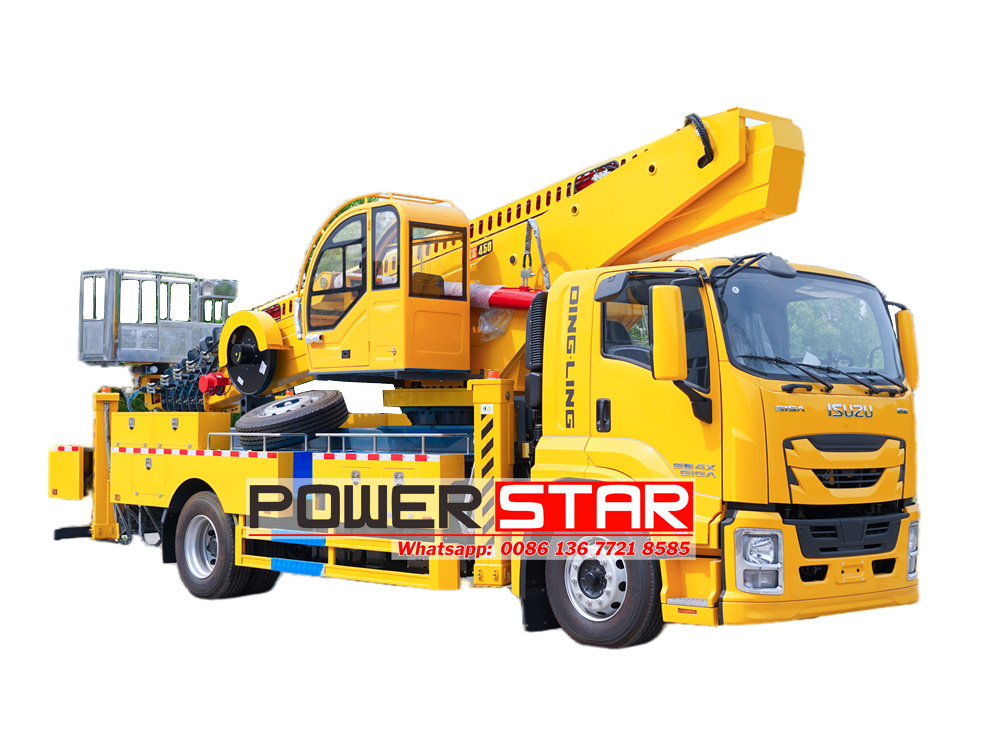

Albania Isuzu 45 meter aerial platform lift truck

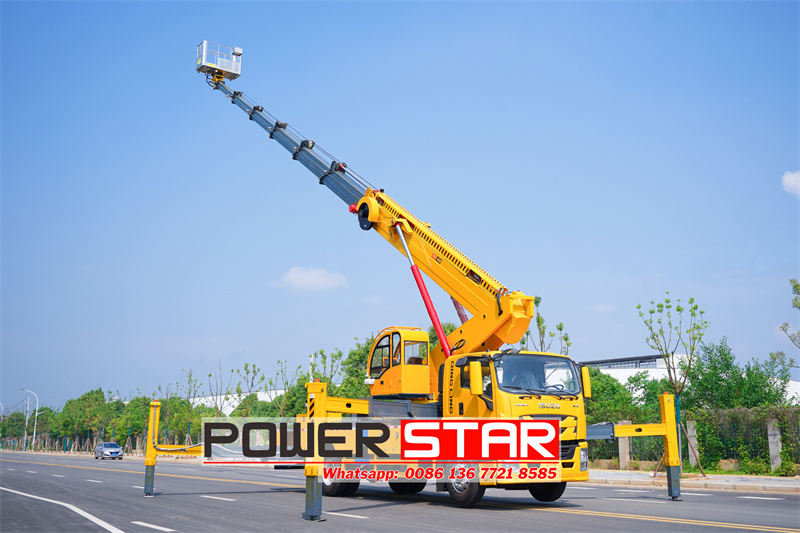

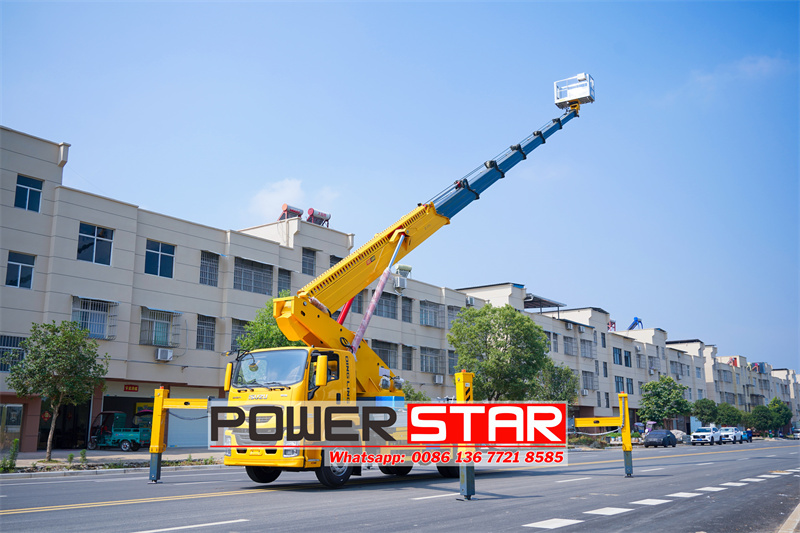

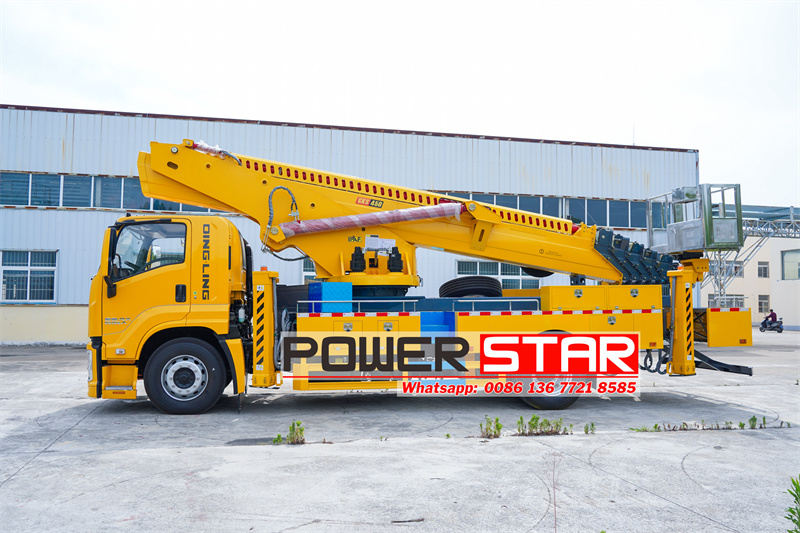

Powerstar ' s ISUZU FTR 45m aerial work platform truck is a mobile lifting work platform.The truck is modified on the Isuzu new FTR GIGA 4X cabin chassis，with A/C,USB,direction assistance,5000mm wheelbase,GVW 18 tons,Isuzu 4HK1 diesel engine, Euro 6 5193ml displacement,MLD 6-shift gearbox. The work vehicle can achieve a platform load of 200kg, a maximum working height of 45m, and a maximum working range of 27m. The arm's variable angle range is -18°~80°, and the working platform is hydraulically automatically leveled.
Work capacity:
45mEngine power:
205HPEngine type:
4HK1-TC60Axle drive:
4X2,LHDGear box:
Isuzu MLD 6-shift gearbox,manualRemarks:
Isuzu FTR GIGA 4X cabin chassis,45m working heightAlbania Isuzu 45 meter aerial platform lift truck is a product that serves various industries in aerial work, equipment installation, maintenance and other mobile aerial work. It has an ultra-long arm span and can easily reach a height of 45 meters to meet various aerial work needs. Whether in building maintenance, tree pruning, power inspection, film and television shooting and other scenes, it can show its excellent performance and stability. The vehicle is well designed and easy to operate, ensuring the safety and efficiency of the operators. At the same time, its strong carrying capacity and stable lifting system make aerial work safer and more reliable.
● More than 30 years professional manufacturer experience.
● 50 units Isuzu aerial work truck in stock, 5 cbm, 8 cbm, 12 cbm
● Professional sales team which will help you to choose suitable truck.
● Promptly delivery. any order is welcome.
● 24 months long guarantee time assurance
Features:
★ Adopts world-class lSUZU FTR GIGA 4X chassis, which is powerful, fuel-efficient, reliable and has long uptime;
★ Adopts seven-section hexagonal synchronous telescopic arm;
★ All structures are made of high-strength steel;
★ Easy to install, requiring minimal space for installation;
★ Optional chassis 4x2, 6x4, 8x4 and engine power;
★ Provides wireless remote control system;
★ Provides safety devices such as pressure relief valve, balance valve, two-way hydraulic lock, motor emergency system, etc.
II.Product Parameters
|
ISUZU FTR 45m aerial work platform truck |
|
|
General |
|
|
Chassis Brand |
ISUZU |
|
Truck Brand |
POWERSTAR |
|
Cab |
Isuzu new FTR GIGA 4X cabin,one and half row,with A/C,USB,direction assistance… |
|
Overall dimensions |
9800*2600*3820mm |
|
GVW/Curb weight |
18000kg |
|
Max speed |
105Km/h |
|
Engine |
|
|
Mode |
Isuzu 4HK1-TC60 |
|
Type |
Diesel, 4-cylinder in line, 4-stroke,with water cooling,turbo-charging, intercooling |
|
Power |
205HP/151Kw |
|
Rated speed |
2600rpm |
|
Max. torque |
647N.m |
|
Max torque speed |
1600rpm |
|
Displacement(ML) |
5193ml |
|
Emission level |
Euro 6 |
|
Chassis |
|
|
Wheel base |
5000mm |
|
Front axle |
6.5T |
|
Rear axle |
11.5T |
|
Front overhang / rear overhang |
1110/2475mm |
|
Approach/Departure angle |
20/10° |
|
Gear box |
Isuzu MLD 6-speed,manual |
|
Brake system |
Air braking |
|
Operation control system |
Power Steering |
|
Electric system |
24V |
|
Tyres |
295/80R22.5 |
|
Aerial working parameter |
|
|
Max. working height |
45m |
|
Max. working range |
27m |
|
Working range at max working height |
7m |
|
Working height at max working range |
6m |
|
Boom type |
Seven-section hexadecagonal synchronous telescopic arm |
|
Outriggers |
Front V and rear V-shaped three-section outriggers, individually adjustable and synchronously retractable |
|
Outrigger span |
8600mm Horizontal/Vertical |
|
Basket |
1600*700*1000mm, Customizable size, 200kg loading |
|
Rotating device |
360° continuous rotation |
|
Boom luffing time |
160≤ t ≤180s |
|
Boom extension time |
140≤ t ≤160s |
|
Boom rotation speed |
160≤ t ≤180s/r |
|
Outrigger retraction time |
100≤ t ≤120s |
|
Operating system |
Up and down operation both on ground and in bucket, Wireless remote control + platform operation + manual 3 groups of operating system + manual emergency system |
|
Safety protection devices |
Including oil cylinder anti-retraction device, outrigger anti-retraction device, vehicle on/off interlocking device, emergency stop device, soft leg protection device, extreme deceleration, emergency manual operation, etc. |
III.Product Applications
The vehicle is built on the strong foundation of the Isuzu FTR GIGA 4X chassis. The 5000mm wheelbase provides excellent stability and handling, making it ideal for working in a variety of terrains and conditions. Under the hood, the powerful 4HK1 diesel engine ensures smooth and efficient performance, providing the torque and power required to handle the most demanding tasks. Matching the Isuzu MLD 6-speed gearbox, the gear shifting is smooth.

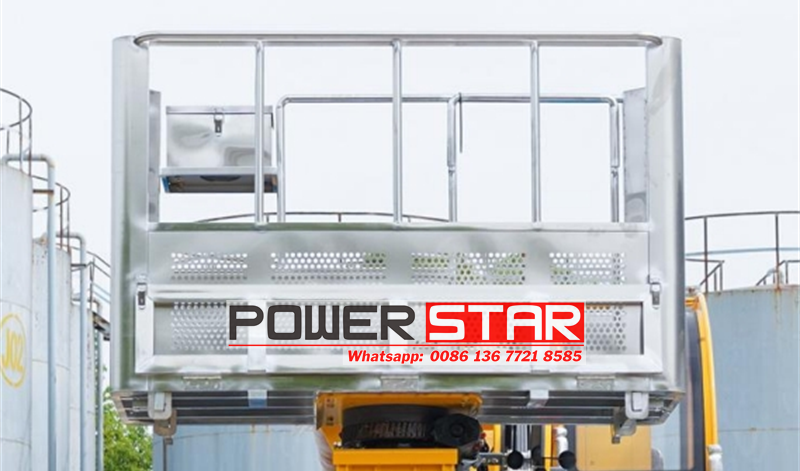

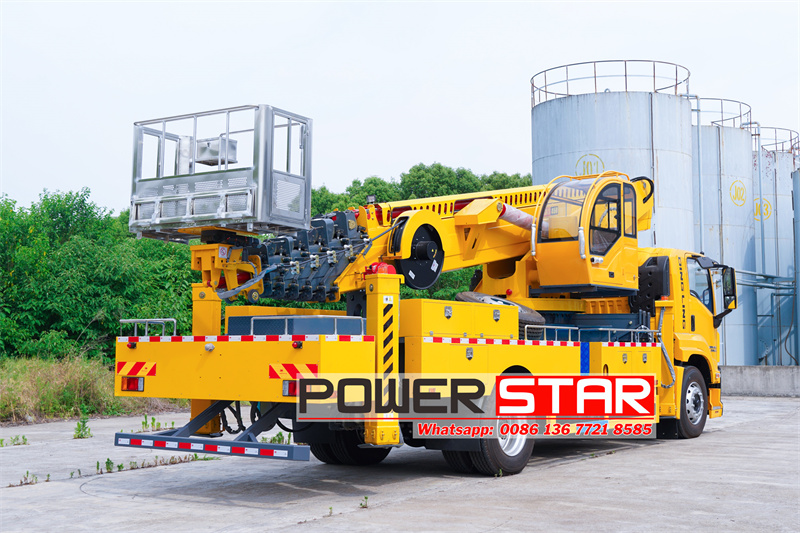

The tail working platform is made of stainless steel, with dimensions of 1600*700*1000mm (optional 2-meter folding work basket), providing ample space for the operator and his tools. This durable material ensures that the platform will not rust even in harsh environments.

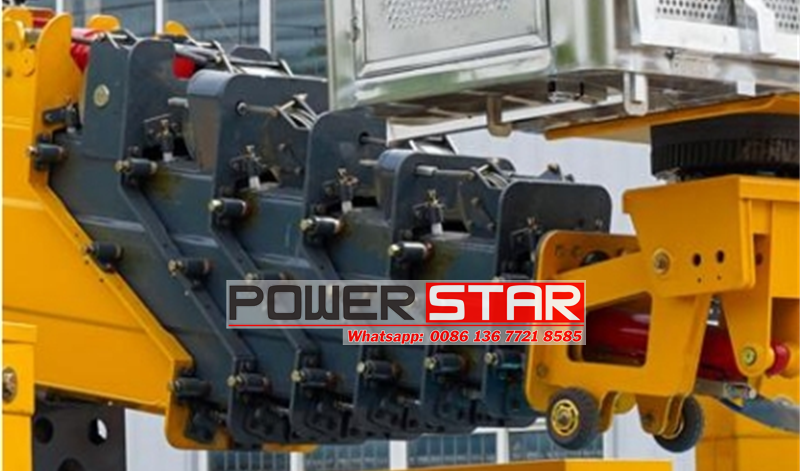

The seven-section hexagonal telescopic boom of the aerial work platform truck is a miracle of engineering. It adopts synchronous telescopic operation, the boom adopts high-strength steel plate, hexagonal bending design and processing technology, and different booms have different bending numbers, ensuring that the boom has less deformation, high strength, good operation stability and high safety.
Safety is the top priority for aerial work, and the Russian Isuzu 45-meter forklift will not disappoint. It is equipped with a complete set of safety devices, including load sensors, cylinder anti-retraction devices, outrigger anti-retraction devices, on-board and off-board interlocking devices, emergency stop devices, soft leg protection devices, extreme deceleration, emergency manual operation and other safety protection systems. These functions work together to ensure that the platform operates within the safety parameters and protect the operator and equipment.
The vehicle has three operation modes, including wireless remote control technology, turntable operation at the slewing mechanism, and ground control box operation, which provides flexibility and convenience for operation.

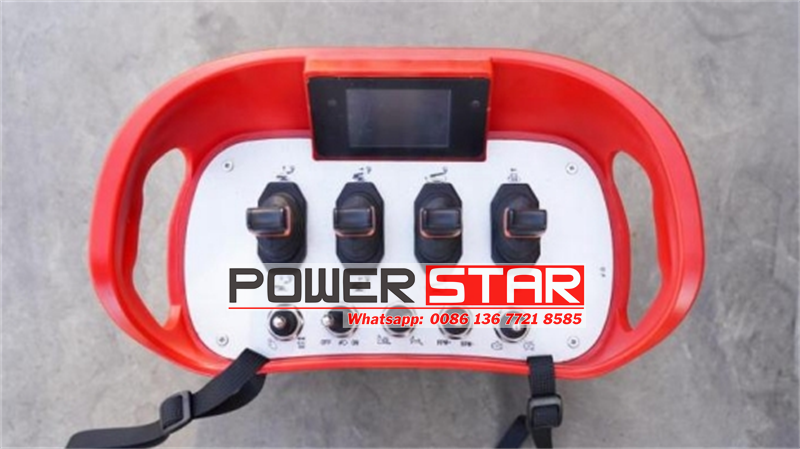

(1) Wireless remote control technology ensures that the operator can operate flexibly and conveniently in a narrow working environment, eliminates blind spots, and has a better working field. In addition, it avoids the operator from enduring severe cold and hot weather and can choose a suitable location to complete the operation; all main action operations can be completed with one hand.

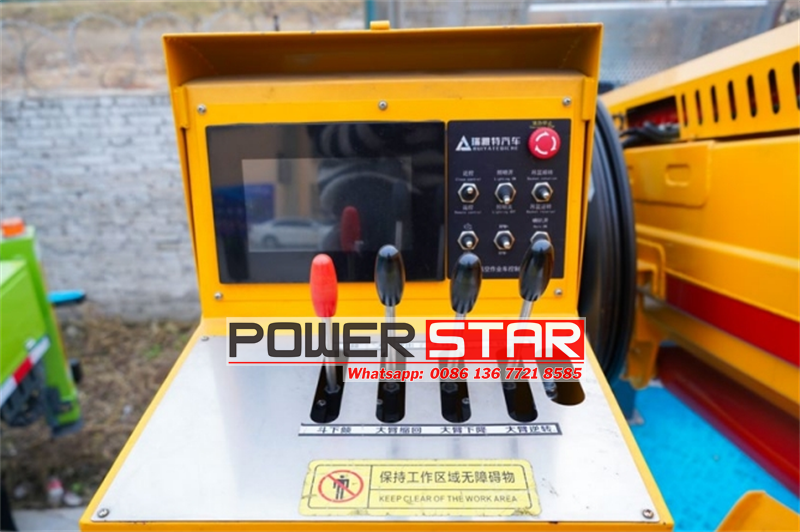

(2) The slewing mechanism turntable operation is equipped with a seat and foot pedal that rotates with the turntable, making the operator more comfortable to operate and reducing the fatigue of the operator after long-term work.
The color matching of the turntable control box interface conforms to the human visual sense, reduces visual fatigue, and improves safety and comfort. The operation interface combines graphics and text, which is simple and easy to understand, reduces misoperation, and improves safety and comfort.

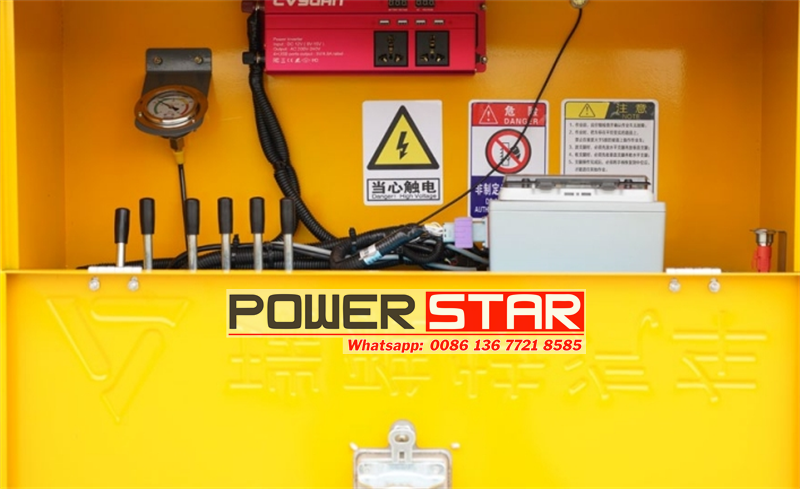

(3) The height of the off-board operation box is in line with the operator's operating height habits. The operation box is equipped with a level gauge, and the operation signs are simple and clear.

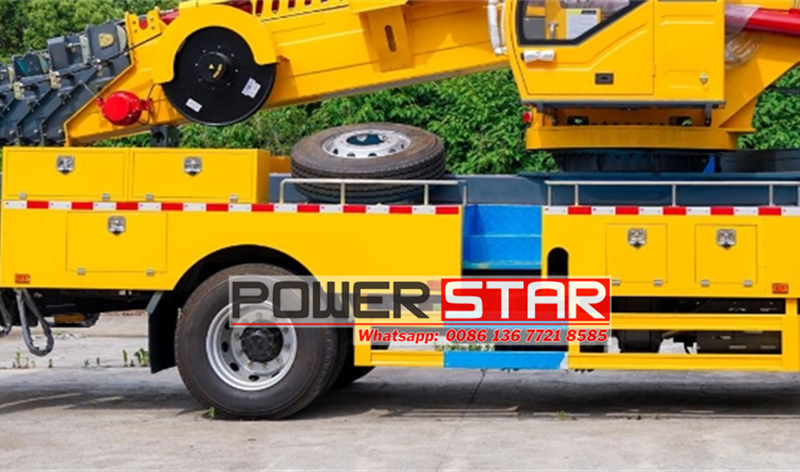

On the right side of the vehicle, a large tool box is strategically positioned to facilitate access to essential tools and equipment.
