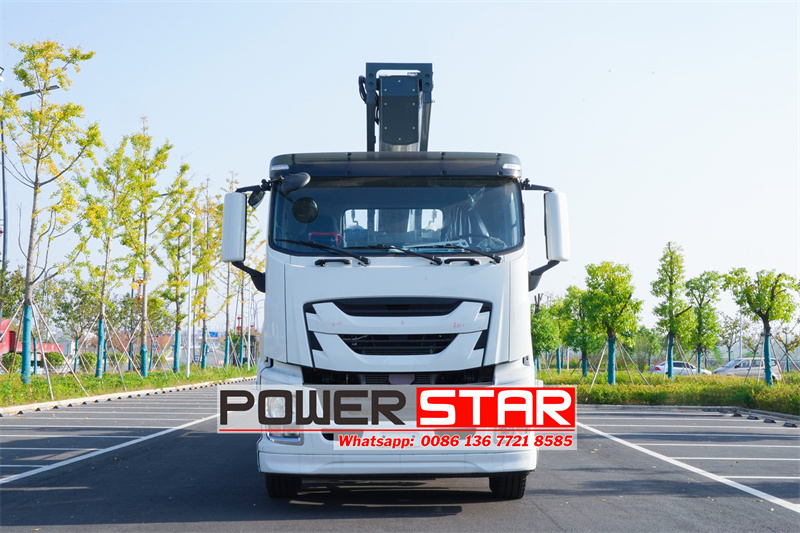

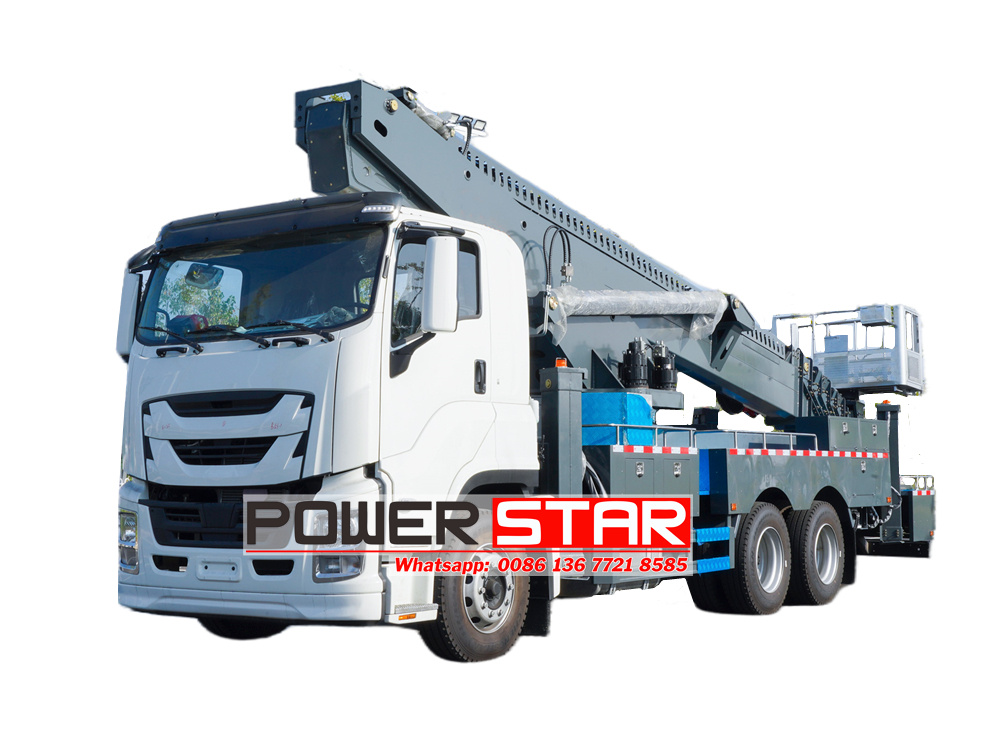

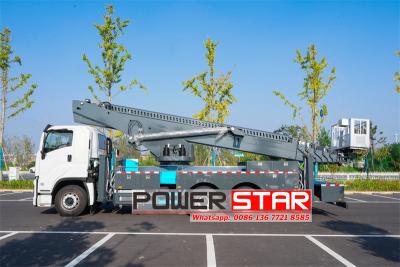

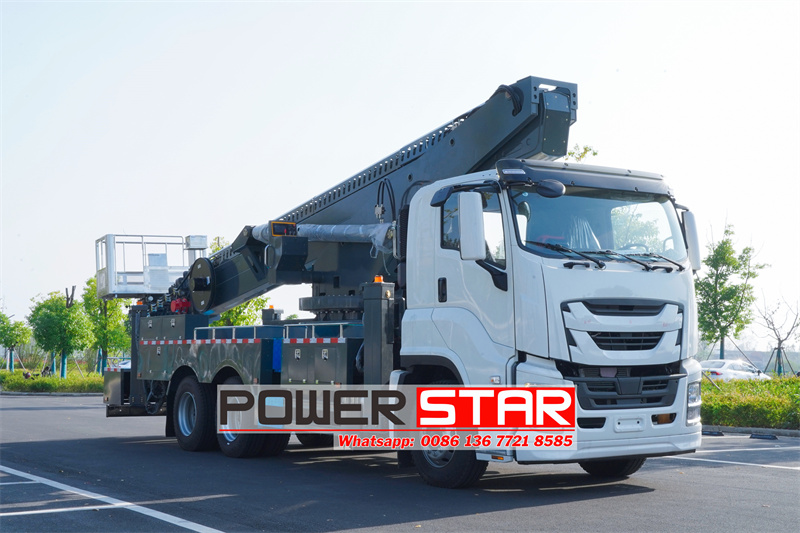

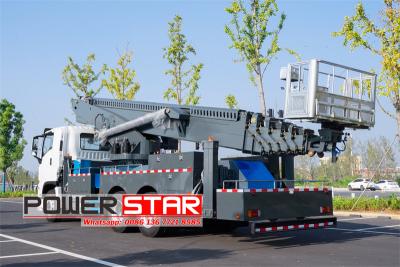

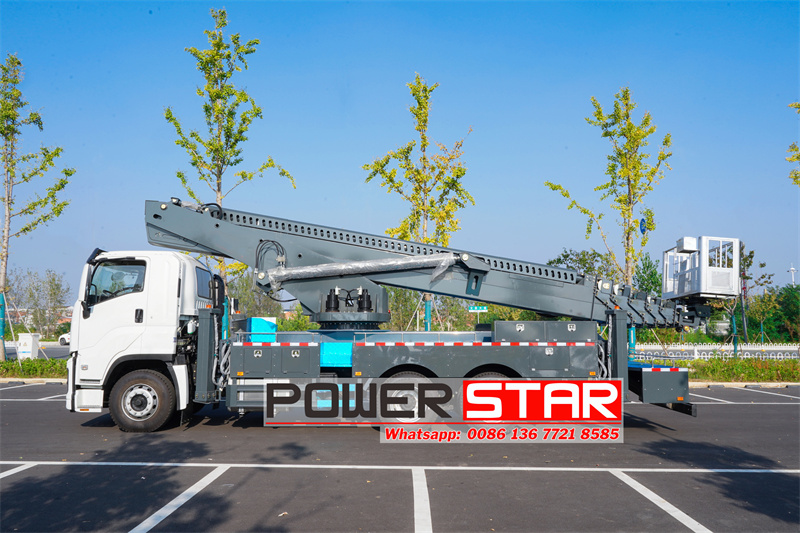

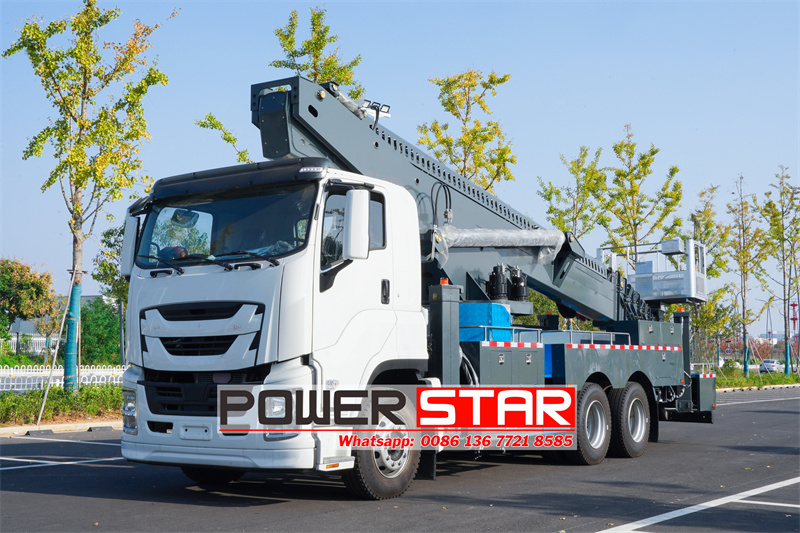

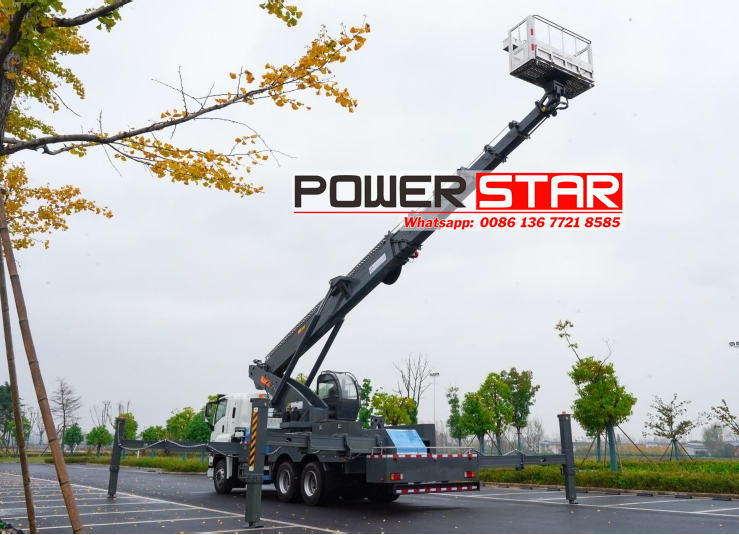

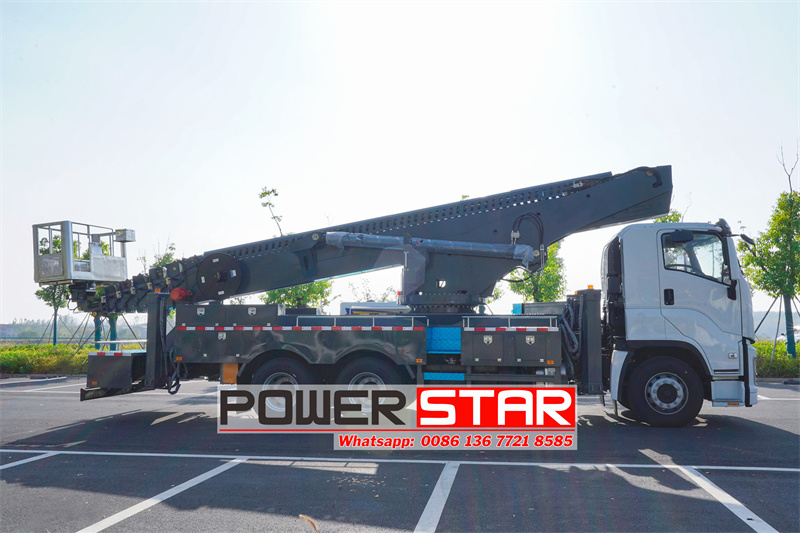

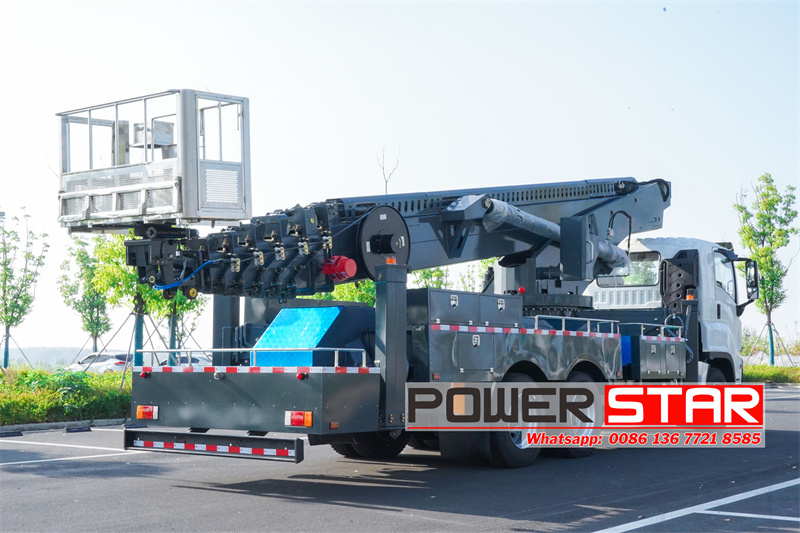

Isuzu 56 m telescopic bucket truck
Isuzu FVZ 56m aerial work vehicle, 4350+1370mm wheelbase, Isuzu 6HK1-TCG60 engine, FAST 9-speed gearbox, nine-section fourteen-sided synchronous telescopic arm, hanging basket 2000×700×1000mm size, can bear 400kg, 360° continuous slewing, 360° slewing basket, turntable fixed operation, wireless remote control box operation, hydraulic handle operation for getting off, equipped with electric emergency pump, the whole vehicle can realize full hydraulic electric emergency operation.
Work capacity:
56mEngine power:
300HPEngine type:
Isuzu 6HK1-TCG60Axle drive:
6X4,LHDGear box:
FAST 9-shift gearbox,manualRemarks:
56m max working height and 29m max working rangeIsuzu 56 m telescopic bucket truck is a professional aerial work equipment that combines high performance, high stability and versatility. It is equipped with a powerful Isuzu engine and FAST 9-speed gearbox, providing stable and reliable power output. The nine-section fourteen-sided synchronous telescopic arm design can reach an operating height of 56 meters, covering a wide range of operations. The vehicle is equipped with 4 front V + rear V-shaped 3-section hydraulic telescopic legs to ensure stable operation in various terrains and working conditions. The rear of the vehicle is a working platform that can bear a load of 400kg and rotate 360 degrees. At the same time, the vehicle also has comprehensive safety configurations and intelligent management systems, providing all-round safety guarantees and efficient operation experience for aerial work.
● 30 years experience on aerial work truck designing
● 50 unit Isuzu aerial platform truck in stock, 16m, 28m, 45m,56m
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● OEM customized service, print your company logo
Features:
★ Adopts world-class lSUZU FVZ GIGA 5X VC61 chassis, which is powerful, fuel-efficient, reliable and has long uptime;
★ Adopts nine-section fourteen-sided synchronous telescopic arm;
★ All structures are made of high-strength steel;
★ Easy to install, requiring minimal space for installation;
★ Optional chassis 4x2, 6x4, 8x4 and engine power;
★ Provides wireless remote control system;
★ Provides safety devices such as pressure relief valve, balance valve, two-way hydraulic lock, motor emergency system, etc.
|
Isuzu 56 meter telescopic bucket truck |
||
|
Vehicle parameters |
Vehicle brand |
POWERSTAR |
|
Chassis brand |
Isuzu |
|
|
Cabin |
New Isuzu FVZ GIGA 5X VC61 Cabin, air conditioning,heating,power steering central locking,electric windows, multi-function steering wheel, multi-function liquid crystal instrument panel, with ABS, air brake. |
|
|
Persons in cab |
3 |
|
|
Drive Type |
6x4,LHD |
|
|
Overall Dimensions (L*W*H) |
11500*2550*4020mm |
|
|
Gross weight/Curb weight |
25000/11995kg |
|
|
Min ground clearance |
450mm |
|
|
Max speed |
100km/h |
|
|
Chassis |
wheelbase |
4350+1370mm |
|
Front/Rare suspension |
1155/3185mm |
|
|
Approaching/Departure Angle |
20/9(°) |
|
|
Max speed |
100 (km/h) |
|
|
Front axle loading |
7000kg |
|
|
Rear axle loading |
18000kg |
|
|
Tire type/number |
295/80R22.5 |
|
|
Brake |
Air brake |
|
|
Transmission |
Fast 9-shift gearbox,manual |
|
|
Engine |
Brand/Model |
Isuzu 6HK1-TCG60 |
|
Type |
Inline 6-cylinder 4-stroke, supercharged and intercooled |
|
|
Power |
221(Kw) |
|
|
Horsepower |
300(HP) |
|
|
Displacement |
7.79(L) |
|
|
Fuel type |
Diesel |
|
|
Fuel tank capacity |
400L |
|
|
Emission standard |
Euro VI |
|
|
Max torque |
1000N.m |
|
|
Color |
Customer’s request |
|
|
Upper body configuration |
Platform Working Height |
56 m |
|
Boom type |
Nine-section fourteen-sided synchronous telescopic arm |
|
|
Maximum working range |
29 m |
|
|
Arm amplitude change time |
100<t<120s |
|
|
Arm extension time |
110<t<130s |
|
|
Arm rotation speed |
120<t<160 s/r |
|
|
Outrigger extension and retraction time |
60<t<90s |
|
|
Outrigger |
4 pcs, front V + rear V type 3 sections hydraulic outriggers |
|
|
Bucket |
2000×700×1000mm(LWH), 400kg load |
|
|
Slewing device |
360° continuous slewing, 360°slewing basket |
|
|
Operating system |
Fixed operation of the turntable, wireless remote control box operation, hydraulic handle operation of the vehicle,equipped with an electric emergency pump,the entire vehicle can achieve full hydraulic electric emergency operation. |
|
|
Emergency device |
Yes |
|
1
Isuzu FVZ 56m aerial work vehicle is designed to meet the needs of aerial work. With its excellent performance and stable operating platform, it is widely used in construction, bridge maintenance, power installation and other fields.
Chassis configuration:
• Wheelbase: 4350+1370mm, optimize vehicle stability and passability, and ensure smooth operation under various road conditions.
• Engine: Equipped with Isuzu 6HK1-TCG60 engine, it provides strong power output to ensure continuous stability and efficiency during aerial work.
Transmission system:
• Gearbox: FAST 9-speed gearbox, smooth shifting, easy operation, flexible adjustment of vehicle speed according to work needs, and improved work efficiency.
Boom and hanging basket:
• Telescopic arm: It adopts a nine-section fourteen-sided synchronous telescopic arm design, which has stable telescopic movement, compact structure, high strength, stable extension, and excellent torsion resistance and wind resistance, ensuring stability and safety during aerial work. The maximum working height can reach 56 meters. It can easily cover most aerial work scenarios, whether it is the exterior wall maintenance of urban buildings, the installation and maintenance of power lines, or the lighting debugging of large venues, it can be completed with ease.

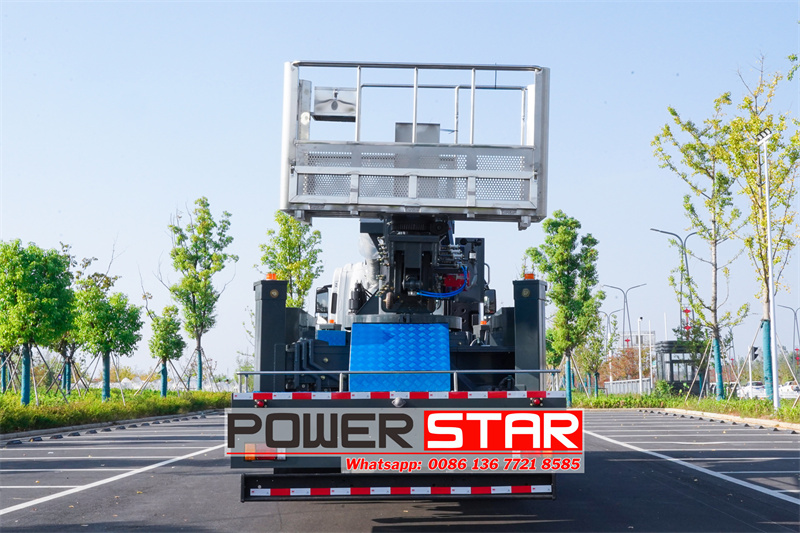

• Basket: The size is 2000×700×1000mm, which is spacious and comfortable, can accommodate multiple staff and tools, and has a load-bearing capacity of 400kg.
Outriggers
• Equipped with 4 outriggers, adopting a front V-shaped + rear V-shaped structural design, with a total of 3 hydraulic telescopic outriggers. The maximum horizontal extension width can reach 8600mm, ensuring that the vehicle can remain stable even on a wider work site during operation. The maximum vertical extension height can reach 9400mm, allowing the vehicle to operate on sites with a certain slope or height difference, further expanding the scope of operation.
• Hydraulic drive: The outriggers are hydraulically driven, with smooth and fast extension and extension, and have good load capacity, ensuring the stability and safety of the vehicle during operation.
• Leg interlocking: An interlocking device is provided between the legs to ensure that the legs can move synchronously during the extension and retraction process, avoiding the instability of the vehicle caused by the movement of a single leg alone.
• Ground adaptability: The V-shaped leg design enables the vehicle to adapt to the ground of different hardness and slope, ensuring stable operation on various complex terrains.
• Load capacity: The leg structure has been optimized to withstand the weight of the vehicle and the hanging basket when fully loaded, ensuring safety and reliability during the operation.
Operation performance:
• 360° continuous rotation: Both the working platform and the hanging basket can achieve 360° continuous rotation, without dead angle operation, and improve work efficiency.
• Operation mode: Supports multiple operation modes such as turntable fixed operation, wireless remote control box operation, and hydraulic handle operation for getting off the vehicle. It is easy to operate, flexible, and adaptable to different working environments and the operating habits of operators.
Safety configuration:
• Get on and off automatic interlocking device: prevents misoperation and ensures safe operation.
• Emergency electric hydraulic pump: When the chassis engine or hydraulic main pump fails, the staff will be sent back to the ground.
• Emergency stop device: The emergency stop device is installed to ensure that all operations are stopped in an emergency.
• Automatic limit system: Ensure that the vehicle operates within a safe operating range.
• Vehicle level state tester: It can detect the tilt state of the vehicle in both the lateral and longitudinal directions.
Additional functions:
• Engine ignition and flameout control: The turntable and remote control box can both control the ignition and flameout of the engine
• Compound action capability: It can perform combined movements at the same time, such as platform rotation, turntable rotation, boom amplitude change and extension.
• Chain break protection device: double steel wire rope, balance mechanism is set for the extension rope to ensure balanced force on the left and right steel wire ropes, and safety is guaranteed.
• Emergency operation: in an emergency, restore the vehicle action to ensure that the vehicle can safely send people back to the surface in dangerous working conditions
