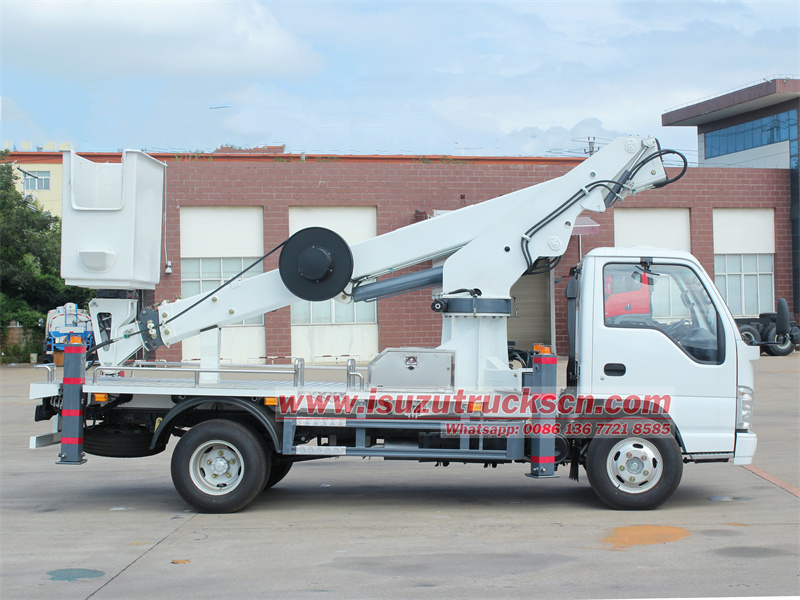

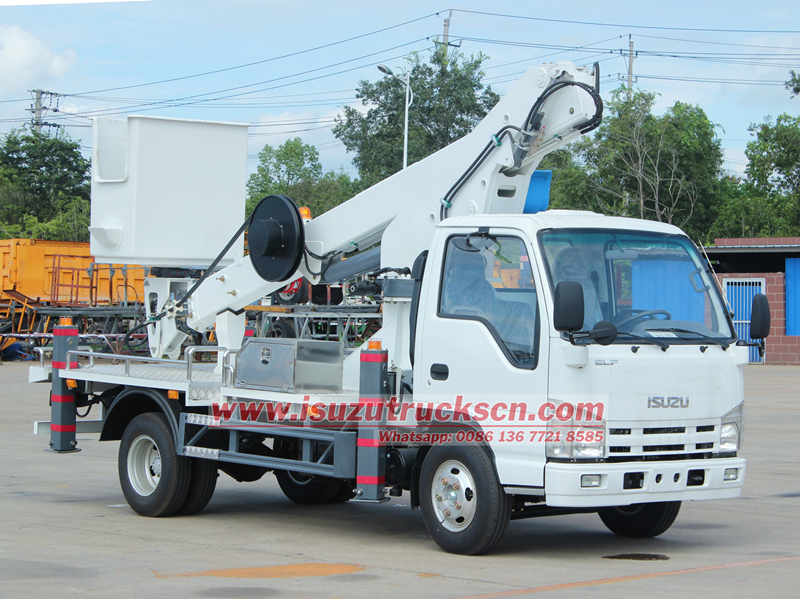

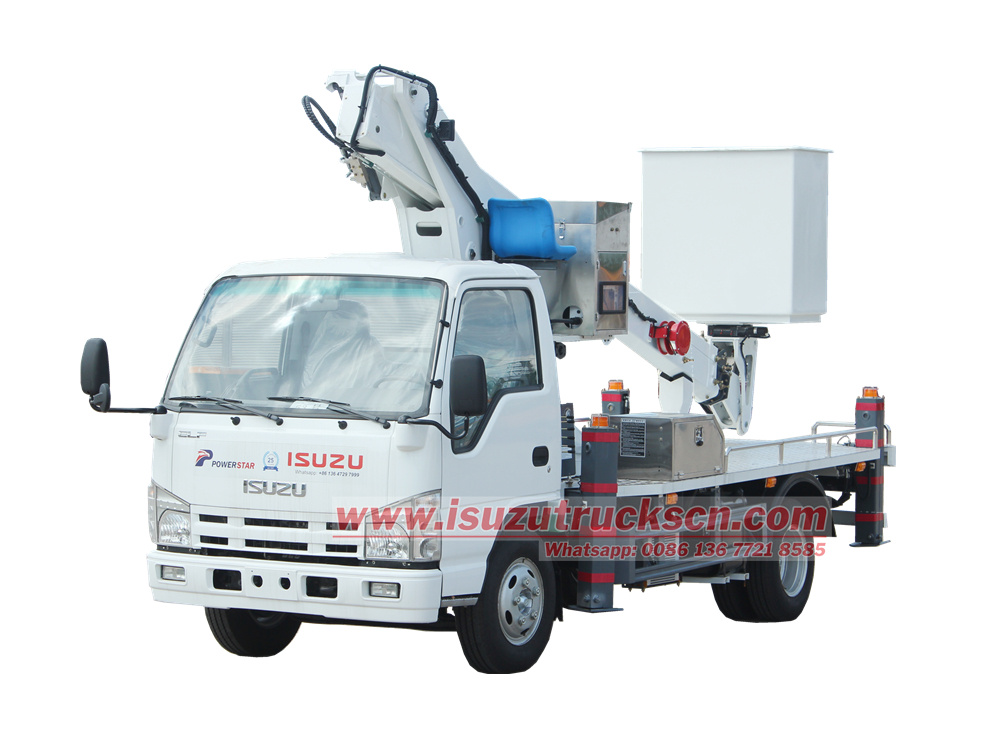

Isuzu 15 meter aerial work platform truck
Isuzu 100P aerial platform vehicle is an efficient and safe aerial work equipment, 3360mm wheelbase, equipped with Isuzu 4KH1CN6LB diesel engine, 120HP 88KW, Isuzu MSB5-speed gearbox, aerial work lifting height of 15 meters, three-section telescopic arm, fiberglass insulated work bucket, work bucket load limit 200kg, hydraulic 360-degree full rotation, with automatic hydraulic leveling, hydraulic system with proportional control, stepless speed regulation, emergency operation, stainless steel tool box and control box, with wireless remote control device.
Manufacturer:
Powerstar TrucksWork capacity:
15mDimension:
5995 x 2150 x 3150mmCabin type:
Isuzu 100P 2X cabin,2 seatsWheelbase:
3360mmEngine power:
120HPEngine type:
ISUZU 4KH1CN6LBAxle drive:
4X2Gear box:
ISUZU MSB 5-shift gearbox,manualRemarks:
Max work lifting height 15m,with multiple operation modesThe Isuzu 15 meter aerial work platform truck is a specialized aerial equipment meticulously modified based on the Isuzu 100P single-cab driving cabin. With a wheelbase of 3360mm, it offers stable driving performance. Powered by a 4KH1CN6LB 120HP engine, it provides ample power to meet various needs of aerial work. Equipped with an Isuzu MSB 5-speed transmission, it ensures smooth gear shifting and convenient operation. Its most notable feature is the lifting height of up to 15 meters, achieved through a three-section telescopic boom design, offering a wide range of operation and high flexibility. The vehicle is equipped with a manual hydraulic control valve for adjusting the extension and retraction of the outriggers, and both the onboard operating system and remote control box allow for control of the work bucket's tilt forward and backward, boom extension and retraction, boom lifting and lowering, and boom rotation. Whether for urban maintenance, power repair, or construction work at heights, this vehicle can easily handle the task, providing operators with a safe, efficient, and stable working platform. It is a valuable assistant in the field of aerial work.
● China best Isuzu aerial platform truck factory
● 30 years experience on aerial working truck designing
● Professional sales team which will help you to choose suitable truck
● Promptly delivery. any order is welcome
● 24 month quality guarantee term
|

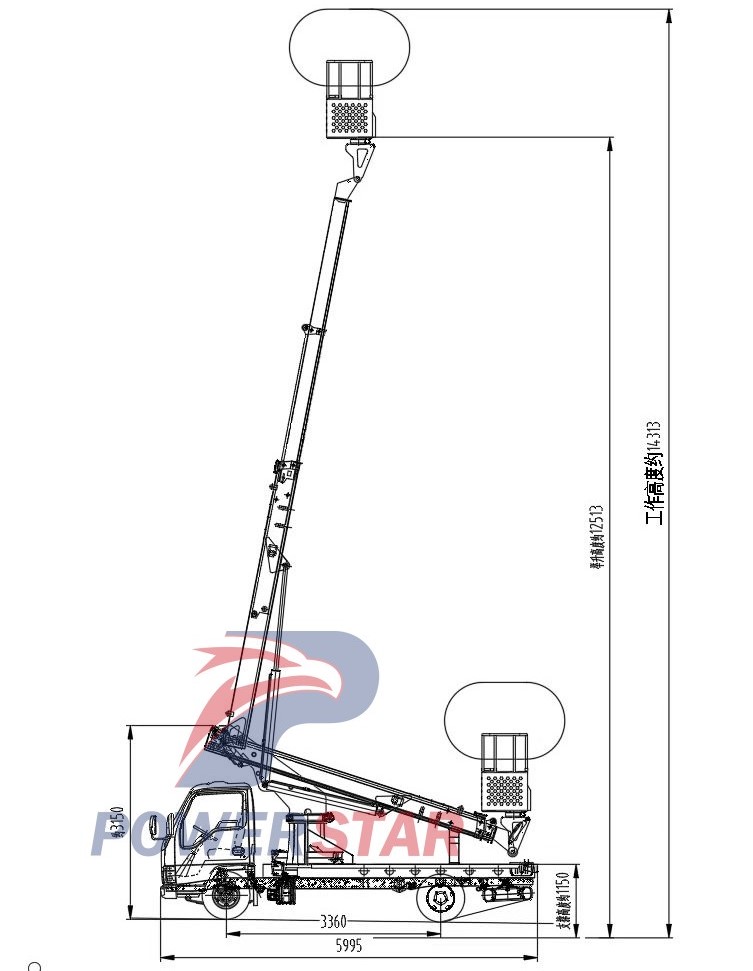

Isuzu 15 meter aerial work platform truck |
|||||
|

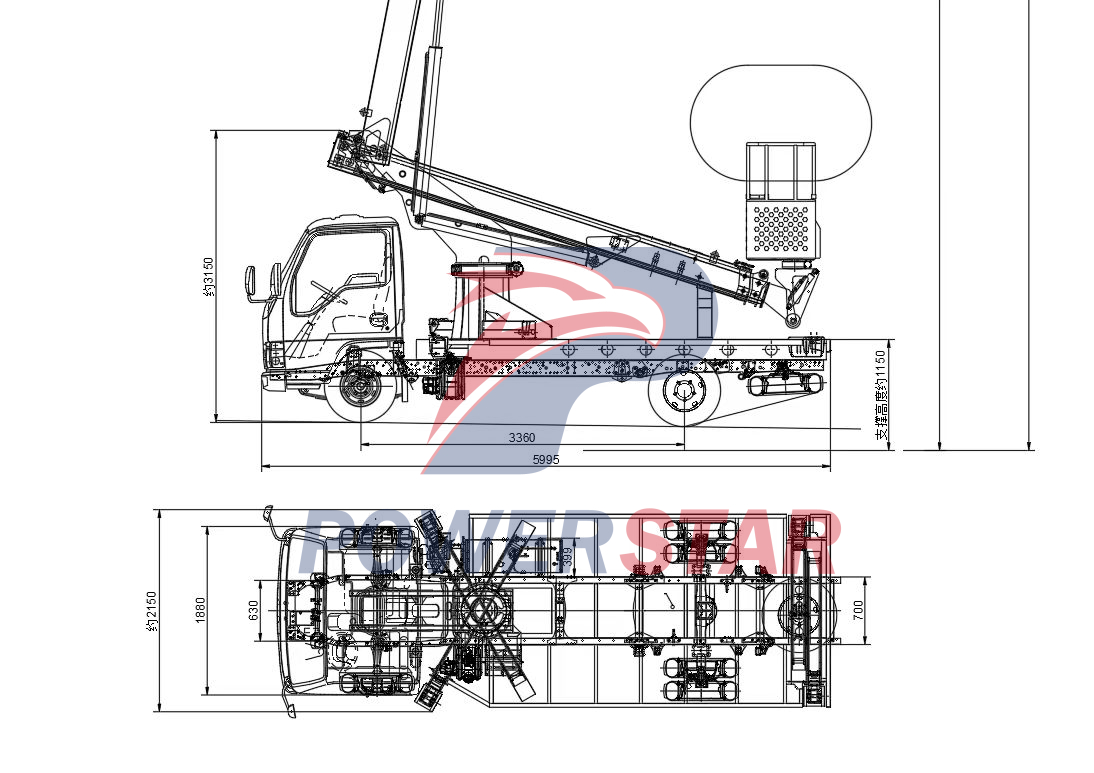

Vehicle Description |
|||||
|
Vehicle model |
Platform Truck |
Overall dimensions |
5995*2150*3150mm |
||
|
GVW |
7300kg |
Operational height |
14m |
||
|
Curb weight |
3850kg |
Max. Speed |
110km/h |
||
|
Chassis Description |
|||||
|
Chassis brand |
ISUZU |
||||
|
Cab |
100P single row cab with A/C |
||||
|
Wheel base |
3360mm |
||||
|
Number of axles |
2 |
||||
|
Axle |
Front axle |
2500kg |
|||
|
Rear axle |
4800kg |
||||
|
Traction system |
4x2 |
||||
|
Operation control system |
Power steering |
||||
|
Braking system |
Oil brake |
||||
|
Transmission |
Isuzu 5-speed MSB |
||||
|
Tire specification |
7.00R16 |
||||
|
Tire quantity |
6+1 |
||||
|
Engine Description |
|||||
|
Engine manufacture |
ISUZU Engine |
||||
|
Engine model |
4KH1CN6LB |
||||
|
Type |
Inline 4 cylinders, 4 stroke,water-cooled, supercharged inter-cooling |
||||
|
Emission standard |
Euro 6 |
||||
|
Up-parts Description |
|||||
|
Working condition |
|||||
|
Max. working height |
15m |
||||
|
Working radius at Max. height |
2m |
||||
|
Max. working radius |
8m |
||||
|
Working height at Max. radius |
9m |
||||
|
Control mode |

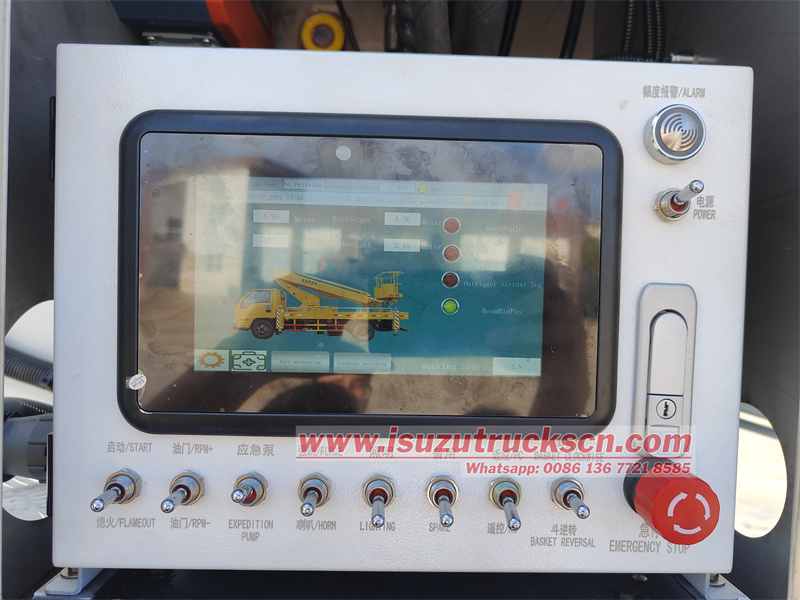

1.Bucket control 2.Manual operation |
||||
|
Bucket |
|||||
|
Rated loading |
200kg |
||||
|
Size |
1080*610*1100mm |
||||
|
Material |
Stainless steel |
||||
|
Adjusting balance mode |
Hydrostatic Leveling System |
||||
|
Safety belt |
1 set |
||||
|
Boom |
|||||
|
Type |
Telescopic type |
||||
|
Section |
3 |
||||
|
Rotation Angle |
360° |
||||
|
Thickness of boom plate |
4mm |
||||
|
Max. rising angle of boom |
-20º ~ +75° |
||||
|
Outrigger |
|||||
|
Type |
Front V type / Rear H type |
||||
|
Vertical Breadth |
4000mm |
||||
|
Horizontal Breadth |
4000mm |
||||
|
Number |
4 |
||||
|
Adjustment |
Adjusted separately |
||||
|
Supporting leg Control mode |
Manual hydraulic operation |
||||
|
Hydraulic lock |
Two-way hydraulic lock for four legs |
||||
|
Strobe light on rear landing legs |
Two yellow lights |
||||
|
Main body structure |
|||||
|
Material |
High quality carbon steel and profiles, with slip-proof decorative steel plates |
||||
|
Tool box |
Mould stamping door with stainless steel door lock |
||||
|
Fencing |
Stainless steel tube |
||||
|
Steps |
With steps on drivers’ side |
||||
|
Guard railing |
High quality cold bending carbon steel profile; High strength |
||||
|
Wheel casing |
Injection mold molding, beautiful, high strength |
||||
|
Security configuration |
|||||
|
Automatic interlock device for different operating position |
Prevent the risk of misoperation |
||||
|

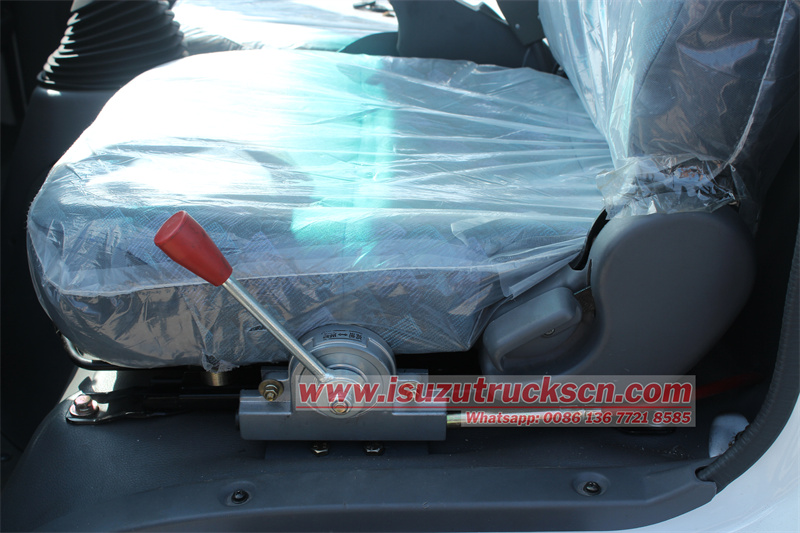

Hand-operated emergency pump |
When the engine and the main pump failure, through the emergency system to send the worker back to the ground and the vehicle back to the running state |
||||
|
Emergency stop device for working platform |
Used for emergency stop operation and restricted boom operation |
||||
|
Automatically limit work range |
When the working range reaches the specified value, the dangerous direction is automatically restricted. |
||||
|
Leakage protection device |
Equipped with leakage protector to ensure the safety of power supply and power tools |
||||

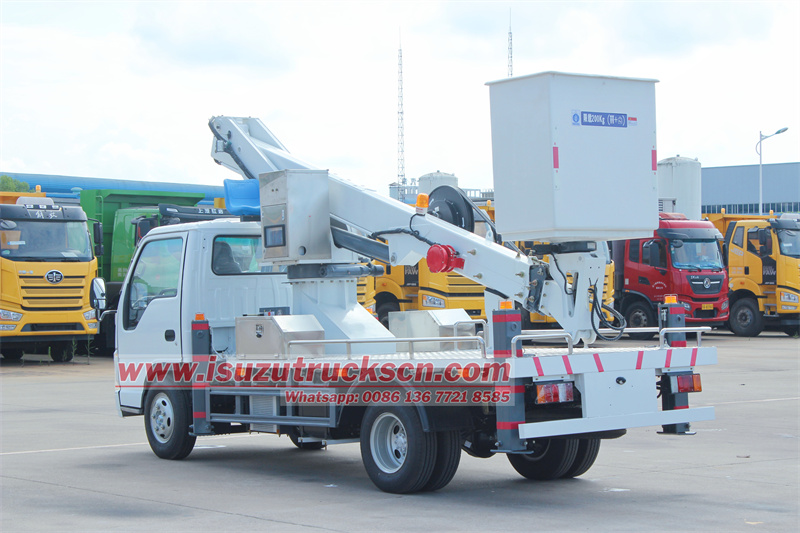

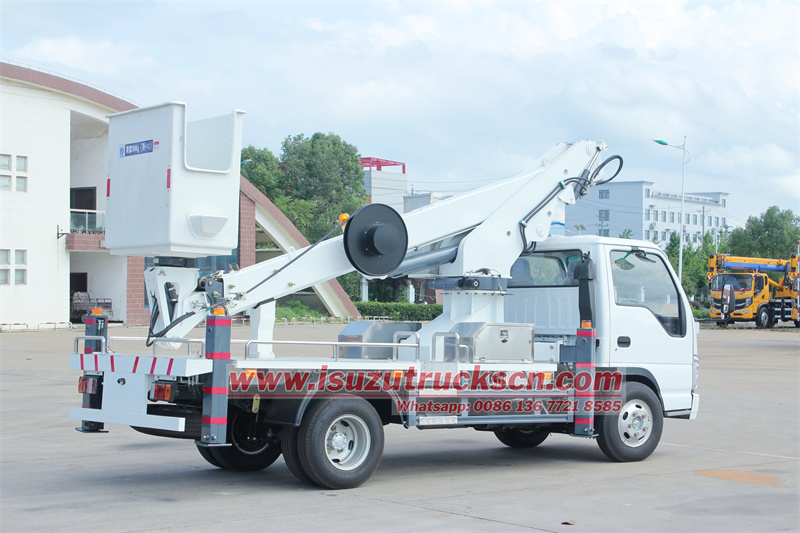

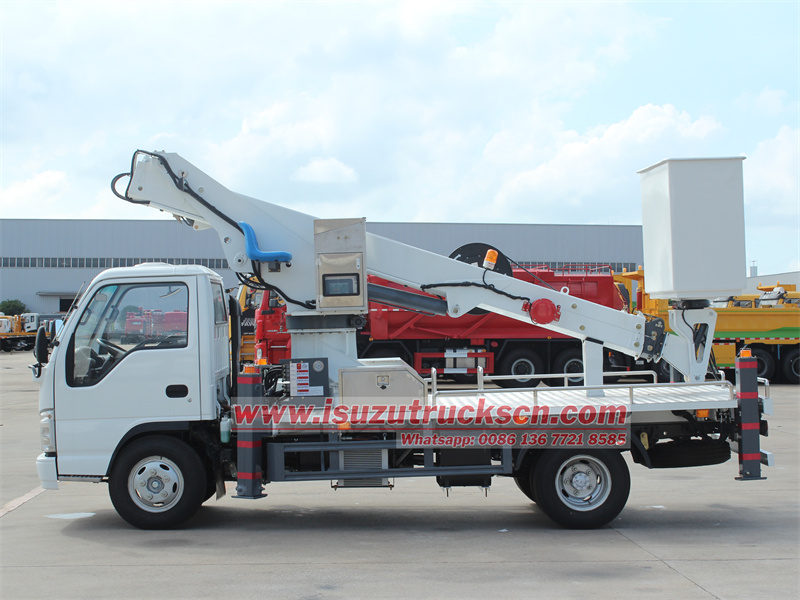

The Isuzu 100P 15-meter Aerial Work Vehicle retains the stability and reliability of the Isuzu 100P chassis while adding aerial work capabilities to meet a variety of high-altitude operation needs.
Chassis and Powertrain System
1. Chassis Basis: Utilizes the Isuzu 100P single-cab driving cabin with a wheelbase of 3360mm, ensuring stable vehicle driving and excellent handling performance.
2. Engine: Equipped with a 4KH1CN6LB 120HP engine, delivering strong power and good fuel economy to satisfy the power requirements of the aerial work vehicle.
3. Transmission: Fitted with an Isuzu MSB 5-speed transmission for smooth gear shifting and high transmission efficiency, enhancing the overall performance of the vehicle.
Aerial Work Equipment

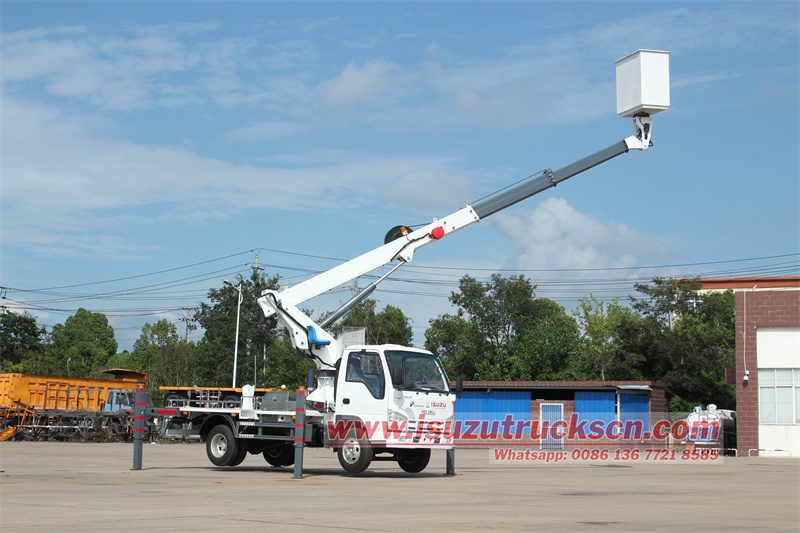

1. Lifting Height: The working platform has a lifting height of up to 15 meters, with a maximum height working radius of 2m, a maximum working radius of 8m, and a working radius of 9m at the maximum working height, meeting most high-altitude operation needs.

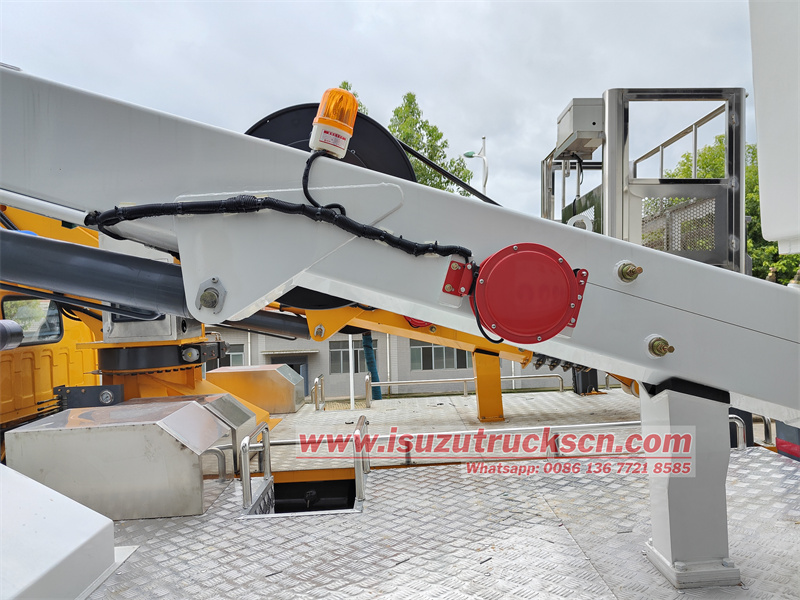

2. Telescopic Boom Design: Adopts a three-section telescopic boom structure for a wide range of operations and flexible maneuverability.
3. Work Bucket: The work bucket is made of fiberglass insulating material, ensuring safety and reliability with a load limit of 200kg to guarantee the safety of operators.
Hydraulic System
1. Rotation Function: Hydraulic 360-degree full rotation for operation without dead angles.
2. Leveling System: Equipped with an automatic hydraulic leveling function to ensure the working platform remains level at all times, improving operational stability.
3. Proportional Control: The hydraulic system features proportional control for stepless speed regulation, resulting in smoother and more precise operation.
4. Emergency Operation: Equipped with an emergency operation device to ensure safe and rapid control of the working platform in special situations.
Outrigger and Safety Configuration

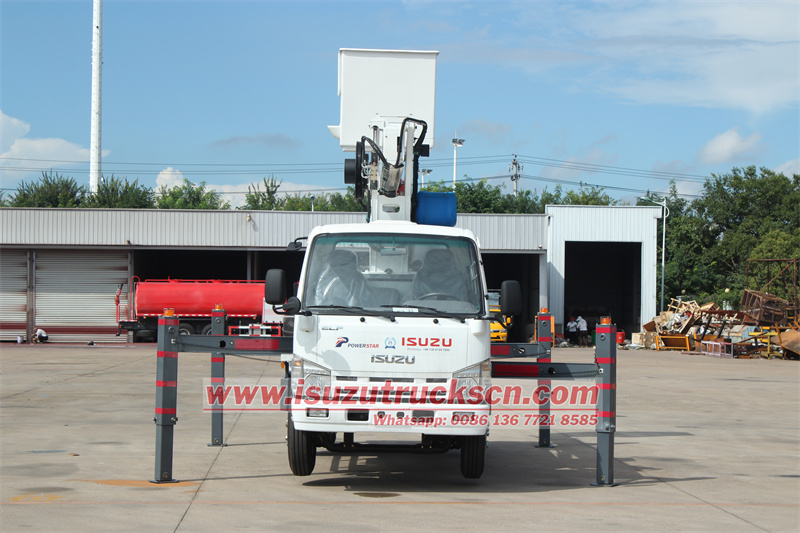

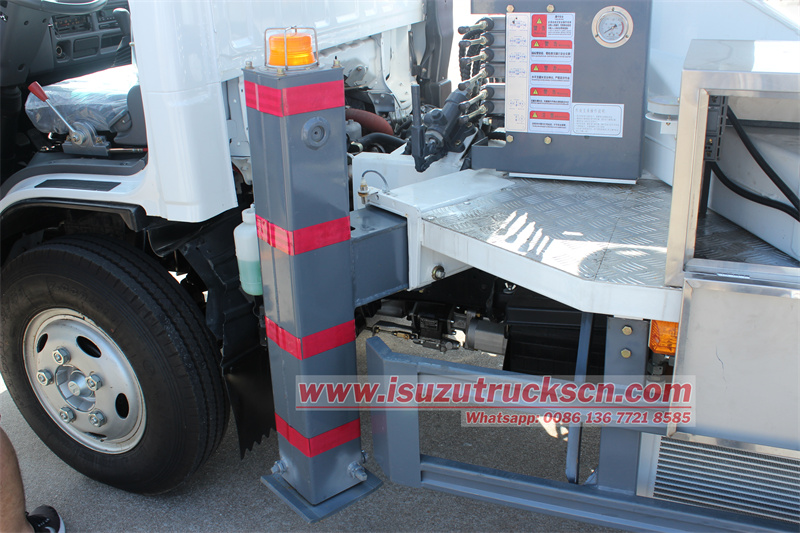

1. Outrigger Design: Front V and rear H-shaped square outriggers, each with an LED strobe light, enhancing visibility and safety during operations. The outriggers are fully hydraulic, easy to operate, and provide stable support.
2. Upper and Lower Vehicle Operation: Independent operation for getting on and off the vehicle, ensuring the safety of operators and ground personnel and avoiding accidental operation.
3. Sensors and Limits: Equipped with inclination and length sensors for real-time monitoring of operation status to prevent overloading or tipping. The upper vehicle rotation limit device ensures the working platform does not exceed the safe range during rotation.
4. Safety Warning: The aerial work is equipped with a horn for safety warning, reminding surrounding personnel to pay attention to safety.
Other Configurations
1. Operation Identification: The entire vehicle is marked with English operation identifications that are clear and easy to understand, facilitating operators to quickly understand vehicle functions and operation methods.
2. Standard Components: Equipped with high-quality accessories such as Jiashan power take-off, Hefei hydraulic pump, and Xinyun multi-way valve with hydraulic control lever to ensure vehicle performance and reliability.

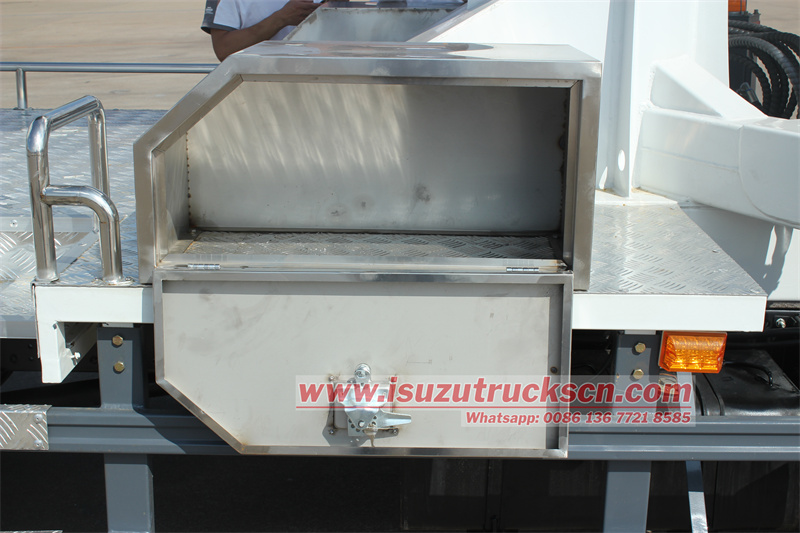

3. Flatbed and Tool Box: The flatbed is fully covered with patterned aluminum plate for slip resistance and wear resistance; the stainless steel tool box and control box are corrosion-resistant and easy to clean.
4. Wireless Remote Control Device: Equipped with a wireless remote control device for remote operation, improving operation efficiency and safety.
The vehicle is also equipped with a comprehensive and flexible operating system for controlling related operations:

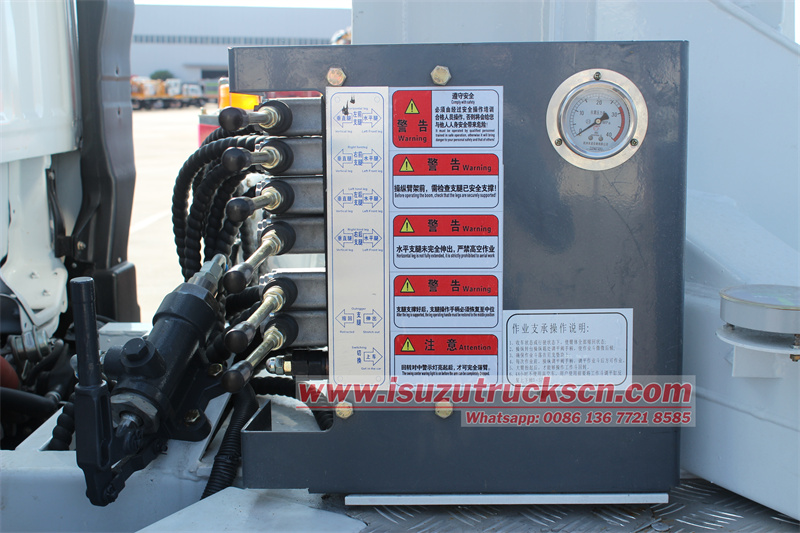

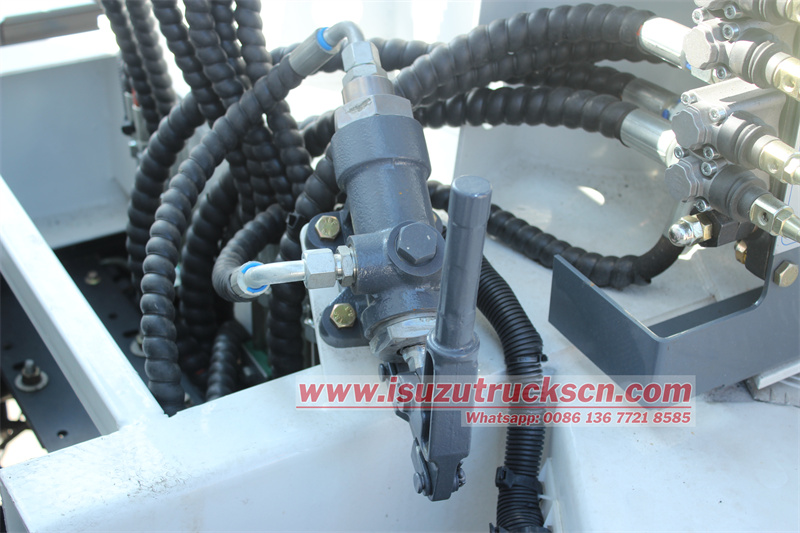

1. Manual Hydraulic Control Valve for Outrigger Extension and Retraction:
▪ The vehicle is equipped with a manual hydraulic control valve, which is a key component for controlling the extension and retraction of the outriggers. By manually operating this valve, the hydraulic flow can be precisely adjusted to drive the outriggers to extend and retract horizontally and vertically. The extension and retraction of the outriggers are crucial for the stability and working height of the vehicle, ensuring that it remains steady during operations and can adapt to different working scenarios.
2. Upper Vehicle Operating System:

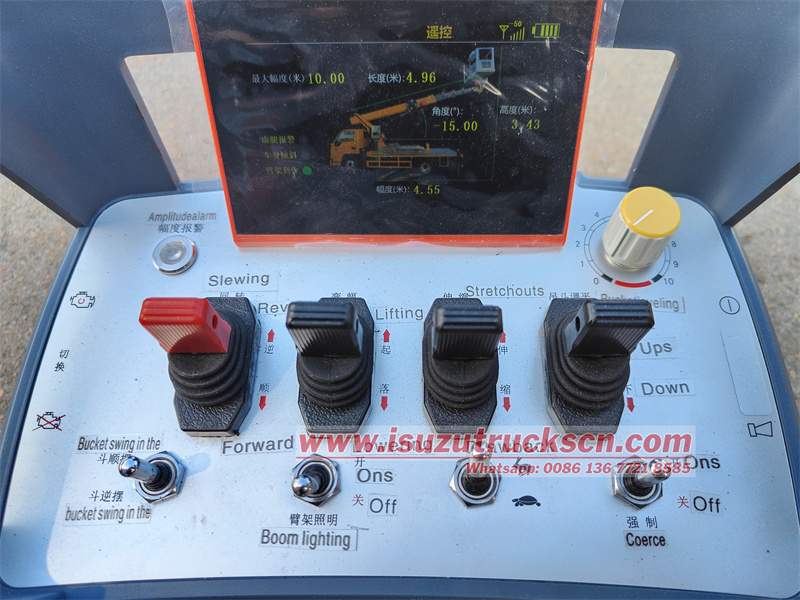

▪ The vehicle is equipped with an upper vehicle operating system, usually located on the operating platform, for convenient direct control by the operator.

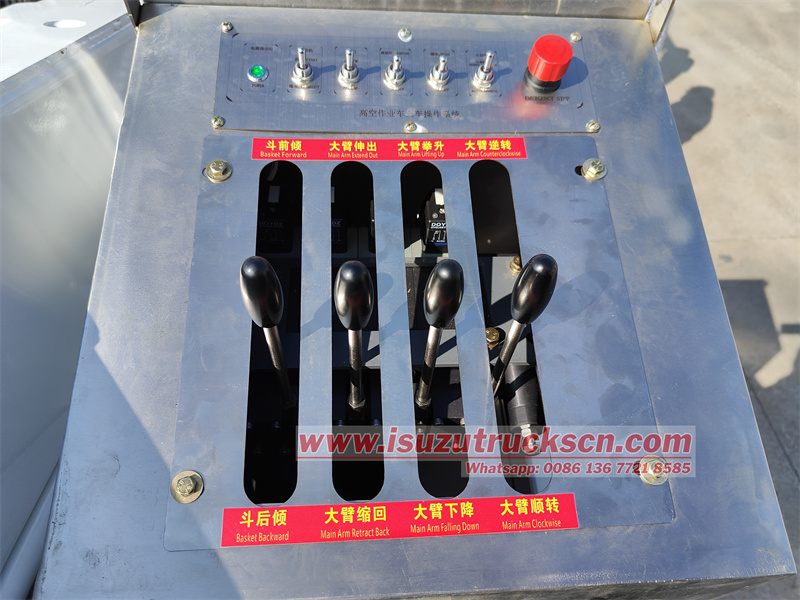

▪ Through the upper vehicle operating system, the operator can easily control various movements such as tilting the work bucket forward and backward, extending and retracting the boom, lifting and lowering, as well as rotating clockwise and counterclockwise. This direct control method allows the operator to quickly respond to operational needs and improve work efficiency.
3. Remote Control Box:
▪ The vehicle is also equipped with a remote control box, which is a portable or fixed remote control device.
▪ The remote control box has similar functions to the upper vehicle operating system, allowing the operator to perform remote control from a distance away from the vehicle. This is particularly useful for vehicles operating in complex or hazardous environments, significantly enhancing operational safety and convenience.
Operations such as tilting the work bucket forward and backward, extending and retracting the boom, lifting and lowering, and rotating clockwise and counterclockwise:
