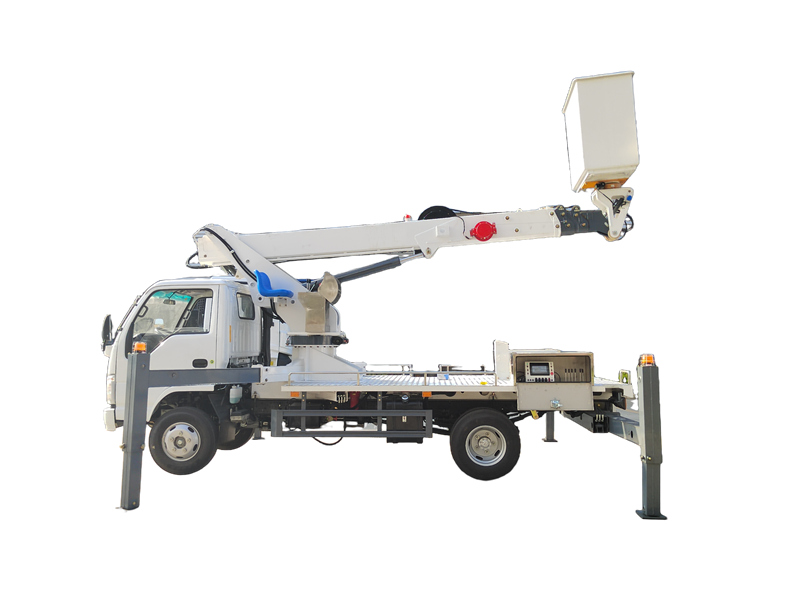

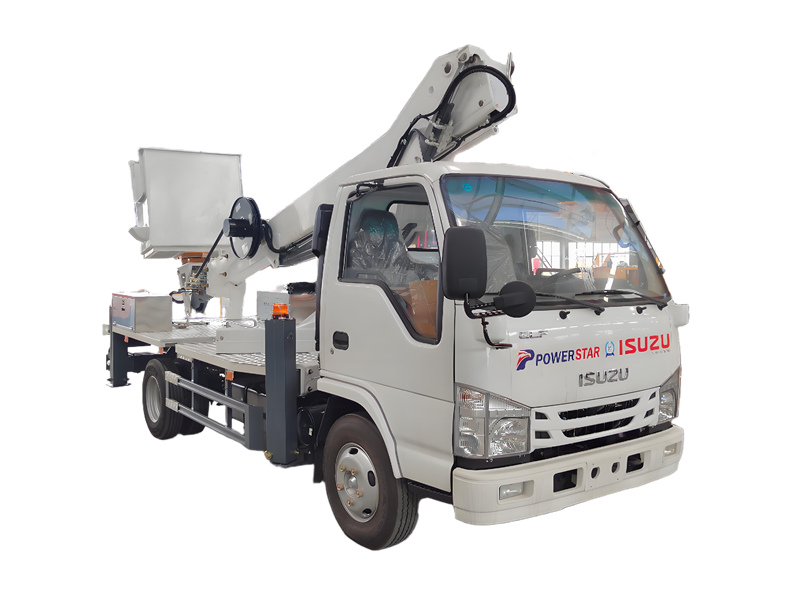

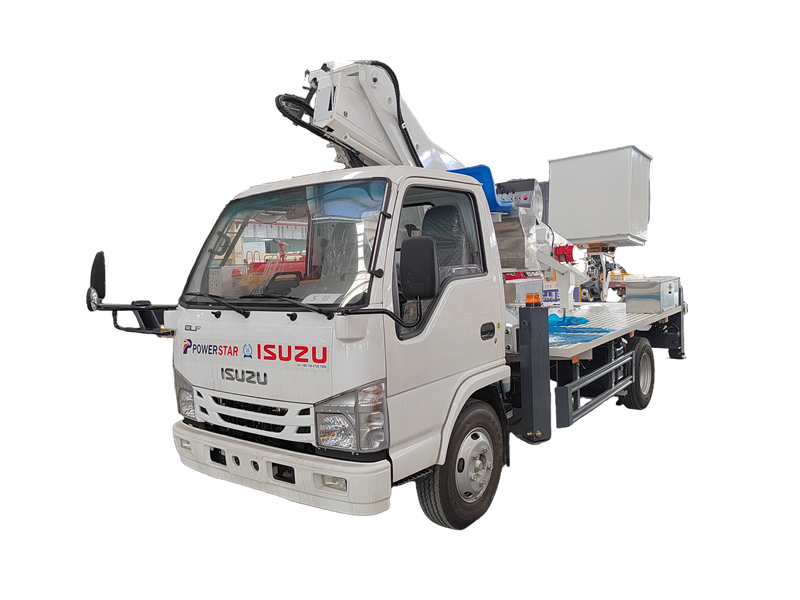

Philippine ISUZU 20m aerial lift bucket truck
In modern construction, facility maintenance, and emergency rescue operations, aerial work platforms have become indispensable professional equipment due to their efficiency and safety. The ISUZU NKR 20m aerial work platform, as a high-performance and highly reliable professional device, has gained widespread recognition in the market thanks to its exceptional design and technical configurations.
Manufacturer:
Powerstar TrucksWork capacity:
20 mDimension:
6050 x 2000 x 2900mmCabin type:
Isuzu ELF 100P 2X cabin, 2seatsWheelbase:
3360mmEngine power:
120 HPEngine type:
4KH1CN6LBAxle drive:
4×2Gear box:
MSB 5-speed,manualRemarks:
Fiber glass bucket, custom sizeThe ISUZU NKR 20m bucket lift truck is a specialized aerial work vehicle built on the ISUZU QL1070 chassis, designed for urban maintenance, power line inspection, streetlight installation, and similar applications. With overall dimensions of 6050×2000×2900mm, it combines compactness and maneuverability, allowing it to navigate narrow streets with ease. The vehicle has a curb weight of 4,830kg and a gross vehicle weight of 7,300kg, featuring a well-balanced design that meets both load-bearing requirements and road regulation limits.
The structural design of the ISUZU 20m aerial work platform fully considers the unique demands of high-altitude operations. The vehicle's working arm adopts a three-section telescopic boom design, achieving a maximum working height of 20 meters and a maximum working radius of 14 meters, with 360-degree full rotation capability. This design not only expands the working range but also ensures flexibility and stability during operations. Additionally, the vehicle is equipped with front V-rear H-type outriggers, which can be independently controlled to provide stable support on various terrains and in different working environments. The work basket is made of fiberglass, offering insulation properties, with a rated load capacity of 200kg and dimensions of 1600×750×1150mm. This spacious basket provides a comfortable working space, enabling operators to perform tasks efficiently over extended periods.
Safety performance is one of the most critical aspects of aerial work platforms. The ISUZU 20m manlift truck is equipped with comprehensive safety features. It includes an automatic upper and lower lock interlock device, effectively preventing accidents caused by misoperation. A leveling device monitors the vehicle's tilt angle in real-time, ensuring stability during operations. Furthermore, the vehicle is equipped with a wireless intercom system, enabling real-time communication between operators and ground personnel, thereby enhancing both operational efficiency and safety.
● Fast delivery time, quick 10 days delivery time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu aerial work platform truck factory
● Be designed according to your requirements
Product Specifications
|
Main specification |
Chassis brand |
ISUZU |
|
|
Chassis model |
QL1070 |
||
|
Overall dimension(L*W*H) |
6050x2000x2900mm |
||
|
Gross / Curb weight |
7,300kg / 4,830kg |
||
|
Chassis |
Drive model |
4*2 left hand drive |
|
|
Wheelbase |
3360 mm |
||
|
Tire size & number |
7.00R16, 6 pcs with one spare tire |
||
|
Fuel type |
Diesel |
||
|
Engine model |
4KH1CN6LB |
||
|
Engine power |
120HP (88KW) |
||
|
Displacement |
2999 ml |
||
|
Emission |
Euro VI |
||
|
Transmission |
5 speed forward, 1 reverse |
||
|
Working Performance |
Maximum working height |
20 m |
|
|
Max. working radius |
14 m |
||
|
Rotation |
360° |
||
|
Boom Type |
3 sections telescopic boom |
||
|
Outriggers |
Outrigger type |
Front V Rear H type. Controlled independently |
|
|
Outrigger span |
Vertical |
4000mm |
|
|
Horizontal |
4350mm |
||
|
Basket |
Material |
Fiber glass, insulated |
|
|
Rated loading weight |
200kgs |
||
|
L*W*H |
1600x750x1150mm |
||
|
Operation system |
Operation |
4 operation mode: Electrical operation of working platform, ground remote control, controller in the bucket, and emergency lever. |
|
|
Control system |
Electrohydraulic proportional control system and optional load proportional system can realize double action synchronization and stepless speed regulation |
||
|
Leveling system |
Hydraulic automatic leveling |
||
|
Security configuration |
Automatic interlocking device for up and down |
For locking up and down the truck to prevent the risk of misoperation. |
|
|
Level meter |
can detect the vehicle's tilt in both lateral and longitudinal directions. |
||
|
Real time communication |
There is wireless intercom between the platform and the vehicle |
||
|
Emergency electric pump |
When the engine and main pump failure, the operator can be sent back to the ground. |
||

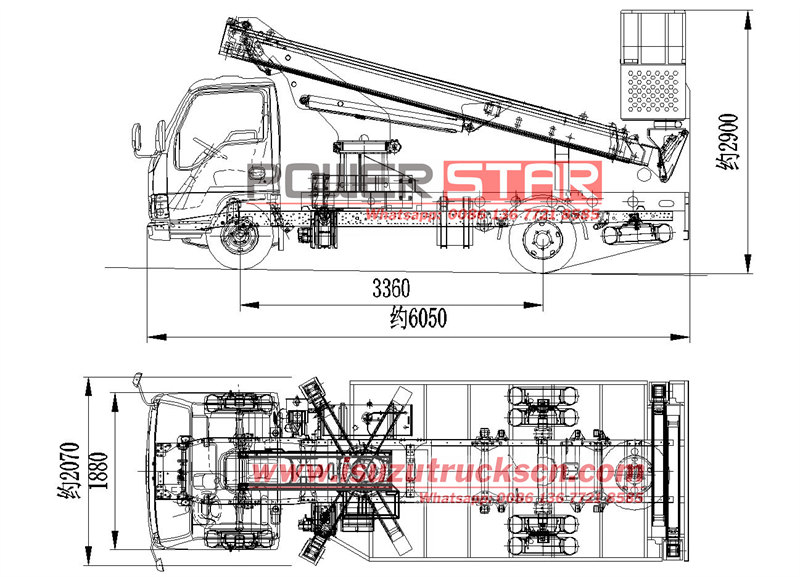

Technical Drawing
Product Details

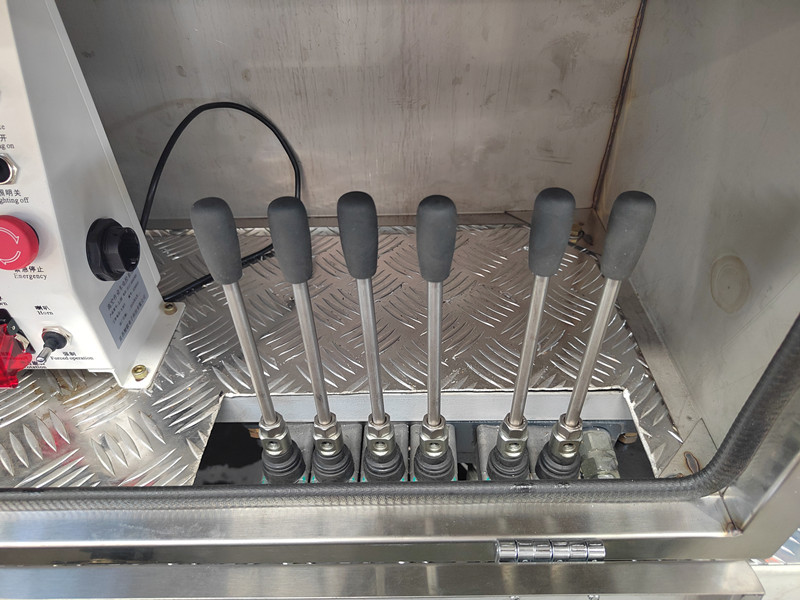

The hydraulic operating handle controls the extension and retraction of the outriggers in vertical and horizontal directions.

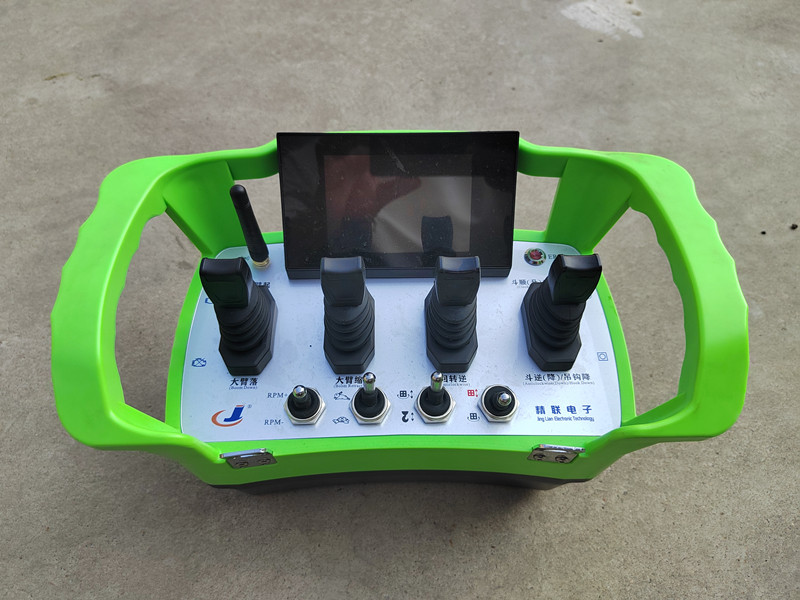

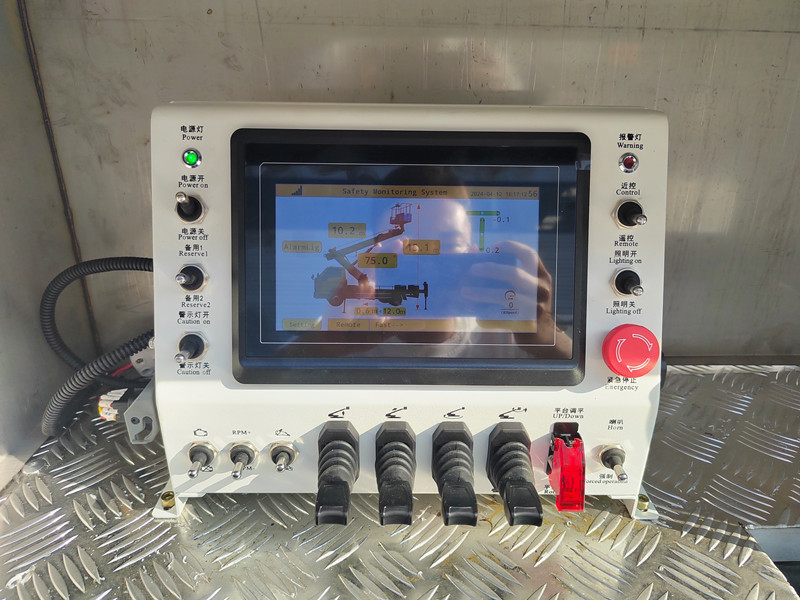

Remote control with LCD display screen

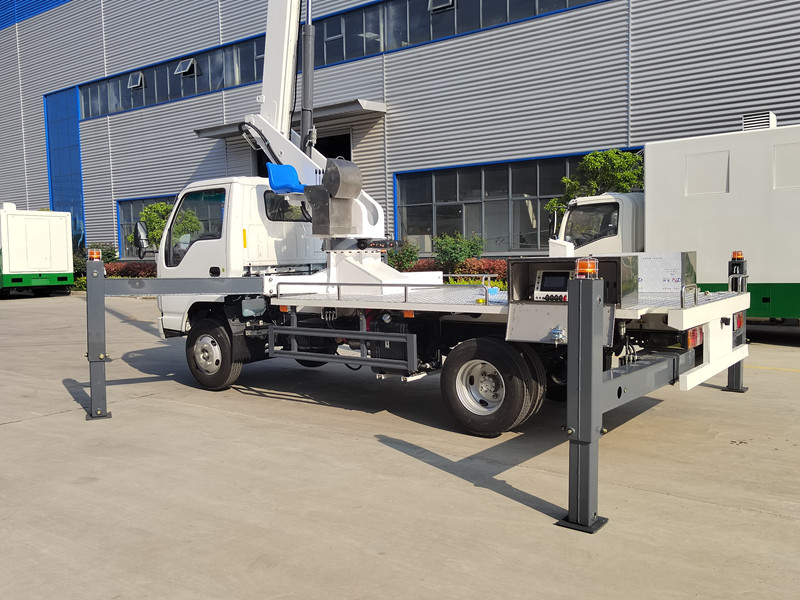

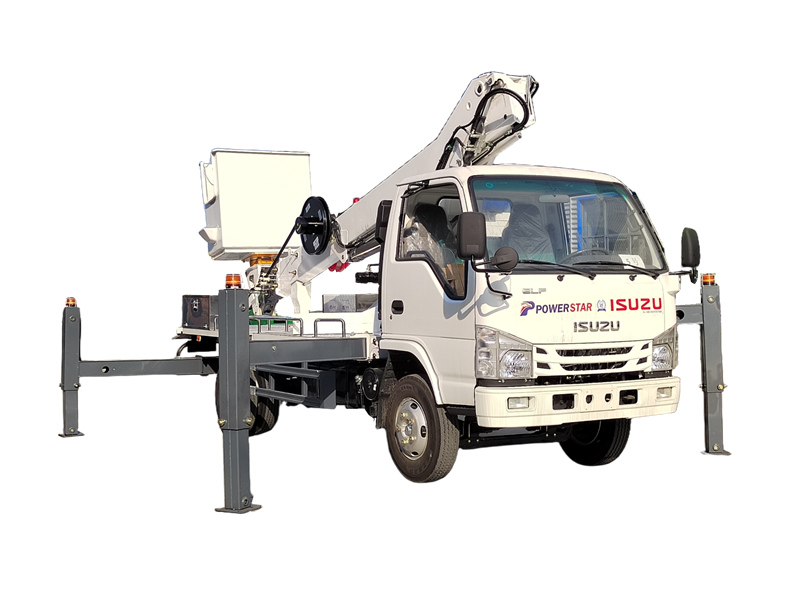

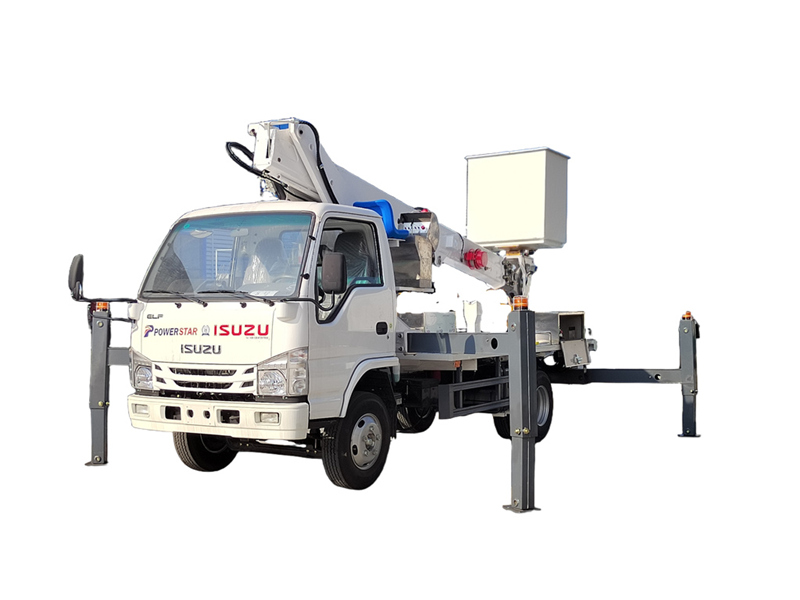

Front V-type and rear H-type outriggers, can be controlled independently

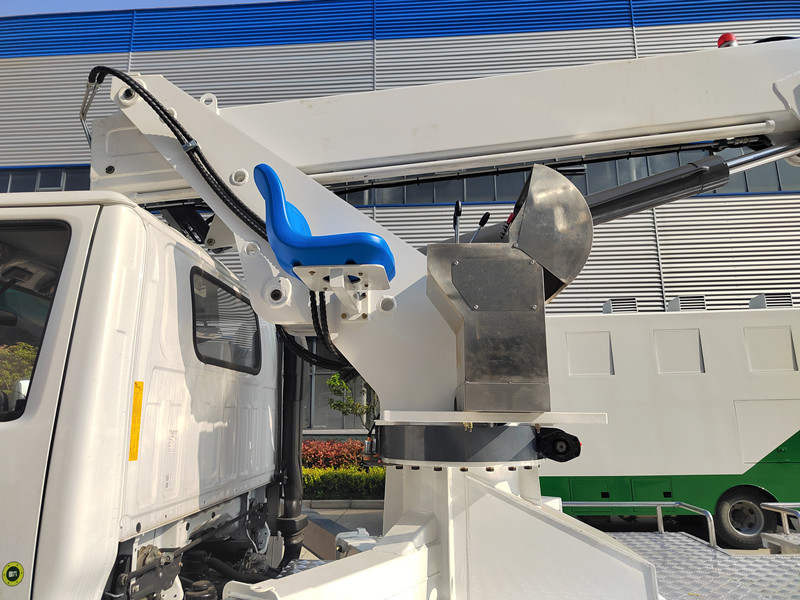

Equipped with a seat for the operator to operate at high altitude.
