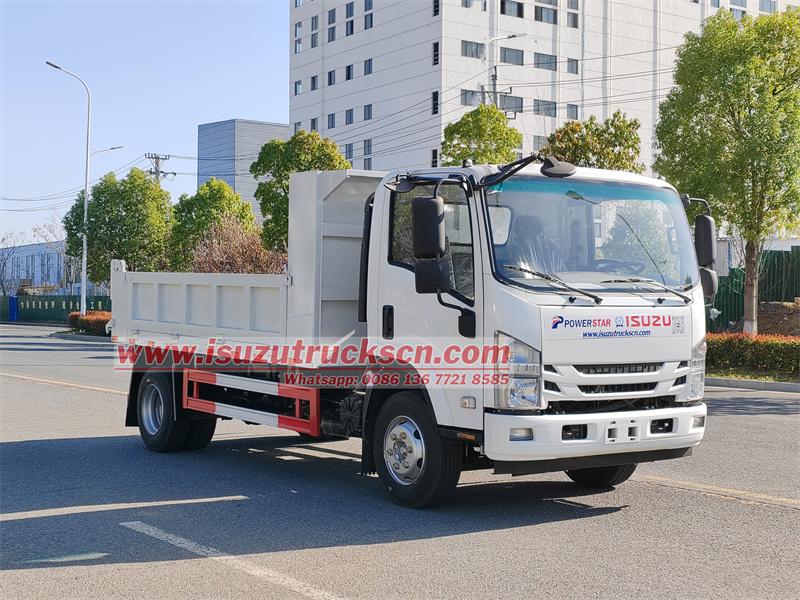

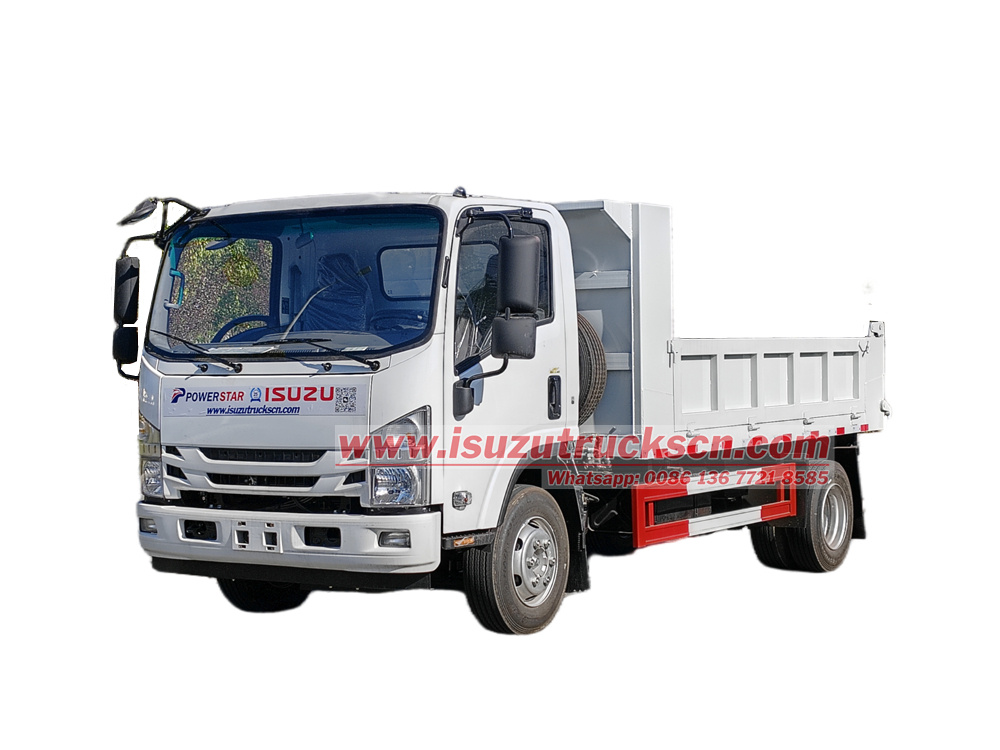

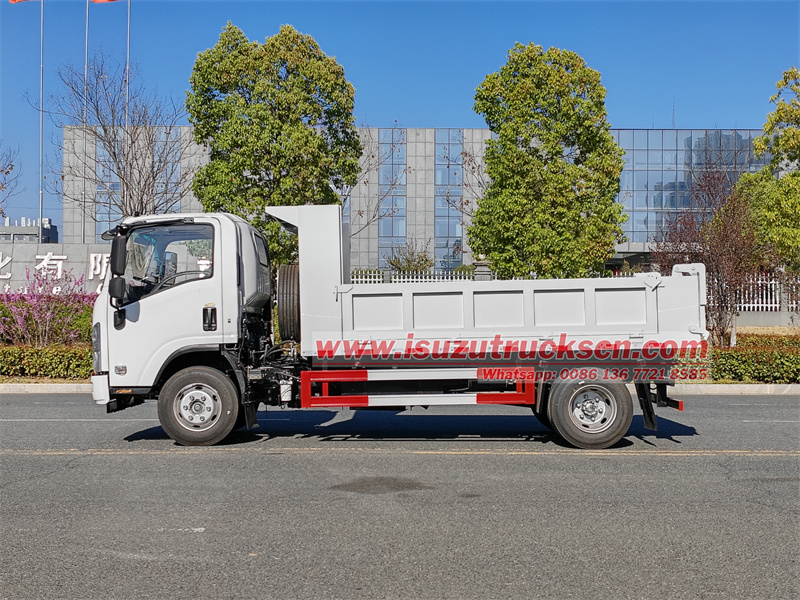

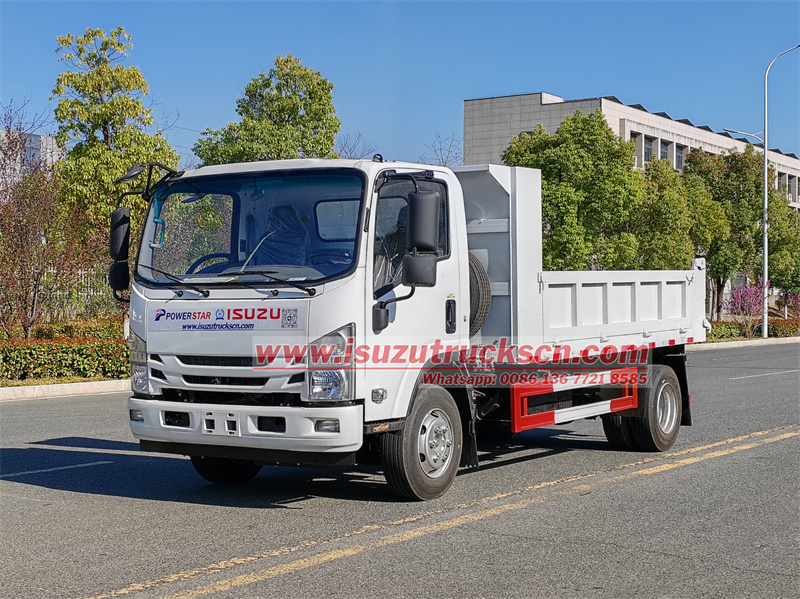

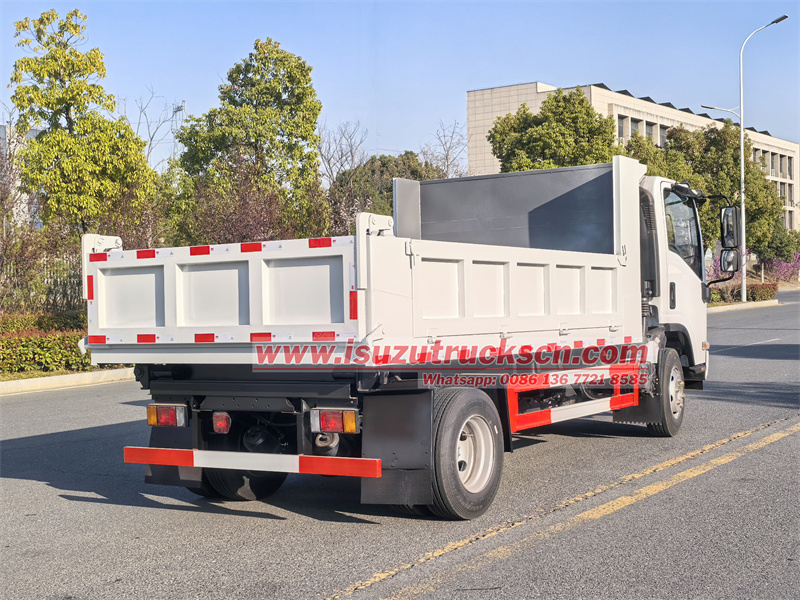

The Isuzu 4HK1 engine light dump truck is modified based on the Isuzu 700P chassis, featuring a wheelbase of 3815mm. It is equipped with an Isuzu 4HK1-TCG61 engine, delivering 190HP, and an Isuzu MLD 6-speed transmission, complete with an operating valve. The upper structure is a carbon steel box with dimensions of 3800×2000×550mm, featuring 4mm thickness for the sides and 5mm thickness for the bottom. It is equipped with a mid-mounted lifting system, capable of both rear and side lifting.
Manufacturer:
Powerstar TrucksWork capacity:
6tonsDimension:
5980 × 2170 × 2400mmCabin type:
Isuzu 700P,single row cab, allowable 3 passengersWheelbase:
3815mmEngine power:
190HPEngine type:
Isuzu 4HK1-TCG61Axle drive:
4X2Gear box:
Isuzu MLD 6-speed gearbox,manualRemarks:
Support rear lift and side liftThe Isuzu 4HK1 engine light dump truck is a high-performance model specifically designed for the engineering transportation sector. Built on the mature chassis of the Isuzu 700P, it is equipped with a 4HK1-TCG61 turbocharged diesel engine, delivering strong power and excellent fuel economy. The cargo box, made of carbon steel with side walls at 4mm thickness and bottom at 5mm thickness, has a load capacity of 6 tons, is resistant to impact and wear, and is suitable for heavy-load transportation of sand, gravel, and earth. It is equipped with a mid-mounted hydraulic lifting system, with options for rear or side lifting modes, adapting to different unloading scenarios for flexible and efficient operation. With a wheelbase of 3815mm, it offers great stability and is ideal for short-distance transportation in construction sites, municipal engineering projects, and mining areas. It is a reliable, durable, and versatile engineering dump truck.
● 30 years experience on dump truck designing
● Be designed according to your requirements
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
|

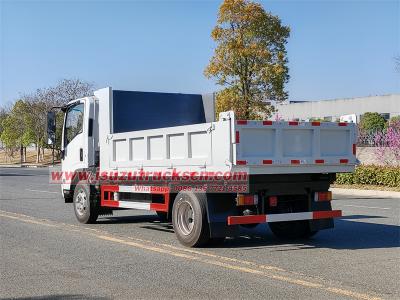

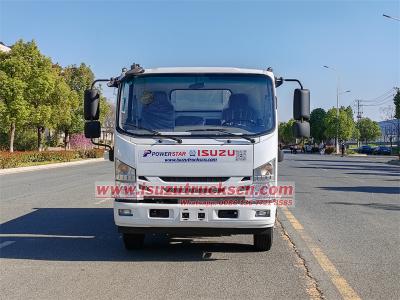

Isuzu 700P 6 tons dump truck |
|||
|
Vehicle parameters |
|||
|
Vehicle Model |
PT5110GZW |
Vehicle Brand |
POWERSTAR |
|
Overall dimensions |
5980×2100×2400mm |
GVW/Curb weight |
10550/4550kg |
| Dump dimensions |
3800×2000×550mm |
Loading capacity |
7000kg |
|
Chassis parameters |
|||
|
Chassis brand |
ISUZU |
Wheel base |
3815mm |
|
Front/rear wheel track |
1680/1650mm |
Front/rear suspension |
1110/2165mm |
|
Axle loading |
4000/6550kg |
Maximum speed |
110km/h |
|
Cab |
Configuration |
Isuzu 700P,single row cab, allowable 3 passengers,USB radio interface |
|
|
Color |
White,other color is optional |
||
|
Engine |
Model |
Isuzu 4KH1-TCG61 |
|
|
Emission |
Euro 6 |
||
|
Type |
4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve , |
||
|
Horse power |
190HP/139kW |
||
|
Rated power speed |
2600rpm |
||
|
Displacement |
5193ml |
||
|
Max torque |
507N.m |
||
|
Max torque speed |
1600-2600rpm |
||
|
Tire |
Size |
235/75R17.5 |
|
|
Number |
6+1 nos |
||
|
Drive form |
4X2 |
||
|
Suspension |
Multi leaf springs |
||
|
Rated voltage |
24V,DC |
||
|
Transmissions |
Isuzu MLD six speed transmission, 6 speed forward 1 reverse. |
||
|
Steering device |
Power assisted steering |
||
|
Steering wheel |
Left hand drive |
||
|
Dump truck structure parameters |
|||
|
Dump body dimensions |
3800×2000×550mm |
Side wall |
4mm |
|
Bottom plate |
5mm |
Van body material |
Carbon steel |
|
Lifting position |
Middle |
Dumping direction |
Rear and side |
|
Color and Logo |
Optional |
|
|
|
Standard configuration |
chassis,sub frame,van body side 4mm bottom 5mm,domestic middle lifting hydraulic cylinder, two longitudinal beams,rectangular van body,single door |
||
Isuzu 700P 6Ton Dump Truck: A High-Efficiency, Multi-Functional Engineering Powerhouse
In the fields of engineering construction, logistics distribution, and urban maintenance, a dump truck with excellent performance and flexible operation is undoubtedly the key to improving work efficiency. The Isuzu 700P 7-ton dump truck, born out of this market demand, is built on the foundation of the Isuzu 700P chassis and carefully modified to create an engineering powerhouse that combines high efficiency and multi-functionality.
Solid and Reliable Chassis Foundation
The Isuzu 700P chassis is renowned for its outstanding stability and durability, providing a solid foundation for this dump truck. With a body length of 5980×2170×2400mm and a wheelbase of 3815mm, it not only ensures sufficient cargo space but also maintains vehicle flexibility, adapting to the operational needs of various narrow construction sites. Whether on city streets or remote construction sites, it can be easily maneuvered with ease.
Powerful Engine, Efficient Output
Equipped with the Isuzu 4HK1-TCG61 engine, this dump truck boasts a powerful 190 horsepower. The engine is widely praised for its low fuel consumption, high efficiency, and good environmental performance, ensuring stable power output under various working conditions. Whether it's heavy-load uphill climbing or fast driving, it can easily handle the task, improving work efficiency.
Smooth Shifting, Convenient Operation
Equipped with the Isuzu MLD 6-speed transmission, it shifts smoothly and operates conveniently. The multi-gear design allows the vehicle to find the most suitable gear under different road conditions and loads, ensuring efficient power transmission while reducing fuel consumption and driver fatigue. Whether it's a novice or an experienced driver, they can quickly get used to it and drive with ease.
Well-Equipped Upper Structure, Flexible Lifting

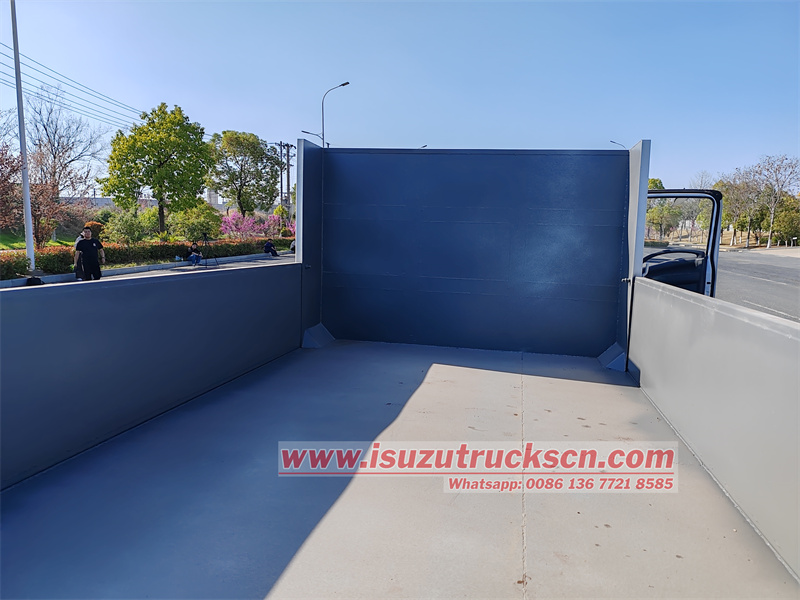

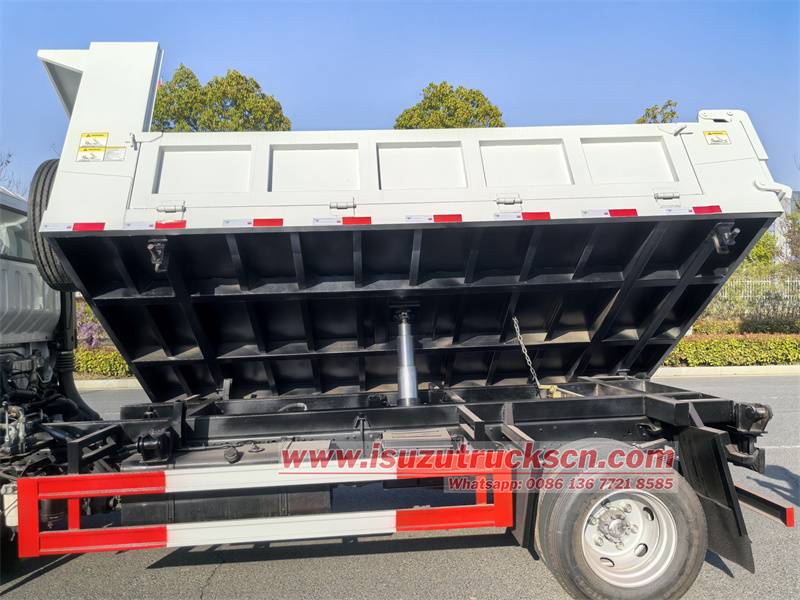

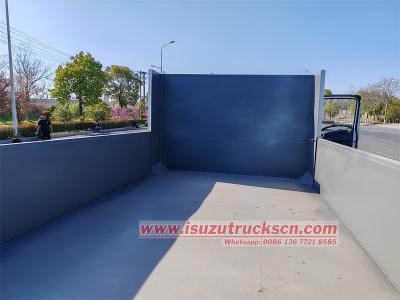

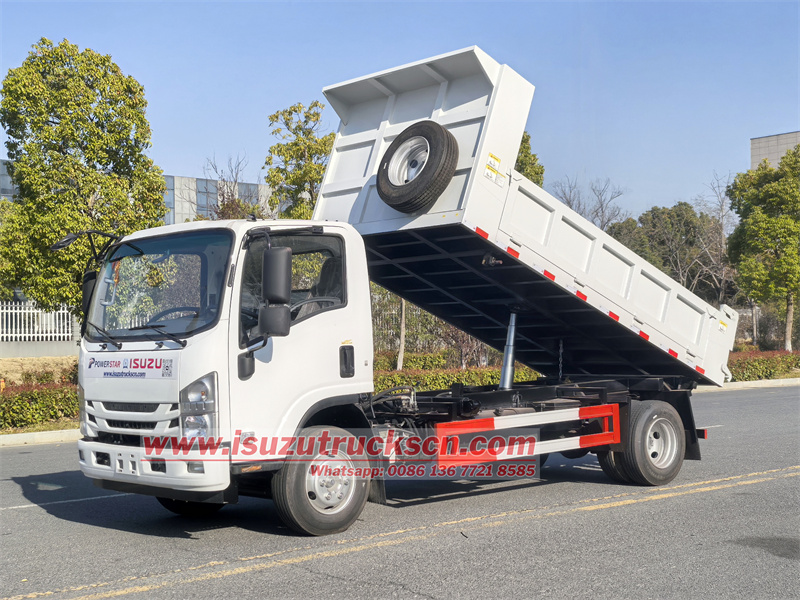

The upper structure adopts a carbon steel box design with dimensions of 3800×2000×550mm and a thickness configuration of 4mm sides and 5mm bottoms, which not only ensures the strength and durability of the box but also effectively resists impact and wear during transportation. Carbon steel material has good corrosion resistance and wear resistance, extending the service life of the box. The centrally located lifting system makes the vehicle's center of gravity stable, ensuring safer driving. The lifting mechanism adopts a hydraulic drive method, which is easy to operate and powerful, capable of easily handling various heavy-load situations.

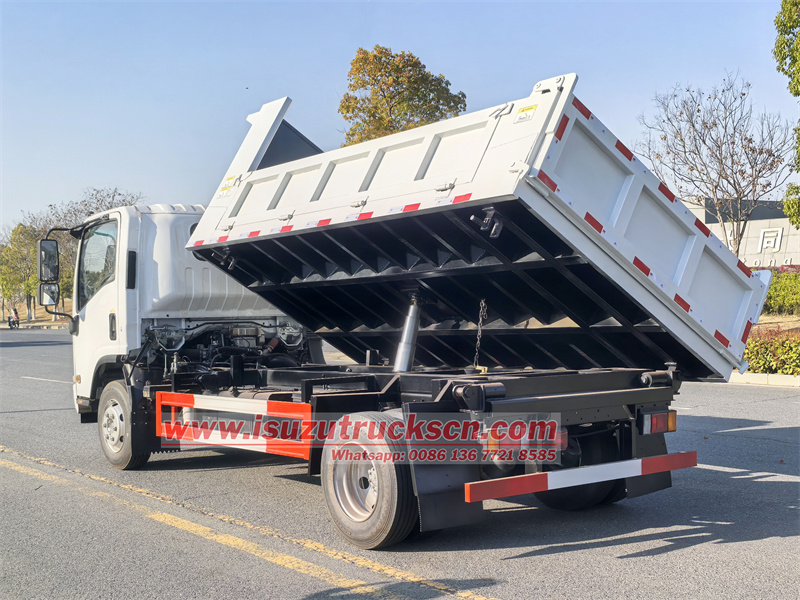

At the same time, the vehicle supports both rear and side lifting modes to meet the needs of different operational scenarios. The rear lifting mode is suitable for general unloading operations, such as unloading building materials, earth, and stone. The side lifting mode is suitable for situations where side unloading is required, such as urban road maintenance and narrow space operations. Regardless of the lifting mode, it can easily complete unloading tasks, improving operational efficiency.

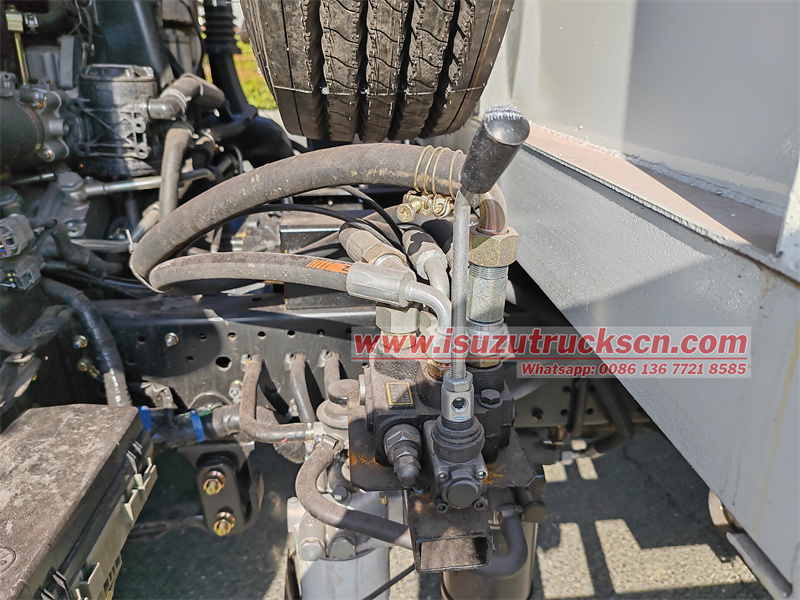

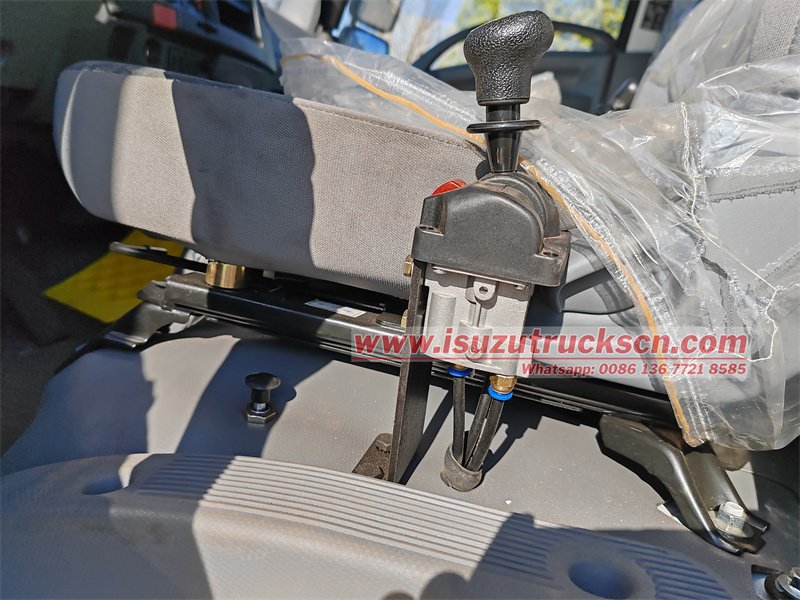

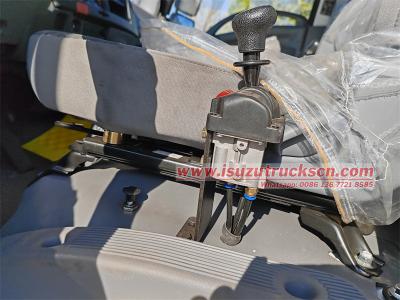

In addition, the equipped control valve makes the lifting operation more convenient and quick. The control valve adopts a humanized design with a reasonable handle position and moderate operating force, reducing the driver's work intensity. At the same time, the control valve has a self-locking function, ensuring the stability of the lifting mechanism during operation and improving safety.
Attention to Detail, Showing Craftsmanship

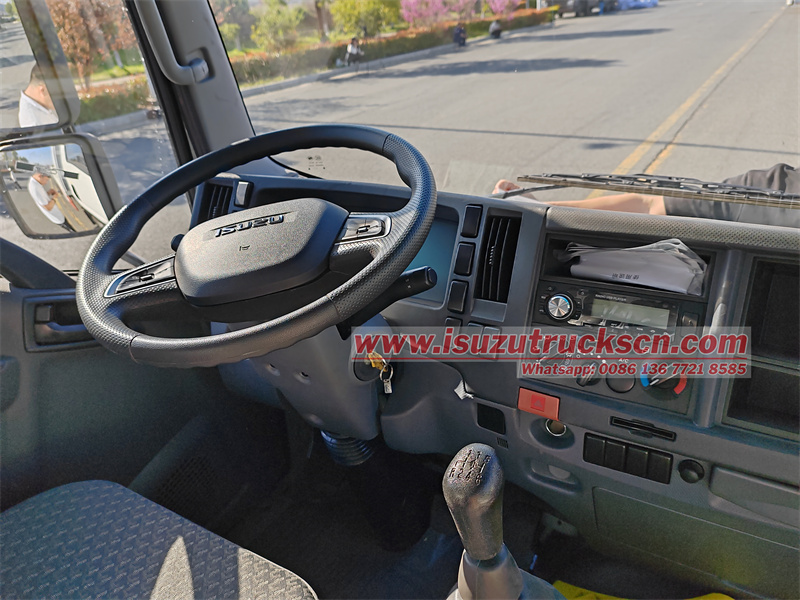

In addition to the above notable features, the Isuzu 700P 6-ton dump truck also demonstrates craftsmanship in its details. The vehicle adopts high-quality tires with good grip and wear resistance, adapting to various road conditions. The cab adopts a humanized design, spacious and comfortable, equipped with air conditioning, audio, and other facilities, providing a good driving environment for the driver.
Strong Adaptability, Wide Application
With its outstanding performance and adaptability, the Isuzu 700P dump truck can be widely used in various engineering transportation scenarios. Whether it's urban construction, road maintenance, mining, or agricultural transportation, it can easily handle the task. The vehicle's flexibility and stability also make it perform well in narrow construction sites and complex road conditions.
