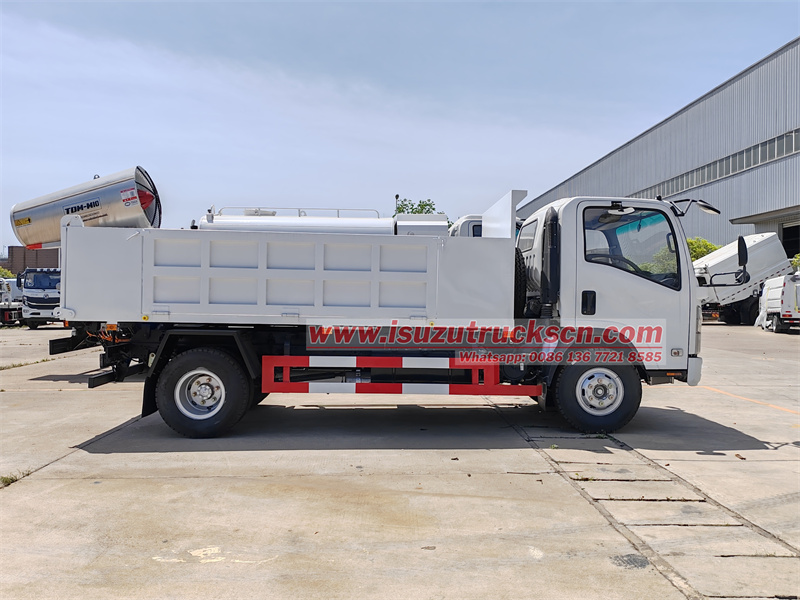

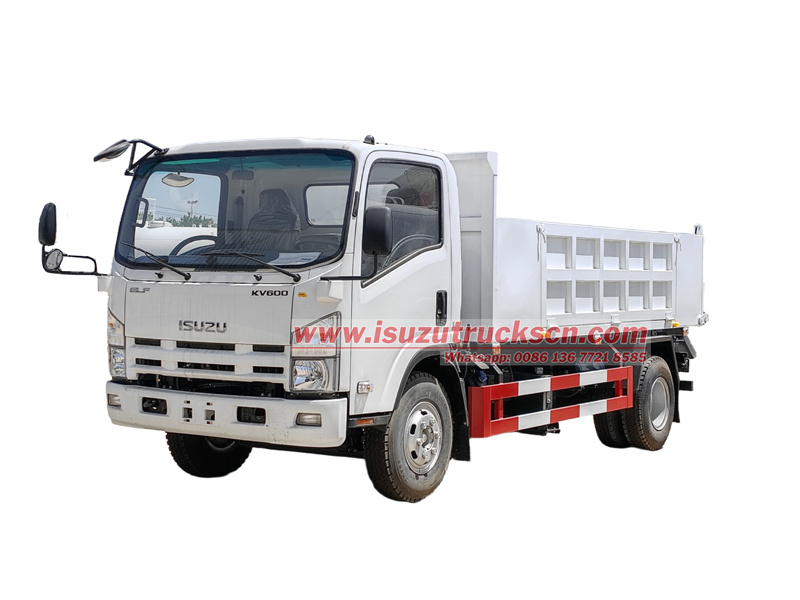

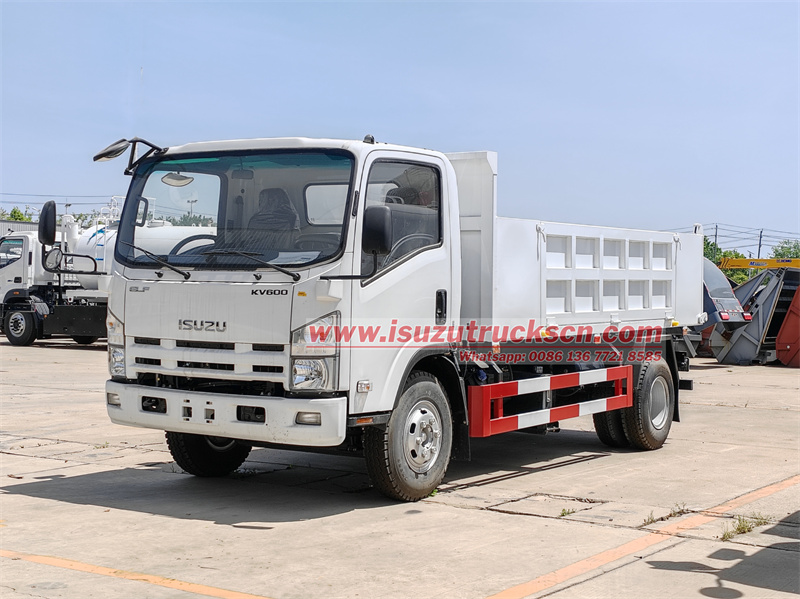

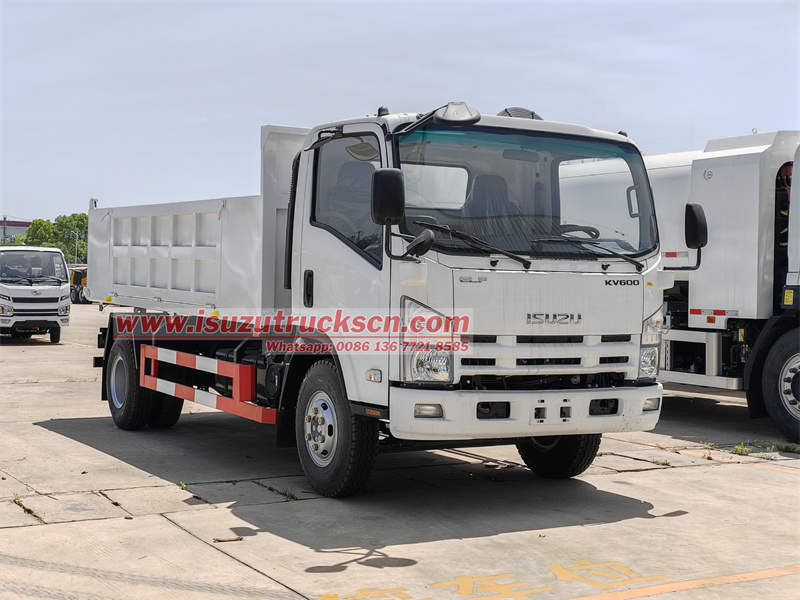

The Isuzu KV600 dump truck is modified on the basis of Isuzu KV600 chassis, with a wheelbase of 3365mm, equipped with Isuzu 160HP 4KK1N6HD diesel engine, Isuzu MYY-6Z transmission, and a dump box made of carbon steel with three sides and four bottoms, 3850×2000×550mm, central lifting, stable lifting, clean and quick unloading, side doors and rear doors can be opened, and the vehicle is controlled by the control valve on the driver's side, which is easy to operate.
Manufacturer:
Powerstar TrucksWork capacity:
2tonsDimension:
5995 × 2100 × 2280mmCabin type:
Isuzu KV600 3X wide-body cabin,3 seatsWheelbase:
3365mmEngine power:
160HPEngine type:
Isuzu 4KK1N6HDAxle drive:
4x2,LHDGear box:
Isuzu MYY-6Z transmission, 6 speed forward 1 reverse.Remarks:

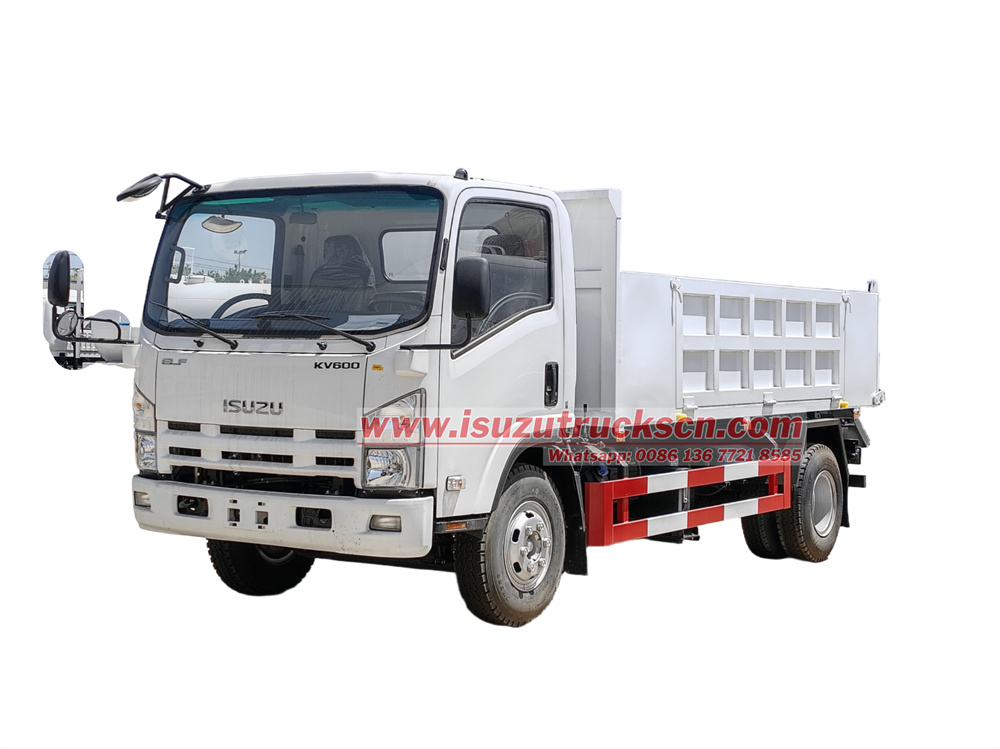

Isuzu KV600 160HP large engineThe Isuzu 2 ton 6 wheeler dump truck is designed for heavy-duty conditions with "high efficiency, durability and flexibility" as its core advantages. It is equipped with an Isuzu 160HP 4KK1N6HD diesel engine and an Isuzu MYY-6Z gearbox. It has strong power output and excellent fuel economy. Its comprehensive fuel consumption is 15% lower than that of its peers. The chassis adopts a 3365mm golden wheelbase and a high-strength ladder frame, taking into account flexibility and stability. The four-wheel disc brake + ABS anti-lock braking system ensures braking safety. For the upper part, the carbon steel box with three sides and four bottoms has strong impact resistance, the central hydraulic lifting system has fast response and good sealing, the side doors and rear doors can be opened, and the loading and unloading efficiency is high. The centralized control valve on the driver's side realizes one-button operation, and the humanized design improves driving comfort. Whether it is a construction site, mining or municipal engineering, the Isuzu KV600 can meet the needs with reliable performance and high efficiency.
● 30 years experience on dump truck designing
● Be designed according to your requirements
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
|
Isuzu KV600 2 tons dump truck |
|||
|
Vehicle parameters |
|||
|
Vehicle Model |
PT5040GZW |
Vehicle Brand |
POWERSTAR |
|
Overall dimensions |
5995×2100×2280mm |
GVW/Curb weight |
4495 /2450kg |
| Van dimensions |
3850×2000×550mm |
Loading capacity |
2000kg |
|
Chassis parameters |
|||
|
Chassis brand |
ISUZU |
Wheel base |
3365mm |
|
Front/rear wheel track |
1685 /1655mm |
Front/rear suspension |
1110/1525 mm |
|
Drive type |
4x2,LHD |
Maximum speed |
115km/h |
|
Cab |
Configuration |
Isuzu KV600 single row cab, allowable 3 passengers,USB radio interface, |
|
|
Color |
White,other color is optional |
||
|
Engine |
Model |
Isuzu 4KK1N6HD |
|
|
Emission |
Euro 6 |
||
|
Type |
4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve , |
||
|
Horse power |
160HP/118kW |
||
|
Displacement |
2499ml |
||
|
Max torque |
435N.m |
||
|
Tire |
Size |
750R16 |
|
|
Number |
6+1 nos |
||
|
Suspension |
Multi leaf springs |
||
|
Rated voltage |
24V,DC |
||
|
Transmissions |
Isuzu MYY-6Z transmission, 6 speed forward 1 reverse. |
||
|
Steering device |
Power assisted steering |
||
|
Steering wheel |
Left hand drive |
||
|
Dump truck structure parameters |
|||
|
Van body dimensions |
3850×2000×550mm |
Side wall |
3mm |
|
Bottom plate |
4mm |
Van body material |
Carbon steel |
|
Lifting position |
Middle |
Dumping direction |
Rear and side |
|
Color and Logo |
Optional |
Lifting angle |
≥45° |
|
Standard configuration |
chassis,sub frame, domestic middle lifting hydraulic cylinder, two longitudinal beams,rectangular van body,single door |
||

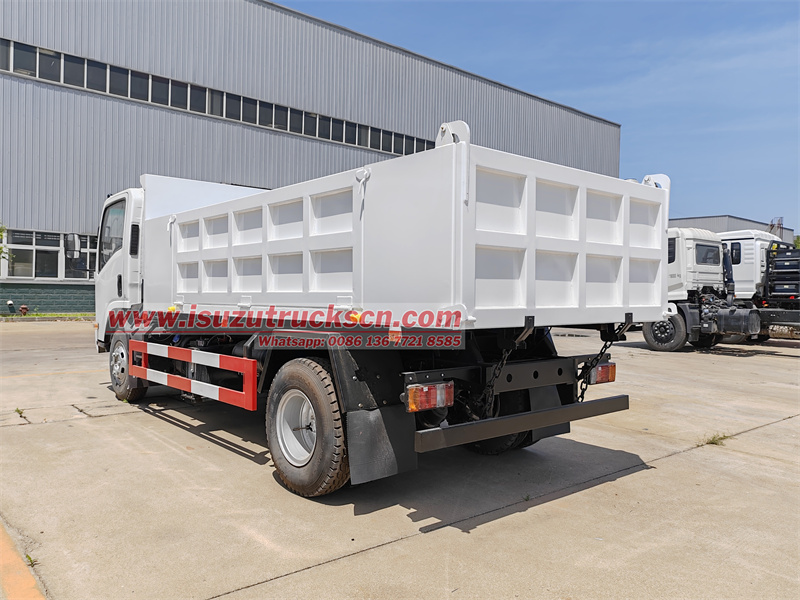

Isuzu KV600 tipper lorry truck: a perfect combination of strong power and efficient operation
As an engineering vehicle carefully modified based on the Isuzu KV600 chassis, the Isuzu KV600 dump truck has been widely used in many fields such as construction, mining, and municipal engineering with its excellent performance and reliable quality. The following is a detailed introduction to this model:
1. Chassis and power system
The Isuzu KV600 dump truck inherits the consistent chassis design advantages of the Isuzu brand and adopts a 3365mm wheelbase layout to ensure the stability and passability of the vehicle under complex working conditions. In terms of power, it is equipped with Isuzu's original 160HP 4KK1N6HD diesel engine, which is known for its high efficiency, low consumption and environmental protection. Compared with the previous 132HP, it can output stronger power to meet the needs of heavy-duty operations. At the same time, it is matched with the Isuzu MYY-6Z gearbox, which has smooth gear shifting and high transmission efficiency, further improving the vehicle's power performance and fuel economy.
2. Upper structure and material

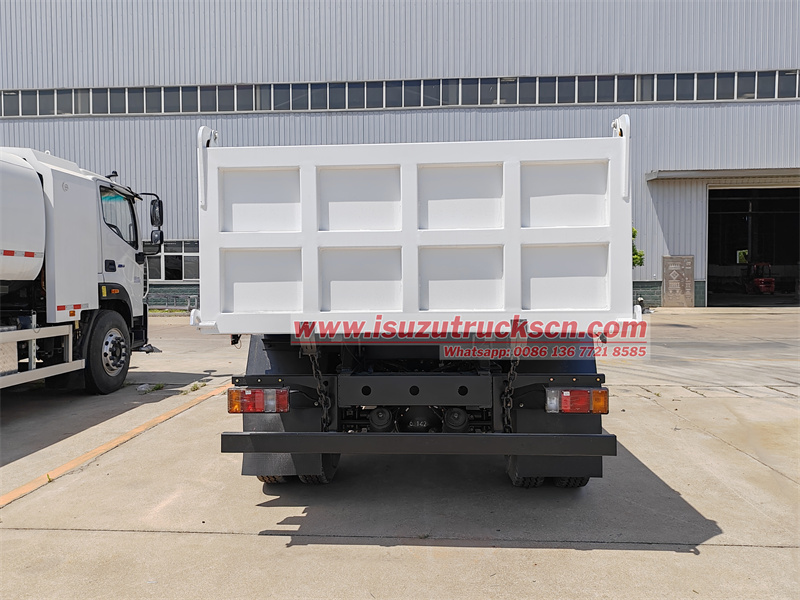

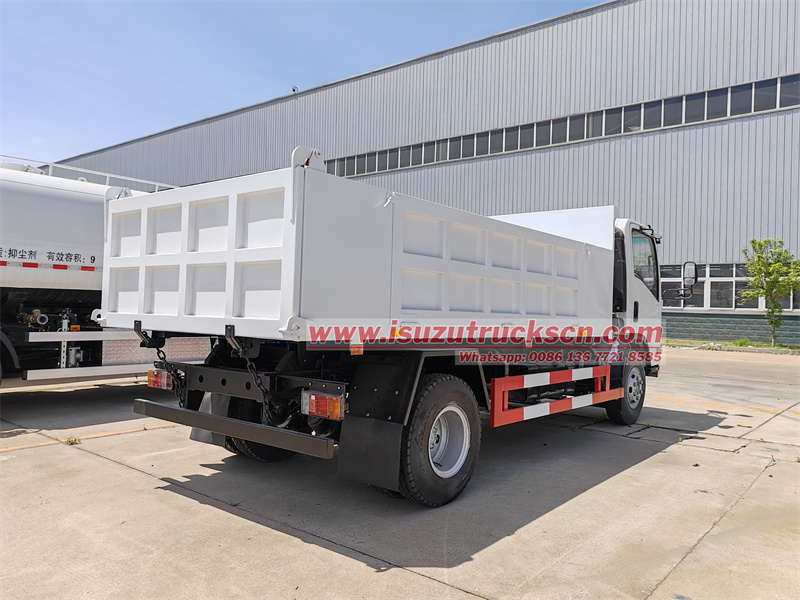

The upper part of the dump truck is a carefully designed dump box, which is made of three-side and four-bottom carbon steel. It has strong impact resistance, which not only ensures the durability of the box, but also effectively reduces the weight of the body and improves the load capacity. The box size is 3850×2000×550mm, with moderate volume, high single-transport efficiency, and reduced round trips. In addition, the box adopts a central hydraulic lifting system, which is stable, with a lifting angle of ≥45°, a lifting speed of ≤20 seconds, good sealing of the hydraulic cylinder, and clean and rapid unloading, which greatly shortens the operation cycle.
3. Convenient operation and safety design

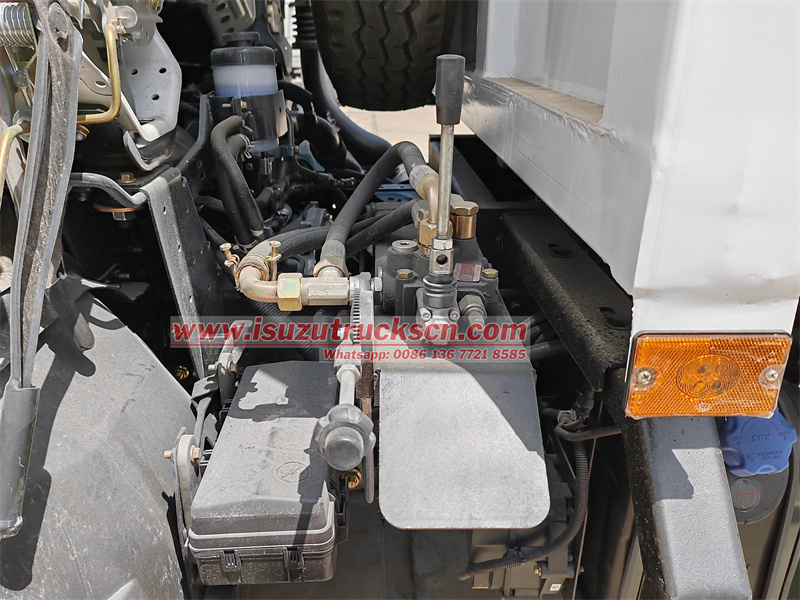

In order to facilitate the operation of operators, the Isuzu KV600 2tons dumper truck fully considers practicality in the box design. Both the side door and the rear door can be opened, which is convenient for loading and unloading goods and cleaning the box. At the same time, the vehicle's operation control is all integrated on the driver's side control valve. The driver can easily complete lifting, lowering and other actions without getting off the vehicle. The operation is simple and fast, which improves the safety of the operation.
4. Applicable scenarios and advantages
The Isuzu KV600 tipper truck has demonstrated strong competitiveness in many fields such as construction sites, mining, and municipal road maintenance due to its excellent power performance, stable chassis design, practical upper structure, and convenient operation. Whether it is short-distance transportation or heavy-load operation, this model can easily cope with it, bringing users an efficient and convenient operation experience.
