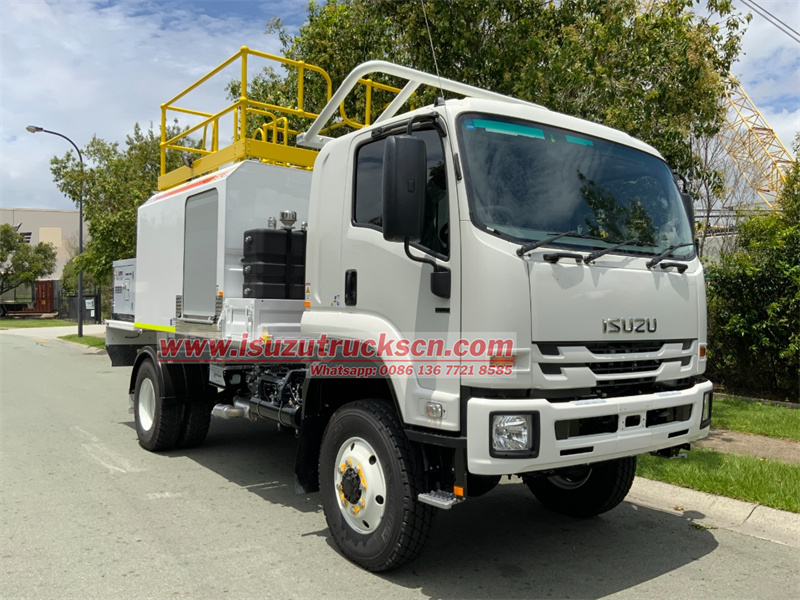

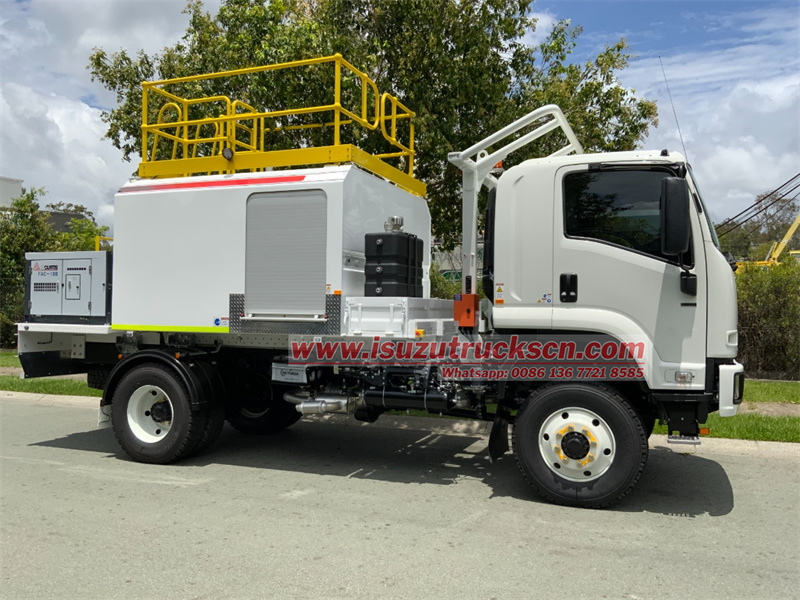

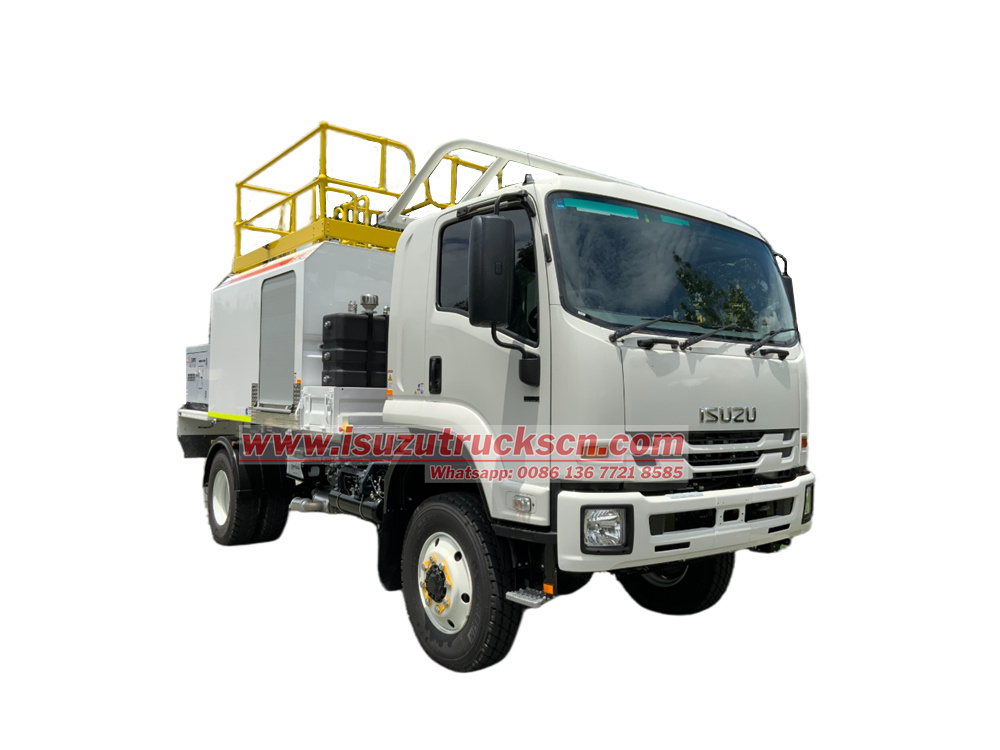

The Isuzu 700P 4×4 all wheel drive diesel refueling truck is a professional fueling equipment specially designed for mining and construction sites. Equipped with a 190HP 4HK1 engine and 6-speed transmission, it features a 5 cubic meter carbon steel diesel tank with high-precision flow meter, pneumatic refueling machine, oil gun and spring-rewind hose for accurate and safe fuel dispensing. The rear section integrates a 1.84m³/min screw air compressor to provide auxiliary air supply support.
Manufacturer:
Powerstar TrucksWork capacity:
5cbm diesel tankDimension:
7950×2300×3400mmCabin type:
Isuzu NPR 700P 4x4 cab,3 persons allowedWheelbase:
4475mmEngine power:
190 HP / 139kWEngine type:
Isuzu 4HK1-TCG61Axle drive:
4X4,LHDGear box:
Isuzu MLD 6-speed gearbox,manualRemarks:

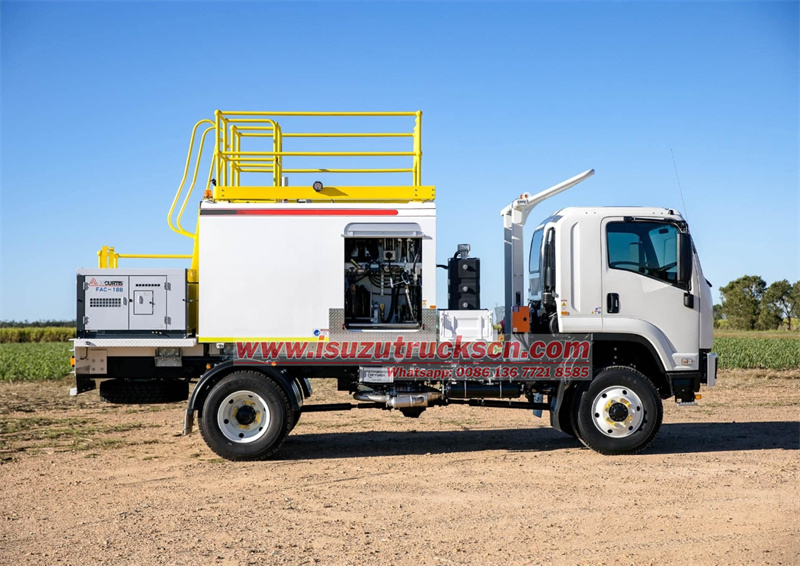

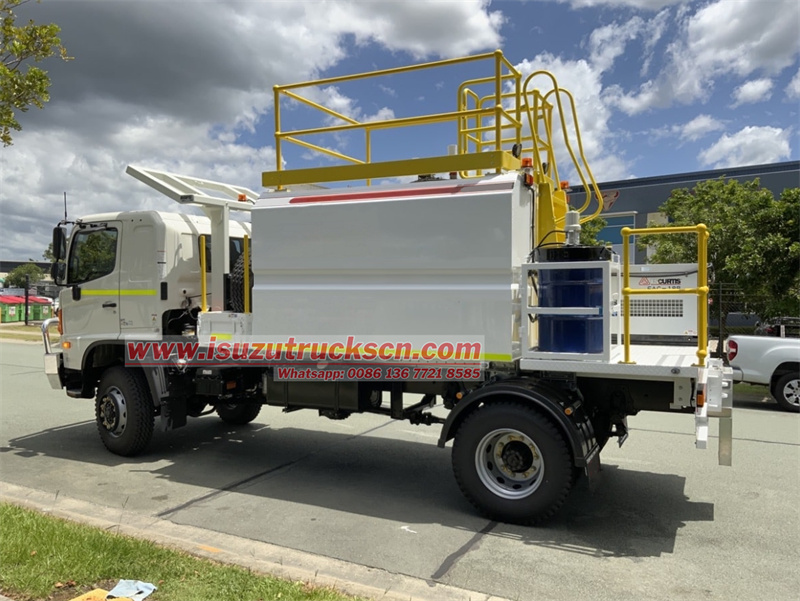

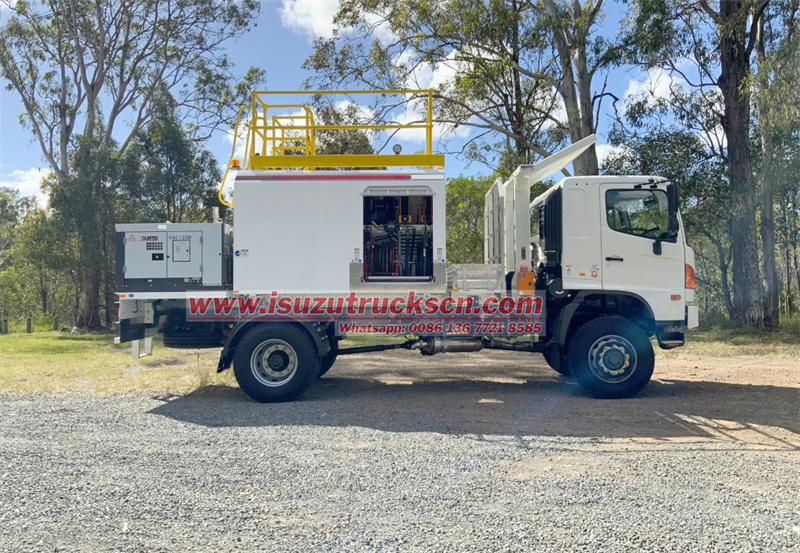

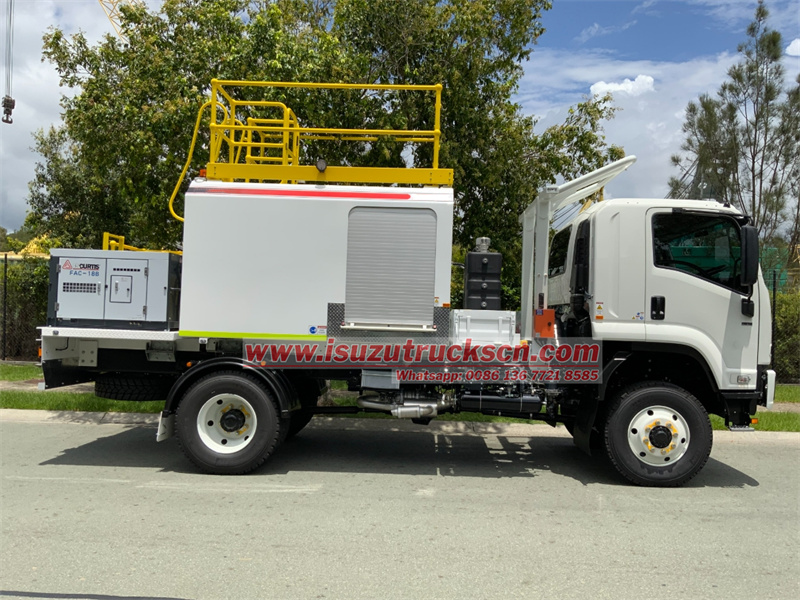

RHD availableIsuzu 4x4 drive diesel dispenser service truck is modified on the basis of Isuzu 700P all-wheel drive chassis, with a wheelbase of 4475mm, equipped with Isuzu 4HK1-TCG61 190 horsepower diesel engine, National VI emission, peak torque of 507 N•m, and Isuzu MLD 6-speed gearbox. The front of the upper body is equipped with HALO ROPS, isolator and emergency stop device. In the middle is a 5-cubic-meter carbon steel diesel tank, equipped with Flow meter, refueling machine, spring return hose reel and oil gun, liquid level meter, etc., built-in LED work lights, and the rear platform is equipped with FS-Curtis FAC-18B diesel-driven screw compressor, ladder, tank top handrail, manhole. It is an ideal equipment for mining, infrastructure, emergency rescue and other fields.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Product Features
Tank material : ◇ 4-6mm thick carbon steel with high quality .
◇ carbon steel and stainless steel or aluminum alloy can be choose.
Tank shape: ◇ square-round, oval, round;
Pump : ◇ can be choose self-priming pump, gear pump or double pump;
◇ the pump can help the oil pump in and out or self-flow.
Special design:◇ can be designed to an independent sub-warehouse to transport different oil with the same time.
◇ 15 meters refueling reel (can automatically return to position),
◇ the tank is equipped with many anti-wave boards to keep the tank with high strength, stable center of gravity,
◇ delivery safety and other characteristics in the transportation.
» Ⅱ. Product Parameter for Isuzu diesel dispenser truck:
|
Isuzu 4x4 drive diesel dispenser service truck |
||
|
General |
Vehicle Brand |
POWERSTAR |
|
Chassis Brand |
Isuzu |
|
|
Overall Dimension |
7950×2300×3400mm |
|
|
GVW / Kerb Weight |
10550/7,560kg |
|
|
Cab |
Type |
Isuzu NPR 700P 4x4 cab,3 persons allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Engine |
Fuel Type |
Diesel |
|
Brand |
Isuzu |
|
|
Type |
Inline 4-cylinder 4-stroke, supercharged, intercooled, water-cooled |
|
|
Model |
4HK1-TCG61 |
|
|
Power |
190 HP /139kW |
|
|
Displacement |
5193 ml |
|
|
Rated speed |
2600rpm |
|
|
Max torque |
507N.m |
|
|
Max torque speed |
1600-2600rpm |
|
|
Emission Standard |
Euro 6 |
|
|
Chassis |
Drive Type |
4X4 (left hand drive,RHD available) |
|
Transmission |
Isuzu MLD 6 speed levers with 1 reverse |
|
|
Wheelbase/No. of axle |
4475mm |
|
|
Tire Specification |
235/75r17.5 |
|
|
Tire Number |
6 tires and 1 spare tire |
|
|
Max Speed |
110 km/h |
|
|
Paint |
Metallic paint |
|
|
Superstructure |
Body capacity |
5,000 Litres diesle tank |
|
Tanker Material |
Carbon Steel |
|
|
Pump |
Fuel pump equipped for overhead delivery |
|
|
Suction head |
6 m |
|
|
Hose |
High quality, wire strengthened hose,with cooper wire, anti-static |
|
|
Refueling Machine |
Equipped based on customer requirement |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: |
Flow meter, refueling machine, spring return hose reel and oil gun, liquid level meter, compressor,etc. |
|
|
manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers… |
||
|
Optional |
** Tank material could be carbon steel, stainless steel, aluminum (Aluminum tanker). ** It can be divided into many compartments. ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|
» Ⅲ. Product Details & Advantages:
★ Chassis configuration
• Basic platform: Isuzu 700P 4×4 all-wheel drive chassis, wheelbase 4475mm, adaptable to complex road conditions
• Powertrain:
◇ Engine: Isuzu 4HK1-TCG61 inline four-cylinder turbocharged diesel engine
◇ Power: 190 horsepower (140kW) @2600rpm | Torque: 507N·m@1600-2600rpm
◇ Emission standard: National VI (DOC+DPF+SCR post-treatment)
◇ Transmission: Isuzu MLD 6-speed manual transmission (with synchronizer)
• Cab: single-row seat, standard air conditioning, ABS, reversing radar
★ Upper system: core of safe and efficient fuel supply
1. 5 cubic carbon steel diesel tank
• Material technology: The tank body is made of Q235B carbon steel, 6mm thick, with epoxy anti-static paint sprayed on the inner wall and anti-rust paint on the outer wall.

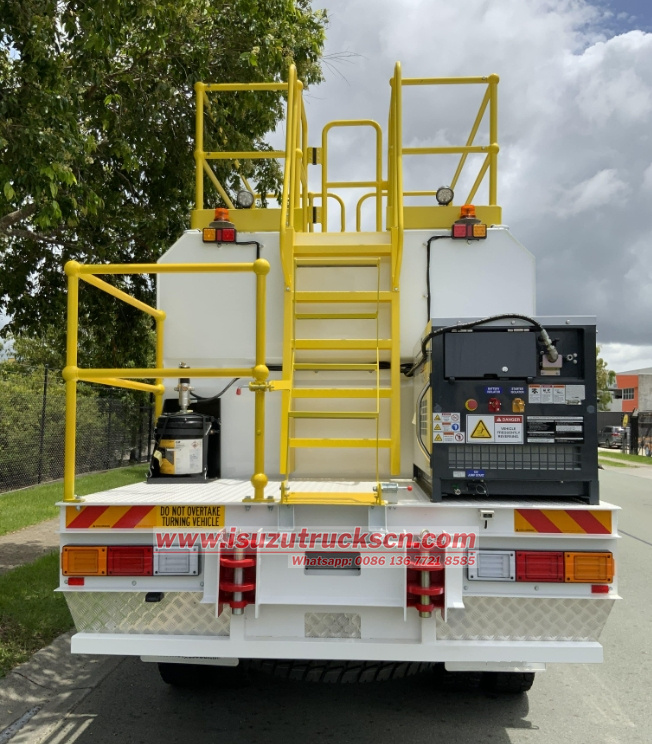

• Structural safety: There is a manhole and handrail/anti-slip walkway on the top of the tank, and a ladder is configured at the tail for personnel to check up and down.
2. Fueling system integration
• Flow meter: Accuracy ±0.5%, supports cumulative flow and instantaneous flow display, and data can be exported to the cab dashboard.
• Refueling machine: Beijing Sanjin refueling machine, equipped with a 10-micron filter, which can filter impurities and automatically shut down to prevent overflow.
• Spring return hose reel: supports automatic retraction and release of 15-meter hose, reducing manual winding time.
• Oil gun: with self-locking function, the gun automatically jumps when the vehicle tank is full to prevent fuel spillage.
• Auxiliary functions: built-in LED work light ; the tank is equipped with a liquid level gauge, and the low liquid level alarm threshold can be set to 10%.
3. Safety protection device
• HALO ROPS (roll cage): located at the front of the upper body, welded with high-strength steel pipes, designed to improve the vehicle's rollover safety.
• Isolator: An insulation isolation module is set between the electrical system and the tank to prevent static electricity accumulation from causing sparks.
• Emergency stop device: The cab and the refueling operation area are equipped with a red emergency stop button, which immediately cuts off the power supply to all pump bodies when pressed.

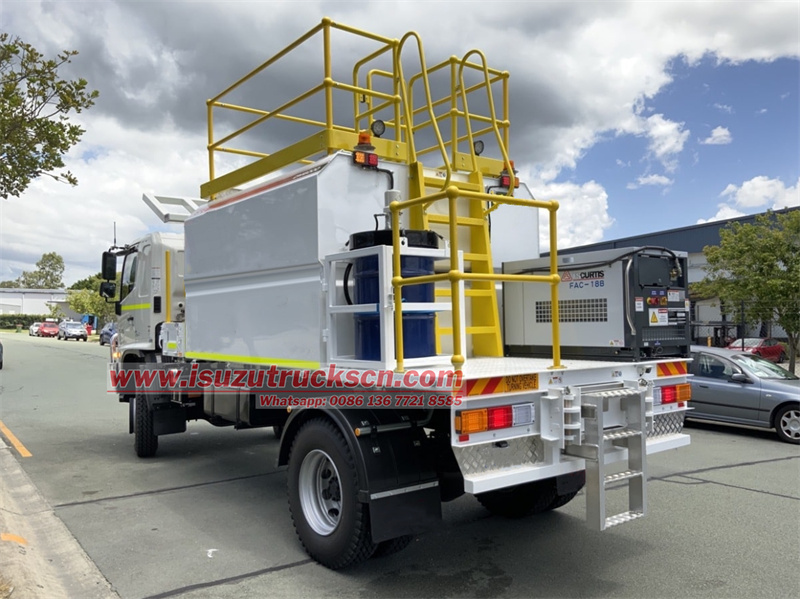

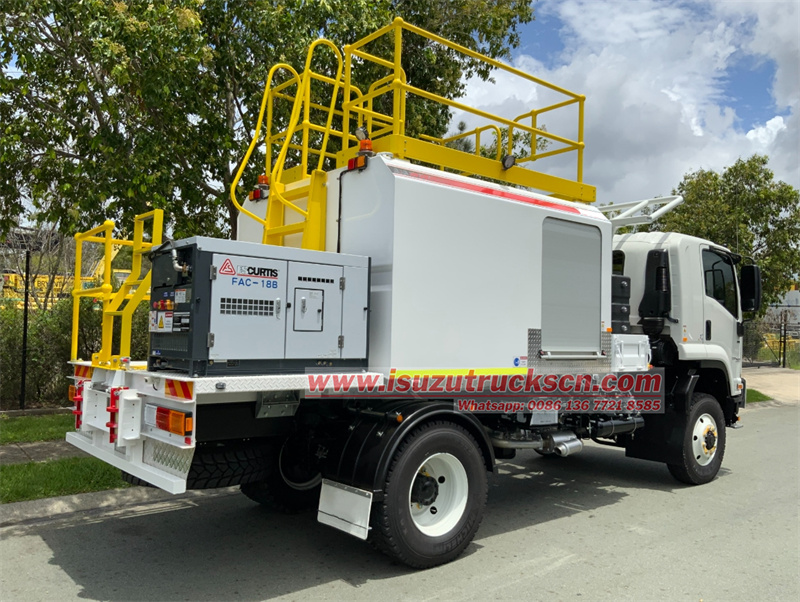

4.Tail platform: FS-Curtis FAC-18B screw compressor
• Performance parameters: diesel drive, exhaust volume 1.84m³/min, rated pressure 7bar, maximum pressure 9bar
• Noise reduction design: The compressor cabin adopts noise reduction, noise level @ 7 m - 67 dB(A)
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We POWERSTAR also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
» Ⅳ.Working principle:
1. Diesel filling process:
• Engine drives hydraulic pump (or PTO power take-off) → Oil pump draws oil from the tank → Measured by flow meter → Filled to target equipment through hose, fuel dispenser, and fuel gun
• Quantitative mode: The refueling amount can be preset and automatically stops when the set value is reached
• Overfill protection: Liquid level meter monitors the oil amount and alarms when it exceeds the limit
2. Compressed air system:
• Diesel drives air compressor to provide air source for pneumatic fuel dispenser control
