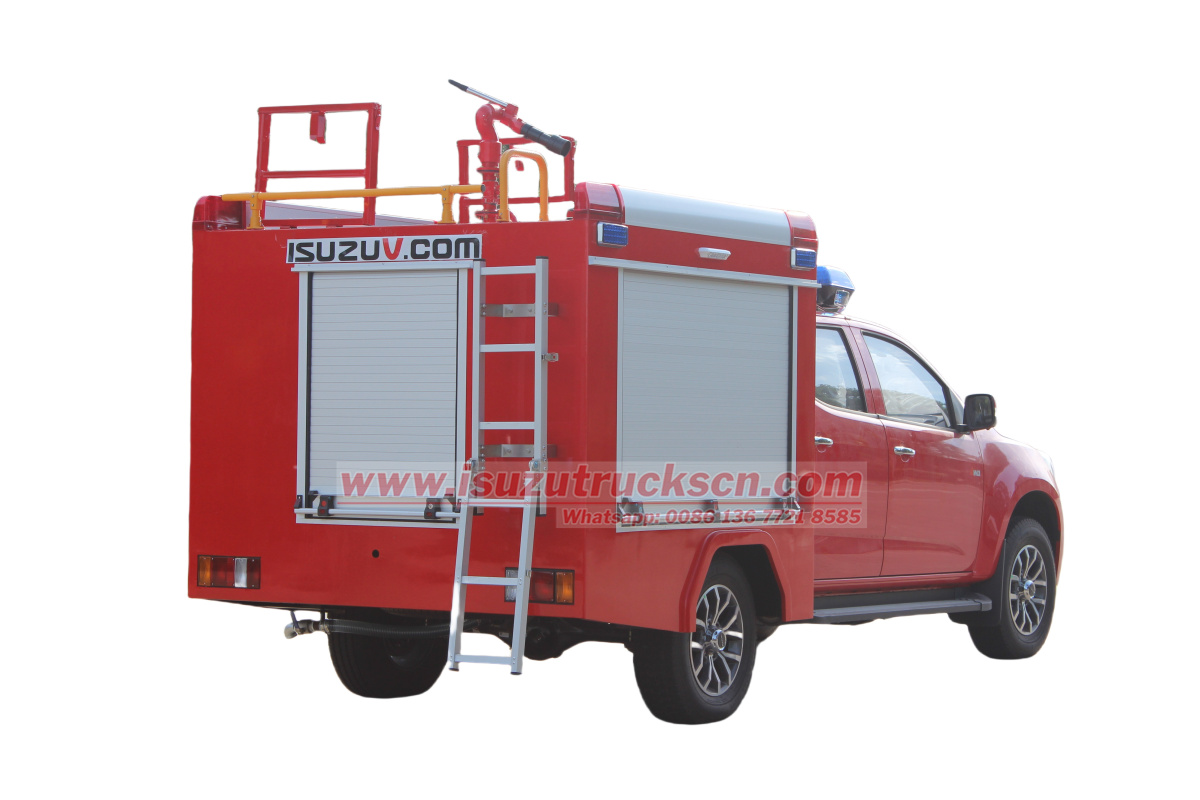

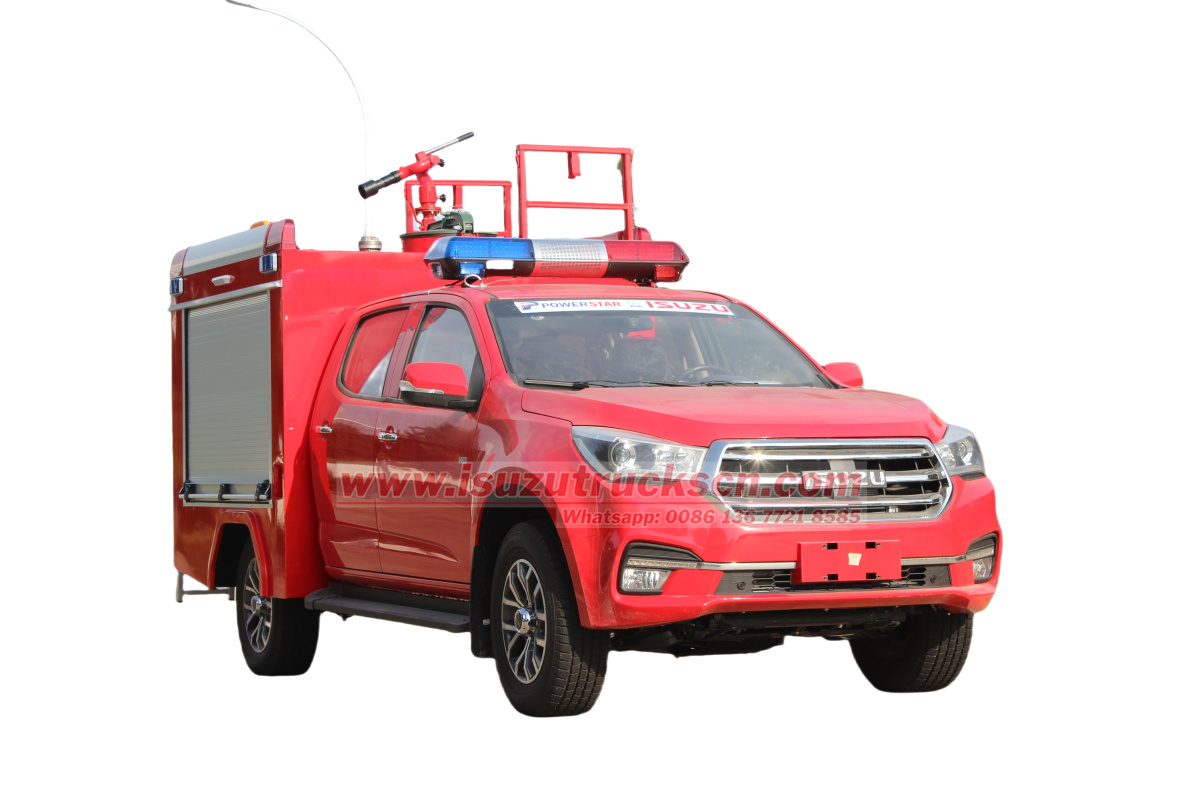

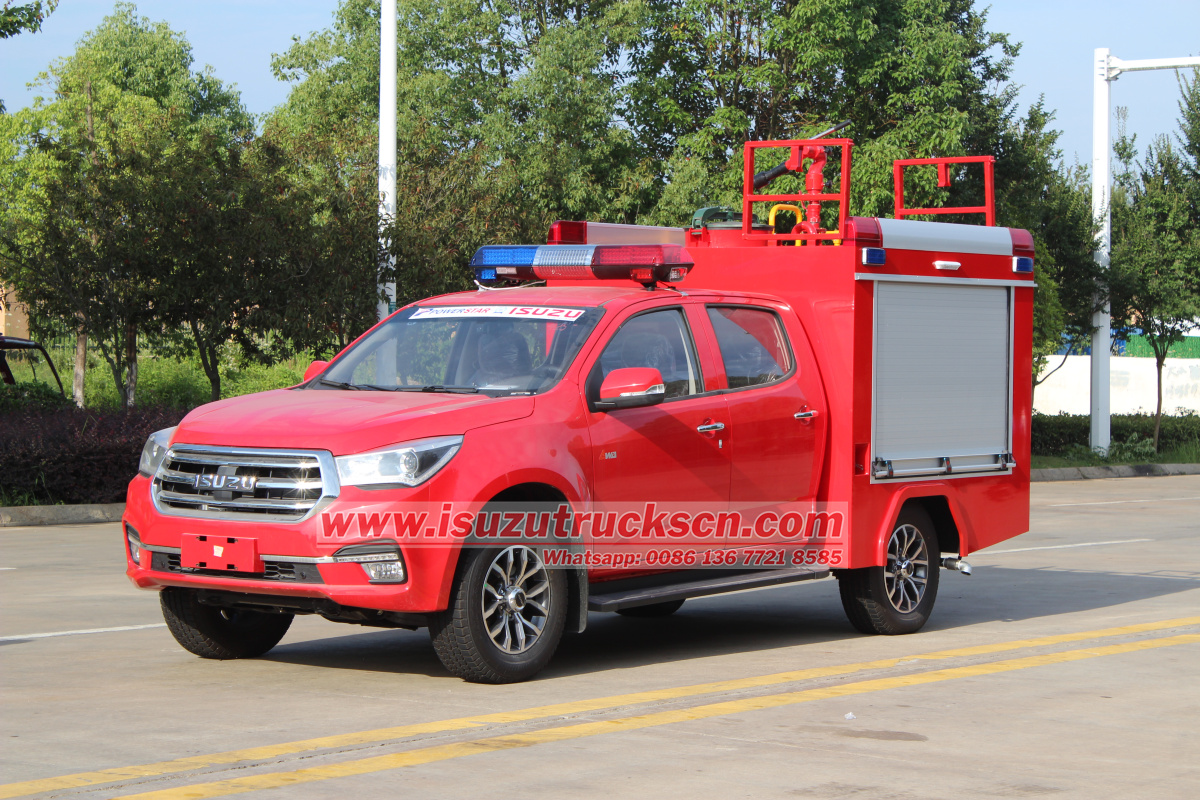

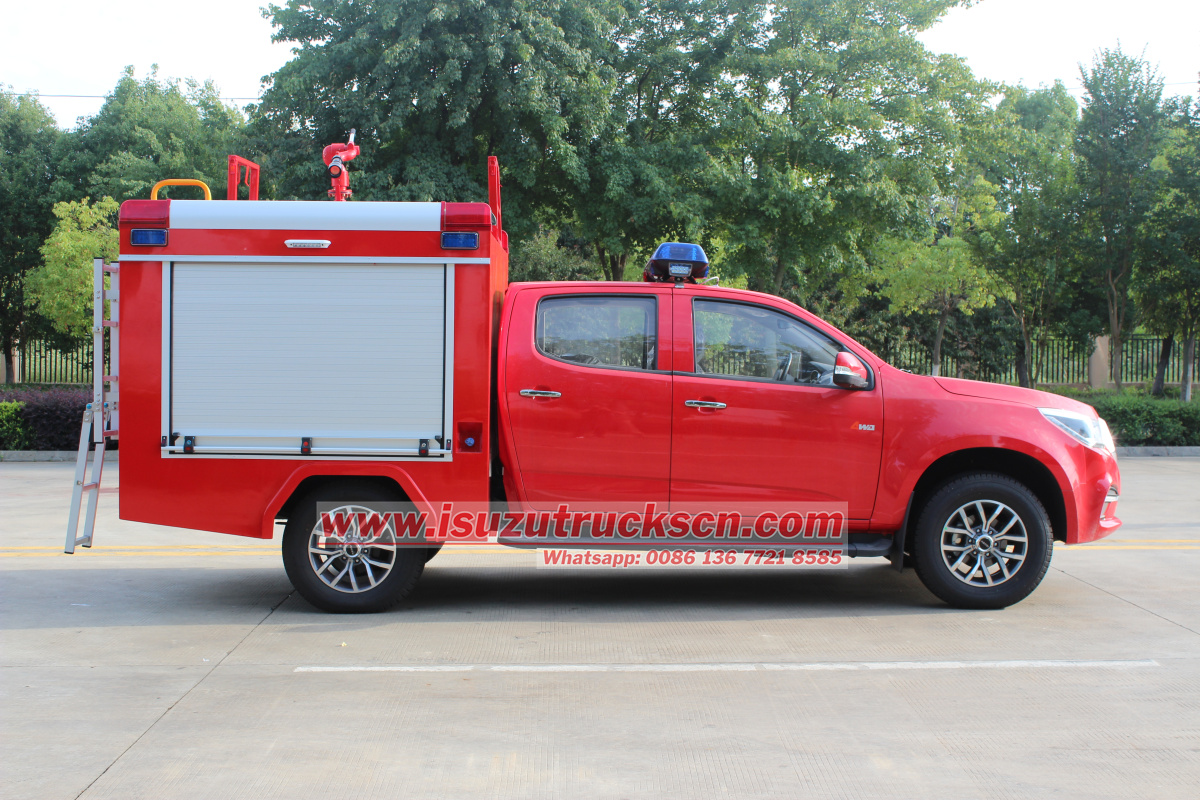

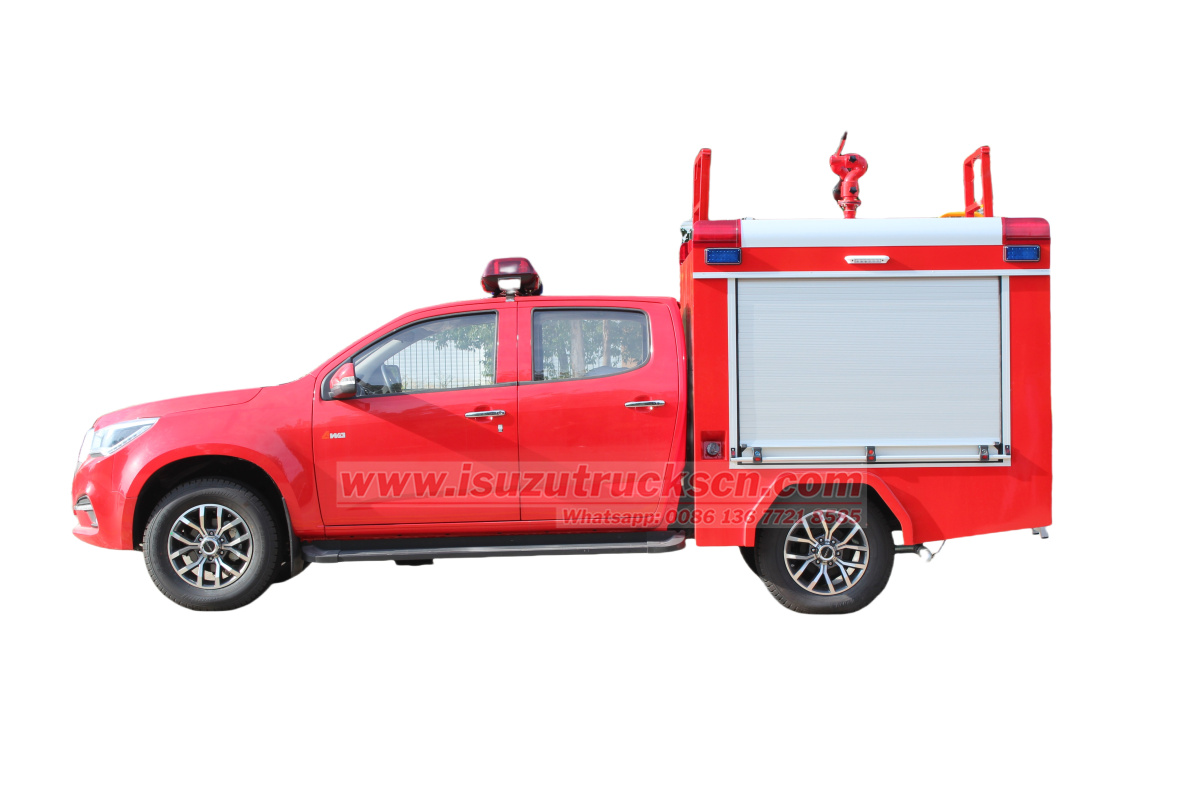

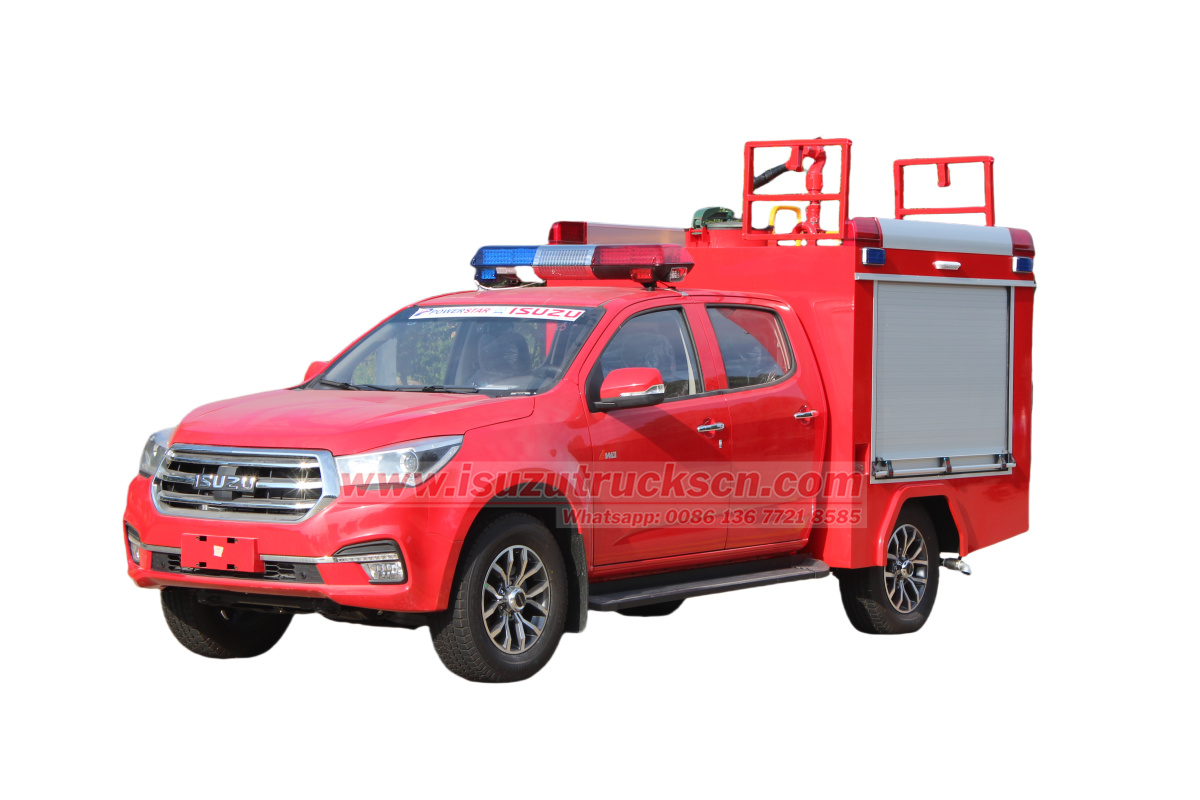

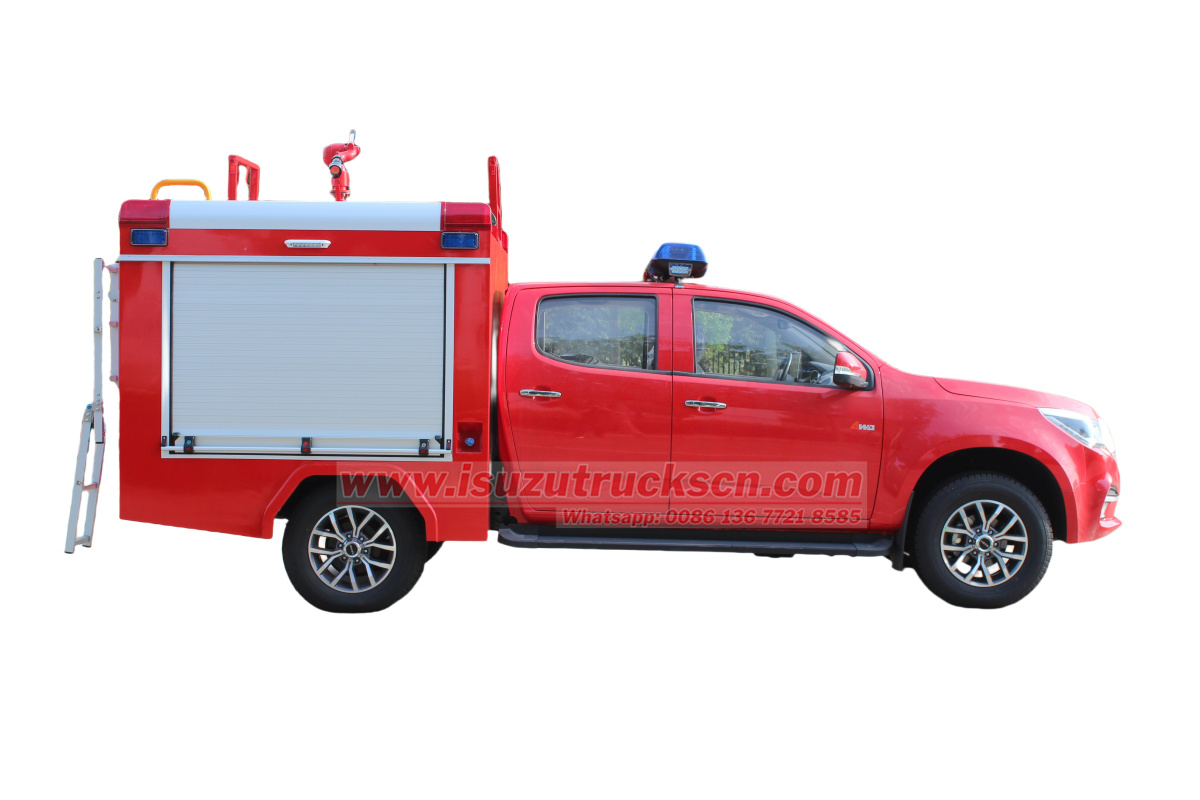

2025 New Isuzu 4x4 Fire Rapid intervention pickup, also named Isuzu small 4x4 fire pickup, The core target market of Isuzu 4x4 pickup fire truck is community fire stations, township emergency teams and other scenarios. It focuses on the ability to respond quickly in narrow streets and fills the gap of insufficient mobility of traditional large fire trucks. Relying on the 4x4 off-road chassis and plateau adaptability design, it is suitable for complex environments such as mountainous areas and high altitudes. Developed based on the D-MAX pickup chassis, the body length is less than 5.3 meters and the turning radius is small, which is suitable for old urban areas and narrow alleys in rural areas.
Manufacturer:
Powerstar TrucksWork capacity:
500L waterDimension:

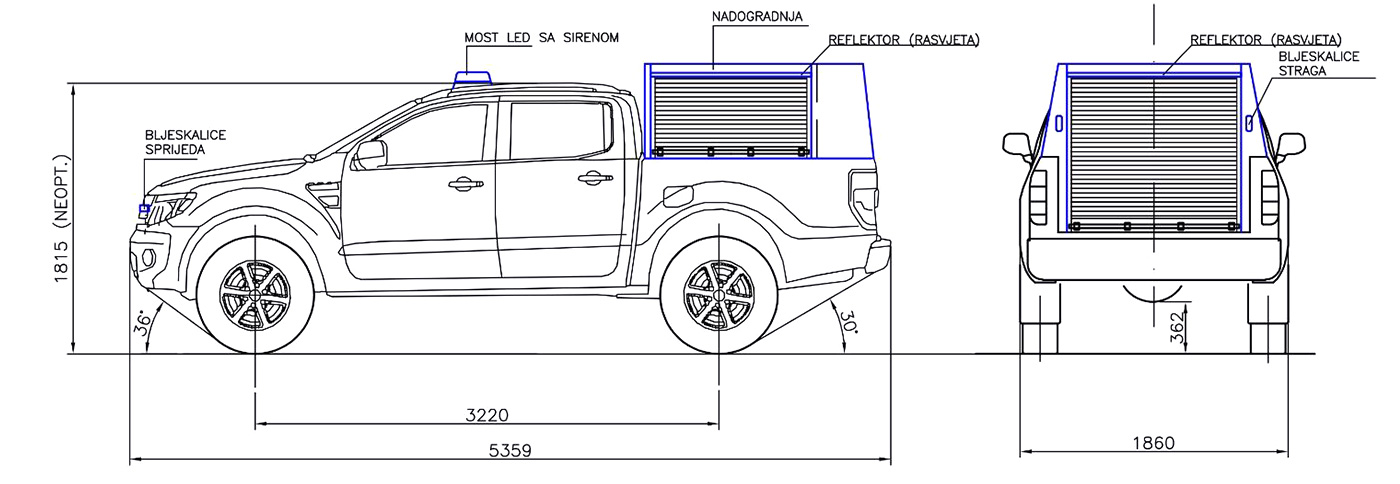

5359 x 1860 x 1820mmCabin type:
Isuzu D-MAX pickup double row cabinWheelbase:
3406mmEngine power:
143HPEngine type:
ISUZU 4KH1Axle drive:
4x4 drive for mountain road condtionGear box:
6-shiftRemarks:
Foam tank availalbeOn April 17, 2025, Powerstar Trucks officially released the new Isuzu 4x4 Fire Rapid intervention pick up, focusing on rapid rescue scenes in communities and narrow streets. This model is built on the Isuzu D-MAX off-road chassis, equipped with a 143-horsepower diesel engine and a 500L large-capacity water tank. It has both mobility and functionality, filling the technical gap in the small fire truck market.

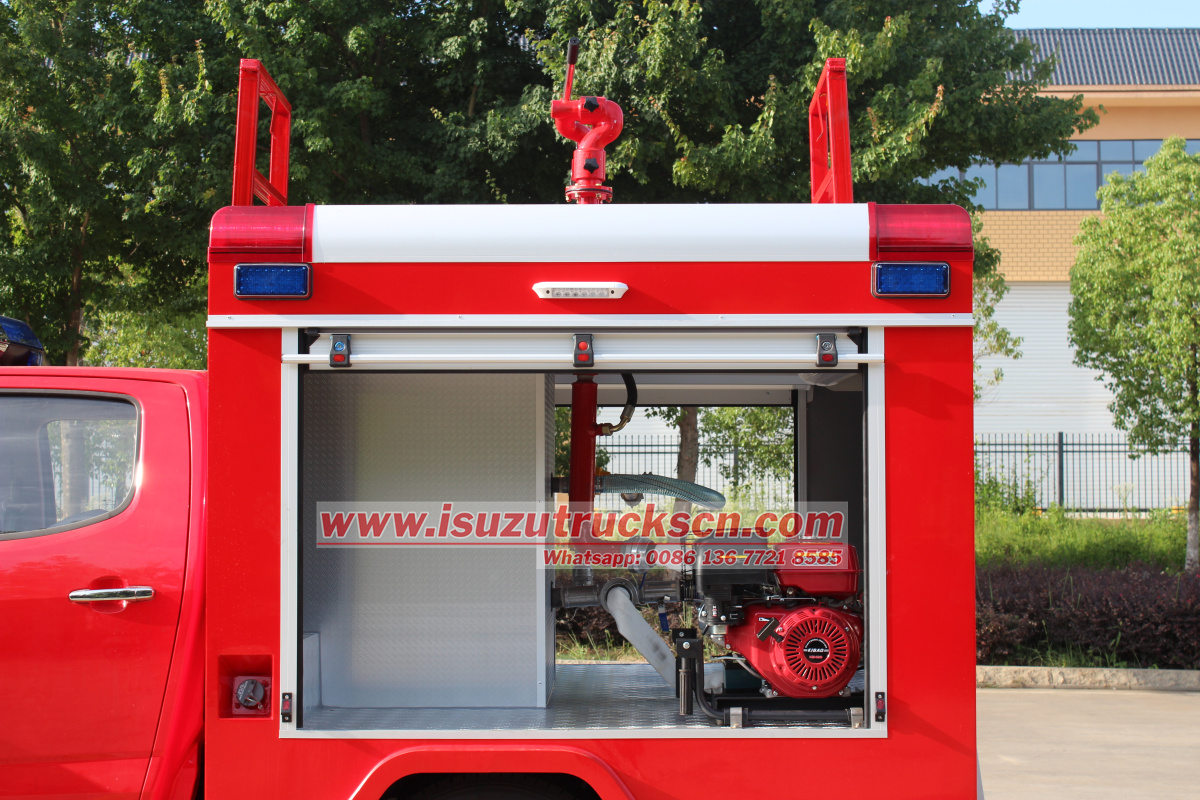

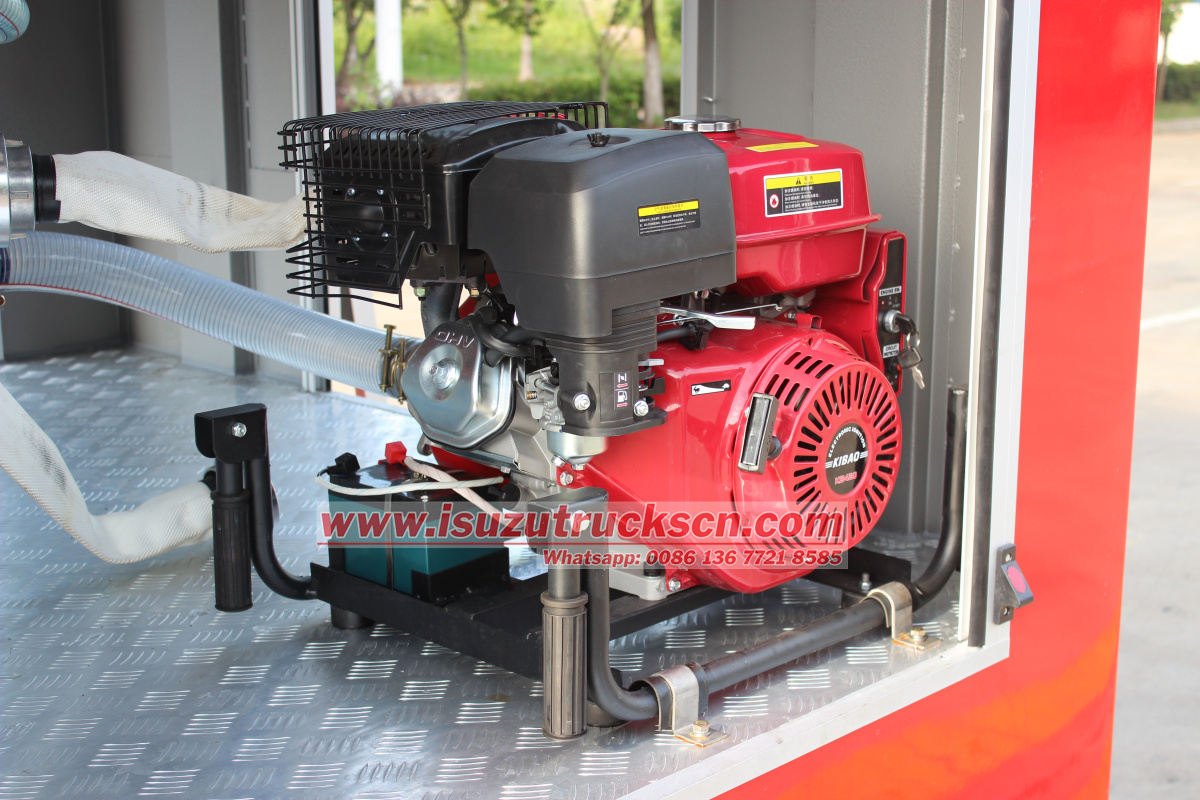

Hard-core off-road performance It uses the same 4x4 off-road chassis as the Isuzu D-MAX, with a minimum ground clearance of 230mm, an approach angle of 28°, and a departure angle of 25°, which can easily cope with rugged terrain. It is equipped with a 1.9T RZ4E diesel engine with a maximum power of 143 horsepower and a peak torque of 410 Nm. It is matched with a ZF 8AT gearbox and has a quick power response. Professional firefighting configuration The 500L water tank design meets the needs of initial fire fighting; the integrated high-pressure water pump system has a range of more than 30 meters.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China leading Isuzu fire truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
| 1. Chassis | |
| 1.1 | Chassis: ISUZU 4x4 chassis for fire applicaiton |
| 1.2 |
Engine: 2.1 Engine power: 105Kw 2.2 Engine model: ISUZU 4KH1CT6H1 2.3 Number of cylinders: 4 2.4 Emission Standard: China 6 (Euro 6) 2.5 Transmission (type): 6-speed automatic 2.7 Torque (Nm): 672 2.7 Fuel tank capacity (L): 80 2.8 Fuel type: diesel |
| 1.3 | Drive Manner:4×4 |
| 1.4 | Max. Speed(km/h):125 |
| 1.5 |
Cabin: 5.1 Structure:4 doors, original double row cabin 5.2 Seats:2＋3 |
| 1.6 | Wheelbase(mm): 3406 |
| 1.7 | Number of wheels: 4 |
| 1.8 | 5900*2083*2650 |
| 1.9 | Standard configuration: ABS/EBD/EBA/ASR/ESP, 360-degree panoramic image, reversing radar, keyless start system, keyless entry function, tire pressure alarm, uphill assistance, steep slope descent, electric adjustment of the main and passenger seats, Dual airbags, electric windows, electric adjustment of rear-view mirrors, up and down adjustment of steering wheel, large 8-inch center console color screen, driving computer display, Bluetooth/car phone. In addition, a winch is installed at the front of the vehicle and a rear trailer hook is installed at the rear of the vehicle. |
| 1.10 | Max. Weight: 2475kg |
| 2. Rear Superstructure | |
| 2.1 |
Structure: The carriage adopts high-strength PP-C composite material welding structure, which is modified on the basis of the original car body. Water tank capacity: 500L |
| 2.2 |

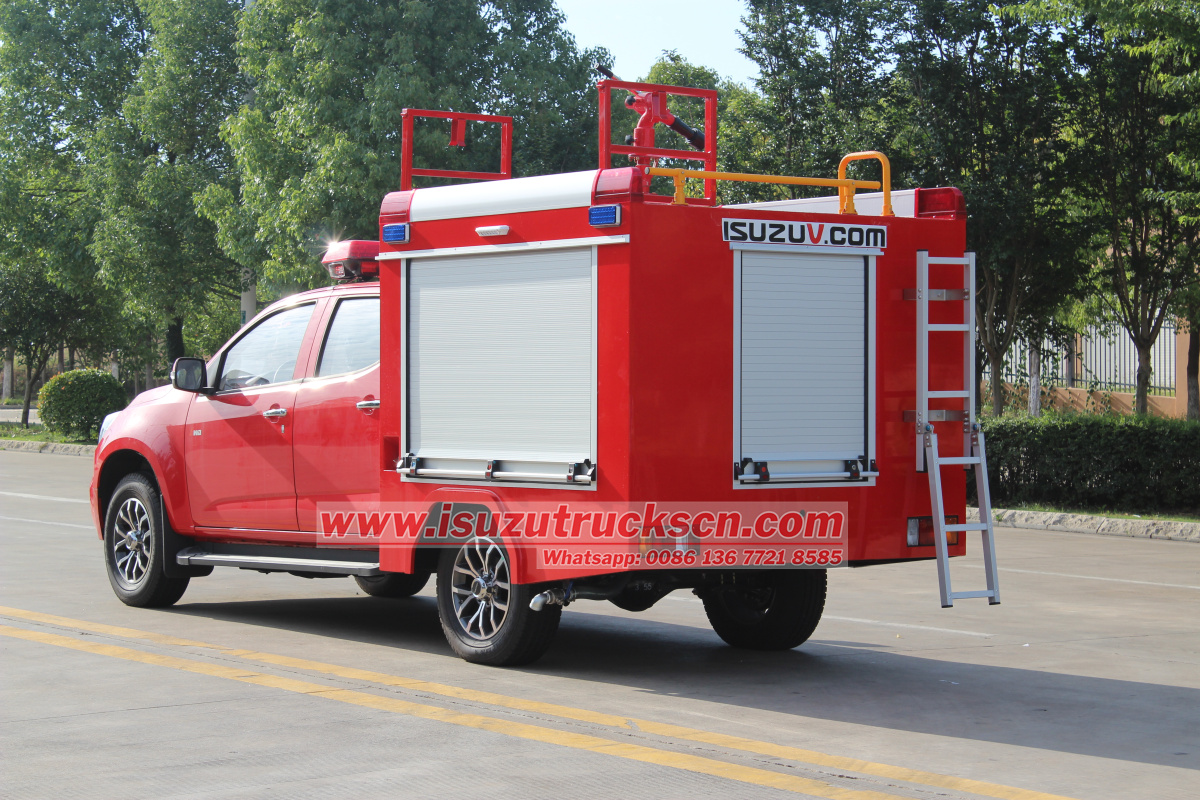

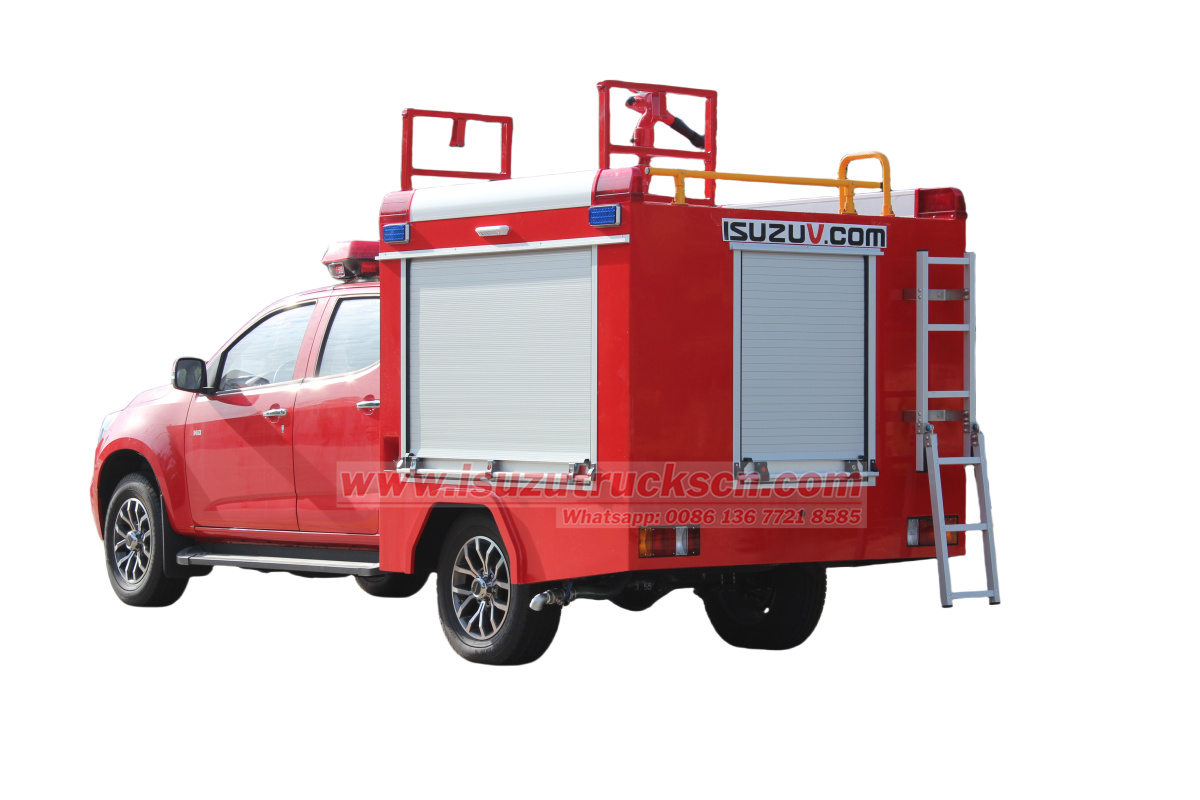

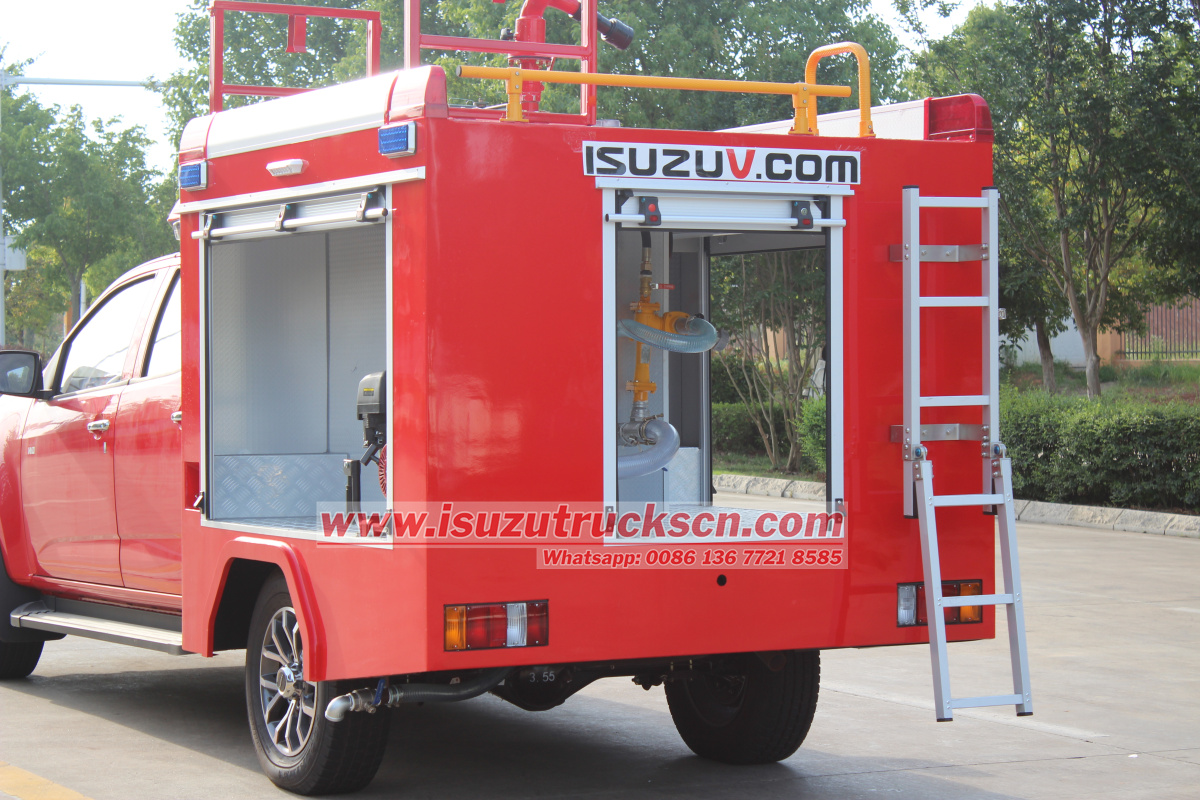

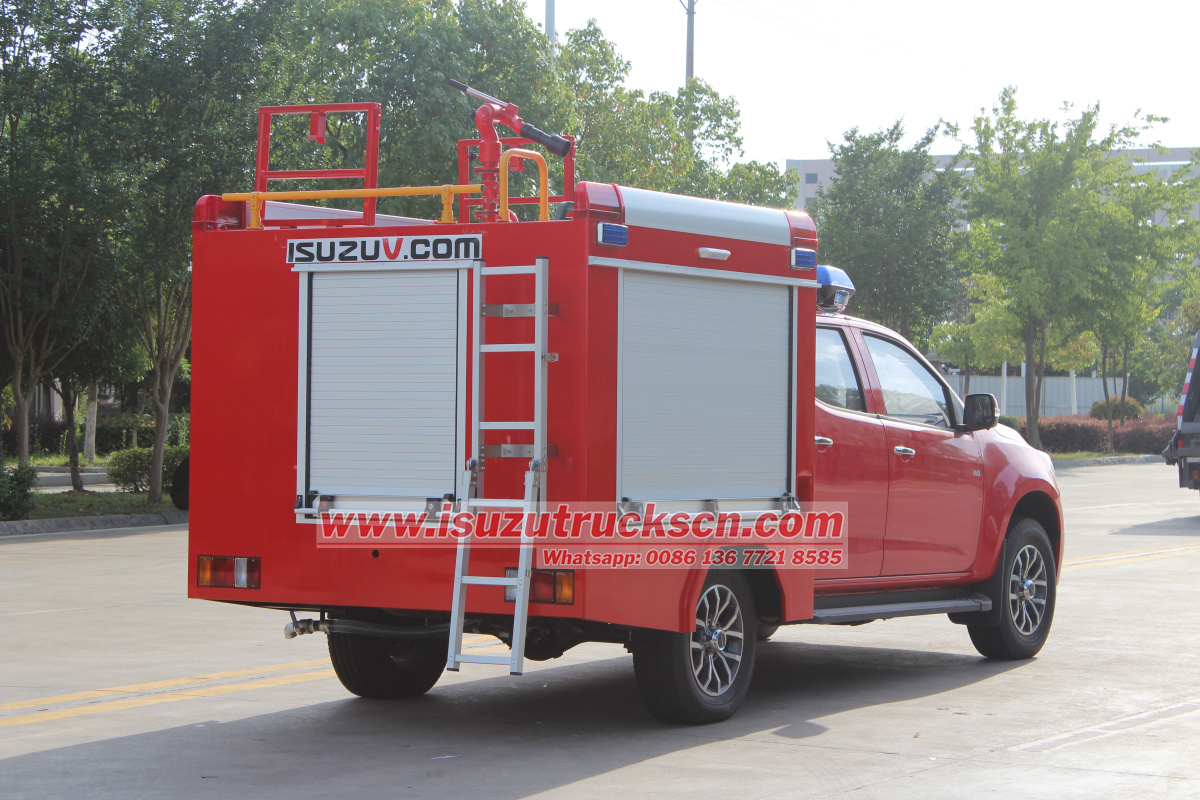

Equipment door: (1) There are 2 aluminum alloy rolling shutter doors on the left and right sides of the equipment box. The door frame is made of light high-quality aluminum alloy, which is flexible to open and close, good in sealing, low noise, beautiful in appearance, light and reliable. All rolling doors can be opened with one key . (2) The rear equipment box door adopts gas spring up and down door |

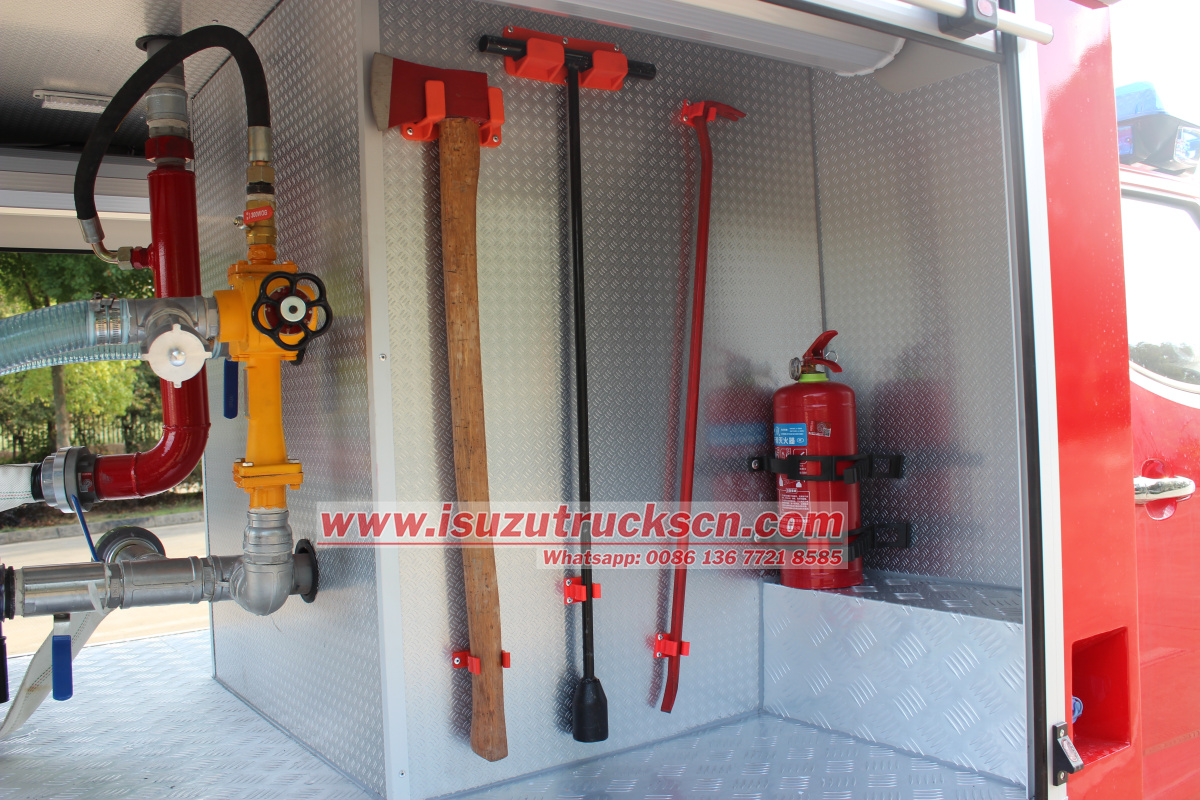

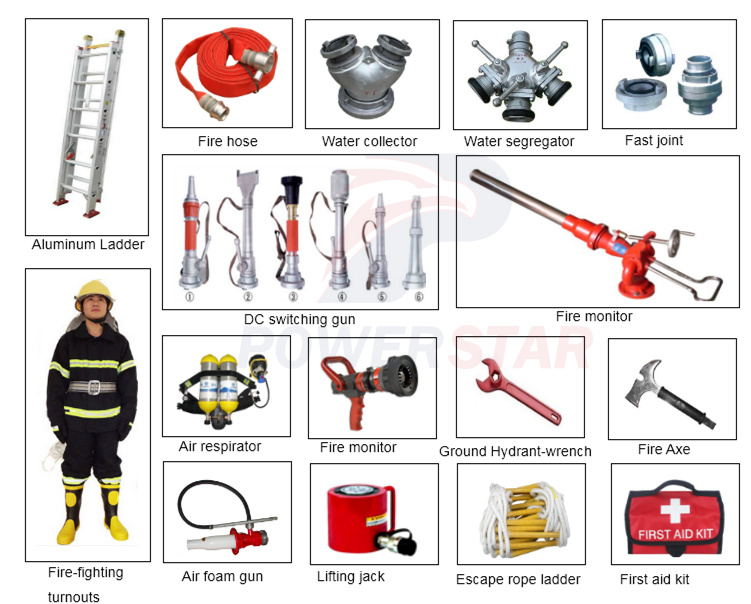

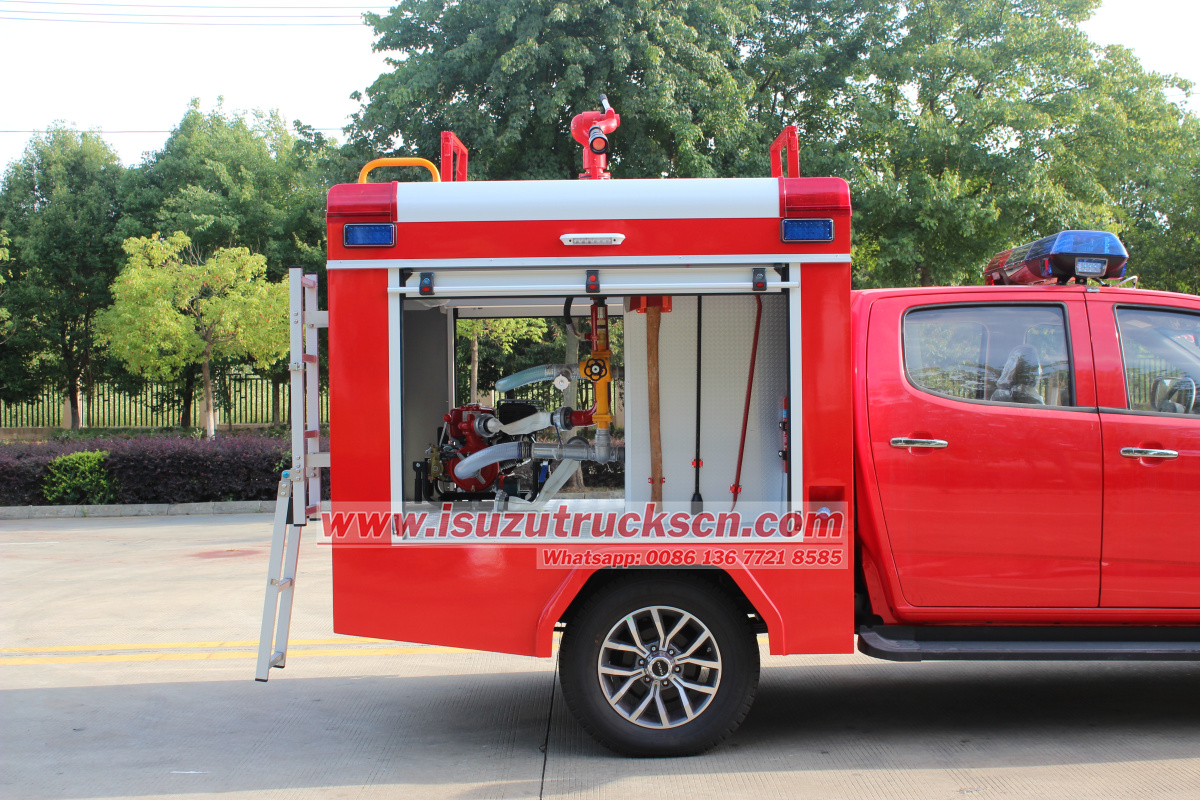

| 2.3 | Equipment layout: The left and right sides and the rear of the carriage can be equipped with hydraulic demolition, hydraulic support, detection, personal protection, and alert equipment. |
| 2.4 |
Equipment Layout Principle: ★ Design equipment integration according to battle organization and battle deployment; ★ Design various equipment brackets according to ergonomic principles; ★ Place the equipment according to the logical relationship and frequency of use; ★ Stand on the ground or pedals, take and place fire fighting equipment in 2 actions. |
| 3. Front Winch (Optional) | |
| 3.1 |
Brand: Champion Model: K8000XF Rated tension: 3629Kg |
| 3.2 | Traction wire: ∮8X29M |
| 4. Electrical system | |
| 4.1 |
Install 6 off-road lights on the front of the vehicle |
| 4.2 | The power of the alarm is 100W; the alarm and warning light circuits are independent additional circuits, and the control device is installed in the cab. |
| 4.3 | Two flashing lights are provided on the upper part of each side of the carriage. |
| 4.4 | There are two lights at the back of the equipment box. |
| 5.On-board equipment | |
| 5.1 | 5 sets of special warning tapes |
| 5.2 | On-board tool box 1 set |
| 6.Documents | |
| 1 | Vehicle Operation and Maintenance Manual |
| 2 | Vehicle Certificate |
The lightweight body structure, with a total length of less than 5.3 meters and a small turning radius, is suitable for complex environments such as old communities and narrow alleys.
Intelligent safety assistance
Standard L2 ADAS system, including cruise control and ESC body stability control, to ensure stability for high-speed rescue.
A new rough terrain mode is added to optimize torque distribution under mud/gravel road conditions.
Market positioning and competitive advantages
The pickup fire truck released this time targets grassroots fire stations and township emergency units, with "flexibility and efficiency" as the core selling point:
Outstanding cost performance: Referring to the starting price of 134,800 yuan for the civilian version of Isuzu D-MAX, the fire truck version is expected to be controlled in the 200,000 yuan range, which is lower than the cost of traditional small fire trucks.
Multi-function expansion: The equipment compartment interface is reserved, and demolition tools or medical equipment can be installed to meet the rescue needs of multiple scenarios.
