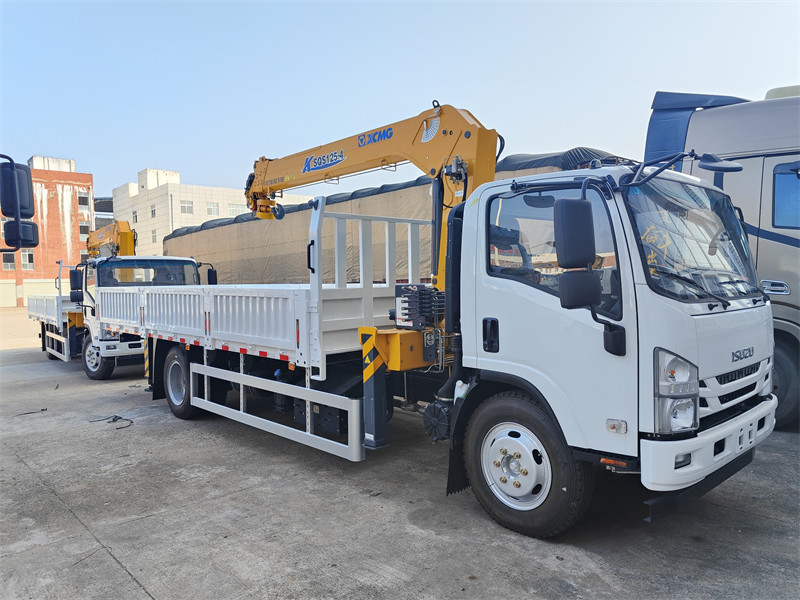

The ISUZU NPR 5-ton crane truck is a light-duty engineering vehicle built on an ISUZU NPR 4×2 chassis, powered by a 190HP diesel engine compliant with Euro VI emission standards. Equipped with an XCMG SQS125-4 four-section telescopic boom crane, it offers a maximum lifting capacity of 5 tons and 12m lifting height with 360° rotation. The 5000×2300×550mm carbon steel cargo box features cold riveting technology for enhanced load-bearing capacity. With overall dimensions of 7180×2300×2850mm and a 4175mm wheelbase at 11-ton GVW, it combines urban road accessibility with operational stability, making it ideal for construction material delivery and municipal engineering applications.
Manufacturer:
POWERSTARWork capacity:
5000 litersDimension:
7180×2300×2850Cabin type:
ISUZU ELF wide cabinWheelbase:
4175 mmEngine power:
190 HPEngine type:
4HK1-TCG61Axle drive:
4×2, left hand driveGear box:
MLD 6-speed,manualRemarks:
Palfinger, UNIC crane is optionalThe ISUZU NPR 5-ton crane truck is an integrated transport-and-lift solution built on an ISUZU NPR 4×2 chassis. Measuring 7180×2300×2850mm with a 4175mm wheelbase and 11-ton GVW, it perfectly balances urban maneuverability with operational stability. Powered by a 4HK1-TCG61 diesel engine delivering 190HP through a 6-speed manual transmission, it achieves 90km/h top speed. The white ELF 700P cabin accommodates 3 crew members with comfort features including AC and power windows.

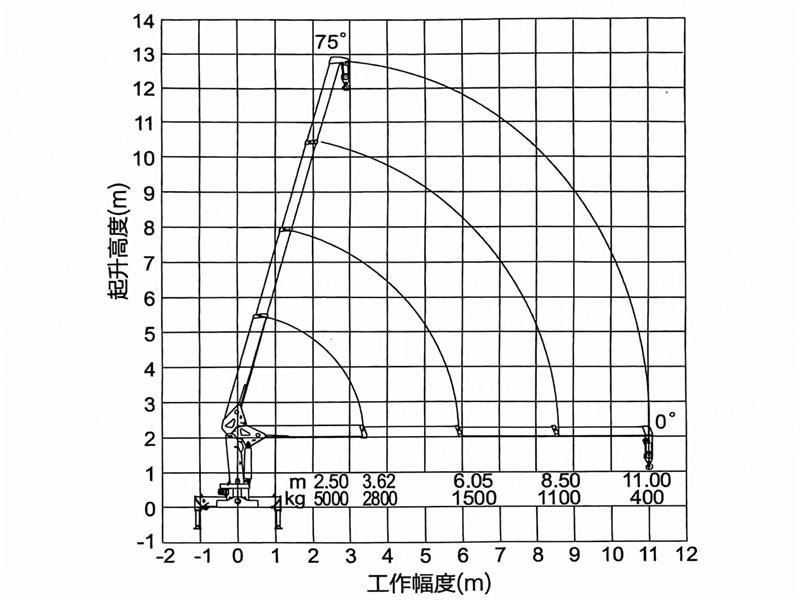

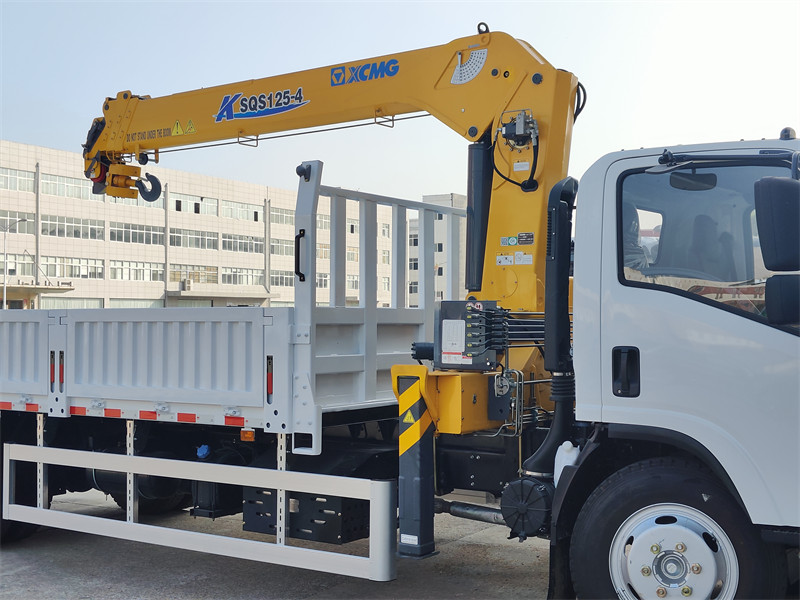

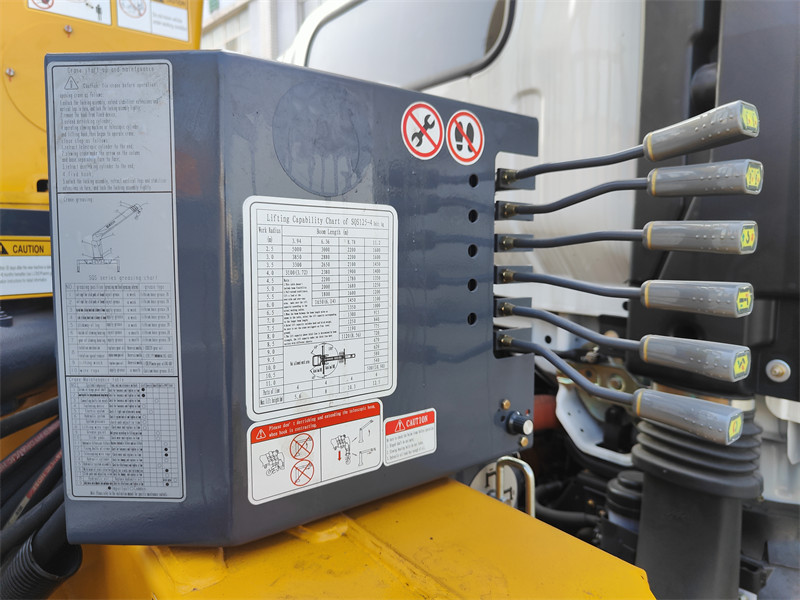

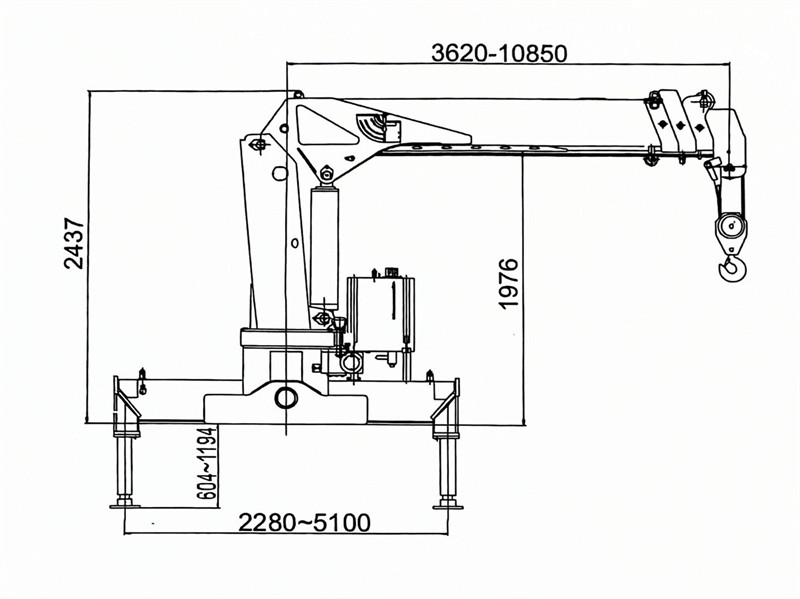

The upper structure of this ISUZU medium boom crane truck is equipped with the XCMG SQS125-4 4-section telescopic boom crane, crafted from high-strength alloy steel and optimized through finite element analysis to enhance structural integrity. With a maximum lifting capacity of 5 tons and a maximum lifting moment of 12.5 ton-meters, it meets the demands of most medium-to-small-scale equipment hoisting tasks. The fully extended boom reaches 12 meters, offering an 11-meter working radius, and paired with 360° full-rotation capability, ensuring seamless coverage of all surrounding work zones. The crane is equipped with four hydraulic outriggers spanning 5,100 mm, featuring automatic leveling during operation to guarantee stability during lifting. Additionally, the crane supports wireless remote control, enhancing safety in complex work scenarios.

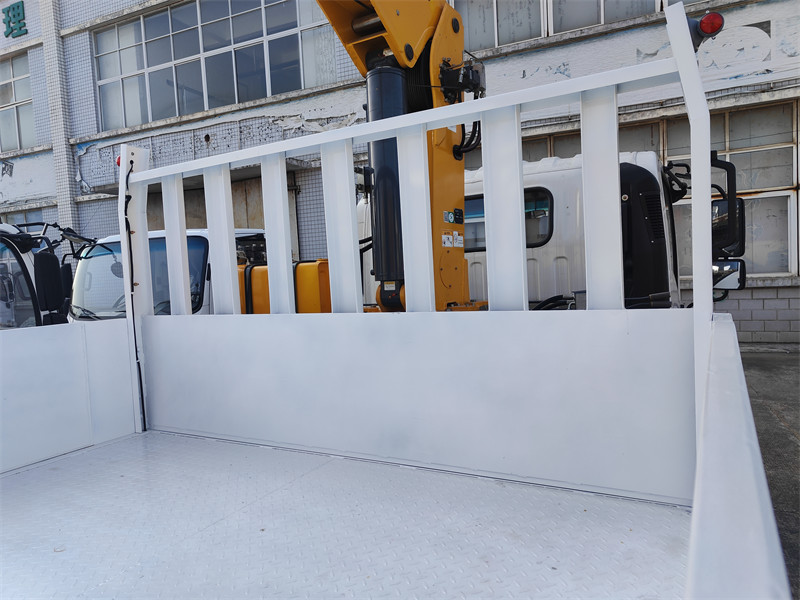

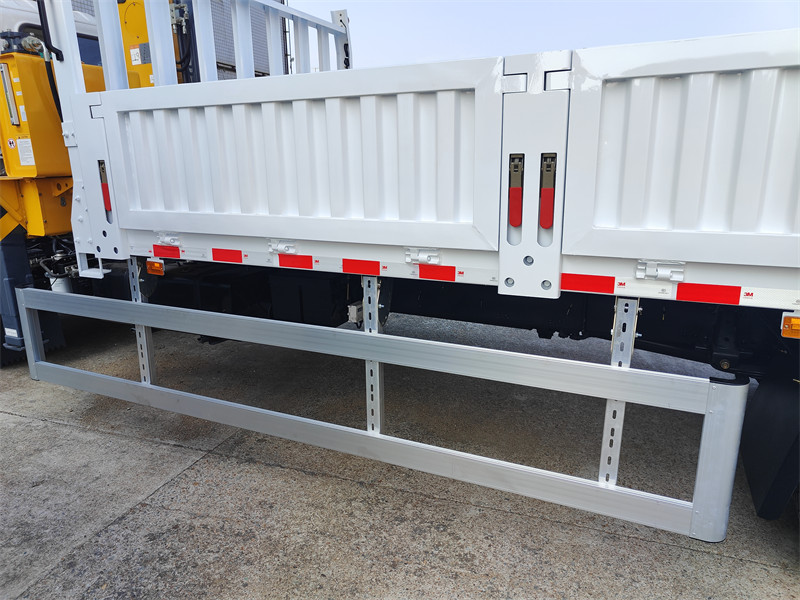

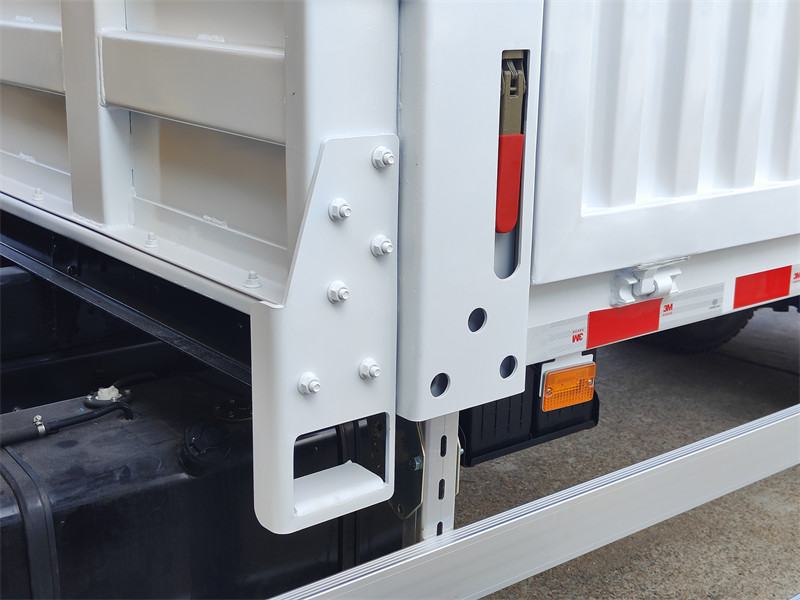

The cargo box of the ISUZU NPR boom crane truck is cold-riveted and molded as a single unit, measuring 5,000×2,300×550 mm (L×W×H) with a volume of approximately 6.3 cubic meters. It is ideal for transporting pipes, construction materials, small machinery, and other cargo. The box floor has a 4 mm thickness, while the side panels are 3 mm thick, with anti-slip grooves integrated into the interior. The tailgate is designed as a removable panel, facilitating efficient loading and unloading of diverse cargo types. Furthermore, anti-collision rubber strips are installed along the cargo box edges to prevent cargo damage during transit.
● China best Isuzu crane truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Prompt delivery, any order is welcome.
● 24 month quality guarantee term
Product Specifications
|
ISUZU NPR 5-ton transport boom truck specifications |
||
|
Model |
ISUZU5110JSQ3 |
|
|
Type |
4*2 |
|
|
Gross vehicle weight (kg) |
11000 |
|
|
Curb weight (kg) |
6500 |
|
|
Overall dimensions (mm) |
7180×2300×2850 |
|
|
F/R track base (mm) |
1680/1650 |
|
|
Approach / departure angle |
20/16 |
|
|
Max speed(km/h) |
90 |
|
|
Color |
White |
|
|
Chassis |
||
|
Wheelbase (mm) |
4175 |
|
|
Front axle |
4T |
|
|
Rear axle |
7T |
|
|
Brake |
Air brake |
|
|
Steering |
Power assisted |
|
|
Tire Specifications |
235/75R17.5 |
|
|
Nos of tire |
6+1 |
|
|
Engine |
||
|
Type |
4HK1-TCG61 |
|
|
Power |
140 kw |
|
|
Horse Power |
190 HP |
|
|
Displacement (CC) |
5193 |
|
|
Maximum torque |
507 N.m |
|
|
Maximum torque speed |
1600-2600 rpm |
|
|
Fuel Type |
Diesel |
|
|
Heating system |
Equipped |
|
|
Emissions standard |
Euro 6 |
|
|
Type of Engine |
4 cylinders, in-line, turbocharged, direct injection, water cooled |
|
|
Gearbox |
||
|
Model |
MLD |
|
|
Number of gears |
6 forward gears and 1 reverse |
|
|
Brand |
ISUZU |
|
|
Operating mode |
Manual |
|
|
Crane |
||
|
Brand |
XCMG |
|
|
Model |
SQS125-4 |
|
|
Max lifting weight(kg) |
5000 |
|
|
Section of the boom |
4 |
|
|
Max lifting moment |
12.5 T.M |
|
|
Rotation angle |
360° |
|
|
Max lifting height |
12 m |
|
|
Radius of working |
11 m |
|
|
Nos of outriggers |
4 |
|
|
Outrigger span |
5100 mm |
|
|
Cargo box |
||
|
Body dimension |
5000x2300x550 |
|
|
Material |
Carbon steel |
|
|
Cabin |
||
|
Model |
ELF 700P (NPR) |
|
|
Steering |
Left hand drive |
|
|
Seats |
3 |
|
|
A/C-air conditioning |
Equipped |
|
|
Others |
With FM radio, Central locking, electric windows, multi-function steering wheel, etc. |
|

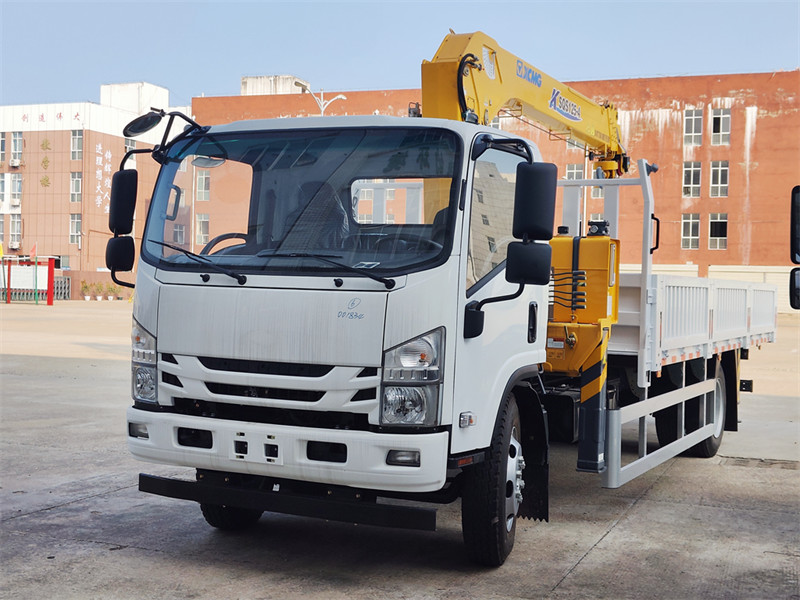

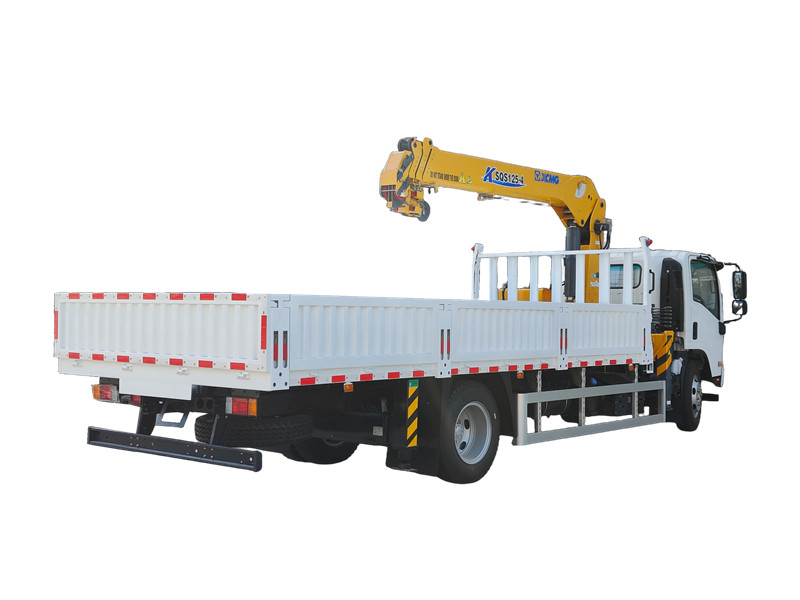

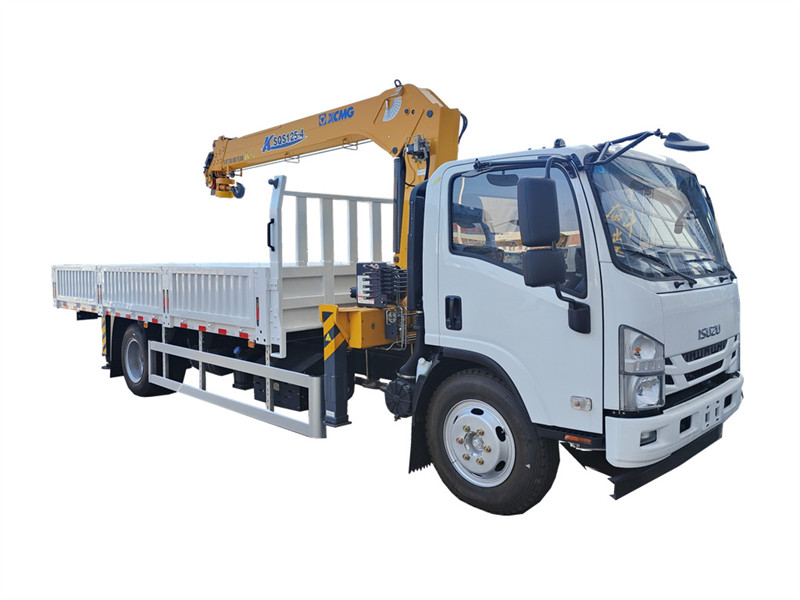

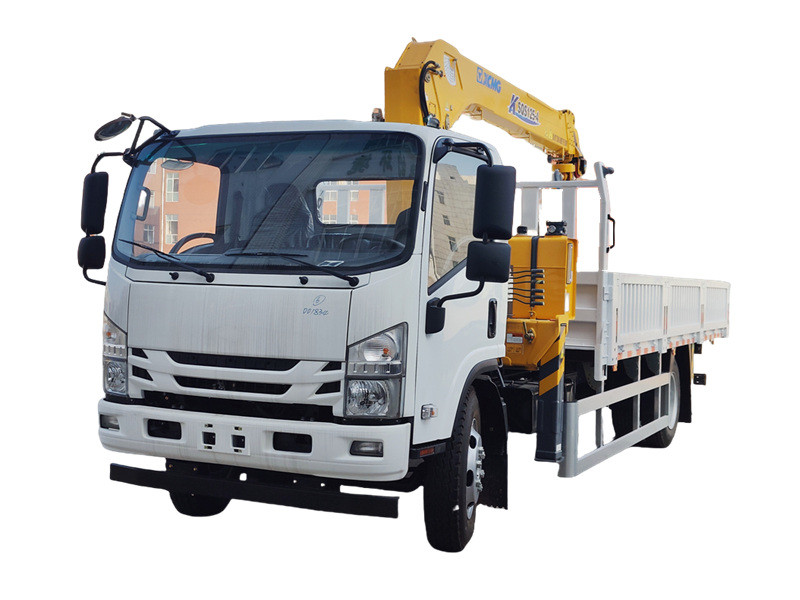

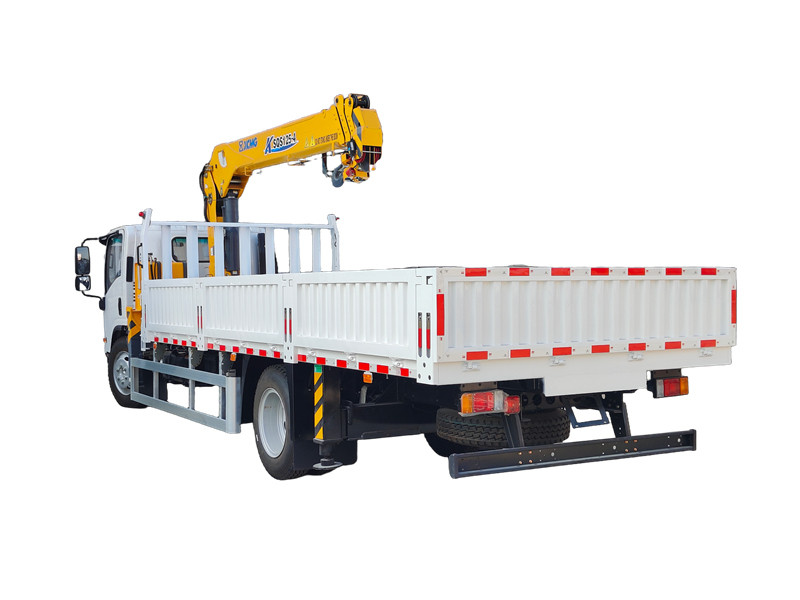

Product Pictures
