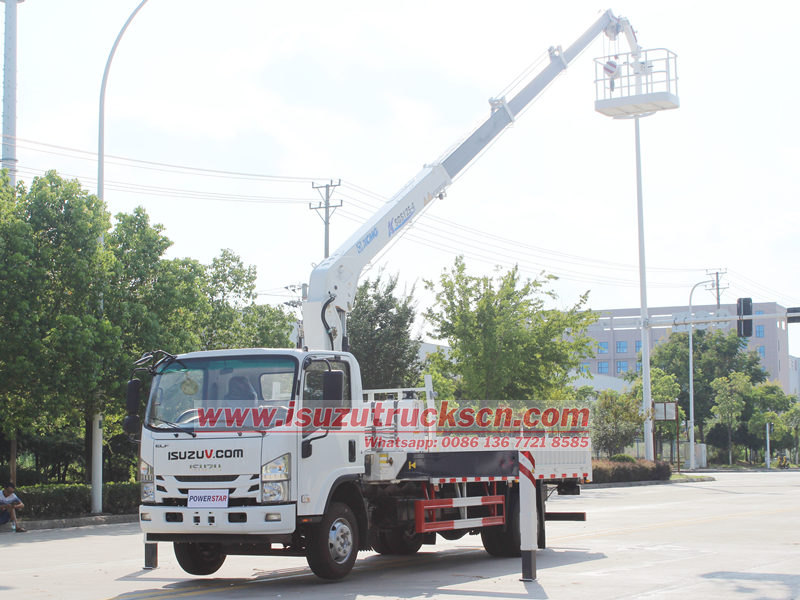

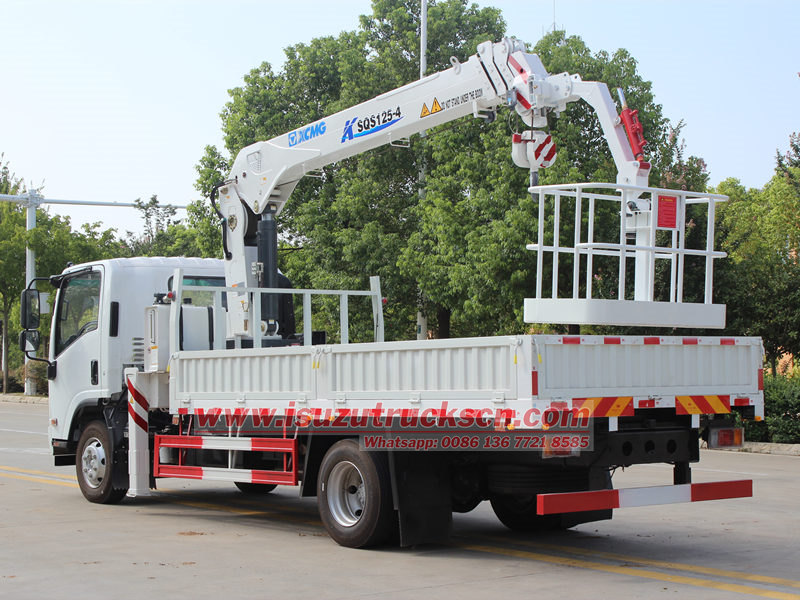

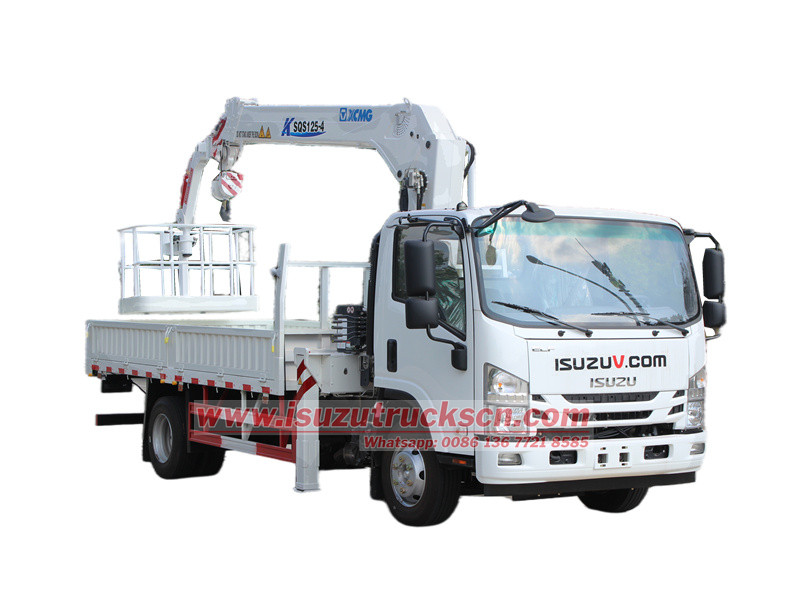

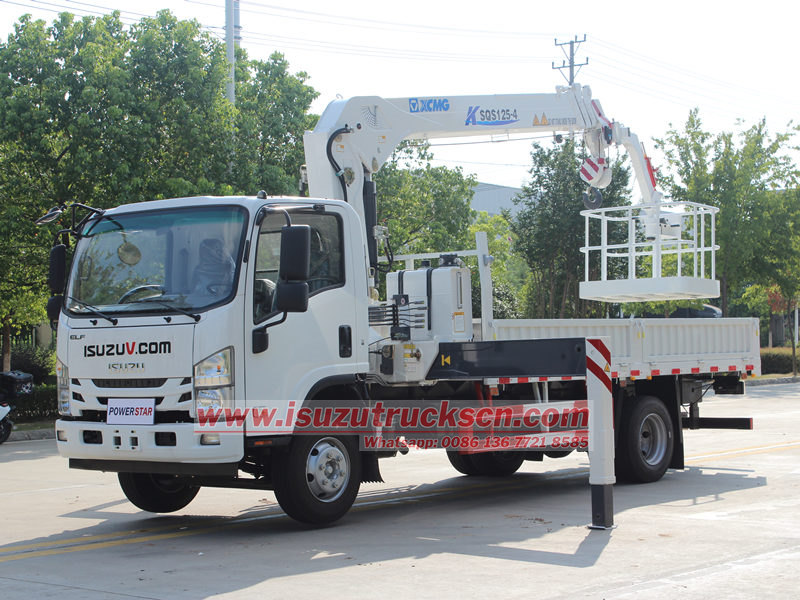

In the field of modern urban construction and industrial maintenance, there is a growing demand for efficient and versatile specialized vehicles. The ISUZU NPR truck-mounted crane with an aerial work basket stands out as a multifunctional model that integrates lifting, transportation, and aerial work capabilities. Leveraging its exceptional chassis performance, specialized upper-structure design, and user-friendly safety features, it has become the preferred equipment for industries such as power maintenance, municipal engineering, and landscaping. Built on the ISUZU NPR series 4×2 chassis, it is equipped with a XCMG SQS125 four-section telescopic boom crane and a 200kg-capacity aerial work basket, achieving comprehensive "multi-vehicle-in-one" application coverage.
Manufacturer:
POWERSTARWork capacity:
5 tonDimension:
7400×2300×3340 mmCabin type:
Single row cabin, 3 seatsWheelbase:
4175 mmEngine power:
190 HPEngine type:
4HK1-TCG61Axle drive:
4×2, left hand driveGear box:
MLD 6-speed,manualRemarks:
Palfinger, UNIC crane is optionalIn the fields of urban construction and equipment maintenance, the ISUZU NPR truck-mounted crane with an aerial work basket is gaining market favor with its unique multifunctional design. This professional vehicle, built on the ISUZU NPR 4×2 chassis, seamlessly combines cargo lifting and aerial work functions, offering an efficient solution for modern urban engineering.
The ISUZU NPR telescopic boom truck is meticulously designed with urban operational flexibility in mind. With a body length of 7400mm and a width of 2350mm, it can easily navigate through urban alleys. Powered by an ISUZU diesel engine delivering 190 horsepower, its 5.2L displacement provides ample torque at low RPMs. Paired with a 6-speed manual transmission, it balances power and fuel efficiency.

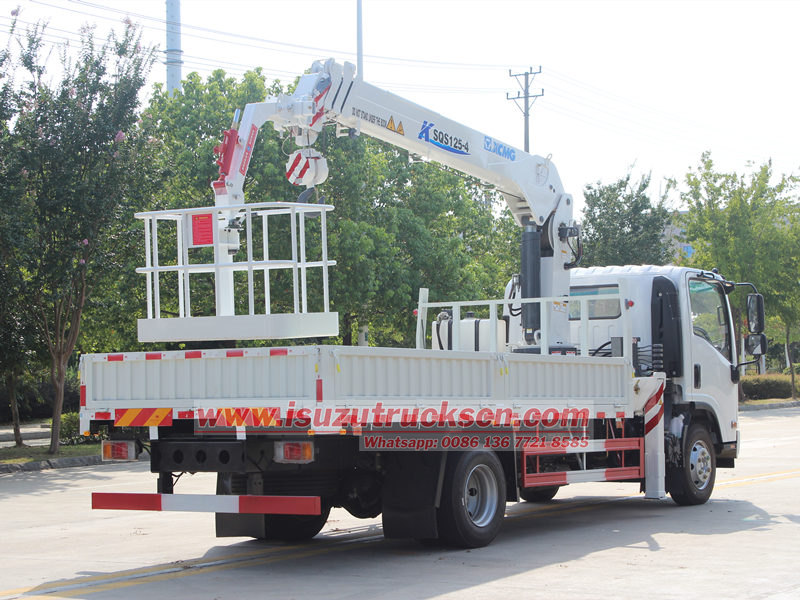

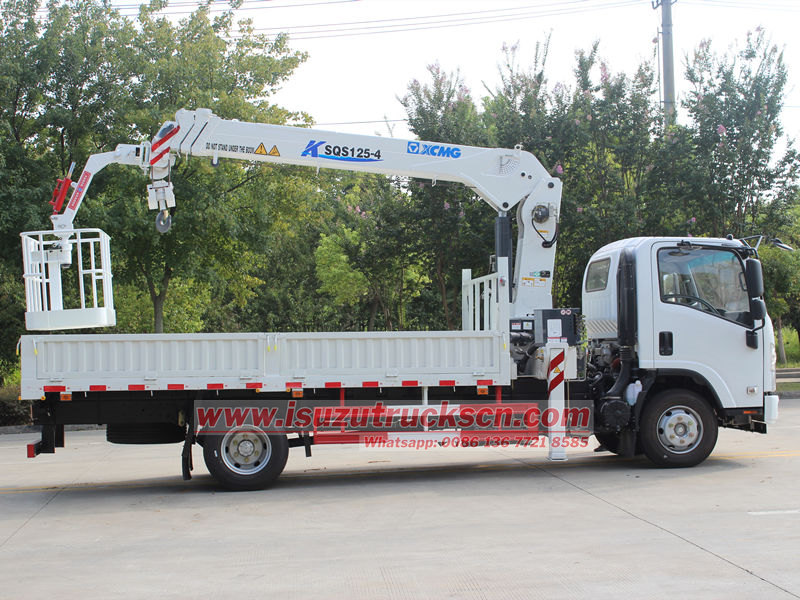

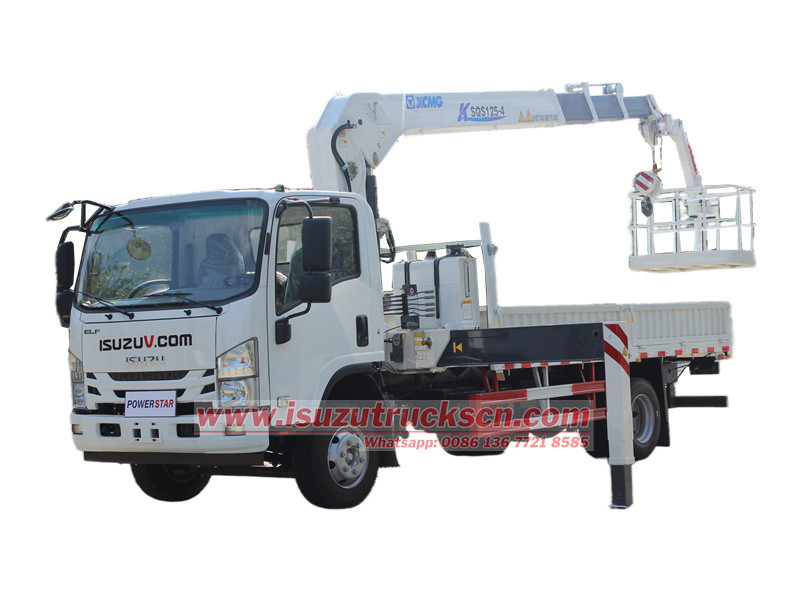

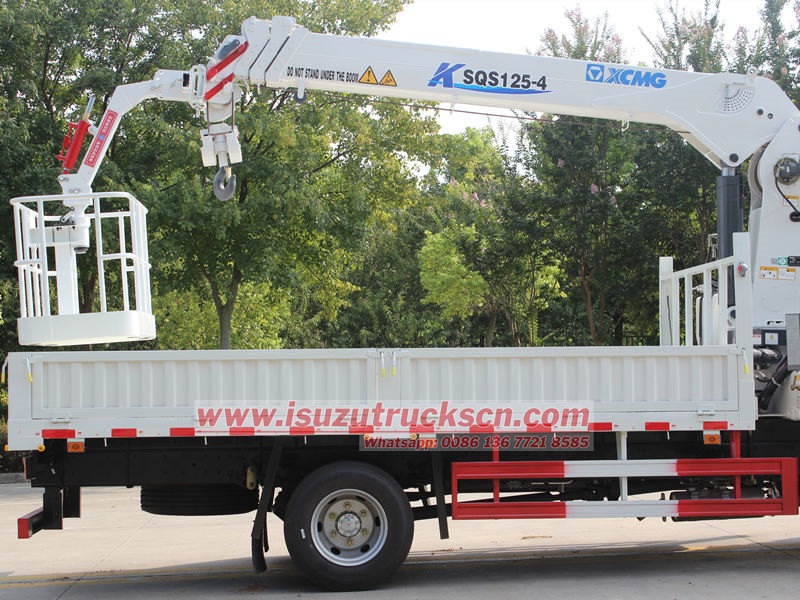

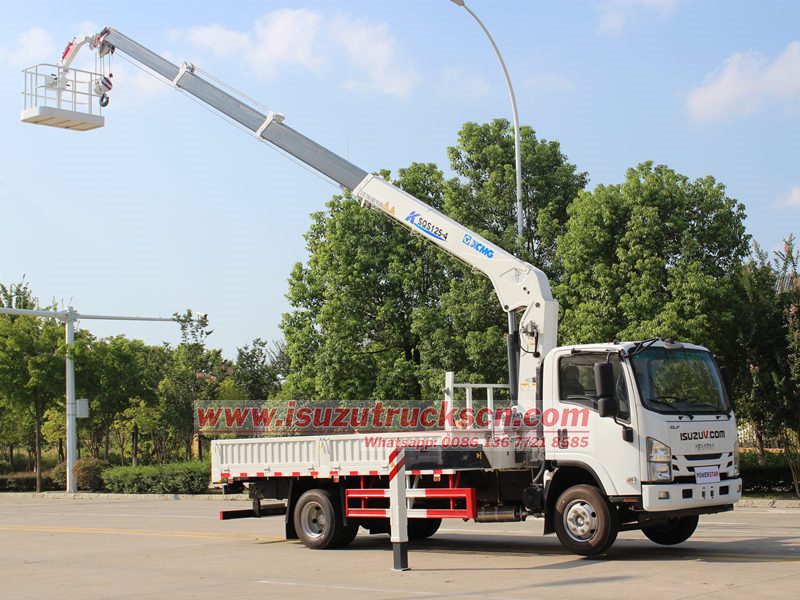

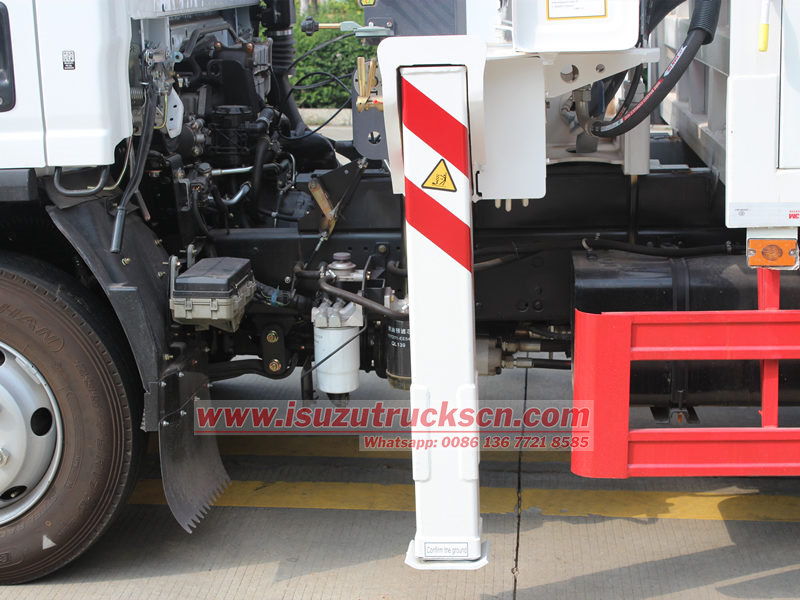

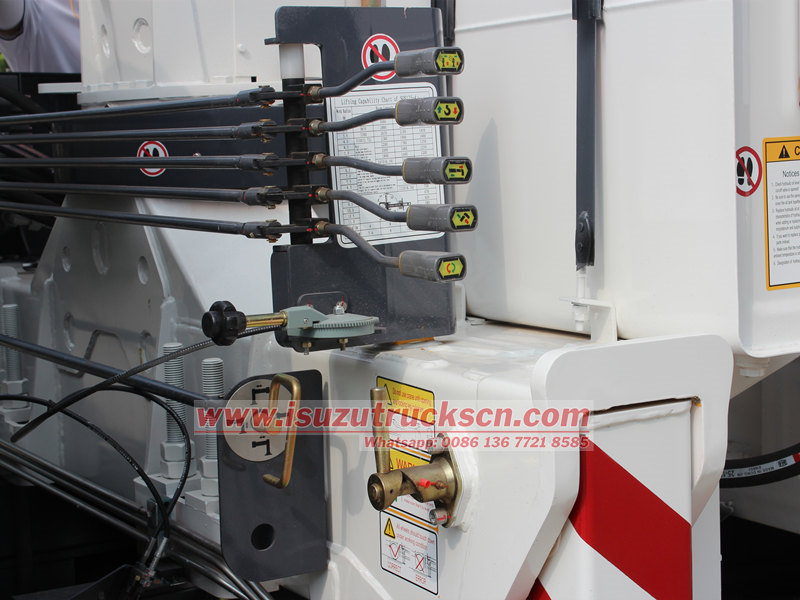

The XCMG SQS125 four-section telescopic boom crane is the core component of the ISUZU 5 ton lorry crane. With a maximum lifting capacity of 5 tons, a maximum working radius of 11 meters, and a fully extended height of 12 meters, it can meet the exterior wall operation needs of most urban buildings. The crane is fully hydraulically driven, with a working pressure of 20MPa and a 90L hydraulic oil tank, ensuring stability during continuous operations. Its 360° full-rotation capability, coupled with adjustable outrigger spans ranging from 2280mm to 5100mm, provides great convenience for operations in confined spaces.

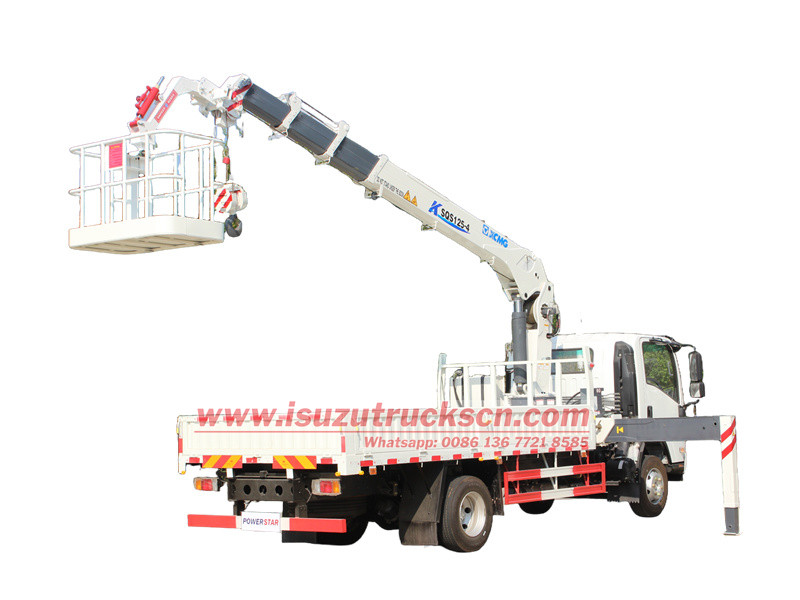

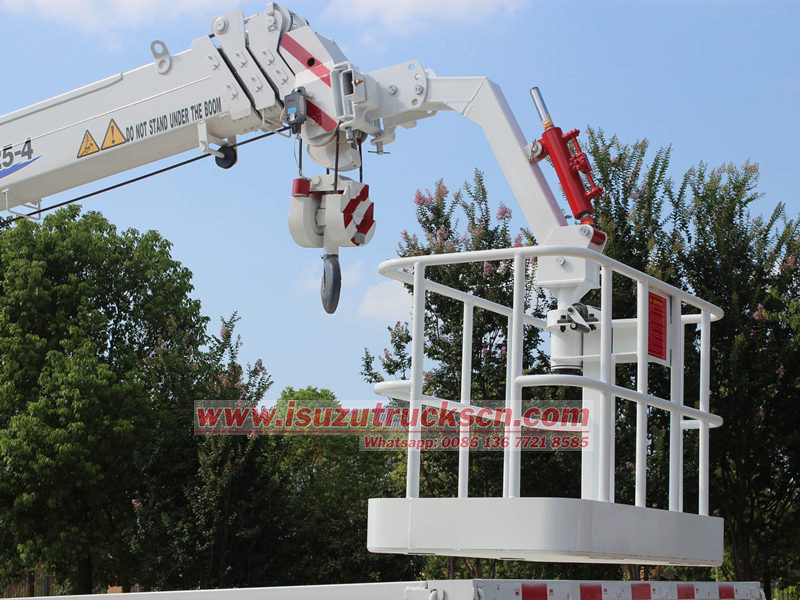

The aerial work basket, a standout feature, is crafted from carbon steel with a rated load capacity of 200kg, accommodating two workers and tools. The basket and crane are connected via a quick-release design, allowing installation and conversion within 10 minutes. In terms of safety, in addition to standard load limiters and hydraulic locking devices, it is equipped with an emergency descent system, enabling manual operation for a smooth descent in emergencies.
The cargo box of the ISUZU crane loader truck is manufactured using cold riveting technology, avoiding welding deformation and ensuring long-term precision. The box interior features multifunctional anchor points for flexible installation of various tool racks or material securing devices. Practical tests show that the cargo box can carry 5 tons of goods while still allowing the crane to operate normally, truly realizing a "transport + lifting + aerial work" trifecta.
● 30 years experience on road sweeper truck designing
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu boom crane truck factory
● Be designed according to your requirements
Product Specifications
|
ISUZU NPR crane truck with bucket specifications |
|||
|
Main specification |
Chassis brand |
ISUZU |
|
|
Overall dimension(L*W*H) |
7400x2300x3340mm |
||
|
Cargo box dimension |
4500x2300x550mm |
||
|
Chassis specifications |
Drive model |
4x2 Left hand drive |
|
|
Cabin |
ISUZU 3X wide cabin, with 3 seats, with A/C, power steering, central locking, electric windows, and multi-function steering wheel. |
||
|
Wheelbase |
4175 mm |
||
|
Tyre size & number |
235/75R17.5, 6pcs with one spare tyre |
||
|
Axles (Front/Rear) |
4000kg/7000kg |
||
|
Transmission |
Manual type, MLD, 6 forward and 1 reverse |
||
|
Frame |
Double layer |
||
|
Brake |
Air brake, with ABS |
||
|
Engine brand |
ISUZU |
||
|
Engine model |
4HK1-TCG61 |
||
|
Fuel type |
Diesel |
||
|
Engine power |
190HP/140KW |
||
|
Displacement |
5193 ml |
||
|
Emission standard |
Euro 6 |
||
|
Crane specifications |
|||
|
Crane brand |
XCMG |
Crane model |
SQS125 |
|
Crane type |
Telescopic boom |
Max. lifting capacity |
5 tons |
|
Section Number |
4 sections |
Rotation Angle |
360° all Rotation |
|
Max lifting height |
12 m |
Max working radius |
11 m |
|
Max pressure of hydraulic system |
20 Mpa |
Oil tank capacity |
90 L |
|
Outrigger span |
2280~5100 mm |
Crane weight |
2260 kg |
|
Bucket material |
Carbon steel |
Bucket load |
200 kg |
