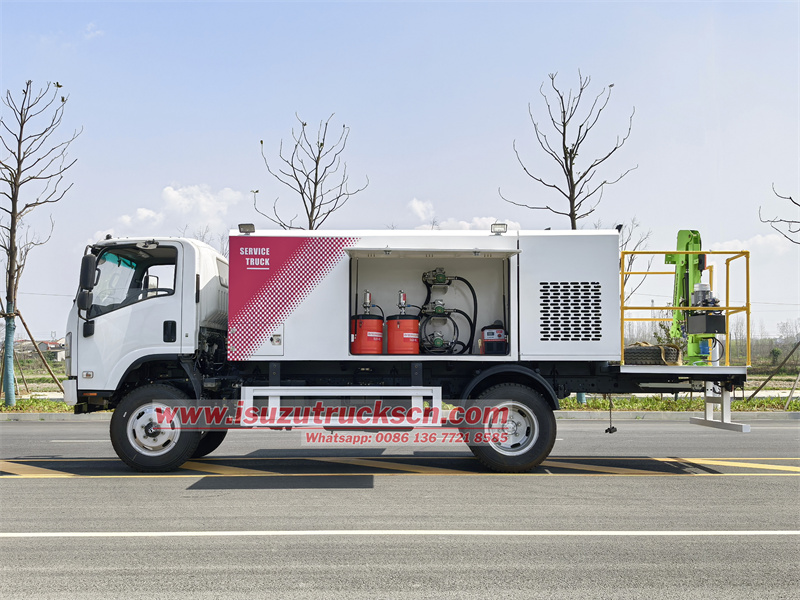

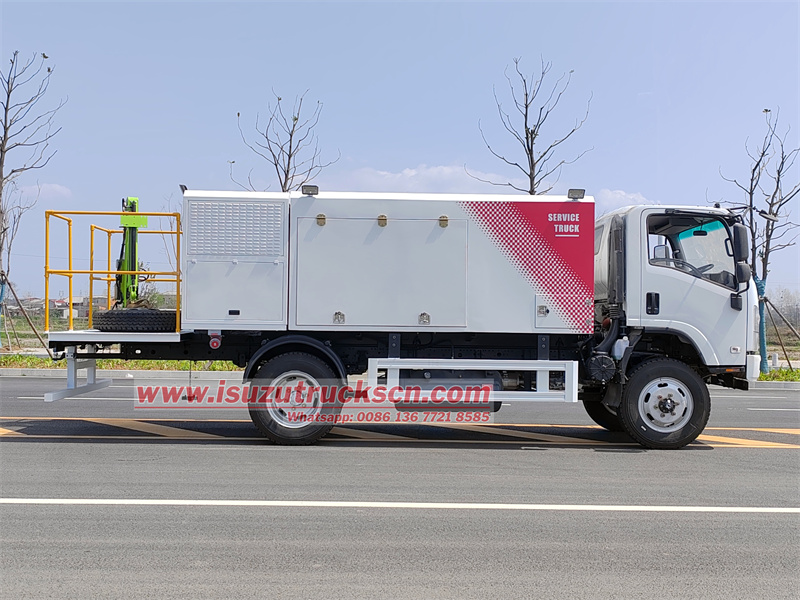

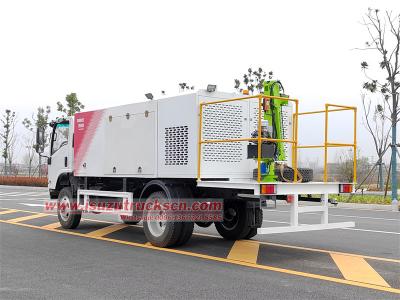

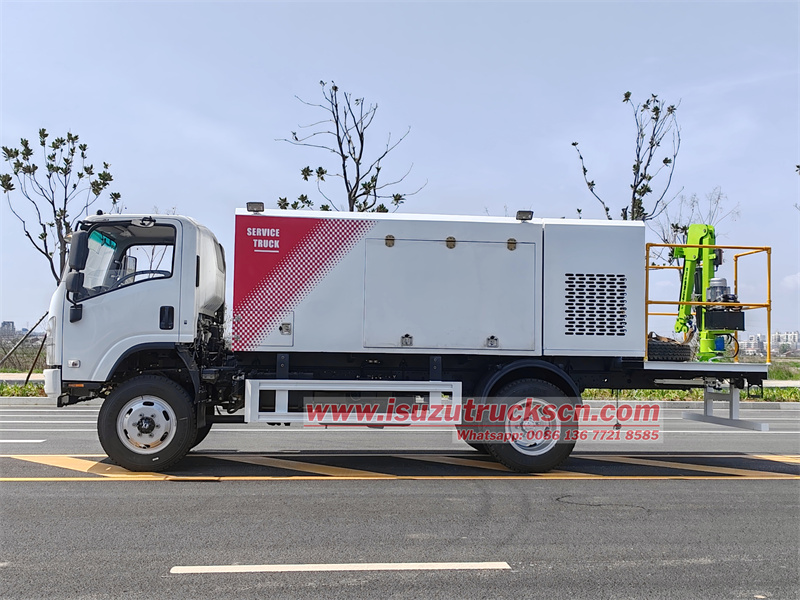

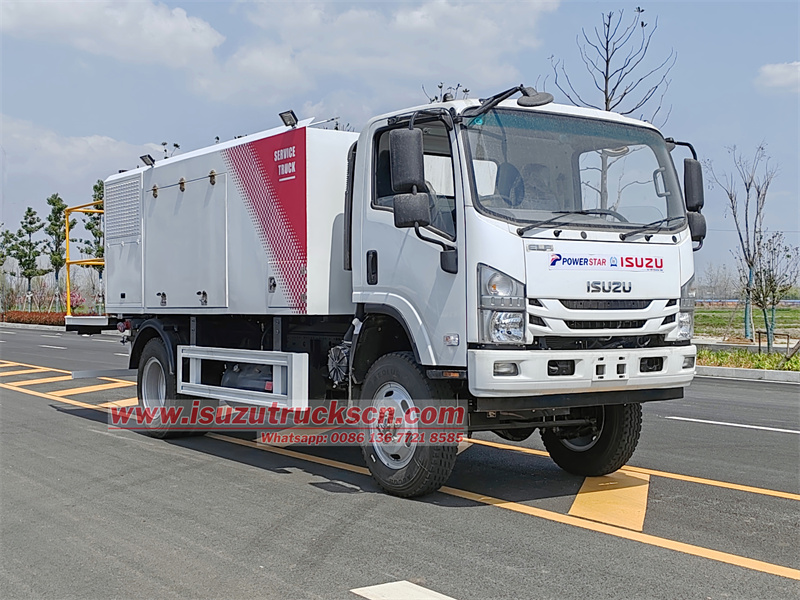

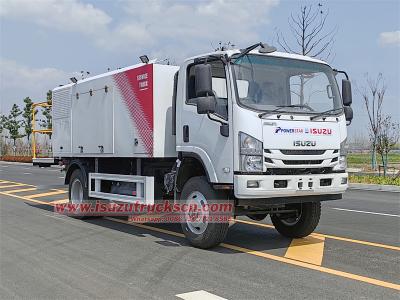

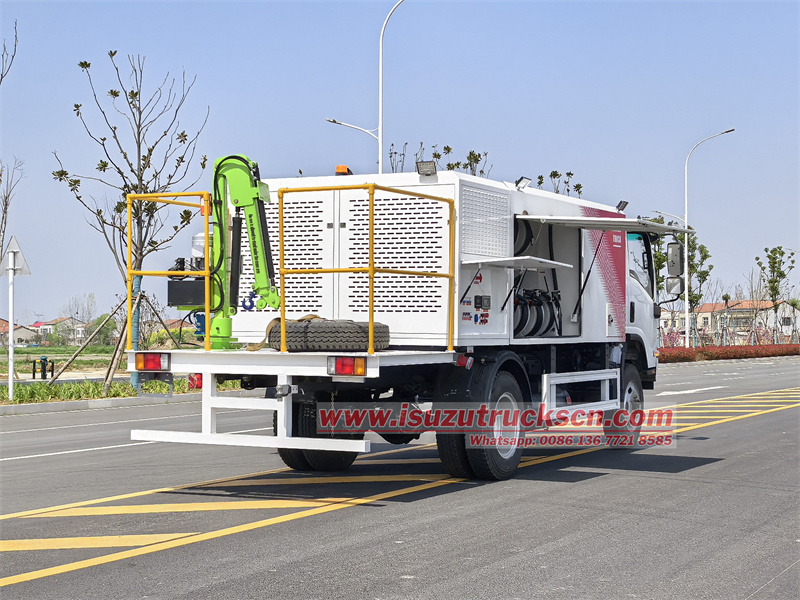

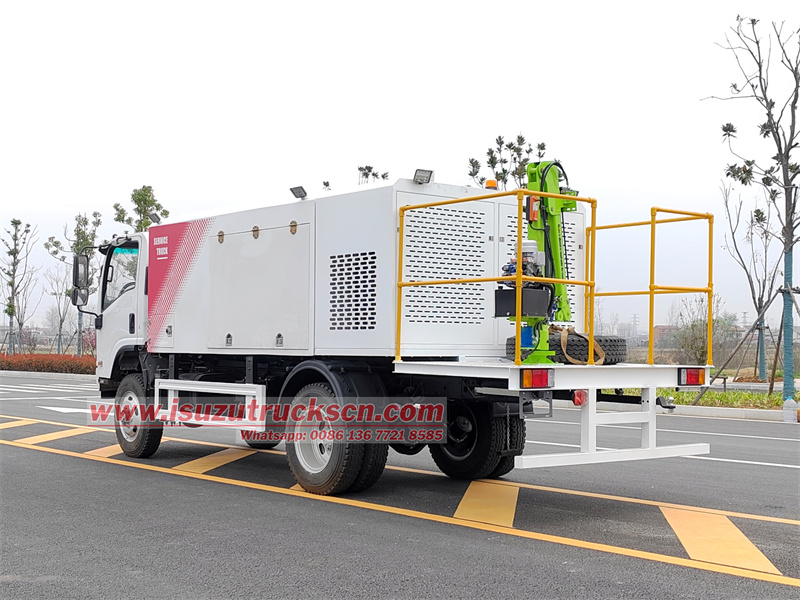

The Isuzu 5000L fuel lubrication service vehicle is built on a 700P 4x4 RHD automatic transmission chassis, equipped with a 4HK1 engine and an Allison 1000 transmission. The superstructure features tanks for diesel, oil/antifreeze/waste, and grease, integrating electric/pneumatic pumps and a filling reel for rapid and precise replenishment. The vehicle is equipped with a diesel generator and air compressor, providing stable power and pneumatic support. Functional operation is achieved through a rear-mounted intelligent control panel, meeting the integrated fuel lubrication needs of field engineering, mining operations, and other scenarios.
Manufacturer:
Powerstar TrucksWork capacity:
5000LDimension:
7440x 2280 x 2600 mmCabin type:
Isuzu NPR 700P 4X4 RHD Automatic cabWheelbase:
3815mmEngine power:
190HP/139kWEngine type:
ISUZU 4HK1-TCG61Axle drive:
4x2,LHDGear box:
Allison 1000 transmission,AutomaticRemarks:

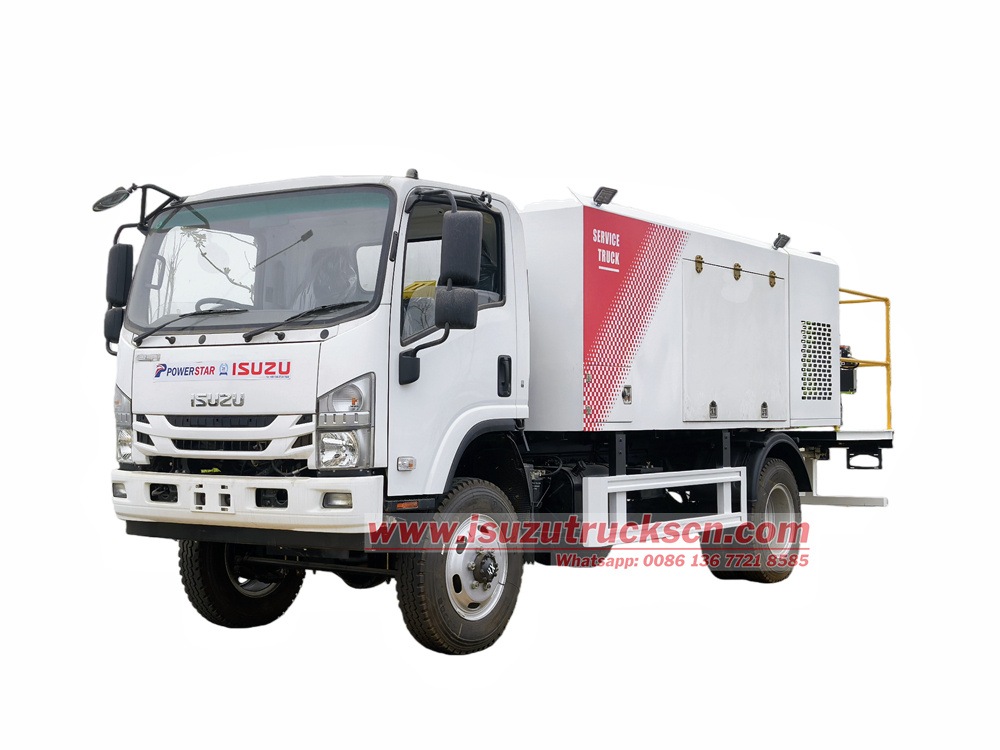

Multi-functional Fuel Service & Maintenance VehicleThe ISUZU 5000L Lube and Diesel Combo Truck is an integrated multi-media refueling and waste oil recycling vehicle. It is built on the Isuzu 700P all-wheel drive right-hand drive automatic transmission chassis, with a total 5000L fuel effective volume. The vehicle is equipped with a generator set, air compressor, welding machine, crane, and external power interface. which is controlled and operated by the generator set and air compressor. It is suitable for one-stop fuel, lubrication, and cooling system replenishment and waste oil recycling in mining areas, airports, ports, engineering vehicle fleets, and field operations, as well as emergency power supply, welding, small goods lifting, tire inflation, etc. It is reliable in power, easy to operate, and highly efficient in operation.
▶ Product Features:
• Isuzu NOR 700P 4X4 RHD Automatic chassis, 4HK1 engine
• Diesel, oil,antifreeze,waste and grease tank, various oil products
• Diesel generator and air compressor,Crane,Welder,various maintenance equipment

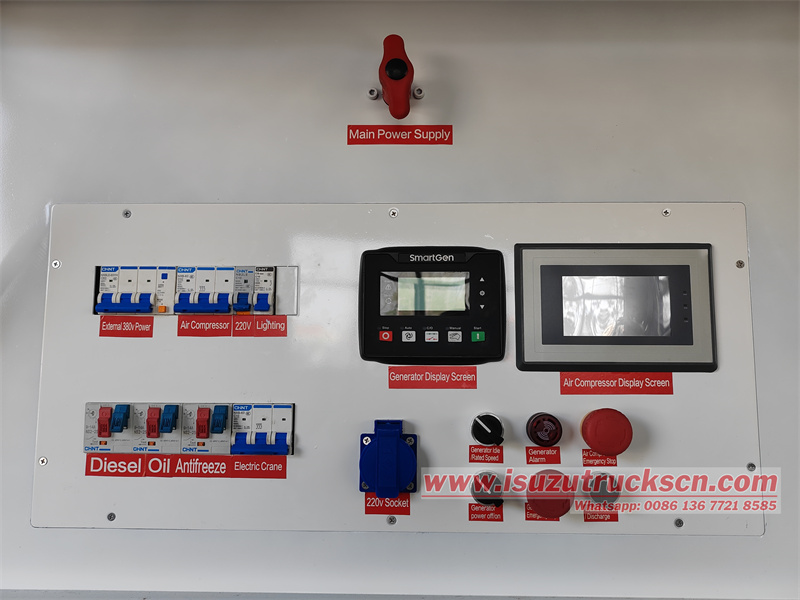

• Integrated control panel, simple and easy to operate
▶ Product Parameters:
|
Isuzu 700P 4X4 RHD Automatic 5000L fuel lubrication service truck |
|||
|
General |
Wheelbase |
3815mm |
|
|
Dimensions |
7440x2280x2600 mm |
||
|
Cab |
Isuzu 700P 4x4 RHD Automatic type |
||
|
Transmission |
Automatic gearbox |
||
|
|
Model |
Isuzu 4HK1-TCG61 |
|
|
Horsepower(HP) |
190HP/140kw |
||
|
Emission standard |
Euro 3 (remove DPF and ADblue system) |
||
|
Fuel tank |
Tank material |
Tank material:Q235 high tensile strength steel. |
|
|
Thickness |
Side 5 Bottom 6(mm) |
||
|
Tank capacity |
Diesel |
3420L |
|
|
Oil |
500L |
||
|
Antifreeze |
500L |
||
|
Waste |
500L |
||
|
Grease |
2x40L |
||
|
Hose reels |
Diesel Hose Reel : with 15m 32mm Diameter Hose and refueling gun |
||
|
Oil Hose Reel : with 15m 32mm Diameter Hose and refueling gun |
|||
|
Antifreeze Hose Reel : with 15m 25mm Diameter Hose and refueling gun |
|||
|
Waste Hose Reel : with 15m 25mm Diameter Hose |
|||
|
1 spare Hose Reel: with 15m 32mm Diameter Hose |
|||
|
2 spare Hose Reel: with 15m 25mm Diameter Hose |
|||
|

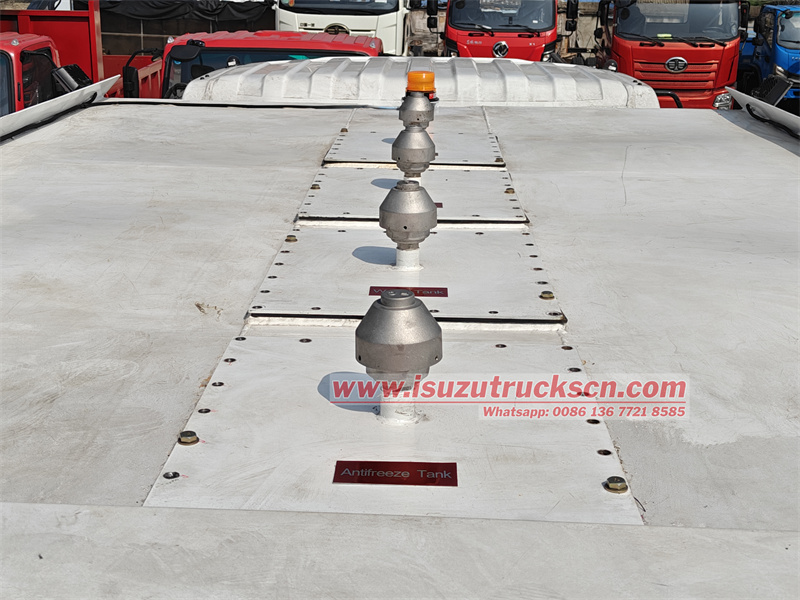

Manhole cover |
4 manhole cover, ∮500mm 1 set with breather valve |
||
|
External injection port |
Equipped for diesel,oil ,antifreeze |
||
|
Equipment |
Generator,Air compressor,Crane,Welder,light,2 tool box,Front bumper,Tow hook |
||
|
Painting |
White |
||

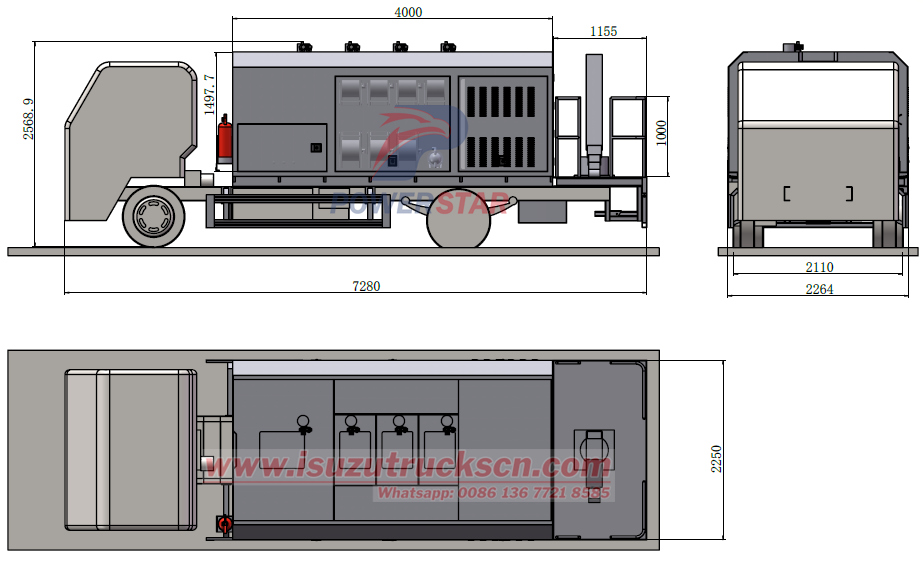

Technical drawing of Isuzu 700P 4x4 RHD Automatic 5 m³ fuel lube service truck
▶ Chassis System:
Chassis Model: Isuzu 700P All-Wheel Drive Right-Hand Drive Automatic Transmission Chassis
• Wheelbase: 3815mm
• Engine: Isuzu 4HK1-TCG61 190HP Inline Four-Cylinder Diesel Engine
• Transmission: Allison 1000 Fully Automatic Transmission
• Tires: 8.25R20

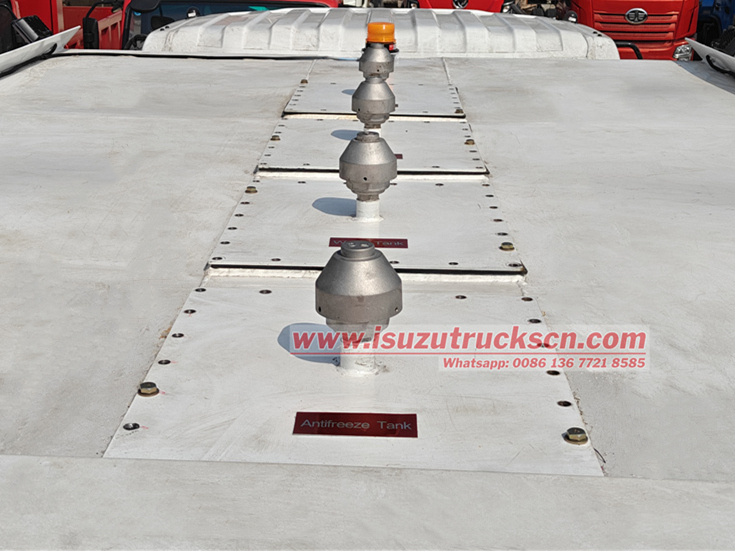

▶ Upper Tank and Media Distribution:
The vehicle adopts a multi-compartment independent tank design, preventing liquid mixing and facilitating maintenance. The total effective volume meets the requirements of 5000L-class operations. Each compartment corresponds to a dedicated filling/recovery system/level pipe:
• Diesel Tank: 3420L, main fuel storage, supports diesel filling
• Oil Tank: 500L, used for filling engine oil
• Antifreeze Tank: 500L, used for cooling system replenishment
• Waste Recovery Tank: 500L, used for suction and discharge of waste oil from equipment

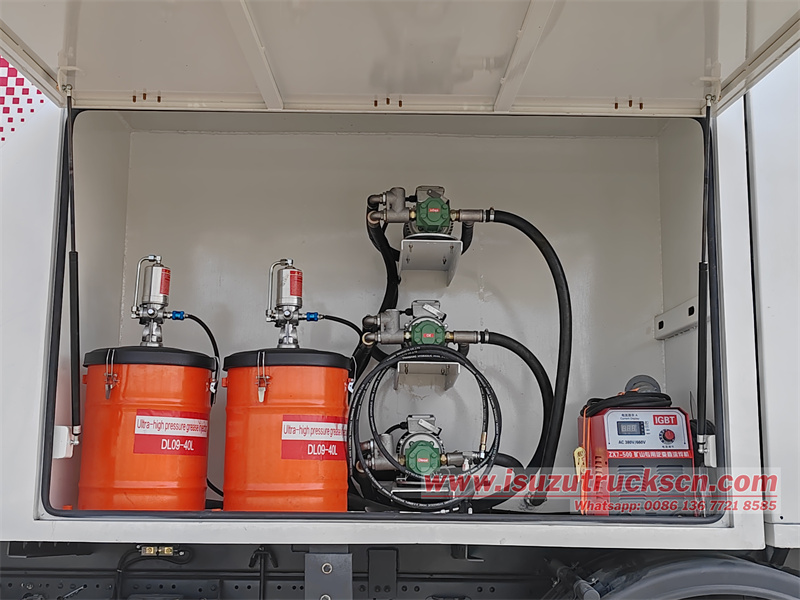

• Grease Tank: 2 x 40L, dedicated high-pressure grease storage
▶ Fuel Filling and Recovery System:

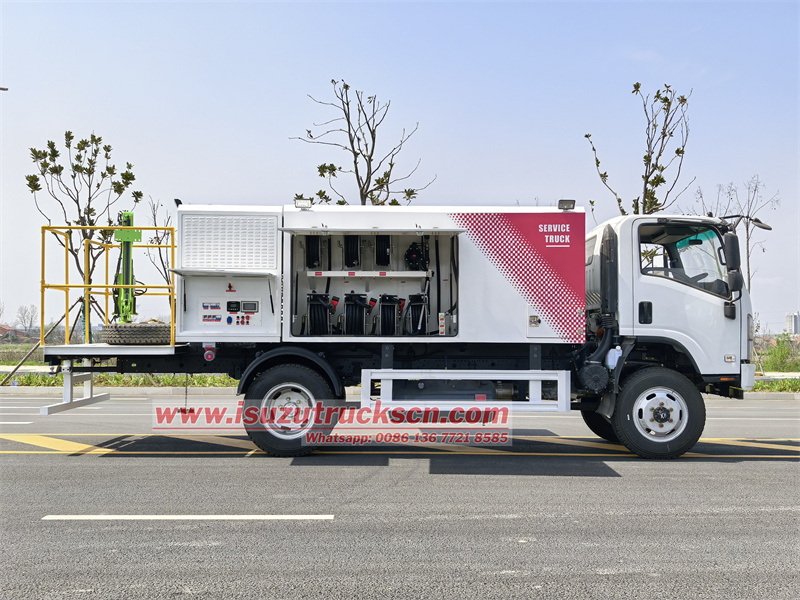

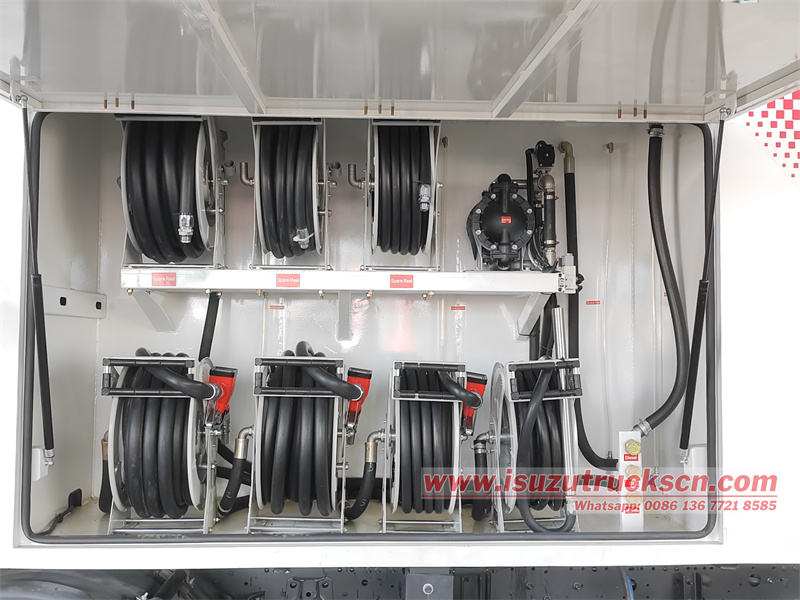

Each media compartment is equipped with a 15m dedicated refueling hose reel, refueling nozzle, and corresponding pump set, enabling precise, rapid, and sealed operations:
• Diesel/ Oil/Antifreeze Filling: Electric gear oil pump, flow rate 100L/min
• Waste Treatment: Waste oil recovery pump, pneumatic diaphragm pump, flow rate 0-7m³/h, head 70m
• Grease Filling: Pneumatic plunger pump
• Spare Reels: Equipped with 3 sets of spare reels
|

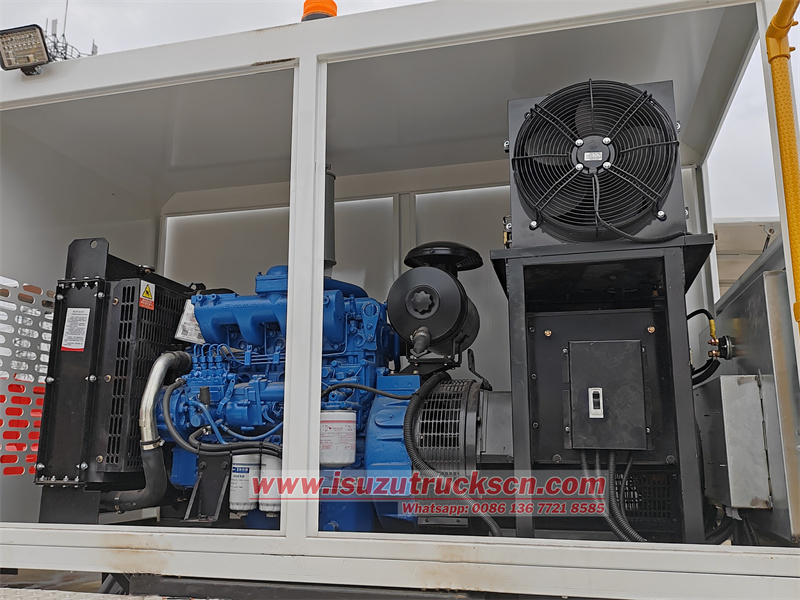

Diesel Generator Set |

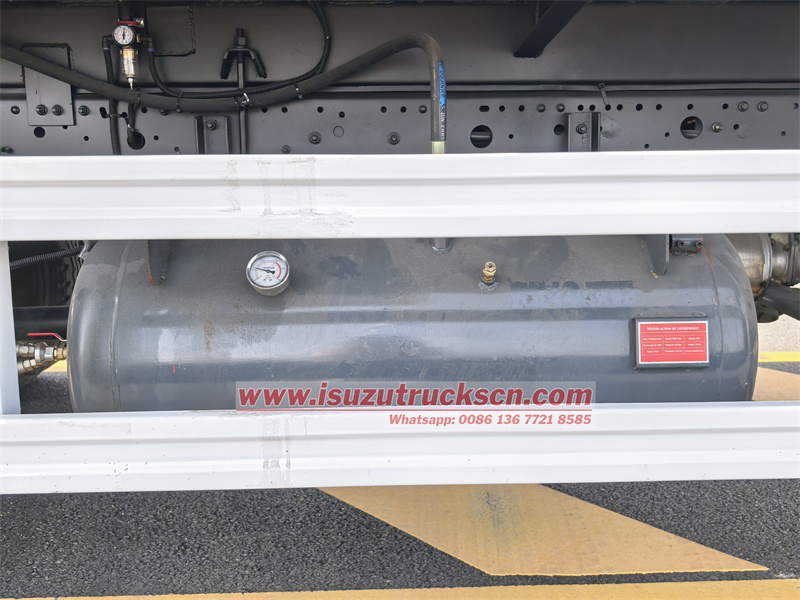

Air Compressor |

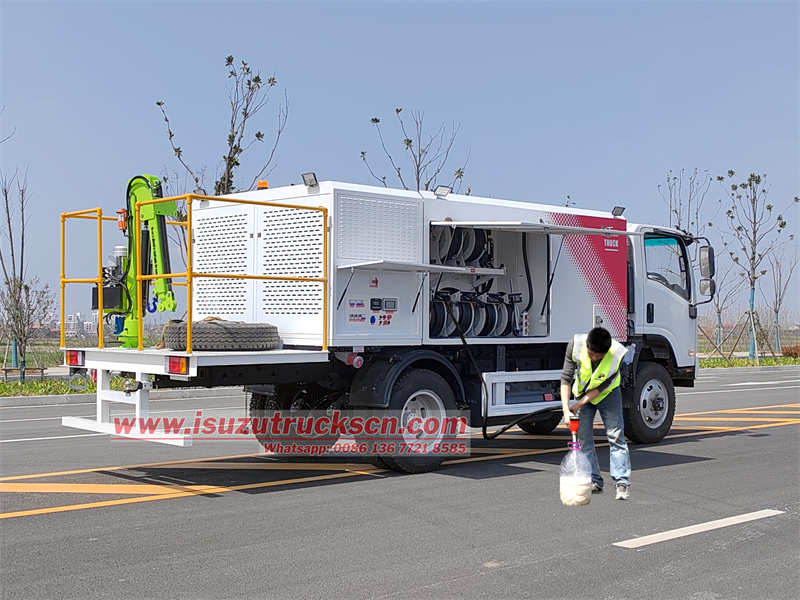

Diesel refueling
Waste discharge

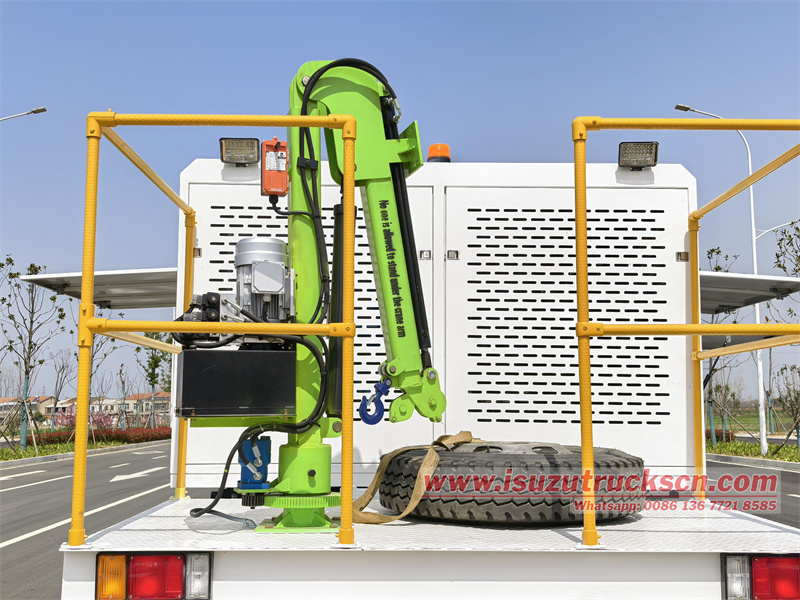

Crane operation
