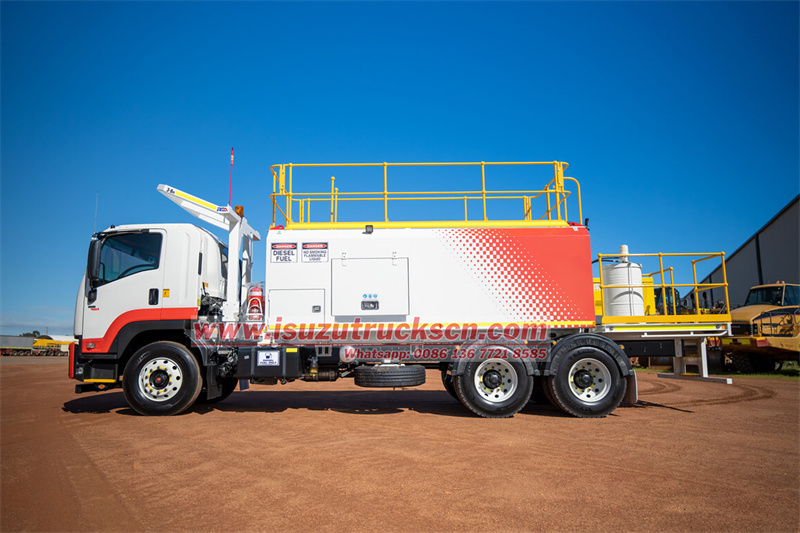

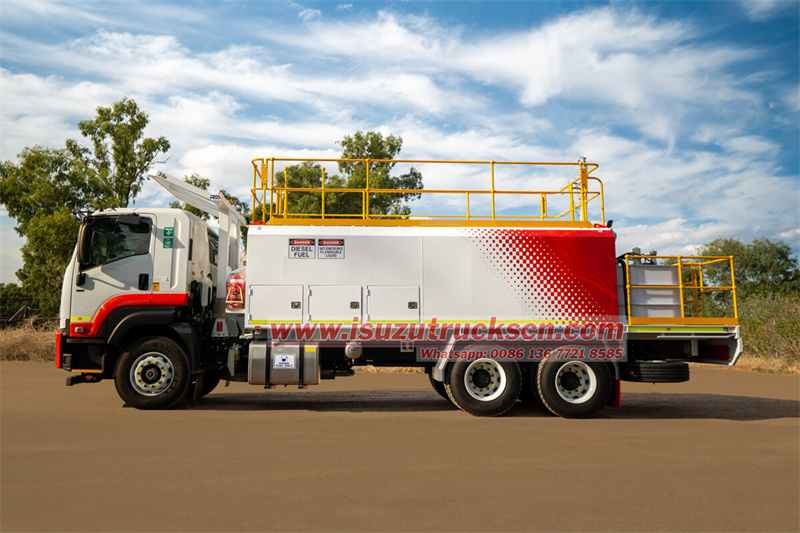

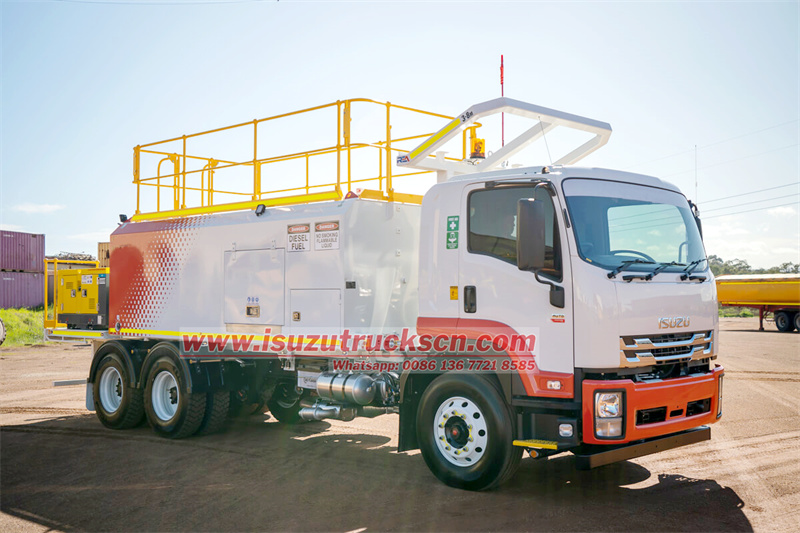

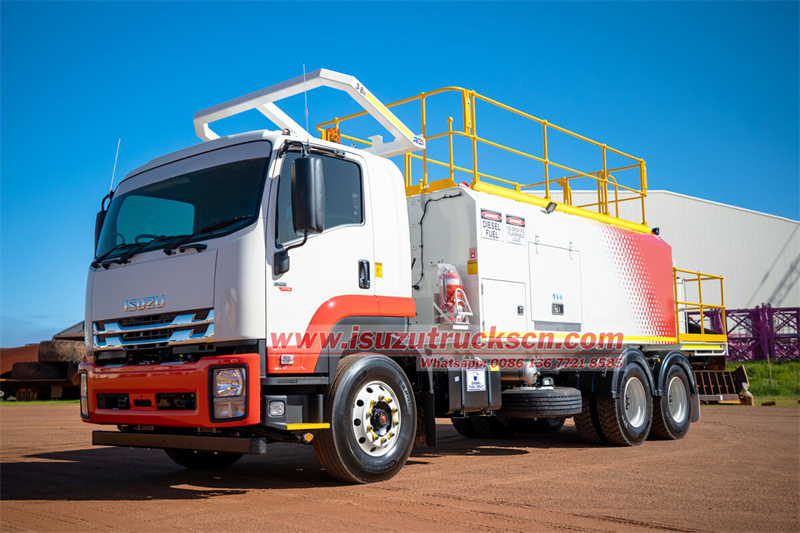

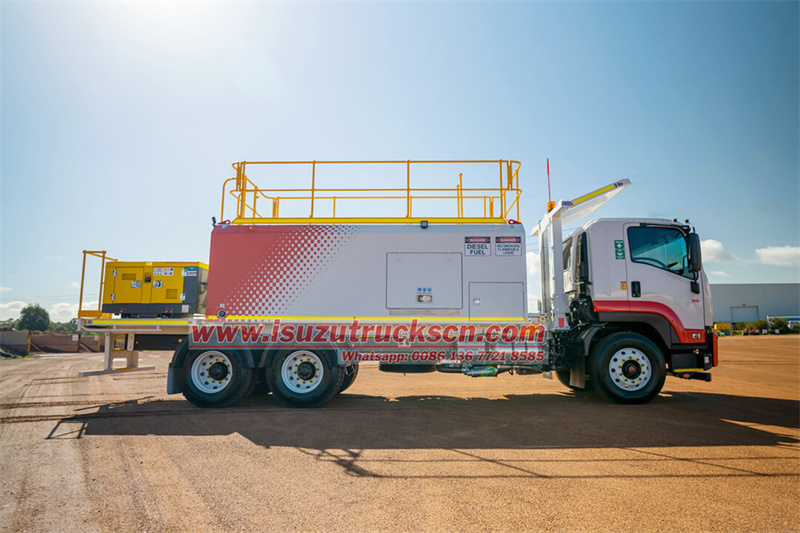

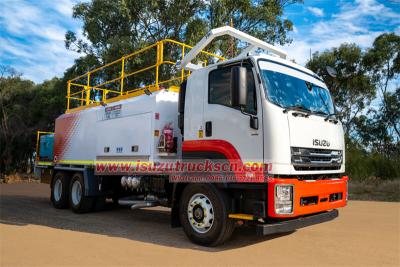

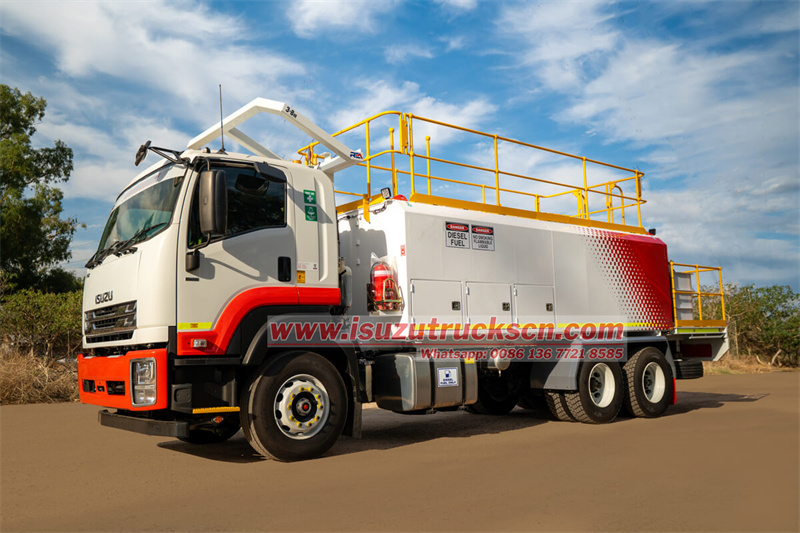

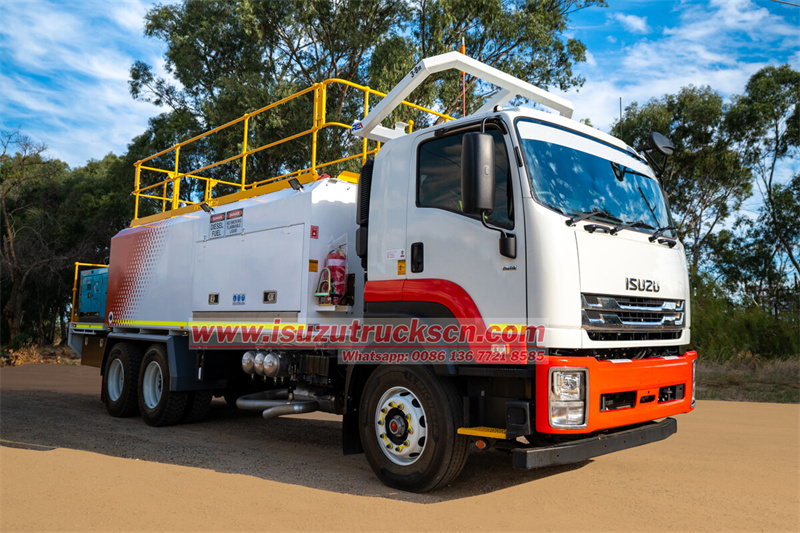

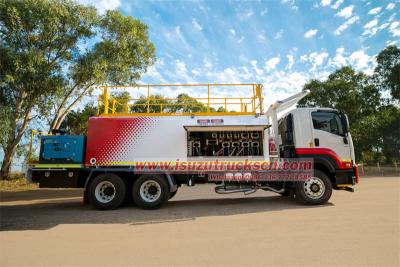

The Isuzu GIGA 6X4 15cbm fuel and lubrication service vehicle is equipped with an Isuzu 6UZ1 TCG61 380HP engine and a Fast 12-speed transmission. The vehicle is equipped with a 9,000L diesel tank, four 800L oil tanks, a 750L water tank, an 800L waste oil tank, a 750L coolant tank, and a 500L bulk grease tank. It is equipped with an oil product delivery system, a diesel delivery system, a water delivery system, a coolant system, and a high-pressure grease system. The vehicle also features a rear platform diesel screw compressor. The vehicle is also equipped with a ROPS, a diesel flow meter with a digital fuel distribution display, a tool box, an internal LED work light, a handrail on the top of the fuel tank, and a ladder.
Manufacturer:
Powerstar TrucksWork capacity:
15cbmDimension:
9750 x 2550 x 4050mmCabin type:
Isuzu GIGA 6x4 chassis,one and half row,with A/CWheelbase:
4600+1370mmEngine power:
380HP/279kWEngine type:
Isuzu 6UZ1-TCG61Axle drive:
6x4,LHDGear box:
Manual type,FAST 12-speedRemarks:

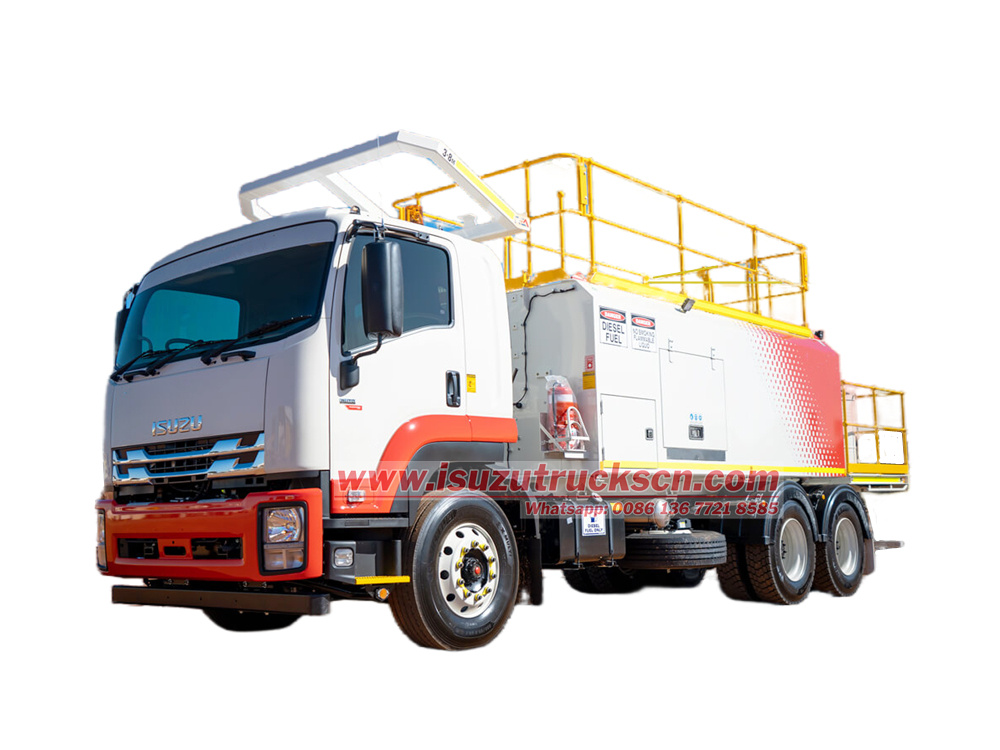

Various fuel lubrication tanksThe Isuzu 15 cbm fuel lube tanker truck is based on an upgraded and modified Isuzu GIGA 6X4 heavy-duty truck chassis. Designed specifically for engineering operations, mining machinery, logistics, and transportation, it integrates multiple functions, including fuel filling, lubricant distribution, coolant replenishment, high-pressure grease injection, and compressed air supply. Precision flow meters and independent pump units enable precise metering and delivery of various oil products. A tail screw air compressor provides 7-12 bar compressed air. The vehicle features an anti-static design and an intelligent monitoring system, making it convenient and safe to operate, meeting the needs of efficient service in complex working conditions.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features：
1. Powerful: A 380-horsepower Isuzu 6UZ1 engine paired with a Fast 12-speed transmission delivers powerful and reliable power.
2. Modular Integrated Design: The superstructure features a modular layout and an innovative multifunctional fuel and lubricant tank system with a total capacity of 15 cubic meters, offering highly integrated functions and easy maintenance.
3. Intelligent Safety Control: Equipped with a digital monitoring system and safety interlocks, it displays fluid levels and flow rates in real time, ensuring standardized operation and personnel safety.
» Ⅱ. Product Parameter for Isuzu 6x4 fuel lube service truck:
| Isuzu GIGA 6X4 15000 liters fuel lubrication service truck | |||
|
General |
Brand |
Isuzu |
|
|
GVW |
25000 kg |
||
|
Curb weight |
11500 kg |
||
|
Wheelbase |
4600+1370mm |
||
|
Dimensions |
9750 x 2550 x 4050mm |
||
|
Front/Rear Axle loading |
7000/18000 （two axles）kg |
||
|
Wheel track (front/rear) |
2060/1855/1855mm |
||
|
Front/Rear overhang |
1370/2410 mm |
||
|
Max. driving speed |
105 km/h |
||
|
Tire |
Quantity |
10 pcs with one spare tire |
|
|
Specifications |
295/80R22.5 /12R22.5 |
||
|
Transmission |
Manual type,FAST 12-speed |
||
|
Cab |
Isuzu GIGA 6x4 chassis,one and half row,with A/C |
||
|
|
Brand |
Isuzu |
|
|
Model |
6UZ1-TCG61 |
||
|
Horsepower |
380HP/279kW |
||
|
Cylinder type |
Inline 6 cylinder, 4-stroke, supercharged, intercooled, water-cooled |
||
|
Fuel type |
Diesel |
||
|
Max torque |
1800N.m |
||
|
Displacement |
9.839L |
||
|
Emission standard |
Euro VI |
||
|
Tank |
Capacity |
15000L |
|
|
Thickness |
Side 5 Bottom 6mm |
||
|
Diesel, Oil, Water, Waste, Coolant, Bulk grease |
|||
|
Tank |
Tank Type |
Tank Capacity |
|
|
No 1 |
9,000 litre |

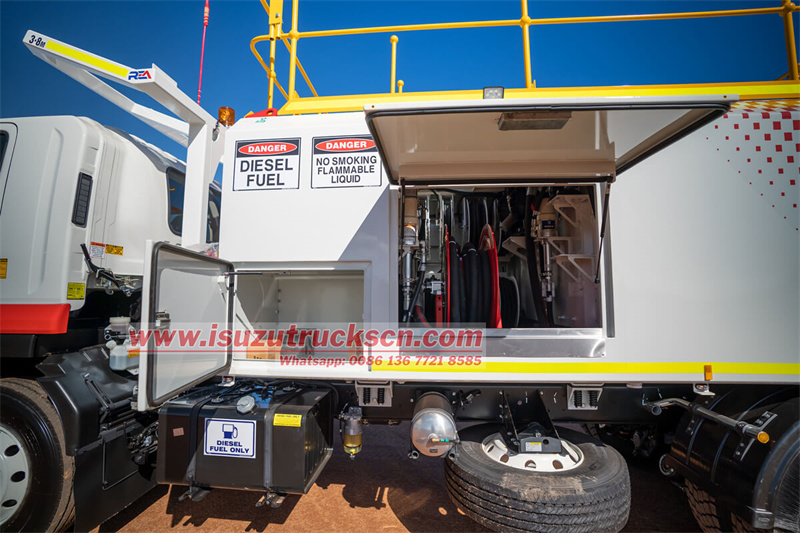

Diesel reel, Air Rewind Reel, hose, Gun with flow meter & digital dispensing display |
|
|
No 2 |
800 litre |
Hydraulic oil reel, hose, hand piece, fast and top fill |
|
|
No 3 |
800 litre |
Gear oil reel, hose, hand piece, fast and top fill |
|
|
No 4 |
800 litre |
Engine oil reel, hose, hand piece, fast and top fill |
|
|
No 5 |
800 litre |
Transmission oil reel, hose, hand piece, fast and top fill |
|
|
No 6 |
750 litre |
Water reel, hose, hand piece, fast and top fill |
|
|
No 7 |
800 litre |
Waste reel, hose, hand piece, fast and gravity drain |
|
|
No 8 |
750 litre |
Coolant tank reel, hose, hand piece, fast and top fill |
|
|
No 9 |
500 litre |
Bulk grease tank, HP Pump, reels, hoses, hand piece |
|
|
Fube system |
Oil product delivery system, Diesel delivery system, water delivery system, coolant system, High pressure grease system, Air compressor |
||
|
Diesel Screw Compressor |
|
||
|
Equipment |
ROPS ,Diesel Flow Meter with Digital Fuel Dispensing Display, Toolbox, Internal LED work light, top of tank handrail, Ladder, Emergency stop buttons located in the cab and on the front of the module, Fuel tank filler fitting |
||
|
Painting |
Color and design as customer's requirement |
||
|
Optional |
Crane available |
||
» Ⅲ. Product Details & Advantages:
Chassis Configuration
• Chassis: Isuzu GIGA 6×4 heavy-duty commercial vehicle chassis, high-load rear axle, and reinforced steel plate suspension
• Powertrain: Equipped with an Isuzu 6UZ1-TCG61 inline six-cylinder diesel engine, producing a maximum power of 380 horsepower and meeting Euro VI emission standards. It features high torque and low fuel consumption, making it suitable for complex operating conditions.
• Drivetrain: Equipped with a Fast 12-speed manual transmission, it optimizes power output efficiency and enhances gradeability and heavy-load handling capabilities.
Upper structure functional modules
The vehicle's upper body utilizes a modular design, integrating five liquid storage and delivery systems with a total volume of 15 cubic meters. The specific configuration is as follows:
|
Tank type |
Volume |
Functional Description |
|
Diesel tank |
9,000L |
It stores diesel (with wave-breaking plate design) and is equipped with a diesel transfer pump (flow rate ≥ 120L/min), supporting rapid refueling of engineering equipment, generator sets, etc. |
|
Oil tank |
800L×4 |
It is packaged with 4 types of lubricants (hydraulic oil, gear oil, engine oil, and transmission oil), each with an independent pipeline to match the oil delivery system. |
|
Water tank |
750L |
Store cleaning water for equipment cleaning or coolant mixing. |
|
Waste tank |
800L |
Recycle waste oil to avoid environmental pollution and comply with environmental regulations. |
|
Coolant tank |
750L |
Stores coolant to support refilling of equipment cooling systems. |
|
Bulk grease tank |
500L |
It can store bulk grease and match high-pressure grease system, which is suitable for lubrication and maintenance of large bearings and gears. |
Key Functional Systems

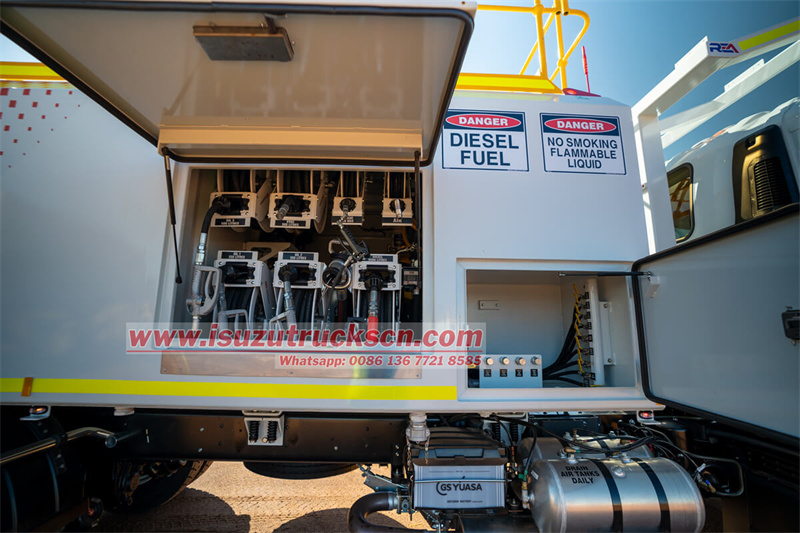

1. Fuel Delivery System
• Equipped with a diesel flow meter (with digital display) for real-time monitoring of refueling volume with an accuracy of ±0.5%.
• 15-meter refueling hose with quick-connect connection, compatible with various equipment interfaces.

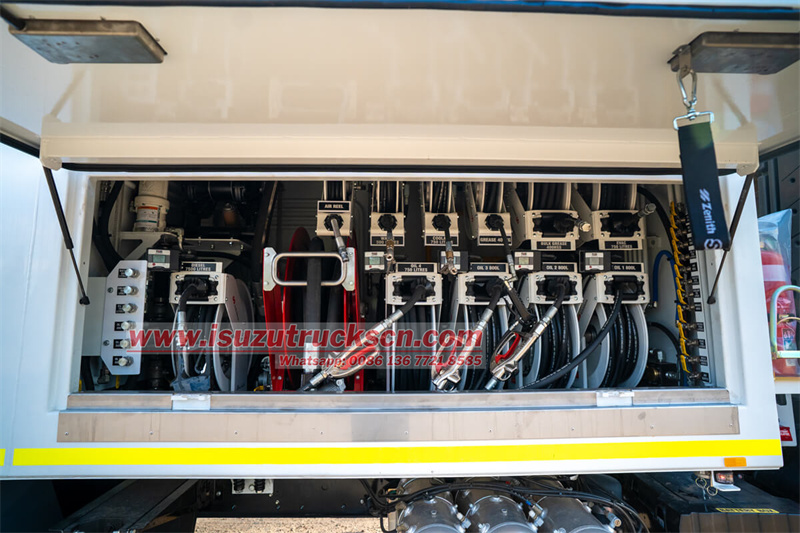

2. Lubricant Distribution System
• Four independent oil lines, each equipped with an electric ball valve, can simultaneously refuel four pieces of equipment with different oils.
• The oil pump has a flow rate of ≥80 L/min and supports both gravity flow and pumping modes.
3. High-Pressure Grease System
• Equipped with a high-pressure grease filling pump to meet the lubrication needs of heavy equipment.
• Equipped with a 15-meter high-pressure hose and grease gun, suitable for heavy-duty lubrication applications such as mining machinery and wind turbine equipment.
4. Coolant Refill System
• A corrosion-resistant pump body supports a variety of coolant and water mixing ratios to meet different ambient temperature requirements.
5. Auxiliary Functions
• ROPS: Enhances cab safety and complies with ISO 3471 standards. Tool Box: A side-mounted stainless steel tool cabinet provides categorized storage for maintenance tools.

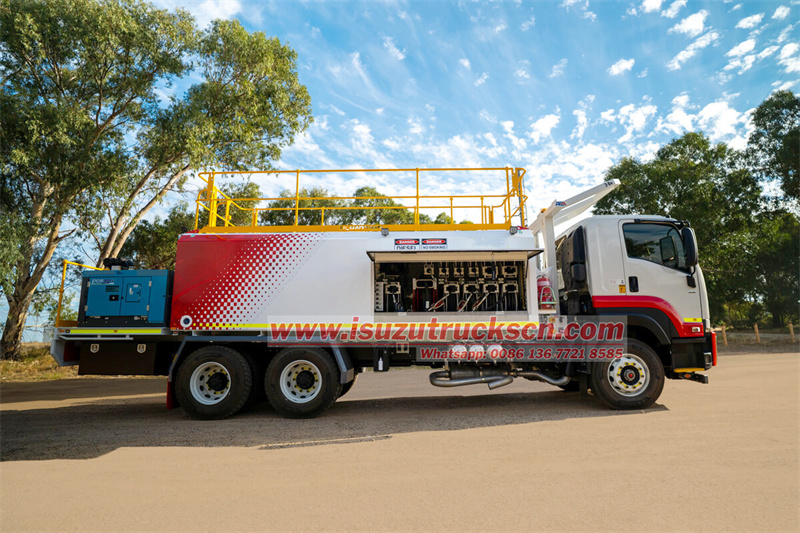

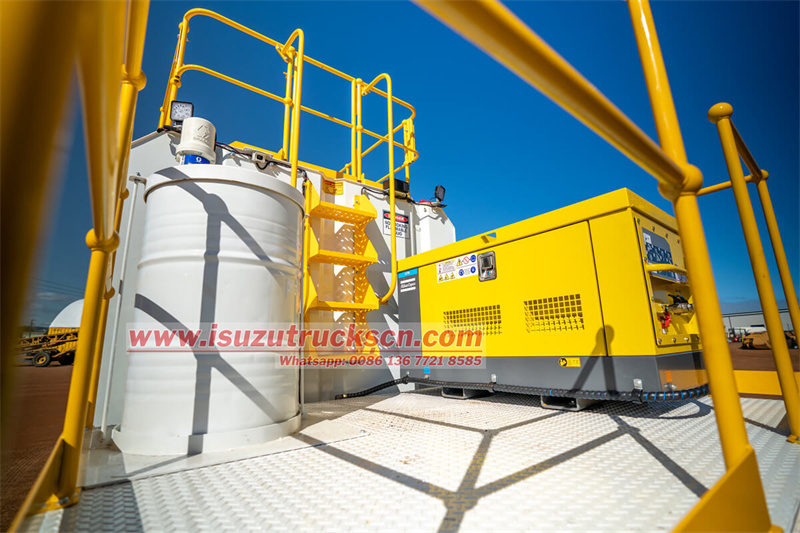

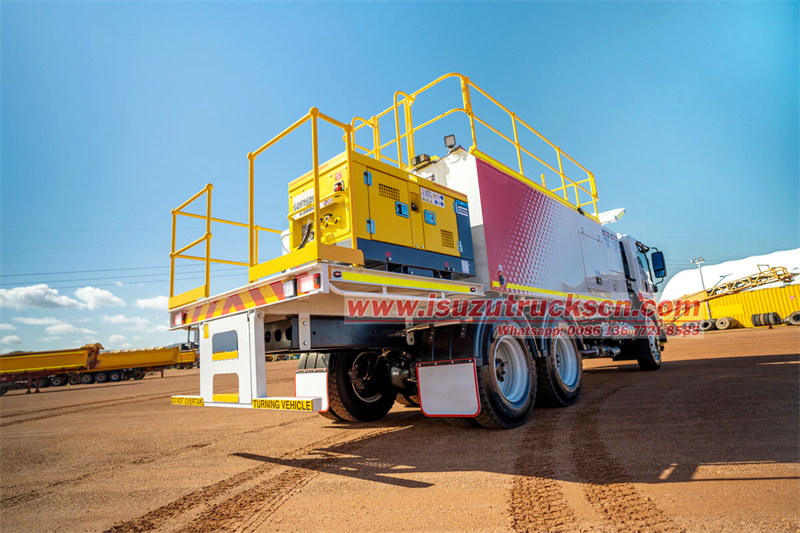

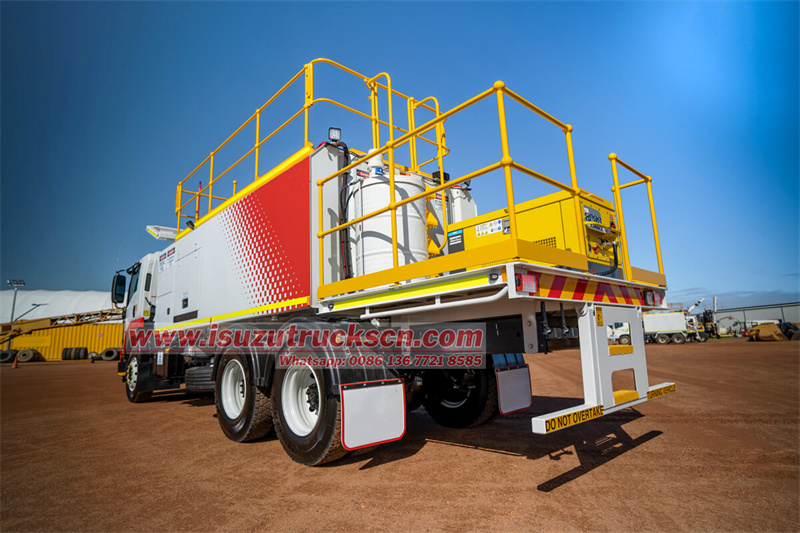

• Air Compressor: A diesel-driven screw compressor (pressure ≥ 8 bar) is integrated into the rear platform, providing continuous compressed air for tire inflation or tool power.
• Lighting System: Internal LED work lights and external work lights support nighttime operations.

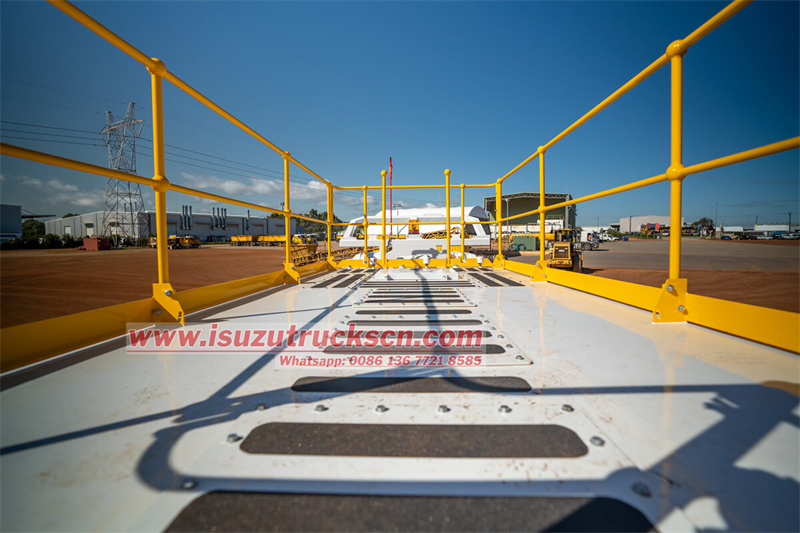

• Climbing Design: A non-slip platform on the tank roof, dual handrails, and ladders facilitate daily inspection and maintenance.
Products--100% Customized Level One!
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We POWERSTAR also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
» Ⅳ. Working Principle
This vehicle features an integrated storage, transportation, distribution, and recovery design. The chassis engine, via a PTO, drives the mounted fluid management system. The mounted system utilizes independent tanks (for diesel, lubricating oil, water, coolant, bulk grease, waste oil, etc.) and a dedicated pump system for media transfer.
During diesel refueling, the fuel is pressurized by a gear pump and delivered to the target equipment in a measured quantity via a flow meter. The lubricating oil system utilizes a split-circuit control system to prevent oil and product mixing. A high-pressure grease pump quickly lubricates heavy machinery bearings. A tail-mounted screw compressor provides compressed air to assist in tire filling. A water pump extracts water and mixes coolant, while a vacuum pump vacuums waste oil to prevent leakage and contamination.
The entire vehicle features an anti-static design, liquid level monitoring, overload protection, and a centralized control panel. It supports metered refueling and is suitable for on-site service of heavy equipment in mines, ports, and other locations.
» Ⅴ. Application Scenarios
• Mining and port machinery maintenance (lubrication of excavators and loaders)
• Logistics fleet fueling and equipment maintenance
• Construction sites (lubrication of concrete pump trucks and cranes)
• Regular maintenance of wind power/photovoltaic equipment
• Emergency energy support and waste oil recovery
