Isuzu FVZ utility mobile lube service truck

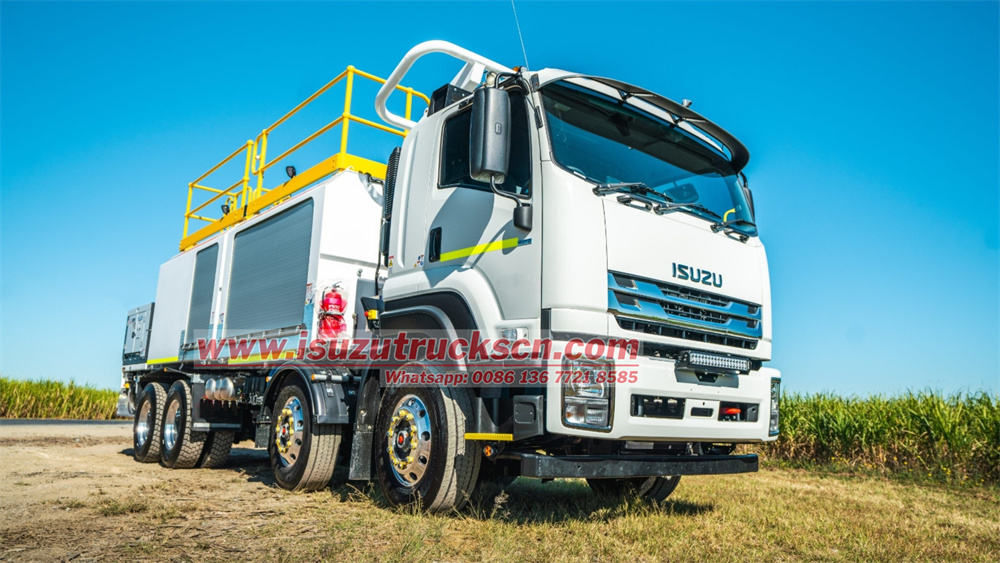

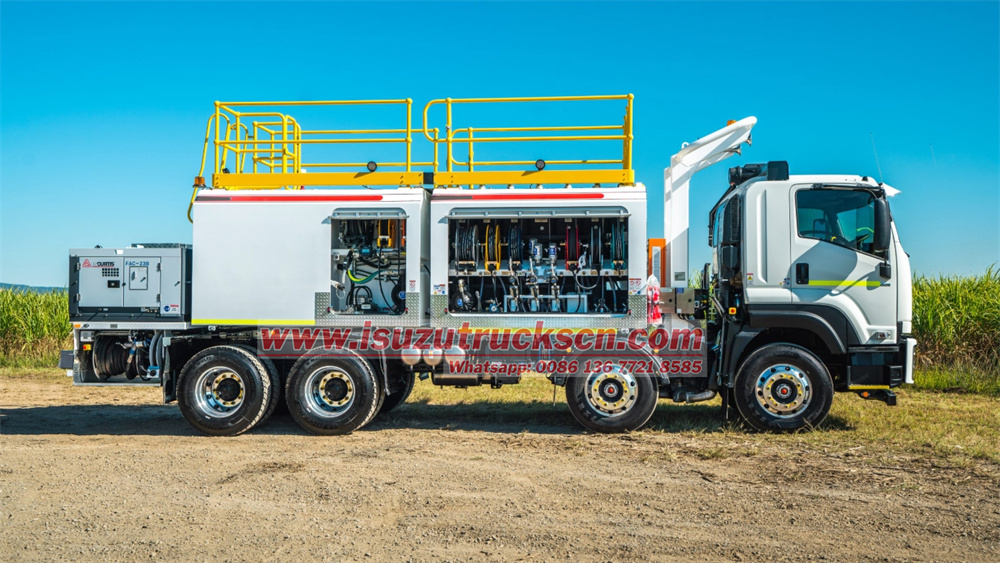

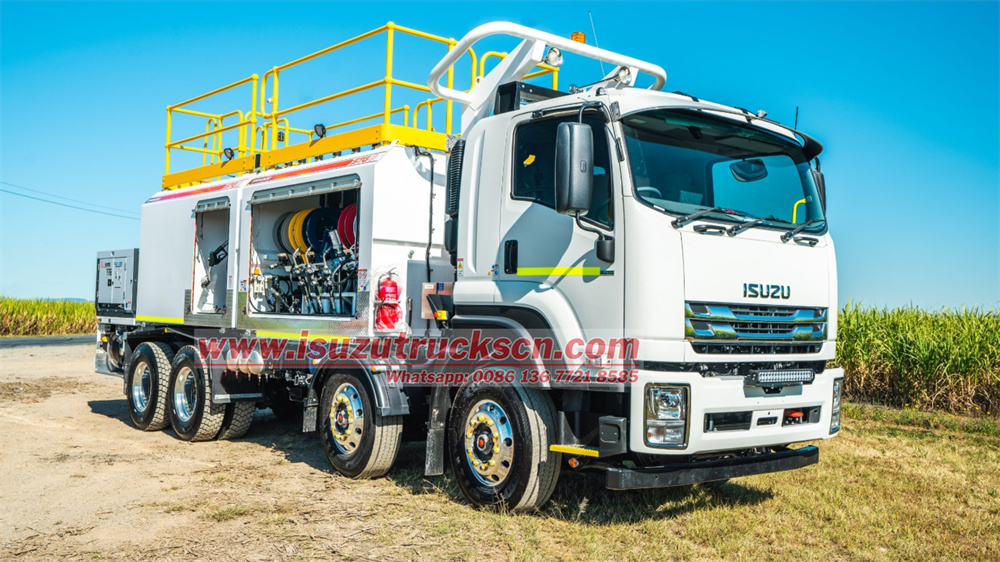

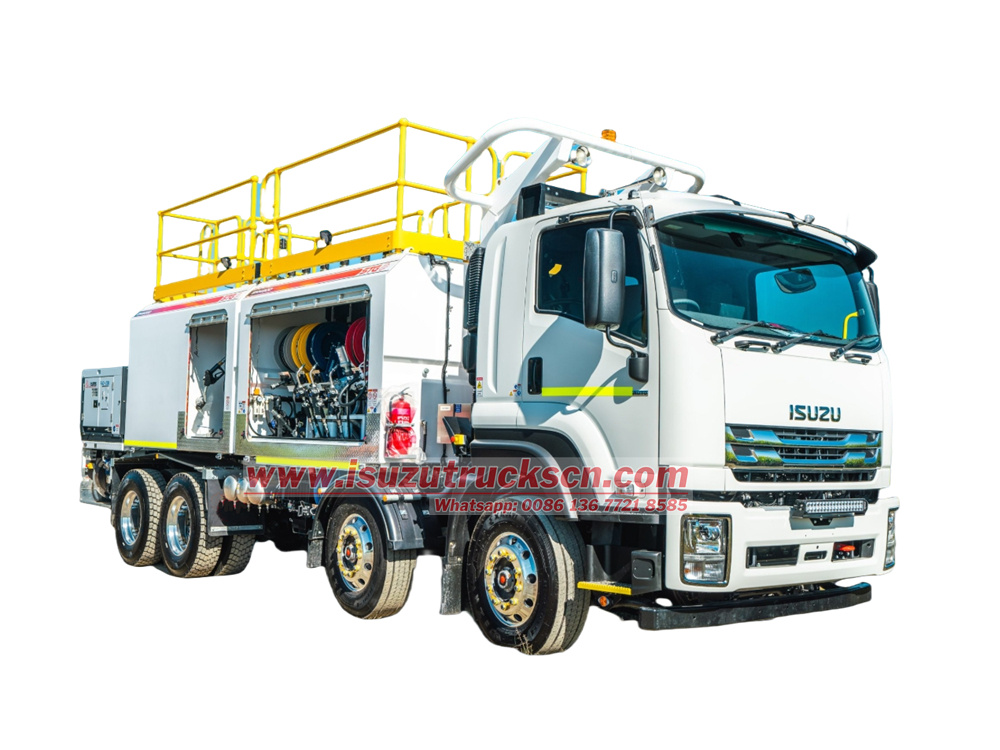

Isuzu FVZ fuel lubrication service vehicle is modified based on the Isuzu FVZ 8X4 GIGA chassis, with a wheelbase of 1850+4575+1370mm, equipped with an Isuzu 6HK1-TCG60 300 horsepower engine and a Fast 9-speed gearbox. The front of the vehicle is equipped with a Halo ROPS (Optional), ISOLATORS & E-STOPS, and the middle is all lubrication tanks, including 850L each of Waste, Transmission Oil, Hydraulic Oil, Engine Oil, Gear Oil, Coolant, and Water, each equipped with a Spring Return Hose Reel with a 15m Hose. The rear is a 6000L diesel tank with a 15m diesel spring return reel and a filling nozzle, a 15m air hose, a spring return reel, and a 15m high-pressure grease hose. The rear platform of the vehicle is FS-Curtis FAC-23B or Puma. P18Y air compressor, vehicle equipped with digital flow meter, rear ladder and tank top handrail, anti-slip walkway.
Manufacturer:
Powerstar TrucksWork capacity:
12cbmDimension:
11695x2550x4140mmCabin type:
Isuzu FVZ GIGA 8x4 chassis，3 passengersWheelbase:
1850+4575+1370mmEngine power:
300HP/221kWEngine type:
Isuzu 6HK1-TCG60Axle drive:
8x4,LHDGear box:
FAST 9-speed,manualRemarks:
Equipped with various lubrication tankThe Isuzu FVZ fuel and lubrication service vehicle, modified from the Isuzu FVZ 8×4 GIGA heavy-duty chassis, is designed specifically for use in mines, ports, and large construction machinery. It integrates fuel filling, lubricant delivery, waste oil recovery, and compressed air supply, making it an efficient and versatile lubrication service vehicle. Powered by a 300-horsepower Isuzu 6HK1 engine and a Fast 9-speed transmission, it offers powerful power and economic efficiency. The vehicle's upper body incorporates a central 850L Category 7 lubrication tank (for engine oil, hydraulic oil, etc.) and a 6000L diesel tank, both equipped with a 15-meter spring-return reel and high-pressure hose for precise filling and waste oil recovery. An air compressor is installed on the rear platform to power pneumatic tools. The vehicle is equipped with a digital flow meter, a rollover protective structure (ROPS), an emergency stop button, and a non-slip walkway, ensuring both safety and ease of operation.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Product Features
1. Multifunctional Integrated Design:
• The vehicle integrates fuel, lubricant, coolant, waste oil recovery, and pneumatic supply functions, reducing the number of on-site equipment and improving operational efficiency.
2. Large Capacity and Long Endurance:
• The central Category 7 lubricant tank has a total capacity of 5,950 liters, and the rear diesel tank has a 6,000 liter capacity, meeting the continuous operation needs of large engineering fleets and reducing refueling frequency.
3. Accurate Metering and Environmentally Friendly:
• The digital flow meter has an error of ≤±0.5%, supporting data recording and export for easy cost management.
• The separate waste oil tank and sealed recovery system prevent leaks and comply with environmental regulations.
» Ⅱ. Product Parameter for Isuzu lube service truck:
| Isuzu FVZ 8X4 12cbm fuel lubrication service truck | |||
|
General |
Brand |
Isuzu |
|
|
GVW |
31000 kg |
||
|
Curb weight |
14500kg |
||
|
Wheelbase |
1850+4575+1370mm |
||
|
Dimensions |
11695 x 2550 x 4140mm |
||
|
Front/Rear Axle loading |
6500/6500/18000(two axles)kg |
||
|
Wheel track (front/rear) |
2060/2060 / 1855/1855mm |
||
|
Front/Rear overhang(mm) |
1370/2530mm |
||
|
Max. driving speed(km/h) |
105 km/h |
||
|
Clutch |
Reinforced diaphragm clutch |
||
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
||
|
Tire |
Quantity |
12 pcs with one spare tire |
|
|
Specifications |
295/80R22.5 18PR |
||
|
Transmission |
Manual type,FAST 9-speed |
||
|
Cab |
It can accommodate three people. With Air Conditioner |
||
|
|
Brand |
Isuzu |
|
|
Model |
6HK1-TCG60 |
||
|
Fuel type |
Diesel |
||
|
Displacement(ml) |
7790 ml |
||
|
Horsepower(HP) |
300HP/221kW |
||
|
Cylinder type |
Inline 6-cylinder 4-stroke, supercharged, intercooled, water-cooled |
||
|
Emission standard |
Euro VI |
||
|
Fuel Tank |
|||
|
Fuel tank |
Capacity(cbm) |
7x850Lt Rotor mold plastic tanks with bladders (self-bunded),and 6,000Lt Self Bunded Diesel Tank |
|
|
Tank material |
Tank material:Q235 high tensile strength steel. |
||
|
Thickness(mm) |
Side 5 Bottom 6 |
||
|
Waste,Transmission Oil, Hydraulic Oil, Engine Oil, Gear Oil, Coolant, Water, Diesel |
|||
|

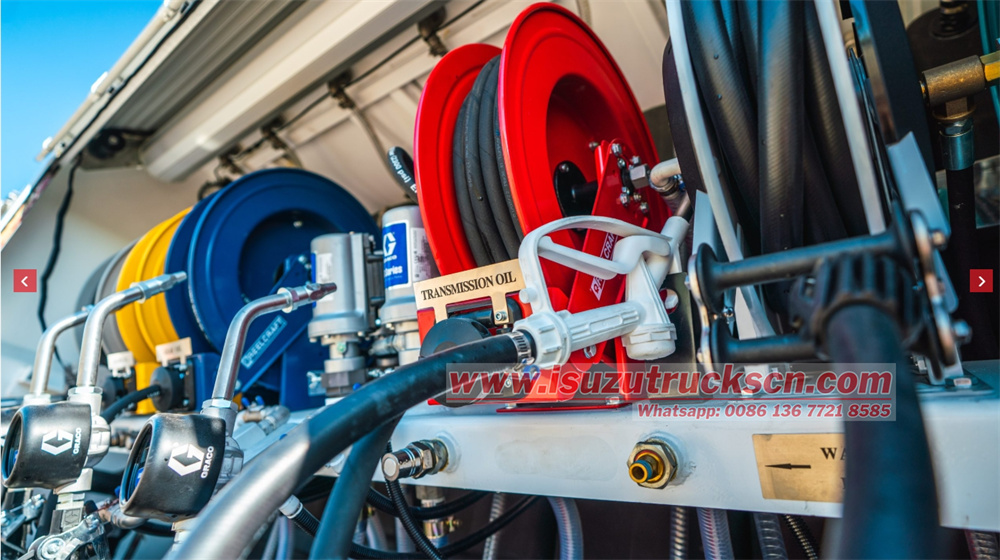

Hose reels |
3/4" Spring Return Hose Reel with 15m Hose for Waste Oil (Brown,850L) |
||
|
1/2" Spring Return Hose Reel with 15m Hose for Transmission Oil (Red,850L) |
|||
|
1/2" Spring Return Hose Reel with 15m Hose for Hydraulic Oil (Orange,850L) |
|||
|
1/2" Spring Return Hose Reel with 15m Hose for Engine Oil (Yellow,850L) |
|||
|
1/2" Spring Return Hose Reel with 15m Hose for Gear Oil (Blue,850L) |
|||
|

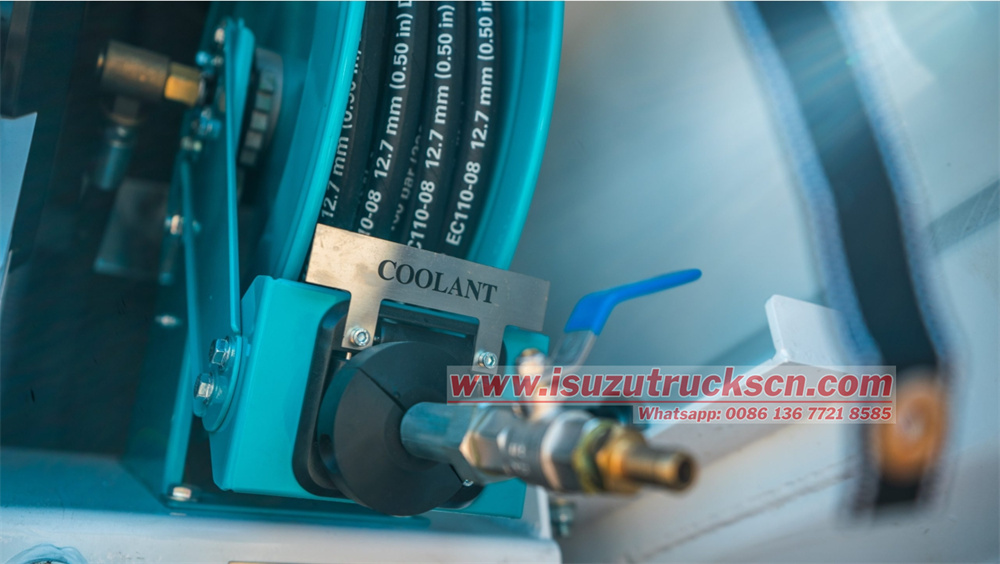

1/2" Spring Return Hose Reel with 15m Hose for Coolant (Green,850L) |
|||
|
1" Spring Return Hose Reel with 15m Hose for Water (Blue,850L) |
|||
|
1.5" Diesel Spring Return Hose Reel with 15m of Hose & Fast Fill Nozzle |
|||
|
1" Diesel Spring Return Hose Reel with 15m Hose with 1" Standard Nozzle for Car/Small Truck Fill Auto shut off |
|||
|
1/2" Spring Return Hose Reel with 15m Hose for Air |
|||
|
1/4" Spring Return Hose Reel with 15m Hose for High Pressure Grease |
|||
|
Manhole cover |
1 European standard manhole cover, ∮500mm 1 set with breather valve |
||
|
Bottom Valve |
1 set of API Pneumatic Bottom Valve |
||
|
Discharging valve |
1 set ∮ discharging valve |
||
|
Equipment |
1" Double Diaphragm Pump for Waste Oil 4-way Graco valve, 4 x 3:1 Ratio Oil Pumps for Oil Pods, 2 x 1/2" Double Diaphragm Pumps for Coolant/Water, Ground level remote fill for pods , 2" Diesel Double Diaphragm Pump Graco, Digital Flow Meter, Fast fill non-pressure fill system, Top Handrail with rear ladder, Non-slip walkway on top of tank, Internal LED work light, LED side lights, Top rear LED lights, Rotating Beacon |
||
|
Painting |
Color and design as customer's requirement |
||
|
Optional |
Crane, Mine compliant |
||
» Ⅲ. Product Details & Advantages:
Chassis
• Wheelbase: 1850+4575+1370mm (three-stage layout, suitable for complex road conditions)
• Power system: Isuzu 6HK1-TCG60 inline six-cylinder turbocharged diesel engine, displacement 7.79L, maximum power 300 horsepower (221kW), meeting the National VI emission standards.
• Transmission system: Fast 9-speed manual transmission with synchronizer, smooth shifting, suitable for multi-condition operation.
Superstructure:

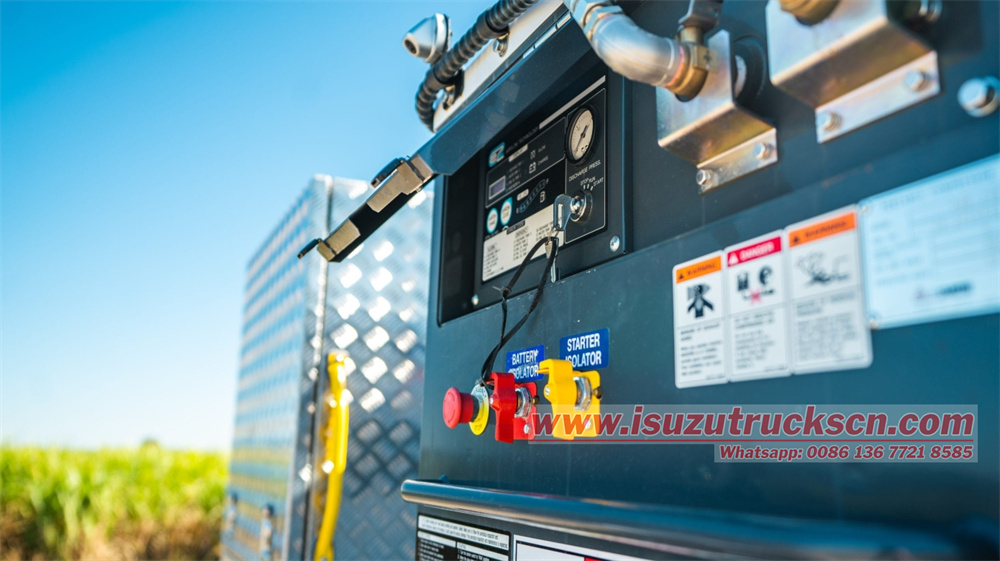

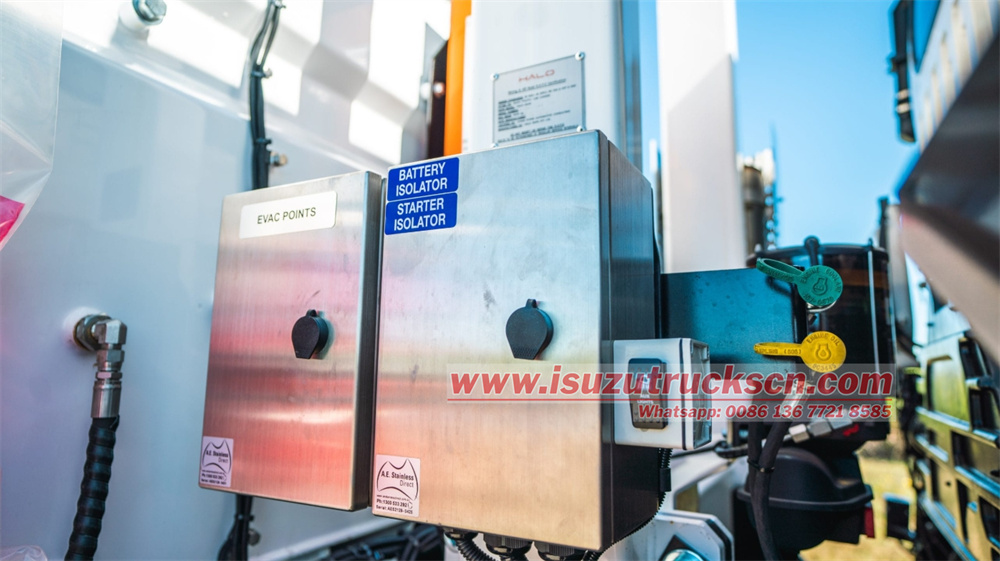

• Front: Optional Halo ROPS (rollover protection structure), equipped with isolators (ISOLATORS) and emergency stop buttons (E-STOPS) to ensure safe operation.

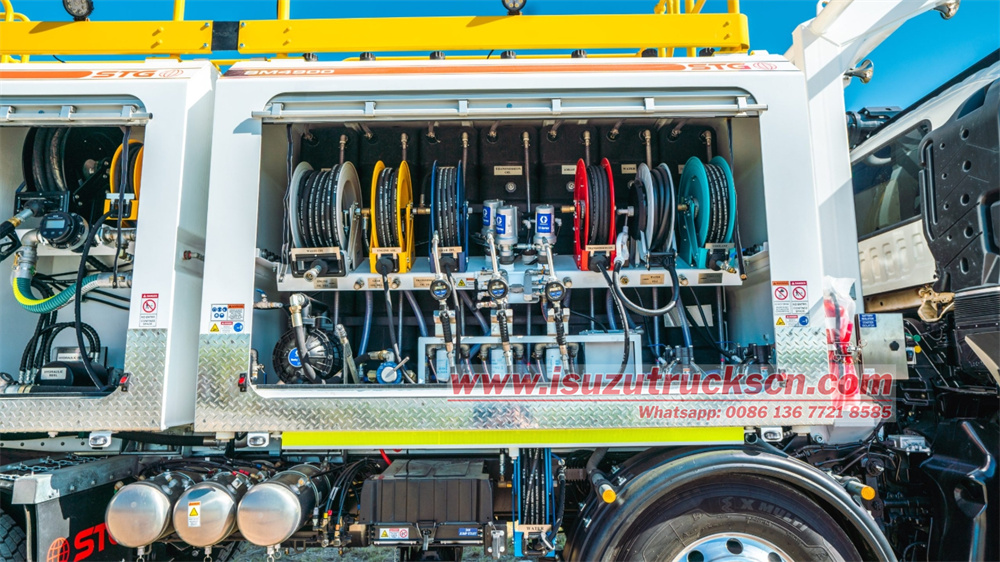

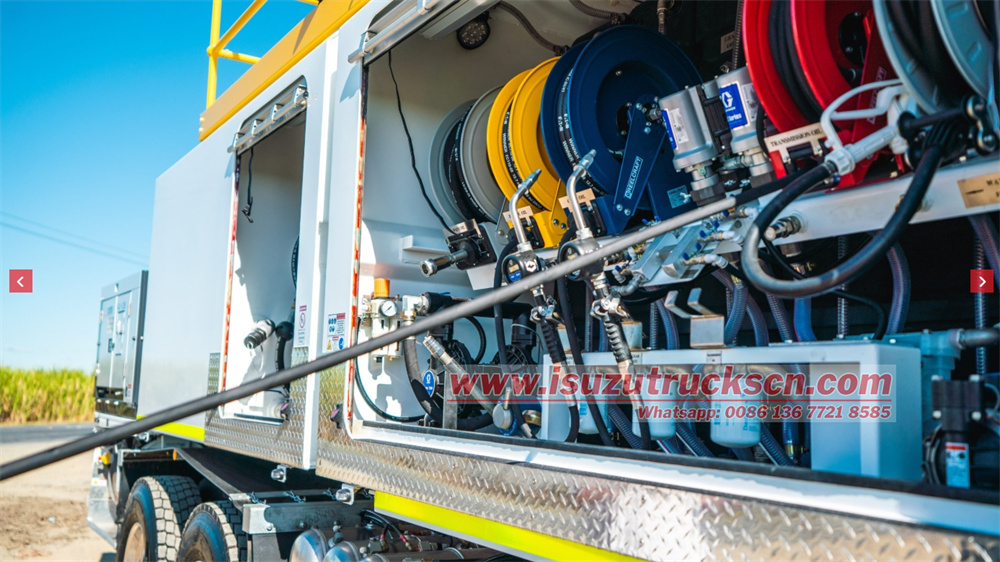

• Middle: 6 independent lubrication tanks, each with a capacity of 850L, respectively storing waste oil, transmission oil, hydraulic oil, engine oil, gear oil and coolant, all equipped with 15-meter spring return reels and high-pressure hoses to support fast filling and recovery.

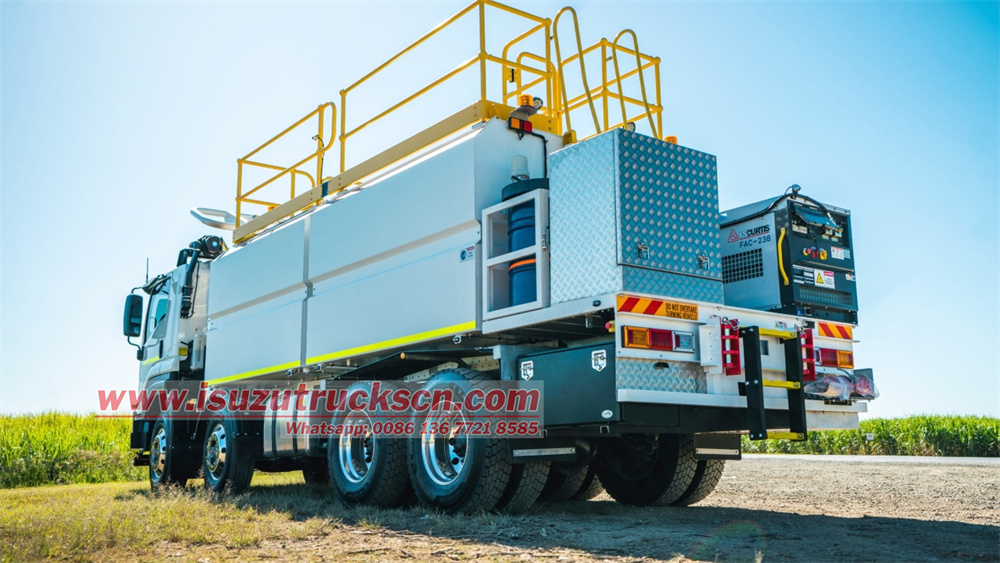

• Rear: 6000L diesel tank, equipped with 15-meter diesel filling reel and nozzle, supporting large-flow filling; 15-meter air hose reel (for pneumatic tools) and 15-meter high-pressure grease hose reel.

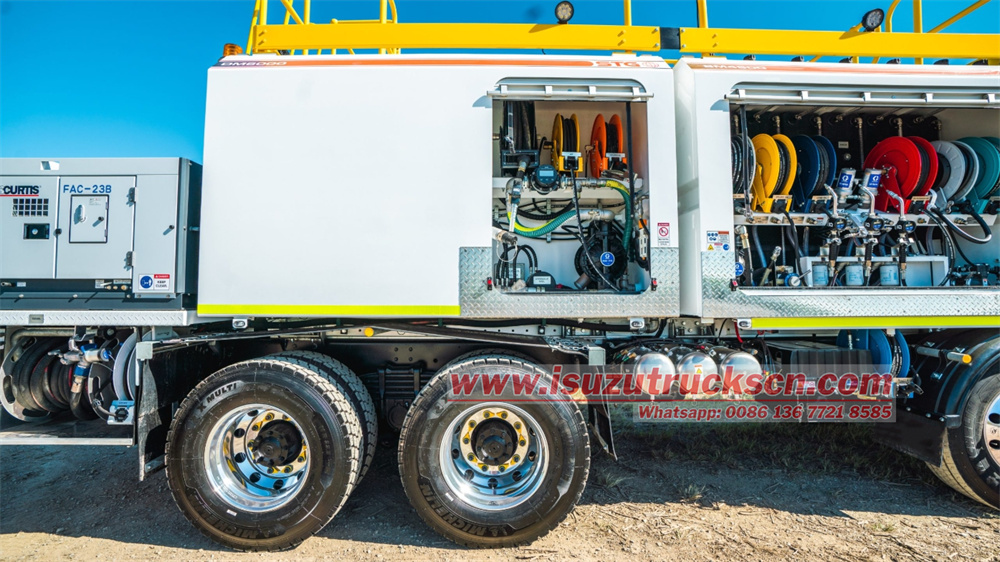

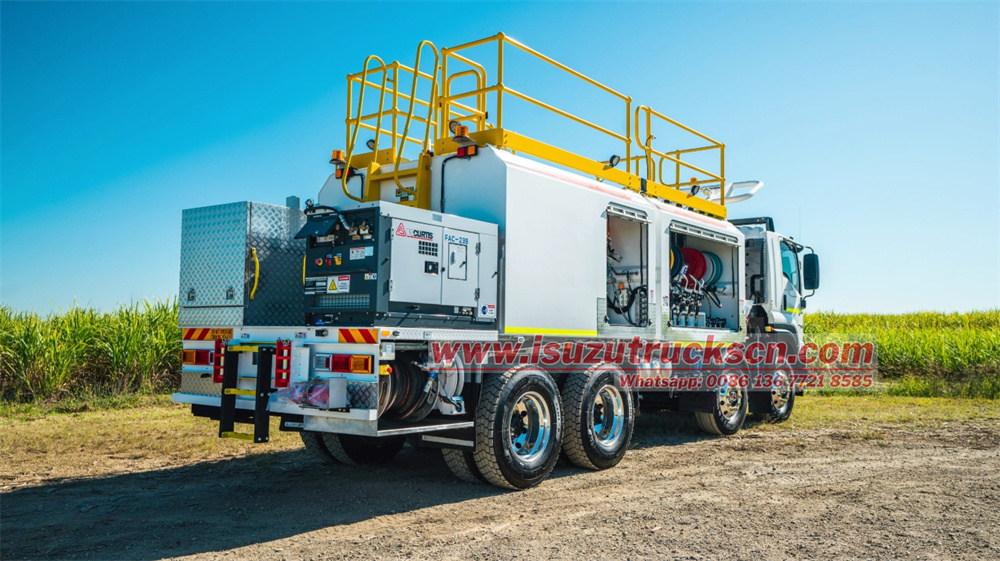

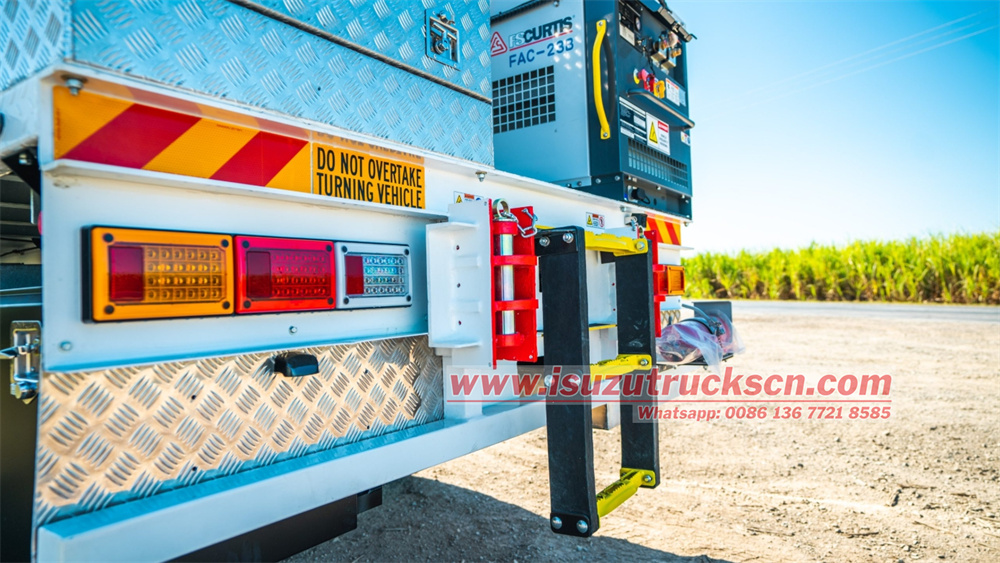

• Tail platform: Integrated FS-Curtis FAC-23B air compressor to provide pneumatic power support.

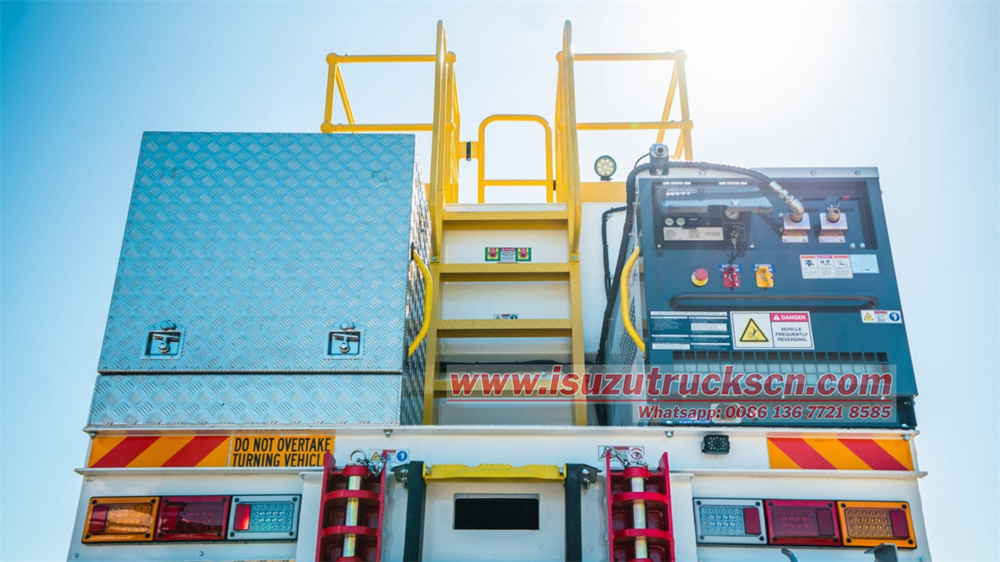

• Auxiliary configuration: digital flow meter (accurately measure the filling amount), rear ladder, non-slip handrails and walkways on the top of the tank to improve operational convenience and safety.
Products--100% Customized Level One!
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We POWERSTAR also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
» Ⅳ. Working Principle
1. Power Transmission:
• The chassis engine drives the upper hydraulic pump or air compressor through the power take-off to provide power for lubricant/diesel filling and air supply.
2. Fluid filling system:
• Lubricant/coolant filling: The liquid is transported to the spring return reel through the pump group at the bottom of the tank, the high-pressure hose is connected to the equipment interface, and the digital flow meter displays the filling amount in real time.
• Diesel filling: The 6000L tank is equipped with a self-priming pump, which quickly extends to the equipment tank through a 15-meter reel, and the nozzle design prevents overflow.
• Waste oil recovery: The independent tank works with the vacuum pump to extract the equipment waste oil through the hose to avoid cross contamination.
3. Pneumatic system:
• The tail air compressor generates high-pressure air, which is transported to pneumatic tools (such as air cannons and spray guns) through a 15-meter hose to support on-site equipment maintenance.
» Ⅴ. Application scenarios:
• Mining machinery maintenance: Provide diesel filling, hydraulic oil replacement and waste oil recycling services for excavators and loaders.
• Construction site equipment management: Support lubricant replenishment and coolant testing for concrete pump trucks and tower cranes.
• Logistics fleet support: Provide one-stop fuel/lubricant filling for heavy trucks to shorten downtime.
• Emergency rescue: Rapid deployment in remote areas to provide temporary fuel or lubrication support for faulty vehicles.
