Garbage compactor truck is mainly used in municipal sanitation and large factories and transport all kinds of rubbish, especially suitable for transportation community living garbage. Isuzu new NKR rear loader compactor truck equipped with 4KH1CN6LB diesel engine and 88KW / 120HP, emission can be 2999cc, the key parts adopt imported components Hardox steel, thickness for side and floor 4mm, high pressure, good sealing, CAN BUS electric control system for convenient operation, safety.
Work capacity:
5CBMEngine power:
120HPEngine type:
Isuzu 4KH1CN6LBAxle drive:
4X4, LHDGear box:
MSB 5-shift with 5F & 1RRemarks:
4x4 offroad 4WD driving typePhilippines DAVAO clients purchase ISUZU NKR 4x4 offroad 4WD 5cbm rear loader compactor truck
ISUZU light duty truck NKR garbage compactor truck is a light truck specially designed for garbage disposal. ISUZU NKR rear loader garbage compactor truck mainly consists of three parts: sealed garbage compactor body, hydraulic system and CAN-BUS operating system. The whole vehicle adopts Hardox steel with thickness for side and floor 4mm, mounted with a fully sealed design body to ensure that no secondary pollution will be caused during garbage collection, compression and transportation.
ISUZU 600P 5cbm solid waste compactor truck equipped with 4KH1CN6LB diesel engine with power 88kw/120HP and emission 2999cc, 4 stroke direct injection, 4 cylinder in line with water cooling, turbo-charging and inter-cooling. MSB 5 shift manual gearbox with 5 F and 1 R, 7.00R16 tires with totally 7 pcs, including one spare tire. Customized HARDOX steel compactor body with side and floor thickness 4mm, totally efficiently working volume can be up to 5 cubic meters, Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank.

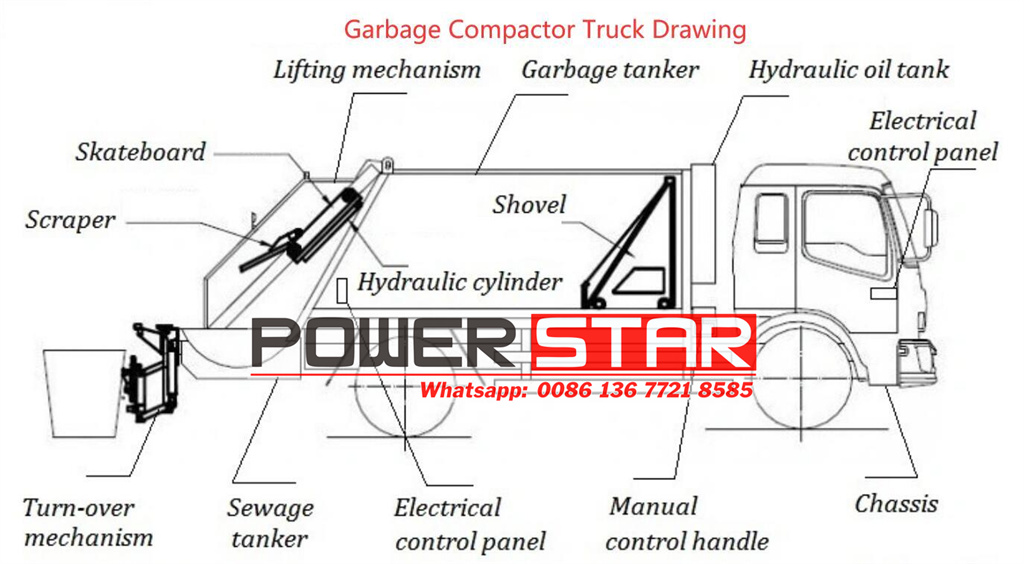

The Isuzu new NKR 600P refuse compactor trucks circulates the materials in the garbage pusher into the truck through the sequential action of the scraper cylinder, the skateboard cylinder and the negative pressure push plate. Rollers are installed on both sides of the skateboard to ensure the long-term use of the guide rail without wear. The rear loader hopper is a sealing device at the rear of the car, and the opening and closing actions are realized through the lifting cylinder, sliding hinge and locking limit device. At the same time, a sewage tank is provided at the bottom of the loader to collect the accumulated water inside the car and the hopper to ensure that the sewage can be discharged by itself during unloading.
● China the best Isuzu refuse compactor factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Promptly delivery, 100% customer made.
Safe and reliable: The key components of ISUZU NKR trash garbage truck are imported components, which have the advantages of high pressure, good sealing, convenient operation and safety. In addition, the Isuzu garbage compactor truck is also equipped with various safety devices and warning systems to ensure safety during operation.
Before maintenance work, the following things should be done for your ISUZU NKR 5cbm trash compactor truck firstly:
a、Turn off the PTO (power take-off) and speed-up switch, turn the manual joysticks to middle level.
b、Flameout the engine, take the key and put it into your pocket or other place to make sure it’s safe.
c、Use the parking brake.
d、Put a sign wrote “under maintenance, please do not start” on the steering wheel.
e、Put chock under the wheels to make truck stability.
2、Cleaning vehicle exterior，the inside and outside of the tilt device, the oil tank and pipe, all these daily working has purpose to prevent rust and to keep compactor ready for work anytime.
3、Carefully examine the hydraulic system, including whether hydraulic oil at normal level, whether the hydraulic pipeline leak oil or not, which can protect the compactor truck and always keep the compactor ready to work anytime.
4、Carefully check whether the electric system work normal or not, including the tail lights, the work indicating lamp etc.
5、Carefully clean the compress lock at the rear of the truck. To keep compression work efficiently.
6、Carefully check the entire compactor to inspect whether any warning signs and operating instruction sign fell off. Catch up on them when necessary.
7、Lubricate the whole pathway of the compressed garbage truck every day
8、Carefully clean the push plate and surrounding of the oil tank.
Brand new ISUZU 6 cubic meters 4x4 garbage compactor truck mounted on ISUZU 4x4 truck chassis, ISUZU LHD 6cbm compactor garbage truck 2 axles wast management truck.Collection way of garbage compactor truck is simple, can eliminate the second pollution, compression ratio high,large loading capacity,high automation operation, good economy, double insurance system, high efficiency.There are three kinds of mechanism options available to the customer,barrel turnover mechanism,panel turnover mechanism and tipping mechanism.By the user of hydraulics,the barrel is locked during the overturning process.which is very safe and reliable. Isuzu 120HP 4x4 truck mounted 6cbm garbage compactor.
