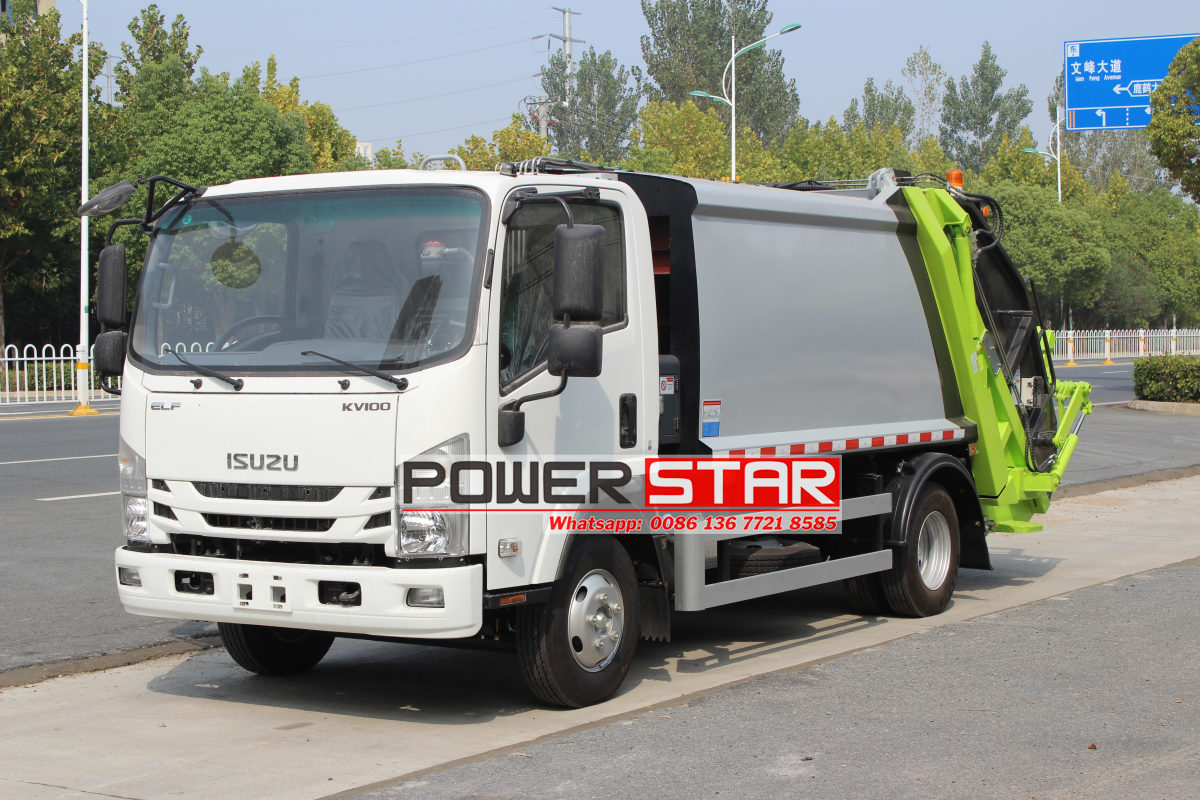

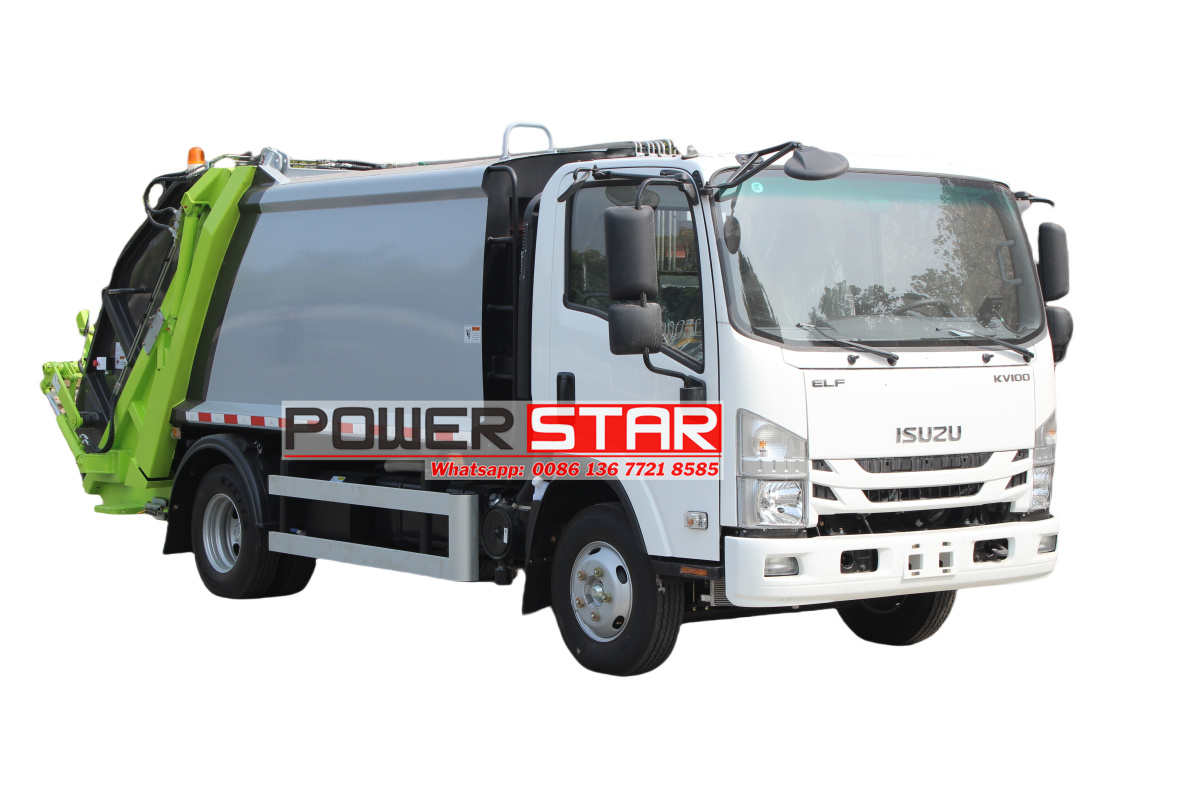

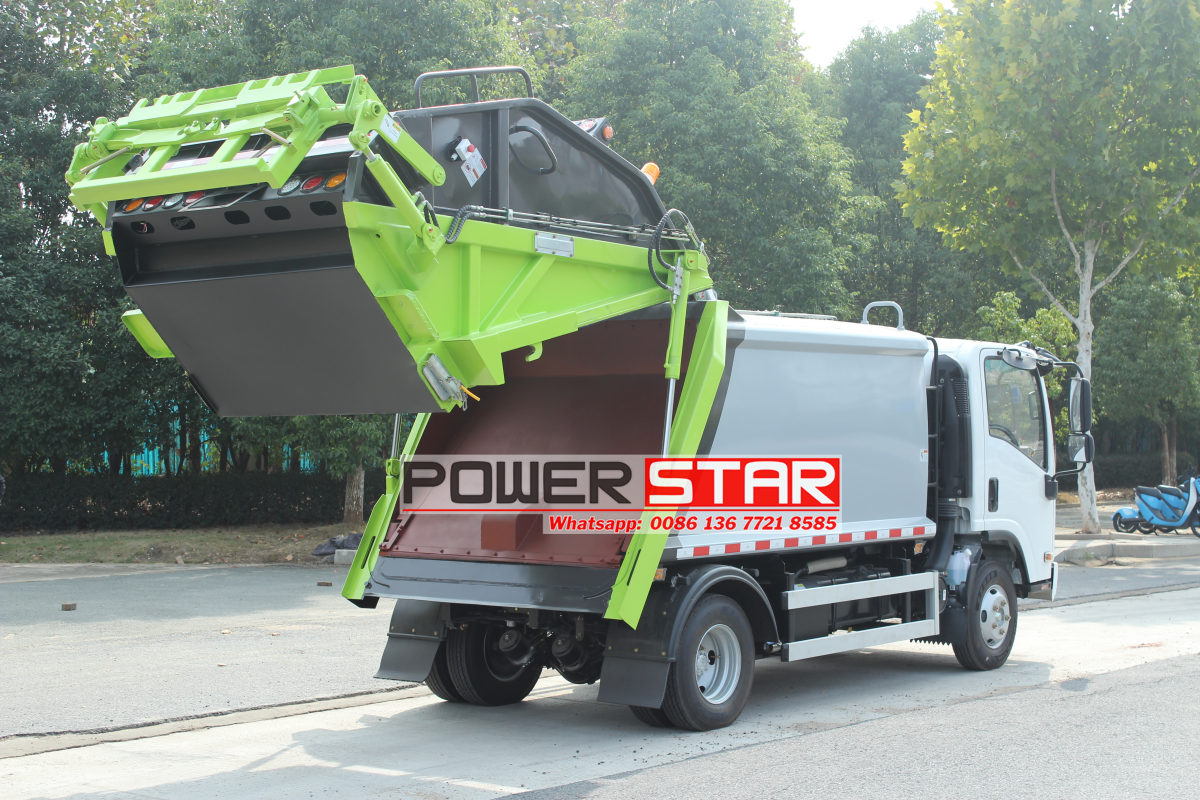

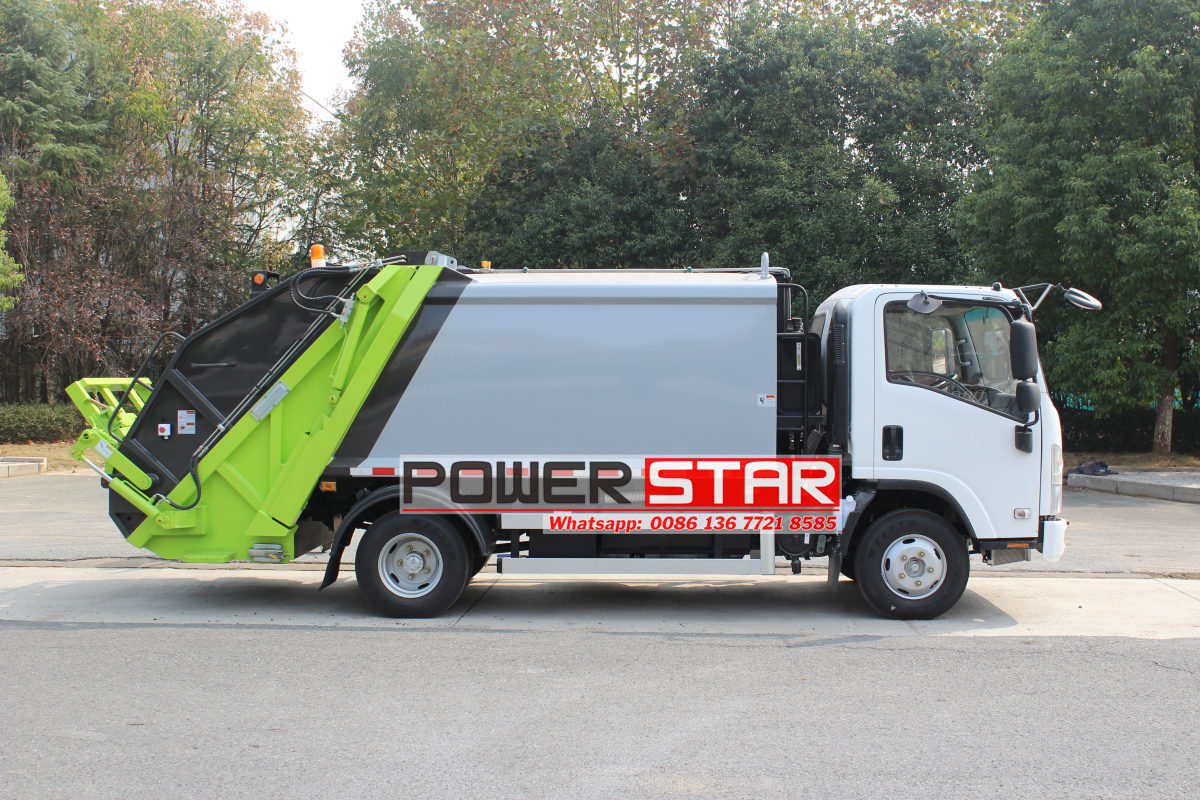

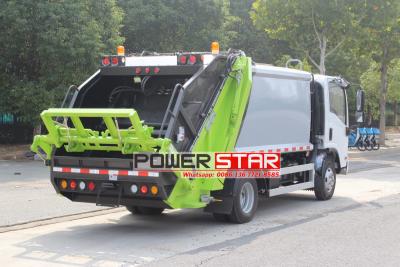

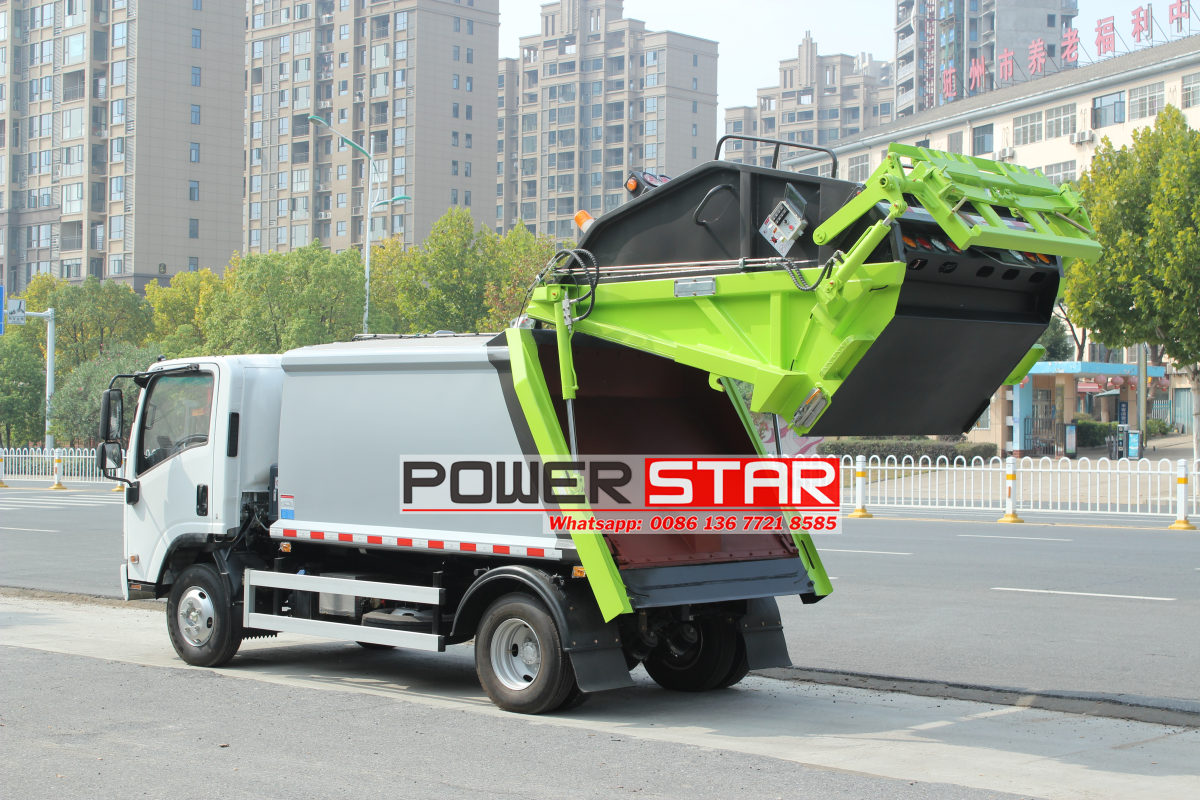

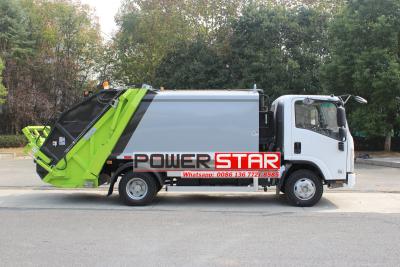

The 6m3 Isuzu KV100 QL1073BUHAY bin lorry compactor as a sanitation garbage truck with excellent performance and rich configuration, plays an important role in environmental sanitation, urban logistics, cold chain logistics and other fields. Its reliable power performance, efficient transmission system and user-friendly interior design make the 6m3 Isuzu KV100 bin lorry compactor the first choice for many car owners and logistics companies.
Work capacity:
6 cbmEngine power:
120HPEngine type:
ISUZU 4KH1Axle drive:
4x2Gear box:
ISUZU MSB 5-shiftRemarks:
Flip mechanism system can be optionalThe 6m3 Isuzu KV100 bin lorry compactor, a refuse collection vehicle also known for KV100 Isuzu waste disposal vehicle. It includes safety features such as backup cameras and alarms. Equipped with a compaction mechanism that tightly packs waste, reducing landfill trips, this truck is designed to transport large garbage quantities. These vehicles possess powerful engines, allowing them to maneuver swift in narrow streets. Notably, they require specially trained drivers for smooth operation.
Here are some examples of the 6m3 Isuzu KV100 (often referred to as Isuzu KV100), covering information on vehicle features, application scenarios, and specific configurations:
● China the best Isuzu refuse compactor factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Promptly delivery, 100% customer made.
1. Isuzu KV100 Truck chassis Features
Appearance Design:
The Isuzu KV100 uses a double U-shaped air intake grille and an original ISUZU air deflector, showing a strong Japanese light truck style.
The body size is 5995X2170 (or 2260/2270)X3150 (or 2980/3250) mm in length, width, and height, respectively, with a wheelbase of 3360 mm and a cargo compartment size of 4130X2100X2150mm (or 4075×2060×1860mm/405021002100mm), providing ample loading space.
Power performance:
Equipped with a Isuzu 4KH1CN6LB (or 4KH1N6MD) inline four-cylinder engine with a displacement of 2.999 liters, meeting the National VI emission standards.
The maximum output power can reach 88kw (120 horsepower) or 103KW (140 horsepower), the maximum torque is 290 Nm (some models can reach a peak torque of 320N·m), and the maximum torque can be output from 1500rpm, providing strong low-speed torque.
Transmission system:
Equipped with a five-speed manual transmission with Isuzu technology (some models match MSB and MYY transmissions), smooth shifting and high transmission efficiency.
Chassis and suspension:
The chassis structure is designed with front and rear leaf springs, and the rear axle speed ratio is 5.375. Other rear axle speed ratios can be selected according to actual use.
The Chaoyang ST303 series 7.00 R16LT (or 7.00 steel wire tire) size tires are used, equipped with steel wheels, which are strong and durable.
The 6m3 Isuzu KV100 bin lorry copactor plays a crucial role in waste management by understanding its purpose and benefits. Designed to handle substantial amounts of waste, it reduces trips and saves both money and emissions. Hydraulically powered compactors in these trucks compress the garbage, allowing for more storage capacity, thereby keeping the environment clean and preventing disease spread.
A notable feature of the 6m3 Isuzu KV100 bin lorry copactor is its ability to separate recyclable materials from regular waste through compartments or sorting mechanisms, facilitating recycling and contributing to planetary care.
For optimal functionality, maintenance and inspections are essential, encompassing checks on hydraulic systems, monitoring compaction ratios, and prompt addressing of mechanical issues. Moreover, a comprehensive training program for operators is crucial to ensure seamless and safe operations.
Enhancing waste management further involves implementing source separation programs in homes and businesses, educating communities on waste reduction strategies, and supporting recycling initiatives. These actions will benefit the environment and foster sustainable development.
How to operating a 6m3 Isuzu KV100 bin lorry compactor
Operating a 6m3 Isuzu KV100 bin lorry compactor requires following a step-by-step guide to ensure efficient waste management. By adhering to these instructions, garbage collectors can maximize the truck’s capacity and maintain a clean environment.
Prepare the 6m3 Isuzu KV100 bin lorry compactor for operation:
Park the truck on level ground and engage the parking brake.
Wear appropriate personal protective equipment, such as gloves and a high-visibility vest.
Inspect the truck for any potential issues, such as fluid leaks or mechanical problems.
Ensure that all safety features, including emergency lights and alarms, are functional.
Loading the garbage into the 6m3 Isuzu KV100 bin lorry compactor:
Start by positioning the truck near the designated garbage collection area.
Use the truck’s hydraulic lifting mechanism to hoist the garbage bin into the air.
Carefully empty the contents of the bin into the truck’s hopper.
Remember to avoid driving with the bin lifted, as this can cause accidents and damage to the truck.

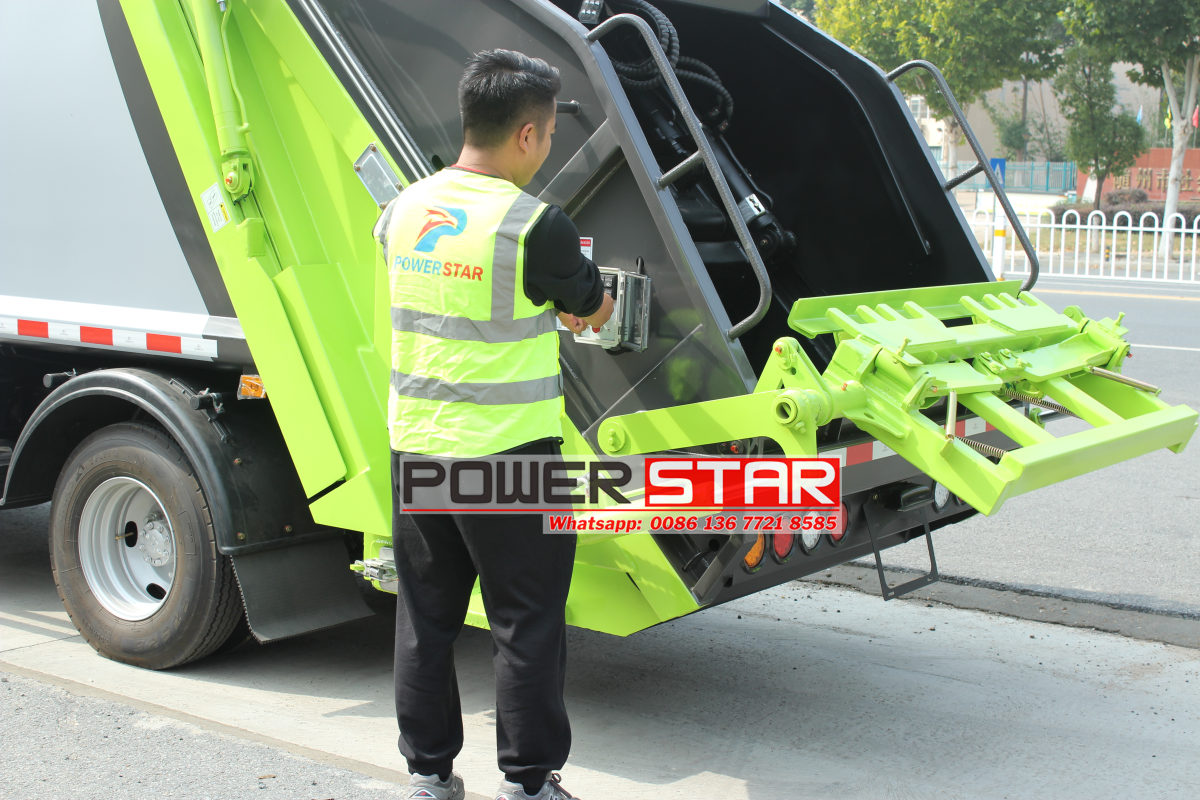

Operating the 6m3 Isuzu KV100 bin lorry compactor:
Once the garbage is loaded into the truck’s hopper, activate the compactor by pressing the appropriate control buttons.
The compactor will compress the waste, allowing for more garbage to fit into the truck’s storage compartments.
Be cautious not to overload the truck beyond its capacity, as this can result in spills and damage to the compactor mechanism.
Regularly monitor the compaction process to ensure optimal efficiency.
The feeding mechanism can choose bucket mechanism (with 330L steel or 240L plastic barrel),
Easy type to Discharge the garbage.
Disposing of the garbage:
Drive the loaded garbage compactor truck to the designated disposal site.
Follow the established protocols at the disposal site, such as weighing the truck or coordinating with landfill personnel.
Empty the contents of the truck’s compartments as instructed, using hydraulics to unload the waste into the designated area.
Clean the truck thoroughly after every disposal to maintain hygiene standards.
