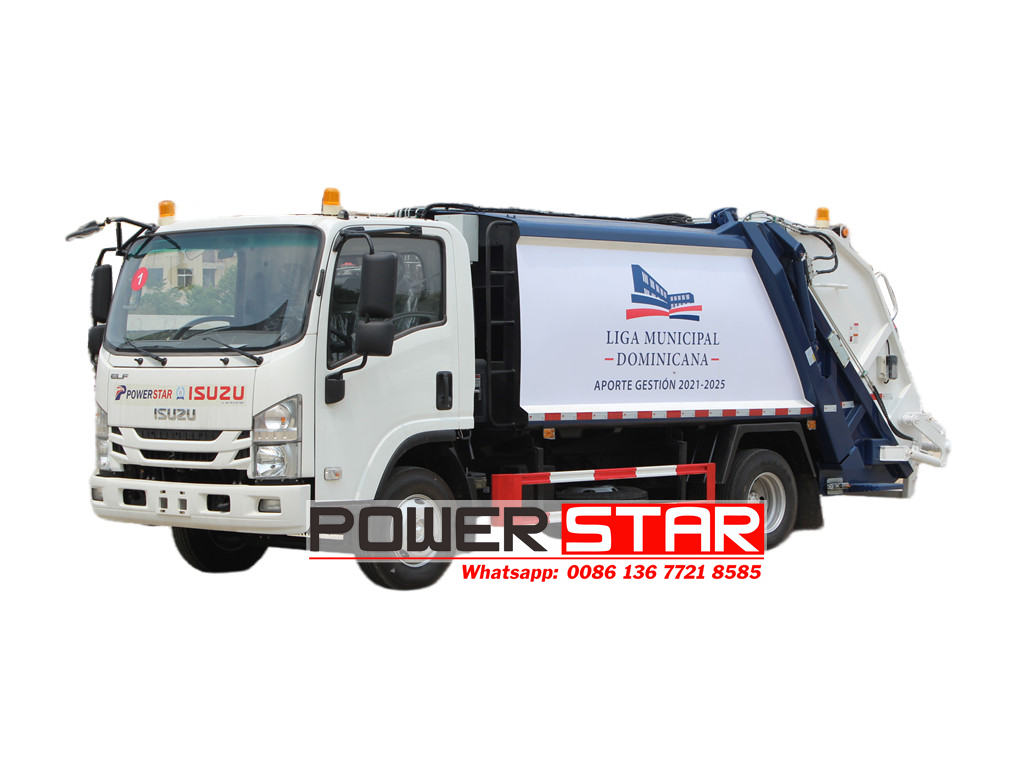

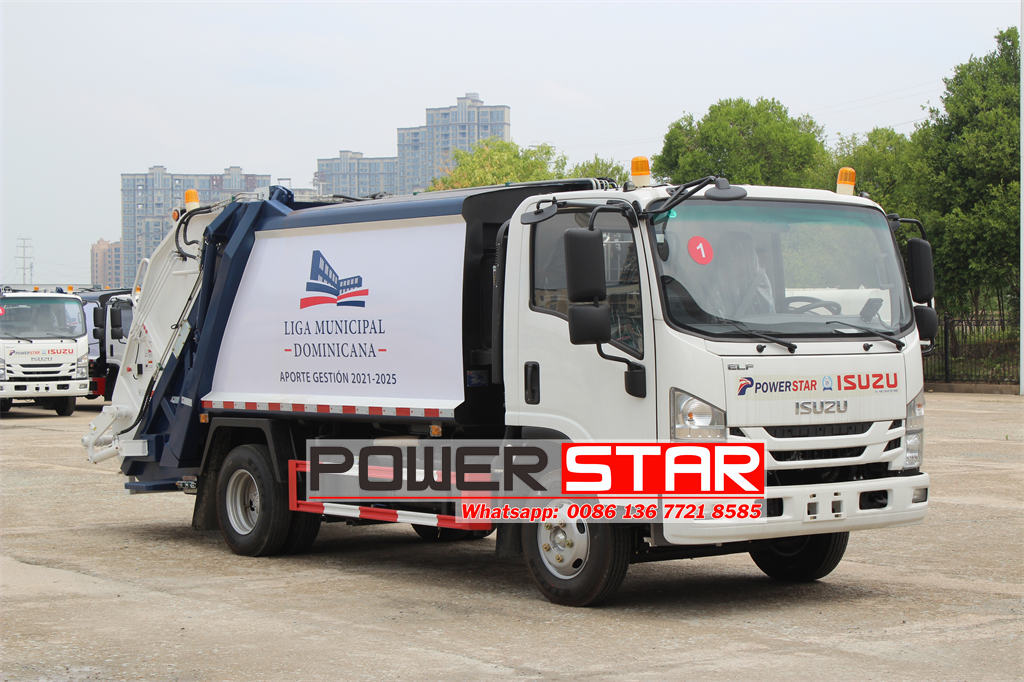

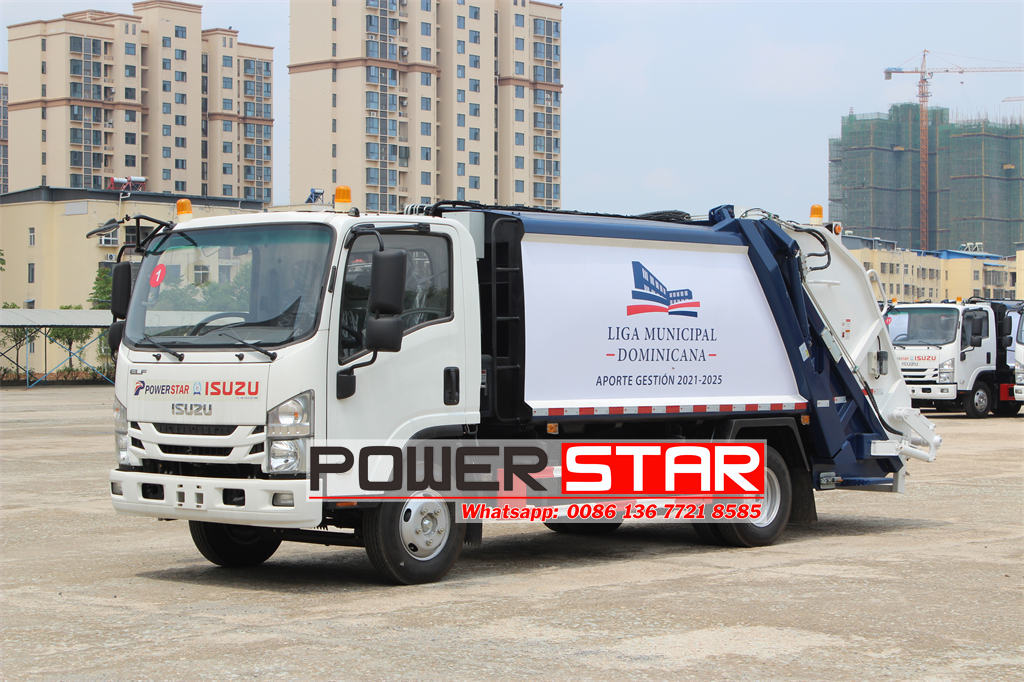

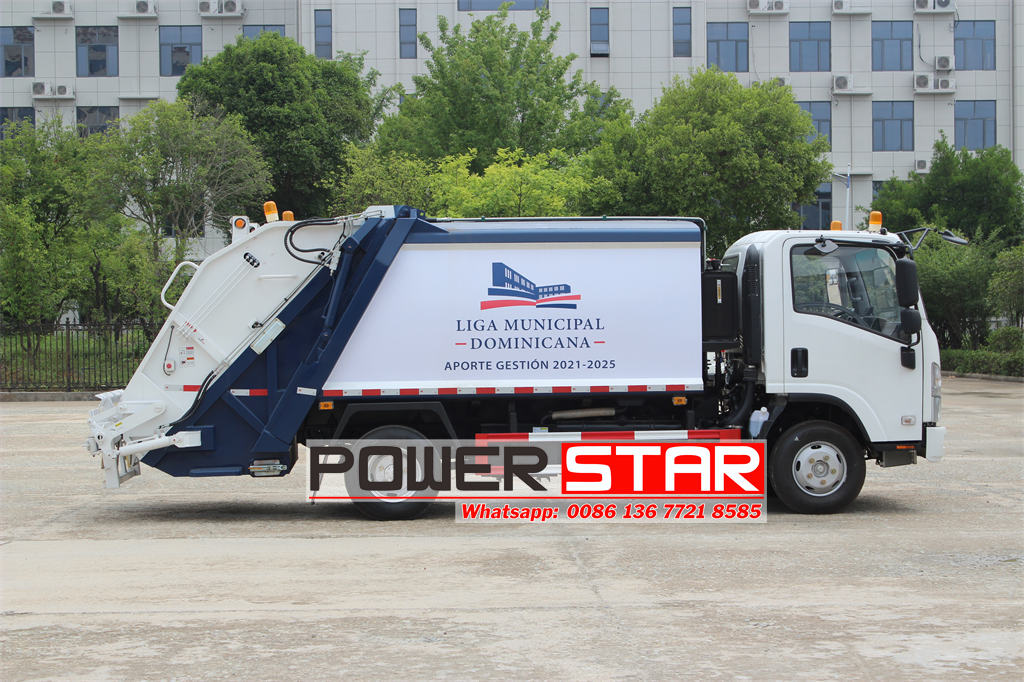

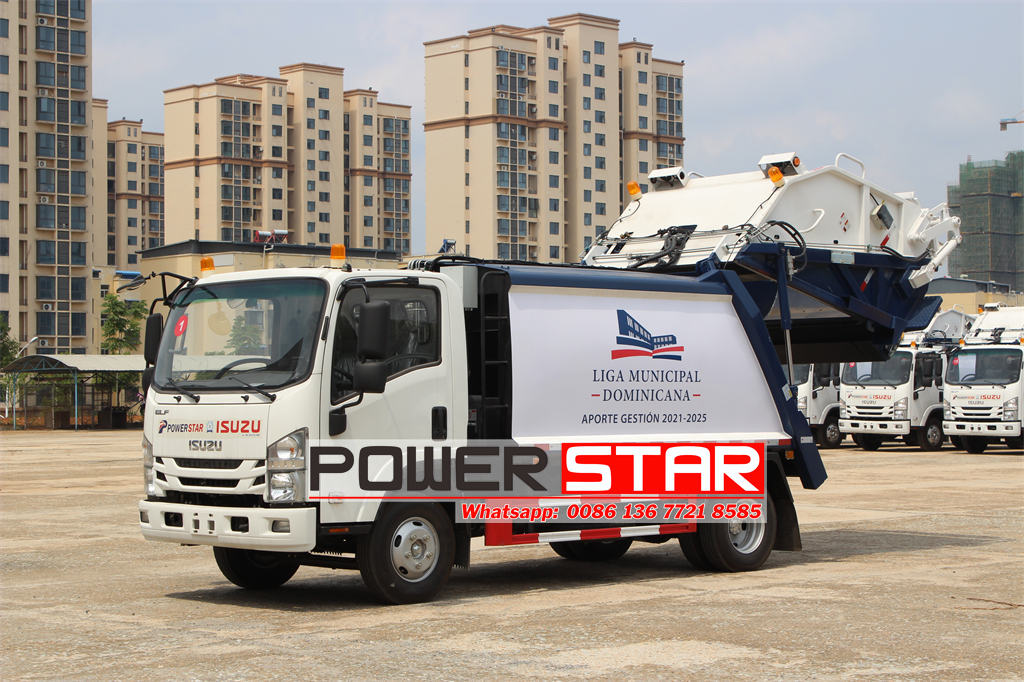

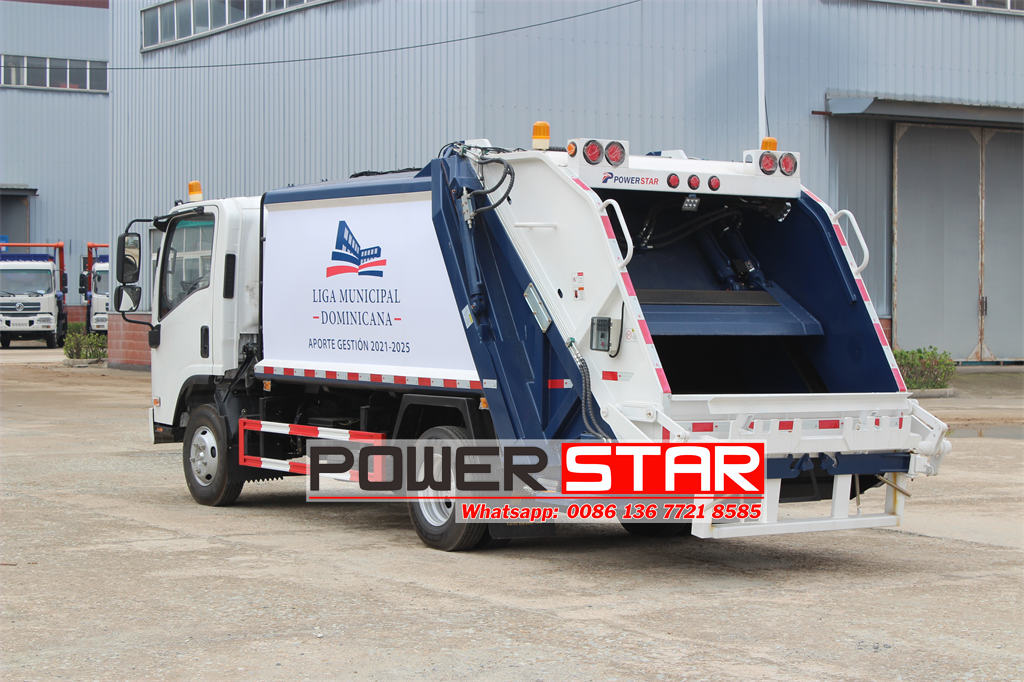

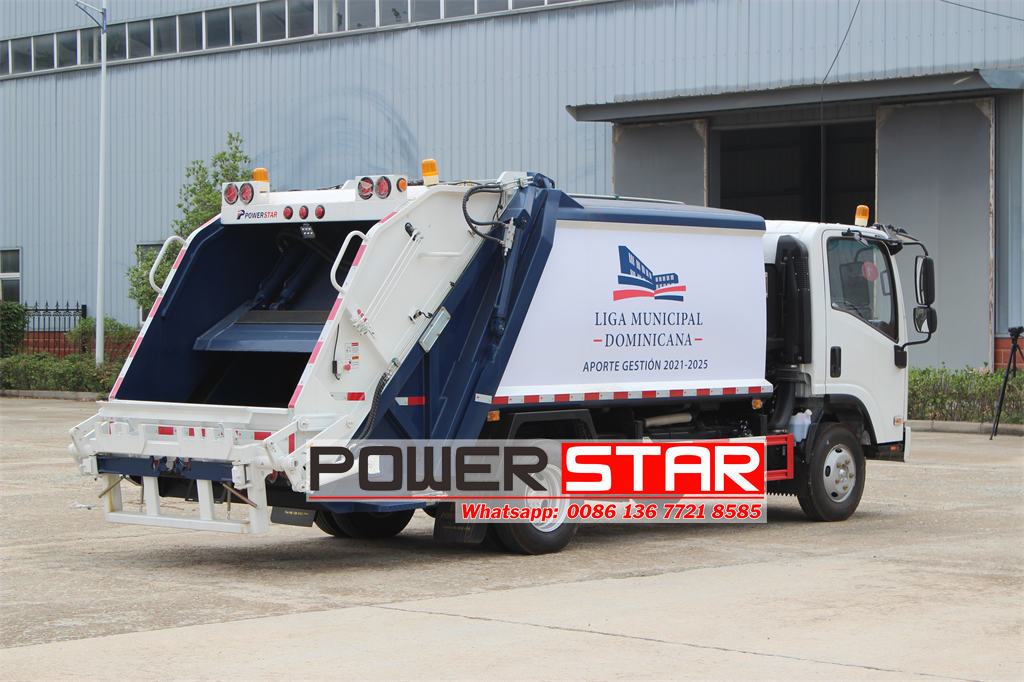

The ISUZU 8 yard Rear Loader Garbage Truck is a specialized vehicle designed for urban waste management, combining efficiency, environmental friendliness, and durability, making it an ideal choice for municipal sanitation departments. Equipped with advanced compression technology, it significantly reduces the volume of waste, enhancing transportation efficiency and lowering operational costs. Additionally, its user-friendly design and comprehensive features provide drivers with a more comfortable and convenient operating experience.
Work capacity:
6 CBMEngine power:
120 HPEngine type:
4KH1CN6LBAxle drive:
4x2, left hand driveGear box:
MSB 5-speed,manualRemarks:
Equipped with high-quality hydarulic cylindersThe ISUZU 6CBM Waste Compactor Truck is a highly efficient and durable specialized vehicle designed for urban waste collection and transportation. Powered by a 4KH1CB6LB engine with a maximum output of 120HP, it delivers robust performance and excellent fuel economy, meeting the demands of daily waste disposal tasks. The compactor body has a volume of 6 cubic meters and is constructed from T420 high-strength special steel, ensuring a sturdy structure and exceptional pressure resistance for long-term reliability. The tailgate, with a capacity of 0.8 cubic meters, effectively compresses waste, enhancing loading efficiency. The rear of the tailage is equipped with a bin lift mechanism that supports various bin sizes, including 120L, 240L, 480L, and 600L, offering convenient operation and strong adaptability. The hydraulic cylinders are sourced from renowned domestic brands, providing stable performance and high durability, ensuring reliable operation in high-pressure working environments. With its efficiency and reliability, the ISUZU 6CBM Rear End Loader Truck is an ideal choice for urban sanitation operations.
● 30 years experience on rear loader truck designing
● 50 units Isuzu waste compactor truck in stock
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● Build strict QC team to guarantee the quality
● Professional sales team which will help you to choose suitable truck
Product Specifications
|
ISUZU 8 yard waste disposal rear loader Specifications |
|
|
Dimensions |
|
|
Wheelbase(mm) |
3360 |
|
Overall Dimension(mm) |
6850x2250x2550 (mm) |
|
Compactor body volume (m3) |
6 |
|
Weights parameter |
|
|
GVW(kg) |
7,300kgs |
|
Curb weight(kg) |
5,200kgs |
|
Front axle(T) |
2.5 Ton drum type |
|
Rear axle load(T) |
4.8 Ton drum type |
|
Tread (Front/rear) (mm) |
1685/1525 |
|
Front / rear overhang(mm) |
1110/1780 |
|
Max speed(km/h) |
110 |
|
Engine parameters |
|
|
Engine model |
4KH1CN6LB |
|
Engine type |
4 stroke, direct injection, 4 cylinder in-line, turbocharged, inter-cooler, diesel engine |
|
No. of cylinders |
4 cylinders |
|
Displacement(L) |
3.0 L |
|
Engine power(kw) |
88 kw/120PS |
|
Max.torque (N.m/rpm) |
290N.m@1500-2900rpm |
|
Drive Line parameters |
|
|
Clutch description |
Dry single plate, hydraulic control booster, mechanical operation with hydraulic assistance |
|
Transmission |
ISUZ MSB 5 forwarder,1 reverse gear, Manual operation |
|
Braking system |
Service brake: Air brake system, with ABS |
|
Assistant brake: WEVB (Engine exhaust brake) |
|
|
Park brake: Spring brake |
|
|
Steering wheel |
Power steering assistance, LHD |
|
Cab description |
|
|
1. ISUZ KV100 3X wide cabin, 3 seats, air conditioner, electrical window, MP3, radio, USB interface |
|
|
Upper body specifications |
|
|
Garbage compactor body |
|
|
Compactor volume (CBM) |
6 CBM |
|
High strength special steel T420, 4mm thickness of side walls, 5mm floor |
|
|
Waste water tank |
2 units |
|
Garbage body mounting |
Mounted on truck chassis with rigid type by U-bolts and junction plate |
|
Ejection plate/push shovel |
5mm T420 steel |
|
Hopper floor |
High tensile steel sheet |
|
Tailgate |
|
|
Hopper capacity |
0.8 m3 |
|
Hopper bottom/side/shovel blade |
5mm/4mm/5mm T420 steel |
|
Bin lifter |
Suitable for 120L,240L,480L,600L waste bins |
|
Lifting of tailgate |
Operated by hydraulic cylinder |
|
Safety valve |
On each rear side of body, for emergency case |
|
Additional equipment |
2 steel mudguards with rubber flaps at rear ends |
|
Hydraulic system |
|
|
Hydraulic power |
Supplied by hydraulic pump from PTO mounted on transmission shaft |
|
Working pressure (Mpa/bar) |
18Mpa/180 bar |
|
Hydraulic oil tank |
80 L |
|
Operation |
Hydraulic control at rear side of hopper |
|

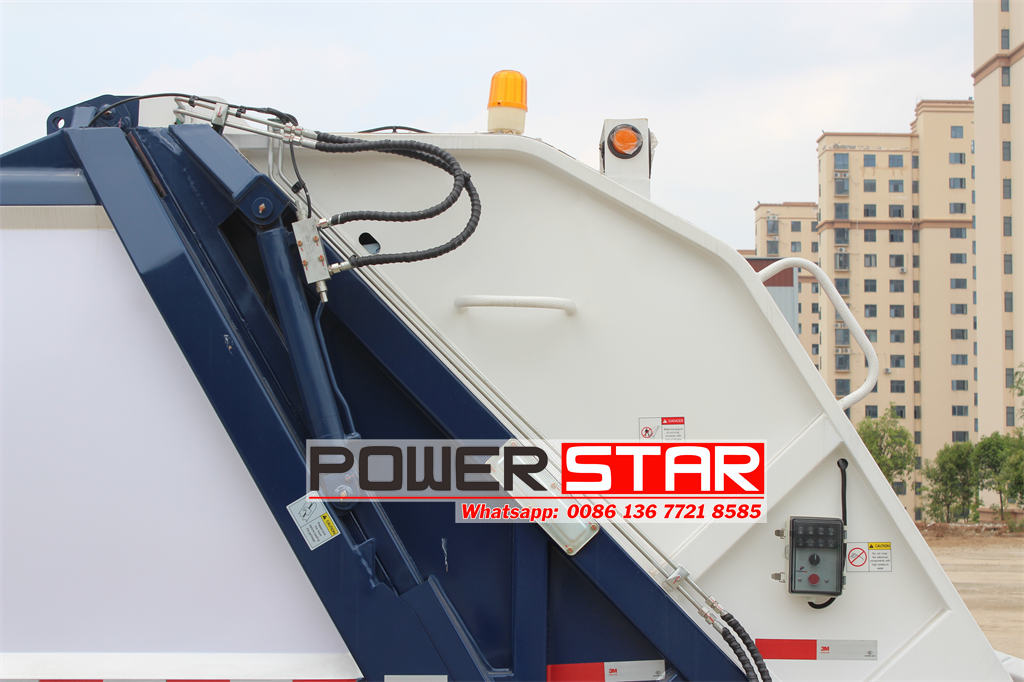

Hydraulic cylinder |
The tailgate movement controled by 2 double action hydraulic cylinders and with safety device to prevent any emergency case occurred |
|
Nos of Hydraulic cylinder |
2 bin lifter cylinders |
|
Pipe & hose |
Pipes made of high quality steel pipe with high anti-corrosion performance |
|
Operation & Control |
|
|

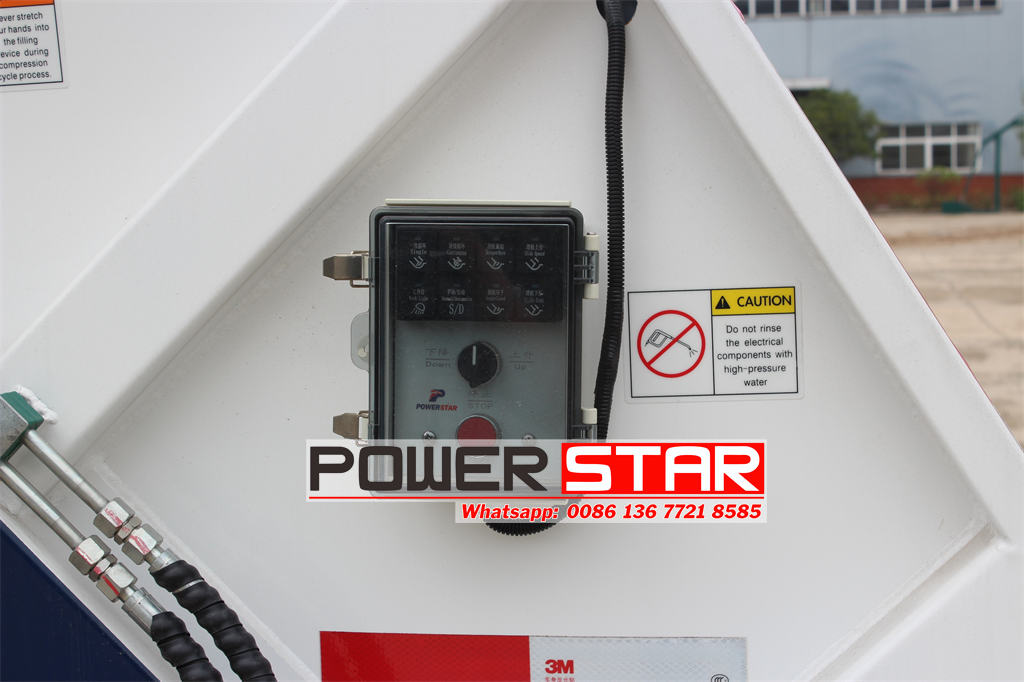

Operation |
By means of hydraulic cylinder, can be operated by manual and automatic |
|
Control |
All control by manual and automatic |
|
Loading/unloading cycle time(s) |
About 30s |
|
Loading/unloading cycle time(s) |
About 30s |
|
Feeding cycle time(s) |
About 15s |
|
Garbage upload/discharge cycle time(s) |
About 30s |
|
Multiple directional control valve |
China famous brand |
|
Hydraulic gear pump |
China famous brand |
|
Power take off |
Made in China |
|
Hydraulic cylinder |
China famous brand |
|
Electrical control system (PLC) |
SIEMENS PLC |
Product Structure
1. Compactor Body Structure:
o The compactor is the core part of the ISUZU refuse compactor truck, made of T420 high-strength special steel, offering excellent compression resistance and corrosion resistance.
o The interior of the compactor is rationally designed to effectively contain and compress waste, with a typical volume of 6 cubic meters, ensuring high loading capacity.
o The rear of the compactor is equipped with a sealing device to prevent waste and sewage leakage, maintaining environmental cleanliness.
2. Push Plate Assembly:
o The push plate assembly is located inside the compactor and is responsible for pushing waste toward the front of the compartment for compression.
o The push plate is driven by a hydraulic system, enabling smooth and efficient movement to ensure even distribution and thorough compression of waste.
o The push plate assembly is made of high-strength materials, offering wear resistance and durability, capable of withstanding long-term high-load operations.

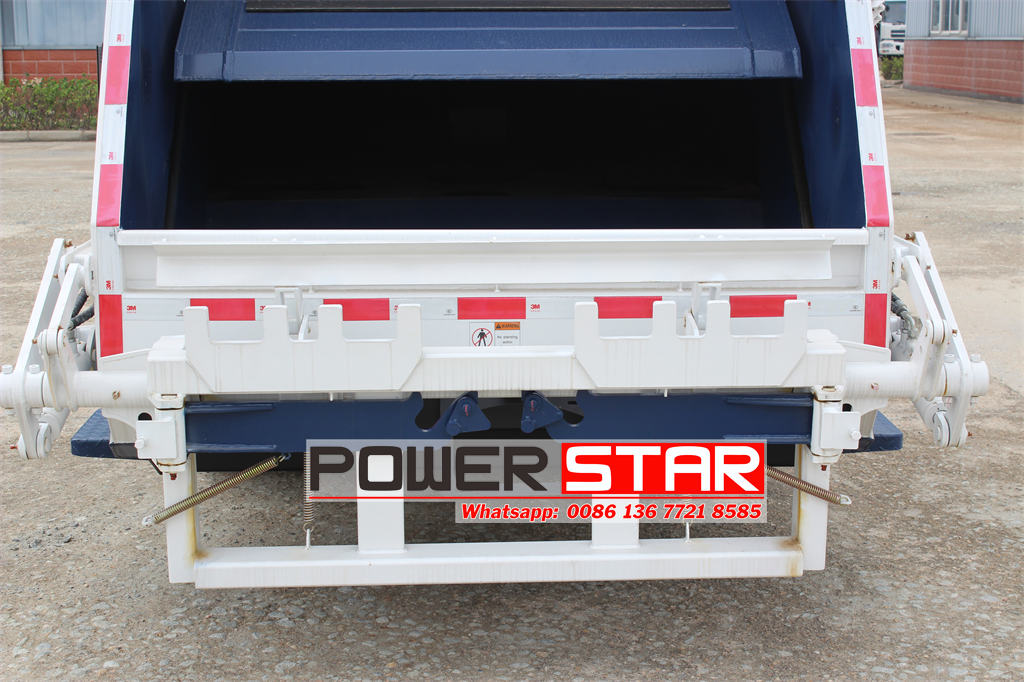

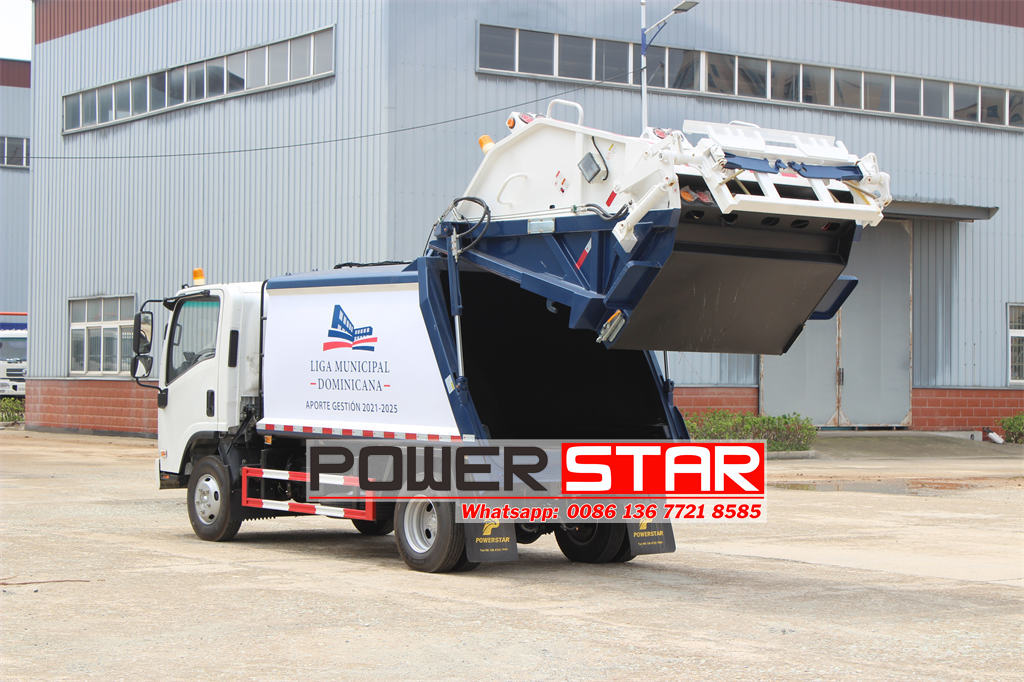

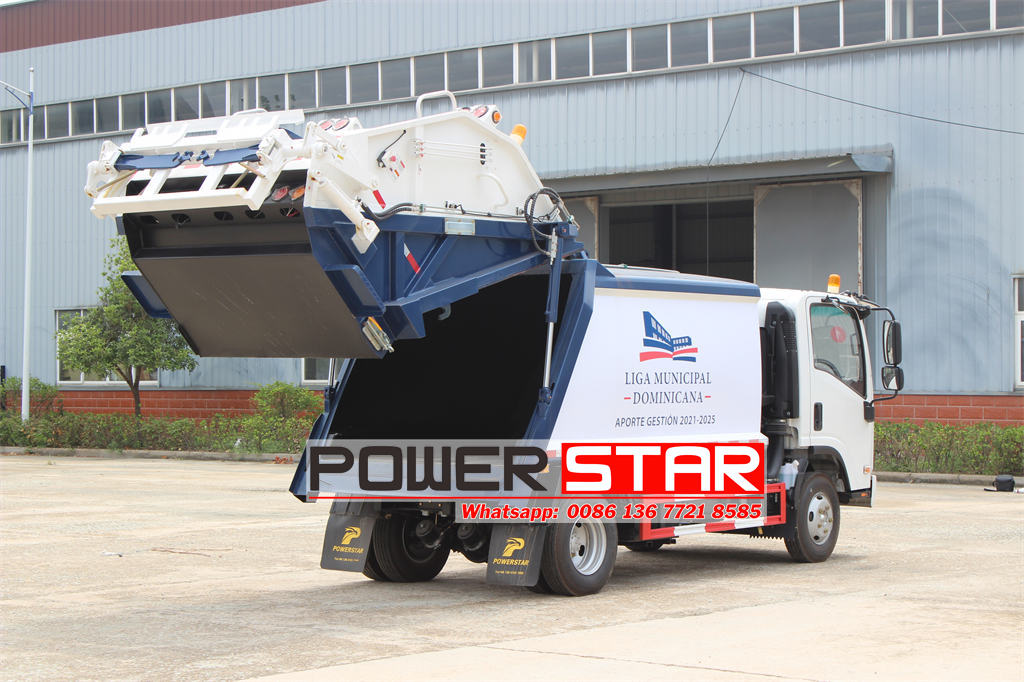

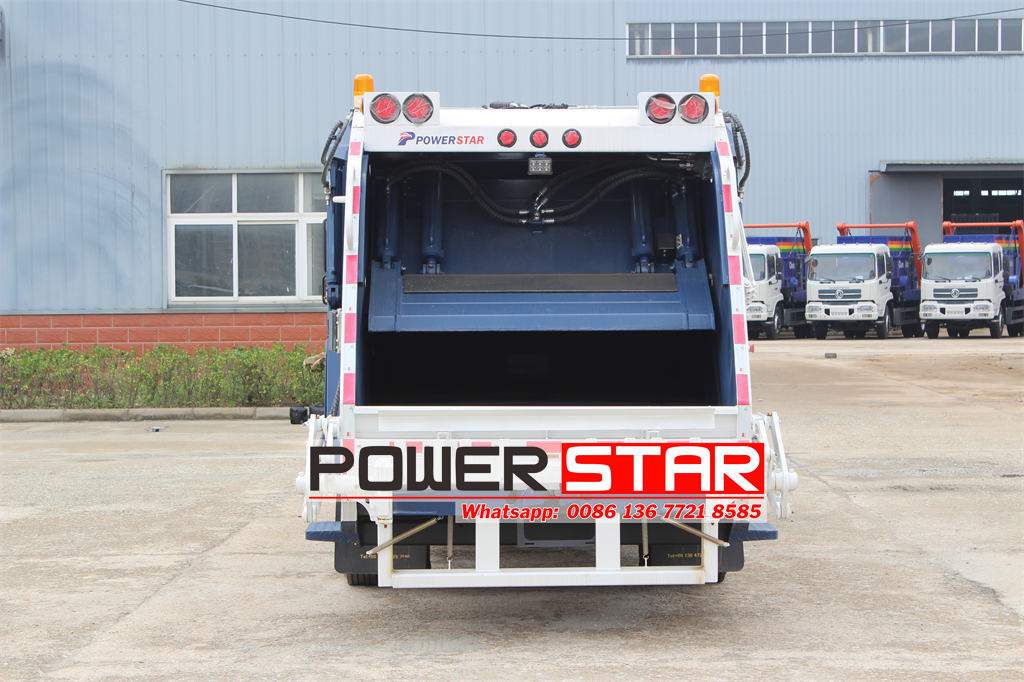

3. Tailgate Assembly:
o The tailgate assembly is located at the rear of the vehicle and is responsible for loading waste from the ground or garbage bins into the compactor body.
o The tailgate of ISUZU 8 yard rear loader has a volume of 0.8 cubic meters and is equipped with a compression device to preliminarily compress waste, improving loading efficiency.
o The tailgate assembly is compactly designed, easy to operate, and adaptable to different types and sizes of waste.

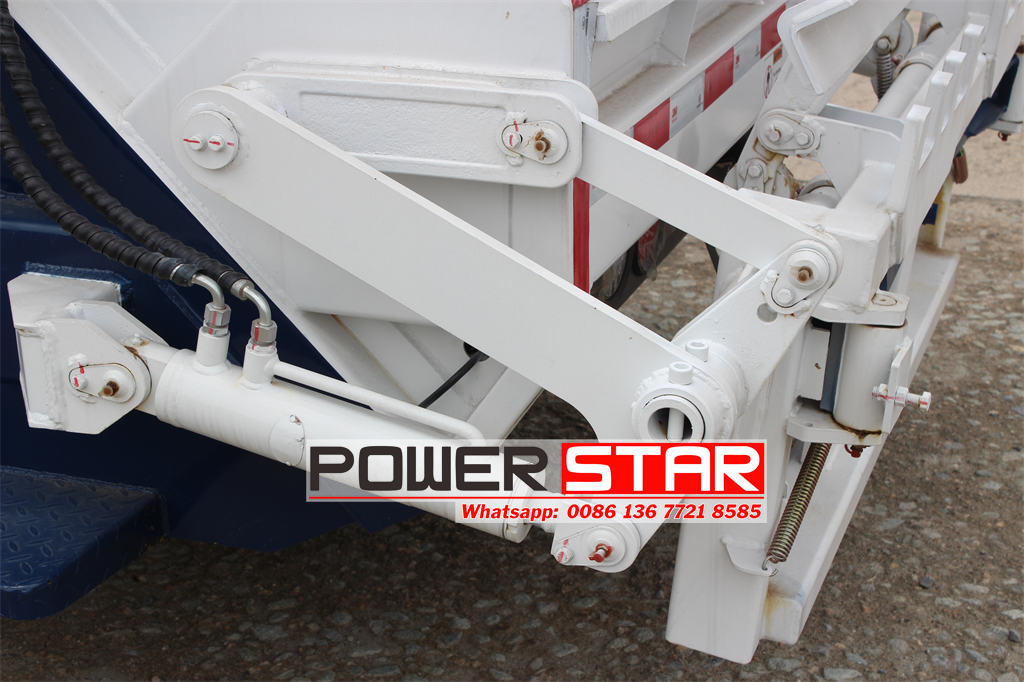

4. Bin Lifter:
o The bin lifter is a crucial functional component of the compressed garbage truck, used to lift and tilt garbage bins.
o The bin lifter supports various bin sizes (e.g., 120L, 240L, 480L, 600L), offering flexible operation and strong adaptability.
o The bin lifter is driven by a hydraulic system, ensuring smooth and reliable movement for efficient lifting and tilting of garbage bins.
