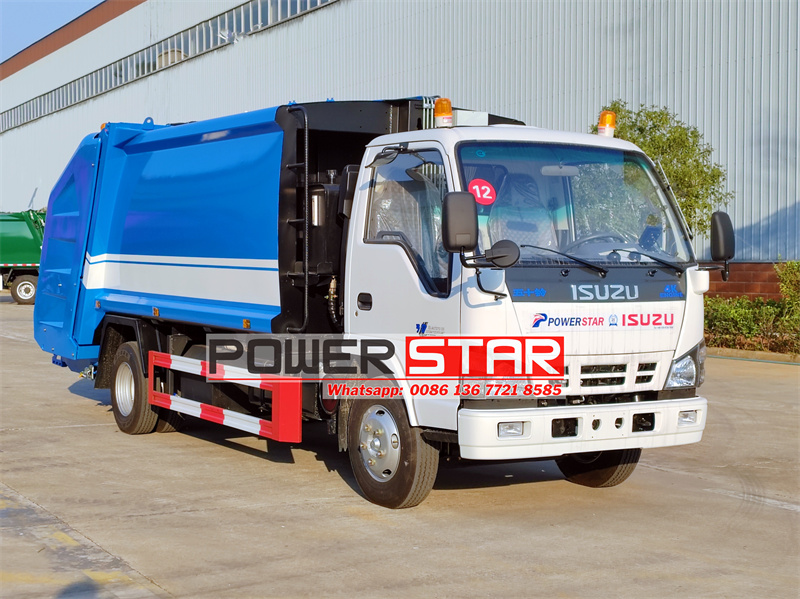

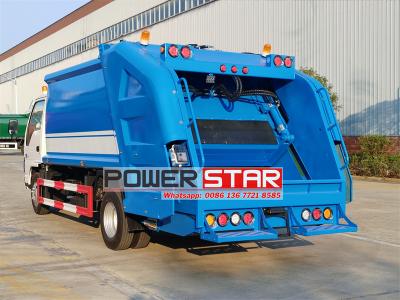

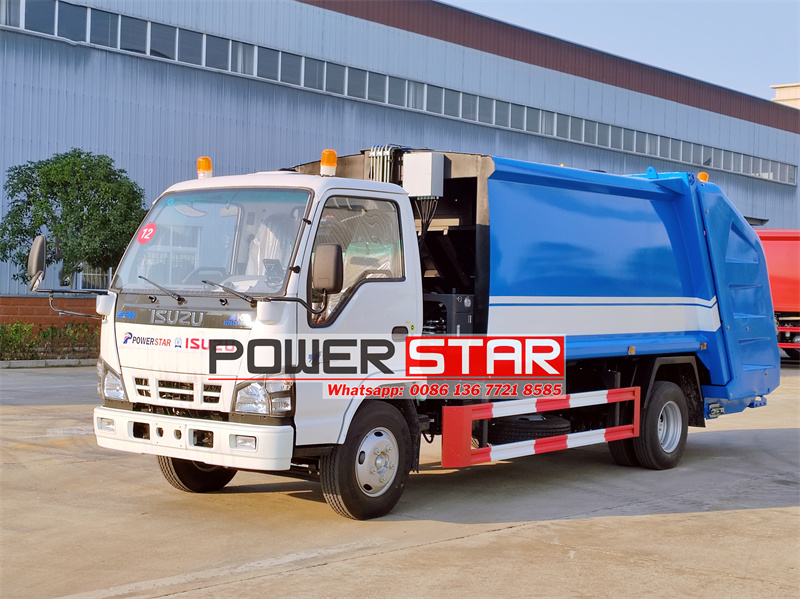

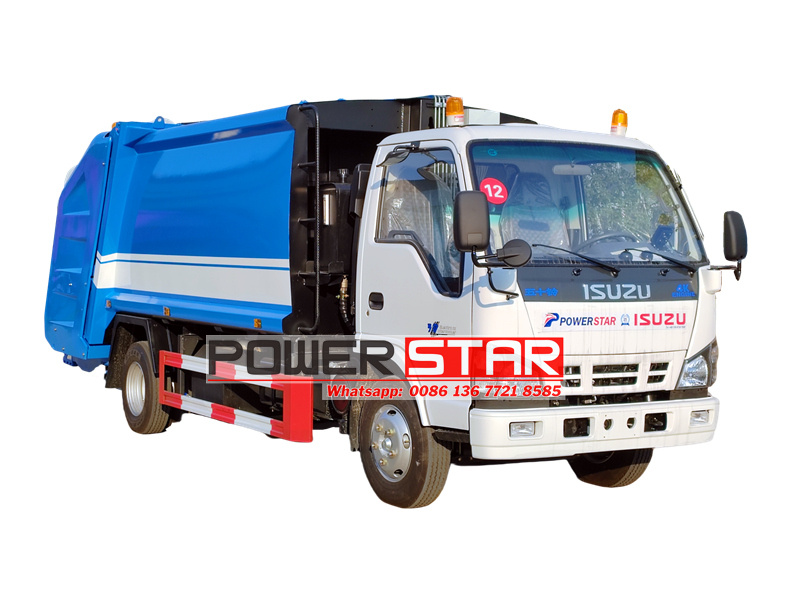

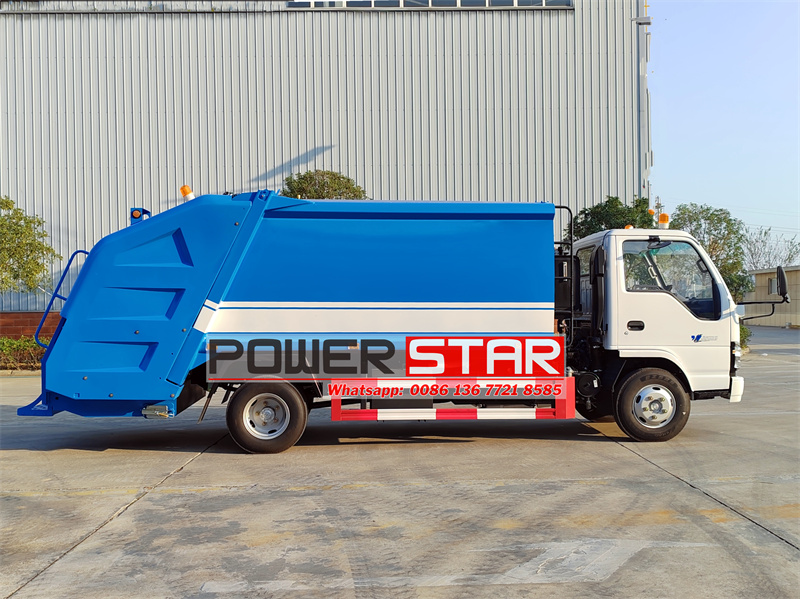

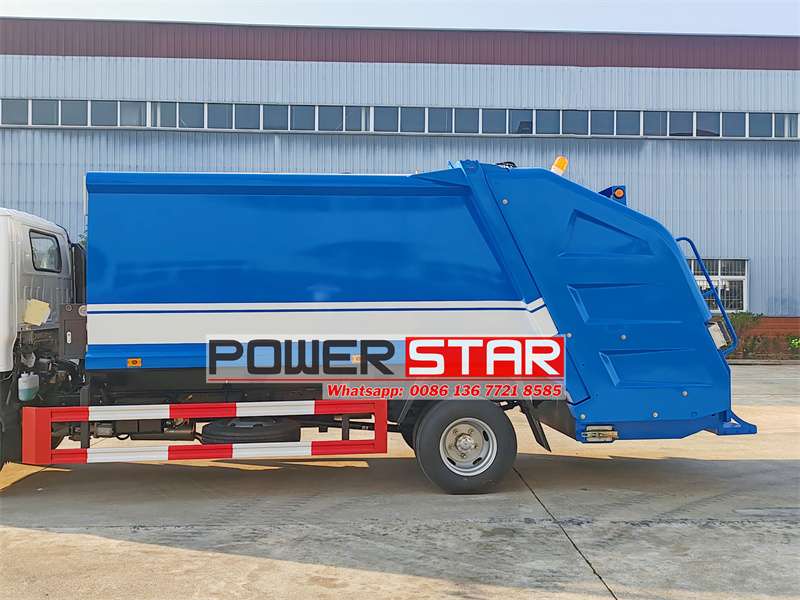

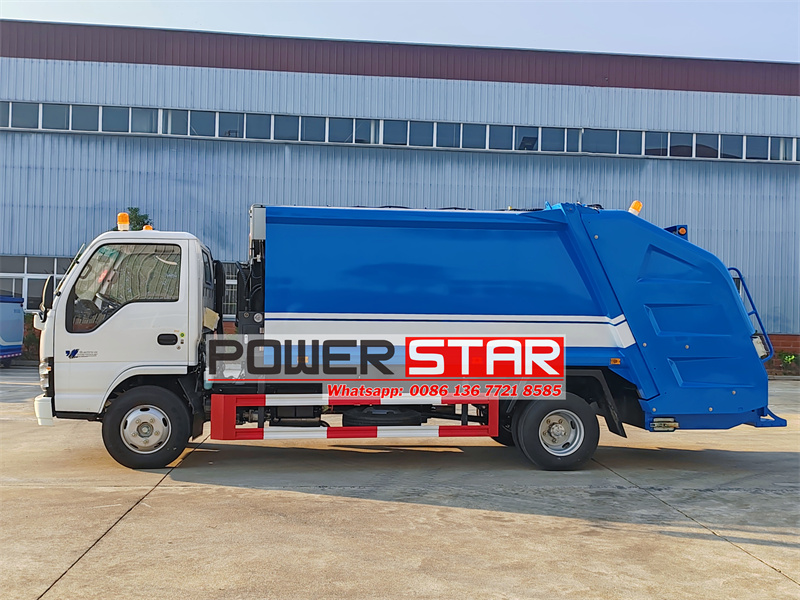

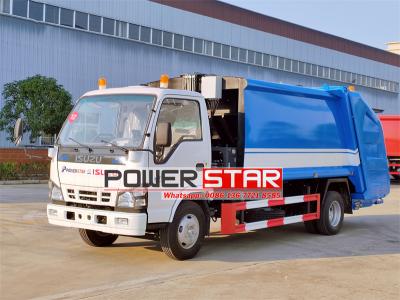

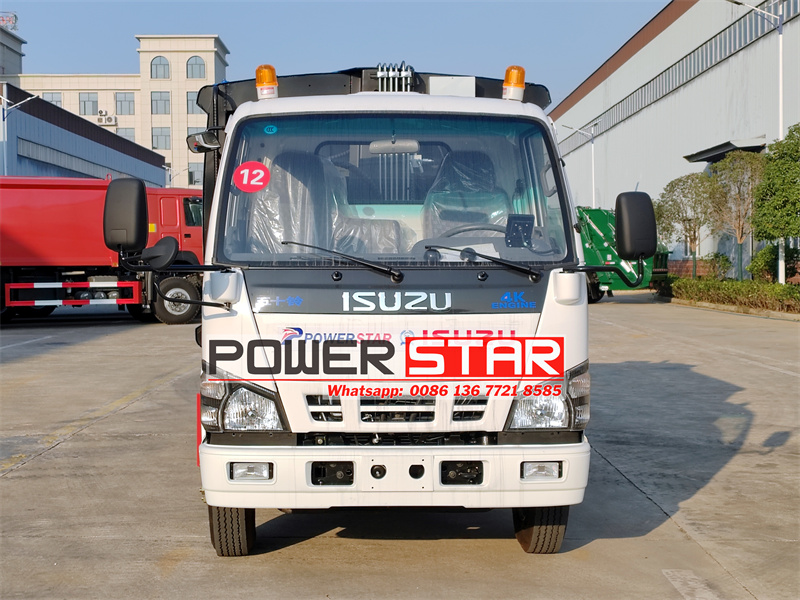

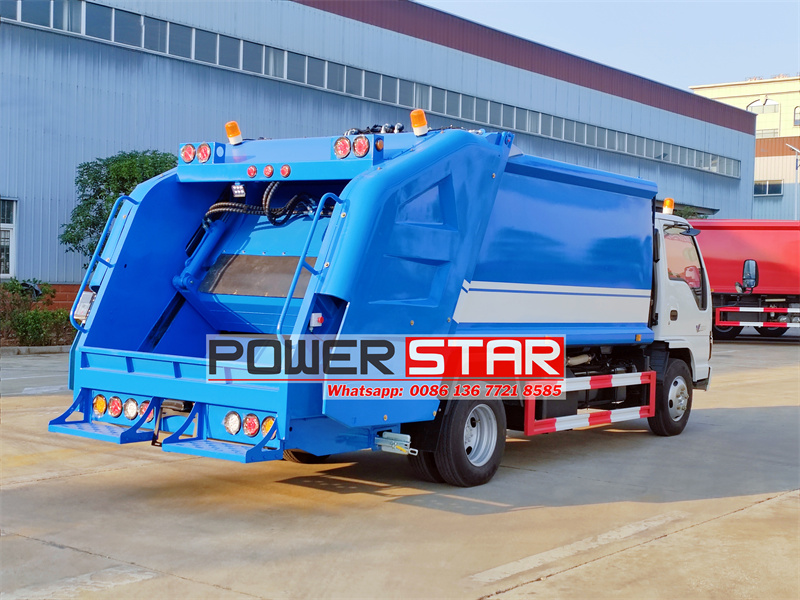

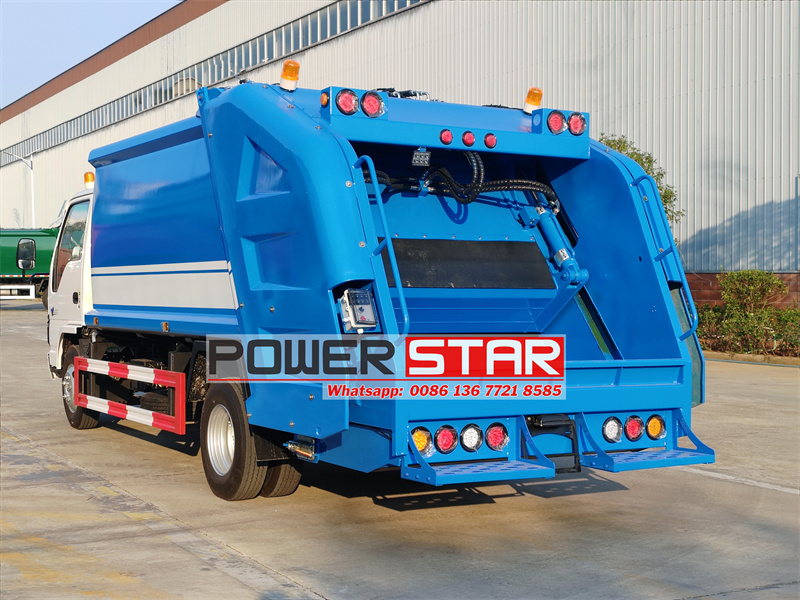

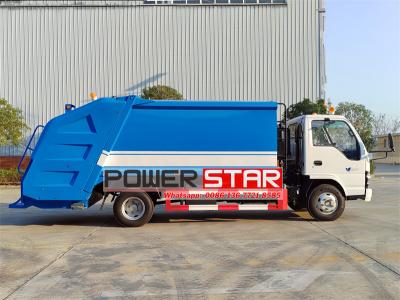

This ISUZU NKR light-duty garbage compactor truck is an efficient and practical urban sanitation model with excellent technical performance and practicality. The vehicle is equipped with a 4HK1CN6LB engine with a displacement of 2.99L and a maximum power of 120 horsepower. It adopts a 4-cylinder in-line turbocharged water-cooled design, and the power system is reliable and stable. The Isuzu garbage truck adopts a 4*2 drive configuration, a total mass of 7300kg, and a wheelbase of 3815mm. It is a light truck that is convenient for garbage disposal in the streets and alleys of the city. The garbage bin has a capacity of 8 cubic meters and adopts an arc design. The bottom and side panels are both 4mm thick Q235 special steel. The overall molding process ensures structural strength.
Work capacity:
8cbmEngine power:
120HPEngine type:
4KH1CN6LBAxle drive:
4x2，LHDGear box:
MSB-5S，manualRemarks:
8CBM garbage capacity,3 operation modesThis ISUZU NKR light-duty garbage compactor truck is an efficient and practical urban sanitation model with excellent technical performance and practicality. The vehicle is equipped with a 4HK1CN6LB engine with a displacement of 2.99L and a maximum power of 120 horsepower. It adopts a 4-cylinder in-line turbocharged water-cooled design, and the power system is reliable and stable. The Isuzu garbage truck adopts a 4*2 drive configuration, a total mass of 7300kg, and a wheelbase of 3815mm. It is a light truck that is convenient for garbage disposal in the streets and alleys of the city. The garbage bin has a capacity of 8 cubic meters and adopts an arc design. The bottom and side panels are both 4mm thick Q235 special steel. The overall molding process ensures structural strength.
● 30 years experience on rear loader truck designing

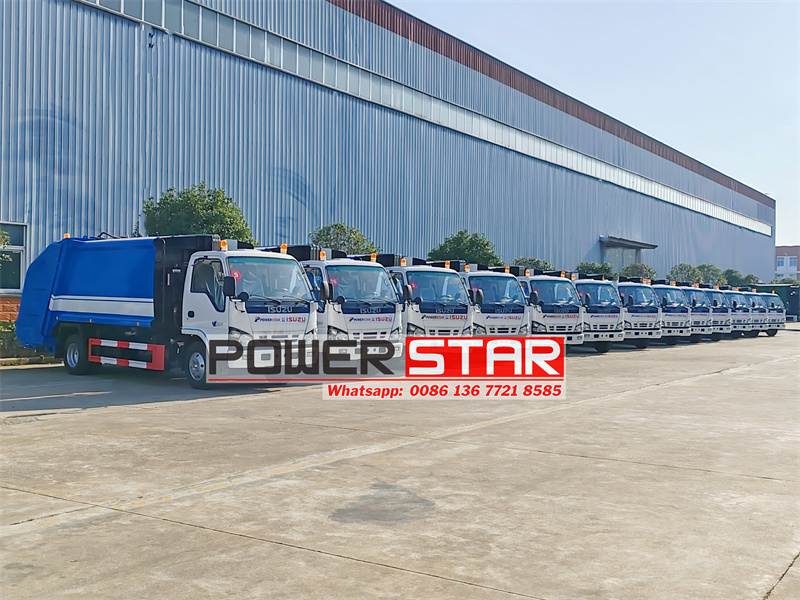

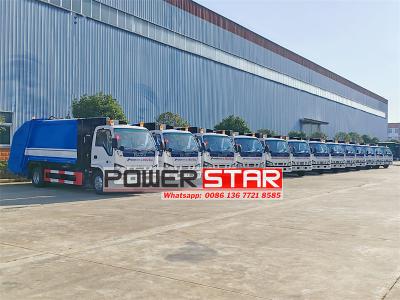

● 50 units Isuzu garbage compactor truck in stock, 5 cbm, 8 cbm, 12 cbm
● OEM customized service, print your company logo
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance

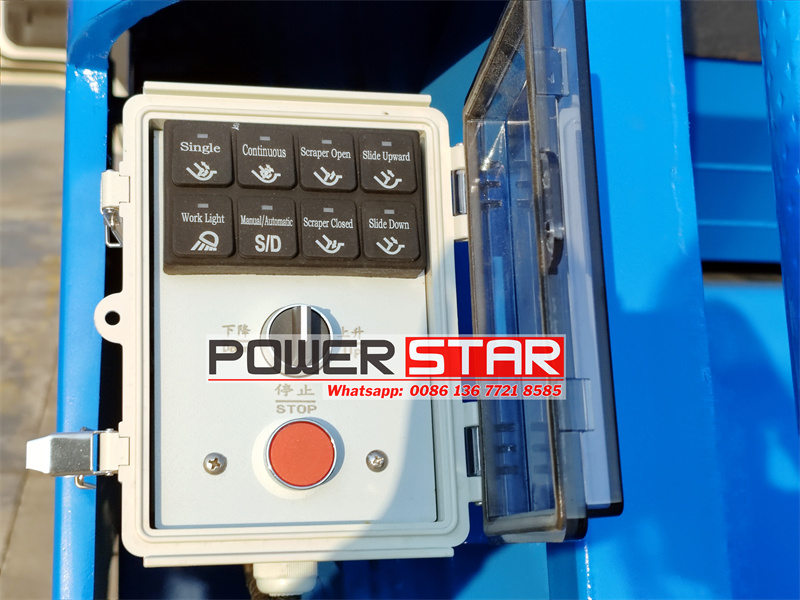

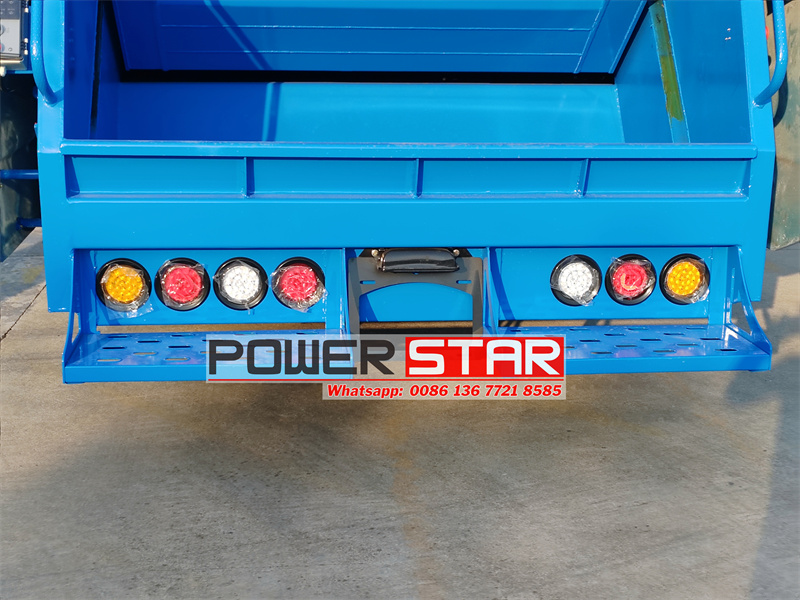

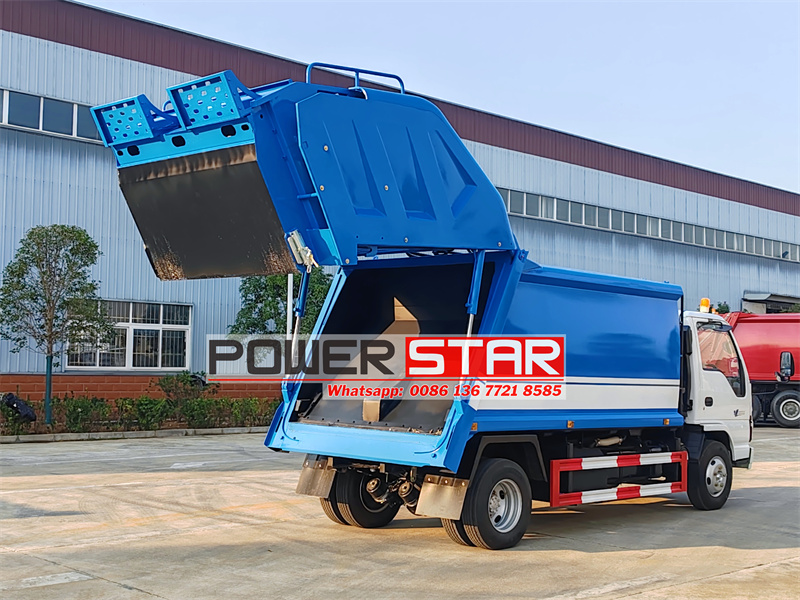

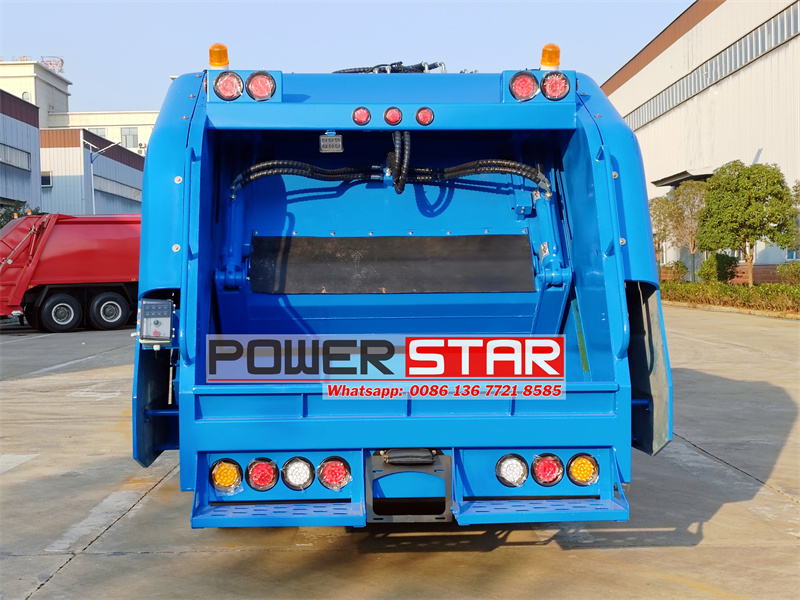

The compression system compression ratio is 1:3.4, the maximum pressure of the hydraulic system is 20MPa, and it is equipped with a PLC control system, which can be operated automatically or manually. The single loading and unloading cycle time is short, loading ≤40 seconds, unloading ≤45 seconds, and the efficiency is remarkable. It is equipped with a variety of safety features such as emergency stop button, warning lights, fire extinguisher, etc., and can be equipped with rear view camera and reversing alarm system to meet different operation requirements. With a maximum speed of 90km/h and a 100L fuel tank, the ISUZU NKR rear loader garbage truck is suitable for urban sanitation operations.
Specification:
|
ISUZU NKR rear loader Truck |
|
|
Model |
PST5073YSLJC |
|
Driving Type |
4*2 |
|
Gross Weight |
7300kg |
|
Related Loading Mass |
4900kg |
|
Curb Weight |
5300kg |
|
Dimension |
7100*2250*2530mm |
|
Wheelbase |
3815(mm) |
|
Front Axle Loading Capacity |
4300kg |
|
Rear Axle Loading Capacity |
7500kg |
|
Approach angle |
20° |
|
Departure angle |
13° |
|
Tire |
700R16 |
|
Max Speed |
90 (Km/h) |
|
Fuel tank |
70L |
|
Engine parameters |
|
|
Model |
4HK1CN6LB |
|
Horse Power |
120 hp |
|
Displacement |
2.99L |
|
Emission Standard |
Euro 6 |
|
Type |
4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling) |
|
Gear Box |
|
|
Gear Box |
MSB 5 forward and 1 reverse |
|
Superstructure Parameter |
|
|
Tank Volume |
8 CBM |
|
Tank Shape |
Arc-shape |
|
Tank Material thickness |
Bottom:4mm Side:4mm |
|
Tank manufacturing process |
Whole board manufacturing |
|
Tank Material |
Q235 (Special Steel) |
|
Compression Ratio |
1 : 3.4 |
|
The effective volume of the bucket |
≥0.8m³ |
|
Loading cycle time |
≤40 s |
|
unload garbage time |
≤45s |
|
control method |
Automatic,Manual |
|
Maximum pressure of hydraulic system |
20MPa |
|
Control System |
PLC |
|
Control panel |
English or Your language |
|
Engine power control |
Fully automatic control |
|
standard accessories |
Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual…… |
|
Optional |

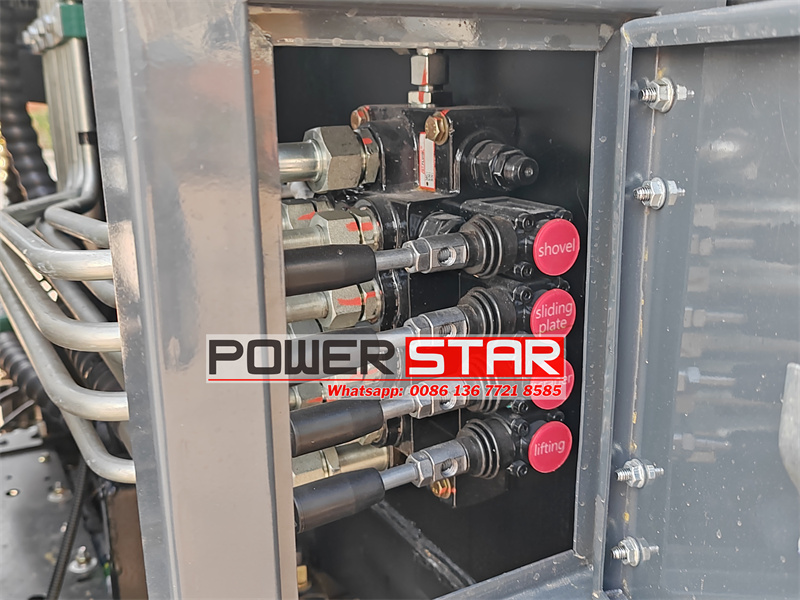

** Back alarm and Camera can be equipped. ** Italy mulit-valve can be choose. ** 240L (single bin or double bin) or standard 660 L, 1100L bins with bin lifter can be choose. |
Advantage:
ISUZU NKR chassis has many significant advantages in the modification of garbage compression trucks:
1. Chassis structure advantages: ISUZU NKR chassis is known for its excellent structural strength and lightweight design. The frame is made of high-strength steel, with good overall rigidity and exquisite welding technology, providing a solid foundation for modification. The design of wheelbase 3815mm makes the center of gravity of rear loader garbage truck more stable, which is particularly suitable for installing larger garbage compression boxes and making better use of space.
2. Power system matching: 4HK1CN6LB engine is the boutique powertrain of Isuzu light vehicle series. The output of 120 horsepower is at the leading level in the same class, the torque output is stable, and the matching of engine and gearbox is excellent. This power characteristic enables ISUZU NKR garbage rear loader truck to maintain good acceleration performance and climbing ability even when fully loaded under complex urban road conditions.
3. Reliability and maintenance convenience: The design of the ISUZU NKR chassis fully considers the convenience of maintenance, the layout of the engine compartment is reasonable, and the interfaces of each system are standardized, which is extremely beneficial for later modification and daily maintenance.
4. Chassis carrying capacity: From the technical parameters, the front axle carries 4300kg, the rear axle carries 7500kg, and the total mass is 7300kg, which provides sufficient structural bearing space for garbage truck modification. This means that a larger capacity compression box can be installed while ensuring the stability and safety of the whole vehicle.
5. Chassis modification compatibility: The modular design of the ISUZU NKR chassis provides great convenience for modification. The hydraulic system interface is standard and the electrical system is adequately reserved, making the special system integration of the compression garbage truck simple and fast.
6. Cost economy: Compared with other chassis of the same level, ISUZU NKR has obvious advantages in modification cost, fuel economy, maintenance cost, etc. The 70L fuel tank design, combined with the good fuel consumption performance of the engine, reduces operating costs.
