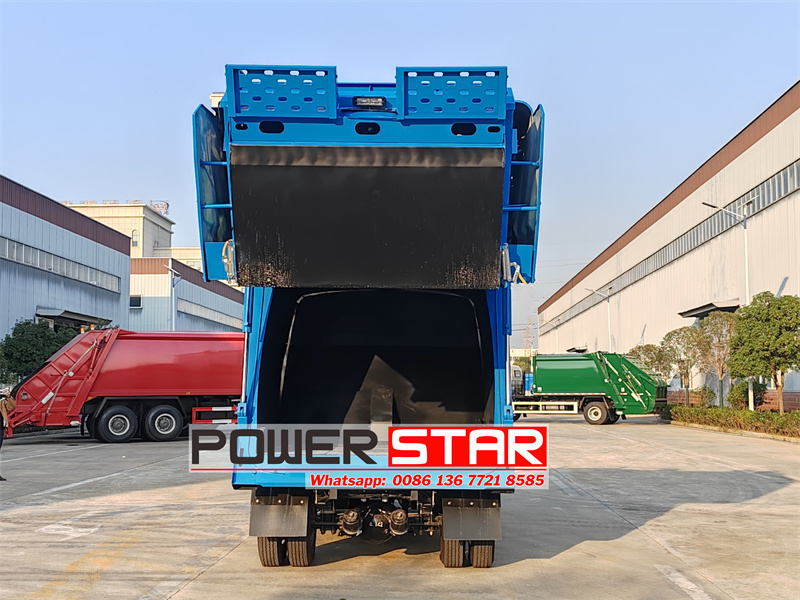

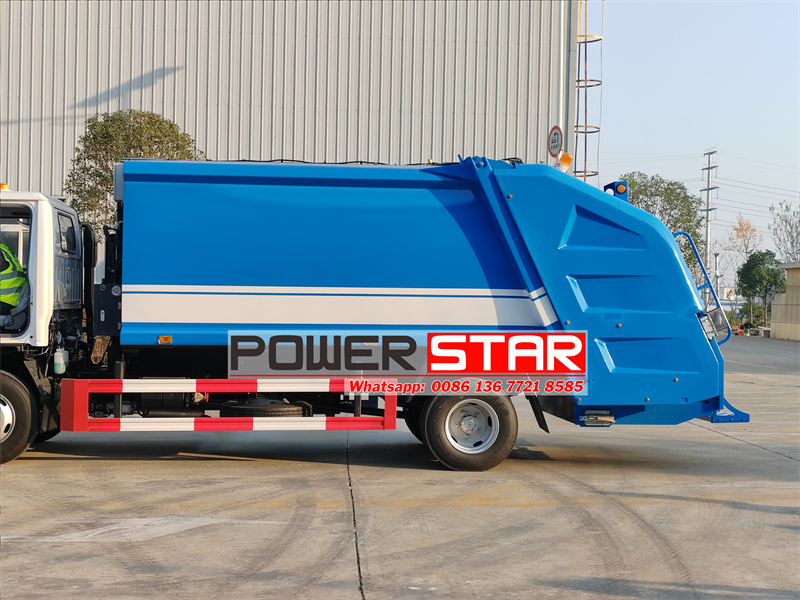

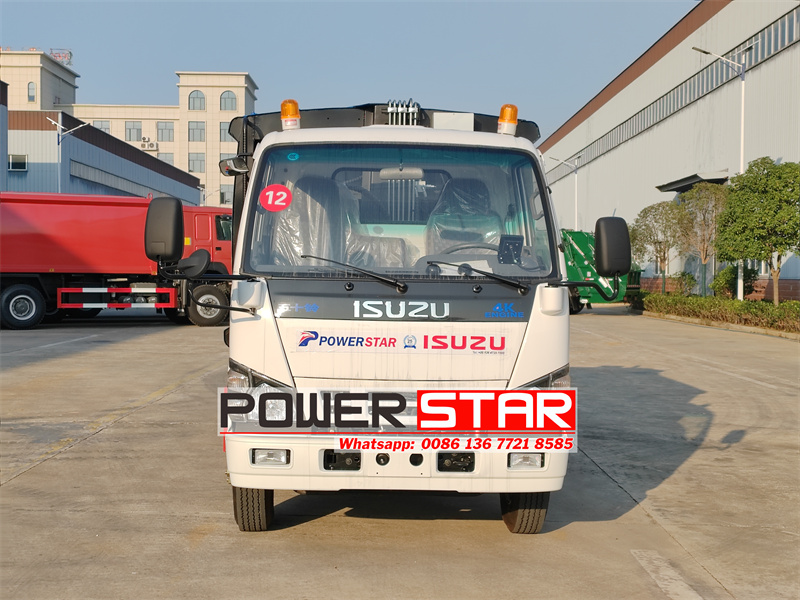

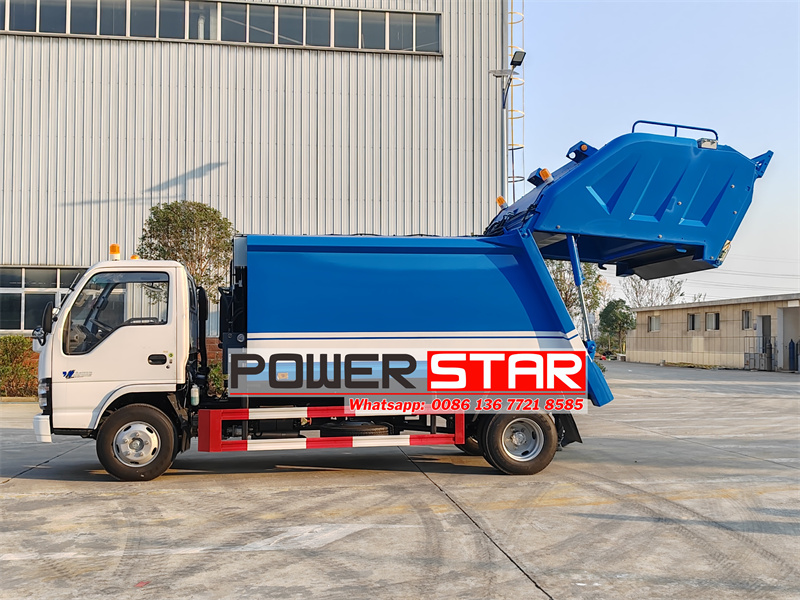

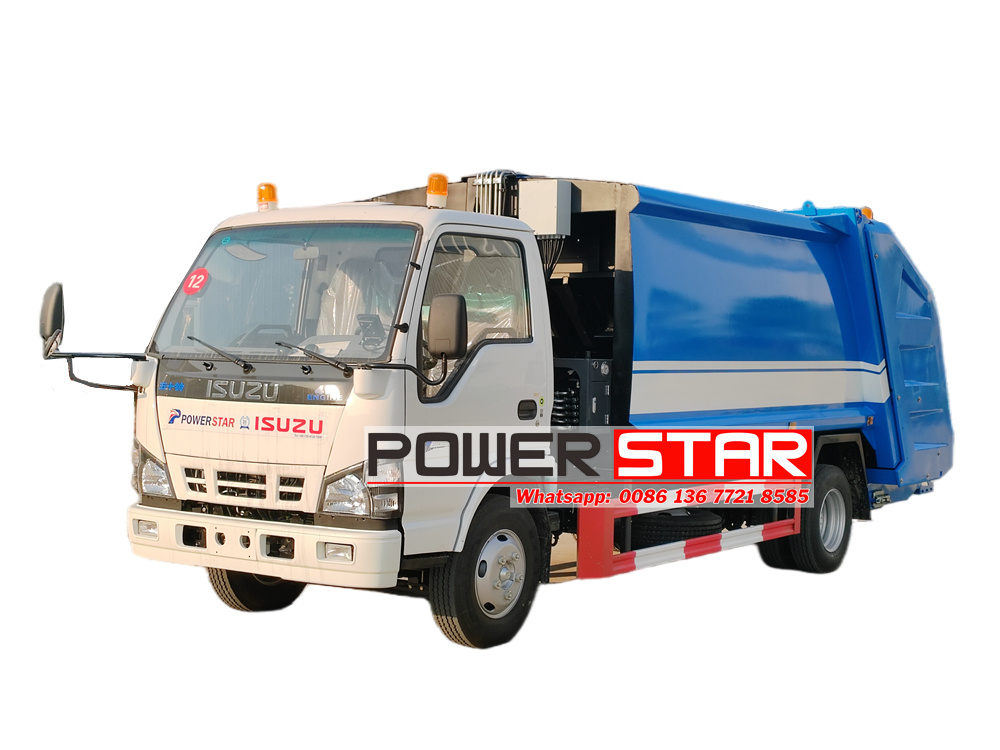

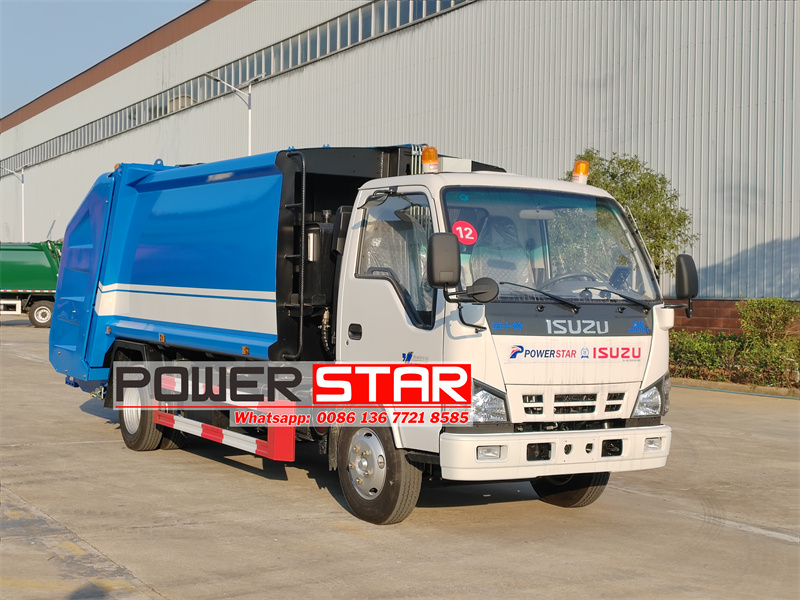

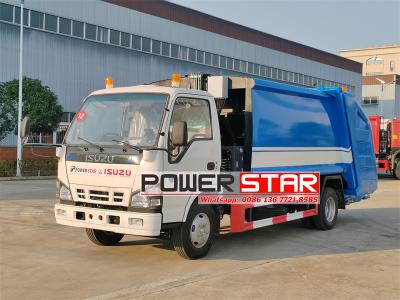

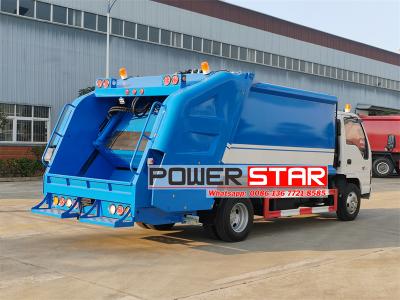

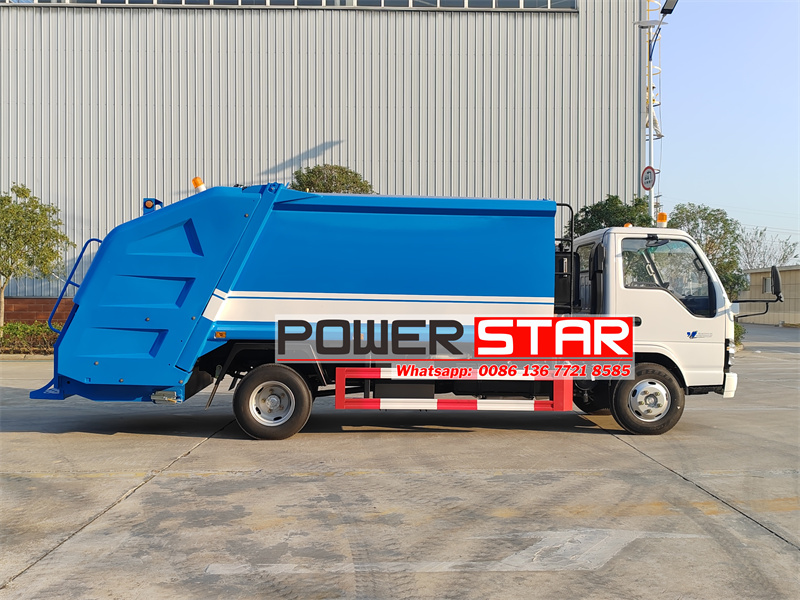

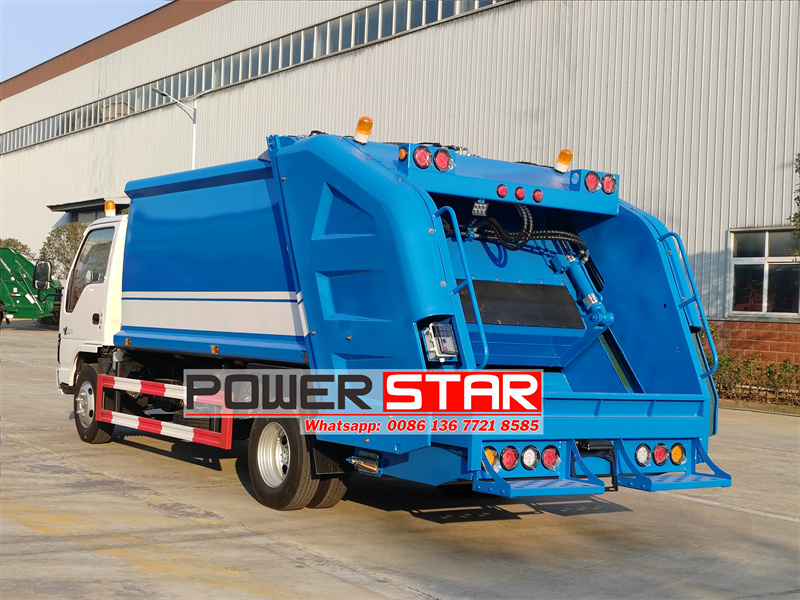

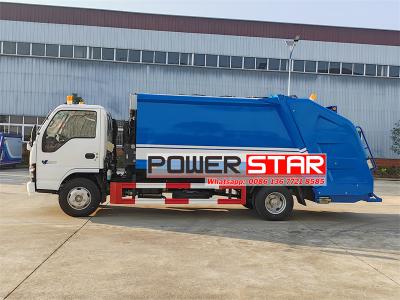

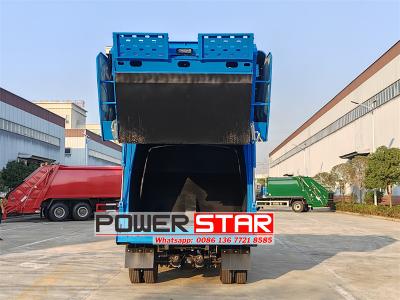

The Isuzu 8cbm rear loader compactor truck produced by POWERSTAR is equipped with Isuzu 4x2 ELF 600P chassis,Isuzu 120HP 4KH1 diesel engine,Euro 6 2999ml displacement,3815mm wheelbase,2 seats,oil brake, Inline 4-cylinder 4-stroke,direction assistance,8cbm garbage bin.The truck has 3 operation modes,about electric control in the cab,hydraulic joystick,electric control box in the tailgate.
Work capacity:
8cbmEngine power:
120HPEngine type:
4KH1CN6LBAxle drive:
4x2，LHDGear box:
MSB-5S，manualRemarks:
8CBM garbage capacity,3 operation modesThe Isuzu 8 cbm hydraulic rear loading garbage truck is an efficient and reliable garbage collection and transfer vehicle designed for urban environmental sanitation. Built on the sturdy and durable Isuzu 4x2 ELF 600P chassis, the vehicle integrates advanced garbage compression technology and flexible handling performance, becoming an indispensable part of urban cleaning work.
● More than 30 years professional manufacturer experience
● More than 500 workers, large and advanced production
● We have strong professional design team
● Promptly delivery. any order is welcome
● 24 months long guarantee time assurance
Key Features:
★ Various size body from 3cbm to 25cbm,with beautiful appearance
★ ISUZU 4KH1 engine,super powerful;reliable performance. no overhaul,within 1000000km
★ Good sealing, no secondary pollution caused by sewage leakage when dumping garbage
★ Adopting electric, gas and hydraulic centralized control, with automatic and manual operation modes
★ Diffient rear flip systerm are optional
★ Can be put into 20",40"container and ship to worldwide
Core configuration highlights:
• Chassis system: Adopting the Isuzu ELF 600P series chassis, with its excellent load-bearing capacity and stable driving performance, it ensures efficient operation under various road conditions.
• Power system: Equipped with Isuzu 120HP 4KH1 diesel engine, this engine is known for its high efficiency, energy saving, low noise and low emissions. It meets the Euro 6 emission standards and has a displacement of 2999ml, providing sufficient power support for the vehicle while reducing the impact on the environment.
• Transmission and braking: The 3815mm wheelbase design optimizes the stability and handling of the vehicle, while the oil brake system ensures quick response and stability during braking, improving driving safety.
• Driving and riding: The vehicle has a simple and practical configuration, with 2 seats, which is convenient for the driver and assistant to work together. The inline 4-cylinder 4-stroke design not only improves the smoothness of the engine, but also reduces maintenance costs. The addition of the steering assist system makes driving easier and more comfortable.
• Garbage handling capacity: The vehicle is equipped with an 8-cubic-meter garbage bin (8cbm). Through advanced compression technology, it effectively increases the amount of garbage collected in a single time, reduces the frequency of transportation, and improves work efficiency.
|
Isuzu ELF 600P rear loader compactor truck |
||
|
General |
Vehicle Model: |
PT5070GXM |
|
Overall Dimension(L x W x H) |
7220×2250×2450mm |
|
|
Curb Weight: |
4580Kg |
|
|
GVW: |
7300Kg |
|
|
Wheelbase: |
3815mm |
|
|
Drive Type: |
4x2 |
|
|
Engine |
Engine Model: |
4KH1CN6LB |
|
Type |
Diesel, Inline 4-cylinder 4-stroke |
|
|
Engine Power: |
88Kw |
|
|
Displacement: |
2999ml |
|
|
Horsepower: |
120HP |
|
|
Max torque |
290N.m |
|
|
Transmission |
Transmission: |
MSB-5S，manual |
|
Forward Gear: |
5 Speed Gear |
|
|
Reverse Gear: |
1 Speed Gear |
|
|
Chassis |
Cab |
Isuzu 600P cabin,2 seats |
|
Axle Loads: |
2.5/4.8tons |
|
|
Tires: |
7(including spare tire) |
|
|
Tire Model: |
7.00R16 |
|
|
Configuration |
1 |
Power Steering |
|
2 |
AC |
|
|
3 |
Retro-reflective Marking |
|
|
4 |
Radial Tire |
|
|
5 |
ABS |
|
|
6 |
Free Maintenance Battery |
|
|
7 |
Hydraulic Brake |
|
|
Tops Parameters
|
Garbage Container Capacity |
8m³ |
|
Filler Volume |
1.2m3 |
|
|
Sewage tank volume |
200L |
|
|
Loading time |
8～10s |
|
|
Cycling time of Filling |
50～60S/per turn |
|
|
Hydraulic System Pressure |
16Mpa |
|
|
Standard Equipment: |
Superimposed solenoid valve group control system |
|
|
Gear pump, solenoid valve, hydraulic cylinder |
||
|
Imported PLC, program automation control |
||
|
Siemens PLC controller, corui sensor |
||
|
Working voltage DC12V |
||
|
Plate material: Wear plate NM400 |
||
|
Dustbin: high strength board |
||
Diversity of operating modes:

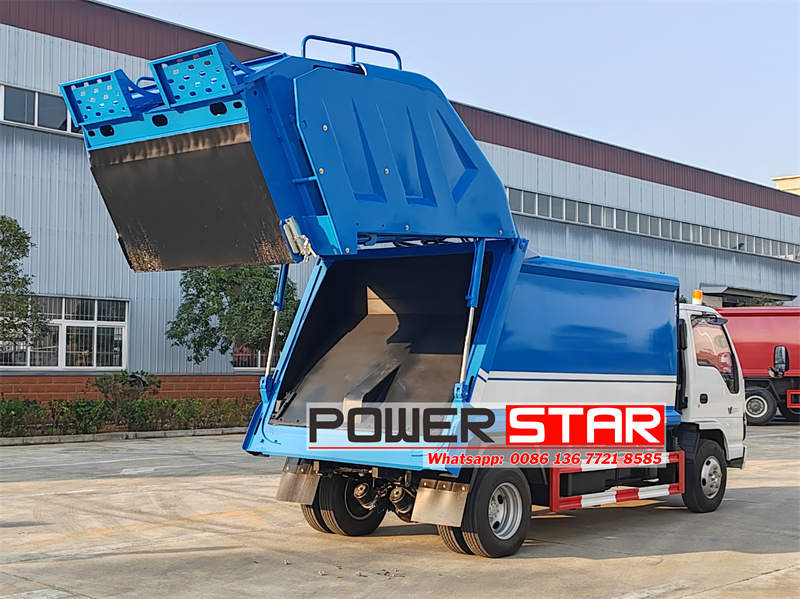

1. Electric control in the cab:The driver can directly control the tailgate lifting, loading and unloading mode, tailgate cleaning, and push and pull of the push shovel through the electric control panel in the comfortable cab, which improves the convenience and safety of operation.

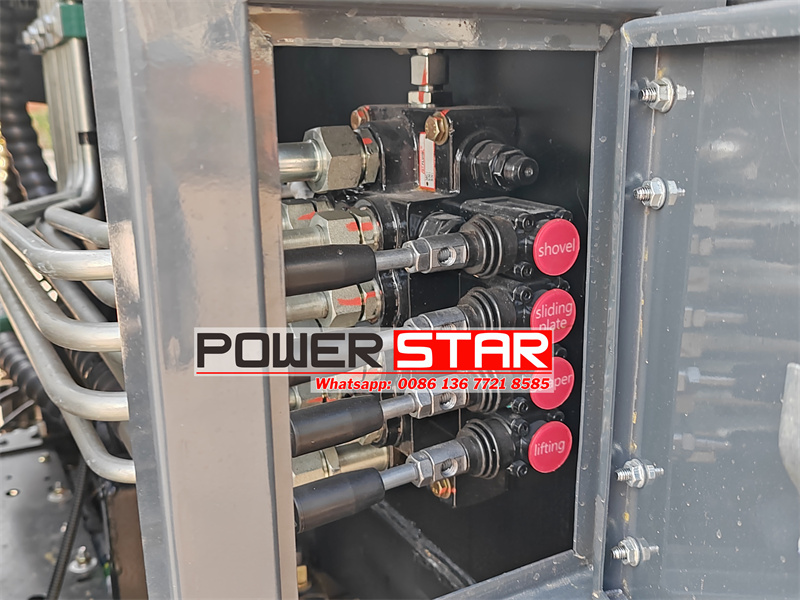

2. Hydraulic joystick: The vehicle is also equipped with a hydraulic joystick, which allows the operator to manually operate the push shovel, skateboard, scraper and tailgate lifting on the ground, increasing the flexibility of operation and the ability to deal with complex situations.

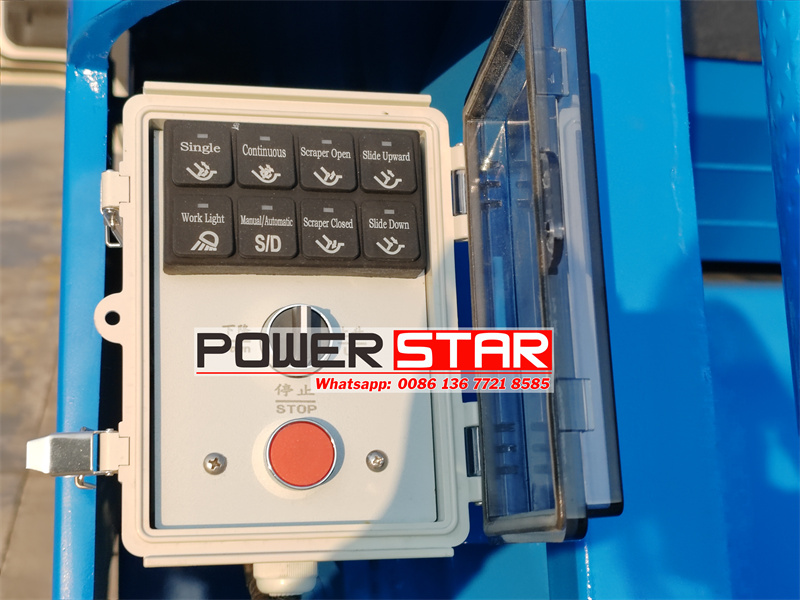

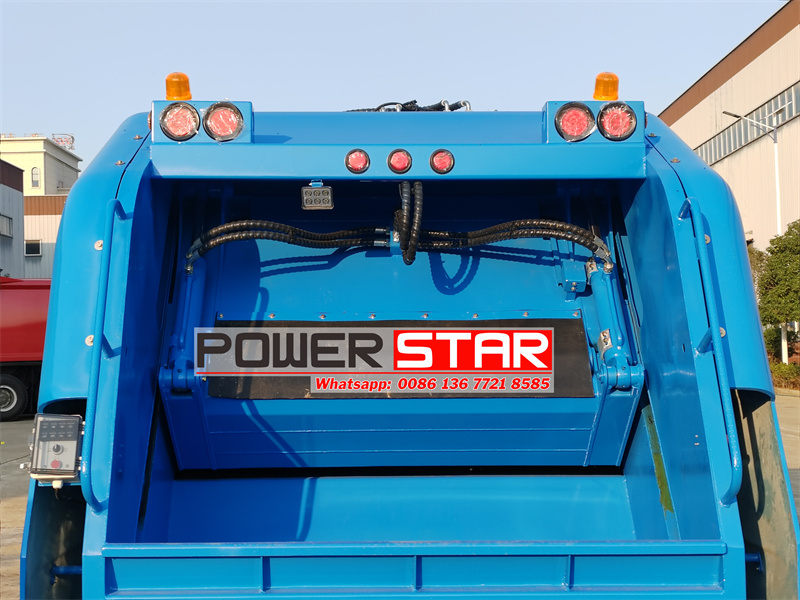

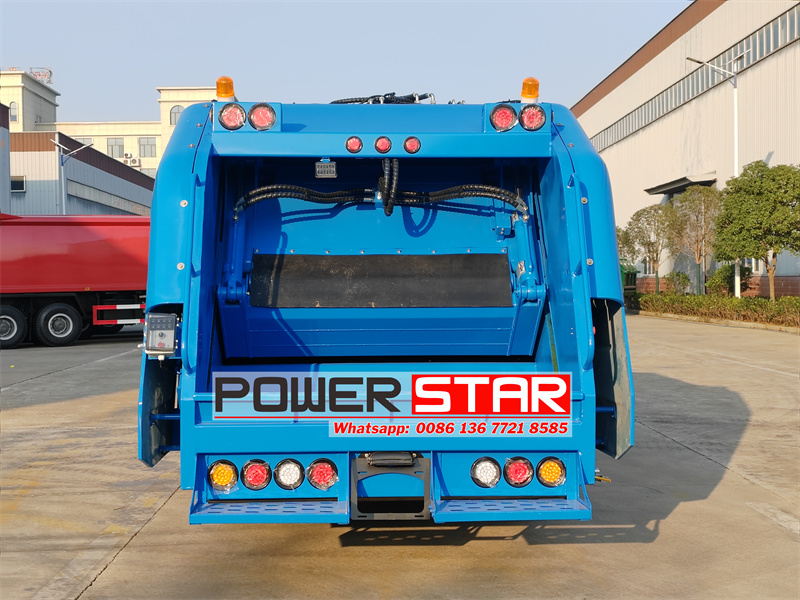

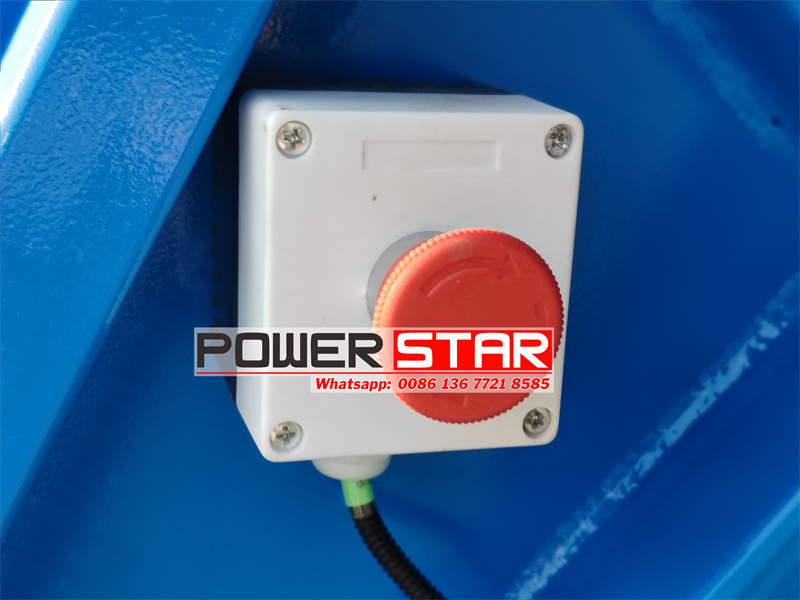

3. Tailgate electric control box: The electric control box located on the tailgate of the vehicle provides another control method for ground staff. It can operate the scraper slide, control the cycle compression work, or emergency stop, etc.
