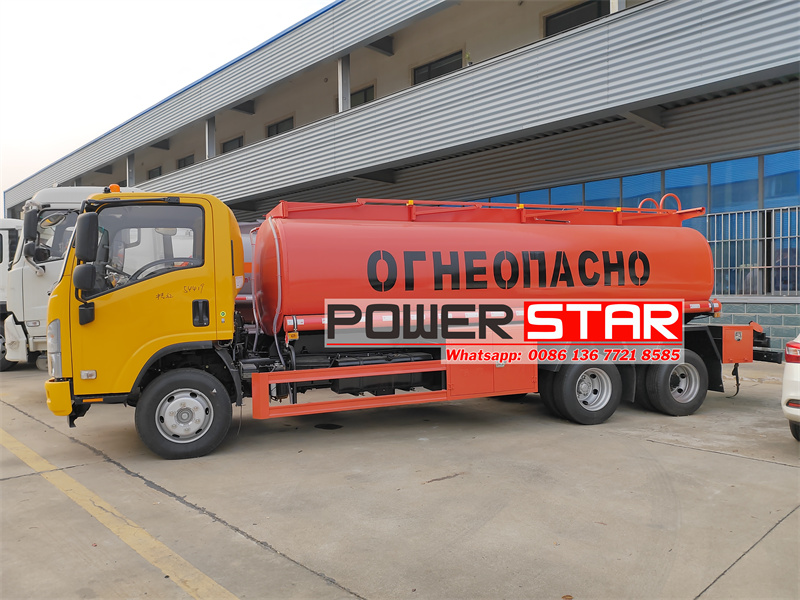

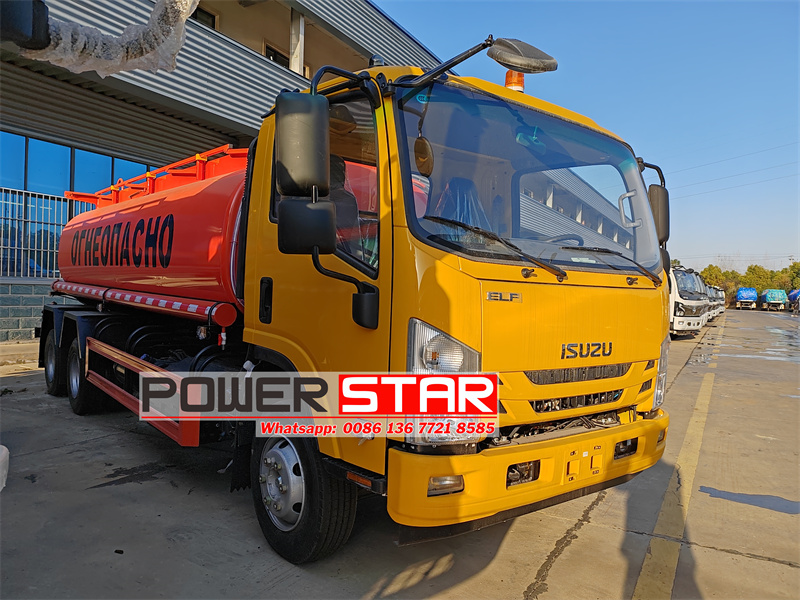

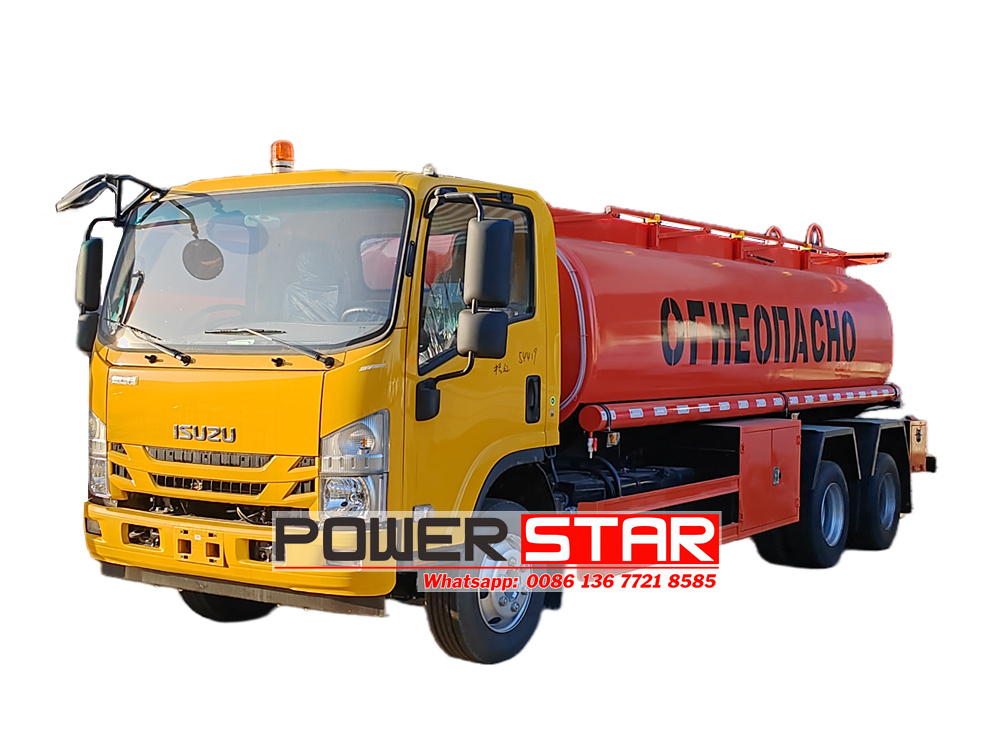

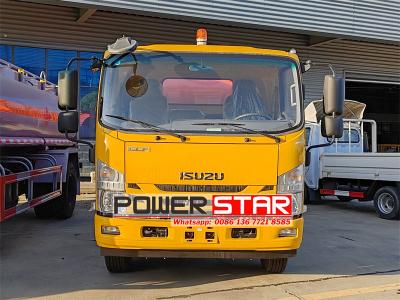

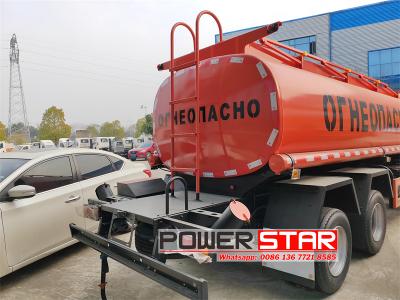

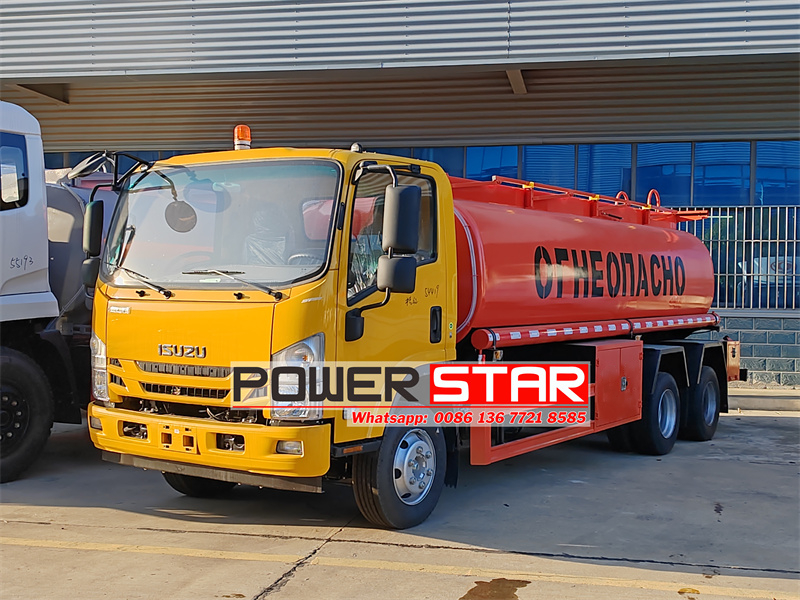

Isuzu 700P 10000 liters diesel oil transporter truck
This fuel tanker truck is modified from Isuzu 700P 6x4 chassis applied with tanker body with volume of 10m³, it’s powered by diesel engine 4HK1-TCG61 which is competent to achieve reliable durability and strength, and conforms to the emission standard of Euro VI. The highest speed of the truck reaches 110 km per hour, and the equipped transmission has 6 forward gears and 1 reverse gear.The tanker body is made of carbon steel with thickness of 5mm.
Work capacity:
10000 litersEngine power:
190HPEngine type:
4HK1-TCG61Axle drive:
6X4,LHDGear box:
Isuzu MLD 6-shift gearbox,manualRemarks:
Isuzu 700P 6x4 chassis,10cbm fuel tankIsuzu 700P 10000 liters diesel oil transporter truck is a large commercial vehicle designed for diesel transportation. It is built on the solid chassis of Isuzu 700P and equipped with a powerful 4HK1-TCG61 diesel engine and 6x4 drive system to ensure stable and efficient transportation of diesel under various road conditions. Its 10 cubic meter carbon steel tank has a large capacity to meet the loading needs of large quantities of diesel, making it very suitable for long-distance fuel transportation tasks in various industries.
● 30 years experience on fuel truck designing
● 50 units Isuzu oil transporter truck in stock, 5 cbm, 8 cbm, 12 cbm
● CKD, SKD parts service, Container shipping, Save freight
● Promptly delivery. any order is welcome.
● We can offer your a good after-sell service
Key Features:
---- ISUZU 700P chassis, perfect performance
---- ISUZU 4HK1 engine option, super powerful, no overhaul within 100,000 km.
---- Fuel Tanker body capacity from 3 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Various types of refuse container lifter are available.
|
Isuzu 700P 10000 liters diesel oil transporter truck |
||
|
Chassis Dimensions and Parameters |
Overall Dimension(L x W x H) |
8245*2300*2650mm |
|
Wheelbase: |
3815+1370mm |
|
|
Front/ Rear Wheel Distance: |
1680/1650mm |
|
|
Front/Rear Suspension |
1110/1950mm |
|
|
Leaf Spring: |
8/10+6 |
|
|
Weights and Capacities |
Curb Weight: |
4000Kg |
|
GVW: |
11000Kg |
|
|
Axle Loads: |
3350/7650kg |
|
|
Engine |
Engine Model: |
4HK1-TCG61 |
|
Engine Power: |
139(kw) |
|
|
Displacement: |
5193(ml) |
|
|
Horsepower: |
190HP |
|
|
Transmission |
Transmission: |
MLD-6Q |
|
Forward Gear: |
6 Speed Gear |
|
|
Backward Gear: |
1 Speed Gear |
|
|
Brake |
Hydraulic Brake |
|
|
Front Drum Back Drum |
||
|
With Exhaust Brake |
||
|
Generator |
24V-80A |
|
|
Cab |
Number of Seats: |
3 |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Chassis |
Drive Type: |
6x4,LHD |
|
Tires: |
10+1 |
|
|
Tire Model: |
235/75R17.5 |
|
|
Fuel Tank |
Number: |
1 |
|
Capacity: |
100L |
|
|
Top Parameters |

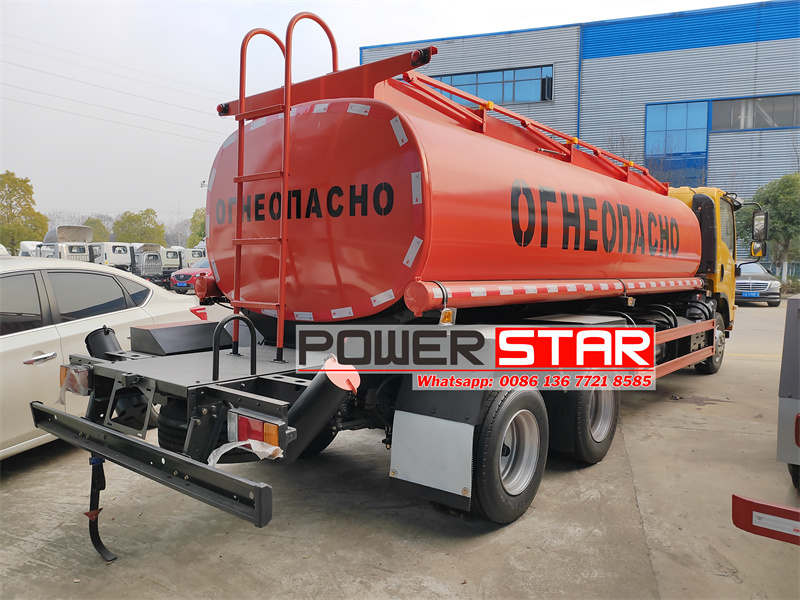

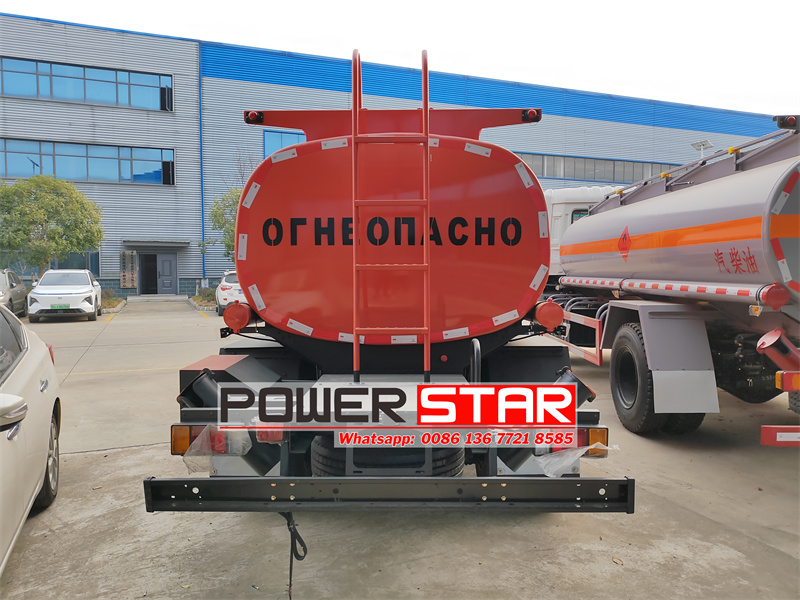

Tank volume 10m³, carbon steel, 1 bin |
|
|
The thickness of tank body is 5mm, the head is 5mm |
||
|
Include 1 set sea valves |
||
|
Include 1 Piece Aluminum alloy manhole cover |
||
|

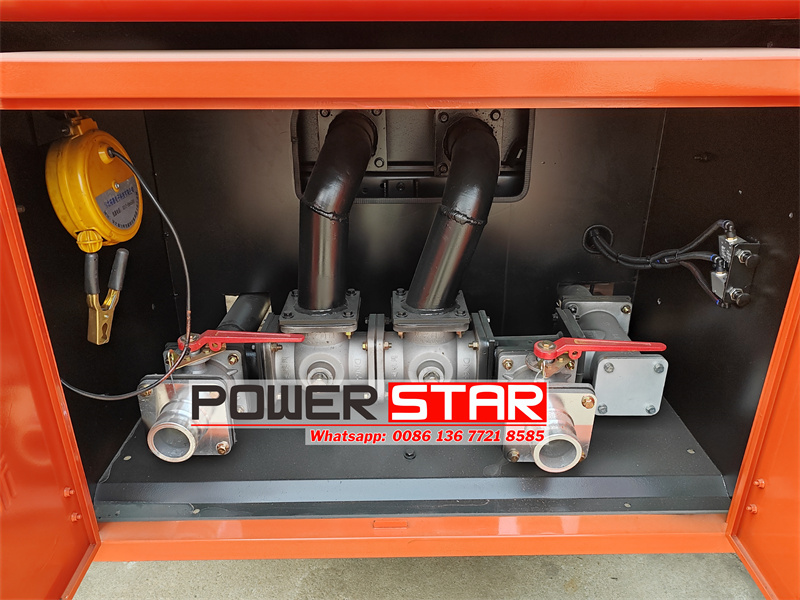

Include 65YCB-30 Gear oil pump and three-way ball valve unloading |
||
|
Include 2 pieces 3 "3 m discharge hose (stainless steel tube box) |
||
|
Include 2 set 8 kg fire extinguisher |
||
|
Spray paint, wax spray, no sandblasting |
||
|
Vehicle Standard Configurations |
Power Steering System |
|
|
Air Conditioner |
||
|
Retro-reflective Marking |
||
|
ABS |
||
|
Free Maintenance Battery |
||
|
Cab tilting mechanism |
||
The Isuzu 700P 10,000 liters diesel fuel truck is built on the rugged and reliable Isuzu 700P 6x4 chassis, which offers excellent off-road capability and stability, and the chassis itself is reinforced to support the extra weight and stress that comes with transporting large amounts of liquids. The truck has a wheelbase of 3815+1370mm, which provides optimal weight distribution and handling characteristics, ensuring a smooth ride even when fully loaded.
This impressive diesel transporter is powered by the 4HK1-TCG61 engine, an efficient and durable diesel engine known for its powerful performance and fuel economy. This engine is paired with an MLD 6-speed transmission, which allows for smooth and precise gear shifting, further enhancing the driving experience and fuel efficiency.
The upper body of the truck features a 10 cubic metre 5mm carbon steel tank, designed specifically for storing and transporting diesel. Carbon steel was chosen for its strength, durability and corrosion resistance, ensuring the tank can withstand the rigours of the road while protecting the integrity of the transported fuel.
The tank design also incorporates various safety features such as pressure relief valves, overflow protection and grounding systems to minimize the risk of accidents and leaks. In addition, the tank is equipped with a powerful fuel delivery system including pumps and metering equipment to facilitate efficient loading, unloading and dispensing of diesel.
The main purpose of Isuzu 700P 10000 liters fuel delivery tanker truck is to transport diesel. Specifically, it is widely used in the following scenarios:
1. Gas station refueling: This tanker can transport diesel from refineries, oil depots or large oil storage facilities to various gas stations, provide diesel refueling to gas stations, and ensure that gas stations can continue to provide refueling services for vehicles.
2. Industrial oil transportation: In the industrial field, many equipment and machines need to use diesel as a power source. This tanker can transport diesel to industrial sites such as factories, mines, and construction sites to provide the required fuel for these equipment and machines.
3. Agricultural irrigation and agricultural machinery oil: In the agricultural field, diesel tankers are also used to transport diesel required for irrigation equipment and agricultural machinery. Especially in large-scale farmland irrigation and mechanization operations, the supply of diesel is crucial.
4. Emergency rescue and emergency fuel supply: In natural disasters or emergencies, diesel tankers can also be used as emergency rescue vehicles to provide temporary diesel supply to affected areas to ensure the normal operation of key equipment and vehicles.
5. Long-distance and short-distance logistics: Whether it is long-distance cross-regional diesel transportation or short-distance intra-city diesel distribution, the Isuzu 700P 10,000 Liters diesel tanker truck can handle it. Its sturdy chassis and powerful power system enable it to cope with various complex road conditions and ensure the safe and efficient transportation of diesel.
Isuzu portable fuel bowser is a special vehicle equipped with oil tank, oil pump, pipelines, refueling device, ancillary accessories and safety protection devices. This ISUZU tank truck is generally used to load flammable and explosive chemical dangerous goods, such as gasoline, diesel or kerosene and other light fuels.
