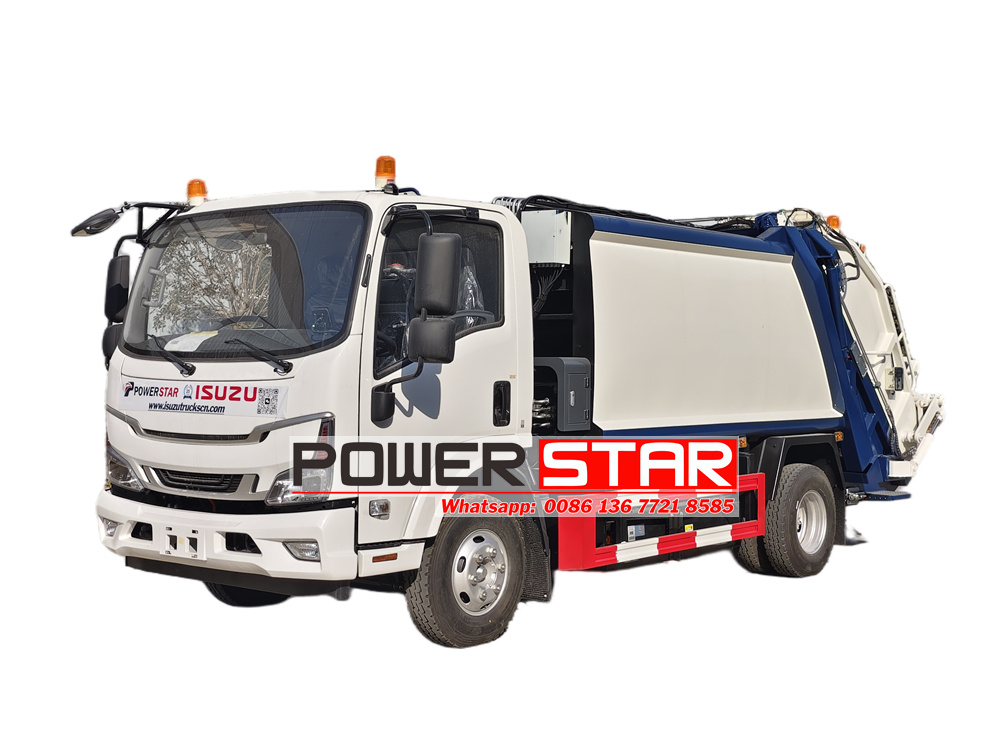

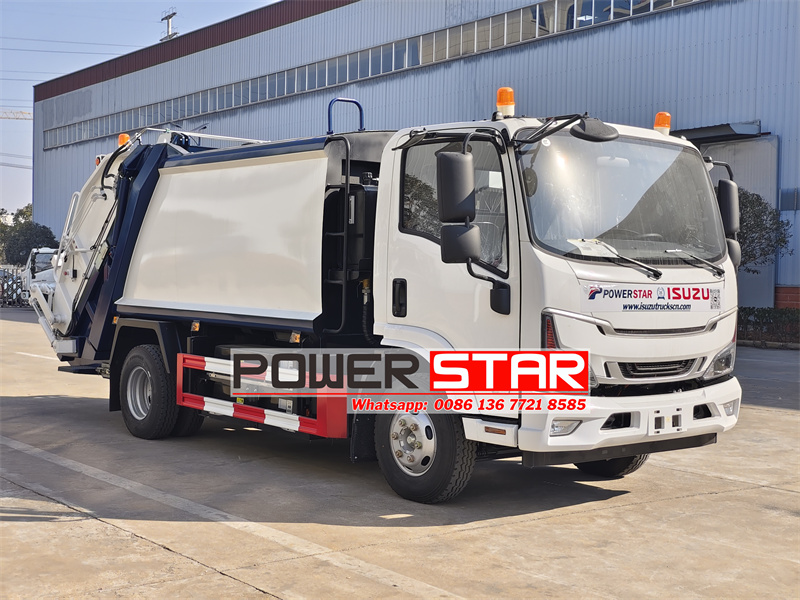

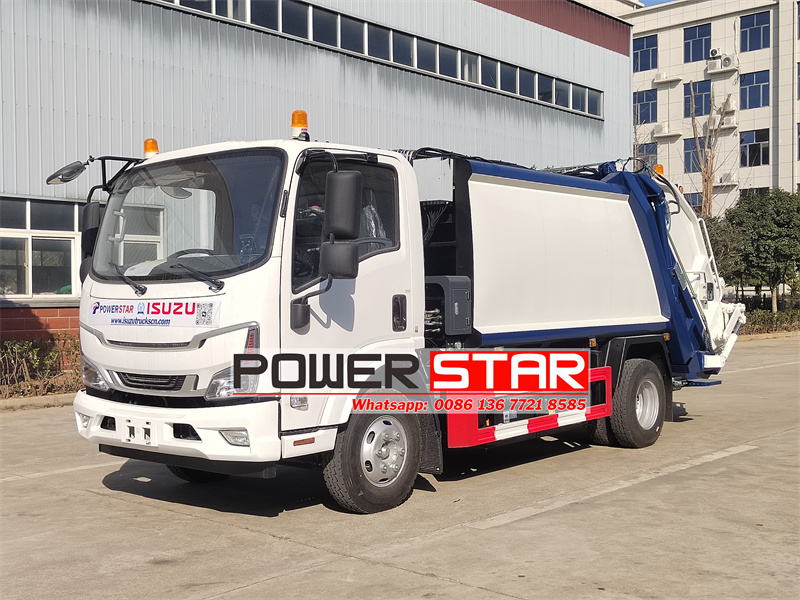

Isuzu 8 cbm electric rear loader garbage truck
Isuzu EVM600 8cbm electric compression garbage truck is modified on the Isuzu EVM600 3365mm wheelbase electric chassis, equipped with TZ370XS-LKM1201 Driving Motor, 100/185kw Rated/Peak Power, and CATL/CB220 LFP Battery, 106.95kwh Capacity. The upper part is an 8 cubic meter compression garbage box, and the rear bucket is hung with a flip mechanism. The loading and unloading of the compression garbage truck is controlled by the electric control box in the cab, the manual hydraulic operating lever on the driver's side, the rear electric control box, and the rear manual operating lever.
Work capacity:
8cbmEngine power:
150HPEngine type:
CATL/CB220 batteryAxle drive:
4x2，LHDGear box:
AutomaticRemarks:
Isuzu EVM600 electric chassis,8cbm garbage bin capacityIsuzu 8 cbm electric rear loader garbage truck is a modern urban sanitation equipment that integrates environmental protection, high efficiency and intelligence. It adopts a pure electric drive system, zero emissions, and is environmentally friendly; it is equipped with an 8-cubic-meter large-capacity garbage bin and an efficient compression mechanism, with a large amount of garbage collected in a single operation and a high compression ratio, which reduces transportation costs and frequency.
● More than 500 workers, large and advanced production
● Professional sales team which will help you to choose suitable truck.
● Build strict QC team to guarantee the quality
● Promptly delivery. any order is welcome.
● We can offer your a good after-sell service
Key Features
★ lsuzu 4x2 High technology EV truck chassis
★ World famous TZ370X$-LKM1201 Driving Motor
★ 100,000 Km long distance Guarantee
★ Zero emission electric technology, high-performance battery
★ Efficient compression,multiple control modes
★ Comfortable and safe,easy to maintain
|
Isuzu EV 8cbm electric rear loader compactor |
||
|
Vehicle Model: |
PT5090GXH |
|
|
Chassis Dimensions and Parameters |
Overall Dimension(L x W x H) |
7030x2095x2560mm |
|
Wheelbase: |
3365mm |
|
|
Front/ Rear Wheel Distance: |
1680/1650mm |
|
|
Front/Rear Suspension |
1180/2485mm |
|
|
Tire model: |
6+1,7.50R16LT 16PR |
|
|
Max speed |
100km/h |
|
|
Rear Axle Ratio: |
4.1 |
|
|
Weights and Capacities |
Curb Weight: |
4050Kg |
|
Payload: |
4945Kg |
|
|
GVW: |
8995Kg |
|
|
Driving Motor |
Type: |
PMSM |
|
Model: |
TZ370XS-LKM1201 |
|
|
Rated/Peak Power: |
100/185kw |
|
|
Power battery system rated voltage: |
618.2V |
|
|
Power battery system rated capacity: |
173Ah |
|
|
Battery
|
Brand/Model: |
CATL/CB220 |
|
Type: |
LFP |
|
|
Capacity: |
106.95kwh |
|
|
Energy density: |
153.84Wh/kg |
|
|
Nominal voltage |
154.56V |
|
|
Nominal energy |
26.73kwh |
|
|
Electric box weight |
175KG |
|
|
Electric box model |
L173TB2 |
|
|
Charge mode: |
Fast Charge(2h) |
|
|
Top Parameters |
Garbage Tank Volume |
8cbm |
|
Tank Material thickness |
Bottom 4mm Side 4mm |
|
|
Compression ratio |
1:3.4 |
|
|
Cycling time of Filling |
≤40S |
|
|
Time of Discharging |
≤45S |
|
|
Hydraulic System Pressure |
20Mpa |
|
|
Hydraulic system control mode |
Manual/electric integrated control |
|
|
Oil cylinder type |
Double-acting piston type |
|
|
Oil pump |
Dual gear pump |
|
|
Directional control valve |
Multiple way reversing valve |
|
|
Manipulator configuration |
Standard double barrel manipulator |
|
|
Configurations |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
Retro-Reflective Marking |
|
|
4 |
ABS |
|
|
5 |
Tubeless Tire |
|

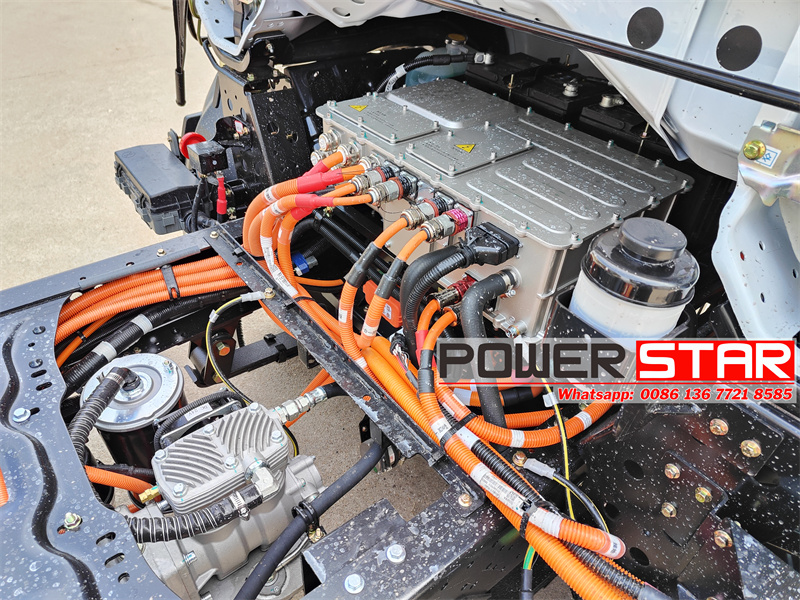

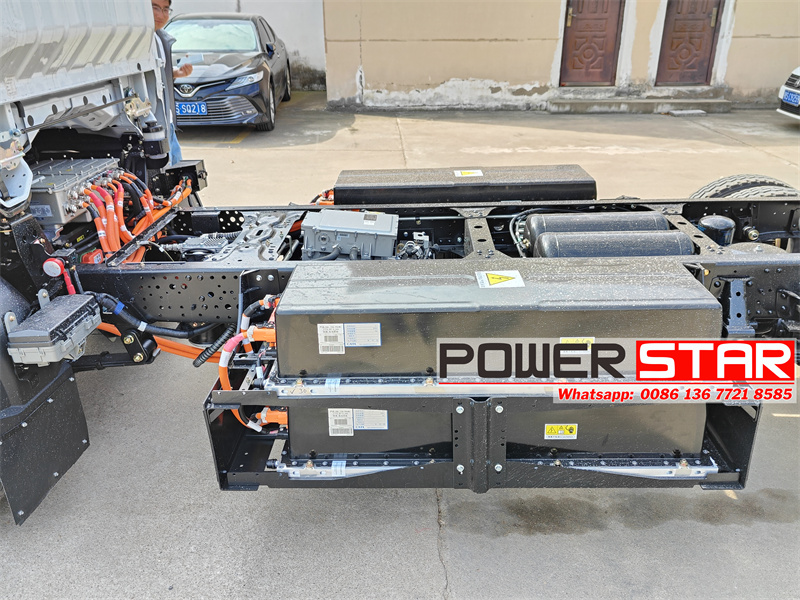

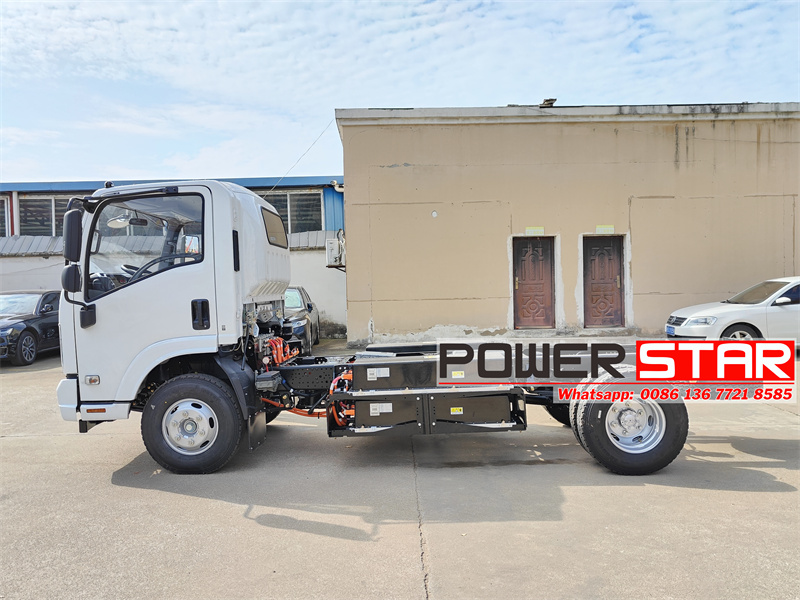

The is an efficient and environmentally friendly garbage collection vehicle carefully modified based on the advanced Isuzu EVM600 series electric chassis. The vehicle is based on the Isuzu EVM600 series electric skateboard chassis and adopts a 3365mm wheelbase design. It is tailored for urban and suburban garbage collection tasks, which not only improves the flexibility and passability of the vehicle, but also ensures sufficient load capacity and stability. The skateboard chassis perfectly integrates the three major components of battery, motor, and electronic control, as well as wire control steering, thermal management and other systems on the chassis. This highly integrated design not only improves space utilization, but also makes the vehicle structure more compact and lightweight.

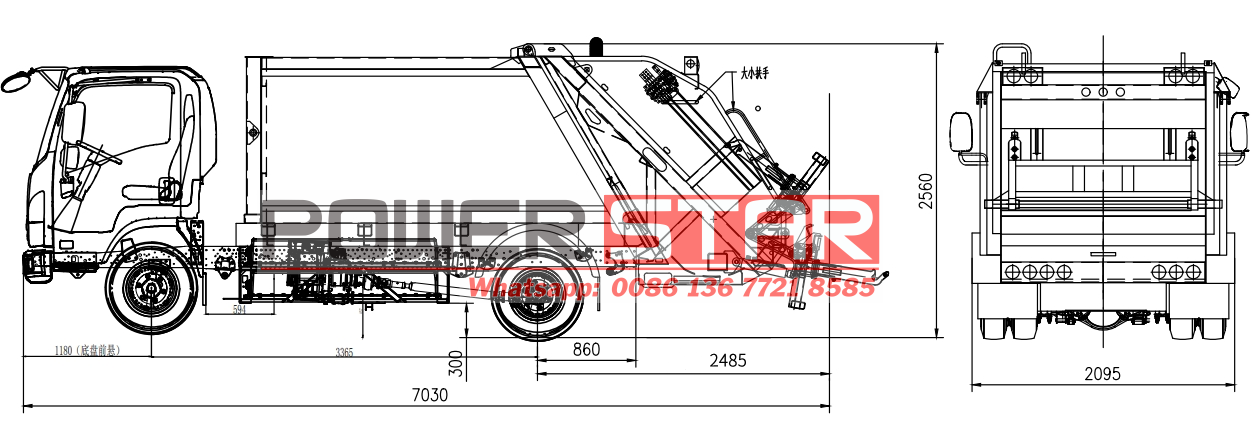

Technical drawing of Isuzu 8cbm EV electric rear loader compactor truck

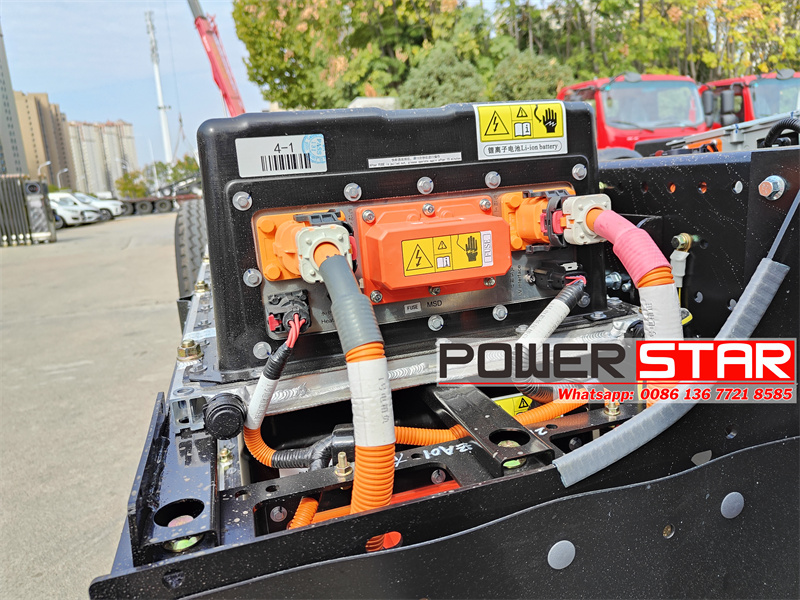

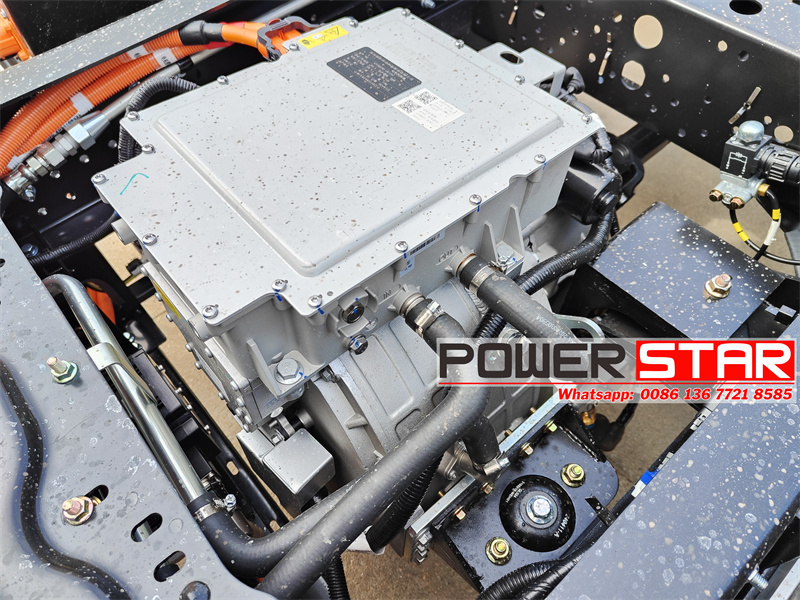

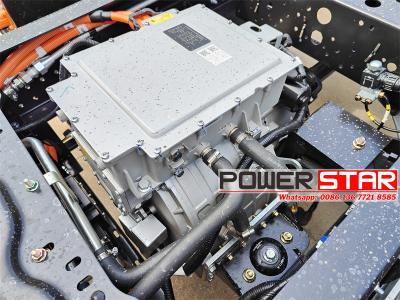

The core power comes from the TZ370XS-LKM1201 drive motor, which has excellent power output characteristics, a rated power of 100 kilowatts, and a peak power of up to 185 kilowatts, providing strong and smooth power output, enough to meet the operating needs under various complex working conditions. The strong performance of the power system is due to the CB220 lithium iron phosphate (LFP) battery pack provided by CATL (Contemporary Amperex Technology Co., Ltd.), which has an ultra-large capacity of 106.95 kWh, ensuring that the vehicle has a long endurance, reducing the frequency of charging and improving operational efficiency.

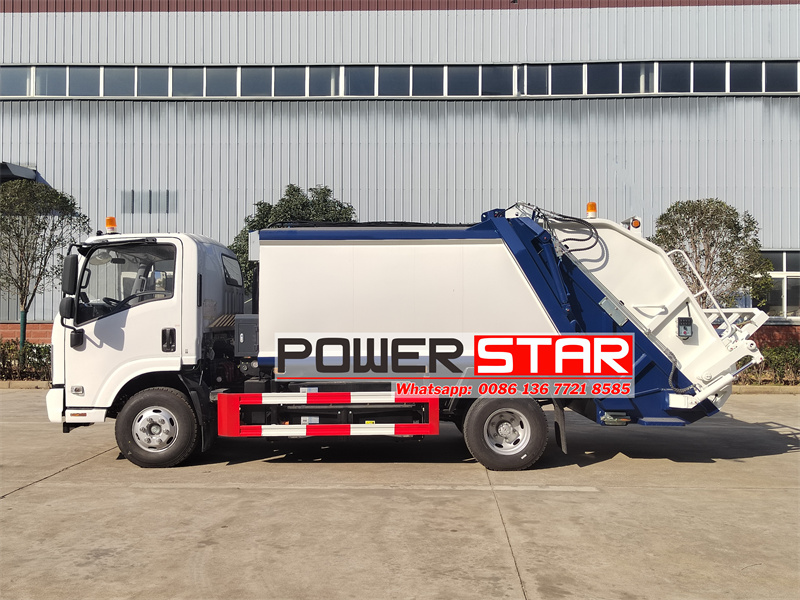

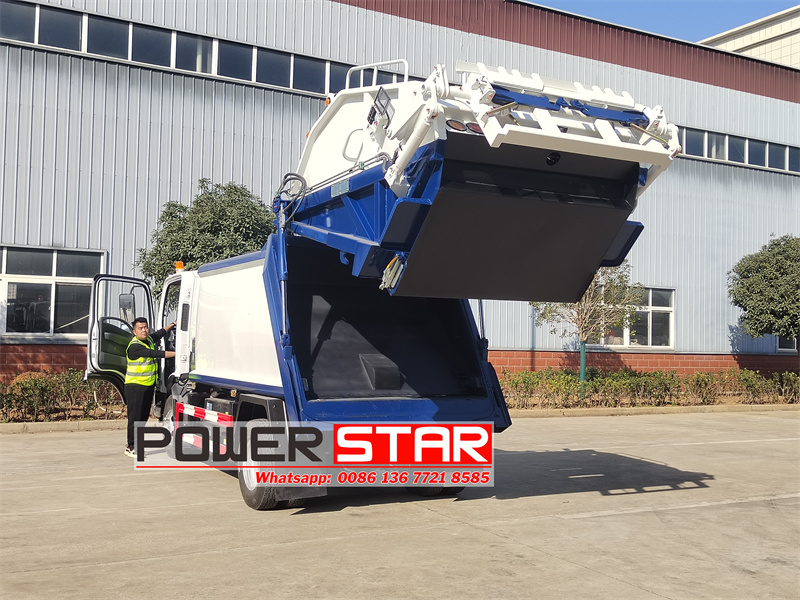

The upper part of the vehicle body is a carefully designed 8-cubic-meter compression trash can, which greatly increases the amount of garbage collected in a single time, effectively reduces the number of round trips to the garbage disposal station, and reduces operating costs. The trash can uses advanced compression technology, which can efficiently compact the garbage, reduce the volume, increase the loading capacity, keep the interior clean, and reduce secondary pollution during transportation.

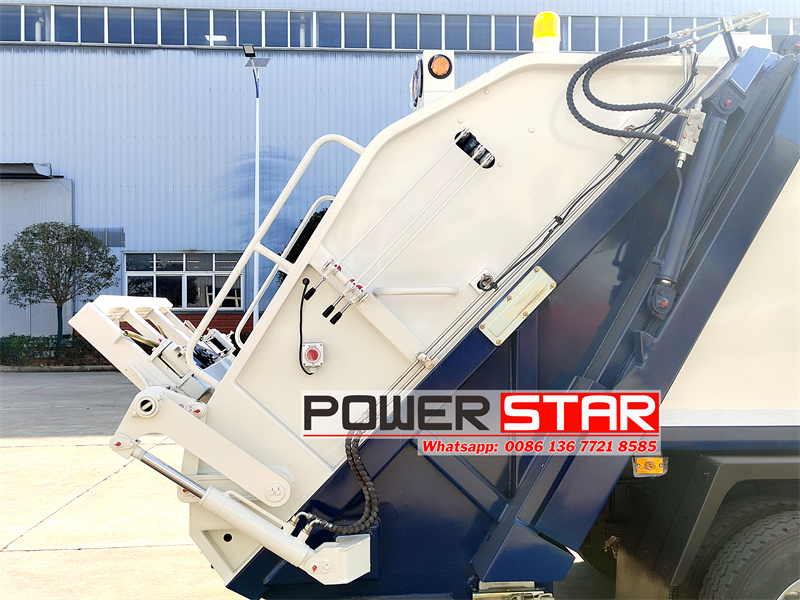

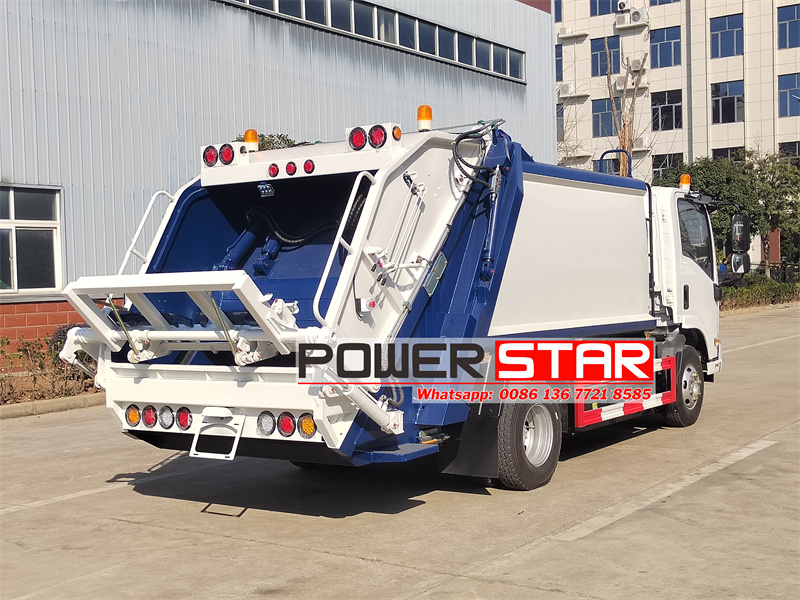

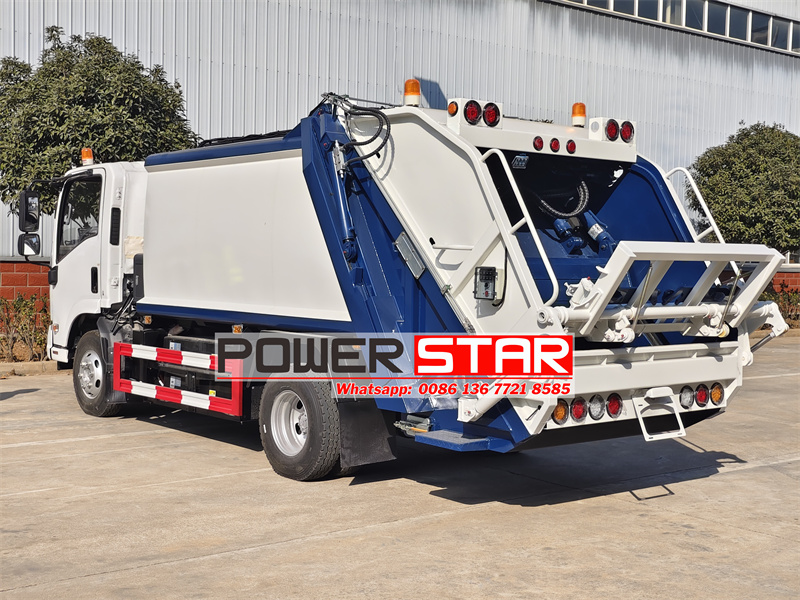

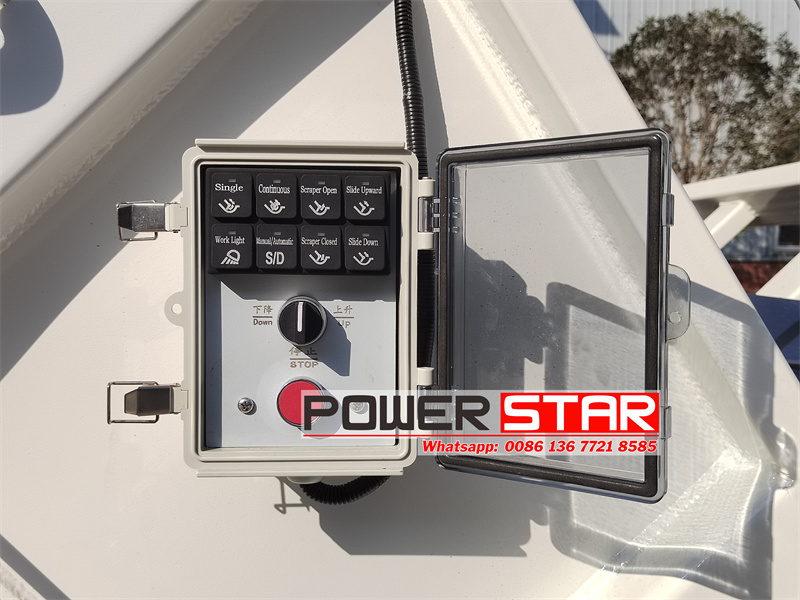

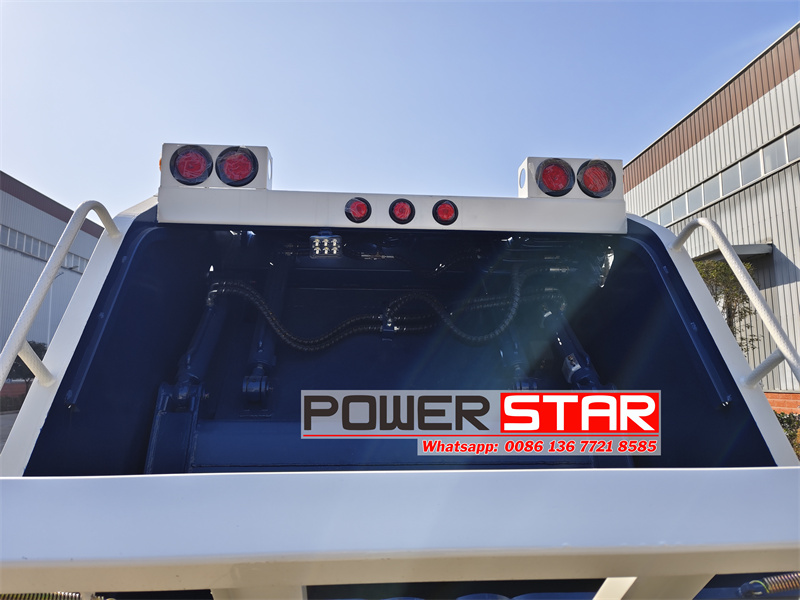

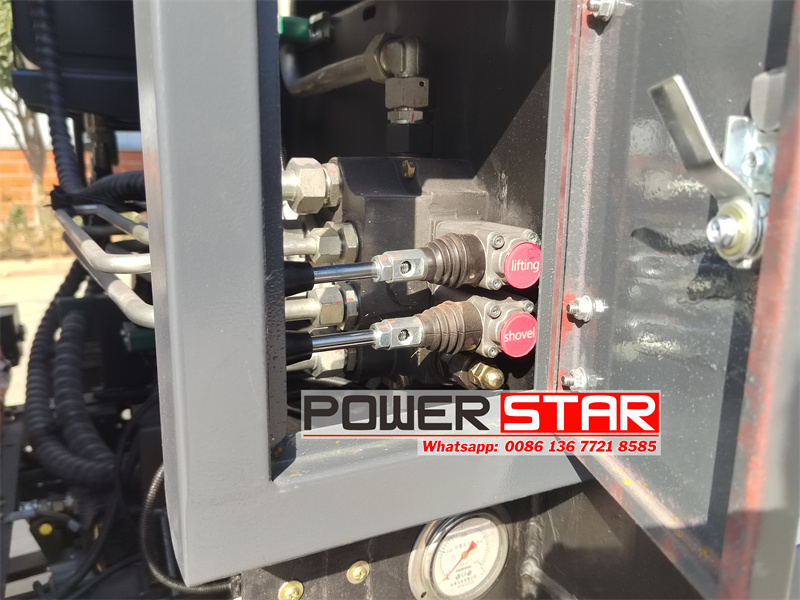

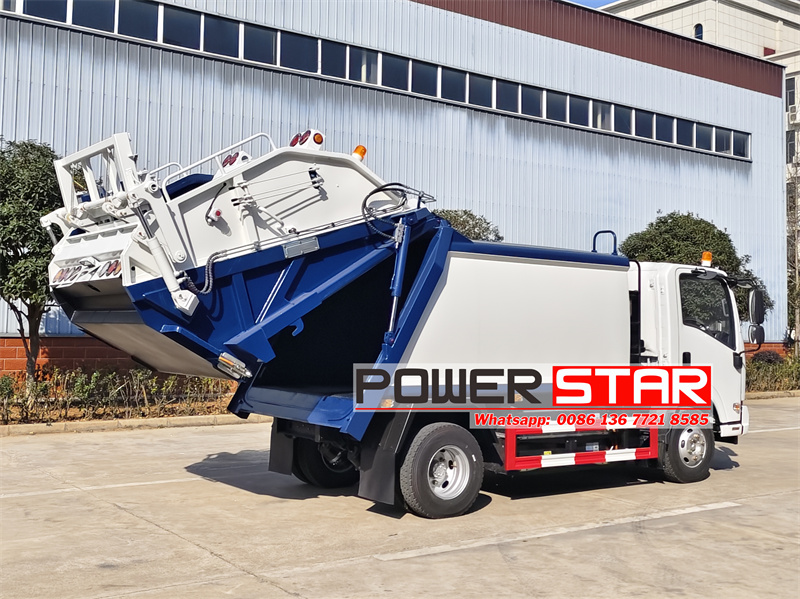

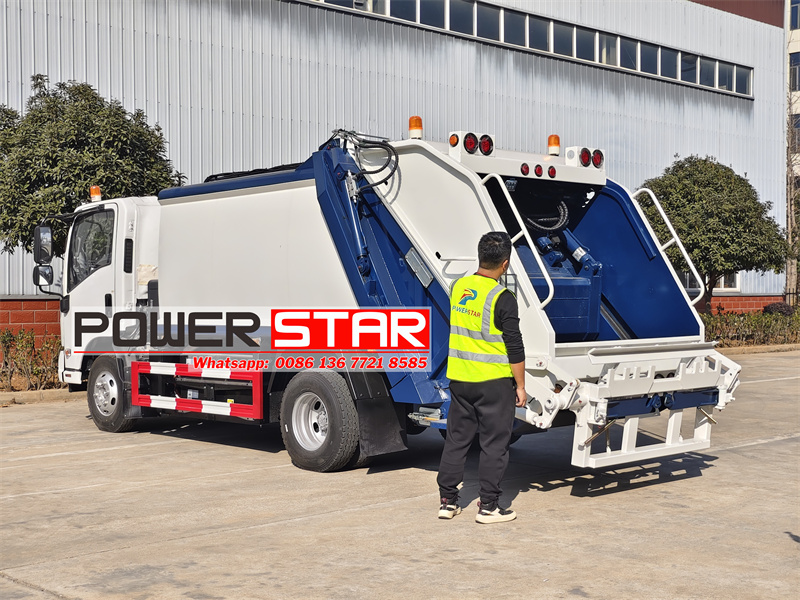

The tail is equipped with a rear flip mechanism for hanging buckets. This innovative design allows the trash can to be easily hooked and quickly flipped to dump garbage, greatly simplifying the garbage collection process and improving work efficiency. In order to achieve comprehensive control over the loading and unloading of the vehicle, the vehicle is equipped with a variety of operating methods: the electric control box in the cab allows the driver to operate remotely without leaving the seat; the manual hydraulic operating lever on the driver's side provides the driver with intuitive and flexible control options; in addition, there is an electric control box and a manual operating lever at the rear of the vehicle, which provide additional control means for ground operators to ensure that garbage loading and unloading can be carried out smoothly in various operating environments.
As an electric garbage truck, the Isuzu EVM600 8cbm electric waste compactor truck does not produce exhaust emissions during operation, does not pollute the environment, and meets the requirements of modern urban green development. The electric drive system has a lower noise level than traditional fuel engines, providing a quieter living environment for urban residents.
