Work capacity:
3000 LitersTruck model:
PT5070GXWN03Engine power:
120 hpEngine type:
4KH1CNAxle drive:
4x2Gear box:
MSB 5-shift manualRemarks:
Round tanker with thickness 6mm, WEILONG 68/7000 vacuum pump with air flow rate 68L/s

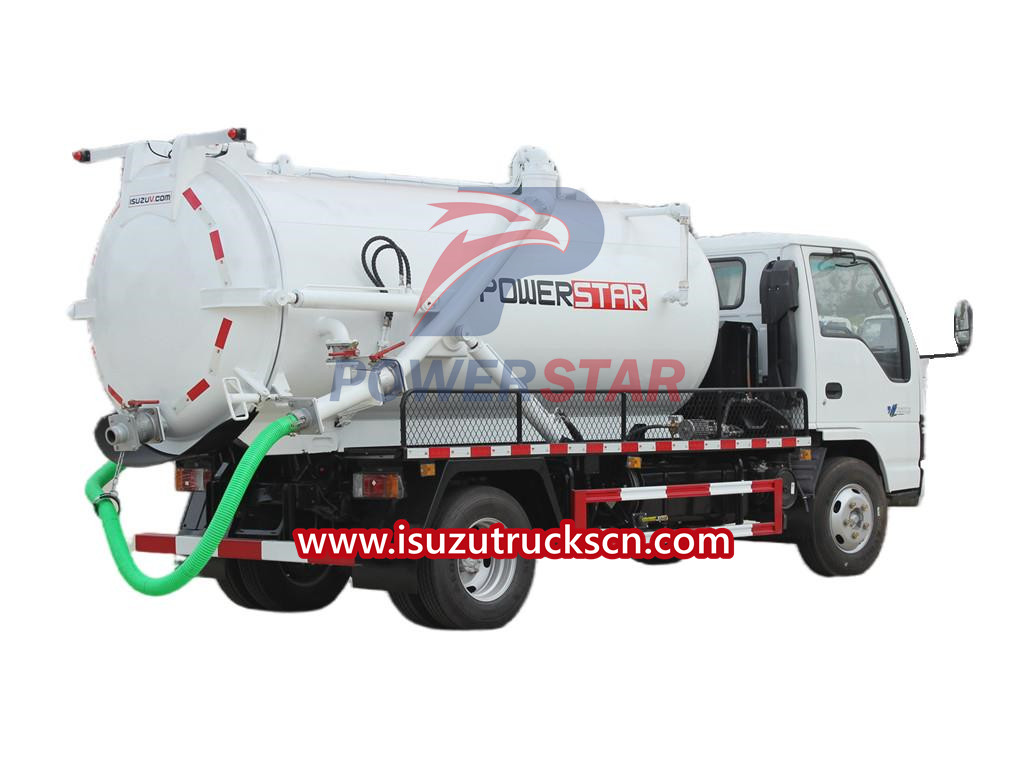

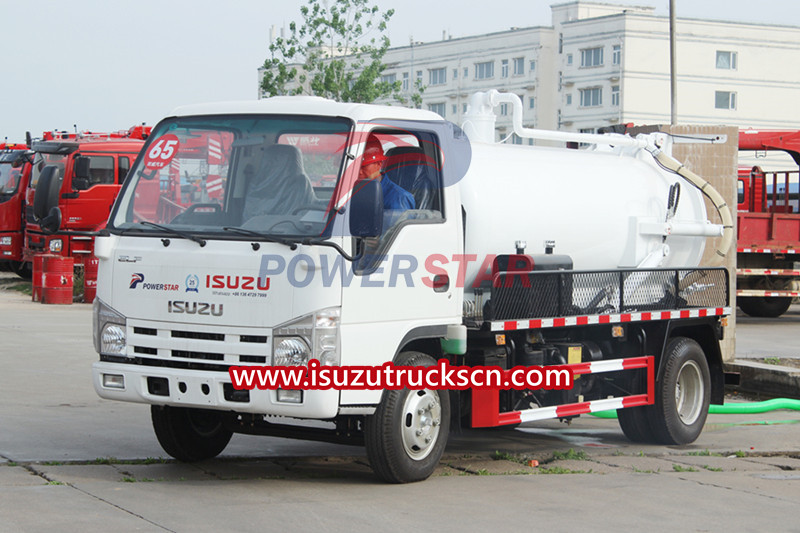

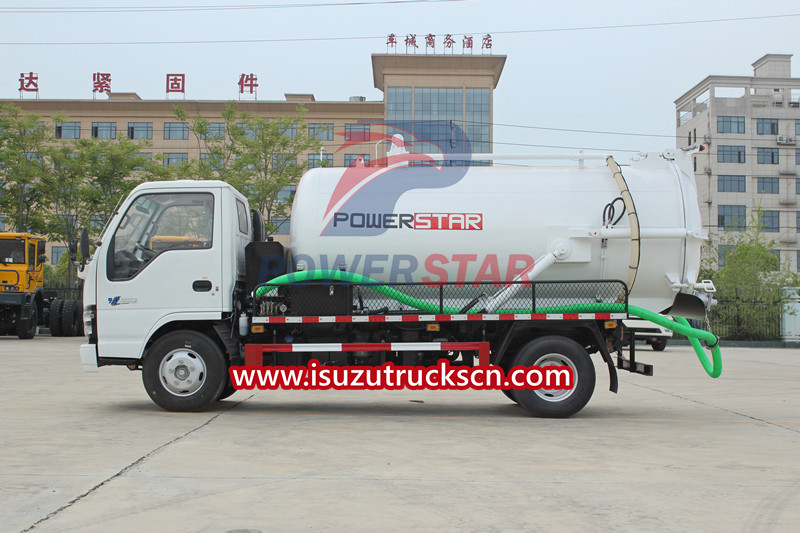

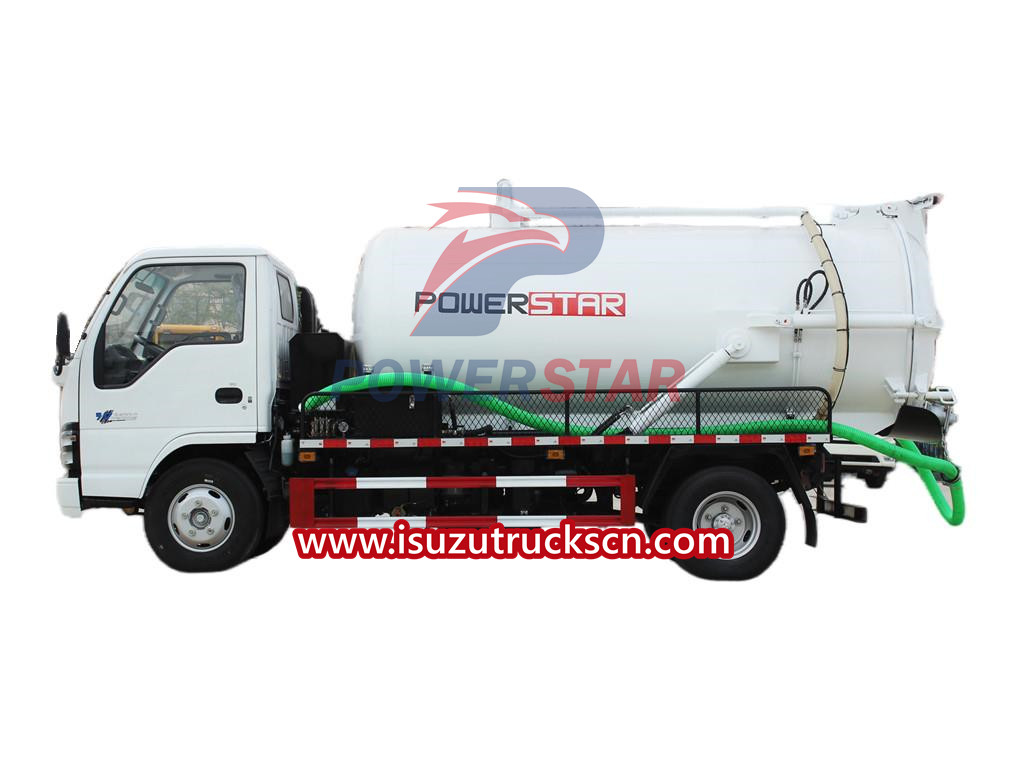

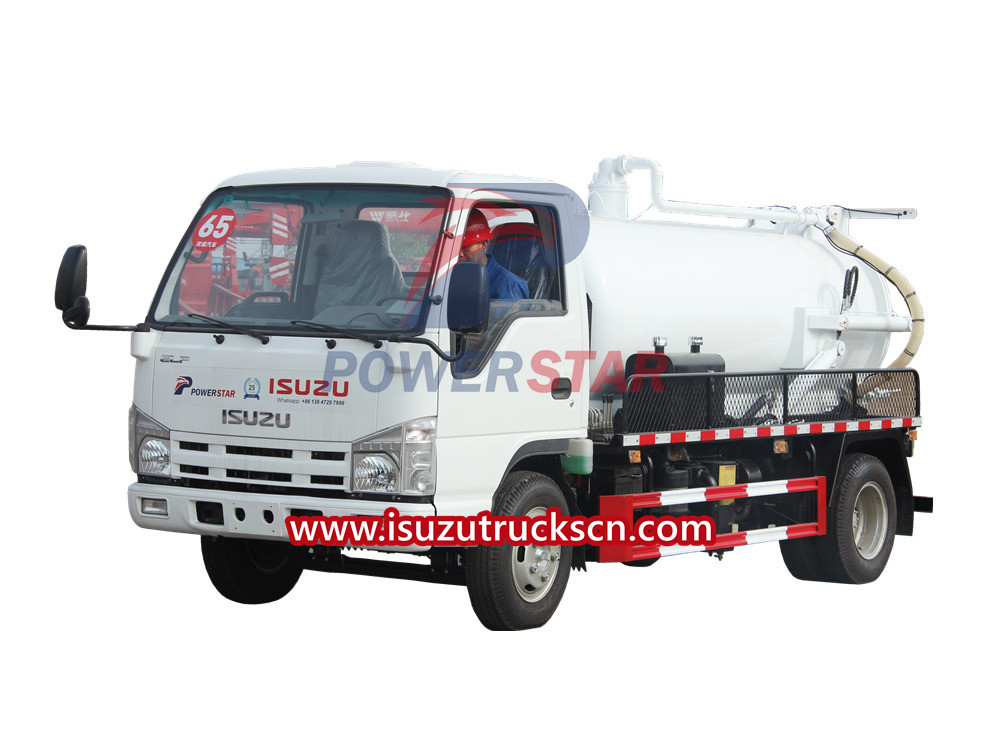

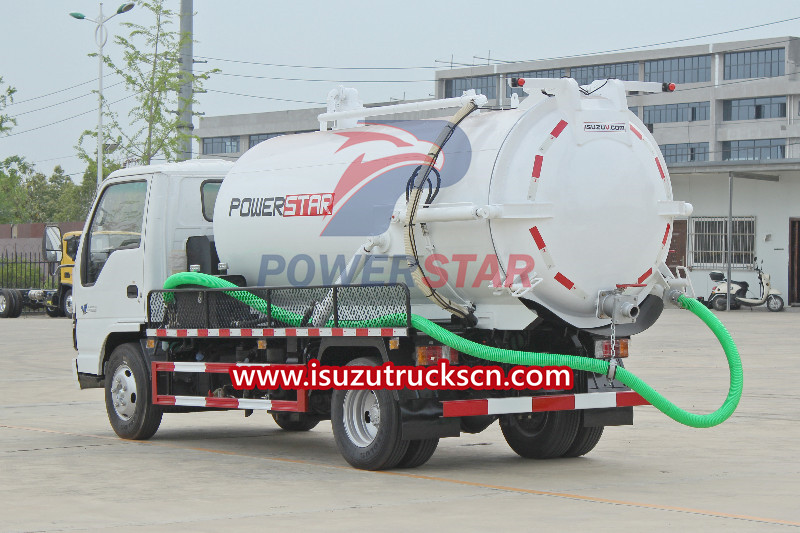

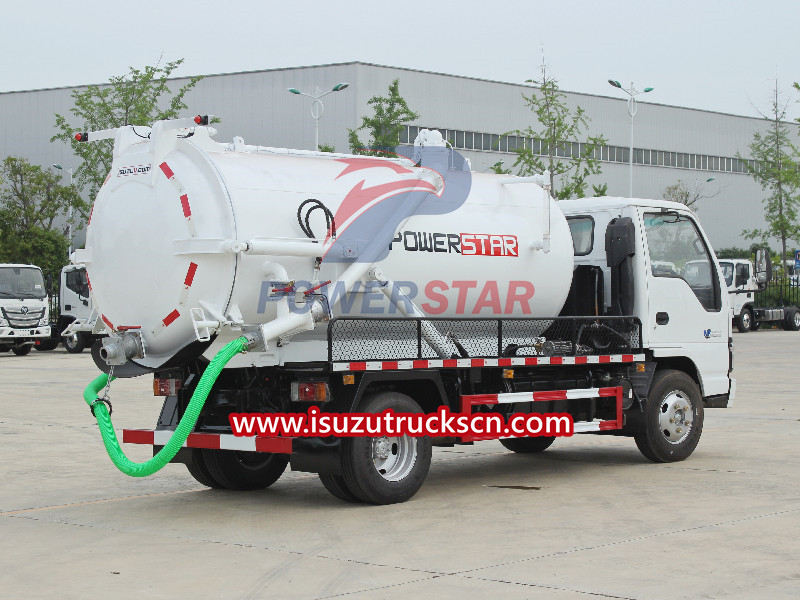

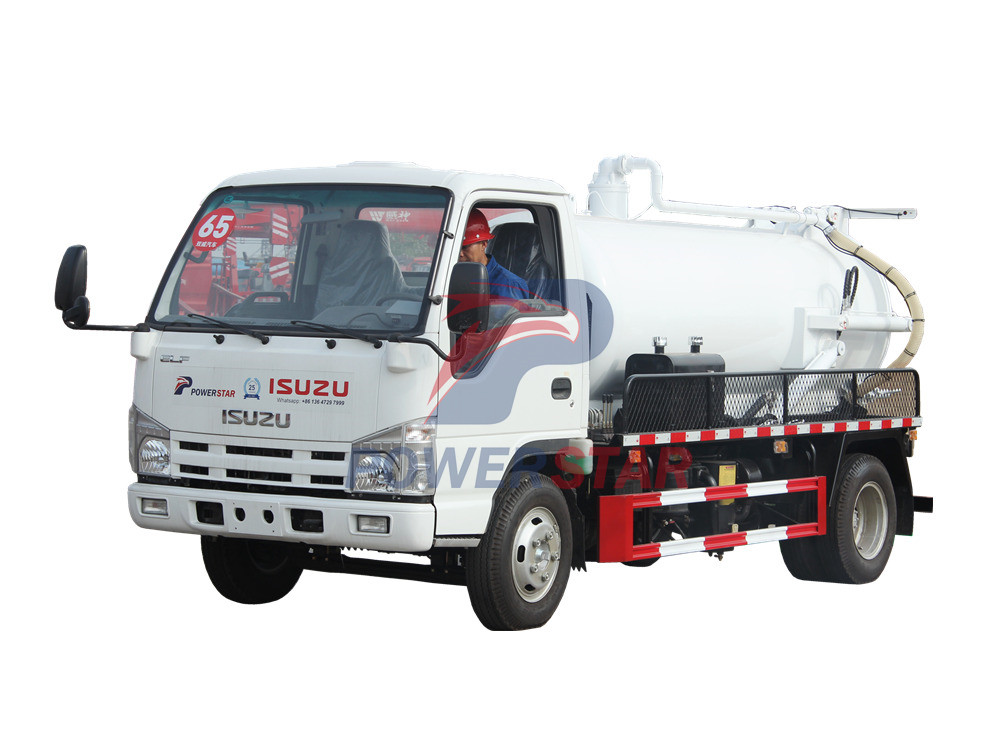

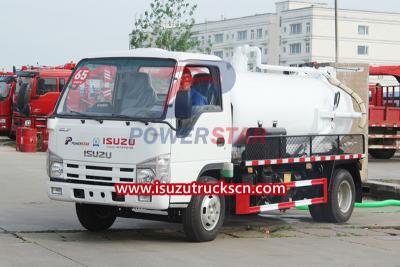

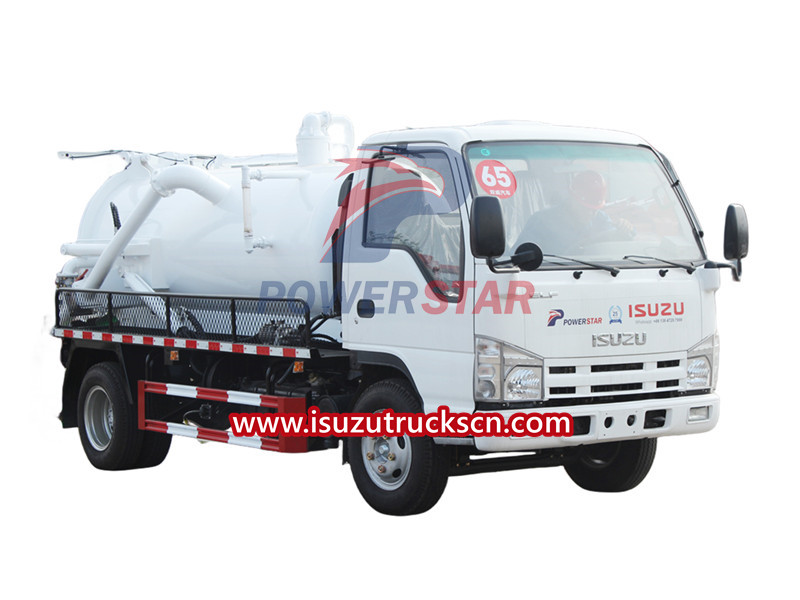

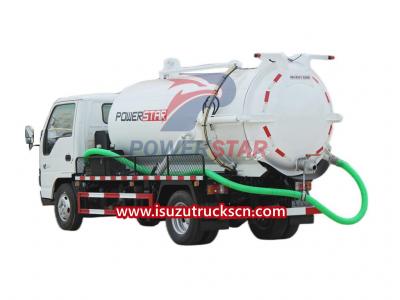

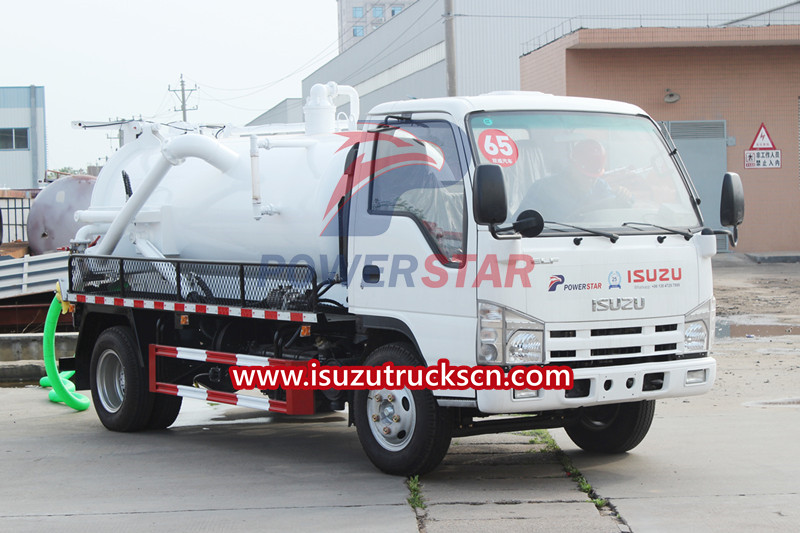

Isuzu NKR 3000Liters sewage suction truck is a tank truck with a heavy duty vacuum designed to pneumatically load fecal, solids, liquids, sludge, crude oil or slurry through suction lines in diameter with 3" or 4" being the norm. We provide various sizes of sewage suction trucks with capacities ranging from 2000liters to 25000liters.
Features for ISUZU mini 3 cubic meters drain cleaning truck as below:
1. Original Japanese technology mini NKR ELF truck chassis, equipped 4KH1CN model 120HP diesel engine, MSB 5-shift manual gearbox

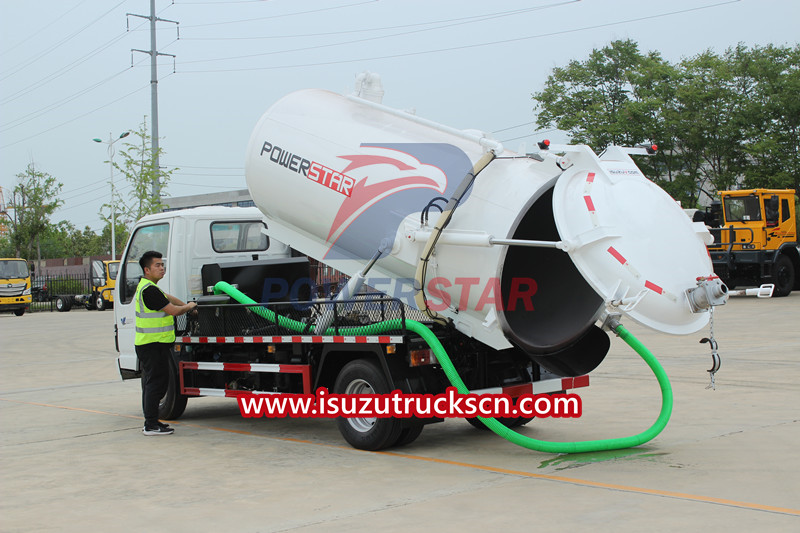

2. Cylinder vacuum tank can be lifted hydraulically to ≥ 45 degree. Rear door can be opened and closed hydraulically. Easy operation
3. Adopt TOP 1 Chinese brand WEILONG vacuum pump, or equivalent EU vacuum pump (Italy brand) vacuum pumps MORO, BP, JUROP, etc. Super powerful, highly efficient.
4. Vacuum Pump can be operated by a hydraulic motor or by an auxiliary engine.
5. Overfill
system with alarm horn is equipped, efficiently preventing the vacuum pump damage
from sewage water into vacuum pump when the tank is full.
6. Nice round shape design, rational structure, durable and long service life.
7. Painting and Logos 100% customized. And operation panel language can be English, Arabic, Germany, French, Russia, etc.
Products Parameters

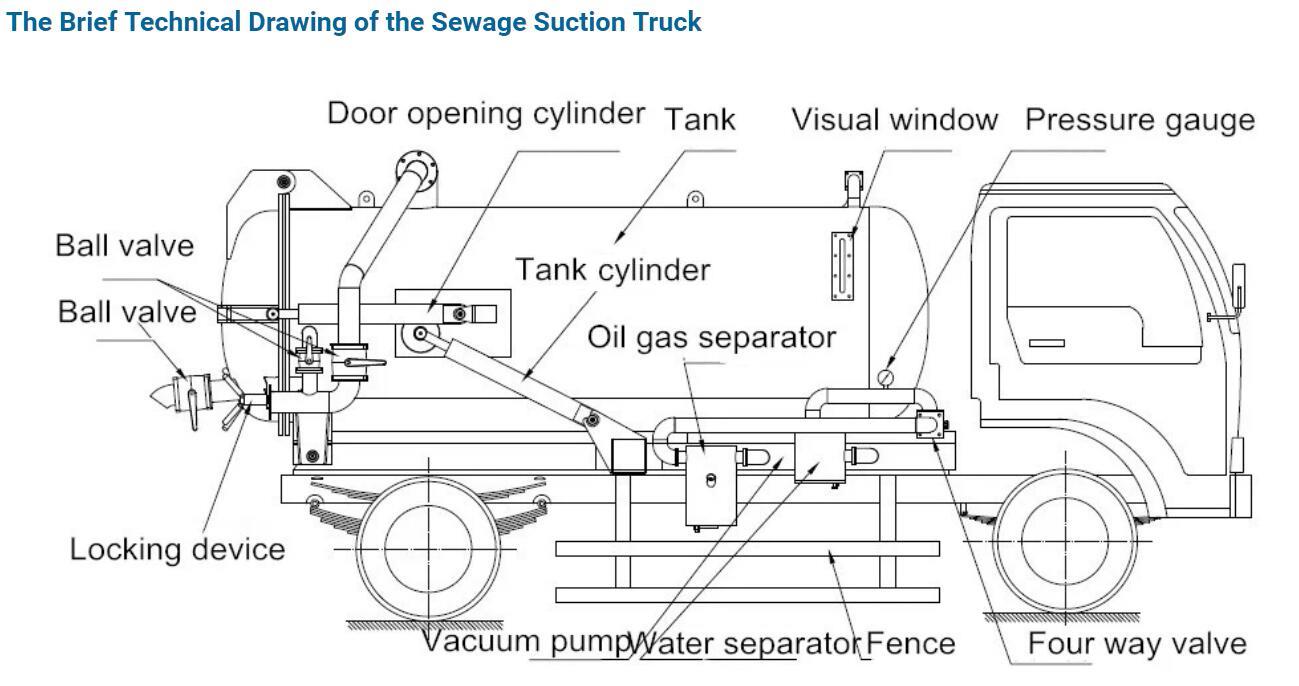

Brand New Isuzu mini 3000liters Vacuum sewage suction truck, a kind of sanitation truck, is mainly used to washing and treat sewer, septic tank, sewage pool in city underground pipe system and other places. Mainly structure: truck chassis, tank body, vacuum pump, sewage hose, vacuum anti-overflow valve, hydraulic rear gate, hydraulic lifting jack, import hydraulic cylinder oil seal, discharge outlet, oil air separator, water air separator, vacuum pressure meter, tank level view tube, etc.
Isuzu Sewage Truck Parameters
Vehicle model
Vehicle Brand
Overall size
Curb weight
PT5070GXWN03
POWERSTAR
5995X2050X2650(mm)
4000(kg)
Gross weight
Rated Load
Color
Steering Wheel
7300(kg)
3500(kg)
White as customized
LHD / RHD
Chassis Parameters
Chassis model
Brand name
Manufacturer
Drive type
QL1070BUHAY
ISUZU
ISUZU
4X2
Wheelbase
Cab
Tire
3360
Single cab, 2 passengers allowed
7.00R16(Radial tire)
Transmission
Steering device
Axle Load
A/C
MSB 5 shaft
Power assisted
2.5/4.8T
Available
Engine Parameters
Engine Model
Manufacture
Emission Standard/Petrol type
Displacement
4KH1CN
ISUZU
Euro 5/6 / Diesel
2999(ml)/88(KW)
Engine Type
Engine Max Torque
Four stroke, direct injection
four-cylinder, water-cooled, supercharged
290 N.M
Sewage Structure Parameters
Mixing capacity
Vacuum Tanker
Color and Logo
Tanker Material
3(m³)
3000liters
White and Blue
Q235 Carbon Steel
Vacuum Pump Model
Pump type
Rotating speed
Absolute working pressure
50QZXDH-68/7000
Self-suction and Self-draining
800r/m
7000 pa
Pumping speed
Control
Anti-swing plate
With cleaning system
68 L/s
Hydraulic system
Available
Optional
Other Configuration
The truck consists of vacuum suction
sewage pump, PTO, transmission shaft, vacuum system, control valves, tanks,
sewage discharge valve, depending on the Pollution windows, vacuum pressure
gauge,pipe systems and hydraulic systems.
The value and significance of the small ISUZU vacuum sewage truck lies in its flexibility, efficiency and reliability. It plays an important role in a variety of environments, providing fast and efficient wastewater absorption and transportation services. By reducing the discharge of sewage and solid waste, the environment is kept clean and hygienic, reducing the risk of environmental pollution and disease transmission. At the same time, Isuzu cesspit emptiers can also improve work efficiency and cost-effectiveness, providing reliable technical support for sewage treatment and environmental protection in urban and rural areas.
The small ISUZU vacuum sewer truck is suitable for the following occasions and has important value and significance.
Industrial areas and construction sites: In industrial areas and construction sites, large amounts of industrial wastewater, slurry and sewage are often produced. The small ISUZU vacuum tanker truck can quickly and effectively absorb and transport these sewage and wastes, ensuring the cleanliness and safety of the construction site and reducing the risk of environmental pollution and construction site accidents.
Urban and rural sewage treatment plants: Sewage treatment plants need to promptly clean up and transport the sludge and wastewater generated during the treatment process. The small ISUZU sewer pump trucks can efficiently collect and transport these sludge and wastewater, ensuring the normal operation of the treatment plant and keeping the environment clean.
Pipe and Sewer Cleaning: The small ISUZU waste pump truck can be used to clean city sewer pipes and road drainage systems. It can effectively absorb sludge, debris and blockages in pipelines, ensure smooth drainage of roads, and reduce the risk of urban waterlogging and sewage backflow.
Marine and water environment protection: In marine and water environment protection work, mini ISUZU sewage pump trucks can be used to collect and clean up oil slicks, sewage and solid waste. Its suction and liquid storage capabilities can effectively handle pollutants in waters and protect the marine ecosystem and the living environment of aquatic life such as fish.
