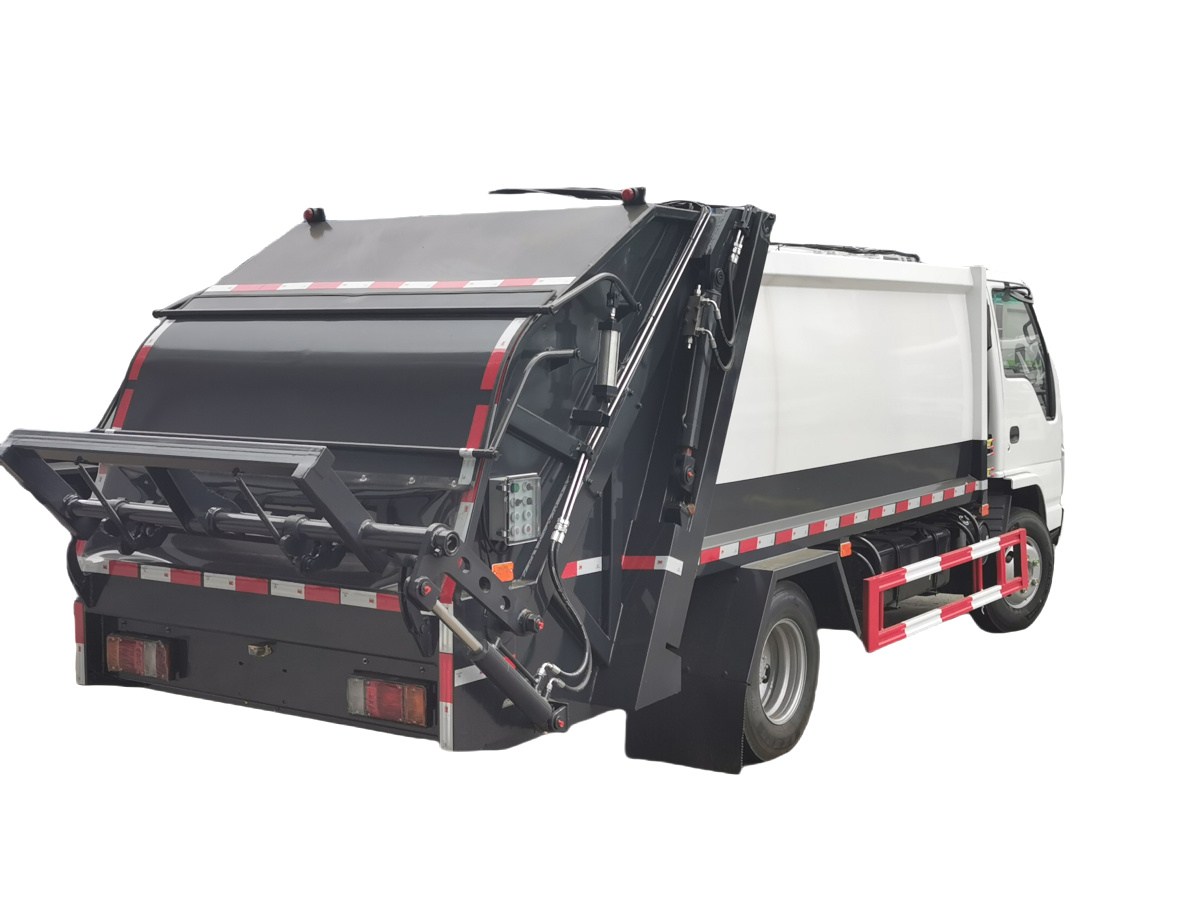

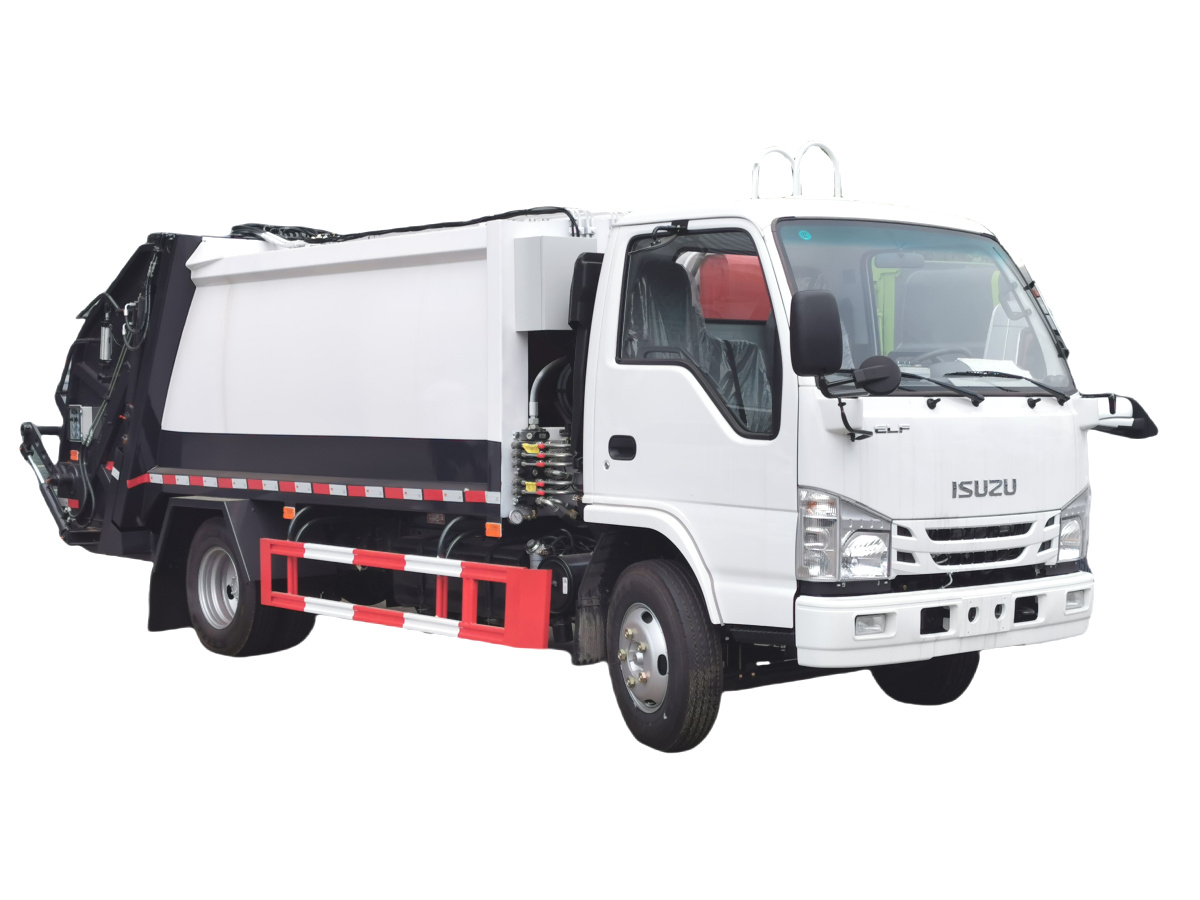

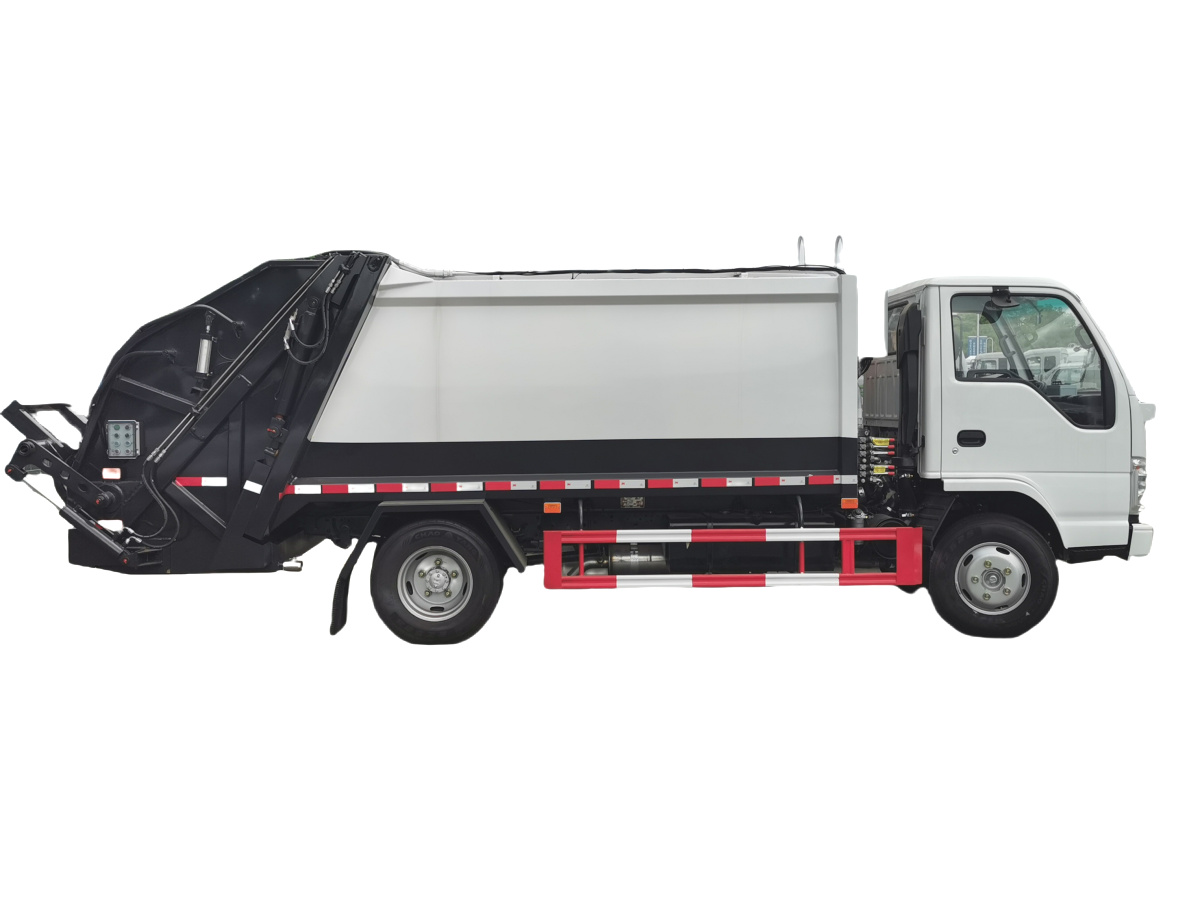

ISUZU ELF 100P/NKR 6CBM Compressed Garbage Truck for sale
Factory direct sale ISUZU waste compressor truck, good price ISUZU NKR/ELF 100P 6CBM back loading garbage trucks, ISUZU refuse compactor manufacturer.The Isuzu elf rear loader meets the waste management needs of residential, commercial areas, and small construction projects. Its smart design maximizes efficiency in limited spaces. It combines exceptional durability with low maintenance requirements.The Isuzu elf rear loader is perfect for compact collection trucks, offering reliability and adaptability for urban challenges. Contact us to learn more about the Tracker and how it can meet your specific waste management needs. Trucks equipped with this bin can be operated with a standard driving license; a heavy vehicle license is not required.
Order(MOQ):
1Work capacity:
6 cbmEngine power:
120HPEngine type:
ISUZU 4KH1Axle drive:
4x2Gear box:
ISUZU MSB 5-shiftFactory Price ISUZU 100P 6CBM Trash Compression Truck For Sale, this new type Isuzu 6cbm rear loader adopt Isuzu ELF cab chassis truck, Isuzu 4KH1 120hp diesel engine, Isuzu MSB 5-shift gearbox, 7.00R16 tire, 6cbm arc garbage bin capacity.
Applications: the compactor/compression garbage truck is an odor-free solution for garbage collection in cities.
Truck Chassis: Dongfeng (Other brand chassis available)
Dump box/Dustbin: 6-10cbm, max loading weight 7000kg. (other chassis with bigger capacity available)
Waste Feeding Methods: 4 waste-collection methods available: Side collection/Rear Bucket Turnover/Swing Arm/Rear Dustpan Turnover (refer to photo below)
Main Market: our compactor garbage truck are widely sold in Africa, N. & S. America, Middle East and Asian countries.
ISUZU 100P 6CBM back loading waste collection truck (also called Isuzu rubbish compactor truck, ISUZU rear loading refuse truck, ISUZU trash compactor truck ) suitable for the garbage collection and transportation in good conditions places, such as urban and rural streets, large factories, residential areas and school.
 |
100% custom-made
|
|
|
3 cbm to 22 cbm available
|
|
|
Short delivery time 7~30 days
|
|
|
Easy operation & Easy maintenance
|
|
|
15 years spare parts & Technical support
|
The following are the core selling points of the 6-cubic-meter compression garbage truck in the Nigerian market, combined with the analysis of local demand characteristics:
1. Efficient operation capability
Large-capacity compression: nominal 6-cubic-meter volume, compression ratio of 1:2.5 or above, can compress loose garbage to 600-800kg/m³ density, significantly reducing transportation frequency
Quick operation: single loading <30 seconds, unloading <45 seconds, adapting to the high-intensity urban garbage removal needs
2. Environmental adaptability
Fully sealed design: hydraulic locking fully sealed technology is used to prevent garbage scattering and sewage leakage during transportation, in compliance with environmental regulations
Solid-liquid separation: optional 304 stainless steel separation mesh plate to achieve dry and wet separation of kitchen waste, reducing the difficulty of subsequent processing
3. Durability optimization
Reinforced structure: The body is made of Q345 weather-resistant steel plate + reinforced beam welding, which is highly corrosion-resistant and adaptable to tropical climates
Core configuration: The hydraulic system is equipped with a self-locking cylinder as standard, and the bulldozer is made of high-wear-resistant alloy materials to extend the life of key components
4. Localization adaptation
Power compatibility: Supports diesel engine configuration to adapt to Nigeria's fuel supply conditions
Easy maintenance: Modular design reduces maintenance difficulty, and the electrical control system supports bilingual (English/local language) display
5. Safety features
Intelligent alarm: Overpressure/full load automatic alarm, equipped with emergency stop button and secondary mechanical protection device
Human-machine engineering: Cab integrated control panel, rear auxiliary operation box, taking into account both safety and convenience
|
PowerStar Trucks Industry Co., Limited |
|||
|
Product Name |
ISUZU 100P Waste Compactor Truck |
||
|
Vehicle Brand Series |
ISUZU |
||
|
Vehicle Model |
PST5070ZYS |
||
|
Production Time |
25 days |
||
|
Chassis parameters |

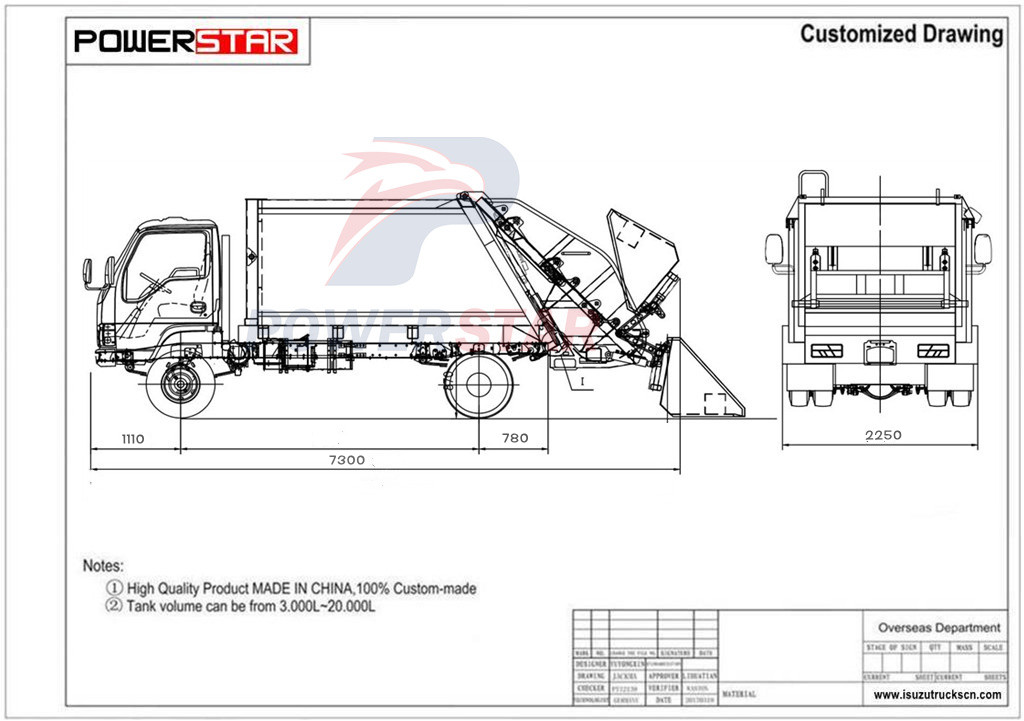

Overall dimensions |
mm |
6800*2200*2680 |
|
Gross weight |
kg |
7,300 |
|
|
Kerb weight |
4,800 |
||
|
Wheelbase |
mm |
3,360 |
|
|
Driving type |
4*2 |
||
|
Chassis model |
ISUZU ELF |
||
|
Tire size |
7.00R16 |
||
|
Number of Tires |
6+1 |
||
|
Passengers in cab |
3 |
||
|
Engine |
Engine model |
4KH1CN5LS |
|
|
Type of fuel |
Diesel |
||
|
Power |
98HP |
||
|
Max speed |
Km/h |
95 |
|
|
Emission standard |
EURO 5,6 |
||
|
Compactor performance |
Compactor Body |
6 CBM |
|
|
Body Material |
Weather Resisting Steel |
||
|
Compressing Ration |
≥ 1:3.4 |
||
|
Dust Bin Lifter |
120 lt. - 240 lt- Two bins |
||
|
Optional 1100 lt,660 lt |
|||
|
Loading Cycle Time |
15 ～ 20 sec |
||
|
Discharging Time |
10 ～18 sec |
||
|
Discharging system |
Horizontal ejection |
||
|
Waste Water Tank |
200L |
||
|
Operation |
Siemens Automatic-PLC system |
||
|
Control Panel |
English |
||
|
Foot Stands |
2 sets with hander |
||
|
Painting |
Two primers, and one final paint coating |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |
“U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
||
The following is the standard operating procedure for ISUZU 6CBM compression garbage trucks:
1. Preparation before operation
Check the vehicle status: confirm that the bolts of each part are tightened, the instrument/control handle is sensitive and effective, the fuel/hydraulic oil/coolant is sufficient, and the tire pressure is normal
Start preparation: Park the car and pull the handbrake → shift to neutral → start the engine → the air pressure reaches above 0.7Mpa → step on the clutch to engage the power take-off
System activation: Turn on the power of the CAN control box → select the "loading" working mode
2. Loading operation
Barrel hanging operation:
Rotate the barrel turning knob to the lower left flip position to lower the mechanism
After hanging the garbage can, turn it to the upper right flip position to unload
Compression cycle:
Manual mode: Press and hold the corresponding button of the scraper/slide plate to complete the "scraper expansion → slide plate down → scraper scraping → slide plate up" action
Automatic mode: Press "one-button cycle" or "continuous cycle" "Continue cycle" button to achieve automatic compression
Full load judgment: When the compartment is full, the buzzer alarms and the buzzer needs to be turned off
3. Unloading operation
Mode switching: Select the "unloading" working mode
Lifting operation: Long press the filler lifting button to the highest position
Pushing shovel operation: Long press the push shovel push button to unload → Confirm that the unloading is complete and retract the push shovel
Reset: Lower the filler to the locked position
4. Post-operation processing
Shut down the system: Disconnect the power take-off → Turn off the power → Check the safety around the vehicle
Daily maintenance: Regularly lubricate moving parts, check the hydraulic system, and drain the sewage tank
Precautions:
Press the red emergency stop button immediately in an emergency
No one is allowed to stand below the filler when it is lifted
No private adjustment of the hydraulic system pressure is allowed (standard 16Mpa)
Operators must be certified and wear labor protection equipment
