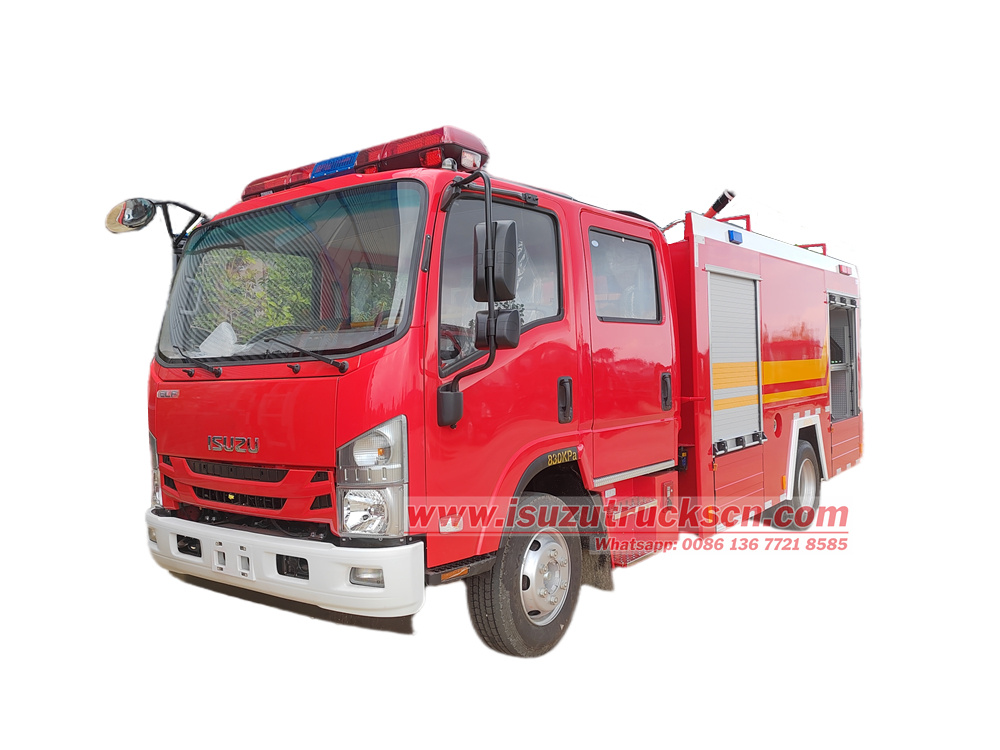

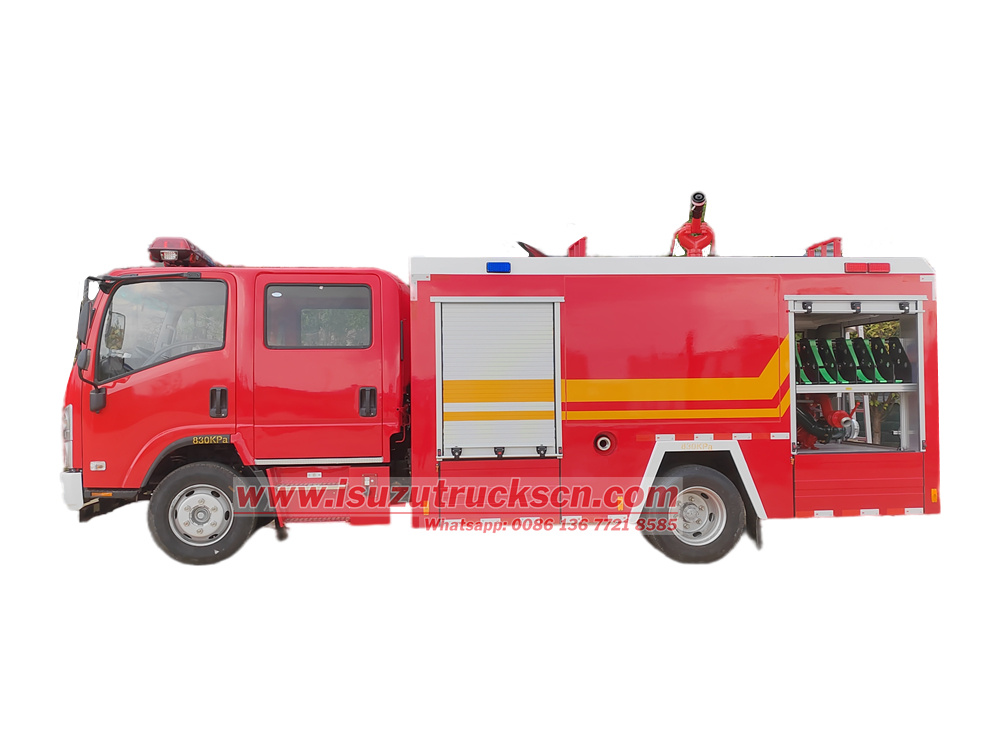

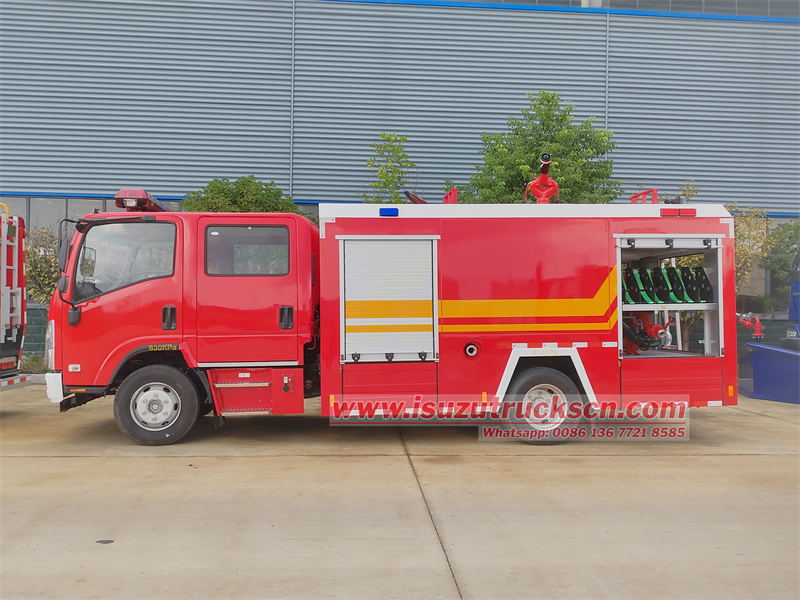

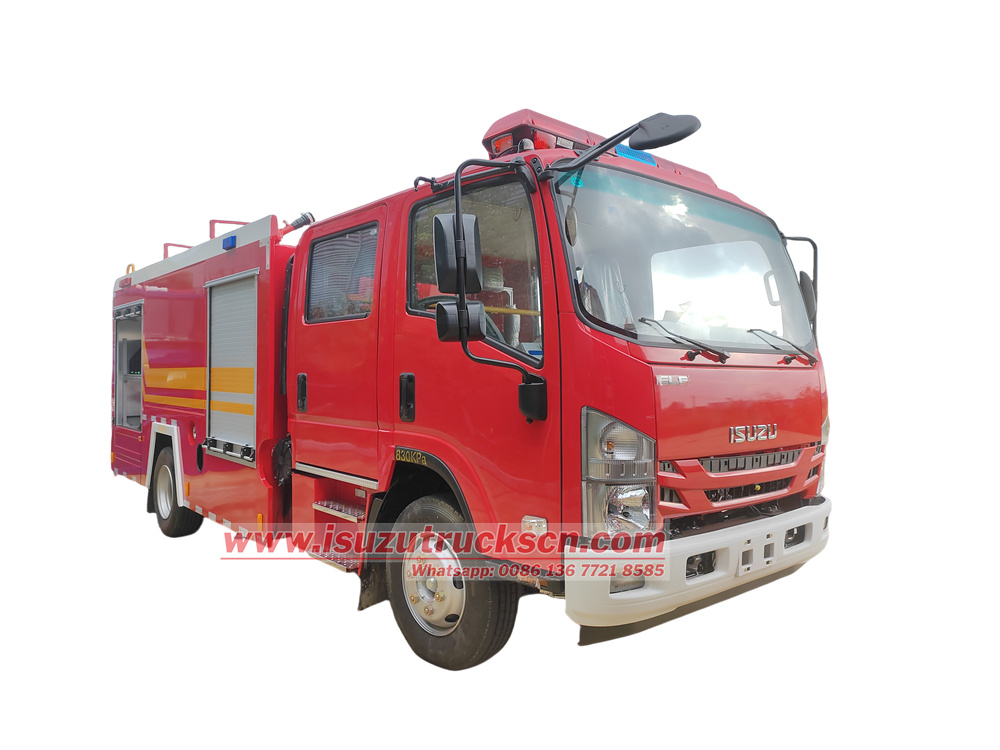

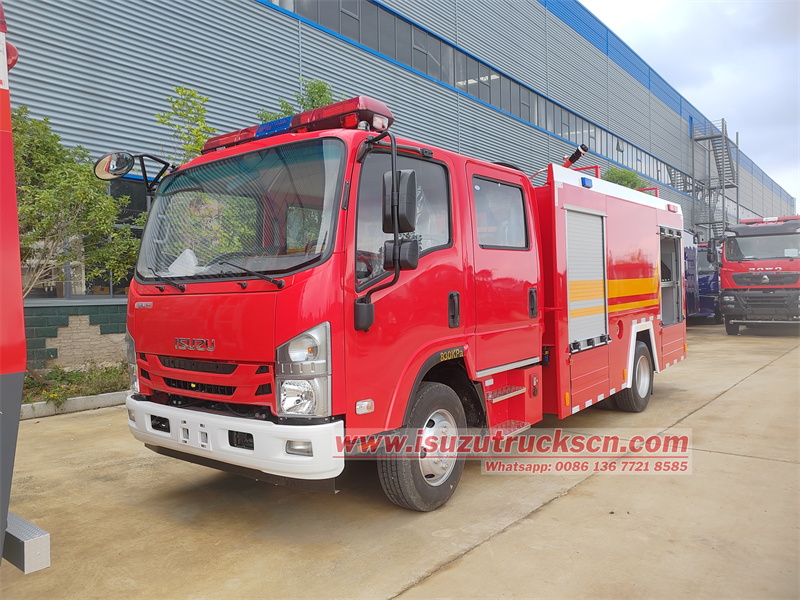

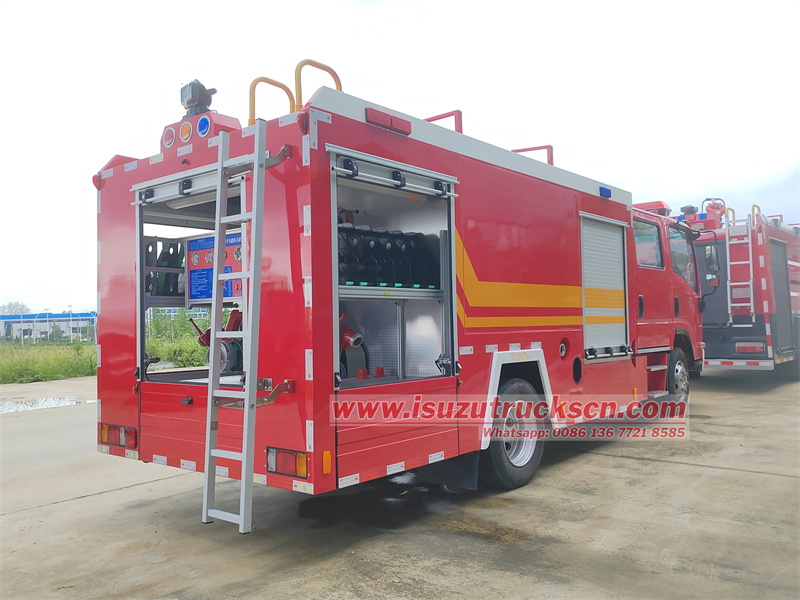

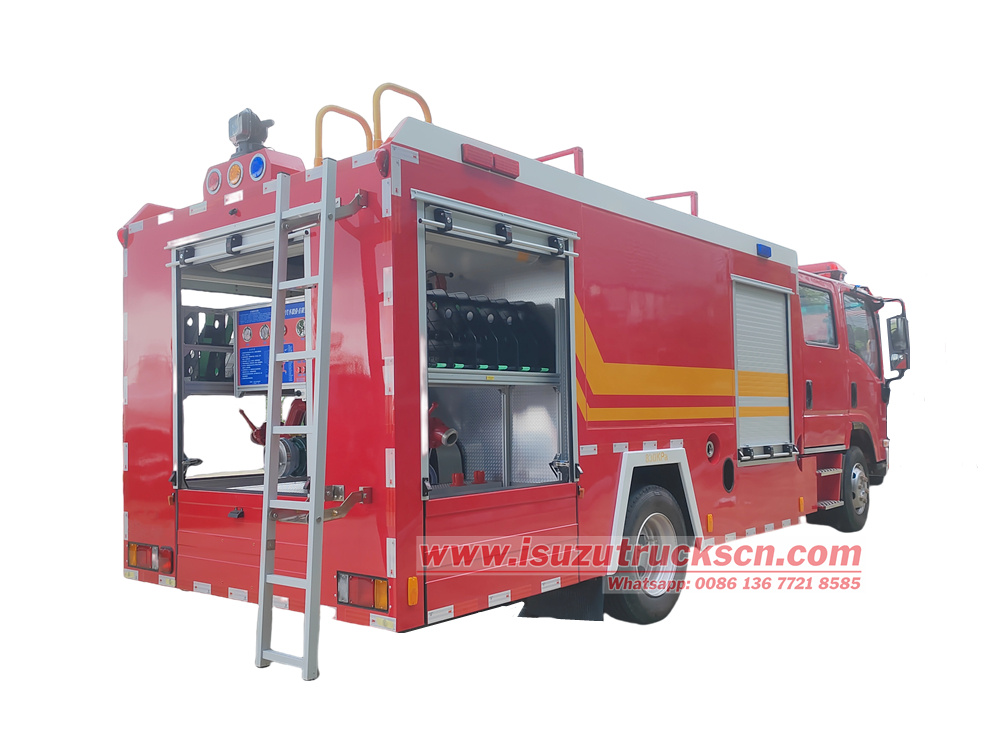

Isuzu 700P 4 cubic foam fire truck, it uses Isuzu 700P double-row cab, 3815mm wheelbase, equipped with Isuzu 4HK1-TCG61 engine, MLD 6-speed gearbox, the middle of the upper body is a 3 cubic carbon steel water tank, 1 cubic stainless steel foam tank, the front is the equipment box, equipped with fire shovel, axe wrench, pickaxe, iron collar, fire extinguisher and other tools, the tail is the pump room, equipped with CB10/40-RS fire pump, fire hose, foam gun, reducer, fire extinguisher, fire hammer, fire hose, water collector, water distributor, water filter, etc., the roof is a PL8/24 fire monitor.
MarketPrice:
$37800Manufacturer:
Powerstar TrucksWork capacity:
4,000 litersDimension:
6925x2350x2650mmCabin type:
Isuzu 700P cab,2+3 seatsWheelbase:
3815mmEngine power:
190HP/139KwEngine type:
ISUZU 4HK1-TCG61Axle drive:
4X2,LHDGear box:
Isuzu MLD 6-speed,manualRemarks:
Tank capacity can be customizedThis Isuzu ELF crew cabin emergency fire truck is a versatile and maneuverable fire truck capable of both water and foam extinguishing. Its double-row cab offers ample space, allowing multiple firefighters to quickly board and execute their missions. Its 3815mm wheelbase, combined with its powerful 4HK1-TCG61 engine and 6-speed transmission, ensures a stable and powerful ride, capable of handling challenging road conditions.
Its intelligently designed superstructure features a 3-cubic-meter carbon steel water tank and a 1-cubic-meter stainless steel foam tank to meet water supply needs. The equipment compartment and pump room are fully equipped with all necessary tools and equipment. The roof-mounted PL8/24 fire monitor boasts a long range and high flow rate, enabling rapid fire control at the scene and providing effective support for firefighting and rescue operations. It is suitable for initial firefighting in a variety of locations, including urban communities, industrial and mining enterprises, townships, and highways.
● China best Isuzu water foam fire truck factory
● 30 years experience on foam fire rescue truck designing
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Key Features and Advantages
1. Reliable Power: Isuzu's golden powertrain ensures high availability and maneuverability.
2. Double-row Cab: The double-row cab offers ample space, accommodating multiple people for rapid deployment.
3. Combined Foam Extinguishing: Equipped with both water and foam extinguishing capabilities, it is particularly suitable for extinguishing oil and solid material fires.
4. Comprehensive Equipment: From firefighting, water supply, demolition, to personal protection, the equipment configuration covers all essential firefighting and rescue needs.
5. Efficient Operation: The centralized rear pump room and roof-mounted fire monitor provide powerful long-range firefighting capabilities, improving firefighting efficiency and safety.
» Ⅱ.Product Parameter for Isuzu 700P foam fire truck:

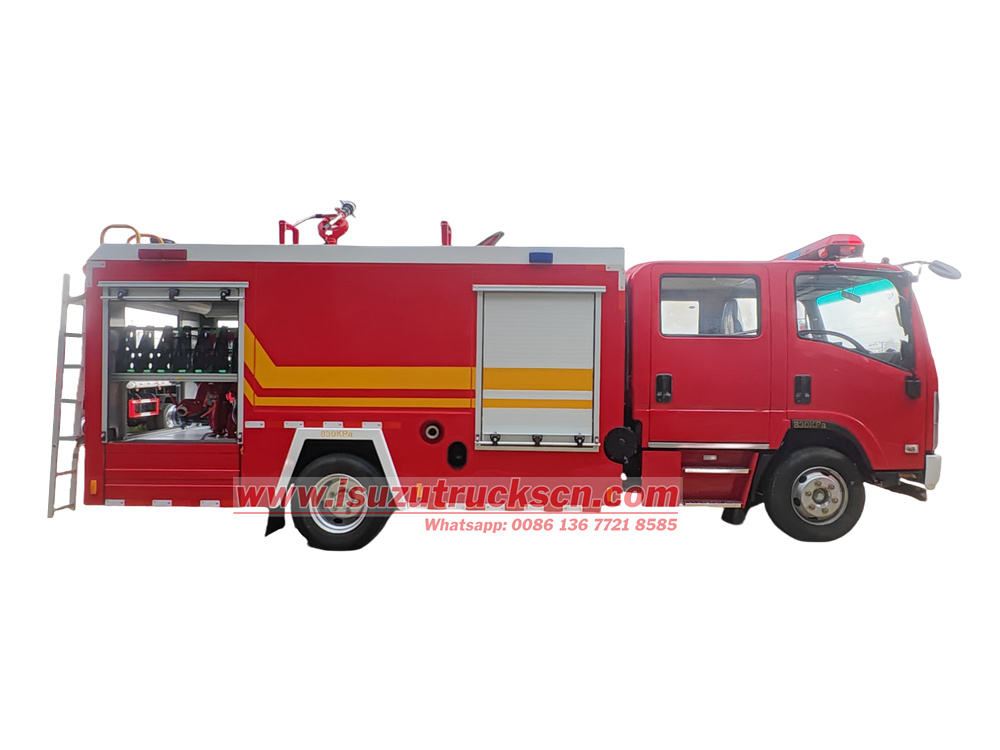

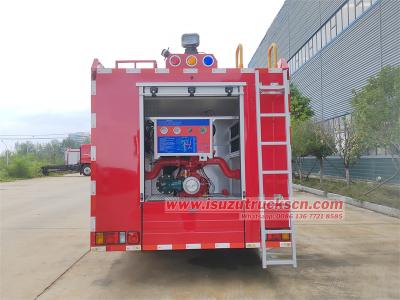

| Isuzu 700P double row 4000L foam fire truck | ||
|
Vehicle Parameters |
||
|
General |
Vehicle brand |
POWERSTAR |
|
Chassis brand |
Isuzu |
|
|
Overall dimension |
6925*2350*2650mm |
|
|
GVW/Curb weight |
10550/5850kg |
|
|
Max speed |
115Km/h |
|
|
Chassis Parameters |
||
|
Cab |
Seat capacity |
2+3 |
|
A/C |
Have |
|
|
Engine |
Fuel type |
Diesel |
|
Engine type |
4 cylinder inline |
|
|
Brand |
Isuzu |
|
|
Model |
4HK1-TCG61 |
|
|
Power |
190HP/139Kw |
|
|
Rated speed |
2600rpm |
|
|
Max torque |
507N.m |
|
|
Max torque speed |
1600-2600rpm |
|
|
Displacement |
5193ml |
|
|
Emission standard |
Euro 6 |
|
|
Chassis |
Drive type |
4x2,LHD |
|
Wheelbase |
3815mm |
|
|
Axle loading |
4000/7000kg |
|
|
Front/rear overhang |
1110/2000mm |
|
|
Gearbox |
Isuzu MLD 6-shift,manual |
|
|
Tire specifications |
235/75R17.5 |
|
|
Tire No. |
6+1 |
|
|
Structure Parameters |
||
|
Tank |
Capacity |
3cbm water tank |
|
1cbm foam tank |
||
|
Material |
Carbon steel water tank(Anticorrosion treatment) |
|
|
304 stainless steel |
||
|
Fire pump |
Model |
CB10/40-RS |
|
Pressure |
1.0MPa |
|
|
Max work pressure |
1.251MPa |
|
|
Flow |
40L/s |
|
|
Fire monitor |
Model |
PL8/24 |
|
Pressure |
0.8MPa |
|
|
Max work pressure |
1.0MPa |
|
|
Flow |
24L/s |
|
|
Range |
Water≥55m |
|
|
Foam≥42m |
||
|
Pitch rotation |
-45～+70° |
|
|
Horizontal rotation |
360° |
|
|
Suction Head |
7m |
|
|
Fire Accessories |
Suction hose, water strainer, water segregator, water collector fire hose, hose patch, hose bridge, hydrant wrench, fire gun portable fire extinguisher, fire axe, 30m medium pressure fire hose reel etc. |
|
» Ⅲ. Product Details:
Chassis Configuration

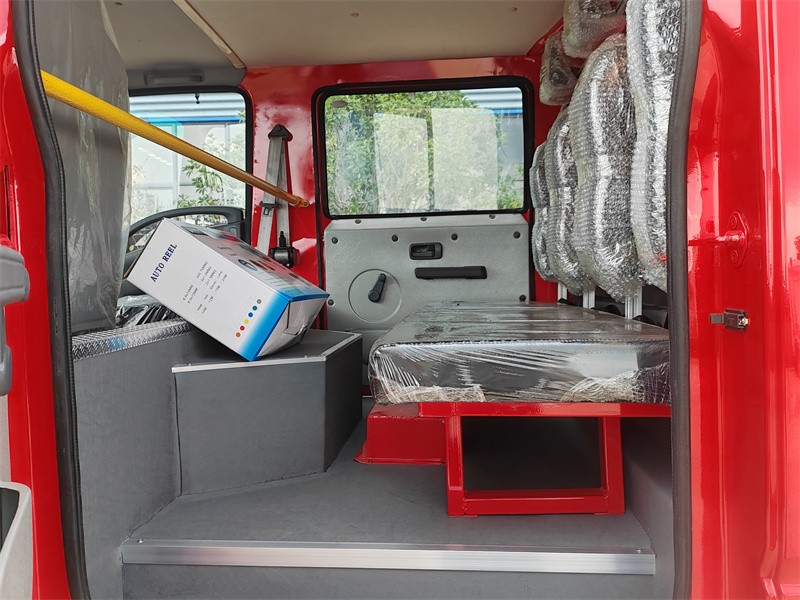

Chassis Model: Isuzu 700P double-cab chassis, capable of accommodating multiple firefighters for easy command and coordinated operations.
Wheelbase: 3815mm
Engine: Isuzu 4HK1-TCG61 diesel engine, 190 horsepower, 507 Nm of torque. Proven technology, powerful power, and high reliability, it meets Euro VI emission standards, ensuring rapid arrival at the fire scene.
Transmission: MLD 6-speed manual transmission, offering smooth operation and high transmission efficiency, perfectly matching the engine's power output.
Upperbody Configuration
The superstructure adopts a modular design with a rational layout and clear functional divisions.
1. Tank System
• Water Tank: Capacity: 3 cubic meters, made of high-quality carbon steel with an anti-corrosion interior for excellent durability.
• Foam Tank: Capacity: 1 cubic meter, made of corrosion-resistant stainless steel, used to store foam fire extinguishing agents.
• Total Liquid Capacity: 4 cubic meters, capable of spraying water and foam independently or in combination.

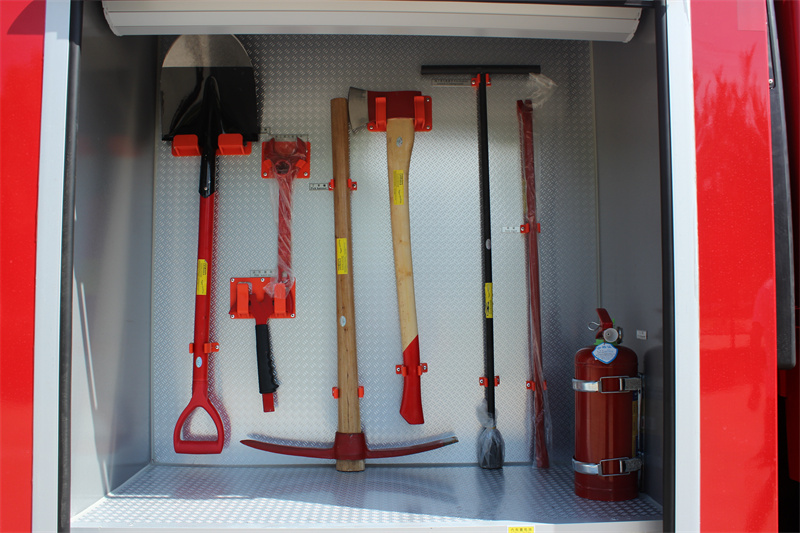

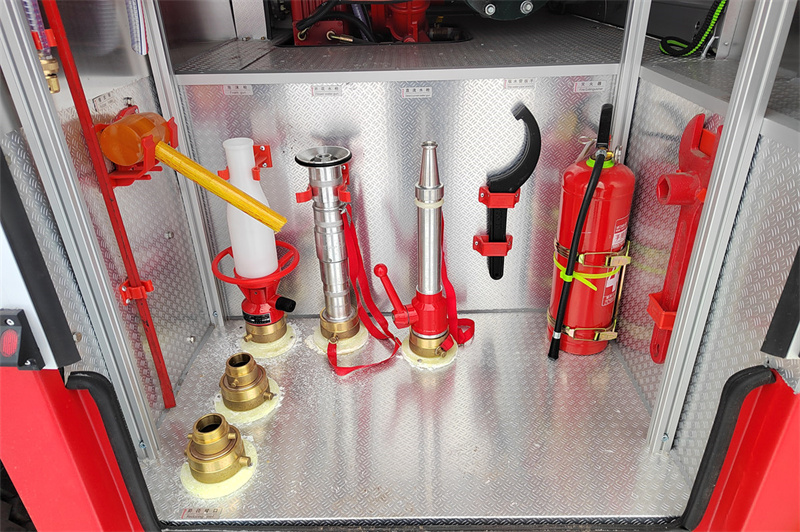

2. Front Equipment Box
• Location: Located behind the cab, in front of the water tank.
• Configuration: Designed with dedicated fixtures and brackets, the interior neatly stores various onboard firefighting tools, including:
o Demolition Tools: Fire Collar, Pickaxe, Axe.
o Cleaning Tools: Fire Spade.
o Operating Tools: Wrench.
o Firefighting Equipment: Portable Fire Extinguisher.

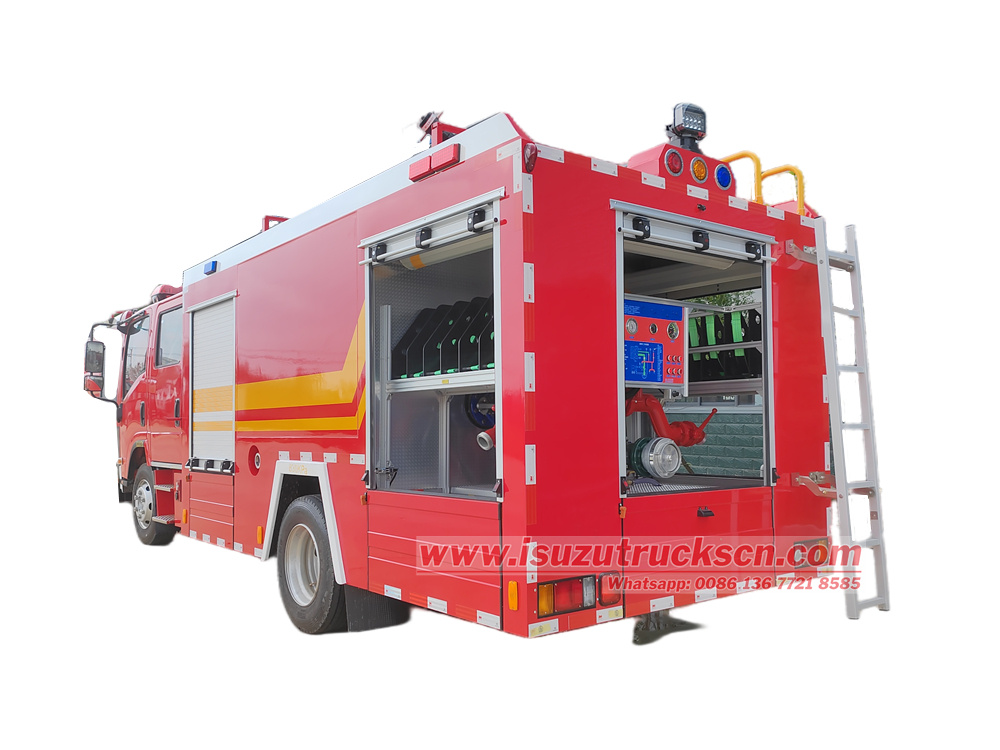

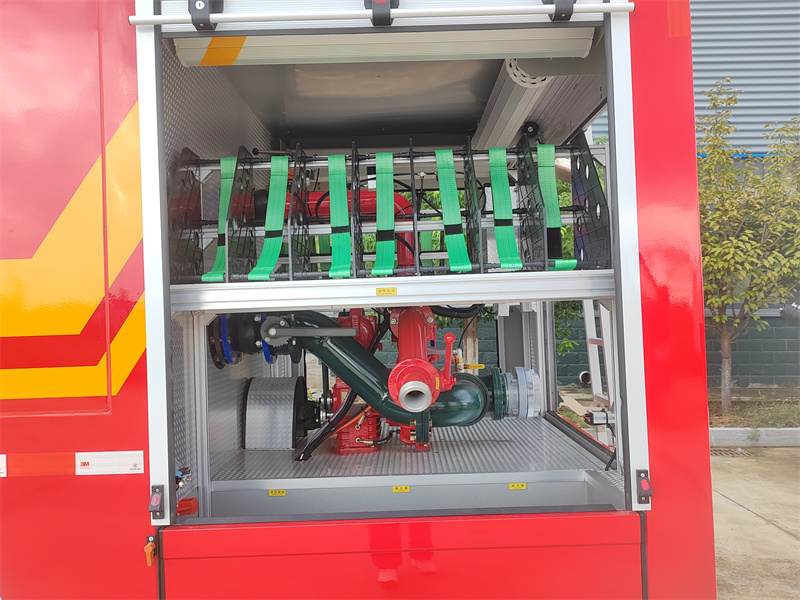

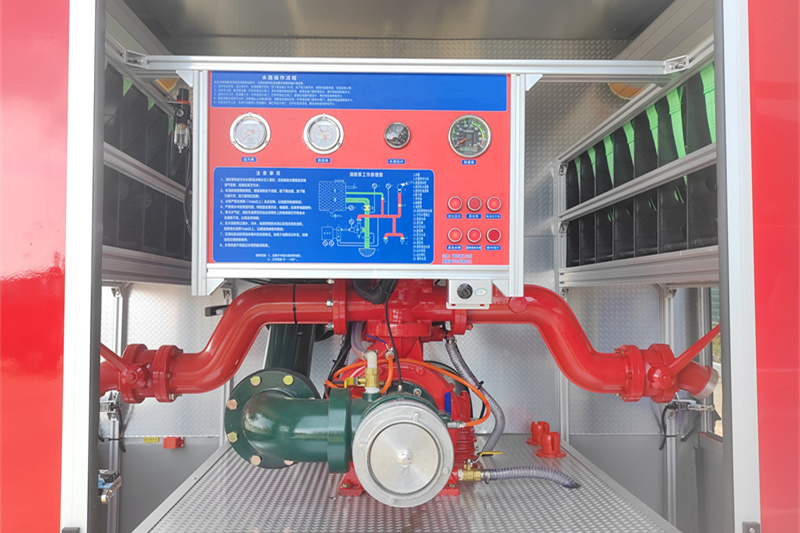

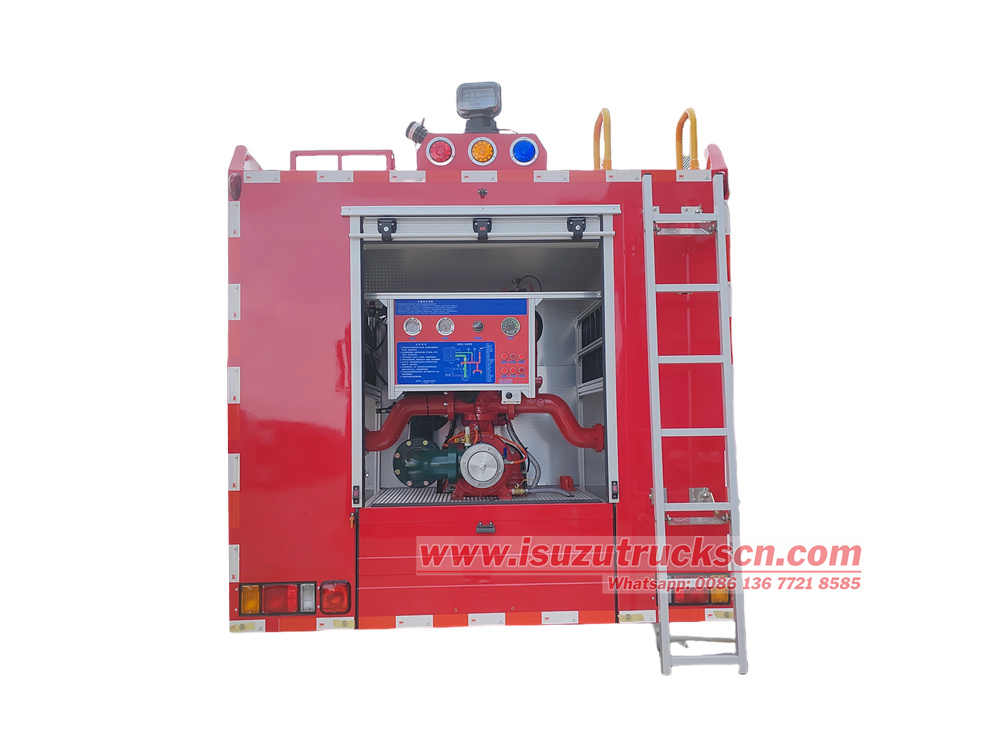

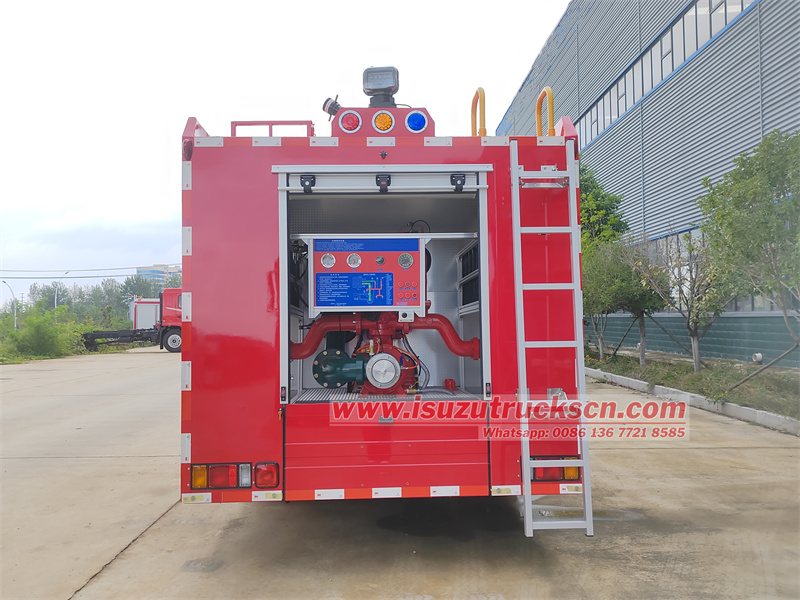

3. Rear Pump Room
• Location: Located at the rear of the vehicle, in an independent space for easy access.
• Core Equipment:

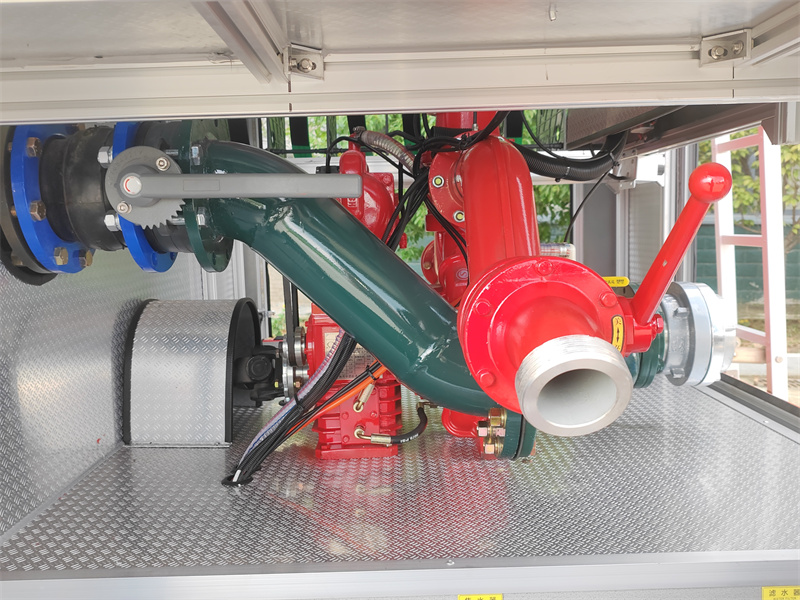

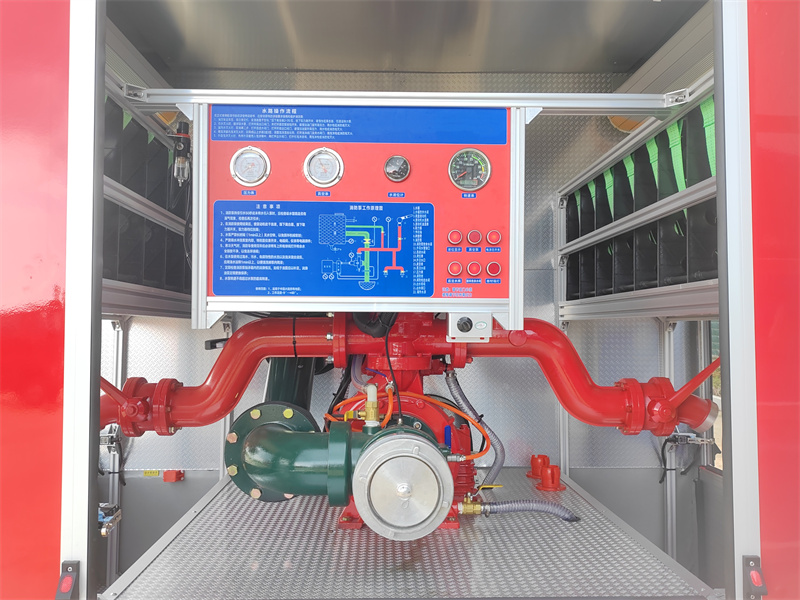

o Fire Pump: CB10/40-RS Fire Pump.
Flow/Pressure: Rated flow 40 liters/second (@1.0 MPa)
Function: Capable of both absorbing and discharging water, as well as automatically mixing and spraying water and foam concentrate in proportion.
• Supporting Equipment:
o Spraying Equipment: Fire hose, foam gun.
o Connectors: Reducer, manifold, manifold, water filter (to prevent debris from entering the pump).
o Delivery Pipeline: Fire hose.
o Safety and Dismantling Equipment: Fire hammer, fire extinguisher.
|
Model |
Working conditions |
Flow（L/s） |
Working pressure（Mpa） |
Pump shaft speed (rpm) |
Power（KW） |
Suction dept（m） |
|
CB10/40-RS |
1 |
40 |
1.0 |
3916±50 |
68.2 |
3 |
|
2 |
28 |
1.3 |
4163±50 |
68.4 |
||
|
3 |
20 |
1.0 |
|
|
7 |

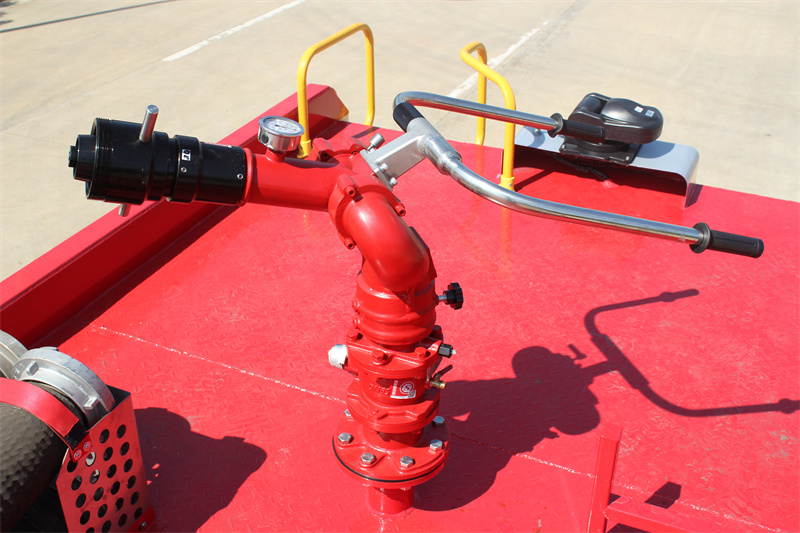

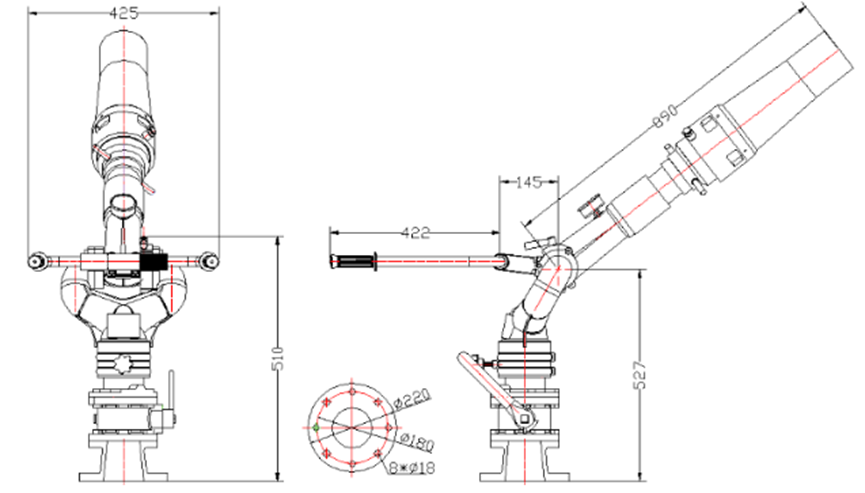

4. Rooftop Fire Monitor
• Model: PL8/24 Fire Monitor.
• Performance:
* Low inlet pressure;
* Can spray water or foam; can be used as a water monitor by removing the foaming tube, with both blooming and direct flow functions;
* Lightweight, precision-cast aluminum;
* Equipped with an automatic drain valve;
* Adjustable operating handle angle; Features horizontal and elevation locks;
* Long range, concentrated jet, high foaming ratio, and large protection area;
* Flexible and easy operation, with the monitor body capable of horizontal and elevation rotation.
|
Model |
Flow |
Range（m） |
Rated working pressure（Mpa） |
Pitch rotation |
Horizontal rotation |
L × W × H |
Weight（Kg） |
|
|
Water |
Foam |
|||||||
|
PL8/24 |
24 |
≥55 |
≥42 |
0.80 |
-45～+70 |
0～360 |
1400*425*660 |
23 |
