Order(MOQ):

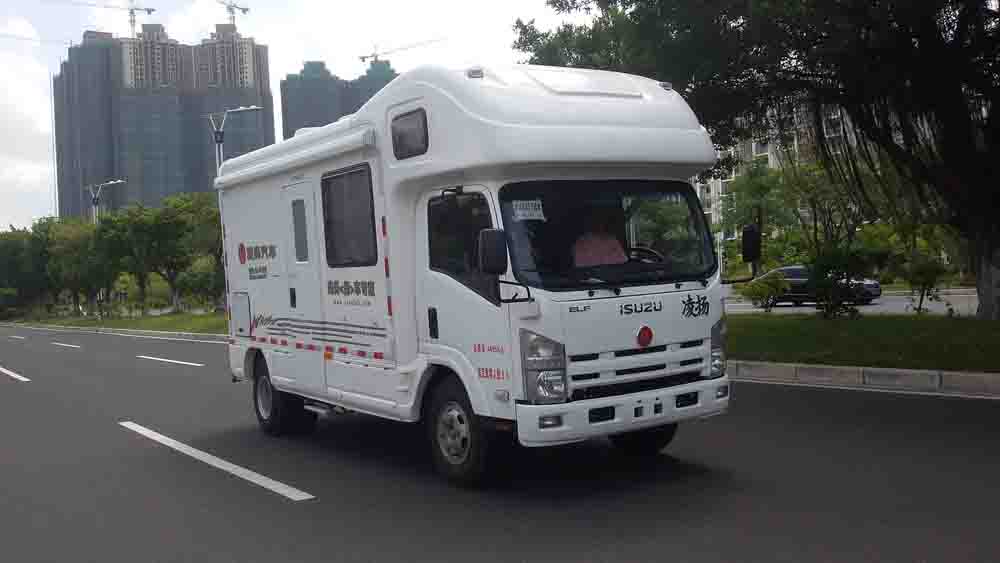

1Isuzu elf Leisure accommodation vehicles residence vehicle
Japanese Isuzu Leisure accommodation vehicles, caravans,motor caravan
caravans and motorhomes mobile caravans,Motorhome for sale
Vehicle name |
Isuzu motor caravan |
|
Overall Dimensions (L×W×H)(mm) |
5990 ×2300(2360) ×2995 |
|
Chassis model |
Isuzu ELF |
|
Engine model |
4HK1 139KW |
|
Displacement /Power(ml/Kw) |
2998/139 |
|
Fuel type |
Diesel |
|
Driving type |
4*2 |
|
Transmission |
manual 6 shift |
|
Wheel base(mm) |
3815 |
|
Track base(F/R)(mm) |
1695/1540 |
|
Tyre size |
8.25-16 |
|
GVW(kg) |
5130 |
|
Rated passengers |
4-5person (include driver) |
|
Fuel consumption (L)(50km/h) |
≤9 |
|
Max. speed(km/h) |
100 |
|
Sleep person (Adult) |
4 |
|
Bed size(MM) |
2130*1235/2130*1235 |
|
Standard equipment |
||
Sandwich composite body structure |
External shower device |
|
White glass fiber reinforced plastic plate |
Dual voltage motor home water heater (12V,220V) |
|
Floor leather |
||
At the entrance of the car external water injection |
||
Asnaghi - Vienna Kitchen,liftable dinner table |
Clean water tank,waste water tank |
|
Double bed |
External water injection pipe assembly |
|
Extrapolation Windows (with the screen) |
The lights/berth lamp/external lighting/door light steps |
|
Toilet fan |
Water level,voltage display panel |
|
Hand self-roll type awning |
15 m external cable |
|
High power vehicle air conditioning /Overhead air conditioning |
Smoke alarm/fire extinguishers |
|
Dedicated refrigerator , Car DVD audio system , |
The rear double bed |
|
Reversing monitor GPS (all-in-one) |
passenger seat |
|
24 inch LCD TV |
High power inverter |
|
Common fuel generator (cape 3 kw) |
Vegatable Basin assembly with cover |
|
Mosaic induction cooker/smoke lampblack machine |
||
Custom-made ISUZU recreational vehicle, ISUZU NPR 4x4 off-road chassis, MLD 6-speed manual or auto transmission. China professional ISUZU RV supplier.
Learn More
Isuzu all drive Camper trucks, also known as Isuzu off road truck bed campers or Isuzu 4x4 RV motorhome, are versatile recreational vehicles that can be loaded and unloaded from the bed of a full-size or mid-size pickup truck. These Isuzu campers offer a unique combination of mobility and comfort, allowing travelers to go anywhere, camp anywhere, and tow anything.
Learn More
Isuzu 4x4 Off-road campervans are designed to tackle rough terrain and provide access to remote locations for activities like hiking, mountain biking, and stargazing. These vehicles are equipped with features like 4x4 capabilities, large all-terrain tires, upgraded suspensions, and onboard air compressors for adjusting tire pressure as needed.
Learn More
Isuzu NPR off road camper trucks are versatile recreational vehicles that can be loaded and unloaded from the bed of a full-size or mid-size pickup truck. These Isuzu campers offer a unique combination of mobility and comfort, allowing travelers to go anywhere, camp anywhere, and tow anything.These vehicles are equipped with features like large all-terrain tires, upgraded suspensions, and onboard air compressors for adjusting tire pressure as needed.
Learn More
The Isuzu GIGA 10 wheeler boom crane truck is a heavy-duty vehicle that integrates a powerful crane system onto a sturdy and capable truck chassis. This truck is specifically designed for lifting and transporting heavy loads, making it an essential tool in construction sites, industrial complexes, and various infrastructure projects. With its 10-wheel configuration, it offers excellent stability and traction, ensuring safe and efficient operations.
Learn More
Compressing Rear loader Garbage trucks Isuzu Specifications: ISUZU Rear Loader Garbage Trucks Vehicle Model PT5122ZYS Chassis model FTR Maximum total mass 12000kg Kerb mass 8280kg Rated pay load 3525kg Carriage volume 9.6m3 Garbage bucket volume 1.2m3 width of feeding mouth 1696mm Hvdraulic svstern pressure 20Mpa Outline dimensions 7460/8040/7800*2487*3015mm Wheelbase 3800mm Time of compression 16-18s unload garbage time ≤30s Principle: Rear loader includes sealed container, hydraulic system and operating system. The whole rear container is sealed, self compress, self dumping, wast water kept in the tank will compress, avoid the pollute will transport. Key parts are imported, with larger pressure, better tightness, easy to operate, safety. Optional basket equipment and overturn mechanism increases efficiency. Scope of application: Detachable Rear loader garbage trucks are special for collecting the urban domestic refuse and other compressible refuse. Garbage trucks are widely used in sanitation, municipal, industrial enterprises, property plot, garbage and concentration of residential areas. Competitive Advantage: The key units of Hydraulic system are with advanced structure, more reliable, easier to operate and maintaince, such as control valve, cylinder, connection parts. Advanced electric controlled system adopts PLC (Programmable Logic Controller) integrated controls, Mechatronics-hydraulics-integrated controls, reaching high automatization. Pushplate valve are equipped with balance valve which can made pushplate move forward to the front of the container during double compressing garbage, thus providing a big space for loading garbage. Beautiful streamline appearance, upper vehicle adopts high strength anti-rust steel plate which can prolong the service life of vehicle. Convenient control system It is convenient to operate, job control boxes are separately installed in the cab and vehicle end. The control box installed in the cab can control the operation of dumping garbage and selective mode( such as auto-matic or hand-operated) ; the control box installed on the vehicle end can control the operation of stuff mechanism and overturn bucket mechanism. Throttle control can be realized full-automatic control by control electric system,which meet the power needs of operation of compressing and dumping garbage; in other working condition, engine get into idle state automatically that can reduce power wasting and faults rate. Rearview monitor system of optional is offered, it is very convenient to perform visible load and unload operation in the cab. Two controls of automatic control and hand-operated control are offered, greatly increased vehicle utilized rate. The machine was installed with emergency stop which can stop working whatever state and position stuffing mechanism reached, ensure that the staff and equipment are safety. Basket equipment and overturn mechanism are optional, user can select collecting mecha nism of optional according to the way of collecting garbage.
Learn More
2cbm vacuum suction set for Isuzu trucks ,tanker body set for Isuzu vacuum sewage suction truck
Learn More
This is a dry powder nitrogen fire truck built on the basis of ISUZU FTR Chassis. It is equipped with a powerful ISUZU 4HK1-TC60 engine with a displacement of 5.19L and an output power of 380 horsepower. It adopts a 4X2 drive mode and is equipped with an MLD 6-speed gearbox. The maximum speed can reach 90km/h, which can adapt to various complex road conditions. In terms of the fire fighting system, the truck is equipped with two 2000-liter carbon steel dry powder storage tanks and 12 80-liter nitrogen cylinders with a design pressure of 15MPa.
