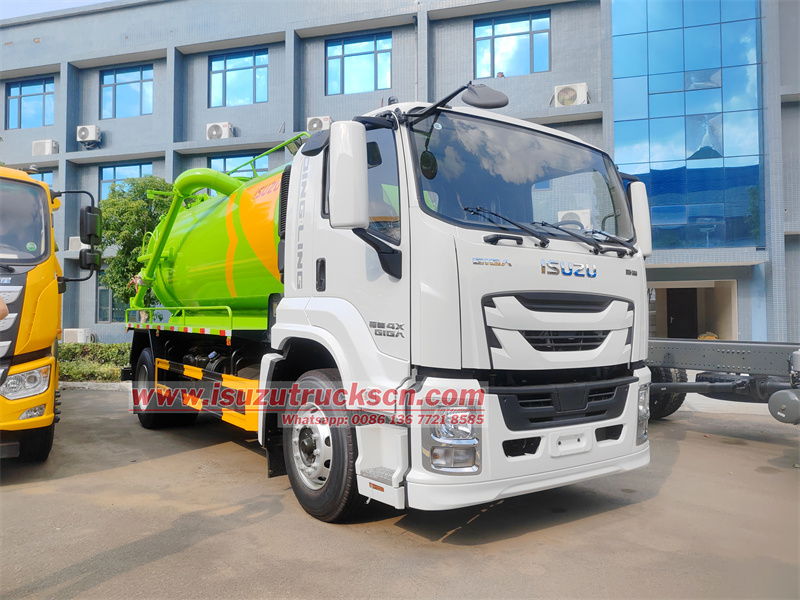

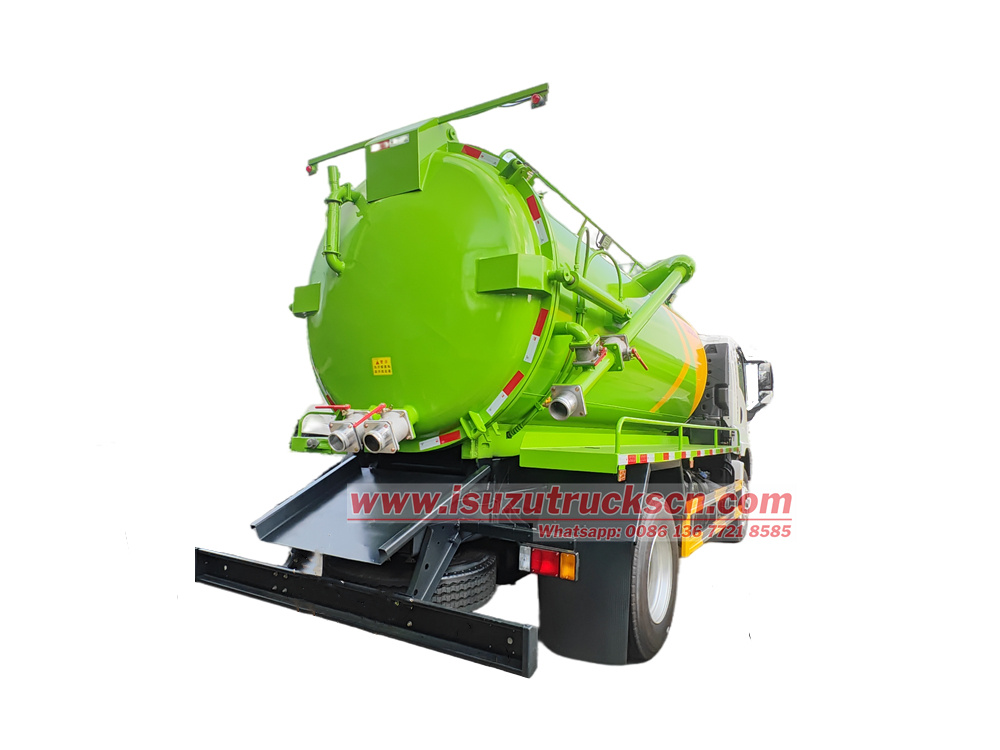

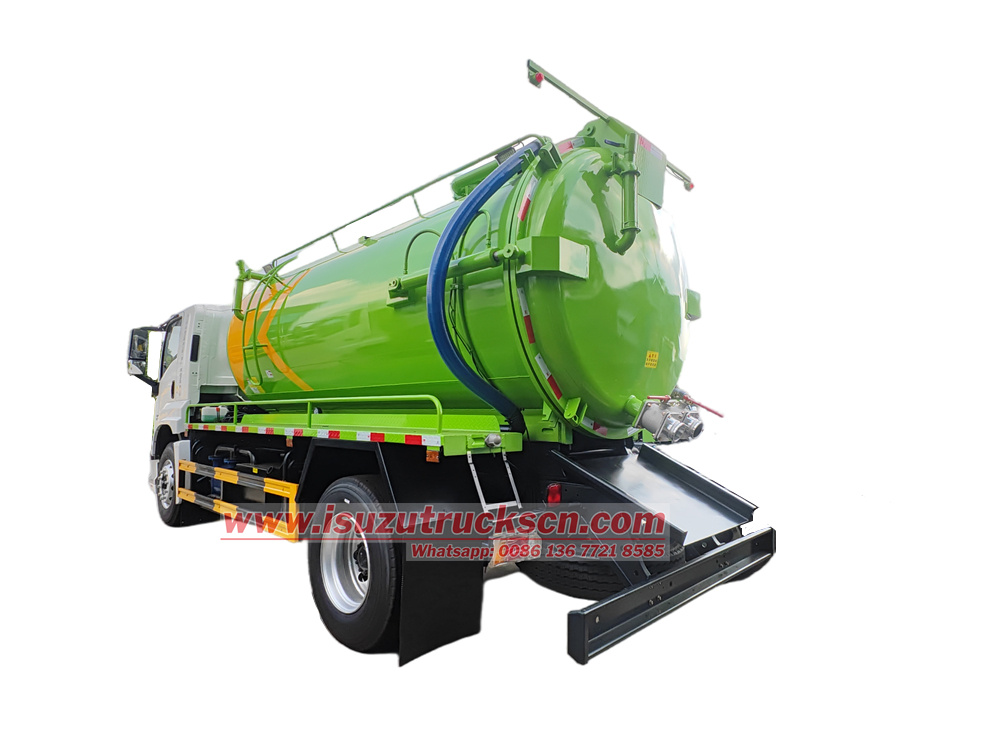

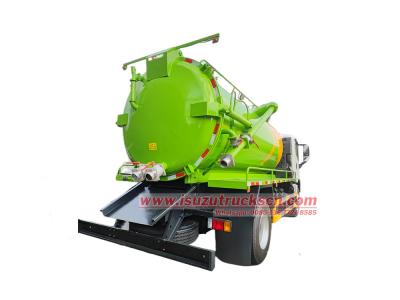

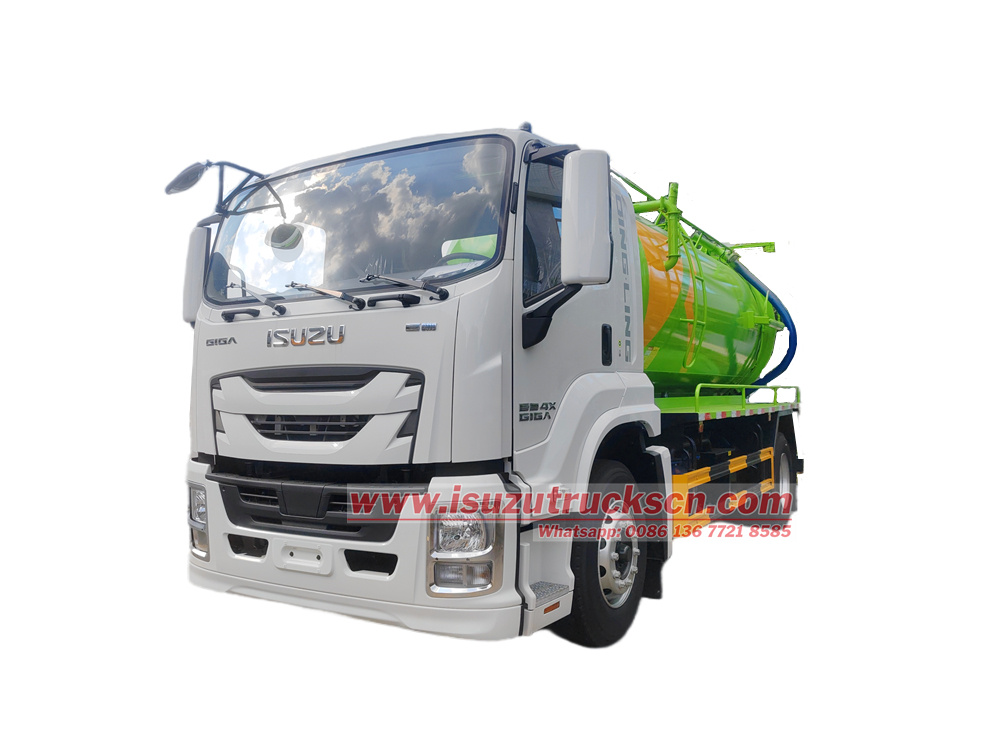

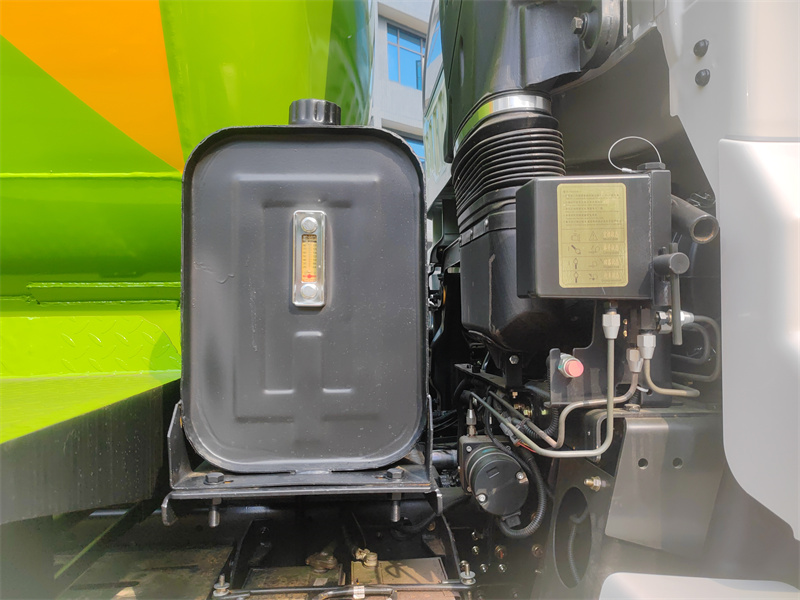

The Isuzu FTR 12 CBM sewage suction truck adopts the Isuzu FTR GIGA 4X cab chassis, with a 4500mm wheelbase;an Isuzu 4HK1-TCG60 205 horsepower engine and an Isuzu MLD 6-speed gearbox. The upper part is a 12CBM carbon steel sewage tank, equipped with an SK-15 vacuum pump with a flow rate of 15 m³/min and an ultimate vacuum pressure of 0.094 MPaG. The truck is equipped with a sewage sight pipe, a ladder, a tailgate sewage suction valve, a sewage discharge valve, a hydraulic oil tank, a sewage tank, and a tank that can be lifted and the tailgate can be opened. The manual operating lever on the left side of the cab controls the lifting of the tank and the opening and closing of the tailgate.
Manufacturer:
Powerstar TrucksWork capacity:
12 cbmDimension:
8250 x 2500 x 3140 mmCabin type:
Isuzu FTR GIGA 4X cabin,3 passengersWheelbase:
4500mmEngine power:
205HP / 150KwEngine type:
Isuzu 4HK1-TCG60Axle drive:
4x2, LHDGear box:
Isuzu MLD 6-speed,manualRemarks:

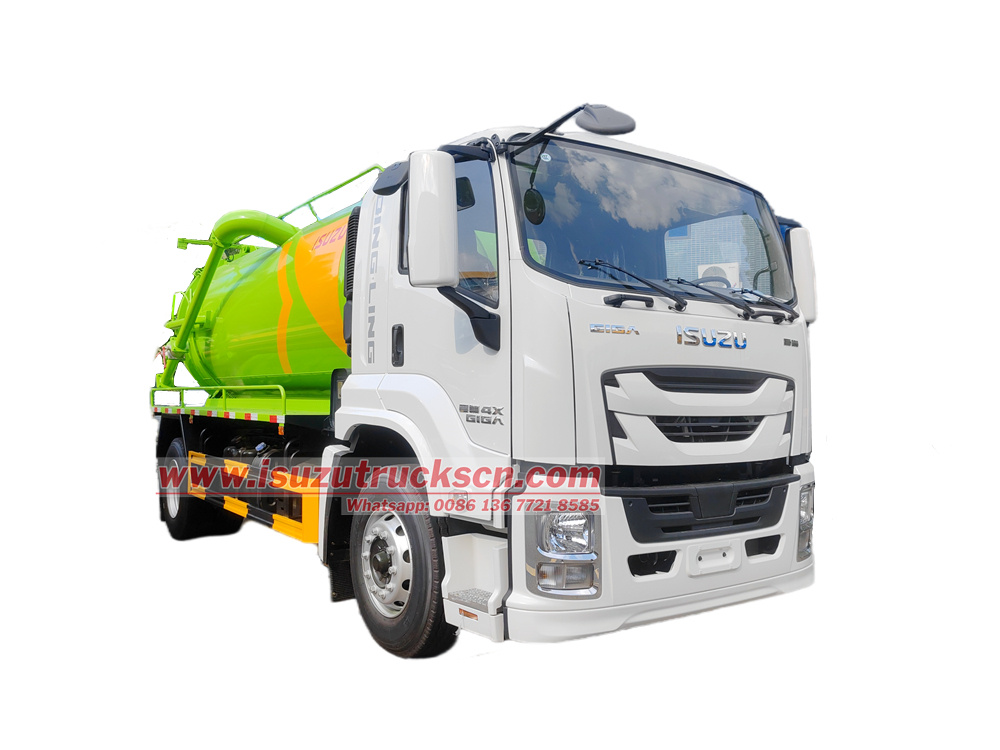

Tank capacity can be customizedThe Isuzu FTR 12000L vacuum pumper tanker truck is a specialized vehicle designed for efficient and reliable sewage suction operations. Equipped with an Isuzu 205-horsepower China VI engine and a 6-speed transmission, it offers powerful power and excellent fuel efficiency. Its superstructure features a 12-cubic-meter carbon steel tank and an SK-15 vacuum pump, providing a flow rate of 15 m³/min and a powerful suction force of -710 mmHg, effectively handling thick sludge. The vehicle also features a hydraulic tank lift and tailgate opening function to ensure thorough sewage removal. With both hydraulic tank lift and tailgate opening, it is widely used for sewage removal in urban municipal pipe networks.
● China best Isuzu sewage suction truck factory
● 30 years experience on vacuum pumper truck designing
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Sewage suction truck also called vacuum suction truck,vacuum tank pumper truck, sewer vacuum truck,gully suction truck, is a special vehicle used for cleaning work in municipal pipe networks and industrial areas.
» Ⅱ.Product Parameter for Isuzu FTR 12CBM sewage tank truck:
| Isuzu FTR 12CBM vacuum suction truck | |||
|
General |
Vehicle Brand |
POWERSTAR TRUCKS |
|
|
Vehicle Model |
PT5180GXH |
||
|
Chassis Brand |
ISUZU |
||
|
Overall Dimension |
8250 x 2500 x 3140 mm |
||
|
GVW / Kerb Weight |
18000 kg / 9850 kg |
||
|
Axle loads |
6500/11500 kg |
||
|
Cab |
Cab Capacity |
ISUZU FTR GIGA 4X cabin, one and half row, with A/C,USB, direction assistance |
|
|
Engine |
Fuel Type |
Diesel, 4 cylinders in-line, 4-stroke, supercharged, intercooled, water-cooled |
|
|
Brand |
ISUZU |
||
|
Model |
4HK1-TCG60 |
||
|
Power |
205 HP/ 151kW |
||
|
Rated speed |
2600rpm |
||
|
Max torque |
647N·m |
||
|
Max torque speed |
1400-1600rpm |
||
|
Displacement |
5193ml |
||
|
Emission Standard |
Euro 6 |
||
|
Chassis |
Drive Type |
4x2, left hand drive |
|
|
Transmission |
Isuzu MLD 6-speed transmission, manual |
||
|
Wheelbase |
4500mm |
||
|
Number of axle |
2 |
||
|
Tyre Specification |
295/80R22.5 |
||
|
Tyre Number |
6 tyres and 1 spare tyre |
||
|
Max Speed |
105km/h |
||
|
Fuel tank |
200L |
||
|
Paint |
Metallic paint |
||
|
Superstructure |
Tank |
Tank Capacity |
12000 liters |
|
Tank Material |
5mm carbon steel with antiseptic treatment |
||
|
Tank lifting angle |
≥45° |
||
|
Vacuum Pump |
Vacuum Pump |
SK-15 |
|
|
Flow |
15 m³/min |
||
|
Flow（Suction pressure -0.06MPaG） |
13.5 m³/min |
||
|
Vacuum pump ultimate pressure |
0.094MPaG |
||
|
Max speed at max vacuum |
2900rpm |
||
|
Vacuum pump power |
30kW |
||
|
Compressor power |
37kW |
||
|
Pump speed |
970 rpm |
||
|
Compressor pressure |
0-0.1MPa |
||
|
Suction Head |
7m length with DN 80 mm |
||
|
Rear door can be hydraulic opened for complete discharge of solid stuff. |
|||
|
All standard accessories: manhole, tool kit, English manual..... |
|||
|
Optional |
** Tank material could be stainless steel. |
||
» Ⅲ. Product Details:
Chassis configuration

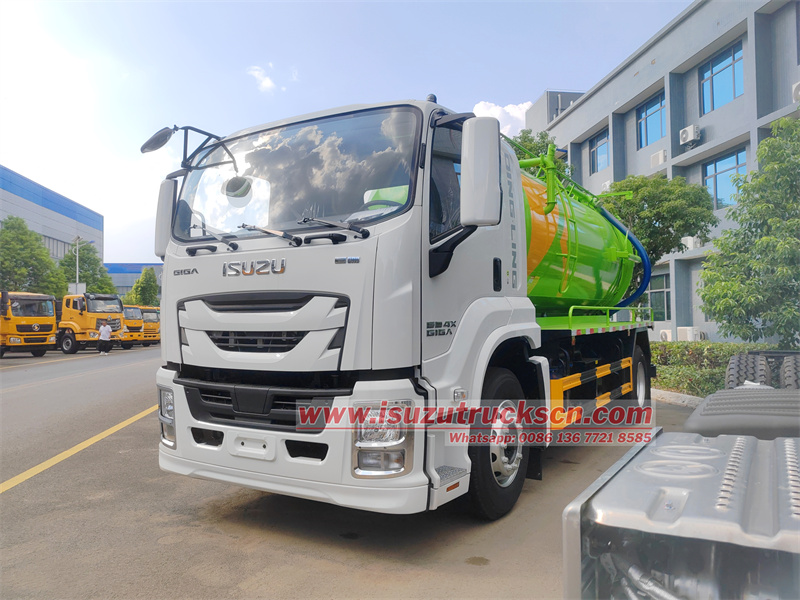

• Chassis: Isuzu FTR GIGA 4X cab-over chassis, half-cab configuration
• Engine: Equipped with the advanced Isuzu 4HK1-TCG60 inline four-cylinder high-pressure common rail diesel engine.
o Displacement: 5.2L
o Horsepower: 205 hp, 647 Nm of torque, providing powerful power.
• Transmission: Isuzu MLD 6-speed manual transmission, offering clear gear positions, smooth shifting, high transmission efficiency, and excellent reliability.
• Wheelbase: 4500mm wheelbase ensures vehicle stability and balance after loading tanks.
• Axle Capacity: 6500kg front axle, 11,500kg rear axle, creating a reliable heavy-duty structure.
Upper Body

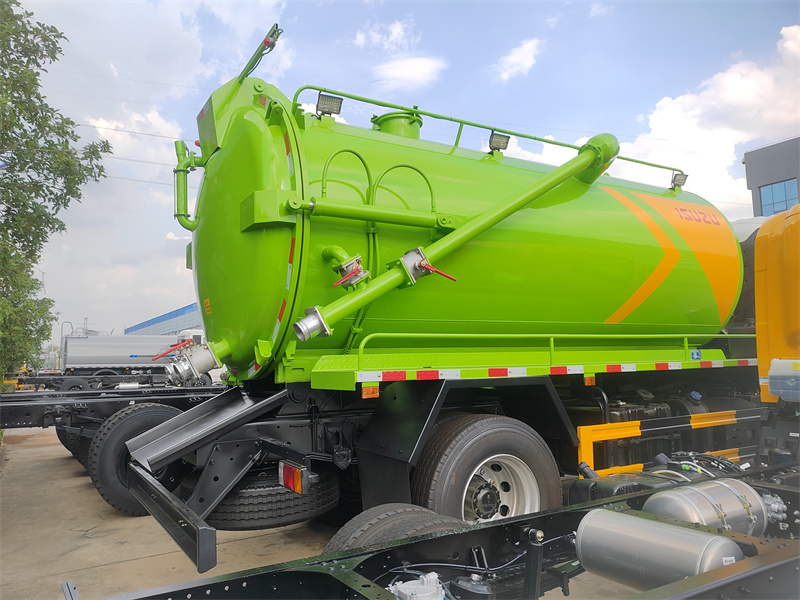

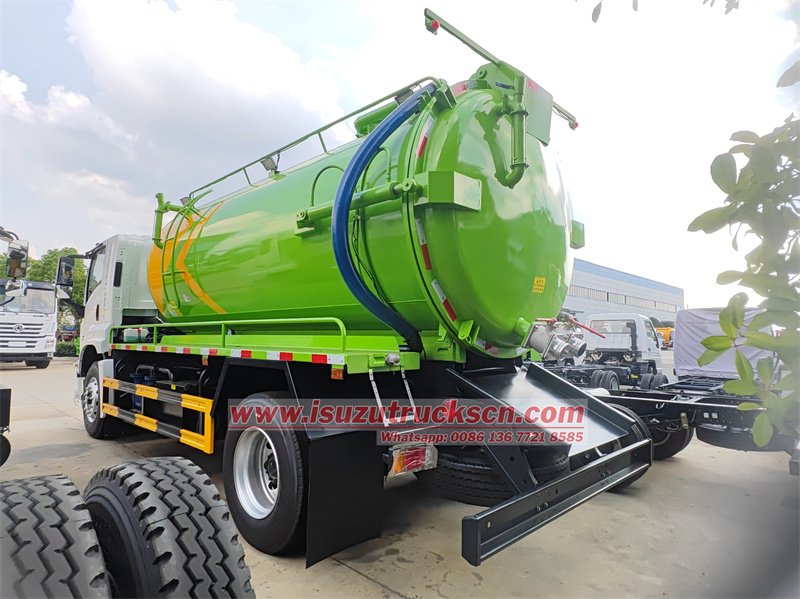

• Tank: Constructed of high-quality carbon steel, with a capacity of 12 cubic meters and a thickness of 5mm, the tank interior is treated for corrosion. A wave-breaking plate is installed inside the tank, and a guide trough is set at the tail.

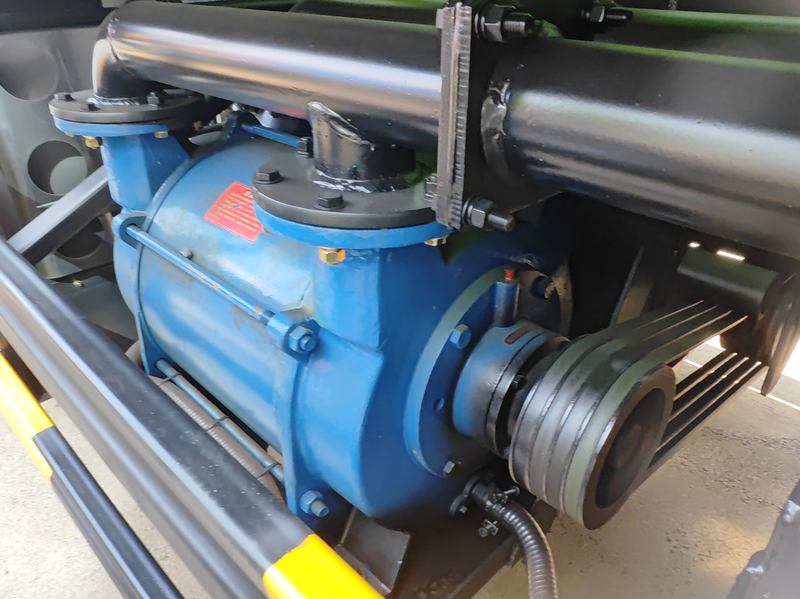

• Vacuum Pump: Equipped with an SK-15 water-circulating vacuum pump.
o Pumping Rate: 15 cubic meters per minute, extremely fast pumping speed, significantly improving operating efficiency.
o Ultimate Vacuum: -0.094 MPaG, with strong suction force, effectively extracting viscous sludge, gravel, and other debris.
o Water Inlet and Outlet Diameter: 80mm
• Hydraulic System:
a. Hydraulic Lift System: The tank is equipped with a dual-cylinder hydraulic lift mechanism, controlled by a manual lever on the left side of the cab, allowing the tank to tilt and lift at a 45° angle.

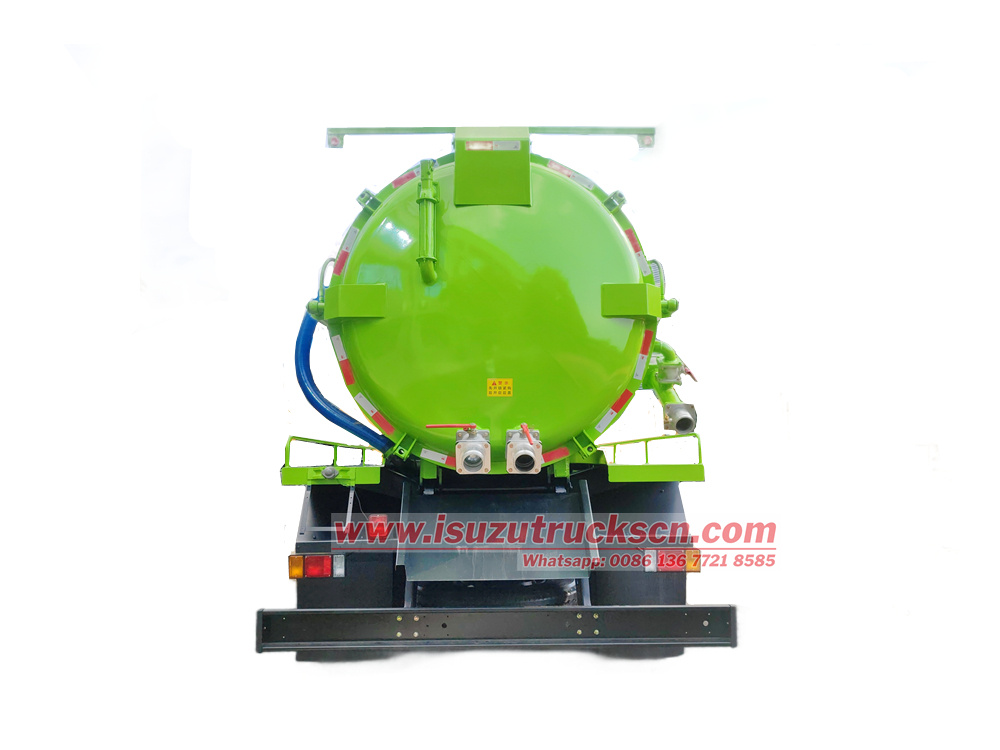

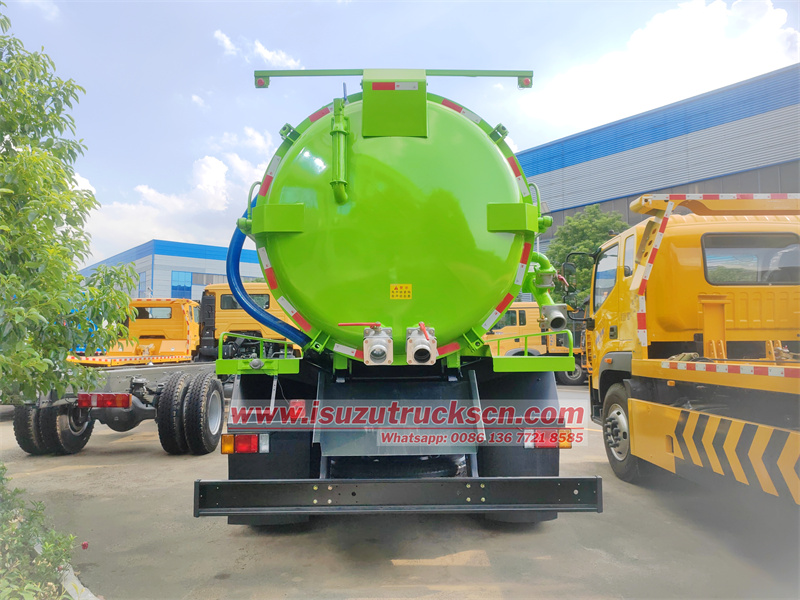

b. Tailgate Design: The tailgate features a hydraulic opening/closing mechanism with a safety lock to prevent accidental opening during operation. The tailgate's suction and discharge valves feature high-pressure sealing to eliminate the risk of leakage.
c. Operation:

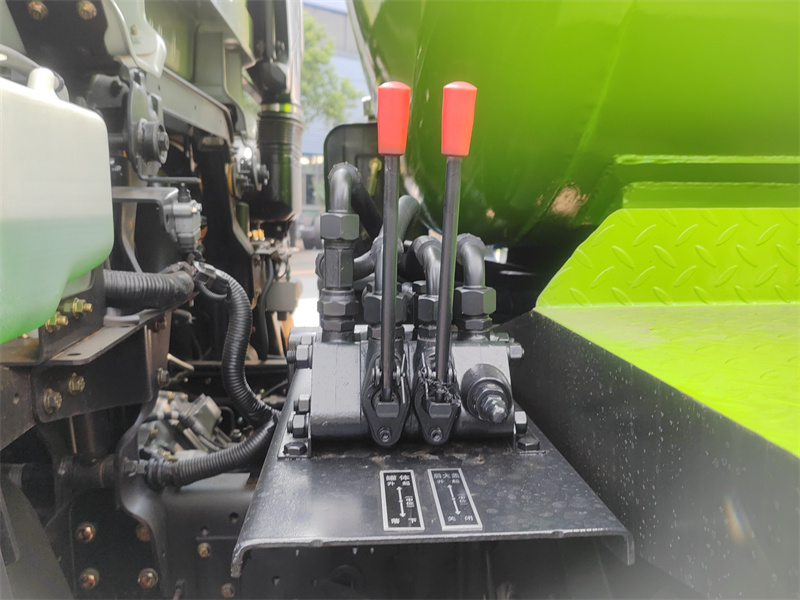

o. A manual hydraulic operating lever is located on the left side of the cab, allowing the driver to easily operate the system without exiting the vehicle.
o. Operational Functions: Controls the lifting and lowering of the tank, as well as the opening and closing of the tailgate, ensuring safety and convenience.
Standard Configurations
• Sewage Sight Pipe: Allows for intuitive observation of the tank's liquid level and waste loading status, preventing overloading.
• Ladder: Anti-slip design with a guardrail on the tank roof makes it easy for operators to access the tank roof for inspection and operation.
• Valve System:
o Tailgate Sewage Suction Valve: Connects to a large-diameter suction pipe for operation.
o Tailgate Drain Valve: Discharges wastewater from the tank.
o Anti-overflow Valve: The tank roof is equipped with an anti-overflow valve to prevent waste from backflowing when the tank is full.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We POWERSTAR also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
» Ⅳ.Professional Design and Production:
1. POWERSTAR R & D Department for design:
100% customized appearance, design the sewage tank capacity, operation methods and location, also the whole truck size can be customized.
2. Features
1. Chassis + Power: The Isuzu FTR chassis is equipped with an Isuzu 4HK1 engine for powerful performance.
2. Ultra-High Suction Efficiency: The high-flow SK-15 vacuum pump delivers fast suction speeds, a long suction range, and strong handling capacity.
3. Safe and Easy Operation: The left-side manual hydraulic control is centrally located for easy operation.
4. Clean and Thorough Discharge: The tank lifts, hydraulically opens the tailgate, and the tailgate drain valve provides dual drainage guarantees, eliminating residue.
» V. Application Scenarios：
This Isuzu 4x2 12cbm sewage suction truck is suitable for urban sewer desilting, septic tank cleaning, industrial wastewater transfer, and construction site mud treatment. Its efficient powertrain, reliable mounting, and flexible maneuverability meet diverse operational needs and significantly improve cleaning efficiency.
