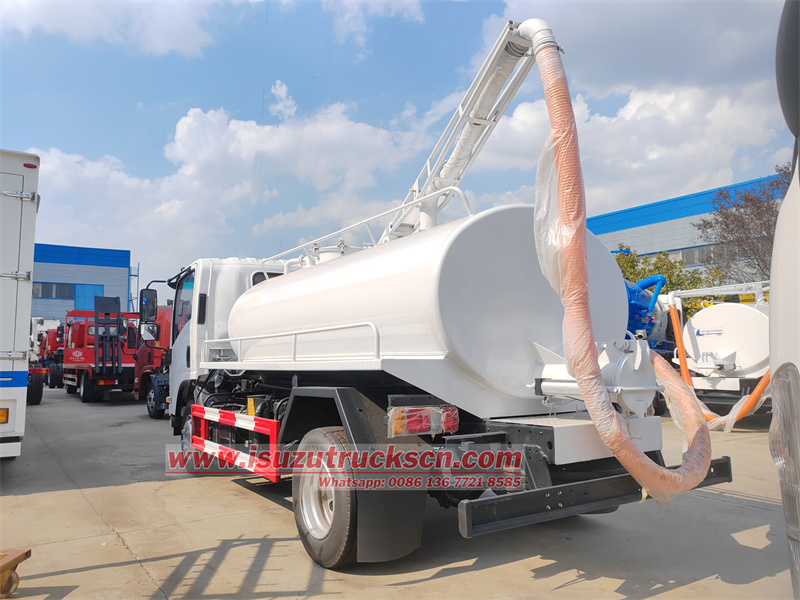

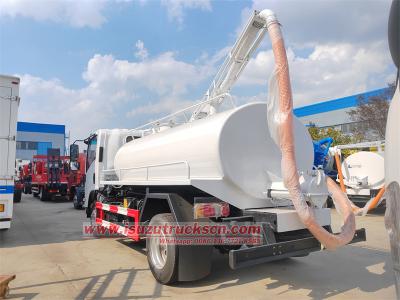

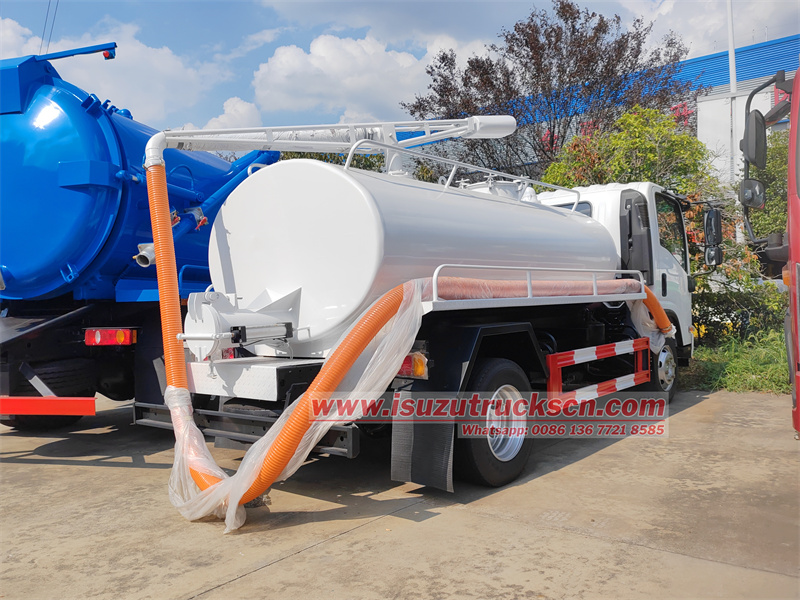

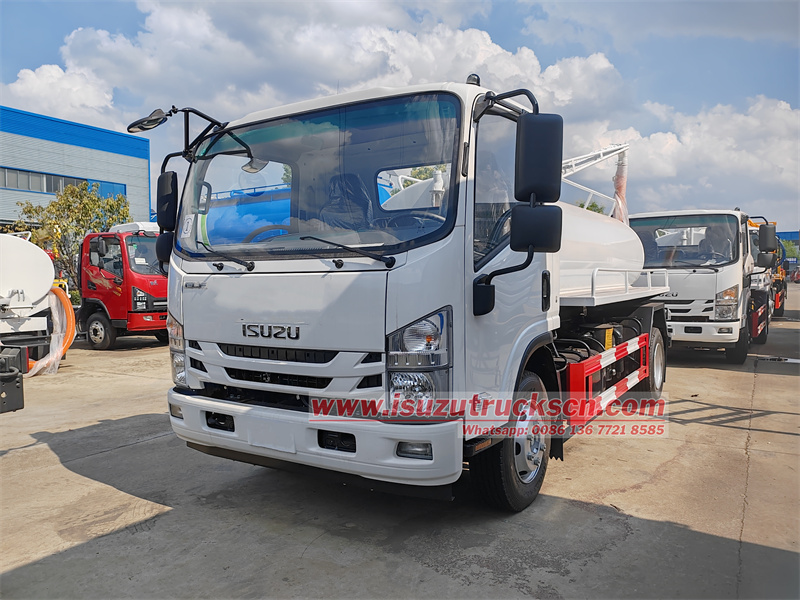

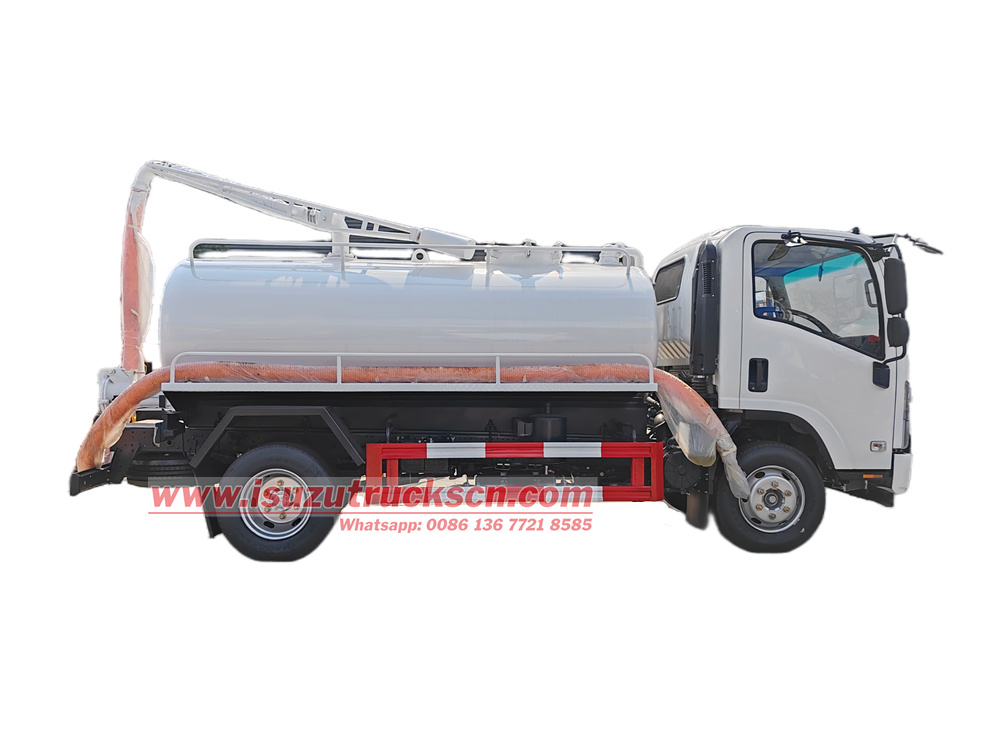

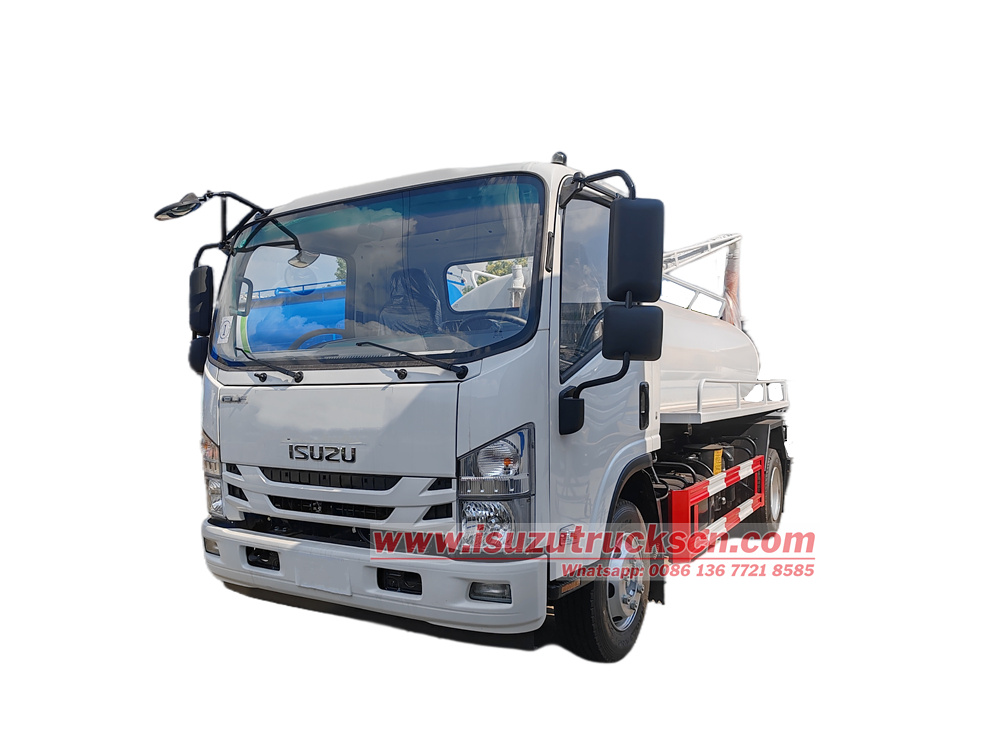

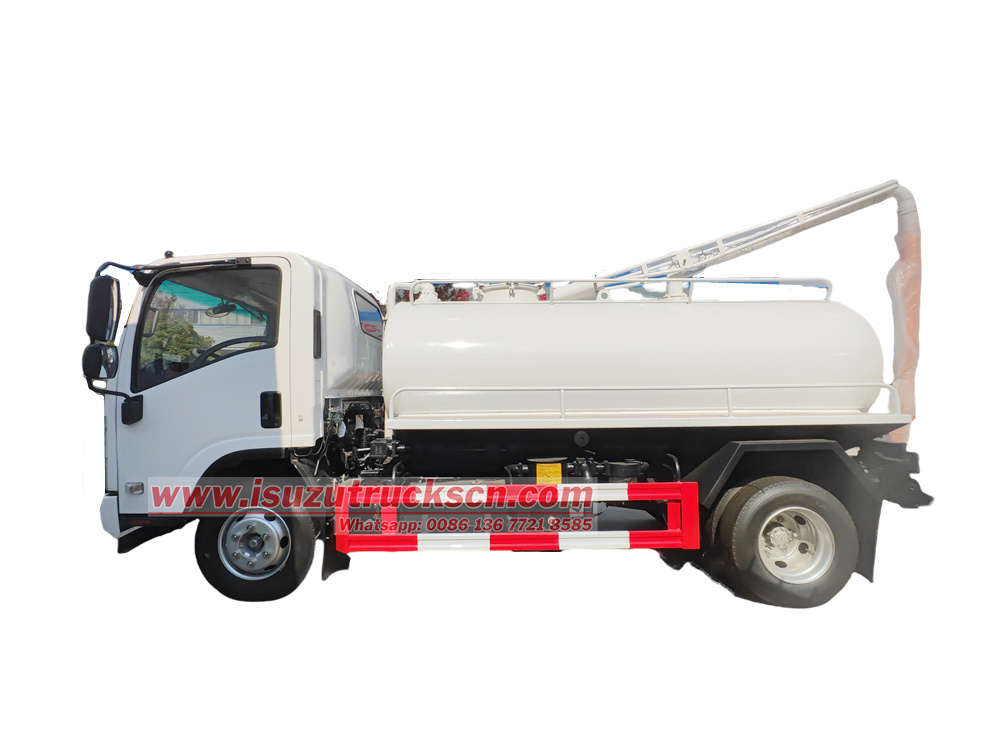

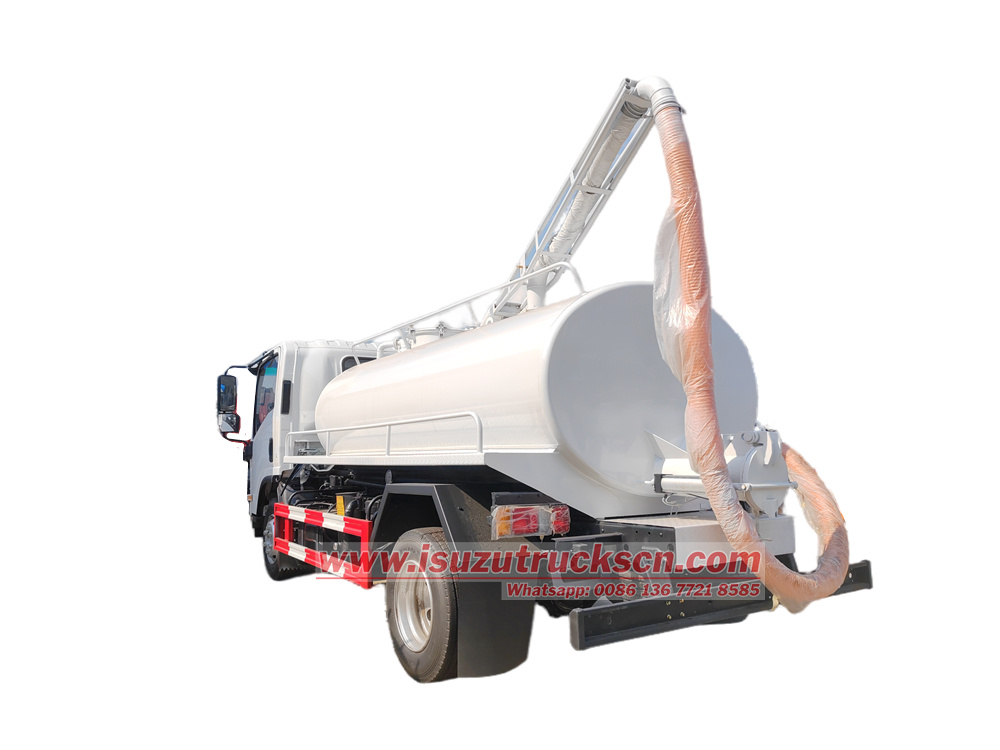

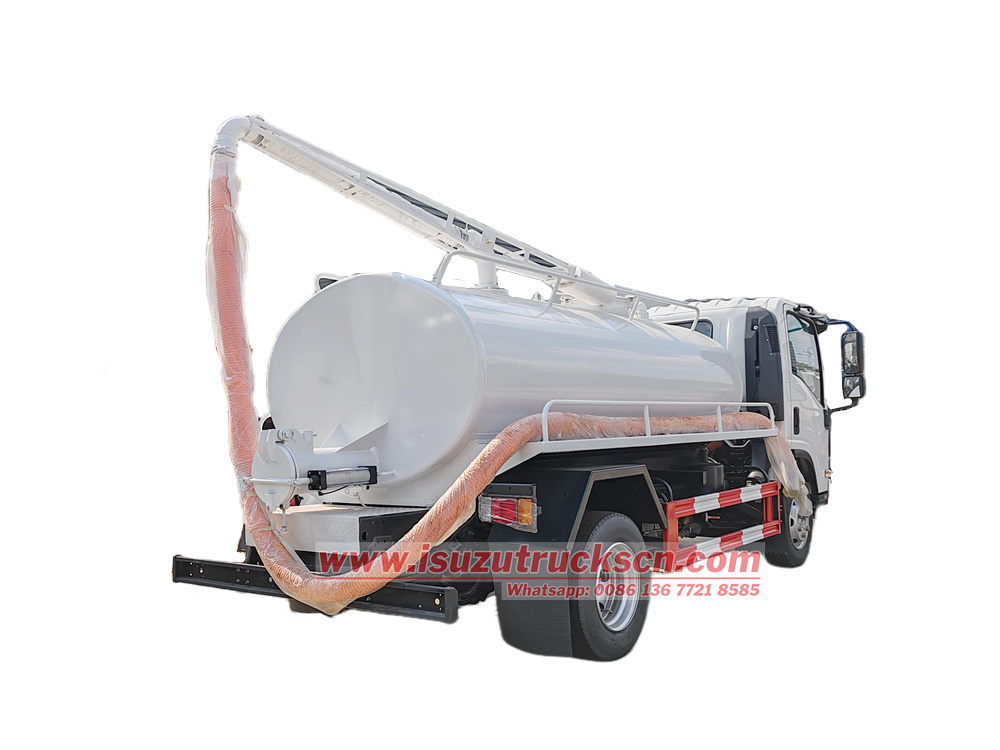

The Isuzu KV100 5cbm septic tank truck is midified on the Isuzu KV100 cab, 3360mm wheelbase, equipped with an Isuzu 4KH1CN6LB 120-horsepower engine, and an Isuzu MSB 5-speed gearbox. The upper body is a 5-cubic-meter septic tank made of carbon steel with anti-corrosion and rust-proof treatment. It is equipped with a Yifeng SK-6 water ring vacuum pump with a maximum suction speed of 6 m³/min and a speed of 970 rpm. It has a 6-meter septic suction boom on the top, a view window, an overflow valve, a pressure gauge, and a rear discharge valve.
Manufacturer:
Powerstar TrucksWork capacity:
5 cbmDimension:
5995 x 2200 x 2580 mmCabin type:
Isuzu KV100 cabin,3 passengersWheelbase:
3360mmEngine power:
120HP / 88kWEngine type:
Isuzu 4KH1CN6LBAxle drive:
4x2, LHDGear box:
Isuzu MSB 5-speed,manualRemarks:

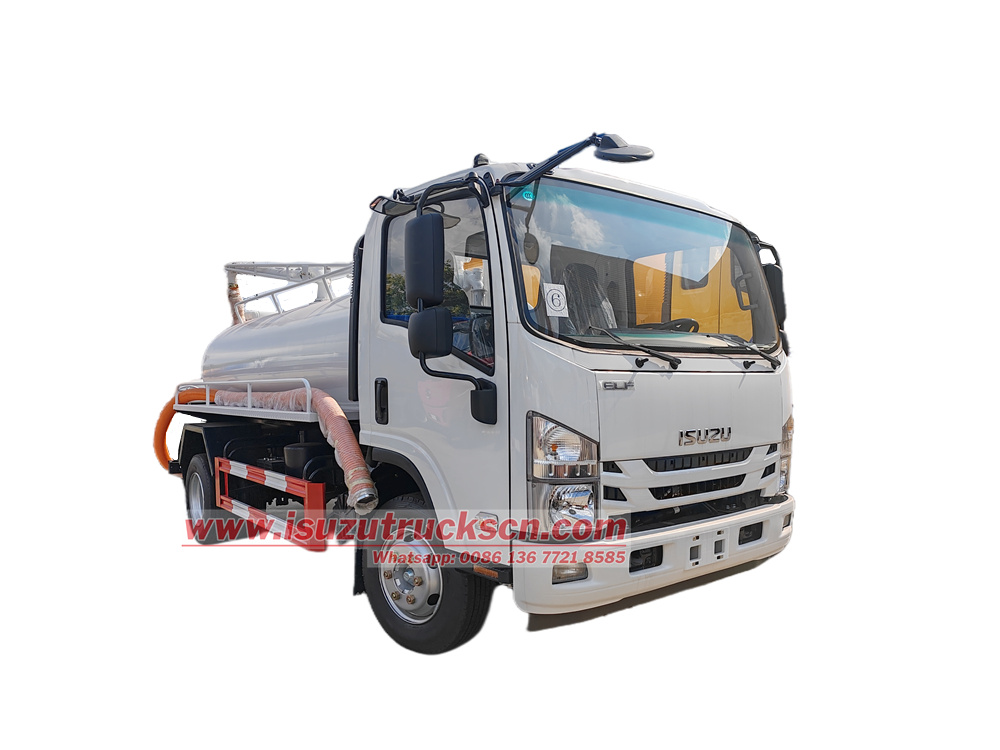

Tank capacity can be customizedThe Sludge Fecal Suction Truck Isuzu is primarily used to collect and transport liquid waste (feces, sewage, slurry, etc.) from septic tanks, sewers, and stormwater wells. Equipped with a Yifeng SK-6 water ring vacuum pump, it achieves a maximum suction speed of 6 m³/minute, and its 6-meter telescopic suction boom allows for deep septic tank access. The vehicle features both gravity-fed and vacuum-pressurized discharge modes, and a large-diameter tail valve enables rapid dumping within 3 minutes. It is also equipped with safety features such as a relief valve and pressure gauge. This easy-to-operate truck boasts powerful suction, combining efficient suction, stable transportation, and environmentally friendly discharge, making it a must-have for municipal sanitation departments.
● China best Isuzu fecal suction truck factory
● 30 years experience on vacuum pumper truck designing
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.

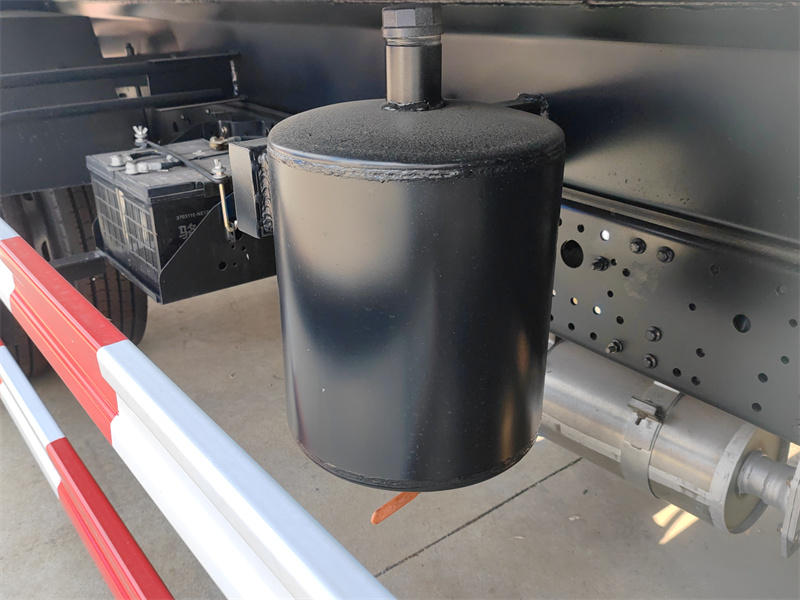

Fecal suction truck (also called cesspit emptier truck) is a special vehicle mainly used for cleaning work in environments such as septic tanks, sewage ditches and sewers. The core upper part is composed of oil-water separator, water-gas separator, special vacuum fecal suction pump, volume pressure gauge, pipe network system, suction tube, gravity valve, vacuum tank body, connecting vessel (fecal sight window), and fully automatic anti-overflow valve.
» Ⅱ.Product Parameter for Isuzu KV100 fecal suction truck:
|
Isuzu KV100 5 m³ vacuum suction truck |
|
|
General |
|
|
Dimensions |
5995x2200x2580mm |
|
GVW/Curb weight |
7300/3850kg |
|
Cab |
ISUZU KV100 cab,3 seats,with A/C,USB,direction assistance |
|
Max speed |
115km/h |
|
Chassis |
|
|
Wheelbase |
3360mm |
|
Front axle |
2580kg |
|
Rear axle |
4720kg |
|
Gearbox |
Isuzu MSB 5-speed gearbox, manual |
|
Tires |
7.00R16 steel tires |
|
Number of tires |
6+1 |
|
Drive type |
4x2, Steering wheel,left-hand drive |
|
Engine |
|
|
Model |
Isuzu 4KH1CN6LB |
|
Type |
Inline 4-cylinder, 4-stroke, supercharged, intercooled, water-cooled,diesel |
|
Power |
120HP/ 88kW |
|
Max torque |
290N.m |
|
Max torque speed |
1500-2900rpm |
|
Displacement |
2999ml |
|
Emission standard |
Euro 6 |
|
Fuel tank |
100L |
|
Upper-body |
|
|
Tank volume |
5cbm |
|
Tank material |
Q235 carbon steel |
|
Vacuum pump |
Water circulation vacuum pump |
|
Water circulation pump model |
YIFENG SK-6 (Chinese brand) |
|
Speed |
970rmp |
|
Maximum pumping speed |
6 m³/min |
|
Diameter |
Inlet: DN100, outlet: DN100 |
|
Water consumption |
80-100L/min |
|
Suction pipe |
1 piece/6 meters |
|
Stool viewing window |
Yes |
|
Rear flow outlet |
Yes |
|
Overflow prevention valve |
Yes |
|
Feed inlet |
DN100 |
|
Feed outlet |
DN100 |
|
Tank lifting |
Hydraulic cylinder/2 pieces |
|
Tank rear cover |
Can be opened with hydraulic pressure |
|
Color |
According to your wish |
» Ⅲ. Product Details:
Chassis configuration
• Cabin: Isuzu KV100 cab, featuring an ergonomic design, a shock-absorbing seat, power doors and windows, and central locking, providing a comfortable and safe driving environment.
• Wheelbase: 3360mm
• Powertrain:
o Engine: Isuzu 4KH1CN6LB inline four-cylinder diesel engine, 2.999L displacement, rated at 88kW (120hp), delivering both power and fuel efficiency.
o Transmission: Isuzu MSB five-speed manual transmission, offering smooth shifting and high transmission efficiency.
Upper Body
• Tank: 5 cubic meter carbon steel tank, 4mm thick, with an elliptical cross-section and professionally treated interior for corrosion and rust prevention.

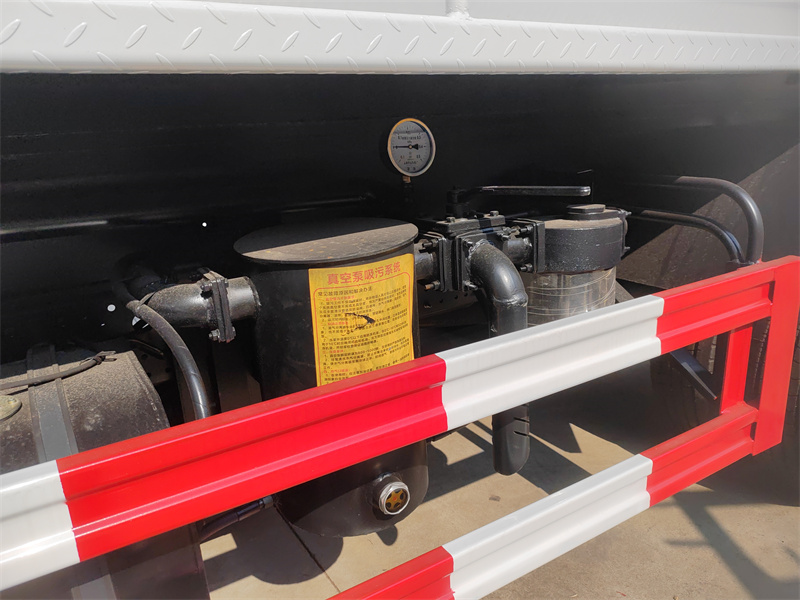

• Vacuum Suction System
o Vacuum Pump: Yifeng SK-6 water circulation vacuum pump, with a maximum pumping speed of 6 m³/min and a rotational speed of 970 rpm. High suction efficiency enables rapid cleaning of septic tanks, sewage wells, and other locations.

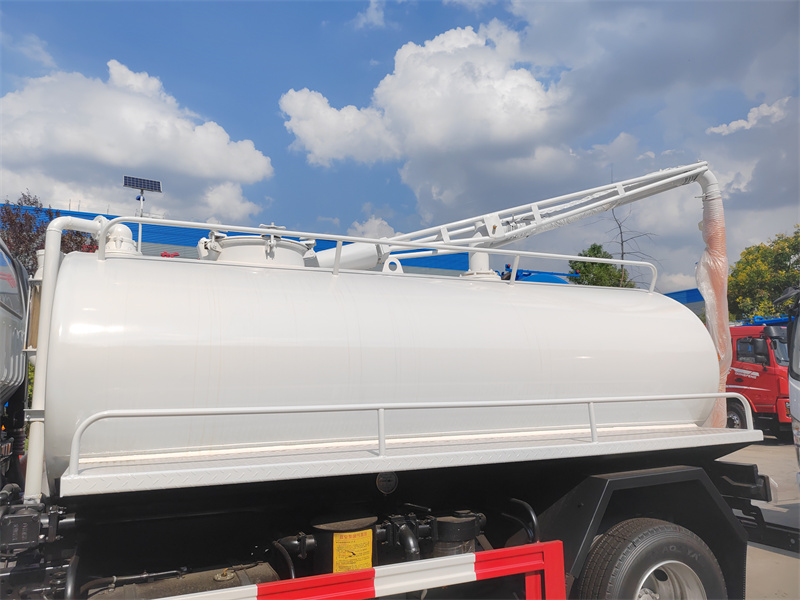

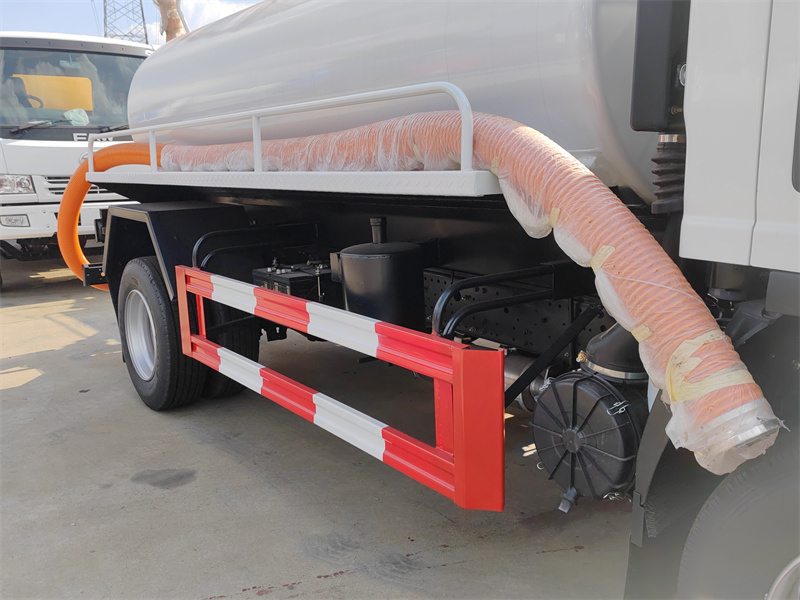

o Suction Boom: Equipped with a 6-meter fecal suction boom on top, connected to a suction hose, to accommodate operations at varying depths.
Other Functional

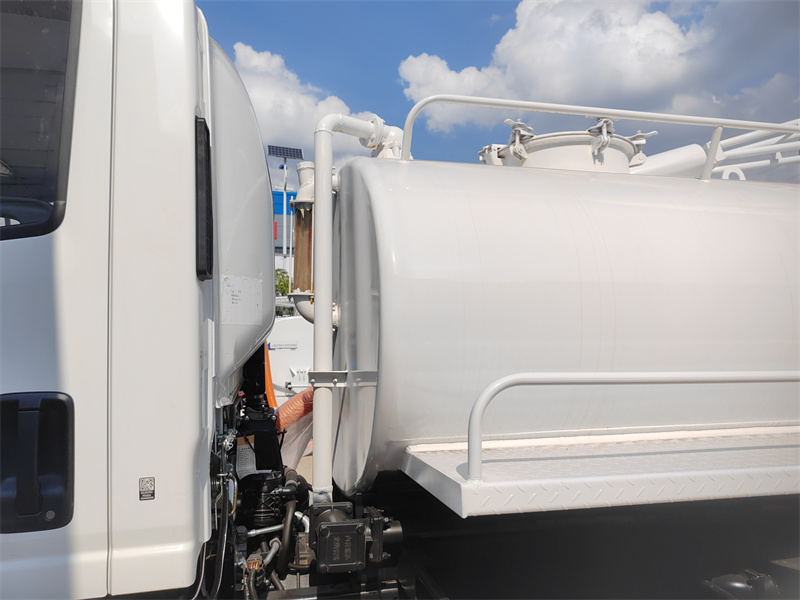

• Observation and Protection Devices: A manure observation window is located on the top of the tank to monitor the liquid level in real time. An overflow valve is also included to prevent over-suction and damage to the tank.
• Pressure Monitoring: A vacuum pressure gauge is integrated into the instrument panel to visually display the suction status and ensure safe operation.

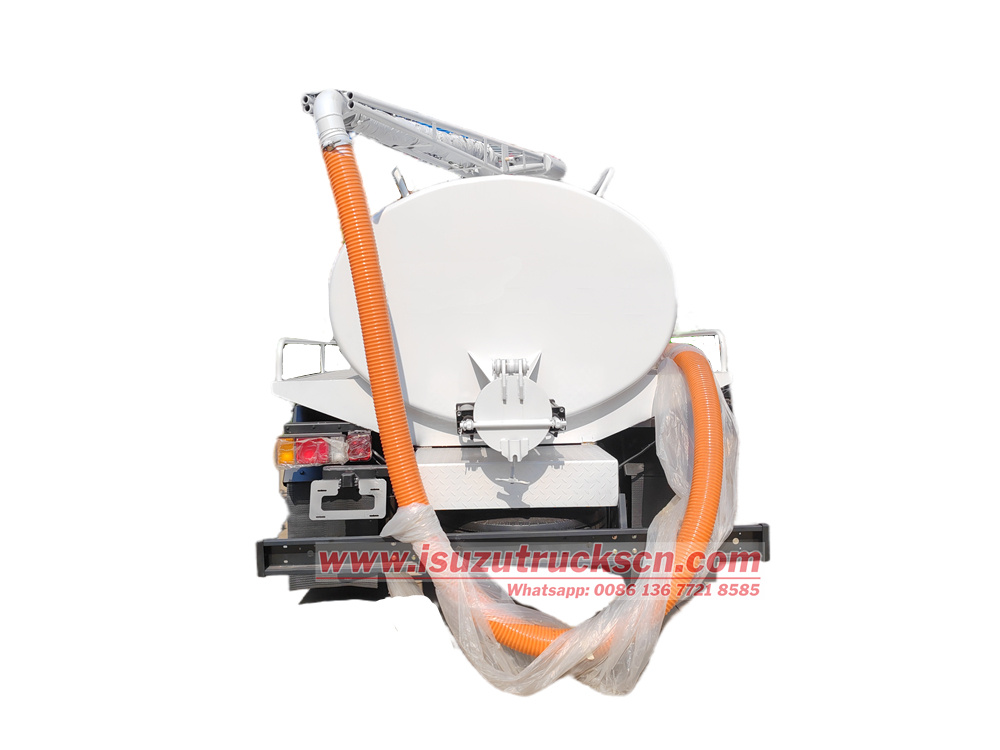

• Discharge System: A large-diameter discharge valve is installed at the rear to support rapid dumping.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We POWERSTAR also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
» Ⅳ. How it works:
The Isuzu 5cbm sludge vacuum pump tanker truck efficiently removes manure and sewage using vacuum suction technology. During operation, the Yifeng SK-6 water ring vacuum pump is activated, rotating at 970 rpm to create a negative pressure of -0.092 MPa within the tank. The operator inserts the telescopic suction hose at the top into the septic tank. Propelled by atmospheric pressure, manure and sewage are drawn into the tank through the hose. At a suction rate of 6 cubic meters per minute, a 5-cubic-meter tank can be filled in 3-5 minutes. To discharge, the large-diameter valve at the rear is opened, allowing for rapid emptying by gravity or vacuum pump pressure, taking only 3 minutes. The entire vehicle, through the coordinated operation of the vacuum pump, sealed tank, and piping system, achieves efficient and environmentally friendly operation throughout the entire "suction-transport-discharge" process.
