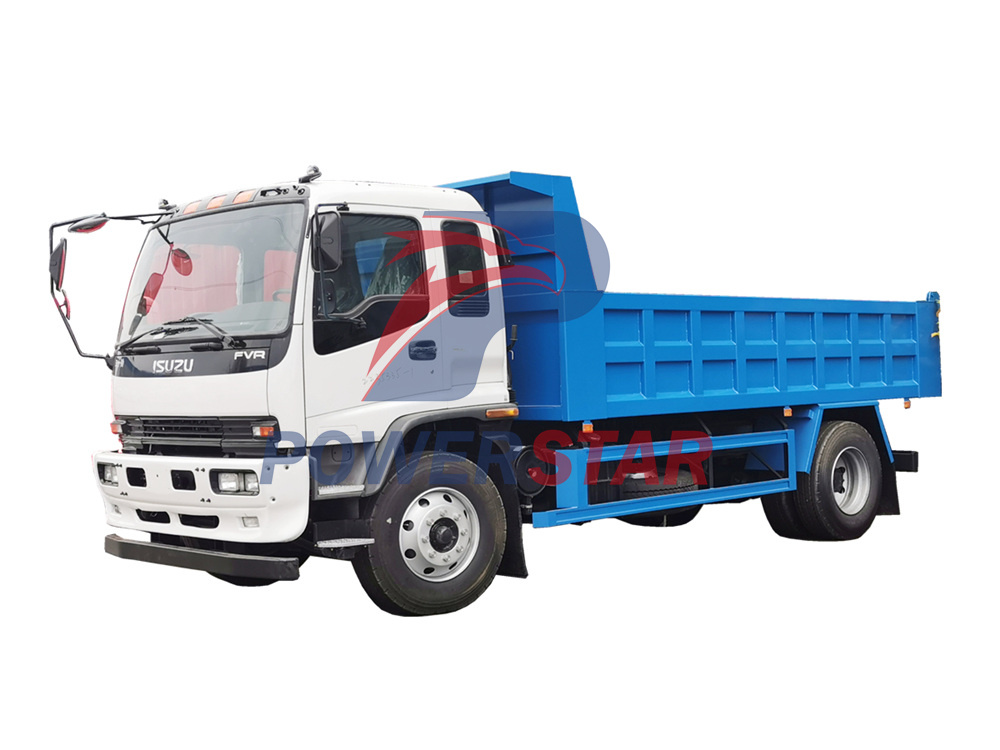

The Isuzu FVR 300HP construction tipper truck is a reliable model equipped with an Isuzu 6KH1-TCH engine with 300 horsepower and is suitable for industrial waste transportation. The vehicle uses water cooling, turbocharging and inter cooling technology, and the engine adopts a 6-cylinder in-line design to provide efficient fuel injection. The truck has a front axle load capacity of 6.3 tons and a rear axle load capacity of 13 tons, which is enough to handle most garbage transportation needs. The cab is made of steel and features central locking, electrically controlled windows, adjustable driver and front passenger seats, stereo radio cassette player, seat belts, horn, air conditioning, rear view mirrors and ABS.
Work capacity:
15 tonsTruck model:
Isuzu FVR 15tons construction dump truckEngine power:
300HPEngine type:
Isuzu 6KH1-TCHAxle drive:
4x2Gear box:
Fast 9 speed levers with 1 reverseRemarks:
Instruction waste dumpIsuzu FVR 300HP construction tipper truck, with 300 horsepower and a 15tons loading capacity, is an ideal choice whether it is used for municipal waste removal or construction site waste disposal. The Isuzu FVR construction tipper truck features advanced technology and design to deliver superior performance and reliability. Its powerful 300-horsepower engine ensures that the vehicle can easily cope with various work scenarios and complete tasks quickly and efficiently. At the same time, its self-unloading device is well designed and can easily unload garbage or waste materials, greatly improving work efficiency. In addition, the Isuzu FVR series adopts advanced chassis and suspension systems to ensure stable driving and a smooth driving experience. The comfortable cockpit design and user-friendly operation control system enable the driver to easily control the vehicle.
Product Specifications:
|
Isuzu Dump truck basic |
Made |
POWERSTAR |
|
Series |
ISUZU FVR |
|
|
Driving Type |
Left hand drive 4x2 |
|
|
Isuzu Dump Engine |
Isuzu Dump Engine Model |
ISUZU 6KH1-TCH |
|
Engine Type |
6-cylinder in-line with water cooling,turbo-charging and intercooling,6-stroke direct injection diesel engine |
|
|
Power |
300hp |
|
|
Displacement |
7.79L |
|
|
Max speed |
105 Km/h |
|
|
Type of fuel |
Diesel |
|
|
Emission Standard |
Euro 5 |
|
|
Isuzu Dump Transmission |
Model |
Isuzu Fast |
|
speeds |
9 speeds |
|
|
Isuzu Dump Axle |
Front Axle |
6.3T |
|
Rear Axle |
13T |
|
|
Isuzu Dump Fuel tank |
Capacity |
200L capacity with locking fuel cap |
|
Isuzu dump Tyre |
Radial Tyre |
11.00R20 |
|
Isuzu Dump Driver's Cab |
Mini Cab |
Single cabin, full steel materials, central locking function, electrical controlled window, adjustable driver's seat and co-driver's seat, stereo radio cassette recorder, safety belts, air horn, air conditioner, rear view mirrors, ABS. |
|
Isuzu Dump Dimensions |
Wheel base |
4500mm |
|
Overall dimensions |
8500*2380*2850 mm |
|
|
Dimension of the rear dump body |
5300*2300*1800 mm |
|
|
Isuzu Dump Performance |
Loading Capacity |
15 tons |
|
Body Material |
High performance carbon |
|
|
Plate Thickness |
Front/Side are 6mm |
|
|
Rear/Side are 8mm |
||
|
Control System |
Hydraulic |
|
|
Hydraulic Lifting |
Front lifting device |
|
|
Discharging System |
Tipping 45 degree |
|
|
Lifting Time |
20 s |
|
|
Lowering Time |
15 s |
|
|

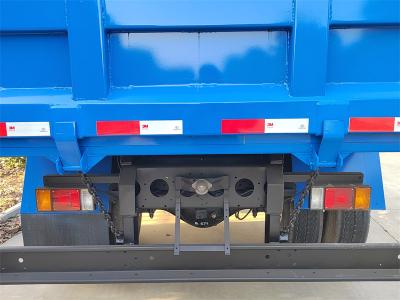

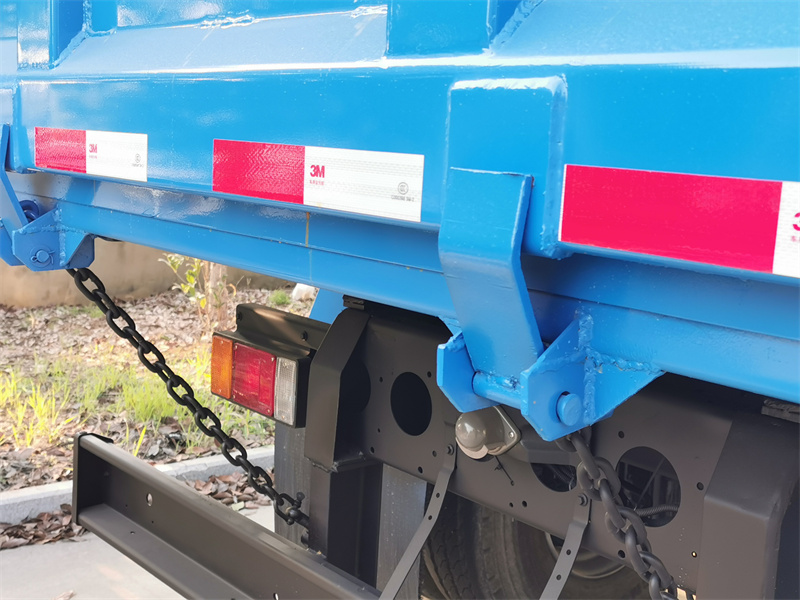

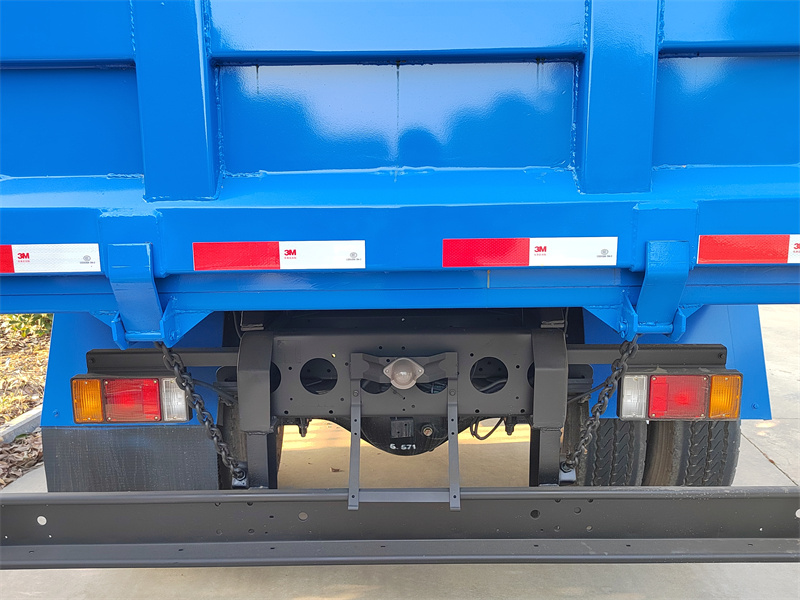

Tailgate |
Auto release |
|
|
Drop side |
Detachable |
|
|
Painting |
Two primers,and one final paint coating |
|
|
Color & Logo |
According to wish |
|
|
Factory Standard |
Dropside body, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
|

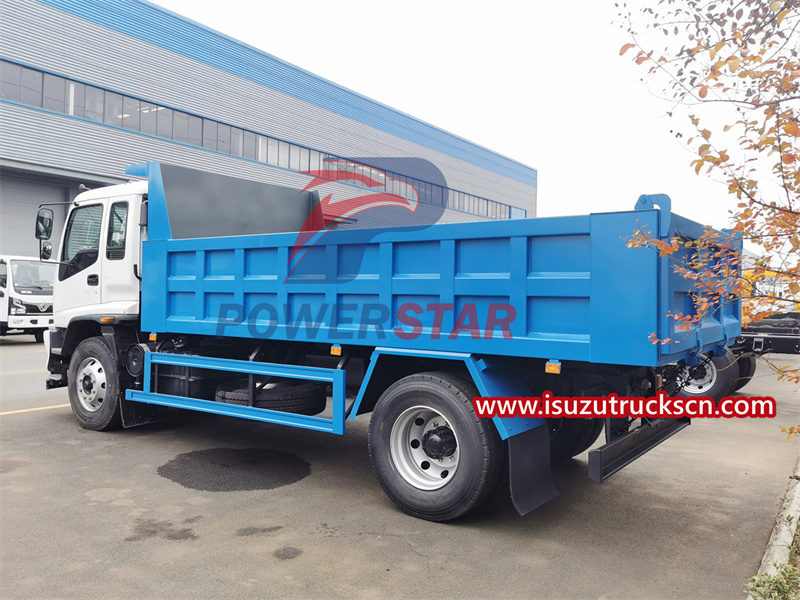

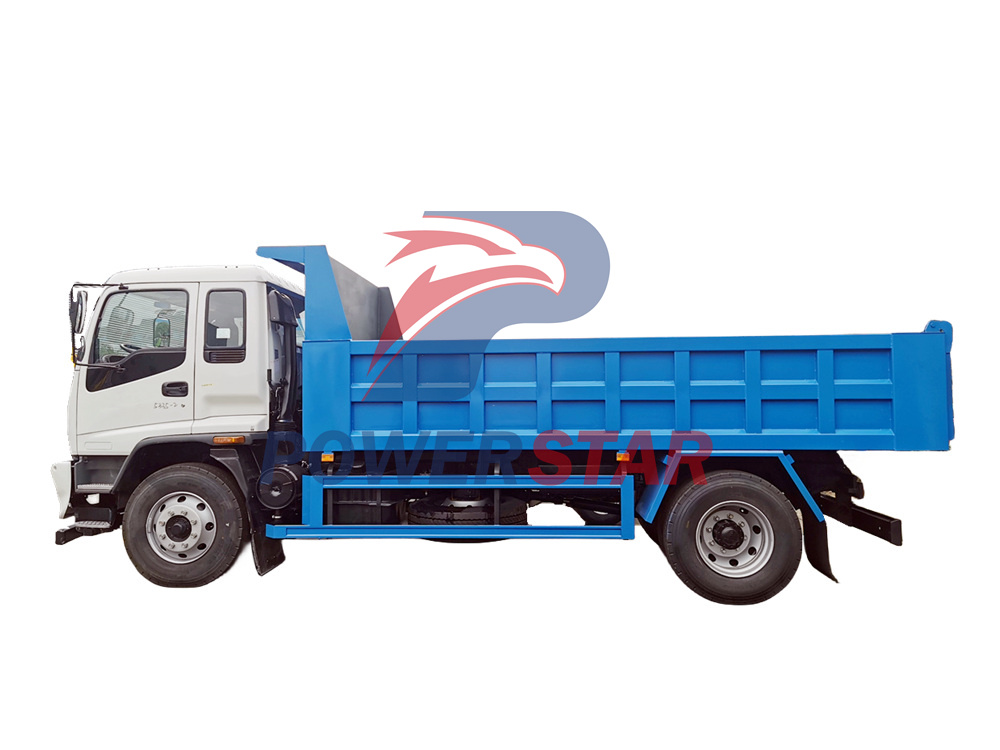

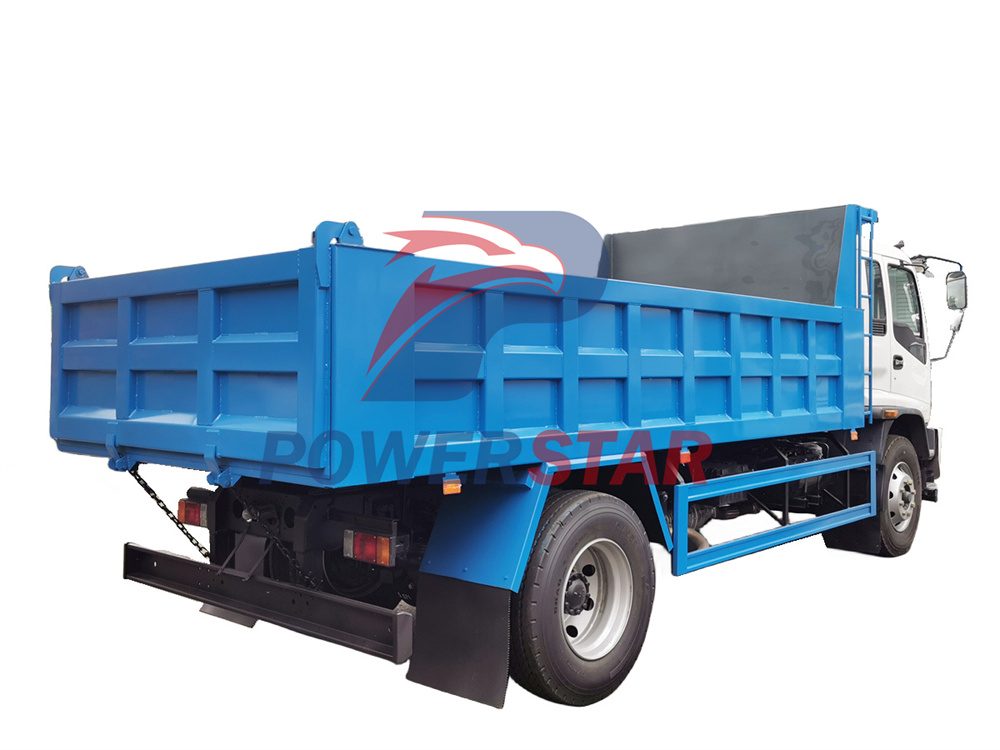

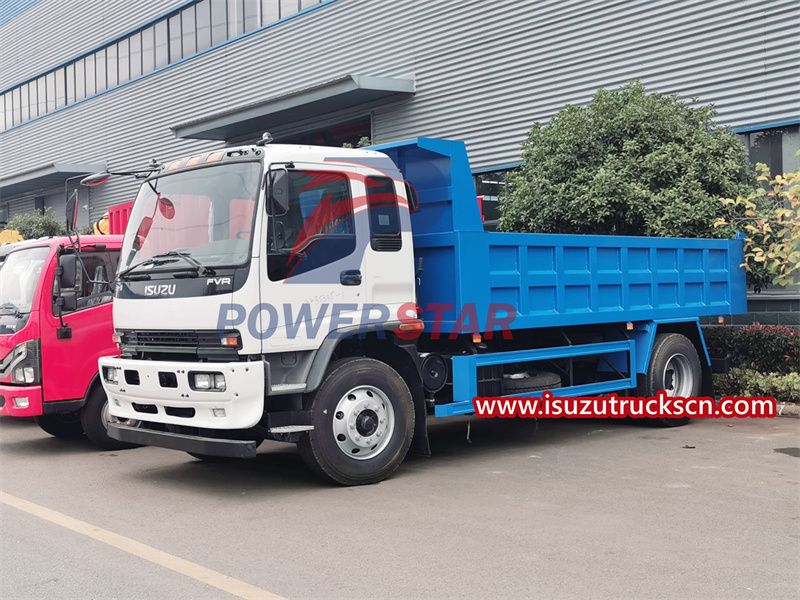

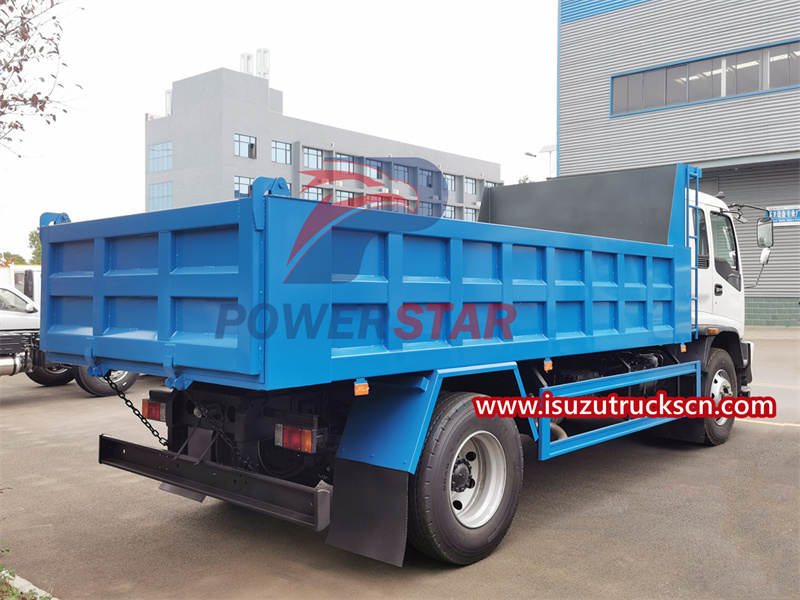

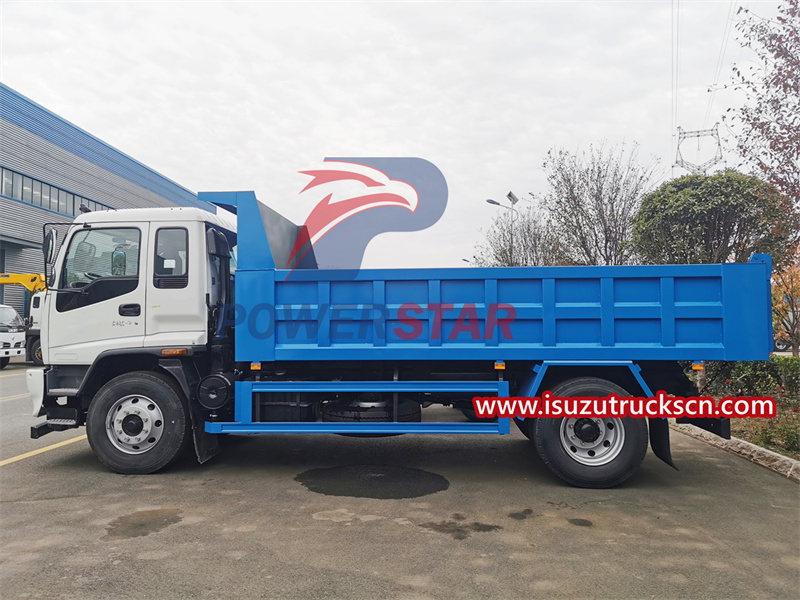

(The Isuzu FVR heavy-duty 15tons construction tipper truck)
Why choose the Isuzu FVR 300hp chassis?
1.Excellent engine performance:The Isuzu FVR300 horsepower chassis is equipped with a high-performance engine, which provides powerful power output and excellent acceleration capabilities, and can cope with various road and transportation conditions.
2.Powerful load-carrying capacity:The FVR300 horsepower chassis adopts a sturdy and durable frame structure and an optimized chassis design, with excellent load-carrying capacity. It can carry larger cargo loads, increasing transportation efficiency and profitability.
3.Excellent controllability:The FVR300 horsepower chassis adopts an advanced suspension system and rigid frame to provide stable control performance. The driver can control the vehicle more easily, improving driving safety and comfort.
4.Economical and energy-saving:Isuzu FVR300 horsepower chassis adopts advanced fuel injection technology and optimized power system, which has lower fuel consumption. This not only helps reduce operating costs but also benefits the environment.
5.Reliable and durable:The FVR300 horsepower chassis uses high-quality components and materials, and undergoes strict quality control to maintain long-term and stable operation under harsh working conditions.
