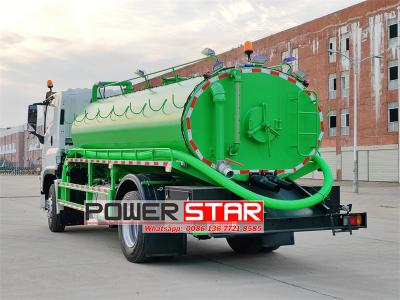

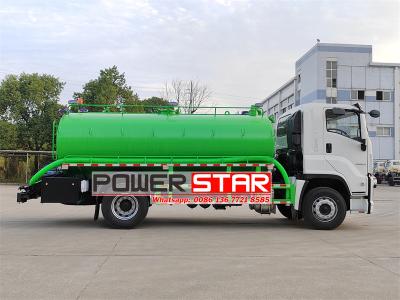

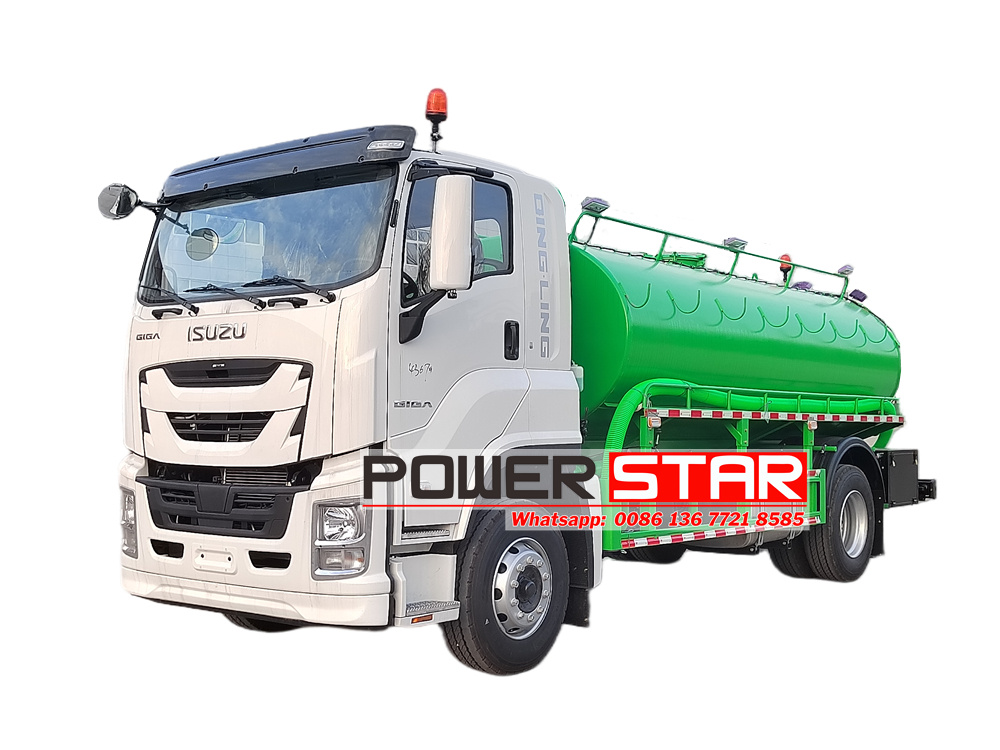

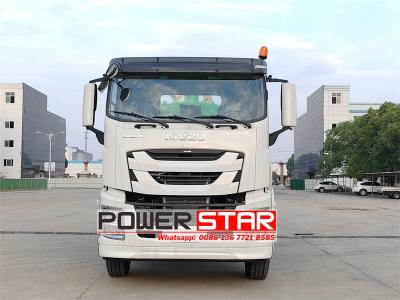

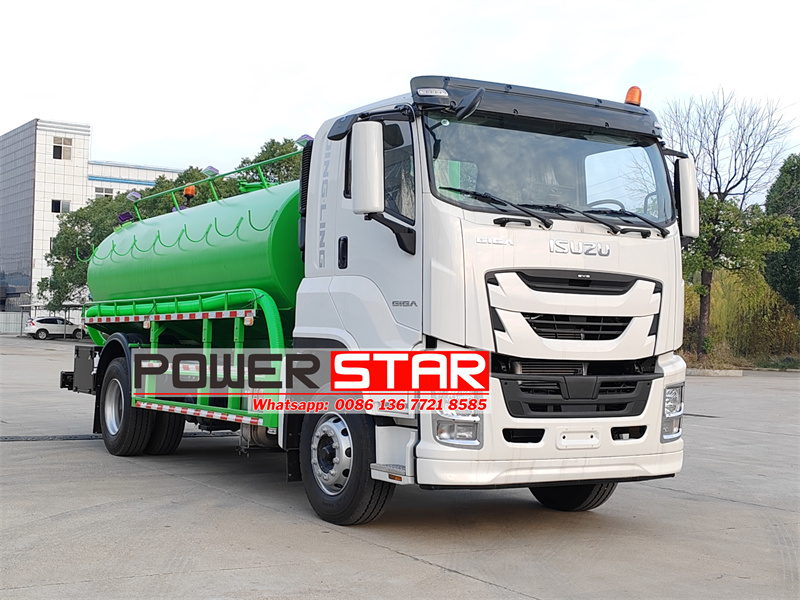

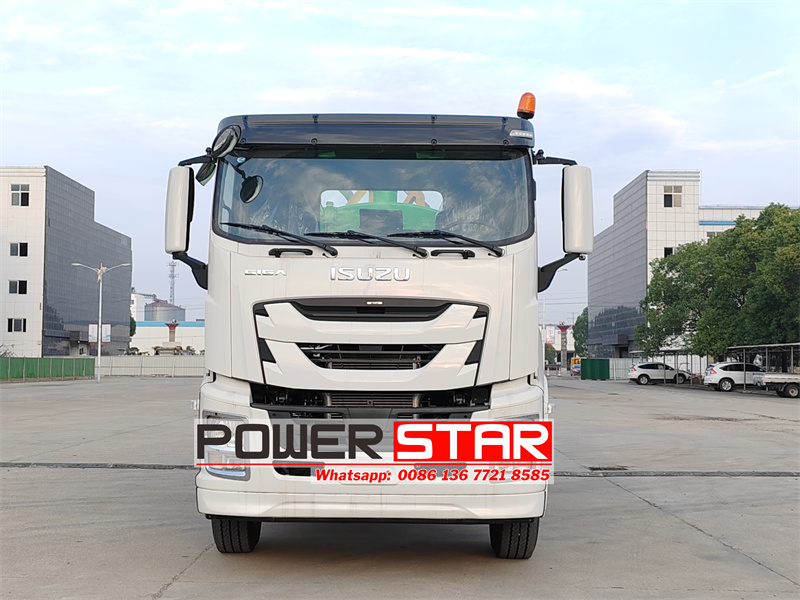

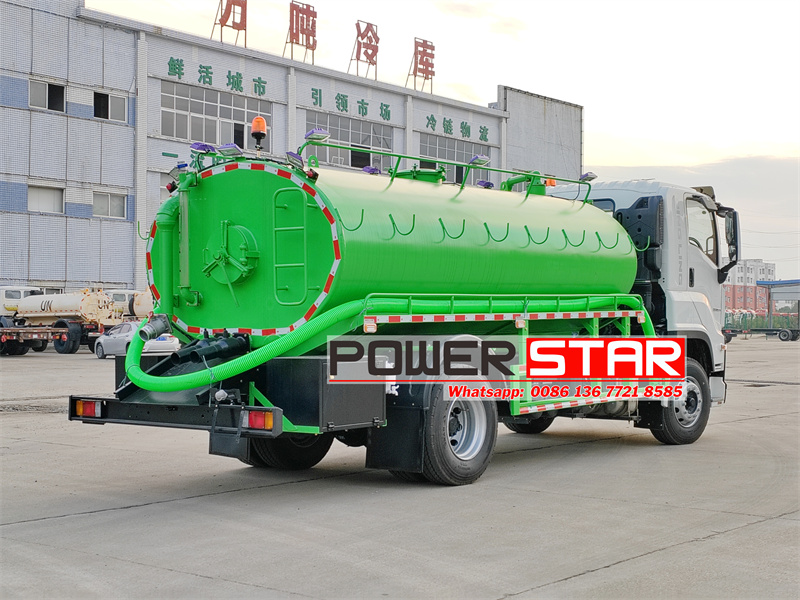

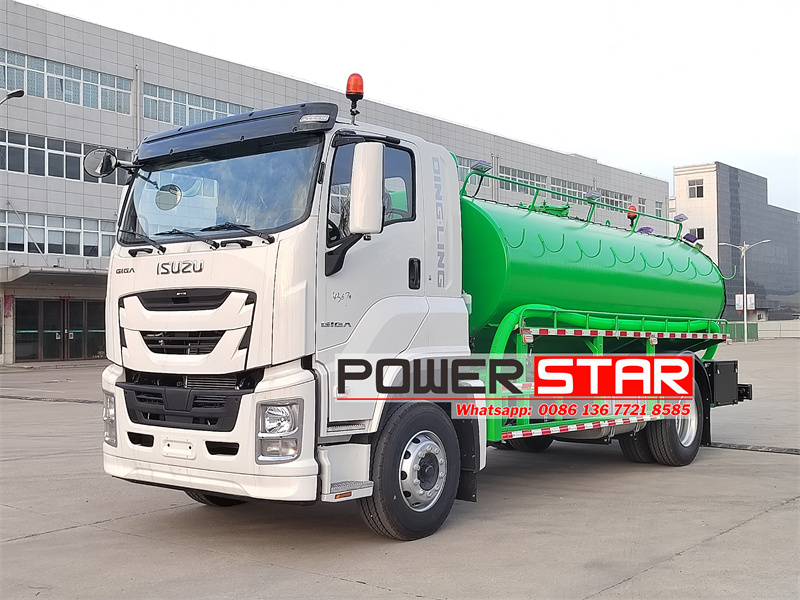

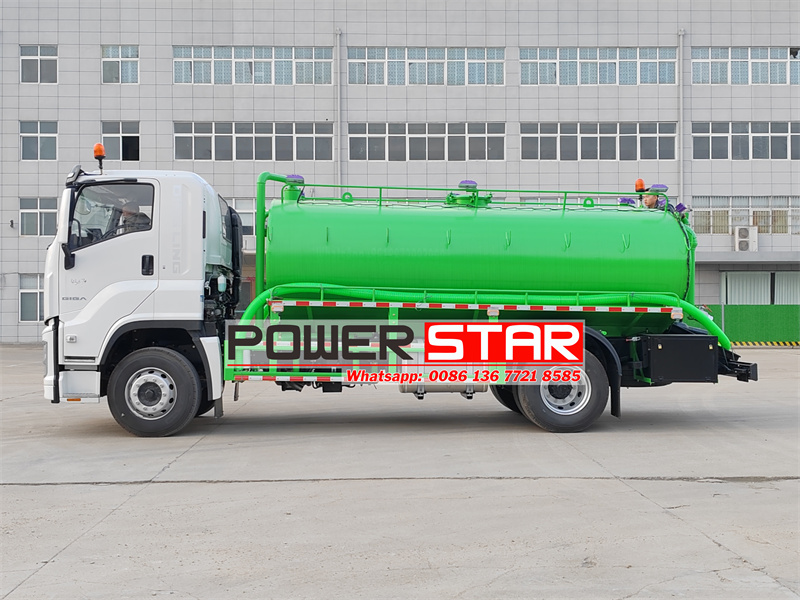

Produced by POWERSTAR Company,the Isuzu FVR GIGA 8cbm vacuum suction truck is modified on the Isuzu FVR GIGA 4X2 4500mm wheelbase chassis,with Isuzu 6HK1-TCG61 240HP diesel engine,FAST 8 shift gearbox,7790ml displacement,A/C,USB,direction assistance.The truck equipped with 10cbm carbon steel sludge sewer tank, China famous vacuum pump, high efficiency,vacuum rate up to 93%,quick suction and discharge.
Work capacity:
8000 litersEngine power:
240HPEngine type:
6HK1-TCG61Axle drive:
4X2,left hand driveGear box:
FAST, Manual, 8 shift gearboxRemarks:
8000 liters carbon steel sludge vacuum pump tankerIsuzu FVR sludge vacuum pump tanker truck is a special vehicle designed for sludge, feces and liquid sewage treatment. The vehicle combines the reliability of the Isuzu FVR chassis with a strong suction capacity. It is suitable for cleaning work in septic tanks, sewage ditches and sewers, and is an important tool for urban environmental sanitation maintenance.
● China best Isuzu sewage vacuum truck factory
● More than 500 workers, large and advanced production
● We have strong professional design team
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
Key Features:
----ISUZU FVR GIGA diesel chassis, perfect performance
----ISUZU 6KH1 engine, super powerful, reliable performance, no overhaul within 100,000 km
----Nice shape, rational structure
----China famous vacuum pump super powerful, efficient pump in and out
----Strong, durable, perfect performance
Isuzu FVR GIGA series 8 cubic meter sludge suction trucks are widely used in many fields such as urban sanitation, agricultural irrigation, and industrial wastewater treatment. Its high efficiency, environmental protection, and safety performance characteristics, as well as its excellent carrying capacity and operating efficiency, make it the first choice for all types of users to handle sludge, feces and other wastes. Whether it is septic tank cleaning on urban streets, sludge treatment in farmland irrigation, or sludge transfer in industrial wastewater treatment, this model can provide excellent solutions to help users achieve efficient and environmentally friendly sludge treatment operations.
|
Isuzu FVR 8000 liters sludge vacuum pump tanker truck |
||
|
General |
Manufacturer |
POWERSTAR |
|
Chassis Brand |
ISUZU |
|
|
Overall Dimension |
8470×2550×3520mm |
|
|
Kerb Weight / GWW |
Approx. 9,850kg / 18,000kg |
|
|
Cab |
Cab Capacity |
3 persons allowed |
|
Air Conditioner |
Equipped |
|
|
Engine |
FuelType |
Diesel |
|
Engine Brand |
ISUZU, 6HK1-TCG61 |
|
|
Power |
240HP (177KW) |
|
|
Displacement |
7790 ml |
|
|
Emission Standard |
Euro VI |
|
|
Chassis |
Drive Type |
4X2,left hand drive |
|
Transmission |
FAST, Manual, 8 shift gearbox |
|
|
Wheelbase/No.of axle |
4500mm / 2 |
|
|
Tyre Specification |
295/80R22.5 |
|
|
Tyre Number |
6 tyres and 1 spare tyre |
|
|
Max Speed |
95km/h |
|
|
Paint |
Metallic paint |
|
|
Super structure |
Vacuum Tank Capacity |
8000 liters |
|
Tank Material |
Carbon Steel |
|
|
Suction Head |
7m |
|
|

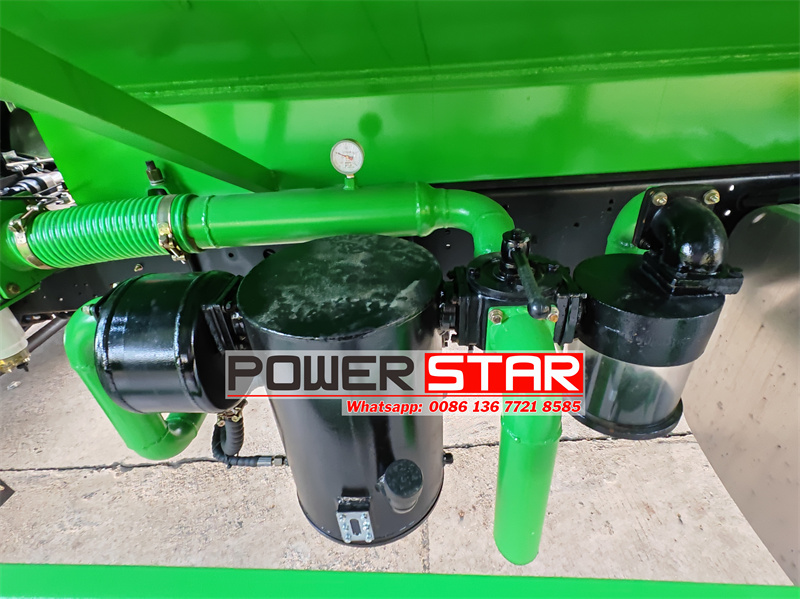

Vacuum Pump |
High efficiency,vacuum rate up to 93%,quick suction and discharge |
|
|
Suction Hose |
High quality,wire strengthed hose |
|
|
Install vacuum Pump drive by engine through PTO,hydraulic system,multi-way |
||
|

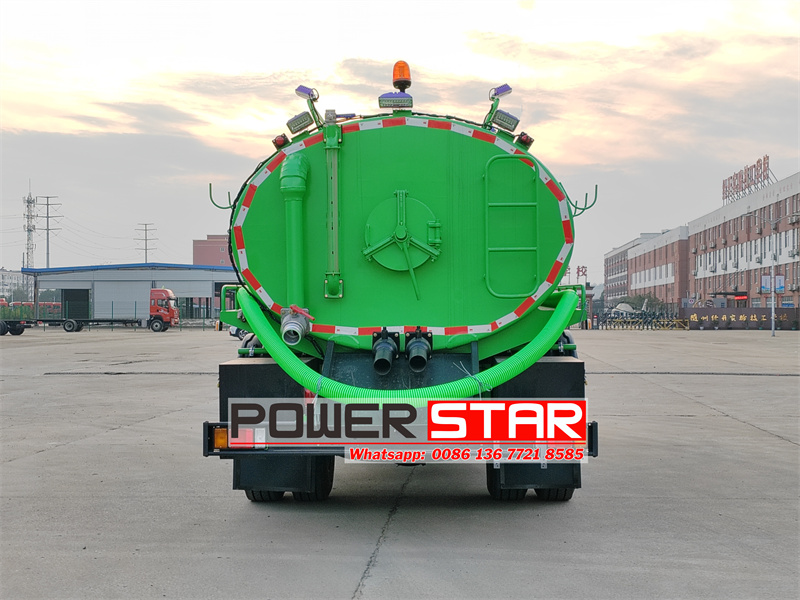

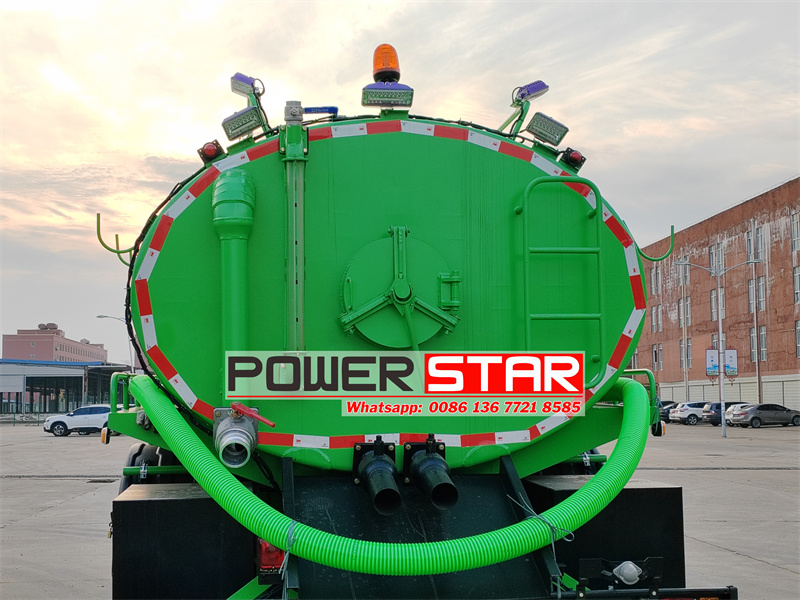

Rear door can be hydraulic opened for complete discharge of solid stuff. |
||
|
All other standard accessories: Tool kit,English manual . |
||
|
Optional |
1.Tank material could be mild steel,stainless steel |
|
Technical drawing of Isuzu FVR 8cbm PM80A pump vacuum sewage suction truck
Vehicle configuration
◆ Basic model: Isuzu's new FVR GIGA, as a high-quality chassis verified by the market, provides a solid foundation for the modification of sludge suction trucks.
◆ Wheelbase: 4500mm, the reasonable wheelbase design not only improves the stability and handling of the vehicle, but also ensures that the suction tank has sufficient volume space.
◆ Engine: 6HK1-TCG61 240HP diesel engine, this engine is famous for its high efficiency, energy saving and environmental protection. It provides strong power output for the suction truck and ensures stable operation under various working conditions.
◆ Transmission: FAST 8-speed transmission, smooth shifting, high transmission efficiency, can flexibly adjust vehicle speed and torque according to actual needs, improve driving comfort and fuel economy.

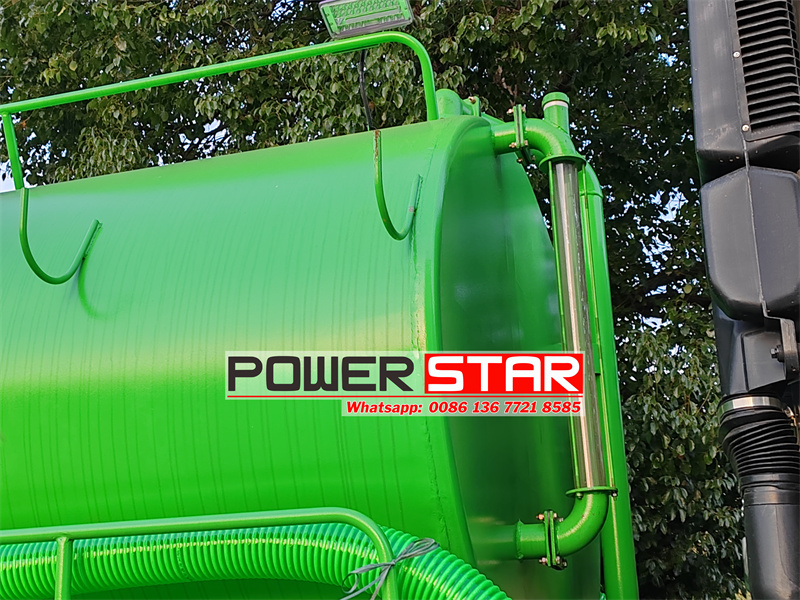

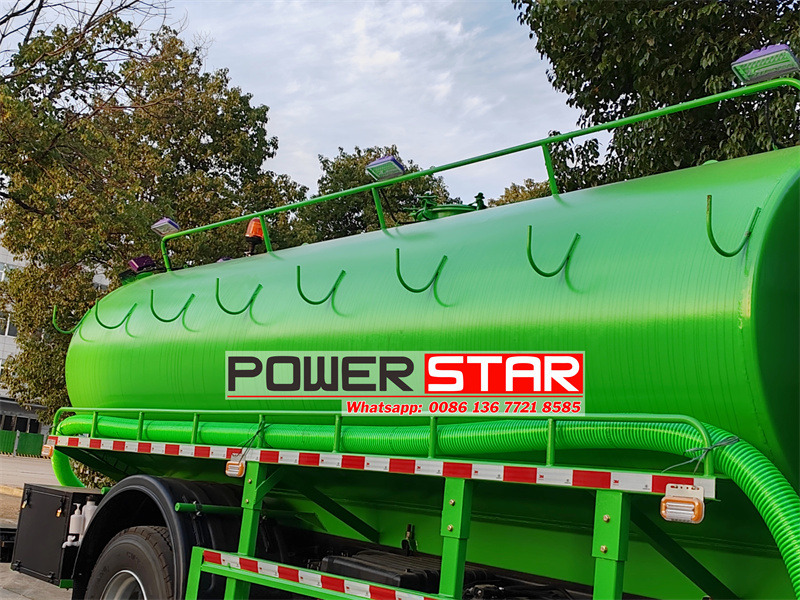

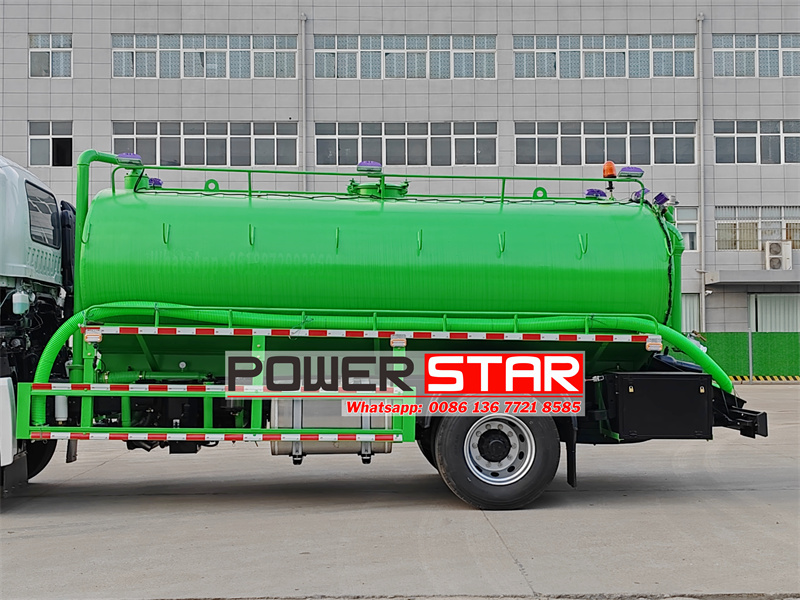

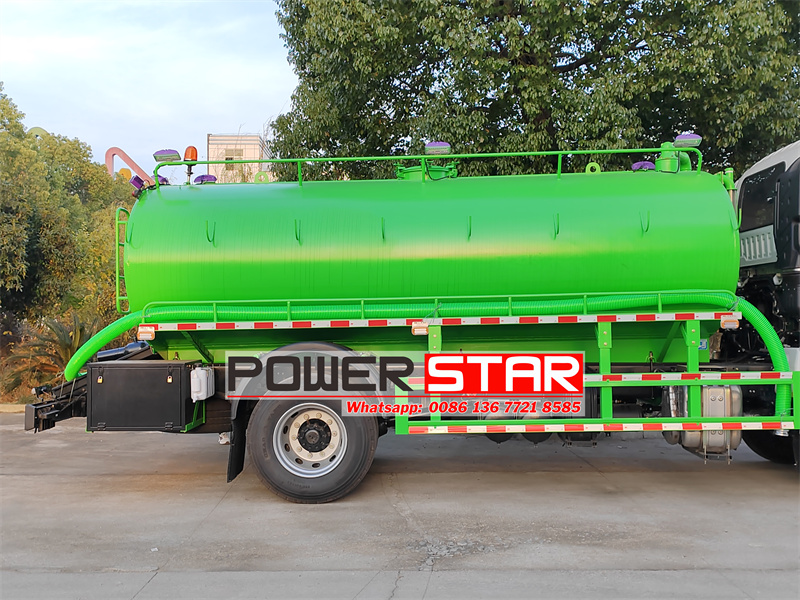

◆ Suction tank: 8cbm suction tank, made of high-quality materials, corrosion-resistant and wear-resistant, can withstand the erosion of sludge and other dirt for a long time, ensuring reliability and durability under long-term use.
Features
◆ Efficient sewage suction:
• Equipped with a high-performance vacuum pump and an optimized sewage suction pipe system, it can quickly and effectively suck sludge, feces and other dirt into the tank.
• The vacuum pump has a strong suction force and can easily cope with the sludge treatment needs under various complex working conditions.
• The sewage suction pipe system has been optimized to reduce pipeline resistance and improve sewage suction efficiency.
◆ Easy to operate: The cab is reasonably designed and easy to operate. The driver can easily master various functions and improve work efficiency.
◆ Safe and reliable: The vehicle is equipped with multiple safety devices such as overflow prevention devices and alarm devices to ensure safety and reliability during operation and avoid accidents.
◆ Environmental protection and energy saving: The use of advanced filtering and purification technology ensures that there will be no secondary pollution to the environment during the sludge treatment process, which meets environmental protection requirements.
◆ Flexible and applicable: This sludge suction truck is not only suitable for urban sanitation and agricultural fields, but can also be widely used in industrial wastewater treatment, municipal engineering and other fields to meet the sludge treatment needs in different scenarios.
