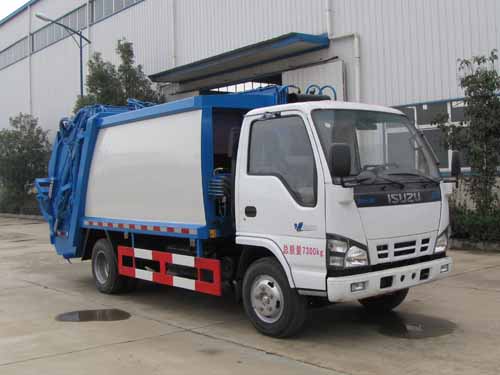

Isuzu garbage compactor truck 5cbm capacity
Isuzu 3 tons garbage compactor truck, 3 m3 rubbish collection truck, garbage collection vehicle
The isuzu 5cbm garbage compactor is adopts the Isuzu NKR 600P chassis,3360mm wheelbase,equipped with Isuzu 4KB1-TCG60 engine,isuzu MSB 5-speed transmission.The upperbody is 5cbm garbage container,5mm thickness,corrosion and rust prevention treatment.The tailgate is bucket hang tilting mechanism，applicable to international standard 110L, 240L and other trash bins.The vehicle has multiple operating positions to control the collection, compression, and unloading of waste.
Order(MOQ):
1Manufacturer:
Powerstar TrucksWork capacity:
3-6cbmDimension:
6220x1980x2410mmCabin type:
Isuzu ELF 600P cabin,with A/CWheelbase:
3360mmEngine power:
130HPEngine type:
Isuzu 4KB1-TCG60Axle drive:
4X2Gear box:
ISUZU MSB 5-speed,manualRemarks:
4x4,RHD drive availableIsuzu 3 tons garbage compactor truck, 3 m3 rubbish collection truck, garbage collection vehicle
This 5-cubic-meter garbage compactor truck, built on the Isuzu NKR series chassis, is specifically designed for urban sanitation operations.Its core advantage lies in its well-matched design: a 3360mm wheelbase ensures agility for navigating streets; the classic 4KB1 engine paired with a 5-speed transmission provides ample yet economical power. The upper structure features a robust 5cbm compact box made of high-quality materials and treated with special anti-corrosion measures for extended service life. The vehicle boasts a high degree of automation, easily docking with various standard garbage bins via a rear mechanism for one-button emptying. The entire vehicle can be controlled from multiple points, including the cab control box, the driver's side manual control lever, and the tailgate control box, making garbage collection, compression, and unloading processes smoother and more labor-saving, significantly improving the efficiency and economy of daily sanitation work.
Isuzu small 6m3 garbage compactor truck ISUZU
Assemble various rear overturn equipments of garbage bin
| Model | NKR77LLPACJAY | Tyres | 7.50-15 tube | ||
| Maximum Output | 130HP,isuzu 4KB1-TCG60 | Maximum driving speed |
100(km/h) | ||
| Transmission | MSB-5SM, Mechanical manipulation of long-range double-stroke | Time of one filling cycle |
≤18(s) | ||
| Front axle | Front shaft with fist-shaped ends | Time of discharge | ≤28(s) | ||
| Rear axle | Full floating axle, helical gear in umbrella shape and hypoid gearing Ratio: 6.142 |
Steering | Recirculating ball- type steering gear |
||
| Overall Dimension | 6220x1980x2410(mm) | ||||
| Wheelbase | 3360mm | ||||
