Product Detail

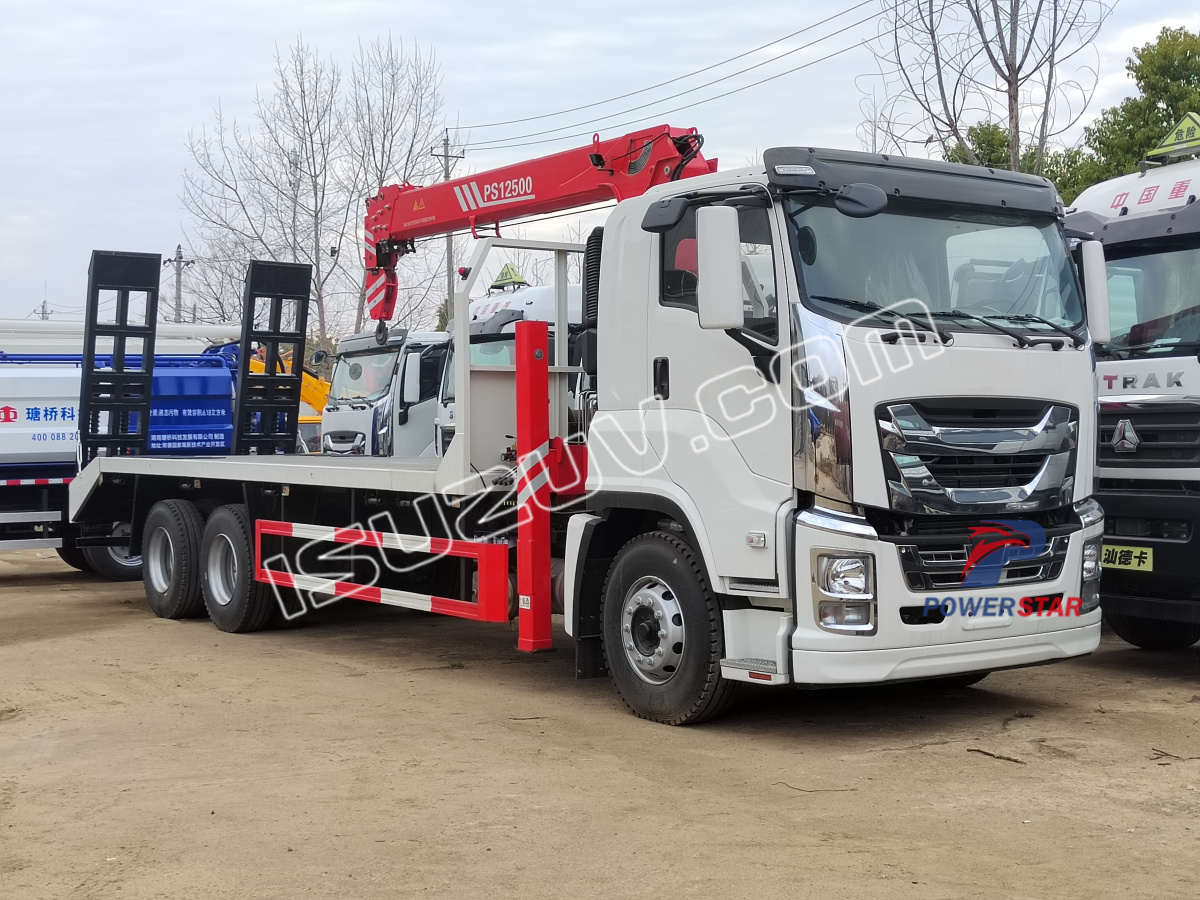

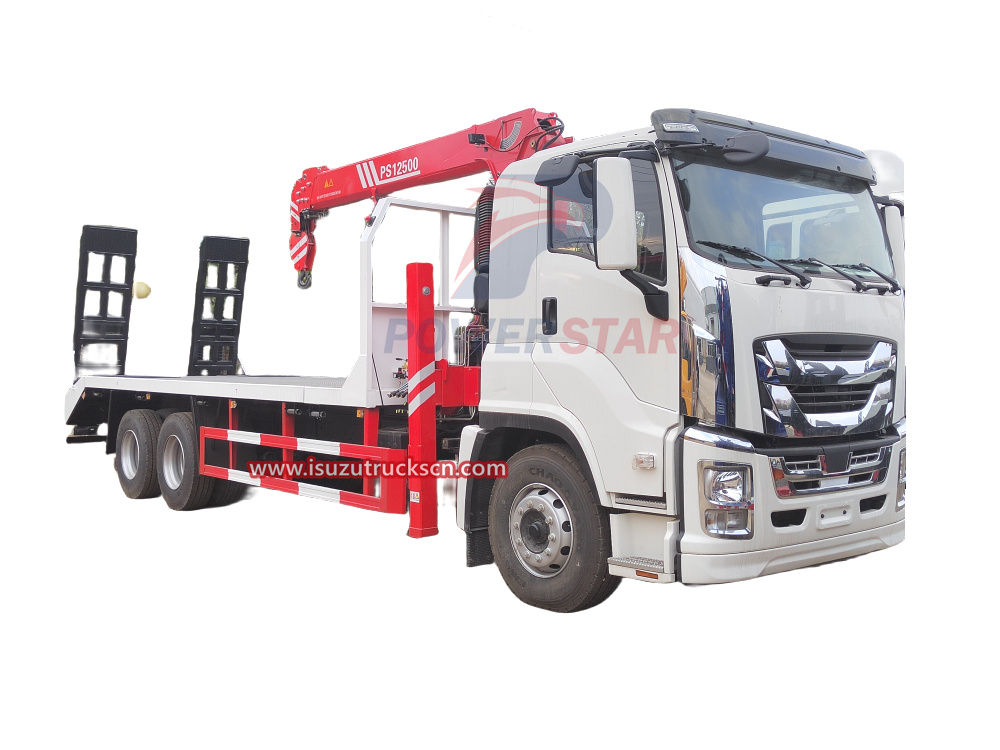

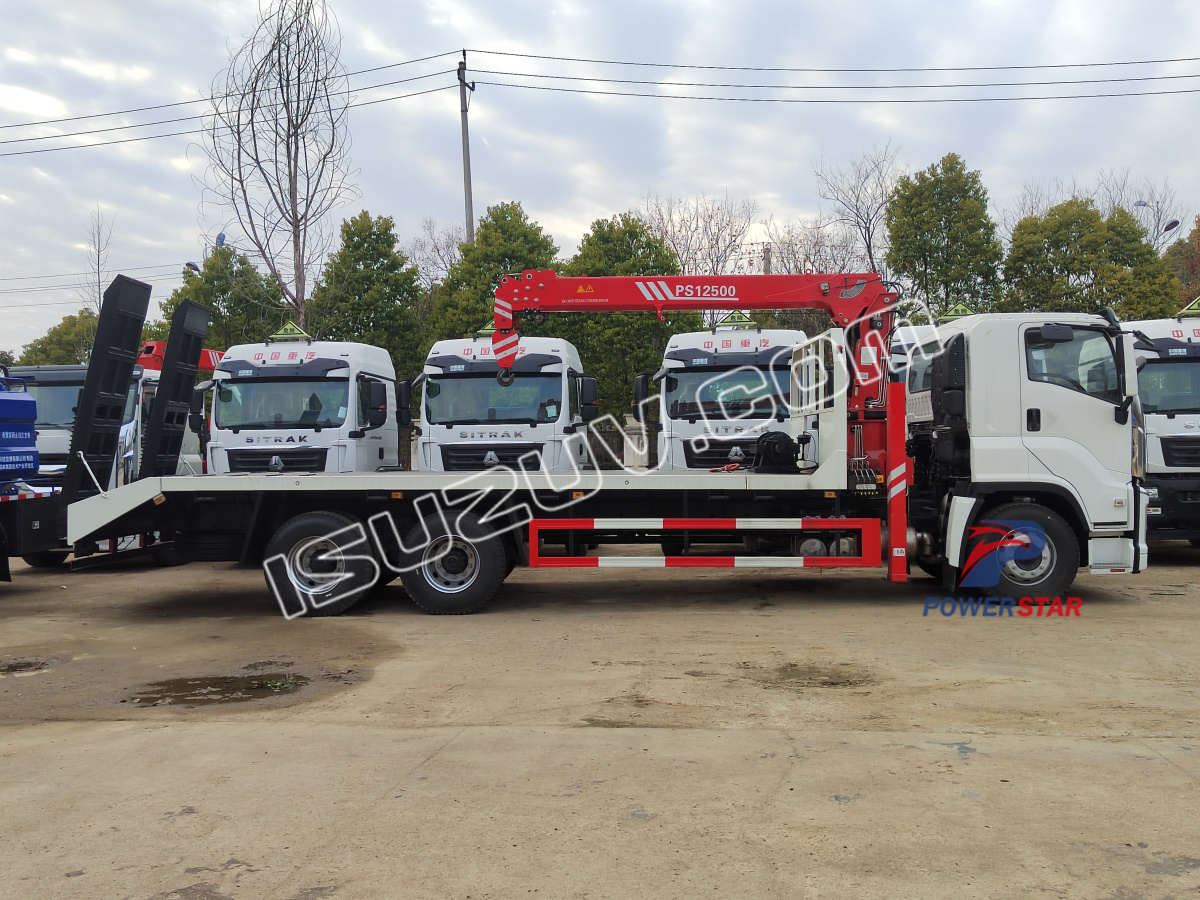

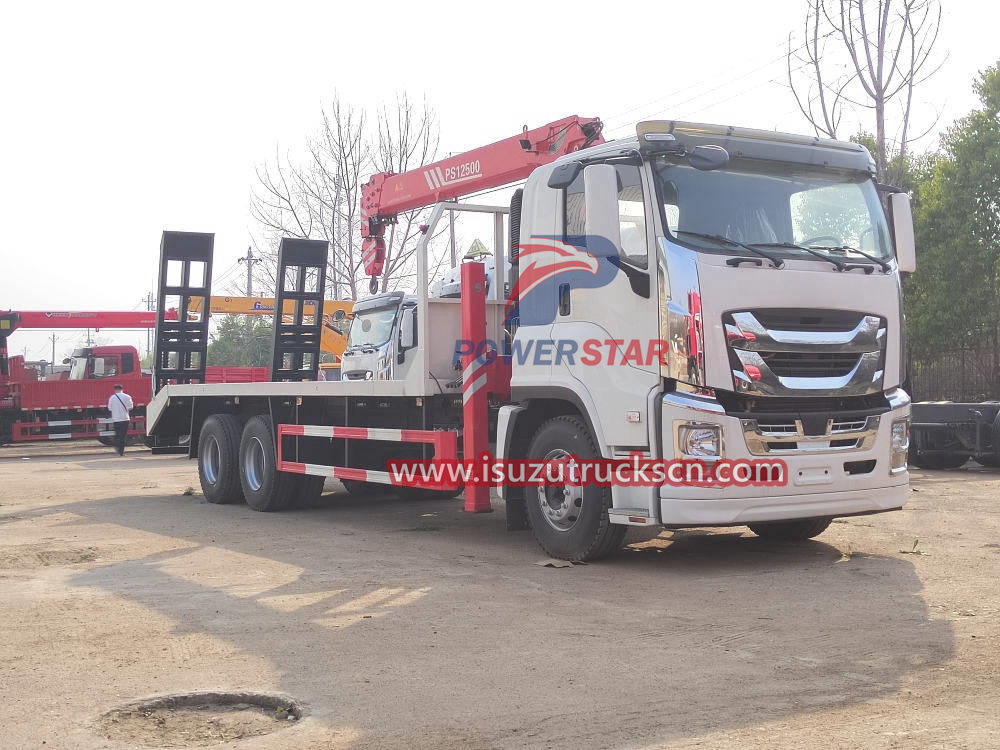

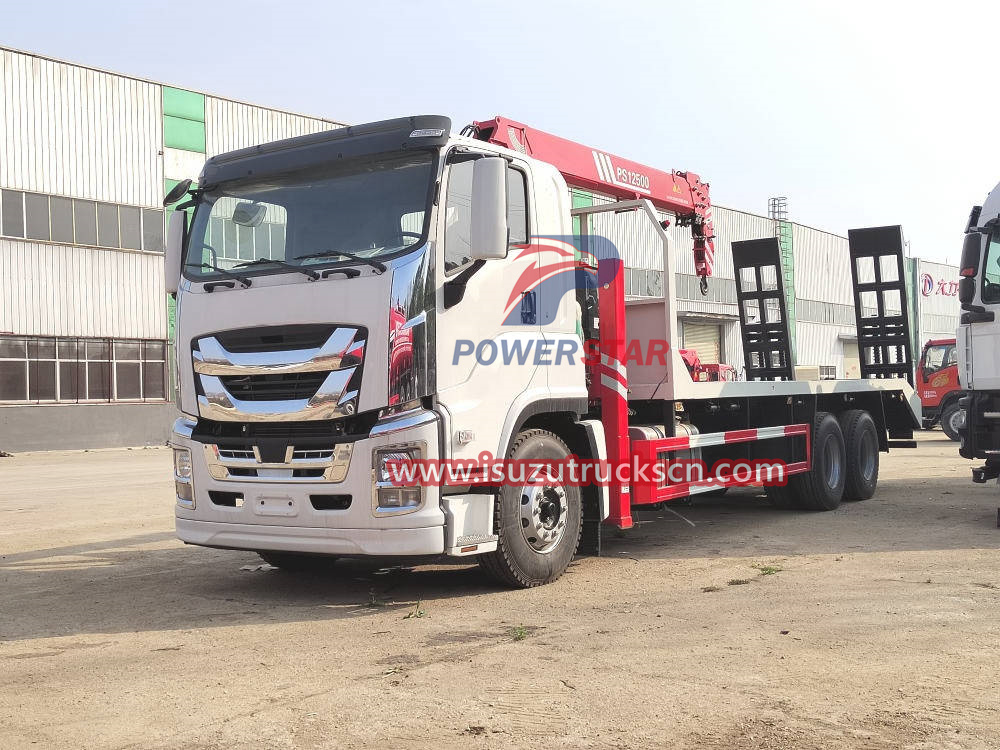

Isuzu GIGA 10whels Self Loading truck with Crane and Winch
Details
ISUZU GIGA 10 Wheels Flat Bed Self Loading Truck for Carrying Backhoe Excavator Bulldozer
10ton,45m,18mmthickhssis
Model
GIGA
G.V.W.
33000kg
Curb Weight
94000kg
Wheel base
5820+1370mm
Drive type
6x4
Engine model
6WG1-TCG51
Engine Power
460PS
Disaplacement
15681ml
Tire
12R22.5 18PR
Crane
Type
Telescopic boom crane
Max lifting capacity
10000kg
Max Lifting Height
15.8m
Max lifting moment
25T.M
Max working radius
13.8m
Flatbed Body
Length
7800mm
Width
2500mm
Feature
The plate width can be telescopic and extended for 3.2 m operated manually.
Bottom beam
120x120x5mm GB square steel
Thicness
8mm checkered plate with antiskid

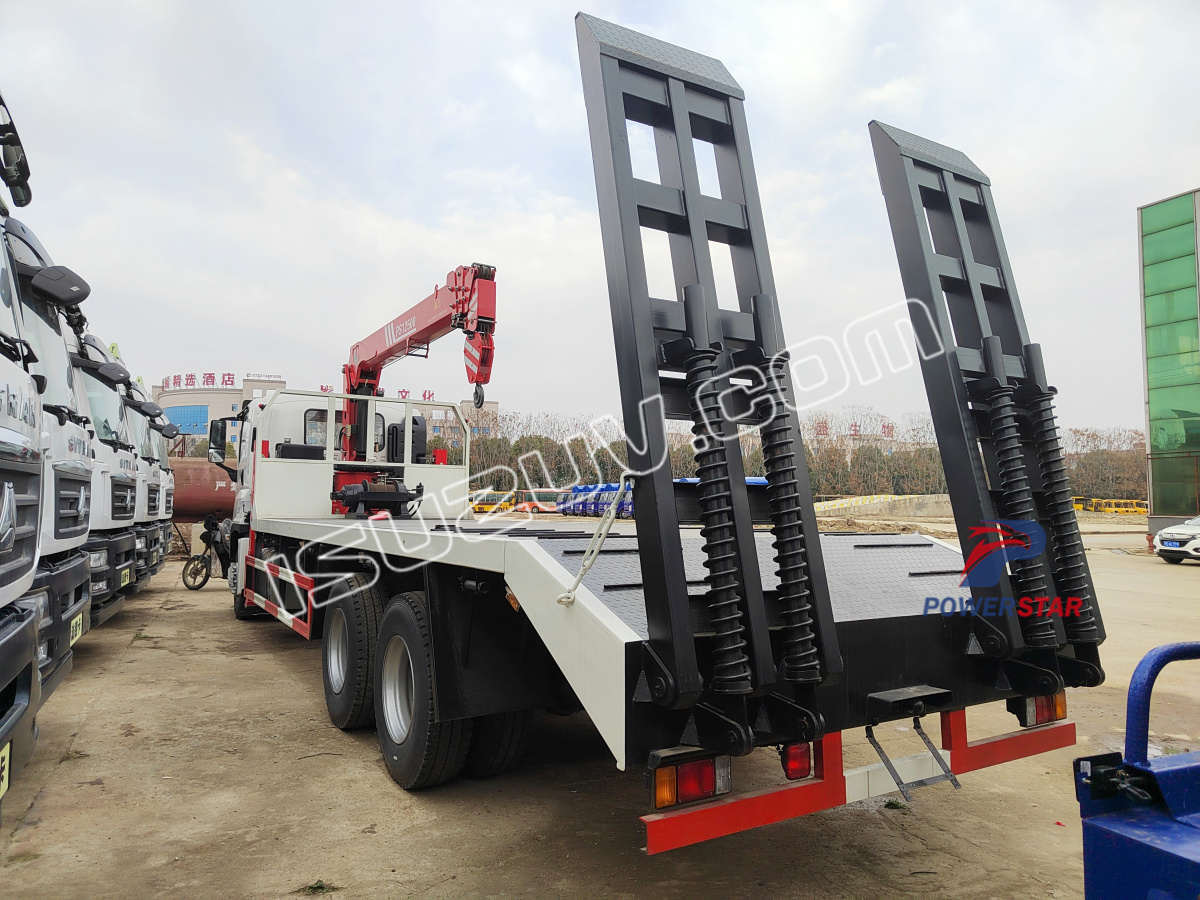

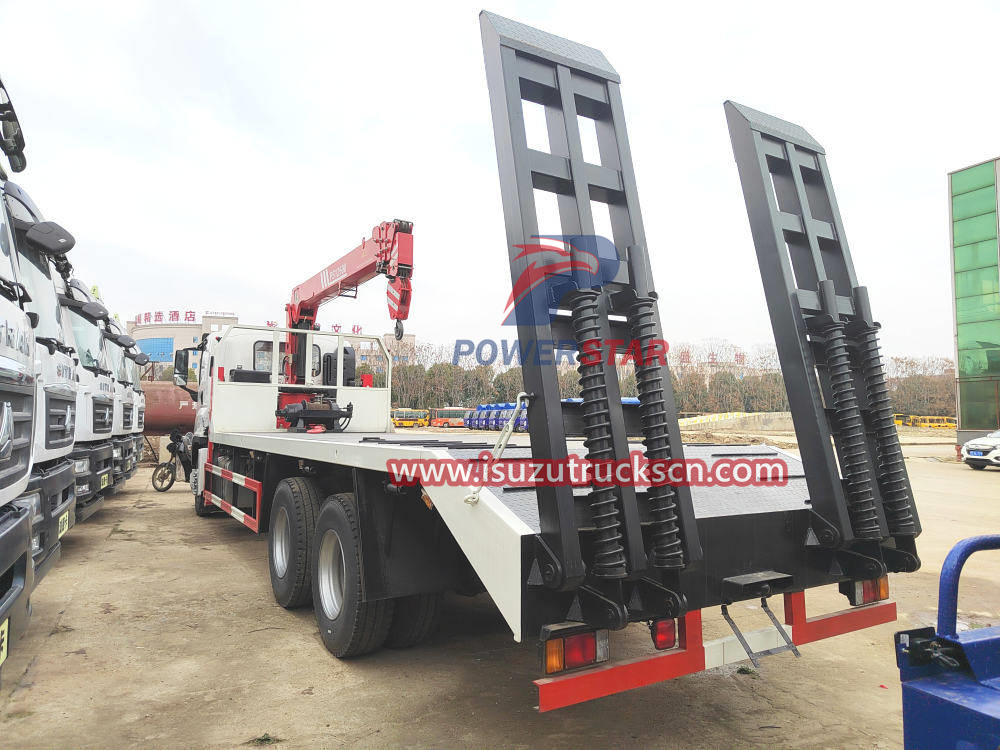

Mechanical ramp
Type
mechanical spring
Length
2200mm
Material
All Steel Ramp
Feature
It adopts heavy load strengthening design, and three reinforcement ,double spring reinforcement treatment, with rear outrigger

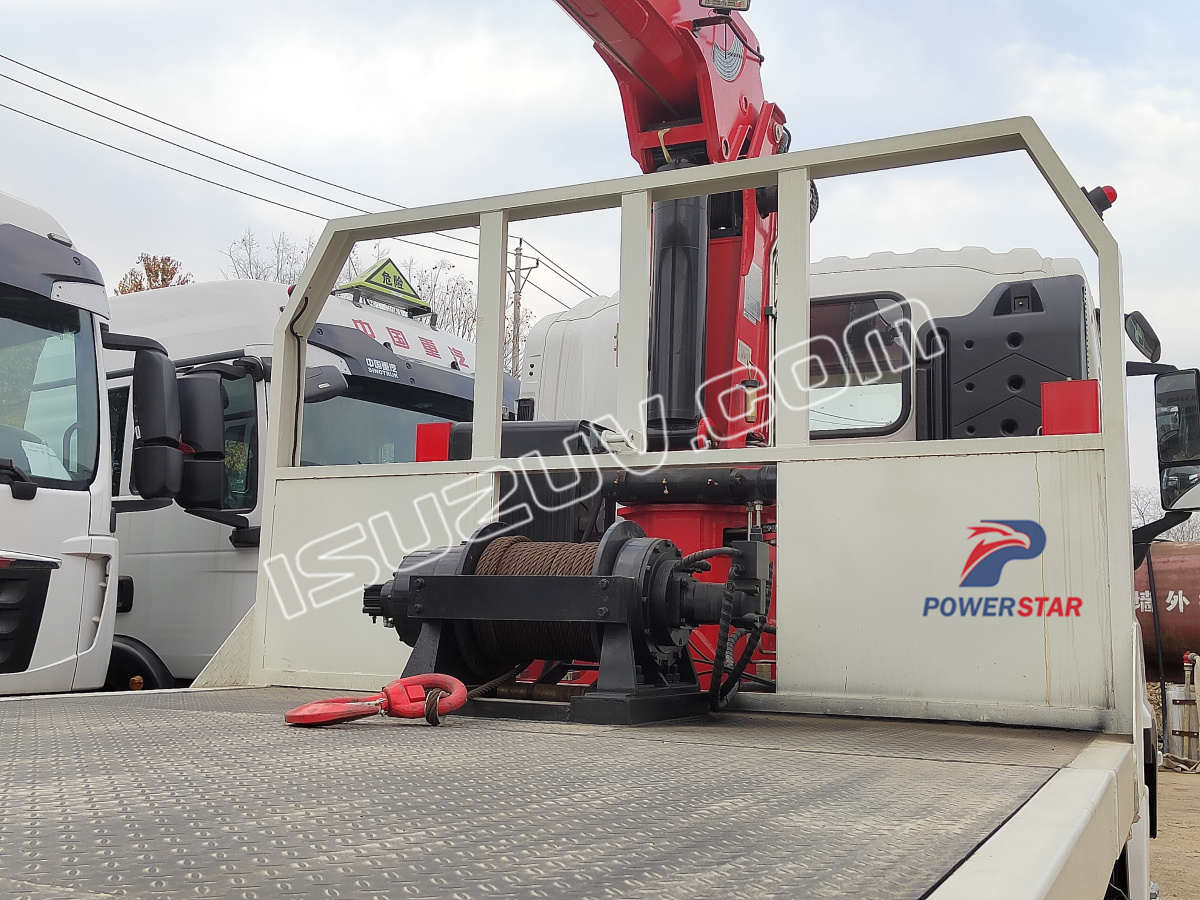

Winch
Type
