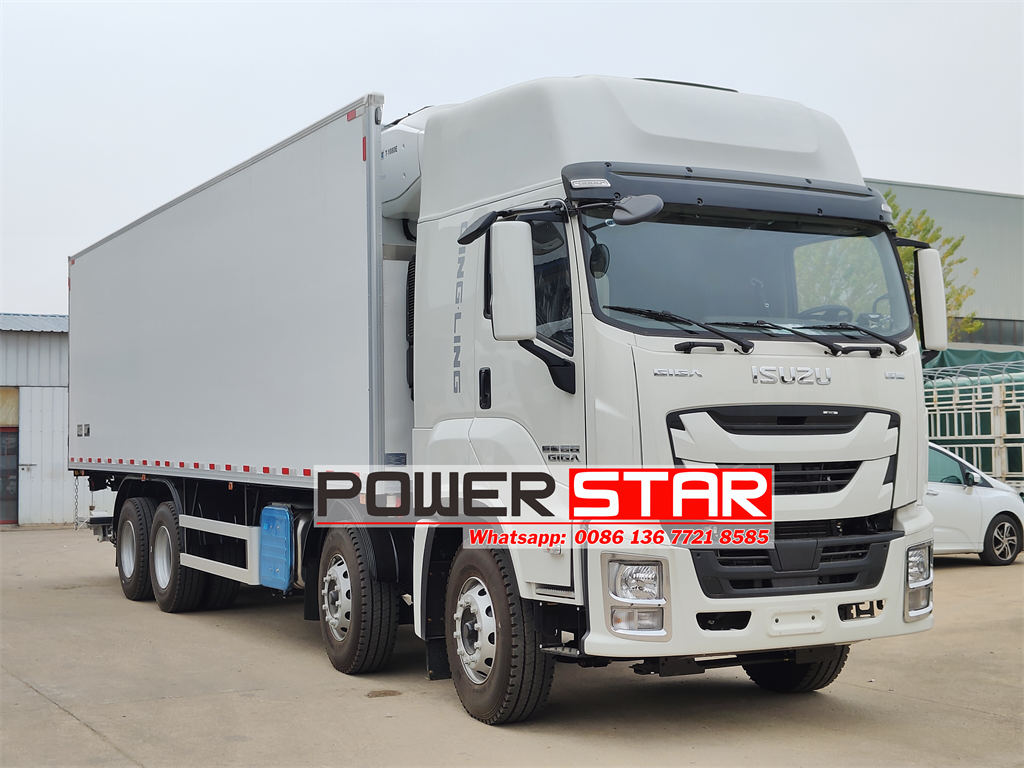

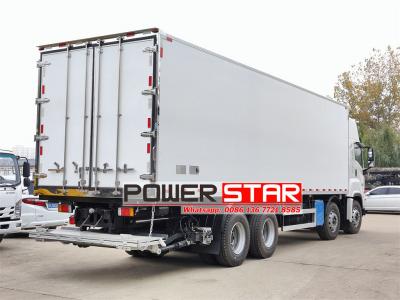

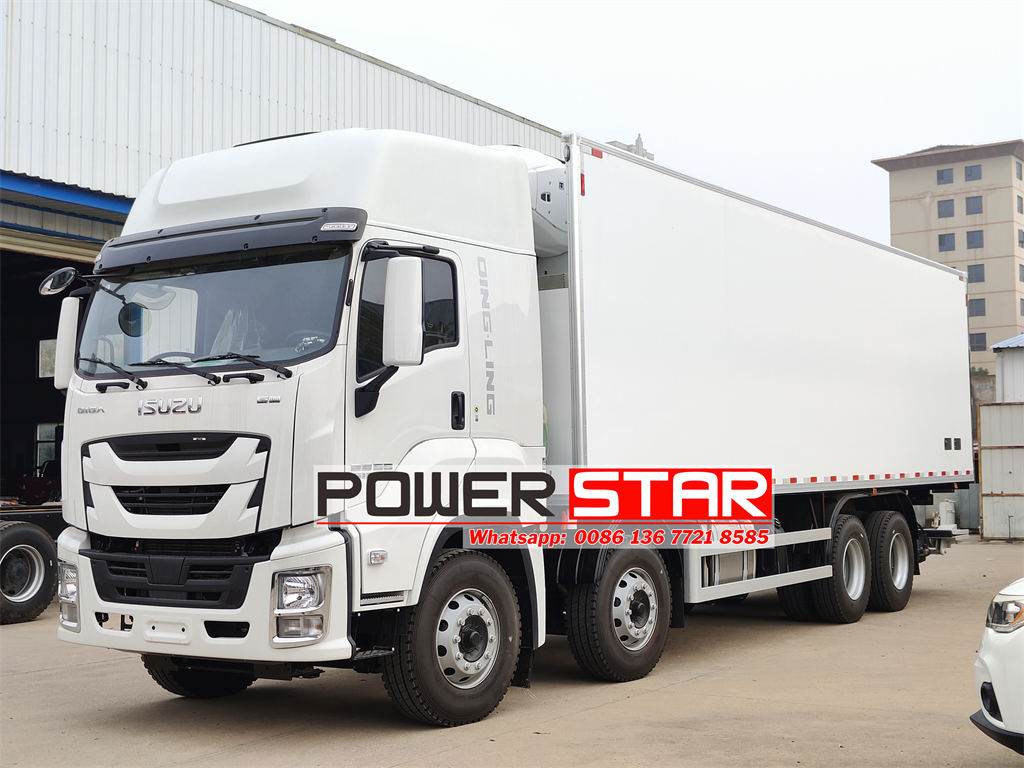

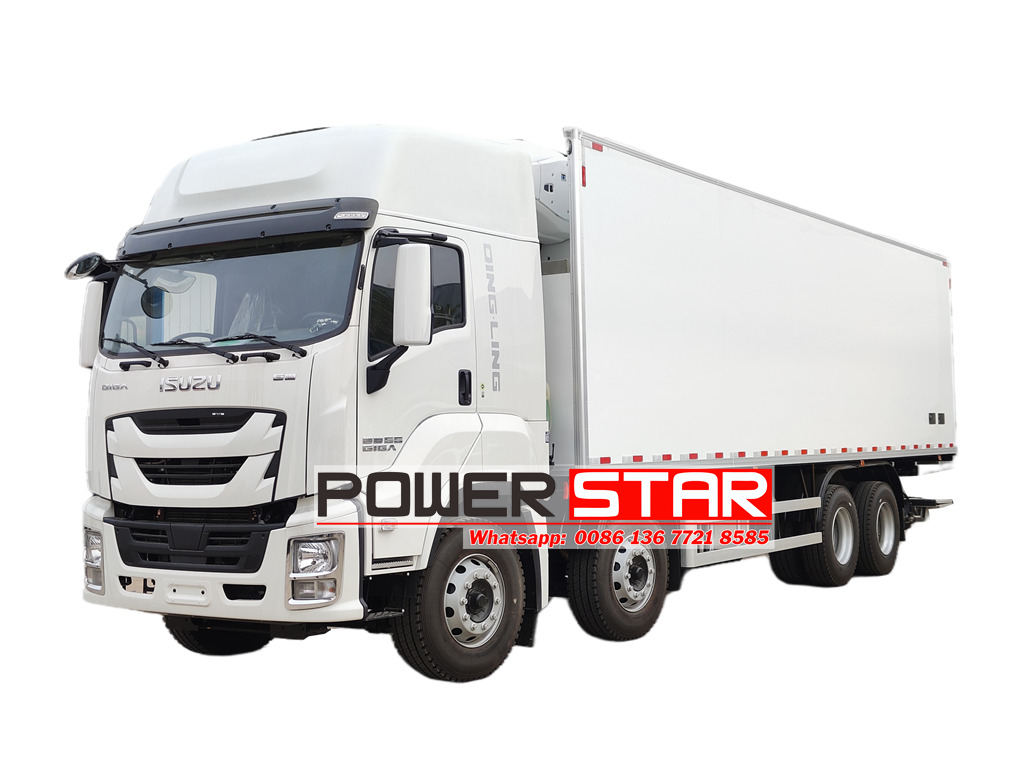

ISUZU GIGA 12 wheeler 31FT Freezer Truck
The ISUZU GIGA 8×4 refrigerated truck, with its imposing appearance and excellent carrying capacity, has become a leader in long-distance refrigerated transportation. The overall dimensions of the vehicle are 12000×2600×3990mm, which not only ensure sufficient loading space but also guarantee the stability and safety of the vehicle during driving. With a gross vehicle weight of 31000kg and a curb weight of 14600kg, this refrigerated truck can easily handle various heavy-load requirements while maintaining outstanding driving performance.
Work capacity:
25 tonsEngine power:
420 HPEngine type:
6WG1-TCG60Axle drive:
8×4Gear box:
FAST 12 forwards & 2 reverse,manualRemarks:

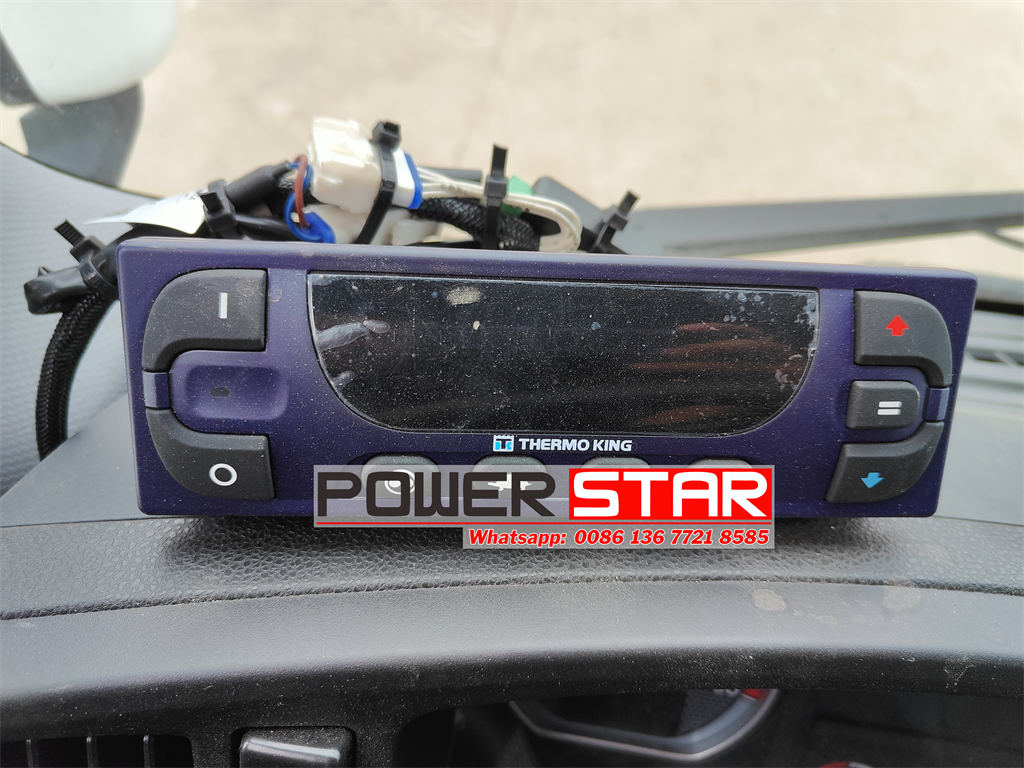

Thermo King T-1000M refrigeration unitThe ISUZU GIGA 12 wheeler 31FT freezer truck is a heavy-duty refrigerated transport vehicle built on the ISUZU GIGA chassis. It adopts an 8×4 drive configuration, meaning the vehicle has four axles, with the front two axles serving as steering axles and the rear two as driving axles. This configuration provides excellent stability and powerful driving force, making it highly suitable for long-distance heavy-load refrigerated transport needs. Additionally, the ISUZU GIGA refrigerated truck is equipped with a high quality freezer van and refrigeration unit, ensuring that the cargo remains in a constant low-temperature environment throughout the transport process, thereby preserving the freshness and quality of the goods.
● China best Isuzu refrigearted truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Promptly delivery, any order is welcome.
Features of ISUZU GIGA freezer van:
★ Powerful Engine: Equipped with an efficient ISUZU engine, providing ample power output to ensure stable driving of the vehicle under various road conditions.
★ Stable Driving: The vehicle features a robust chassis structure and a well-tuned suspension system, maintaining a stable driving posture even in complex road conditions.
★ Ample Loading Space: The cargo box is designed with reasonable dimensions, providing sufficient loading space to meet the demands of long-distance refrigerated transportation.
★ Excellent Refrigeration Effect: Equipped with a high-quality refrigeration unit, capable of precisely controlling the temperature inside the cargo box to ensure the freshness and quality of the goods.
★ Comfortable Driving: The cab is spacious and bright, with comfortable seats and a full range of driving assistance facilities, reducing driver fatigue.
Product Specifications
|
Vehicle description |
||
|
Vehicle name |
ISUZU GIGA 12 wheeler 31ft freezer truck |
|
|
Overall dimension |
12000*2600*3990mm |
|
|
GVW |
31000kg |
|
|
Curb weight |
14600kg |
|
|
Chassis brand |
ISUZU |
|
|
Traction type |
8*4, left hand drive |
|
|
Chassis description |
||
|
Cab |

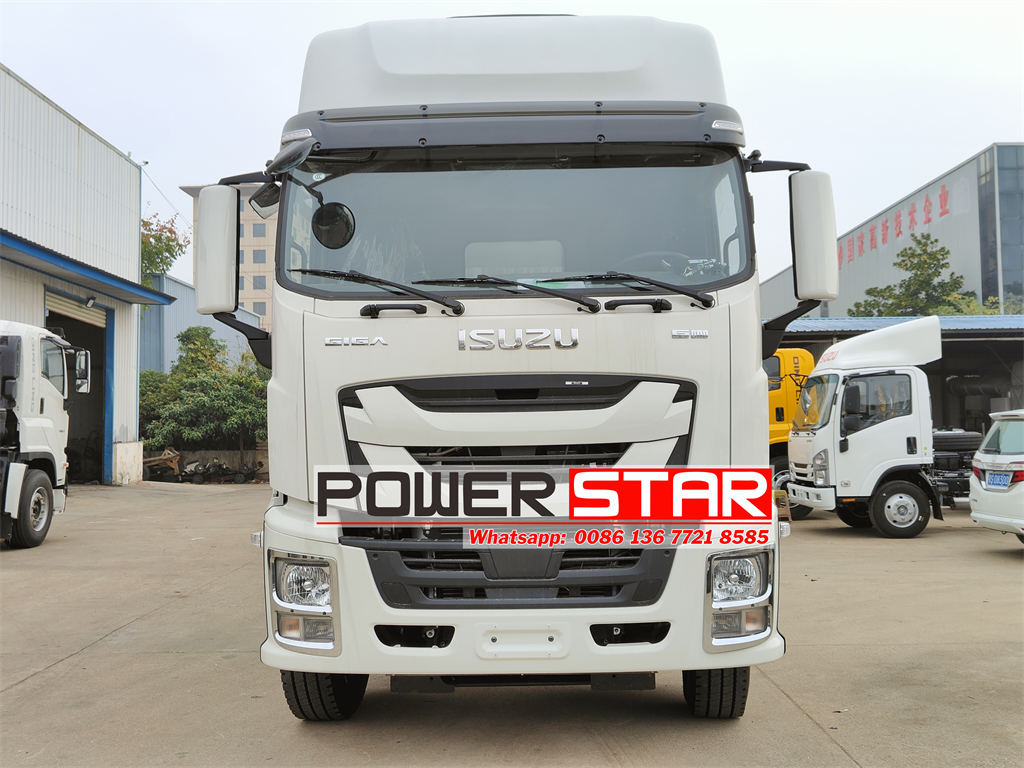

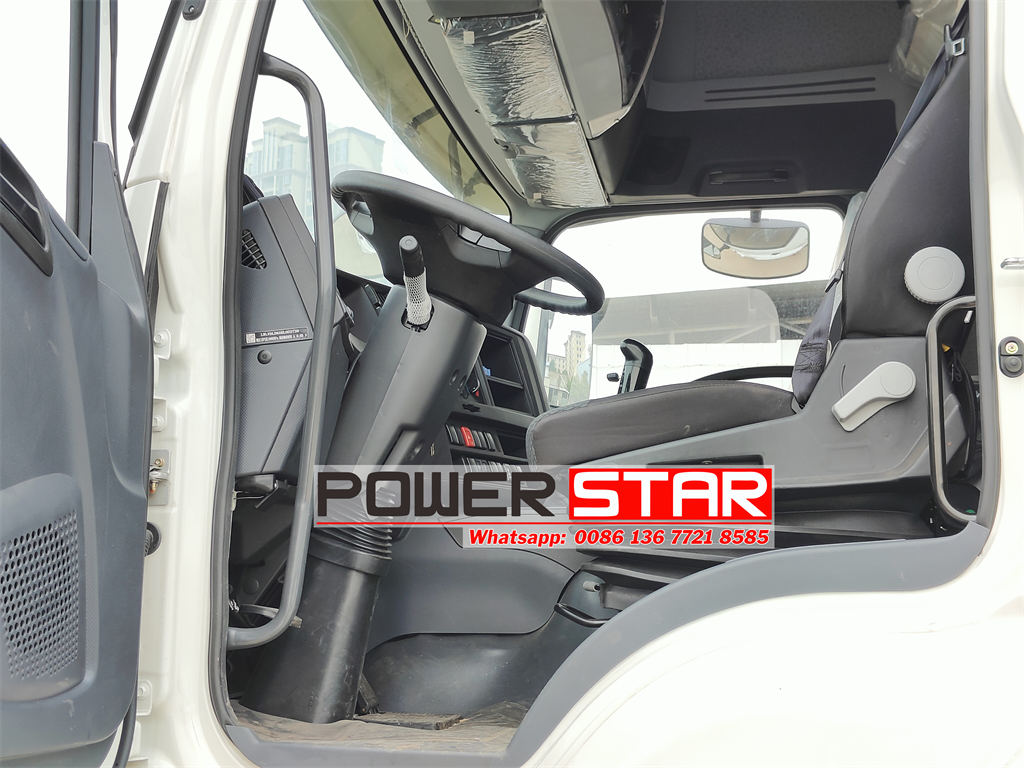

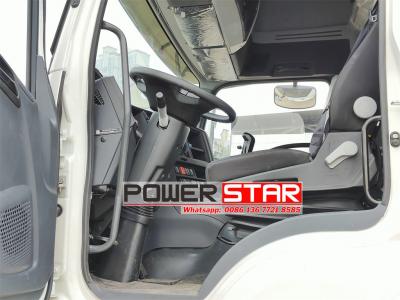

ISUZU GIGA VC61, forward control type, all welded steel cab of tilt type, air conditioner, rear mechanical cab suspension, adjustable driver's seat; mechanical cab tilting, electric windows, electric door lock. |
|
|
Wheelbase |
1850+4575+1370 mm |
|
|
Tire specification |
315/80R22.5 |
|
|
Tire quantity |
12+1 units |
|
|
Engine |
Engine model |
ISUZU 6WG1-TCG60 |
|
Emission standard |
Euro 6 |
|
|
Displacement (liters) |
15.681 |
|
|
Maximum power |
309 kw (420hp) at 2250 rpm |
|
|
Gear box |
Type |
FAST |
|
Number of gears |
12 forward gears & 2 reverse, synchronized |
|
|
Brake system |
Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles; exhaust brake. |
|
|
Axle load |
Front load capacity(ton) |
7.5 |
|
Rear load capacity(ton) |
13 |
|
|
Leaf springs |
7/7/10 |
|
|
Fuel tank |
Type |
Aluminum alloy fuel tank, with lockable cap |
|
Capacity (liters) |
400 |
|
|
Upper-body description |
||
|

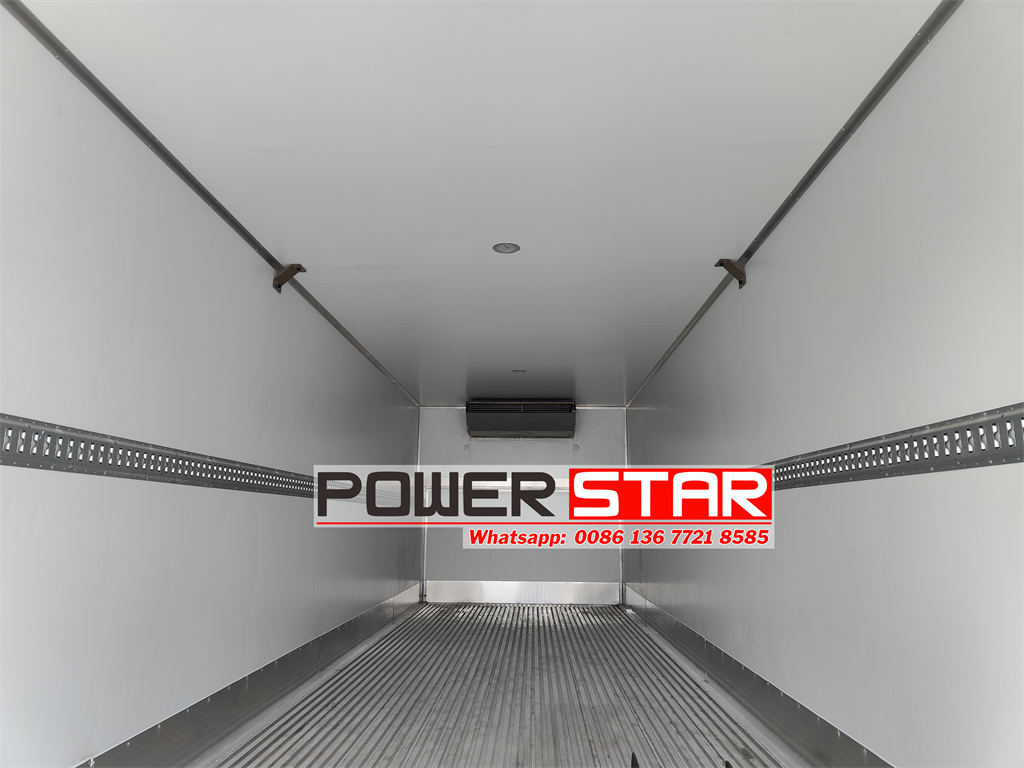

Van dimension |
9600*2600*2500mm |
|
|
Material |
Inner |
Fiberglass |
|
Outer |
Fiberglass |
|
|
Interlayer |
XPS or polyurethane board, 80mm thick |
|
|

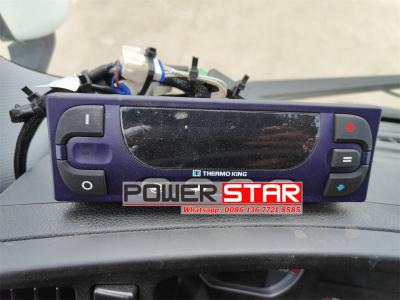

Refrigeration unit |
Brand |
Thermo King |
|
Model |
T-1000M |
|
|
Temperature in the van |
-18~-5℃ |
|
|

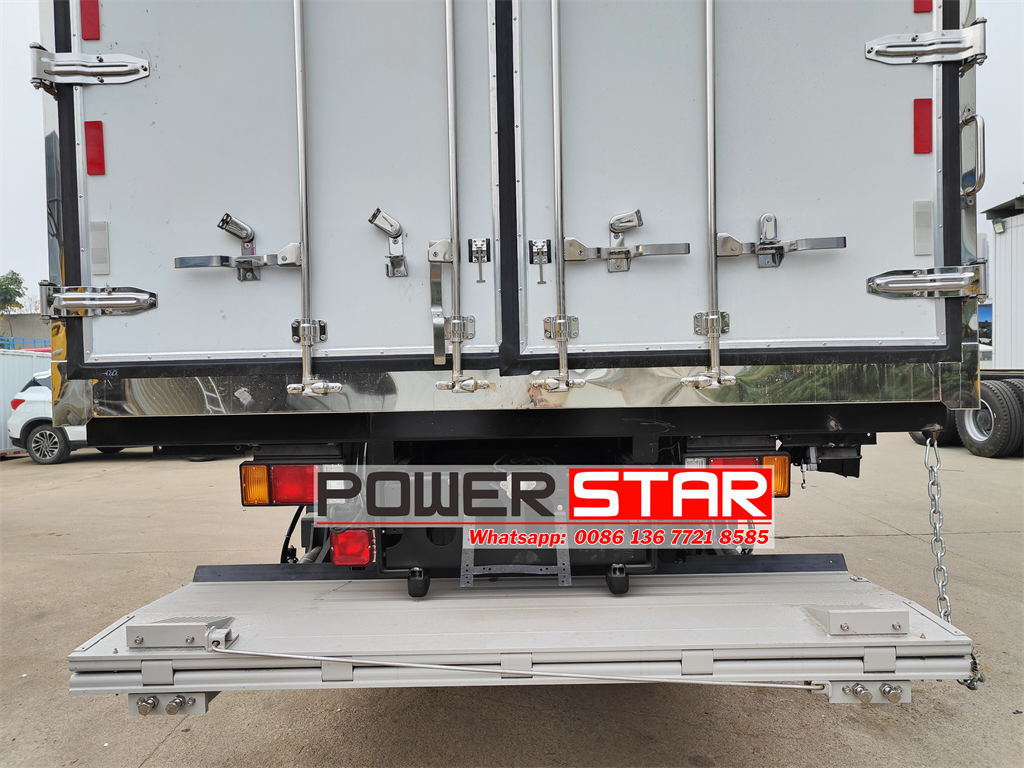

Doors |

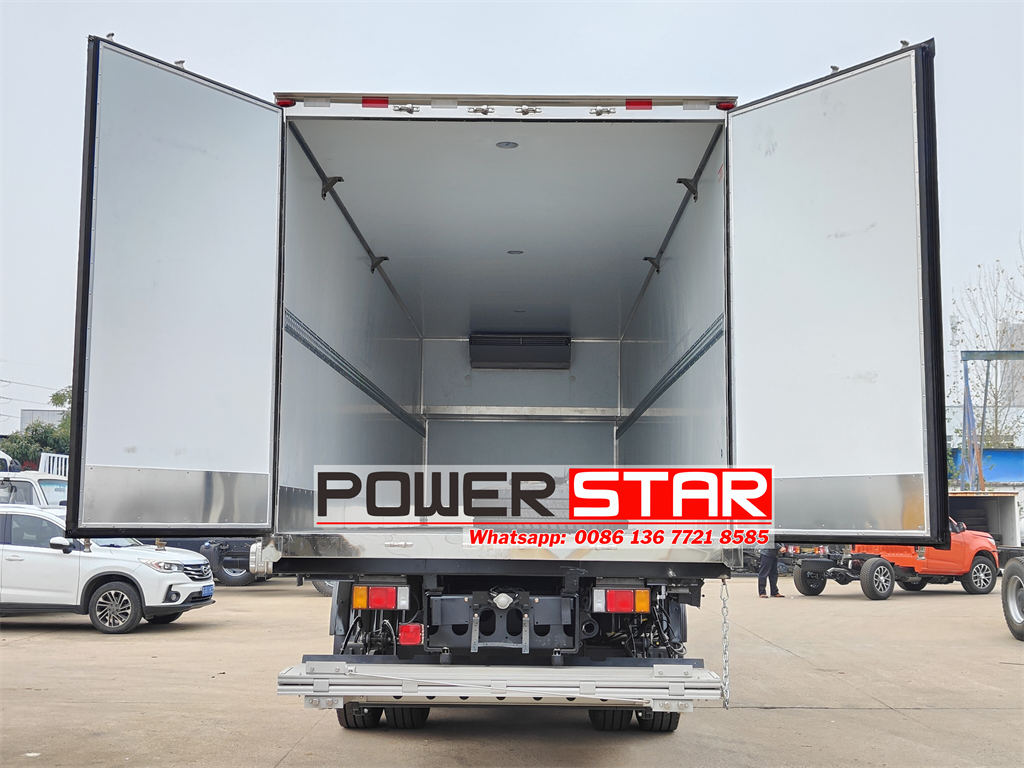

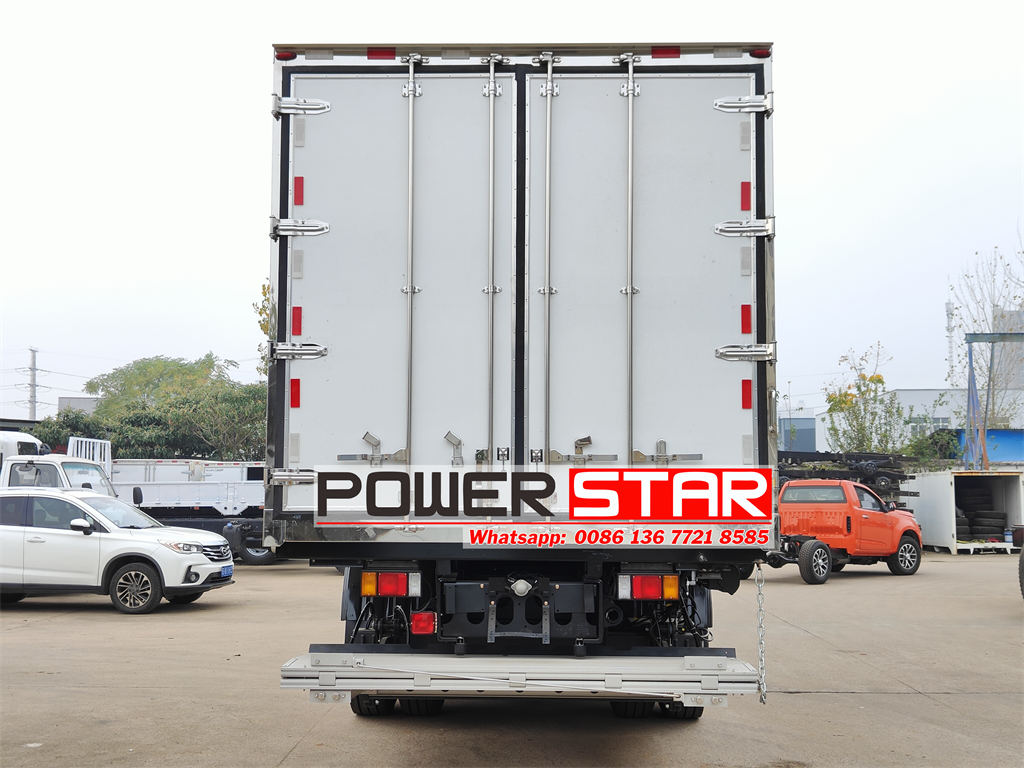

2 doors at rear and 1 door on side |
|
|

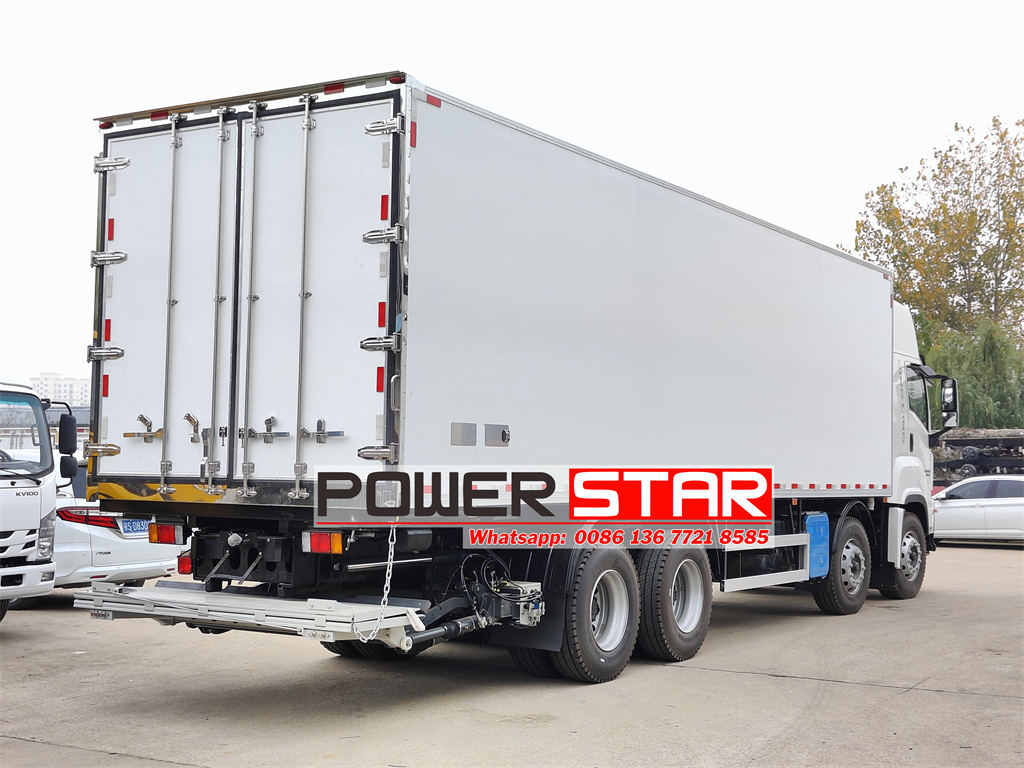

Tail power gate |
Hydraulic operated, payload 1000kg |
|
Product Advantages
1. Powerful Performance
The ISUZU GIGA 8×4 refrigerated truck is equipped with the ISUZU 6WG1-TCG60 engine, which boasts a maximum power output of 420 horsepower, providing robust power support for the vehicle. Whether it's accelerating from a stop or cruising at high speeds, it can handle the task with ease, ensuring that cargo arrives at its destination quickly and safely.
3. Spacious Loading Space
With compartment dimensions of 9600x2600x2500mm, it provides ample loading space to accommodate a large volume of refrigerated cargo. This is undoubtedly a huge advantage for logistics companies that require bulk transportation of goods.
5. Flexible Adaptability
The ISUZU GIGA 12 wheeler freezer truck can be customized according to customer needs, such as adding side doors or installing shelves. This flexible adaptability allows the vehicle to meet the individualized needs of different customers, enhancing its practicality and market competitiveness.
