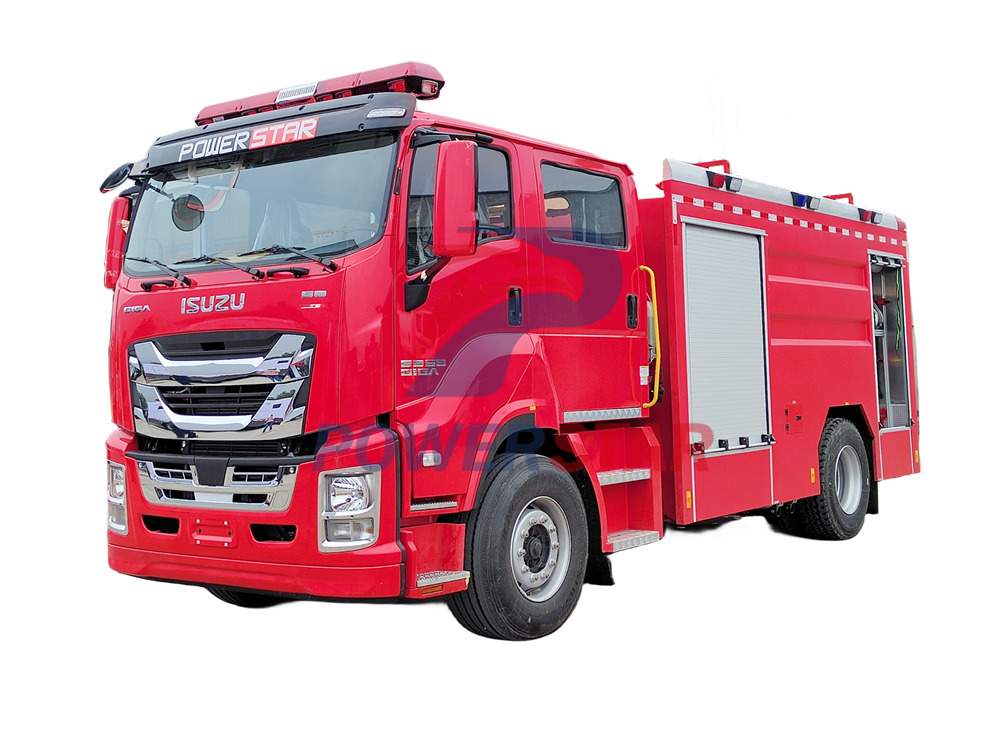

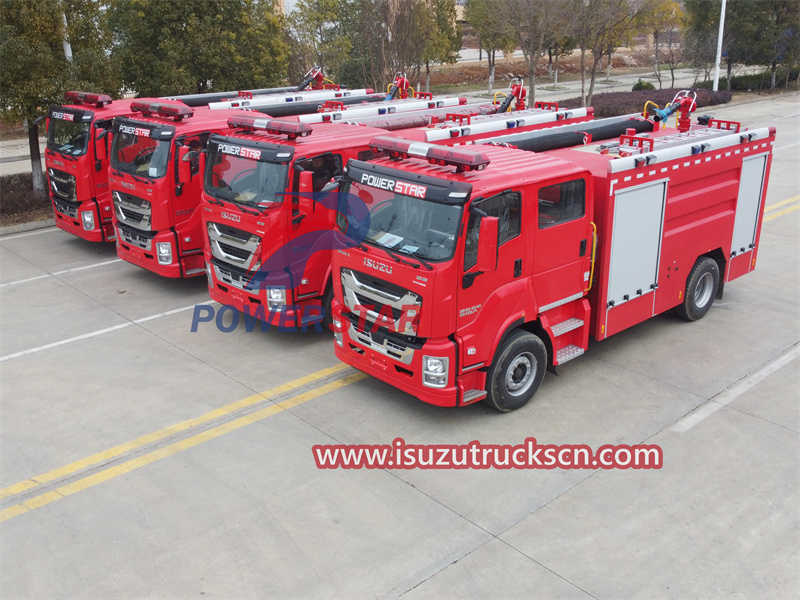

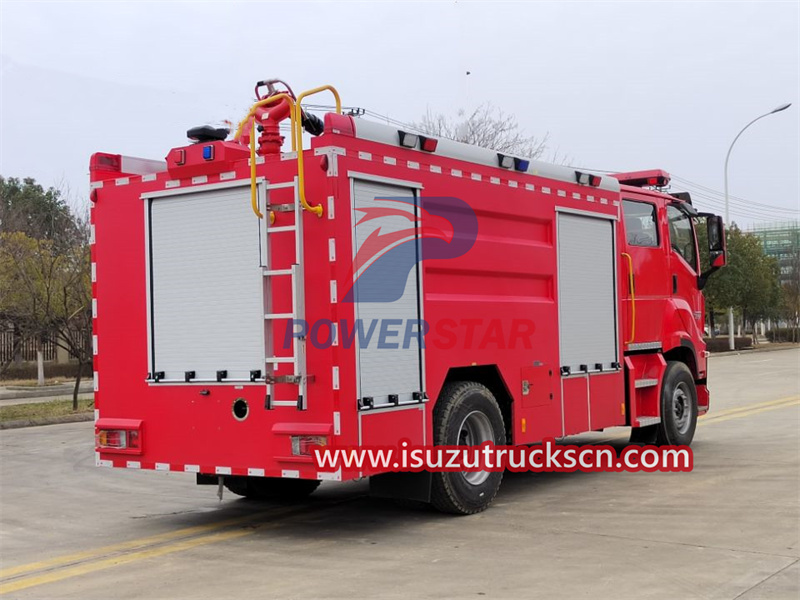

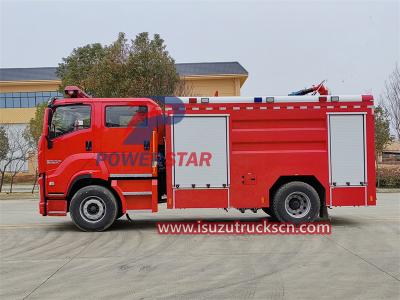

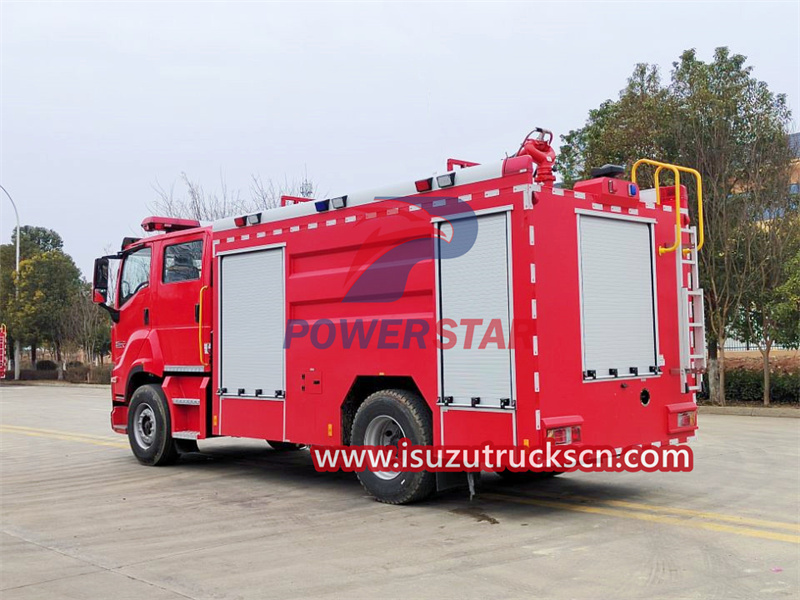

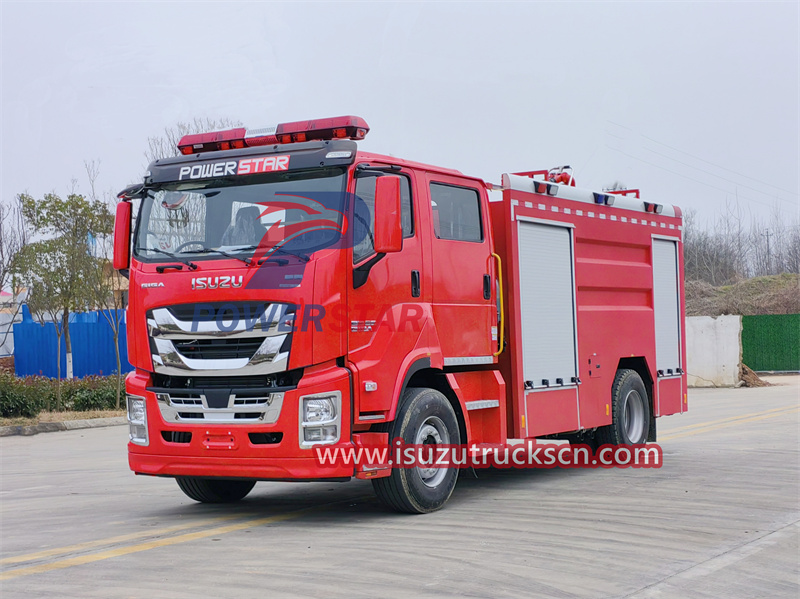

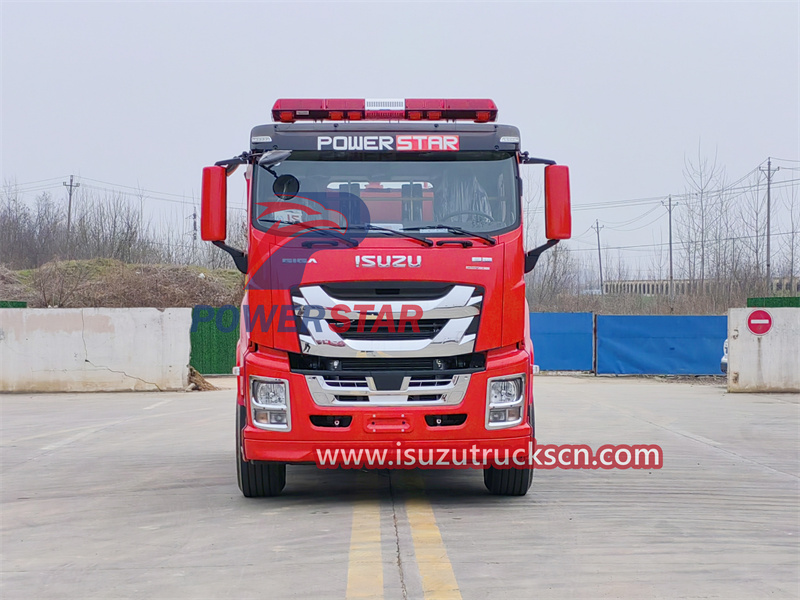

Isuzu GIGA 8000L fire fighting truck

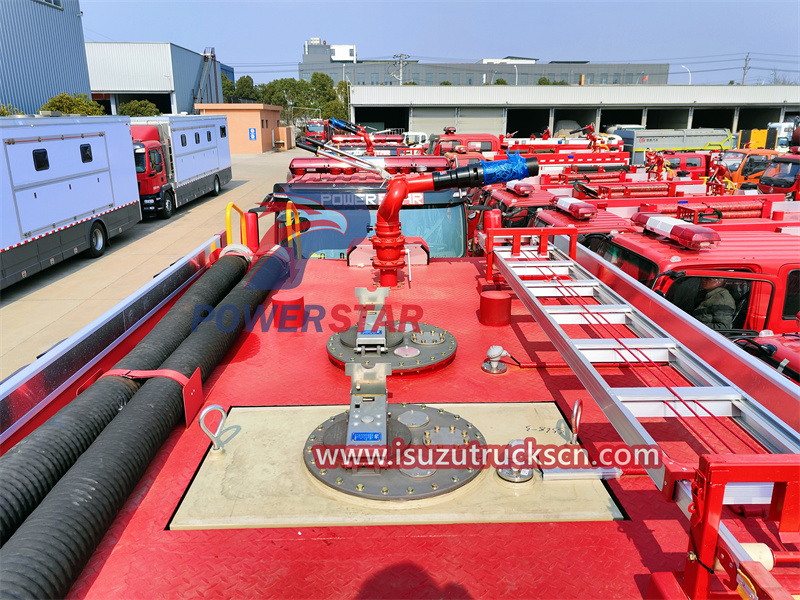

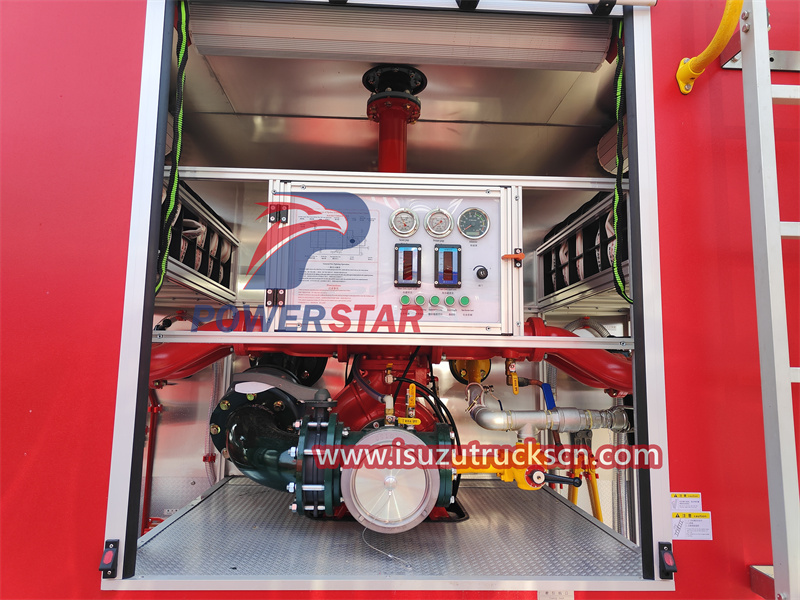

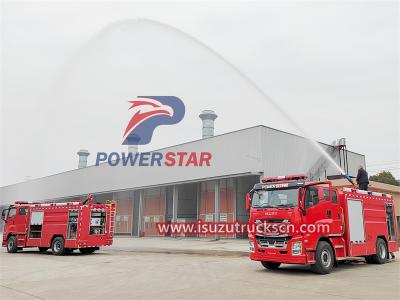

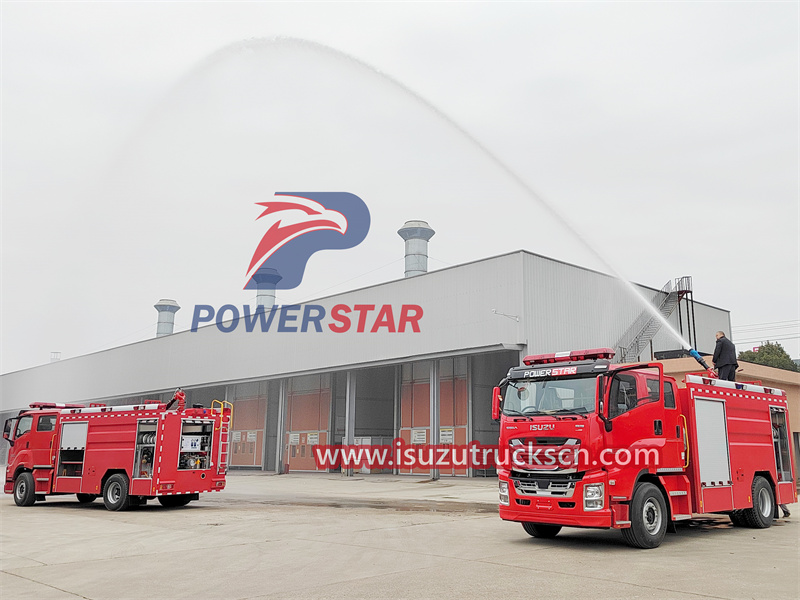

Isuzu GIGA 8000L fire fighting truck is equipped with an 8000-liter water tank and a 2000-liter foam tank, which are made of anti-rust treated carbon steel plates and stainless steel plates respectively, ensuring the durability and corrosion resistance of the tanks. The fire pump is model CB10/60, which has a pressure of 1.0Mpa, a water flow rate of 60L/S and a foam flow rate of 30L/S. The water absorption depth can reach more than 7 meters, and the water absorption time does not exceed 35 seconds. In addition, the Isuzu GIGA fire fighting truck is also equipped with a PL32 fire cannon with a water shooting range of more than 48 meters and a foam shooting range of more than 55 meters. The working pressure does not exceed 1.0Mpa and the horizontal rotation angle is 360 degrees.

This Isuzu GIGA 8000L fire fighting truck not only has powerful power and excellent driving performance, but is also specially designed to handle various fire and emergency rescue tasks. It is equipped with large-capacity water tanks and foam tanks, as well as high-efficiency fire pumps and fire cannons, allowing firefighters to quickly launch fire extinguishing and rescue operations at the first time. Whether it is a complex situation such as urban fire, forest fire or chemical leakage, the Isuzu GIGA fire water truck can provide comprehensive and professional firefighting support to protect people's lives and property to the greatest extent. Therefore, this Isuzu GIGA fire water tank truck is an indispensable and important equipment for the fire department and a key force in ensuring social security and stability.

Specification Data:

.

Here are five notable features of this Isuzu GIGA 8000L fire fighting truck:

1. High-efficiency power and environmental protection coexist: Equipped with the ISUZU brand 6UZ1-TCG61 diesel engine, it not only provides strong power of up to 380 horsepower, but also complies with EU 6 emission standards, achieving the perfect combination of power and environmental protection.

2. Excellent driving and controllability: Using a 4X2 left-hand drive layout and a FAST 12-speed forward and 2-speed reverse manual transmission, and equipped with a hydraulic steering assist system, the fire truck can show superiority on urban roads or complex terrains driving and handling performance.

3. Large-capacity and multi-functional firefighting equipment: The large-capacity design of 8000-liter water tank and 2000-liter foam tank, combined with CB10/60 high-efficiency fire pump and PL32 fire cannon, enables the vehicle to respond to various types of fires and achieve rapid firefighting , effective fire fighting and rescue.

4. Advanced safety braking system: It adopts multiple braking systems such as compressed air braking, spring energy storage parking brake and engine exhaust auxiliary braking to ensure safe and reliable parking in various emergency situations.

5. Eye-catching appearance and practical design: The entire vehicle is painted in red frosted fire-fighting paint, which not only complies with fire protection regulations, but is also easy to identify at a fire scene. At the same time, the extended double cab design and comfortable internal configuration provide a good working environment for firefighters and embody the practical and humanized design concepts.
