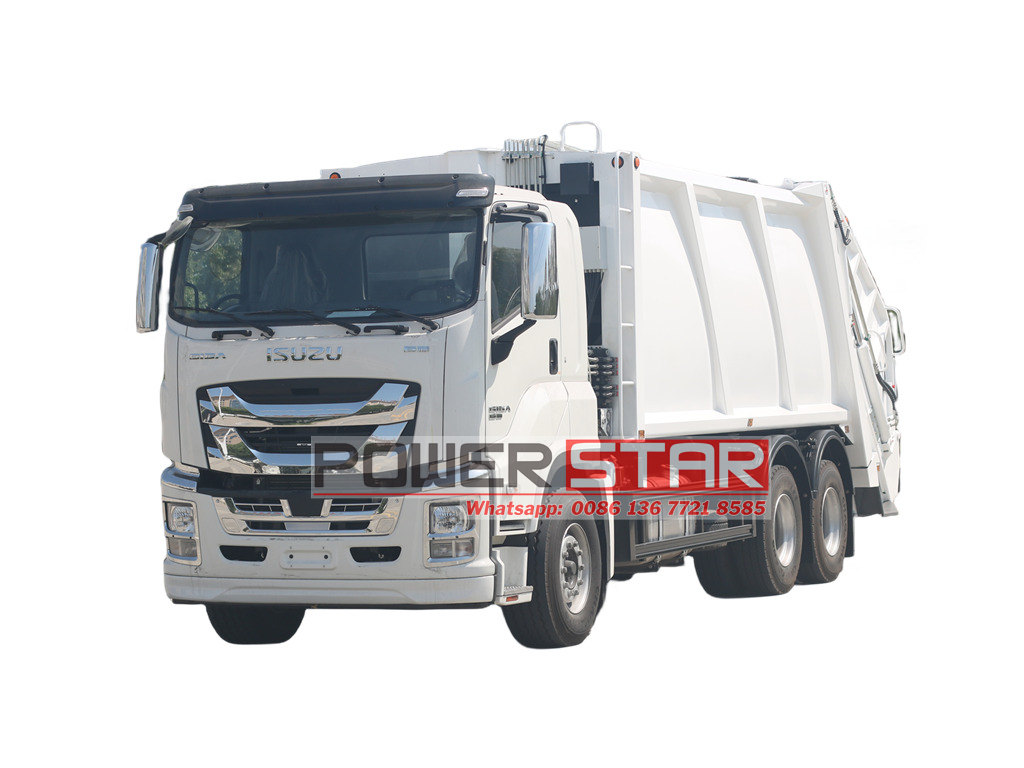

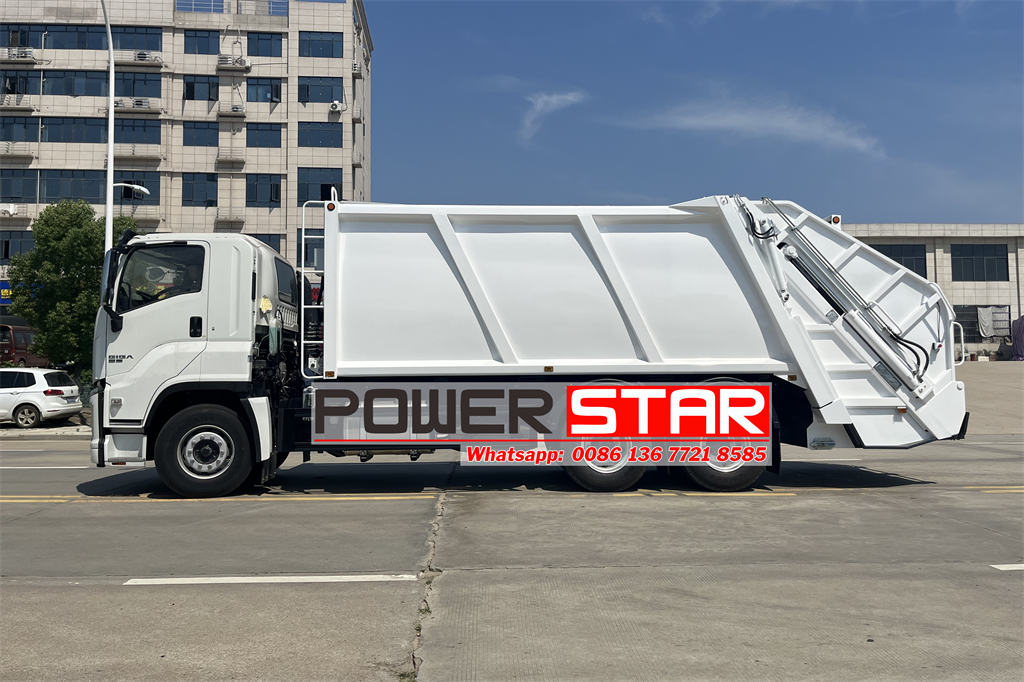

The ISUZU GIGA Back Loding Garbage Truck is an efficient and environmentally friendly garbage truck, equipped with ISUZU 6UZ1-TCG61 engine, boasting a maximum power of 279kW and a maximum torque of 1800N·m, paired with a 12-speed manual transmission. The vehicle has a gross weight of 25,000kg, a garbage compactor capacity of 20m³, a compression ratio of 2.5. The vehicle is equipped with a CAN bus control system, supporting both automatic and manual operation for convenient handling. This truck is suitable for efficient urban garbage disposal, combining strong power, excellent environmental performance, and intelligent operation.
Manufacturer:
Powerstar TrucksWork capacity:
20 CBMDimension:
10200 x 2550 x 3450mmCabin type:
Isuzu GIGA VC61 cabin,one and half rowWheelbase:
4600+1370mmEngine power:
380 HPEngine type:
6UZ1-TCG61Axle drive:
6×4Gear box:
FAST 12-speed, manualRemarks:

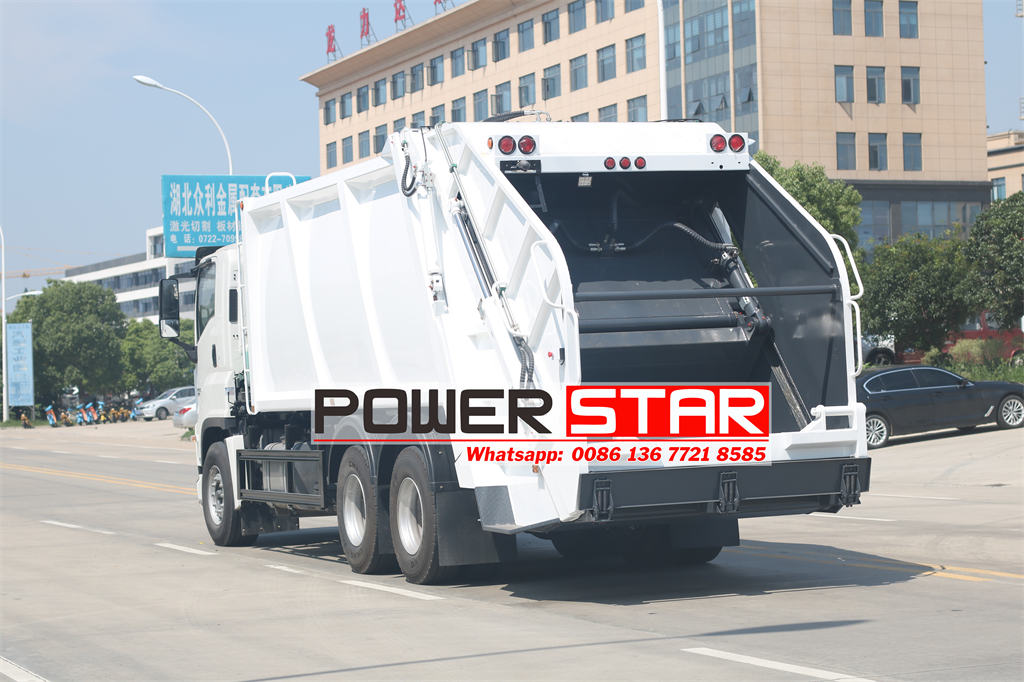

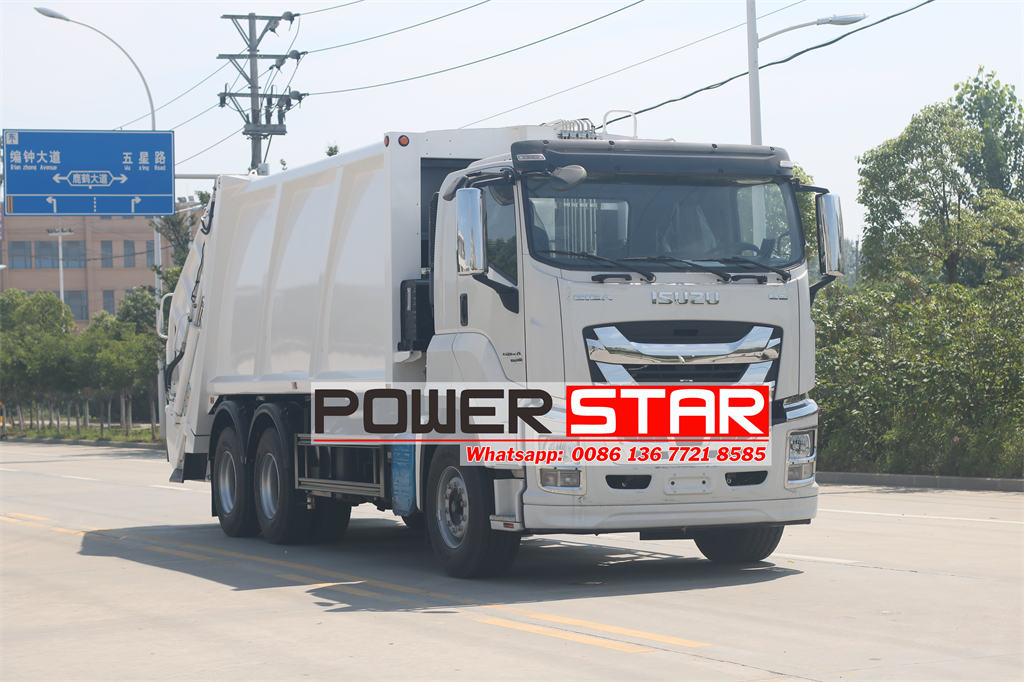

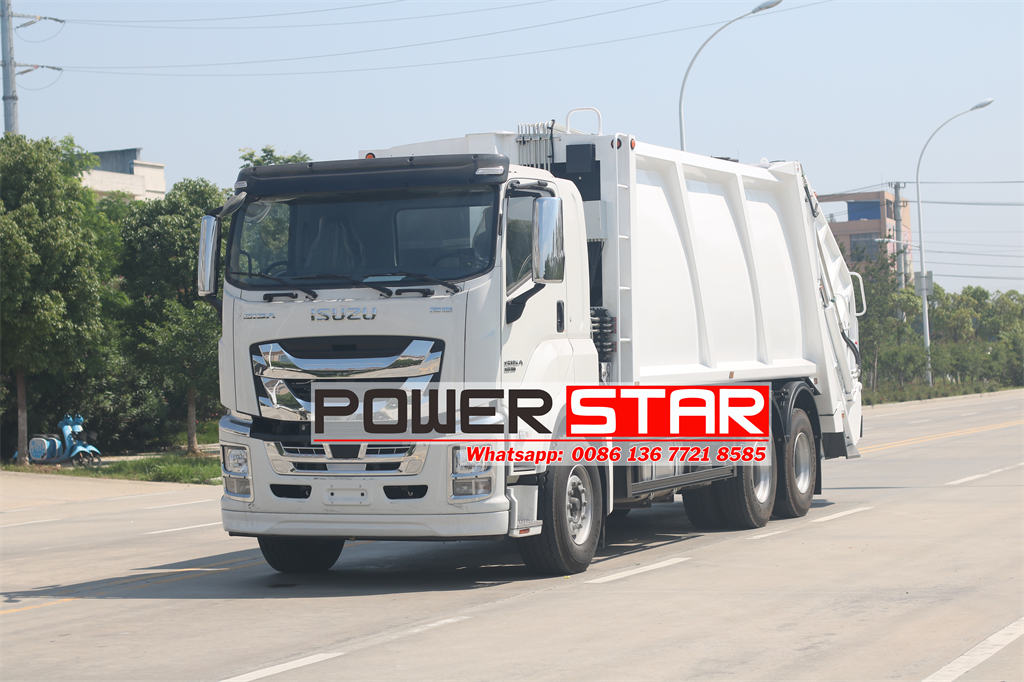

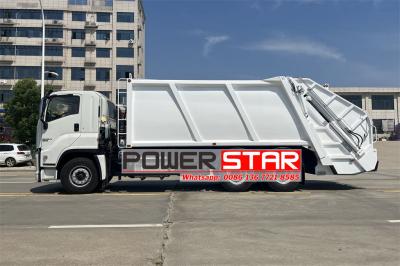

Custom desigh, reinforced garbage compactor bodyThe ISUZU GIGA 20CBM Rear Loader PT5256ZYS is a high-efficiency, environmentally friendly garbage truck specifically designed for urban waste management, integrating powerful dynamics, stable performance, and intelligent operation. This model is equipped with a 6UZ1-TCG61 engine that complies with the Euro VI emission standard, featuring a displacement of 10 liters, a maximum power of 279 kW (380 hp), and a maximum torque of 1800 Nm. Coupled with a FAST 12-speed manual transmission, it delivers strong and smooth power output, effortlessly handling various complex road conditions. The vehicle adopts a 6×4 drive configuration, with a gross weight of 25,000 kg and a curb weight of 10,700 kg, providing excellent load-bearing capacity.

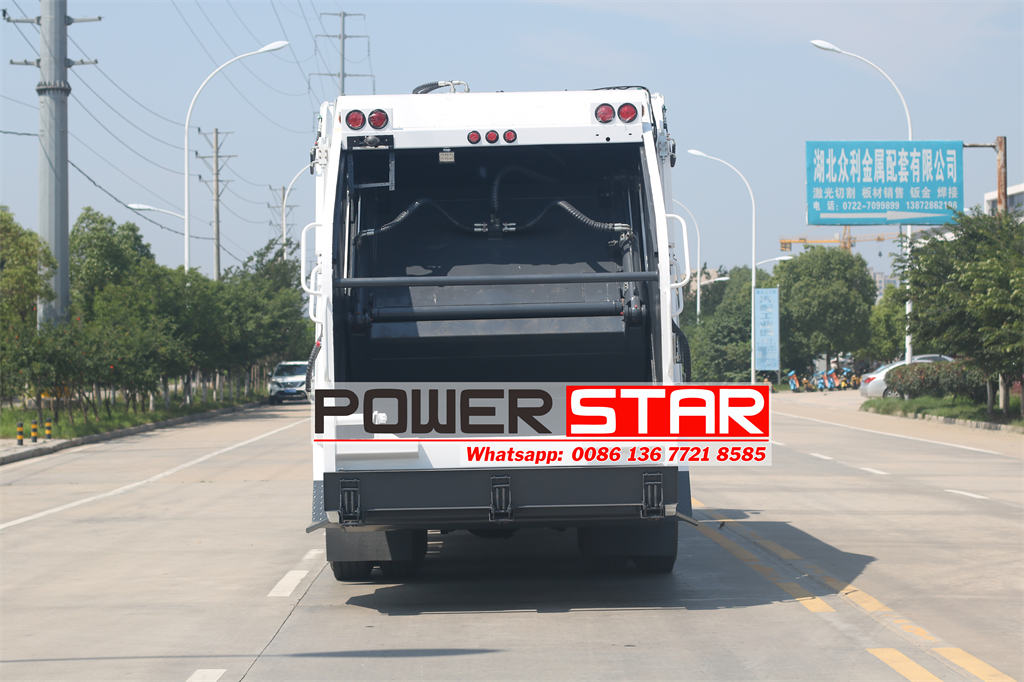

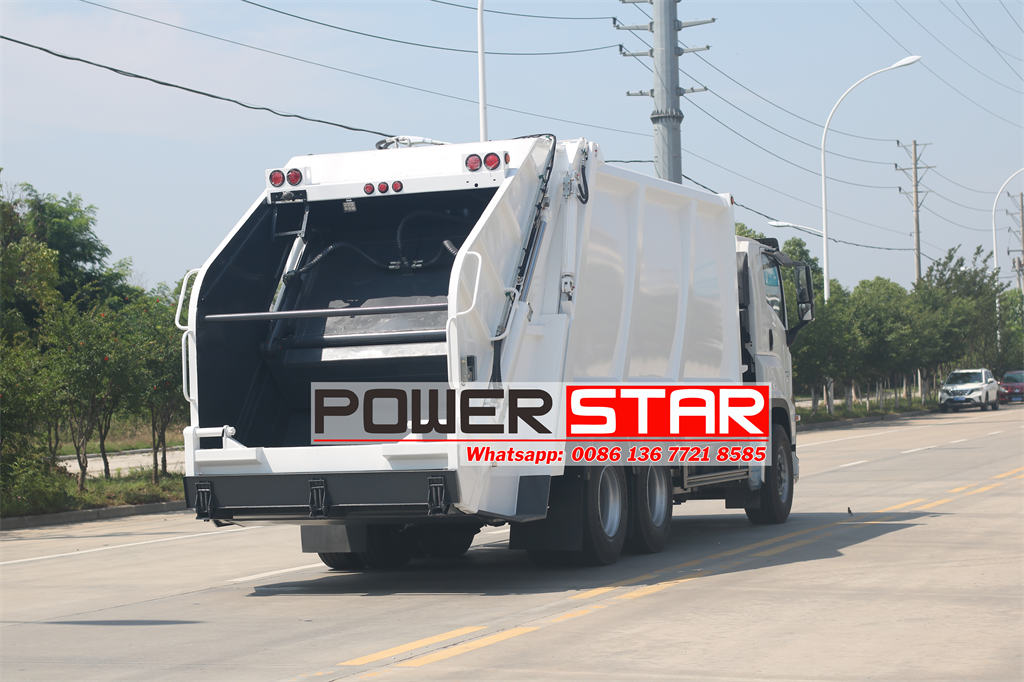

The upper structure is a core highlight of the ISUZU GIGA Back Loading Garbage Truck. Its garbage compactor has a capacity of 20 cubic meters and is made of T420 special steel material, with a wall thickness of 5 mm and a floor thickness of 6 mm, ensuring a sturdy and durable structure. The tailgate has a capacity of 2 cubic meters, a compression ratio of 2.5, a compression density of 0.6-0.8 tons per cubic meter, a compression cycle time of ≤30 seconds, and a garbage unloading time of ≤60 seconds, significantly enhancing waste processing efficiency. The hydraulic system operates at a working pressure of 20 MPa and supports both automatic and manual operation modes to adapt to different working conditions. The ISUZU GIGA refuse compactor truck is also equipped with high quality hydraulic gear pumps, multi-way valves, hydraulic cylinders, bi-directional balance valves, and other hydraulic components, ensuring the stability and reliability of the system. Furthermore, the truck is equipped with two sewage tanks, located on the side of the subframe and at the bottom of the tailgate, effectively preventing sewage leakage.
● China best Isuzu waste compactor truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● Prompt delivery, any order is welcome.
Product Specifications
| ISUZU GIGA GARBAGE COMPACTOR TRUCK SPECIFICATIONS | |||
|
Vehicle Model |
PT5256ZYS |
||
|
Basic Vehicle Parameters |
Drive Type |
6×4 |
|
|
Total Weight (kg) |
25000 |
||
|
Curb Weight(kg) |
10700kg |
||
|
Overall Dimensions |
Length (mm) |
10200 |
|
|
Width (mm) |
2550 |
||
|
Height (mm) |
3450 |
||
|
Wheelbase (mm) |
4600+1370 |
||
|
Performance Parameters |
Maximum Speed (km/h) |
89 |
|
|
Maximum Climbing Grade (°) |
30% |
||
|
Chassis Parameters |
Engine |
Emission Standard |
Euro VI |
|
Model |
6UZ1-TCG61 |
||
|
Displacement(L) |
10 |
||
|
Max. Power (kW/HP) |
279kW/380HP |
||
|
Max. torque (N.m) |
1800 |
||
|
Cab |
Type |
Single Row Flat roof Cab |
|
|
Model |
ISUZU GIGA VC61 |
||
|
Standard Configuration |

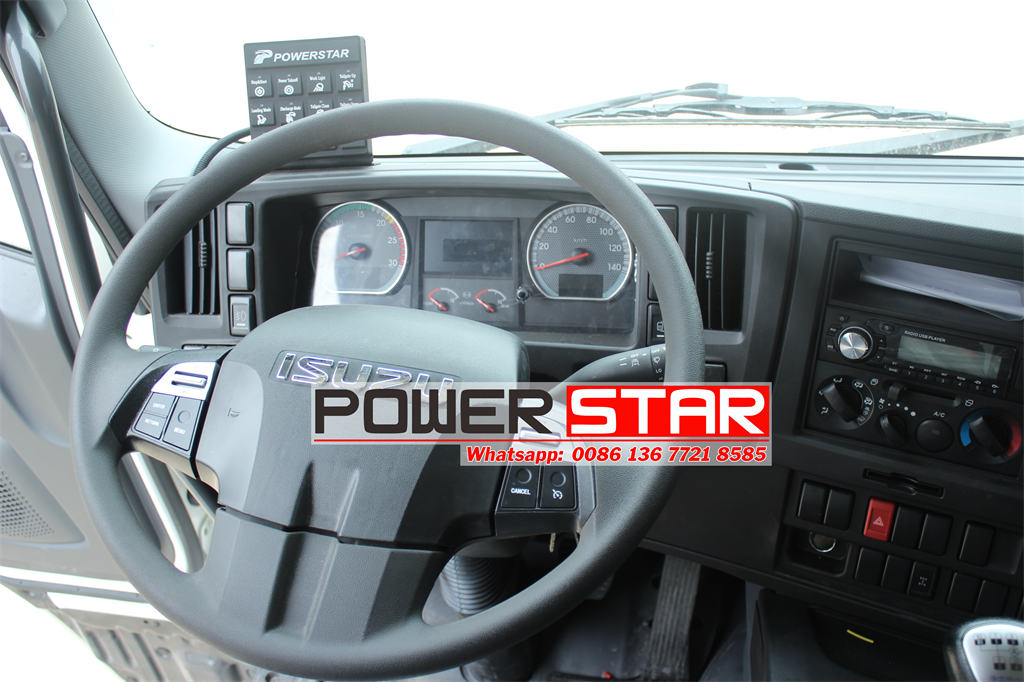

Bluetooth Radio, Laminated Glass, Electric Doors And Windows, Central Locking, Wide Bumper, Roof Box, Multi-Function Steering Wheel, External Sun Visor |
||
|
Gearbox |
Gearbox Type |
FAST, Manual, 12 Gears |
|
|
Front Axle |
Type |
Drum Brake |
|
|
Loading Weight (Kg) |
7000 |
||
|
Rear Axle |
Type |
Drum Brake |
|
|
Loadable Weight (Kg) |
18000 |
||
|
Leaf Spring |
Number of pieces |
7/10 |
|
|
Tire |
Type |
Radial tire |
|
|
Quantity |
6+1 |
||
|
Model |
12R22.5 |
||
|
Steering System |
Type |
Hydraulic Power Steering System |
|
|
Braking System |
Brake Type |
Drum Brakes With ABS Anti-Lock Braking System |
|
|
Service Brake System Type |
Dual Circuit Air Brake |
||
|
Parking Brake System Type |
Spring Brake |
||
|
Parking Control Type |
Manual Brake Operation |
||
|
Electrical System |
System Voltage |
24V |
|
|
Battery |
100AH Dual Battery |
||
|
Upper Body Parameters |
Compactor |
Body Volume (M³) |
20 |
|
Material |
T420 special steel |
||
|
Material Thickness (mm) |
Wall Thickness 5mm |
||
|
Tailgate Volume (M³) |
2 |
||
|
Compaction Ratio |
2.5 |
||
|
Compression Density (T/M³) |
0.6-0.8 |
||
|
Compression Cycle Time (S) |
≤30 |
||
|
Trash Unloading Time (S) |
≤60 |
||
|
Hydraulic system pressure (Mpa) |
20 |
||
|
Operation mode |
Automatic+manual |
||
|
Other Configurations |

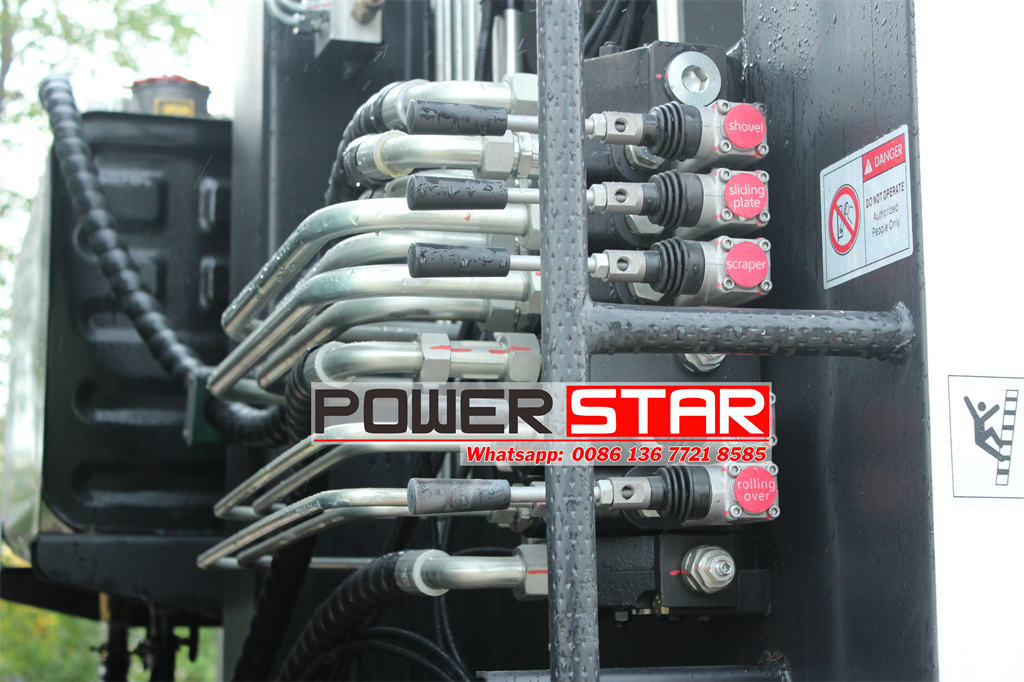

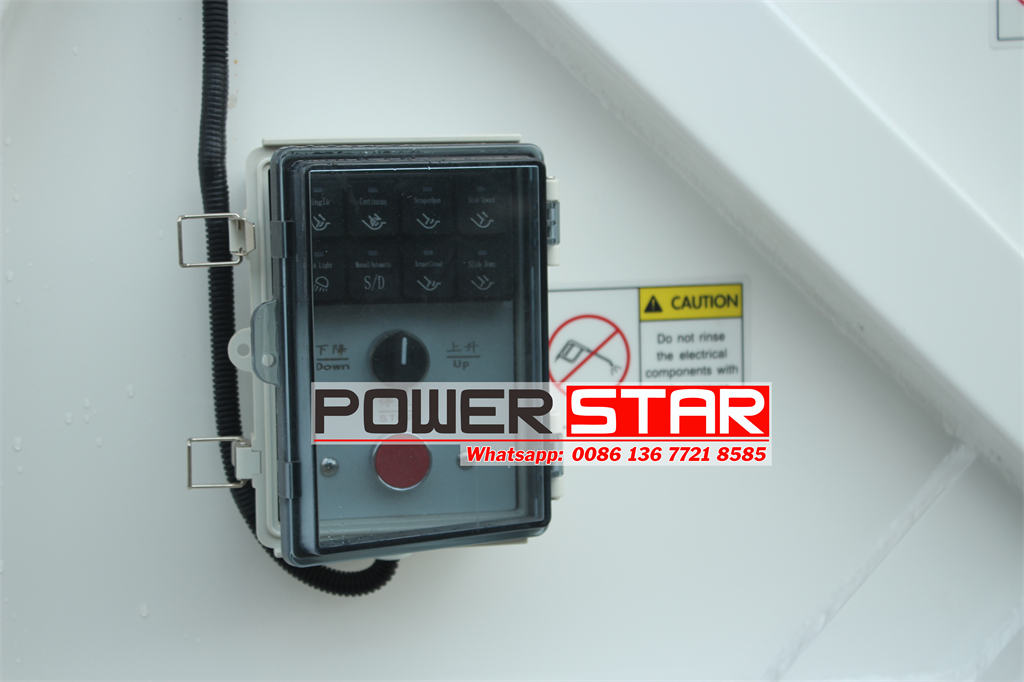

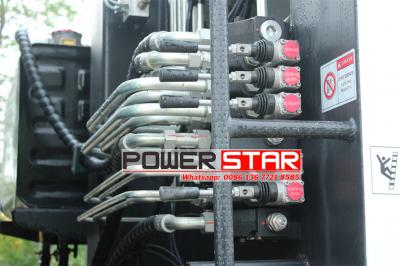

Hydraulic gear pump, Multi-way valve, Hydraulic cylinders, Back pressure valve, Two-way balance valve, CAN-bus control system (with one-button operation and manual operation), Two operation boxes (One inside the cab and one at side of the tailgate), Working lights, Two sewage tanks ( one sewage tank on the side of the subframe, one at the bottom of the tailgate to ensure that there is no sewage leakage) |
||

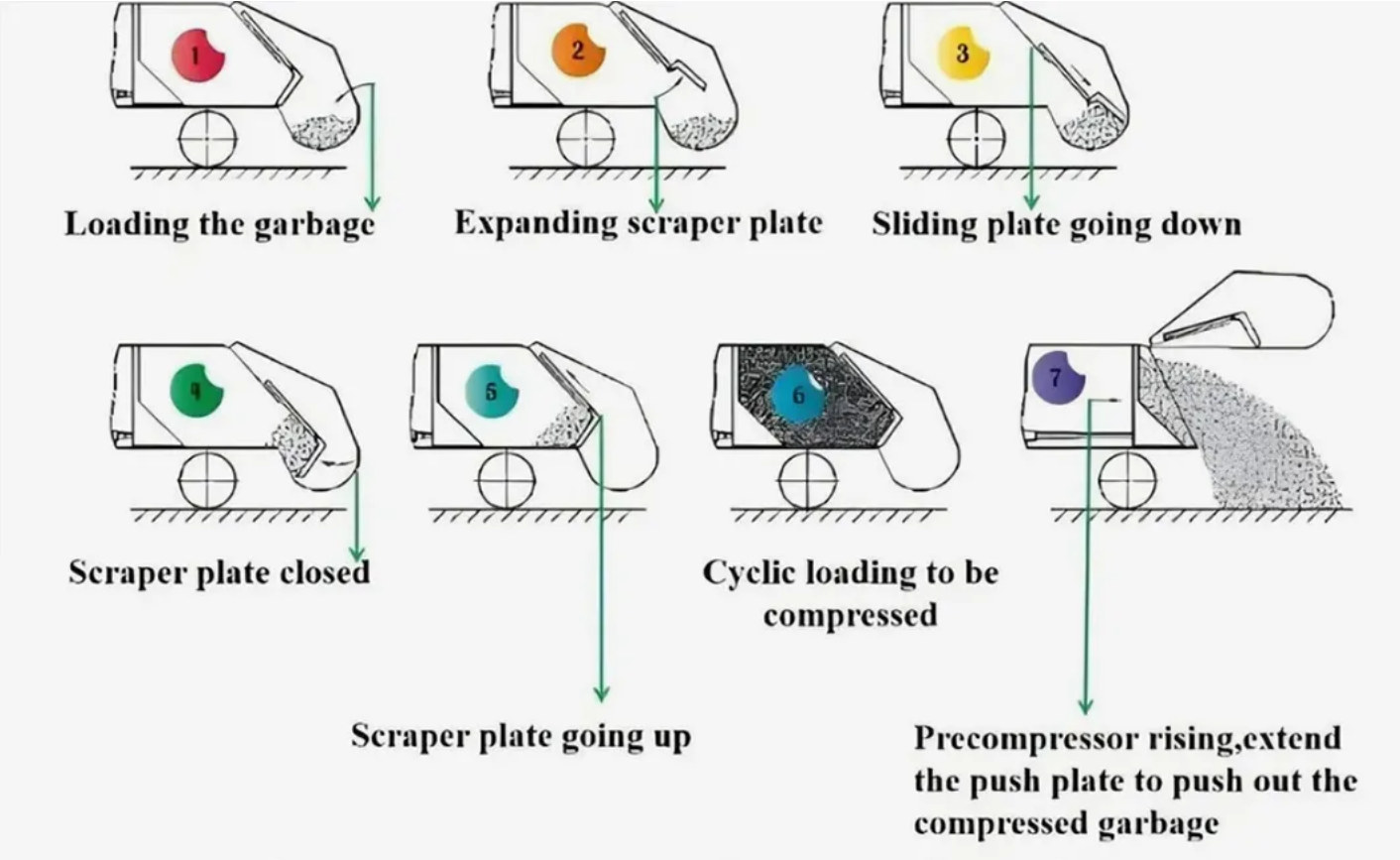

How Does the ISUZU GIGA Garbage Compactor Truck Work?
The garbage compactor truck is operated by sanitation workers to collect waste along neighborhood streets. The trash is collected and loaded into a hopper at the rear of the vehicle. Hydraulic cylinders drive the compacting mechanism, which compresses the trash from the hopper and transfers it into the main body of the truck. This process significantly increases the vehicle's loading capacity and improves the efficiency of waste collection and transportation.

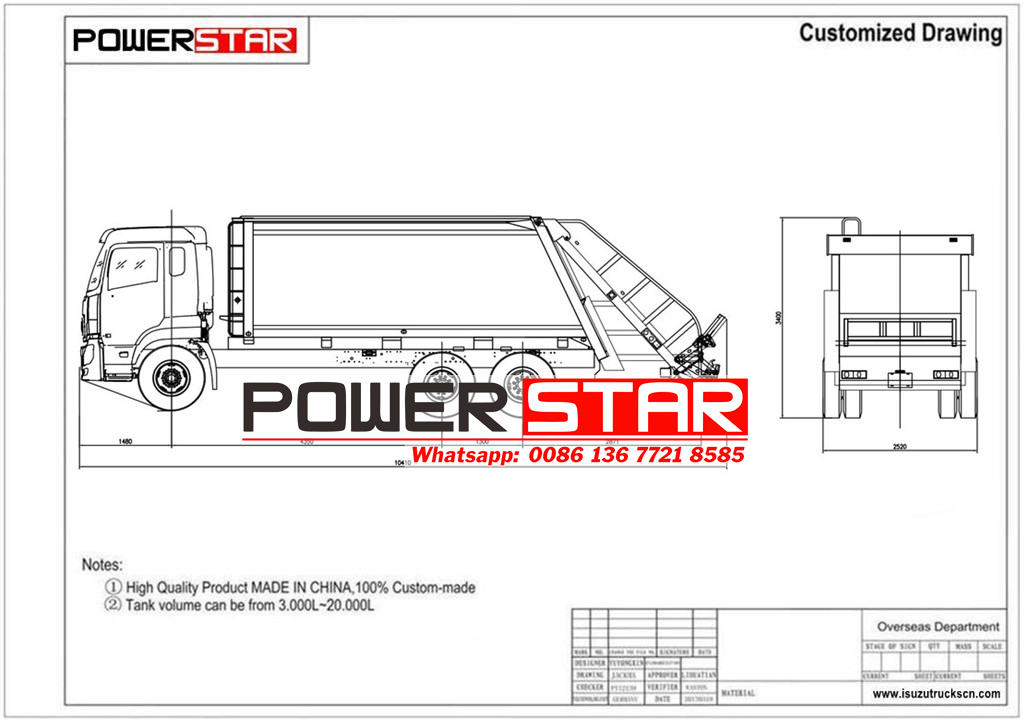

Technical Drawing
Product Features
Foldable foot pedals were designed at the rear of the tailgate according to customer requirements, allowing operators to conveniently throw garbage directly into the loader.

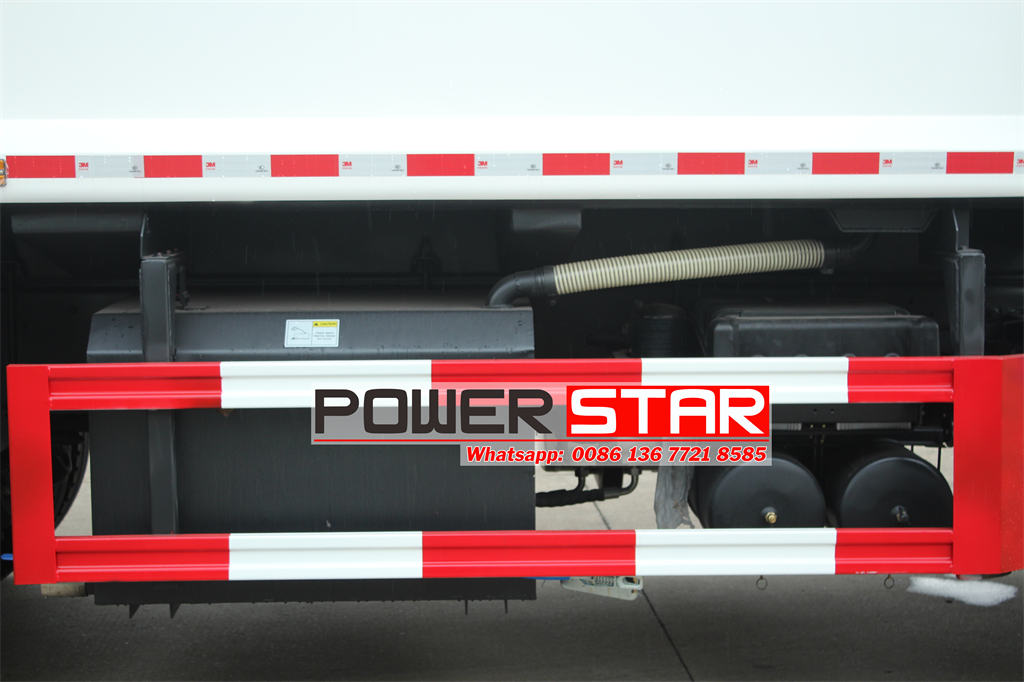

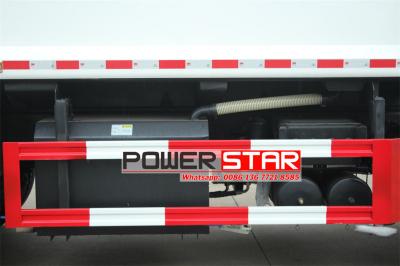

Two sewage tanks are located on the side of the frame and the lower part of the tailgate, making full use of the vehicle's space, with a maximum sewage collection capacity of up to 850 liters.
