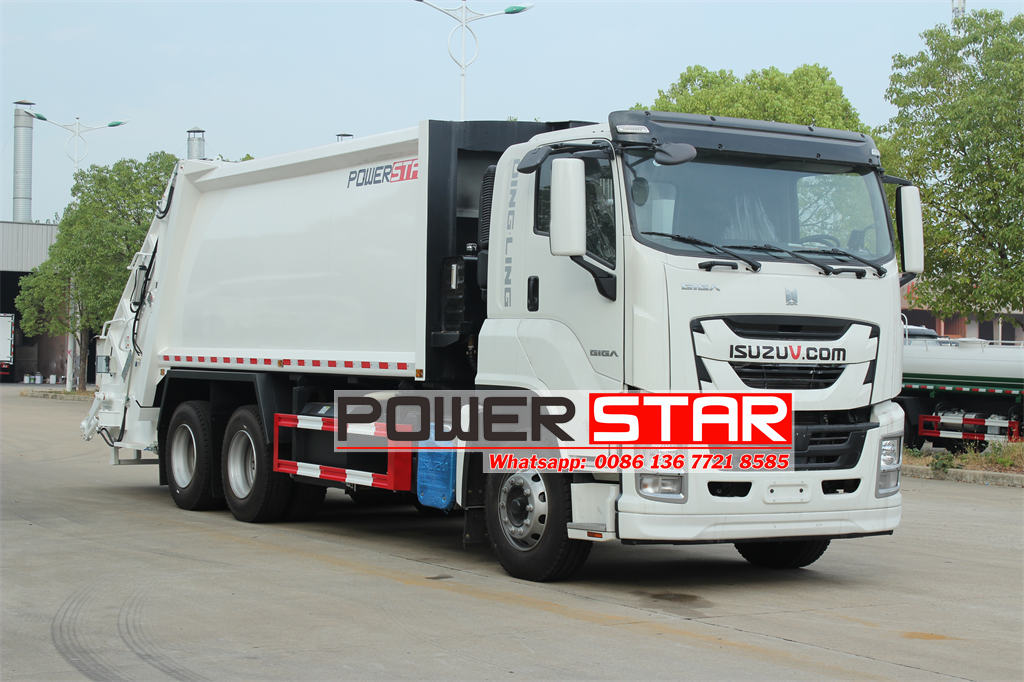

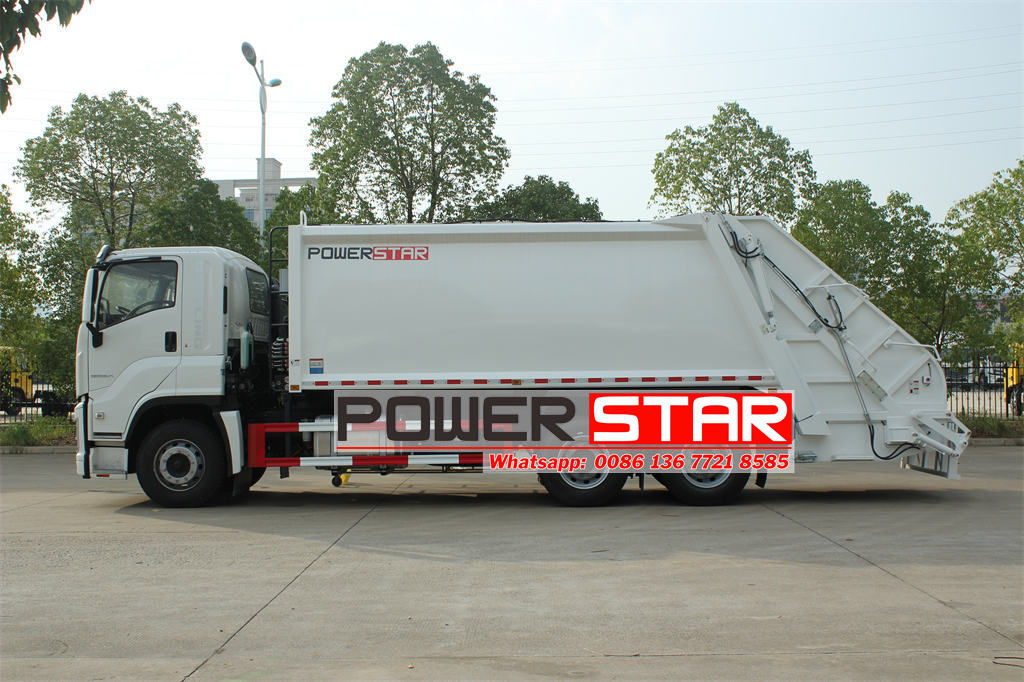

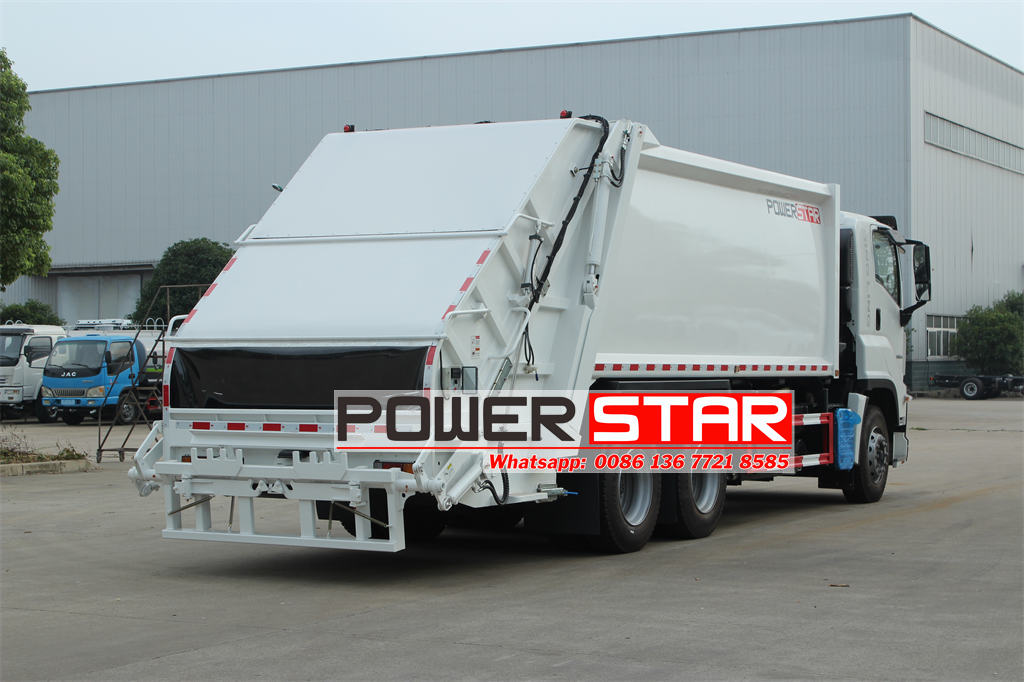

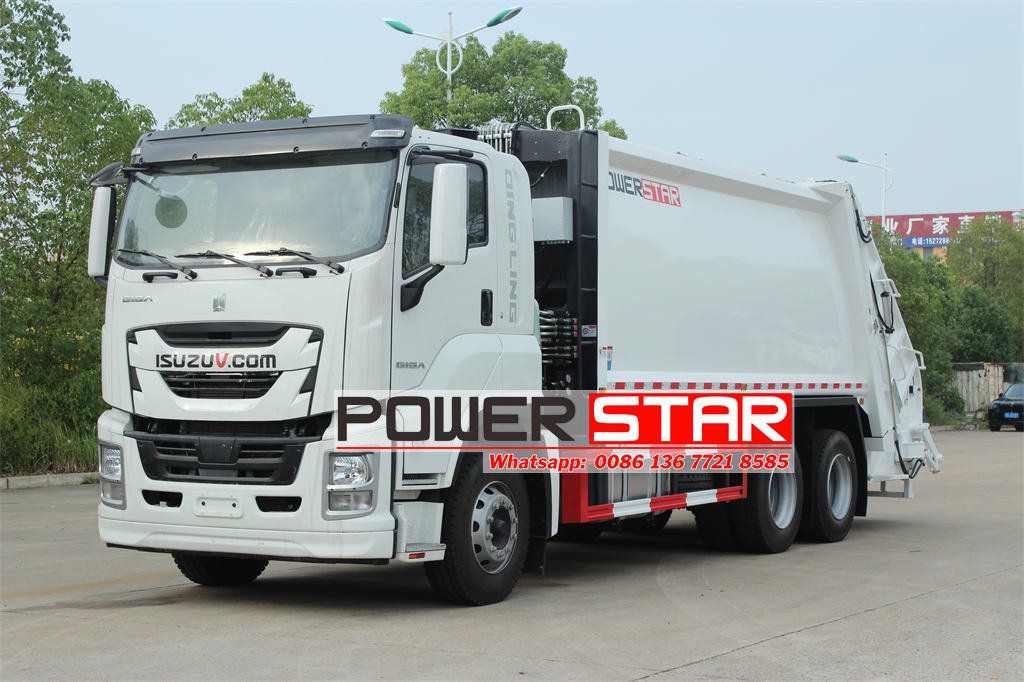

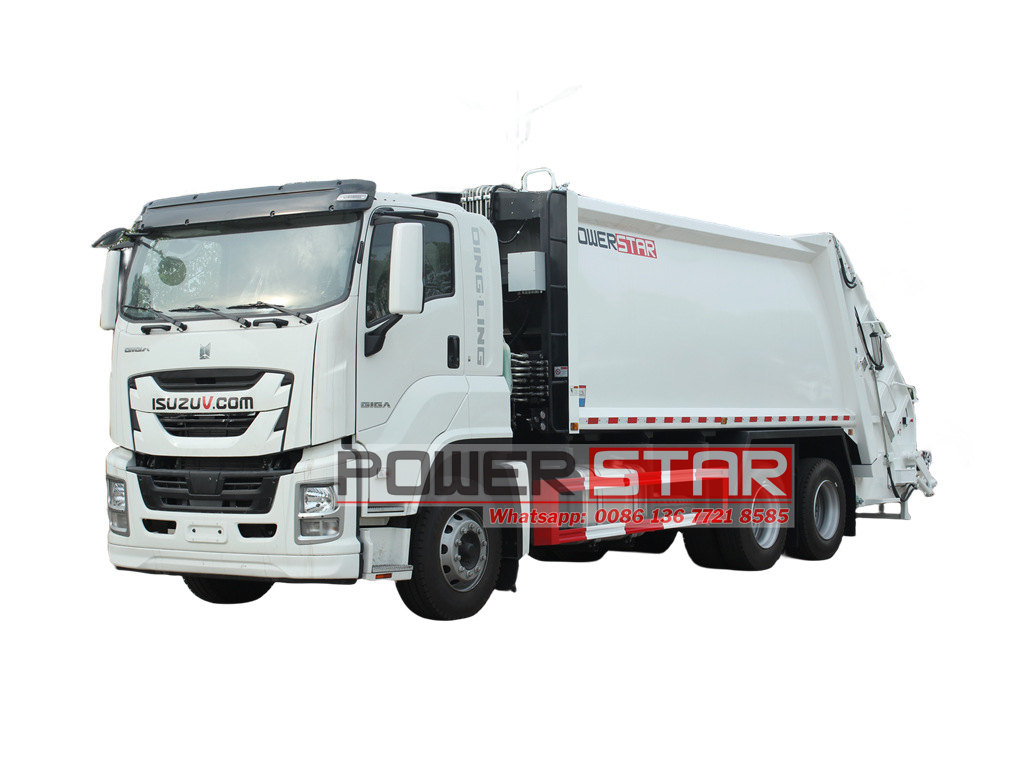

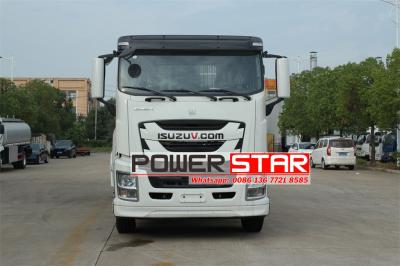

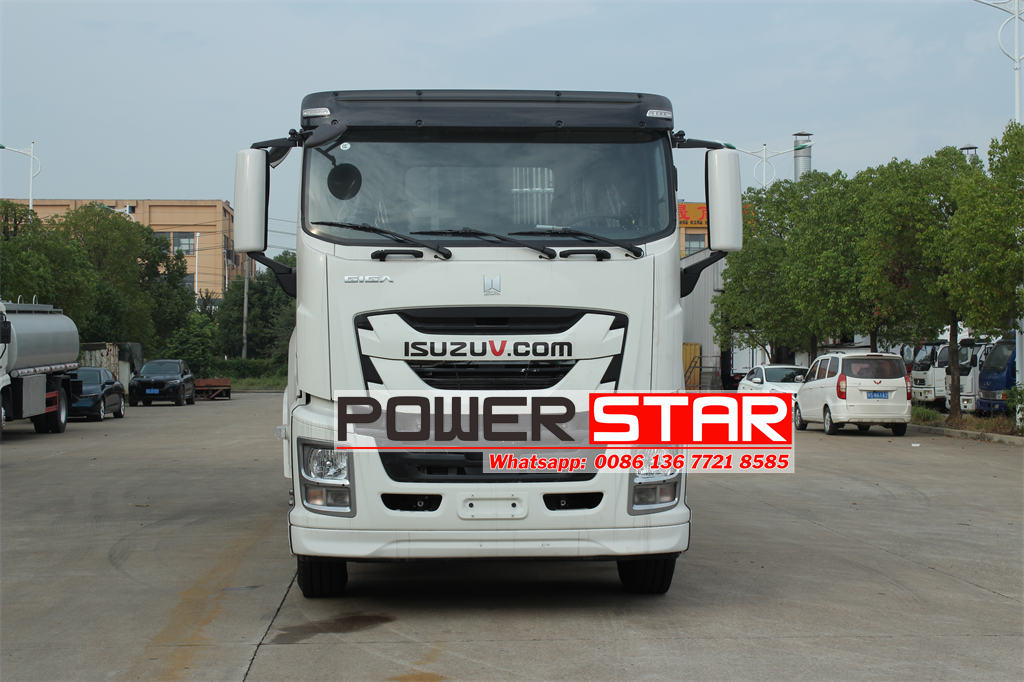

The ISUZU GIGA 26 yard Compactor Garbage Truck is a specialized vehicle modified based on the ISUZU GIGA VC61 chassis, equipped with efficient garbage collection, compression, and transportation functions. With its outstanding performance, reliable quality, and user-friendly design, this model plays a vital role in urban sanitation, waste management, and other fields. Its effective compression body volume of 20 cubic meters can meet the demands of large-scale garbage collection, significantly enhancing the efficiency of waste disposal.
Manufacturer:
Powerstar TrucksWork capacity:
20 CBMDimension:
11200 x 2550 × 3380mmCabin type:
ISUZU GIGA VC61 cab,2 seats+one sleeperWheelbase:
4600+1370mmEngine power:
420 HPEngine type:
6WG1-TCG60Axle drive:
6×4Gear box:
FAST 12-speed, manualRemarks:
Large volume compactor bodyThe ISUZU GIGA 26 yard heavy duty rear loader is a high-performance sanitation vehicle built on the Isuzu GIGA VC61 chassis, specially designed for the collection, compression, and transportation of municipal household waste. The truck is equipped with an ISUZU 6WG1-TCG60 engine, boasting a maximum power output of 308 kW/420HP and a displacement of 15,681ml, complying with Euro 6 emission standards. This ensures both powerful performance and environmental compliance. The transmission is a FAST 12JSDX model, featuring 12 forward gears and 2 reverse gears for smooth shifting and adaptability to various road conditions and operational requirements. The front axle can carry a load of 7,000 kg, while the rear axle (dual axles) can support 18,000 kg, ensuring the vehicle's load-carrying capacity and driving stability.

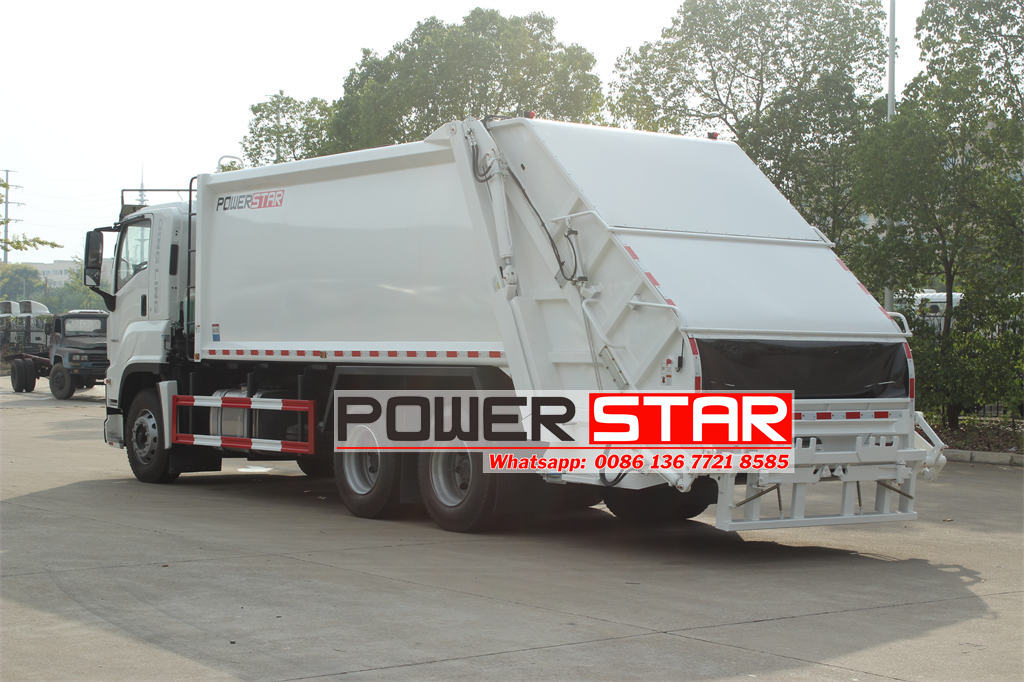

As an efficient sanitation vehicle, the core advantage of the ISUZU GIGA 20CBM Rear Loader Truck lies in the advanced technology and superior performance of its superstructure. The truck is equipped with a 20-cubic meter compactor body made of T420 special steel, with side walls 5mm thick and a floor 6mm thick, providing exceptional compression resistance and durability. The body's arcuate design not only facilitates even distribution of garbage but also enhances compression efficiency, achieving a compression ratio of 2.5 and significantly increasing the garbage loading capacity. The hydraulic system is a key component of the superstructure, operating at a pressure of 20 MPa, enabling rapid and efficient garbage compression and unloading. The loading cycle time is no more than 25 seconds, and the unloading time is no more than 40 seconds, demonstrating extremely high operational efficiency. Additionally, the ISUZU GIGA garbage compactor is equipped with dual sewage tanks of 200 liters and 600 liters, effectively collecting leachate from the garbage to prevent environmental pollution and further enhance its environmental performance.
● 30 years experience in waste compactor truck designing
● 50 units Isuzu rear loader trucks in stock
● Fast delivery time, quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu refuse compactor truck factory
Product Specifications
|
Chassis specifications |
||
|
Chassis Model |
QL1250U4S |
|
|
Drive type |
6×4 |
|
|
Wheel base (mm) |
4600+1370 |
|
|
Overall dimension (mm) |
11200x2550×3380 |
|
|
Gross vehicle weight (kg) |
25000 |
|
|
Curb weight(Kg) |
15440 |
|
|
Max. driving speed (km/h) |
105 |
|
|
Engine |
Model |
6WG1-TCG60 |
|
Max.output (kw/HP) |
308/420 |
|
|
Max.torque (N•m) |
2250 |
|
|
Speed@max.torque |
900~1300 rpm |
|
|
Displacement (ml) |
15681 |
|
|
Emission standard |
Euro 6 |
|
|
Gear box |
FAST 12JSDX, 12 forward gears &2 reverse gears |
|
|
Front axle load |
7000kg |
|
|
Rear axle load |
18000kg (double axles) |
|
|
Front wheel track |
2060 mm |
|
|
Rear wheel track |
1855/1855 mm |
|
|
Quantity of leaf springs |
7/10 |
|
|
Cabin |
||
|
Type |
ISUZU GIGA VC61 cab |
|
|
Standard configuration |
2 seats+one sleeper |
|
|
A/C |
||
|
Three-point safety belts |
||
|
Central lock, electric windows and doors |
||
|
Multifunction steering wheel |
||
|
Sunroof |
||
|
Others |
||
|
Aluminum alloy fuel tank |
Square-400L |
|
|
Type specification |
295/80R22.5 |
|
|
Number of tires |
10+1 |
|
|
Superstructure specifications |
||
|
Effective volume of compactor box |
20 CBM |
|
|
Compactor box shape |
arcuate |
|
|
Box material |
T420 special steel, sidewalls thickness 5mm, floor thickness 6mm |
|
|

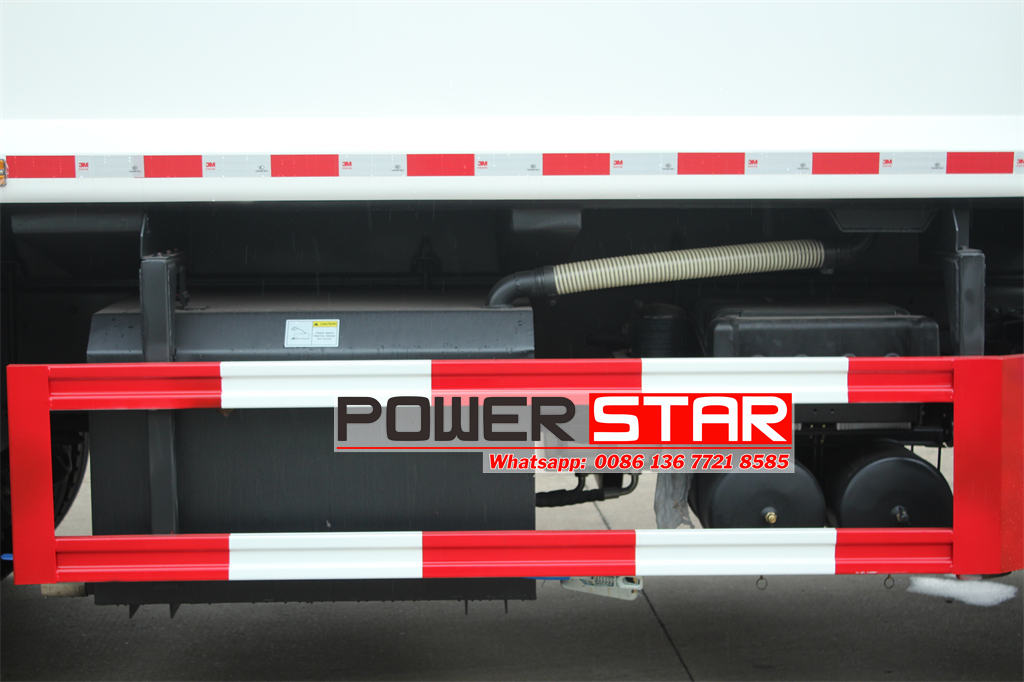

Sewage tank volume |
200+600 liters |
|
|
Compaction ratio |
≥2.5 |
|
|
Tailgate volume |
≥2 m³ |
|
|
Cycle time of loading |
≤25 s |
|
|
Cycle time of bin lifter |
≤10 s |
|
|
Time of discharge |
≤40 s |
|
|

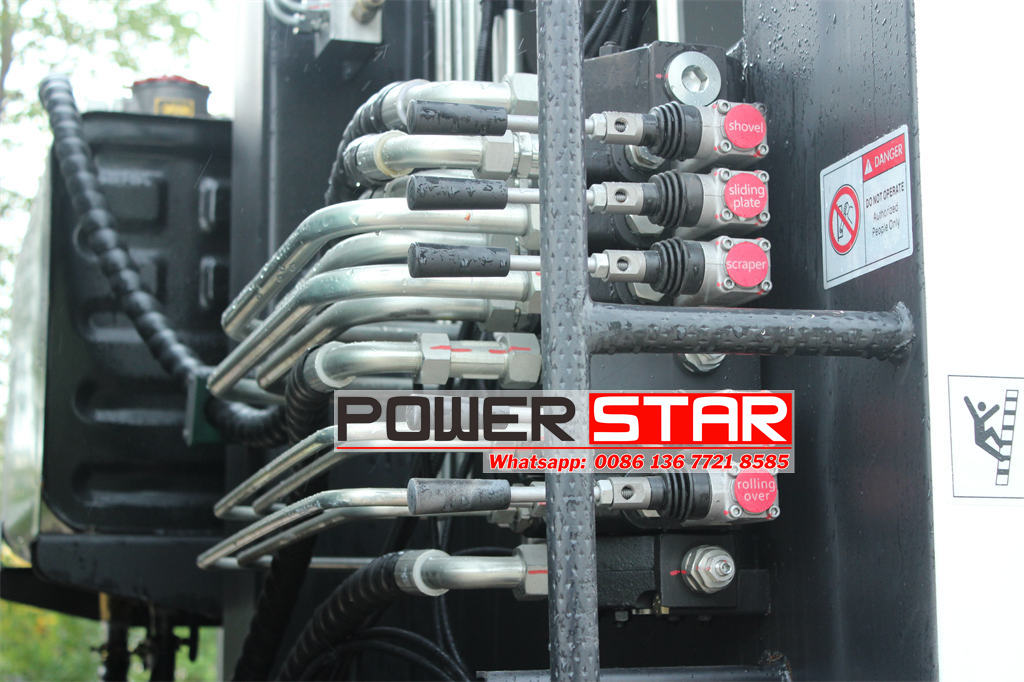

Hydraulic system pressure |
20 Mpa |
|
|

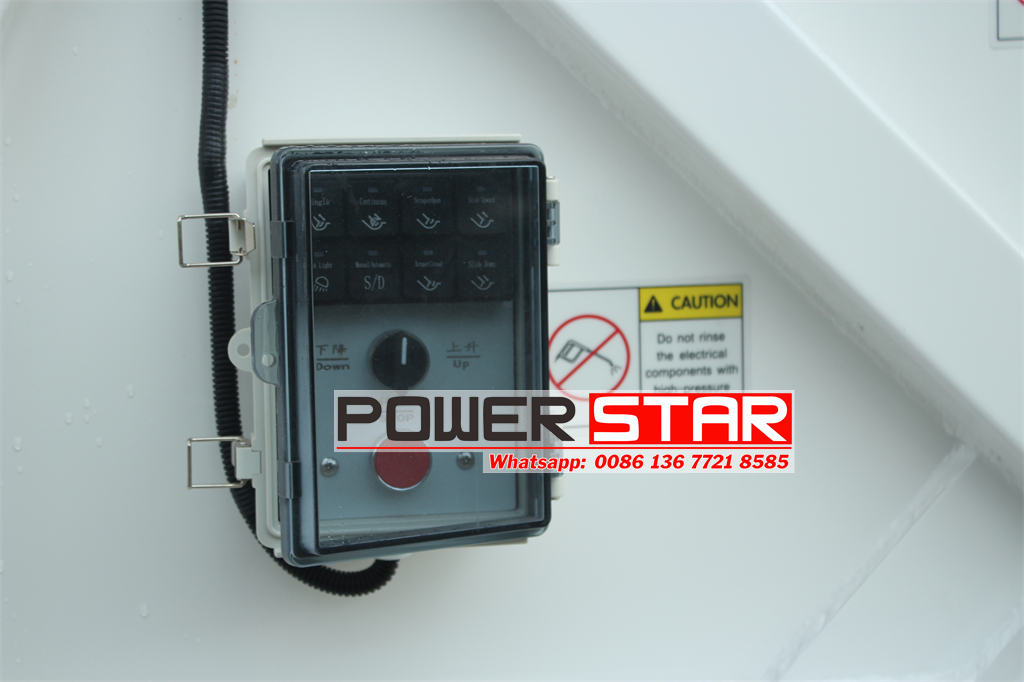

Control system |
CAN-bus |
|

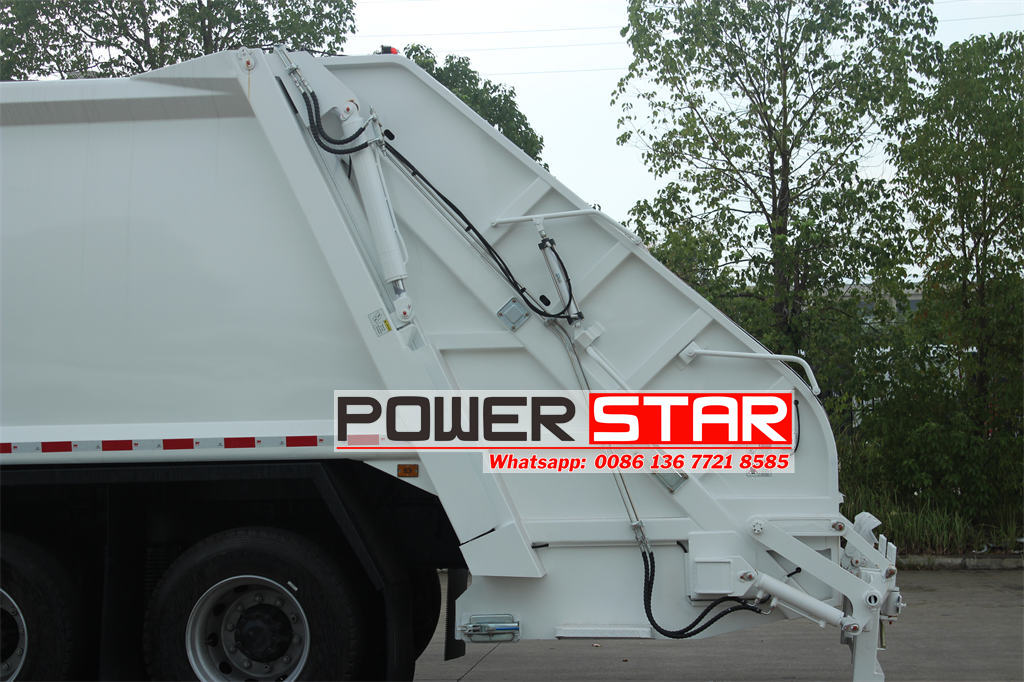

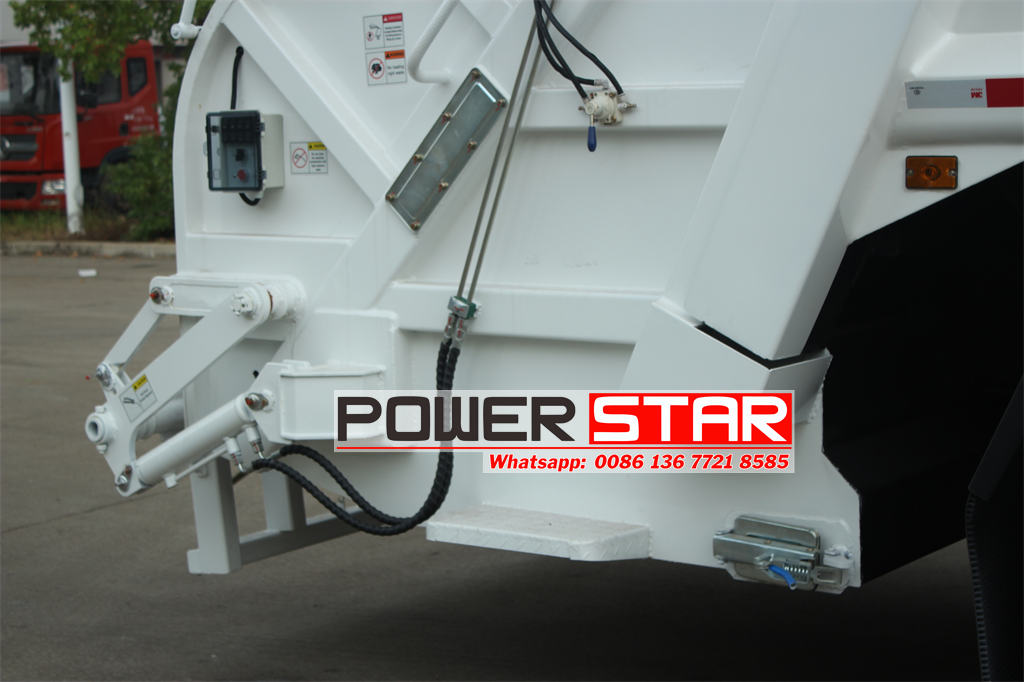

Structure and Function of Tailgate

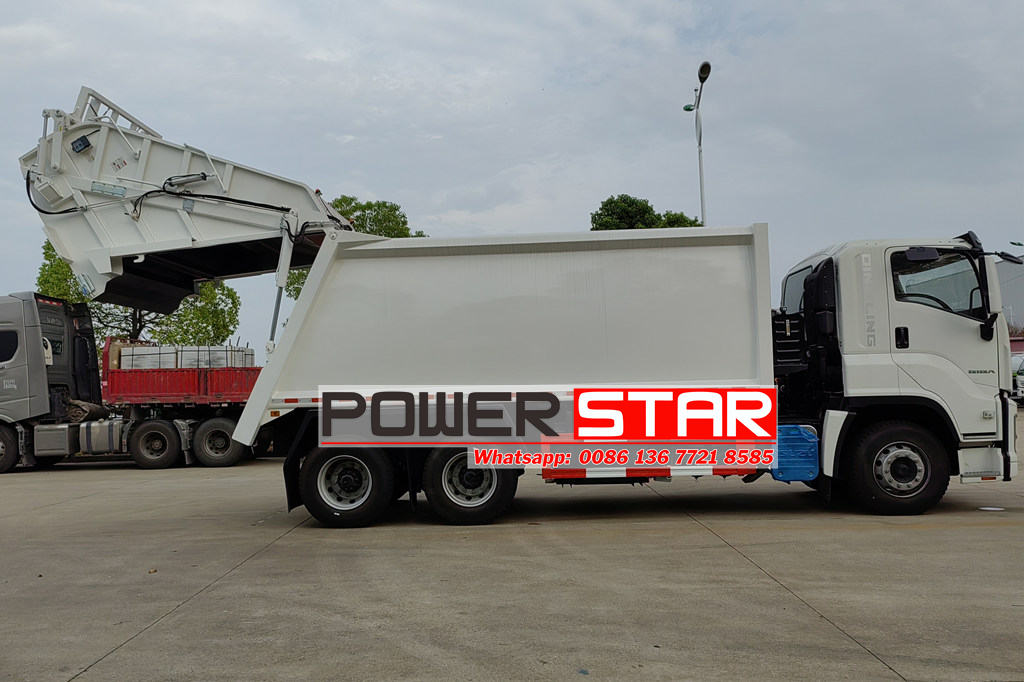

Lifting
The tailgate raise is achieved by two double acting hydraulic cylinders, which must be equipped with safety devices to prevent the tailgate from falling abruptly in the event of hydraulic failure or hose burst.
Hopper Capacity
The loose garbage capacity of loading hopper is around 2 m³ with the self cleaning ability during discharge.
Locking
Hydraulic locking by means of reverse action of two hydraulic tailgate lifting cylinders, which also prevents the leakage of the wastewater when the truck bounces due to road conditions.

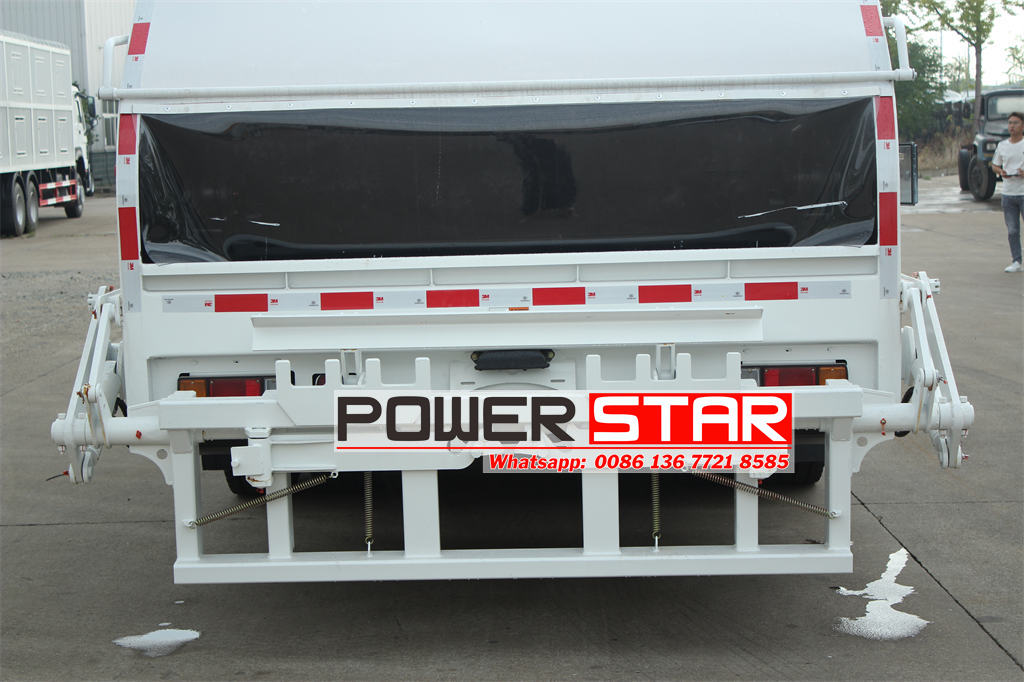

Bin Lifting Devices
500 kg lifting capacity to lift 1100 L (1.1 m³) plastic bin and 2 bins 240 lt.
