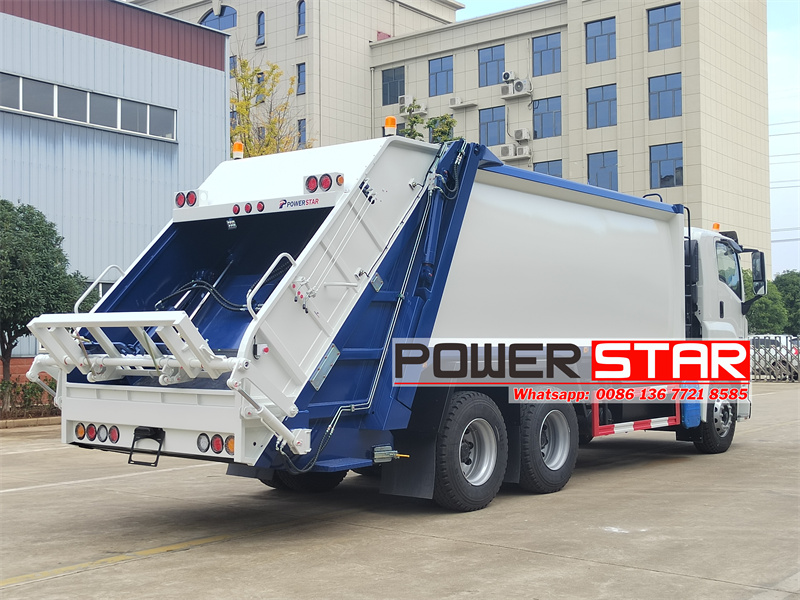

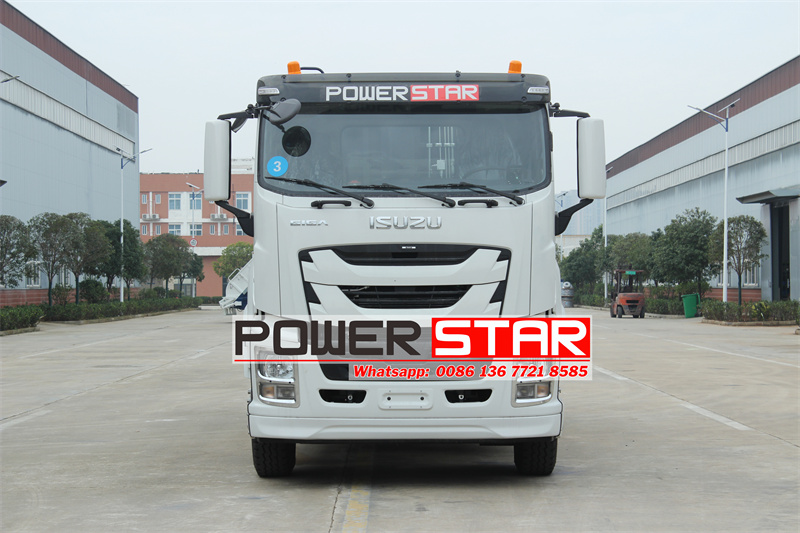

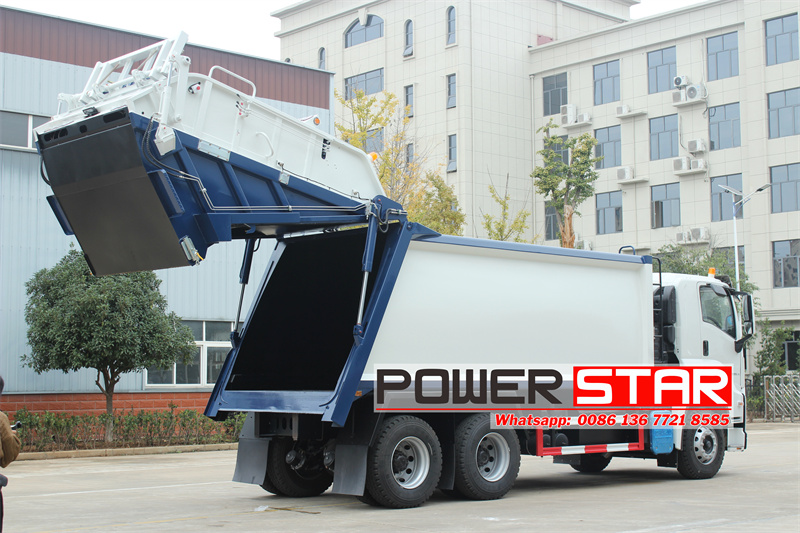

Isuzu GIGA 6X4 garbage compactor truck,Its chassis is the Isuzu GIGA VC61 6X4 cab chassis, with a wheelbase of 4600+1370mm, a 6UZ1-TCG61 380HP engine, a FAST 12 speed gearbox, and a Euro 6 9839ml displacement. The upper part is a 25 square garbage bin made of curved carbon steel material with four sides and five bottoms. The vehicle is controlled by four operation modes, including the cab electric control box, the driver side manual hydraulic control lever, the left tailgate electric control box, and the right tailgate manual control lever.
Manufacturer:
Powerstar TrucksWork capacity:
25cbmDimension:
10600 × 2550 × 3580mmCabin type:
Isuzu VC61 heavy chassis,2 seats and a sleeperWheelbase:
4600+1370 mmEngine power:
380HPEngine type:
Isuzu 6UZ1-TCG61Axle drive:
6X4Gear box:
FAST 12-shift，manualRemarks:

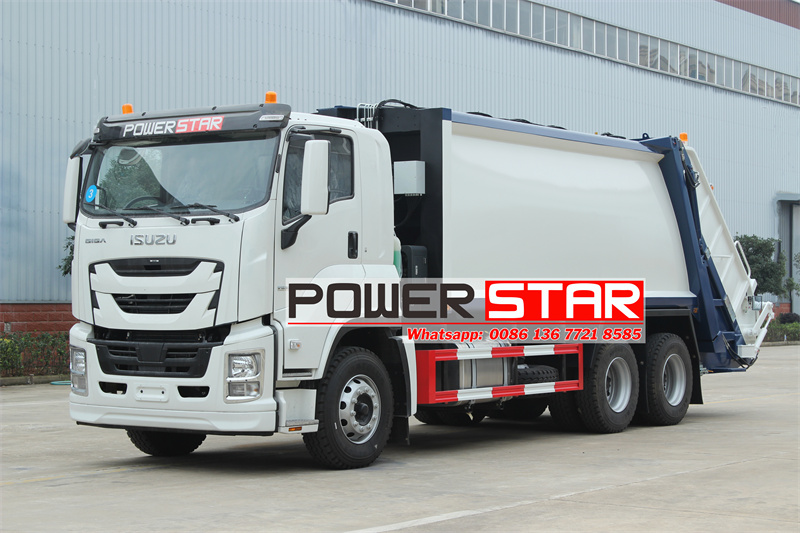

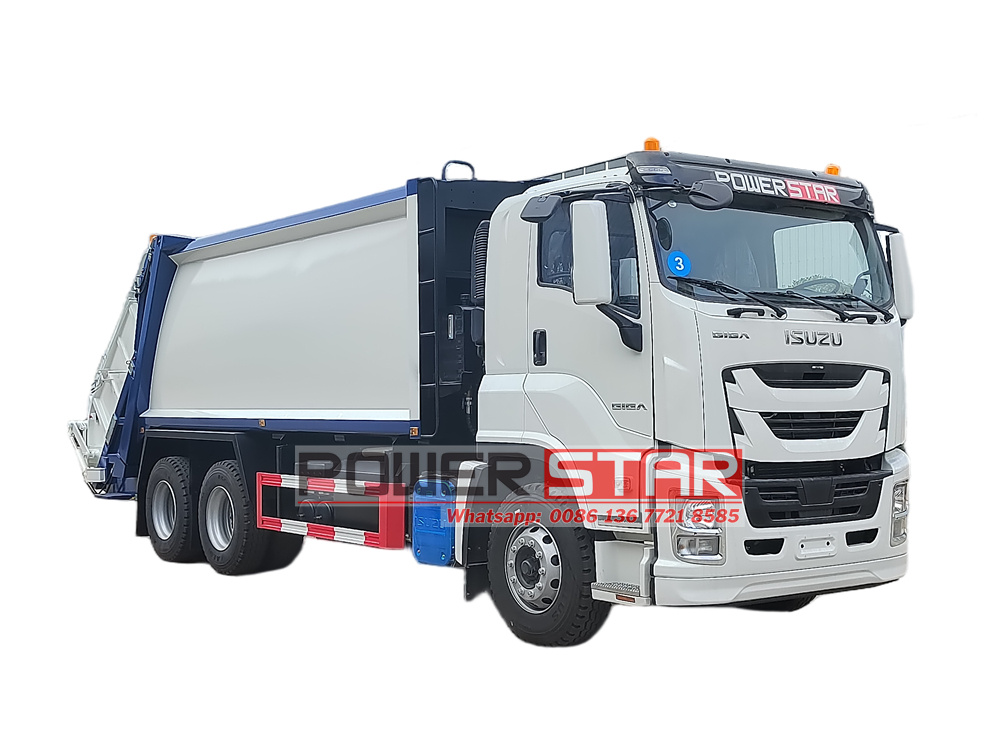

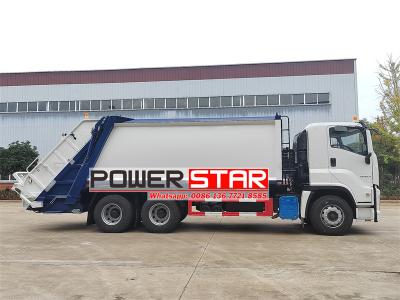

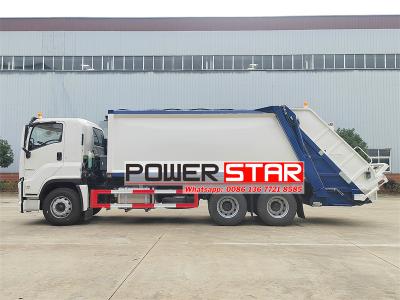

Large garbage tank capacity,multiple operation modesIsuzu 25 cbm Rear Loader Compactor Truck is an efficient vehicle designed specifically for urban waste collection and treatment. It is equipped with a powerful 380HP engine and a 25 cubic meter large capacity arc-shaped carbon steel garbage bin, which effectively reduces the volume of garbage through compression technology and improves transportation efficiency. The vehicle adopts multiple operating modes to ensure flexible and convenient operation. Relying on the reliable Isuzu GIGA VC61 chassis and FAST 12 speed gearbox, the car can maintain excellent stability and performance in various road conditions. At the same time, complying with Euro 6 emission standards and demonstrating environmental protection concepts, it is a powerful assistant for urban environmental sanitation management.
● China No 1 garbage compactor truck factory
● More than 30 years professional manufacturer experience.
● OEM Brand, customize for every customer
● 24 months long guarantee time
● Promptly delivery, 100% customer made.
Key Features:
★ Various size body from 3cbm to 25cbm,
★ ISUZU engine,super powerful;reliable performance. no overhaul,within 1000000km
★lmported SlEMENS PLC integrated control high-efficient working
★Diffient rear lifting systerm are optional.
★Can be put into 20",40"container and ship to worldwide
|
Products Technical Specification |
||
|
Type |
ISUZU GIAG 25cbm Rear Loader Compactor |
|
|
Cab |
Power steering, one bed with air condition,USB,direction assistance |
|
|
Vehicle Description |
||
|
Overall dimensions（mm） |
10600×2550×3580 |
|
|
Curb weight(vehicle) (kg) |
31000 |
|
|
Loading capacity (kg) |
10500 |
|
|
Max speed (Km/h) |
90 |
|
|
Engine |
||
|
Mode |
Isuzu 6UZ1-TCG61 |
|
|
Type |
Diesel,6-cylinder in line with water cooling, turbo-charging |
|
|
Max. power |
380HP /279Kw |
|
|
Max. torque |
1800N.m |
|
|
Displacement |
9839ml |
|
|
Emission level |
Euro 6 |
|
|
Chassis |
||
|
Wheelbase |
4600+1370 mm |
|
|
Drive type |
6x4,LHD |
|
|
Tire |
315/80R22.5 |
|
|
Gear Box |
Fast 12forwards 2revers,manual |
|
| Upper body | ||
|
Rear Loader |
Capacity: 25cbm |
|
|
Sewage tank:200L |
||
|
Material:Carbon steel |
||
|
Thickness: side 4mm bottom 5mm |
||
|
Compression ratio: ≥1:3.4 |
||
|
Loading cycling time: ≤25s |
||
|
Unloading garbage time: ≤15s |
||
|
With rear and front working light, 4 operating modes, with discharge valve. |
||
|

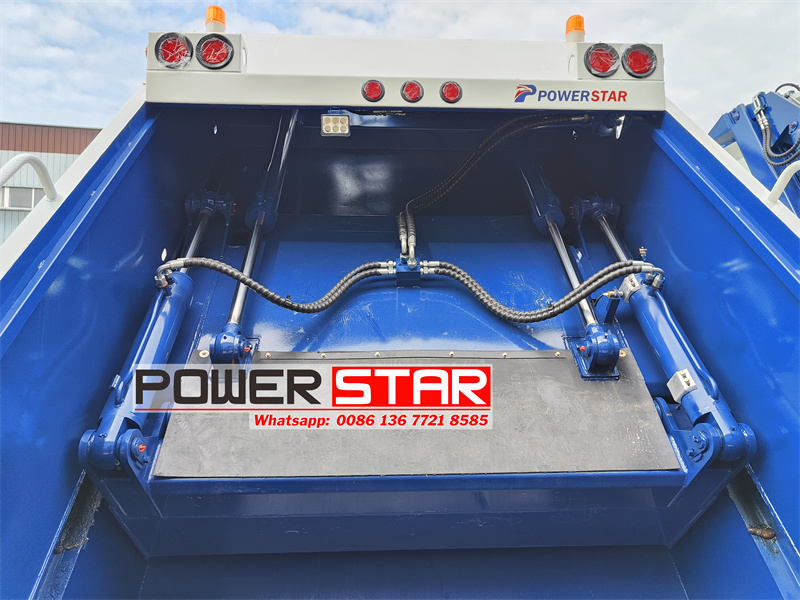

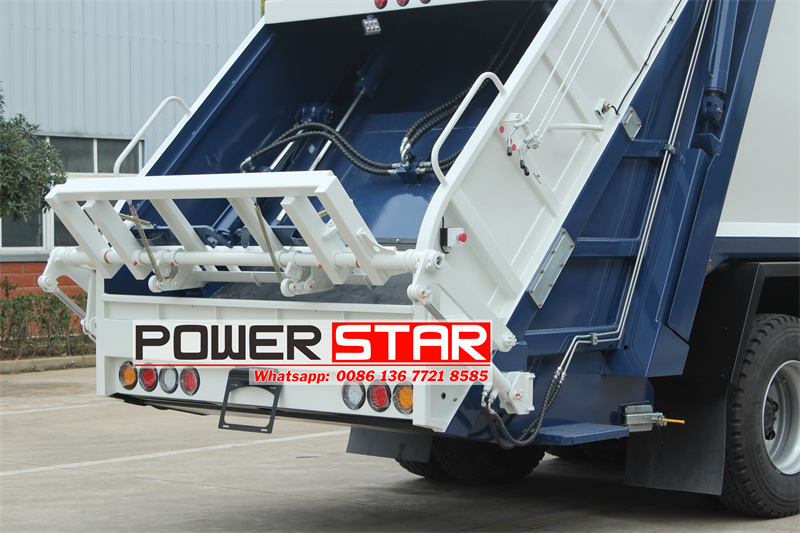

1.Include garbage carriage,sewage tanker,a packer,scraper,shovel,multi-way reversing valve and hydraulic system. |
||
|
2. With convenient and efficient garbage collection function, high compression ratio, large loading capacity, automatic operation, good sealing. |
||
|
3.The dirty water is come into the sewage tank during compression; the main part is high quality imported parts. |
||
|
Painting |
Metallic paint |
|
Isuzu GIGA 6x4 25cbm waste compactor truck is a multifunctional and powerful vehicle designed specifically for efficient waste management. The following is a detailed description of its specifications and functions:
Chassis:
Basic model: Isuzu GIGA VC61 6X4 cab chassis, renowned for its durability and performance in heavy-duty applications.
Wheelbase: 4600+1370mm, providing a stable platform for compaction mechanisms and large garbage dumps while ensuring maneuverability.
Transmission type: FAST 12 speed manual transmission, offering a wide range of gear ratios to optimize performance and fuel economy under different driving conditions.
Engine:
Model: Isuzu 6UZ1-TCG61

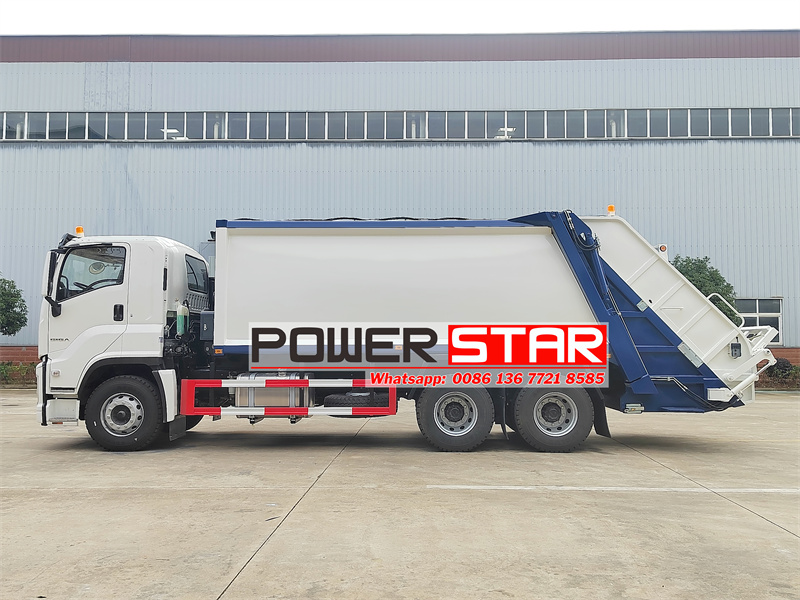

Horsepower: 380 horsepower, providing powerful power to easily handle various loads and terrains.
Compliant with Euro 6 standards: Compliant with strict Euro 6 emission standards to ensure environmental protection.
Displacement: 9839ml, providing a balanced combination of power and fuel efficiency.
Upper structure:
Capacity: 25 cubic meters, capable of accommodating a large amount of waste.
Material: Made of arched carbon steel, known for its strength and corrosion resistance.
Thickness: The side walls are 4mm thick and the bottom is 5mm thick to ensure structural integrity and lifespan.
Operation control:

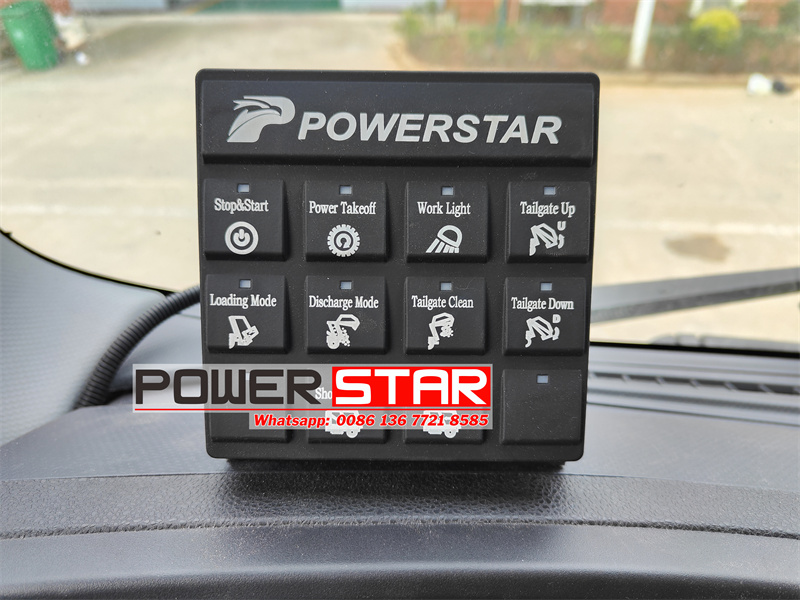

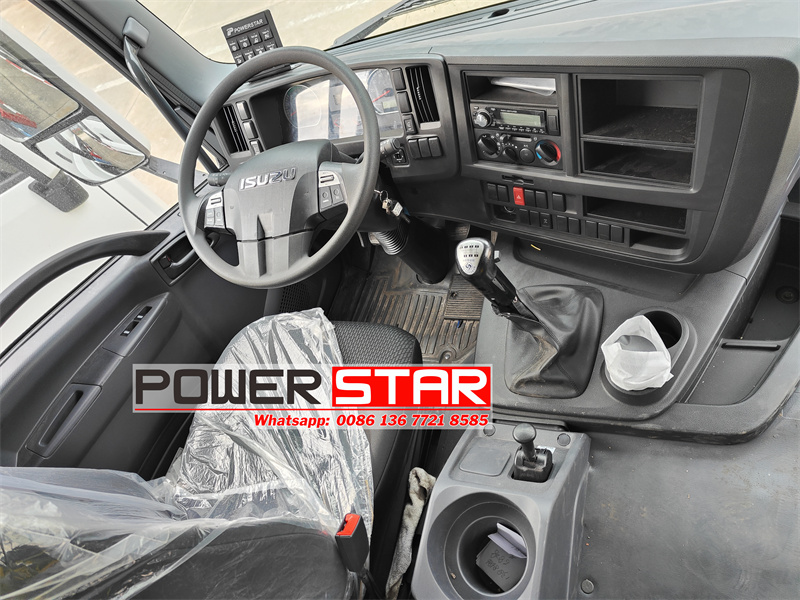

Cab electric control box: This electric control box has buttons such as stop&start, PTO, work light, tailgate up/down, loading mode, discharge mode, tailgate clean, shock push/pull, etc., which can control the corresponding operations.

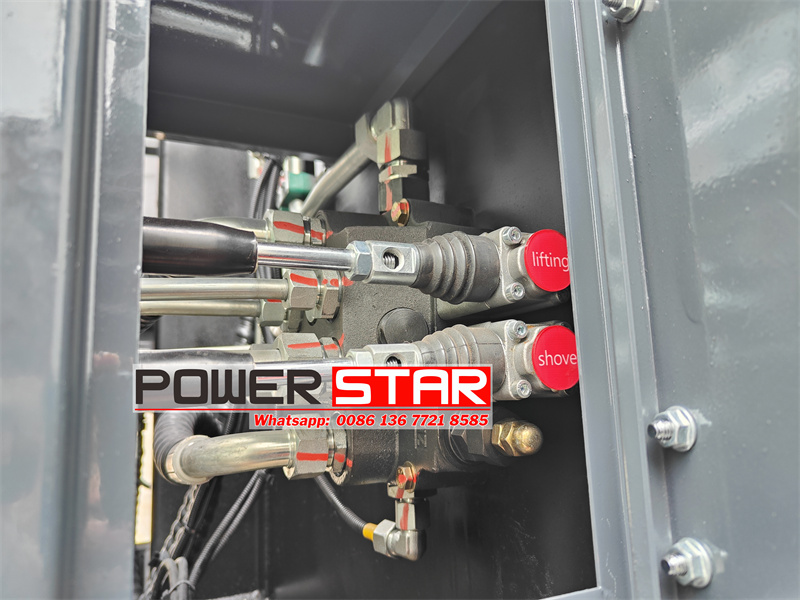

Driver's side manual hydraulic lever: located on the driver's side, it has two operating levers, lifting and shovel, which can control the lifting of the tailgate and the pushing and retracting of the shovel.

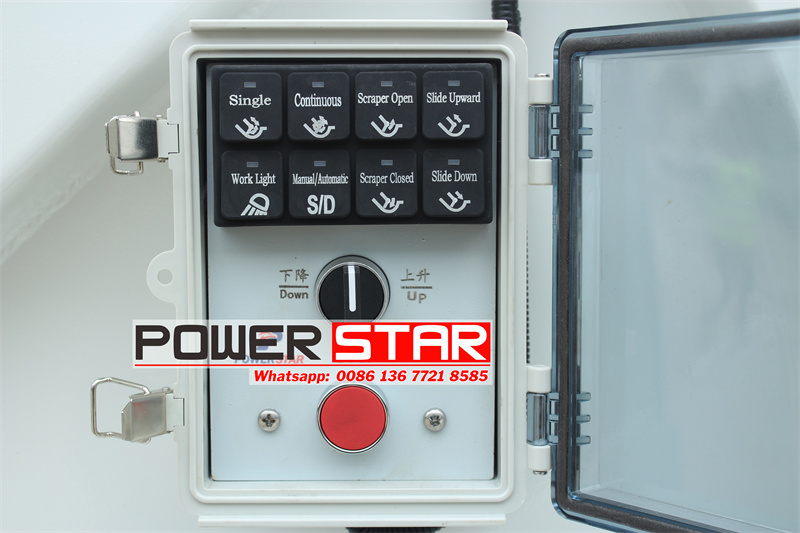

Electric control box on the left side of the tailgate: There is a single cycle on this control box, continuous cucle,scraper open/closed,slide upward/down,manual/automatic,work light,flip machanism up/down,emergency stop Wait for the button to control the compression process.

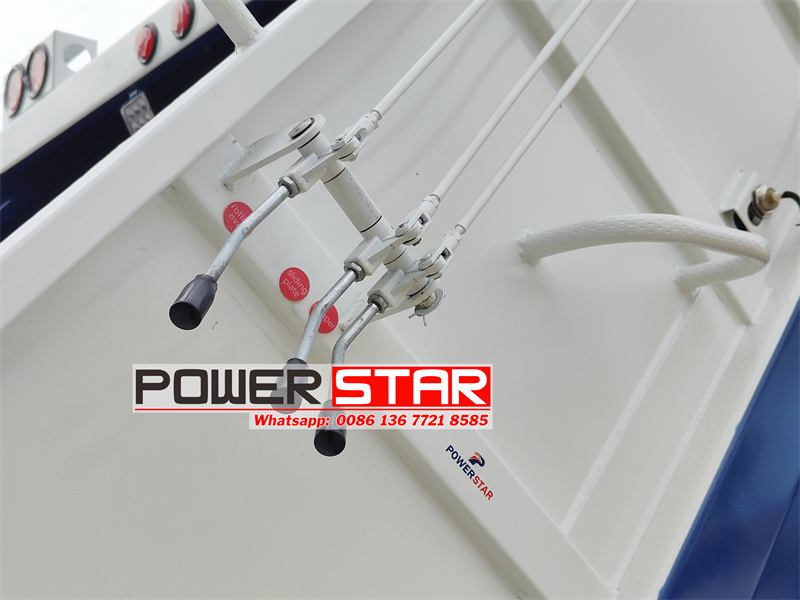

Manual operating lever on the right side of the tailgate: located on the right tailgate, it has three pull rods: rolling over, sliding plate, scraper, etc,
Overall characteristics:
Multifunctionality: The truck has four different control options that can be operated in various ways to meet the preferences and specific job requirements of the operator.
Efficiency: The powerful engine and robust transmission system ensure fast and reliable waste collection and compaction.
Durability: High quality materials and structures ensure long-lasting performance even in harsh environments.
Environmental compliance: Euro 6 emission standards help reduce the environmental footprint of vehicles.
