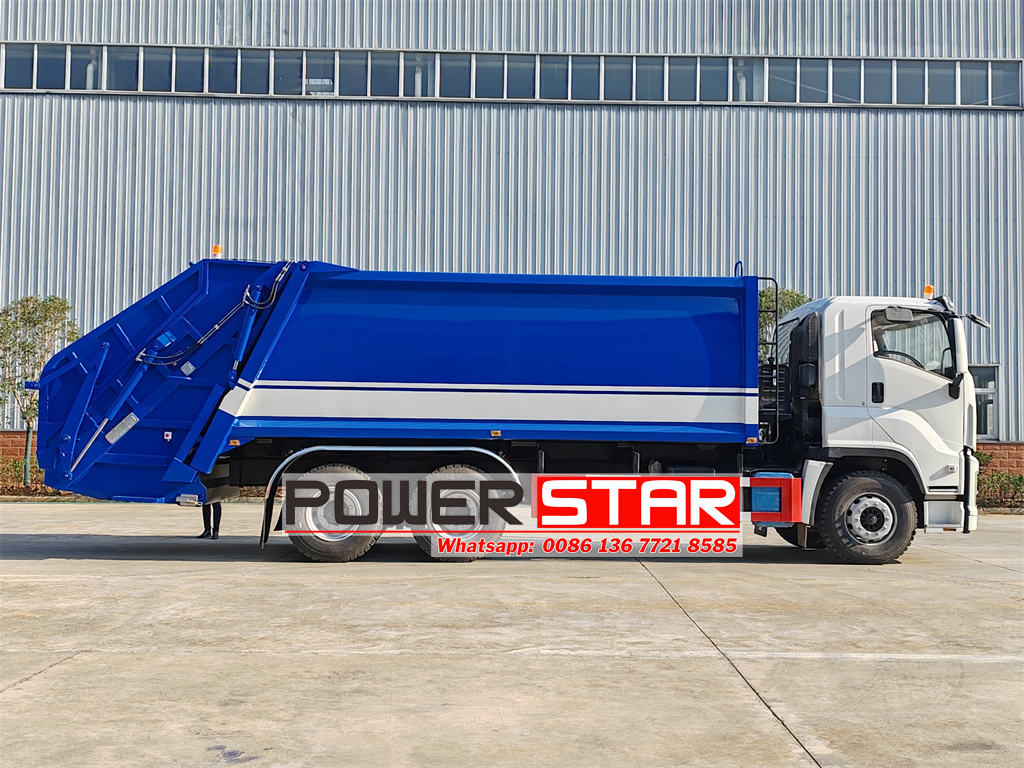

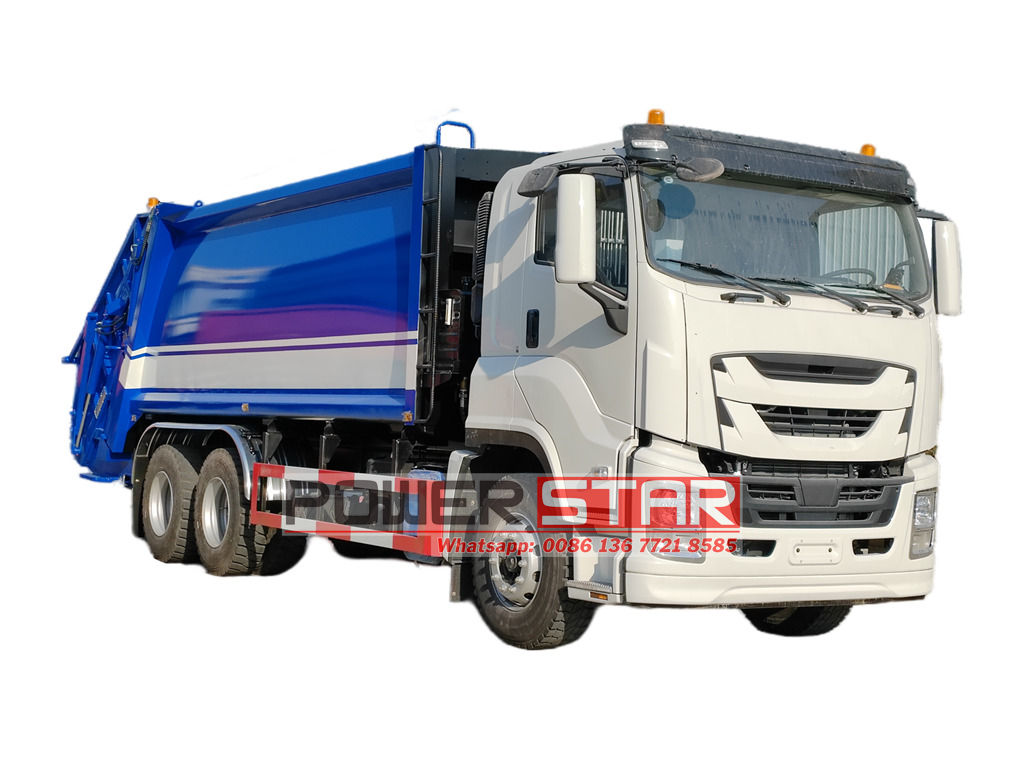

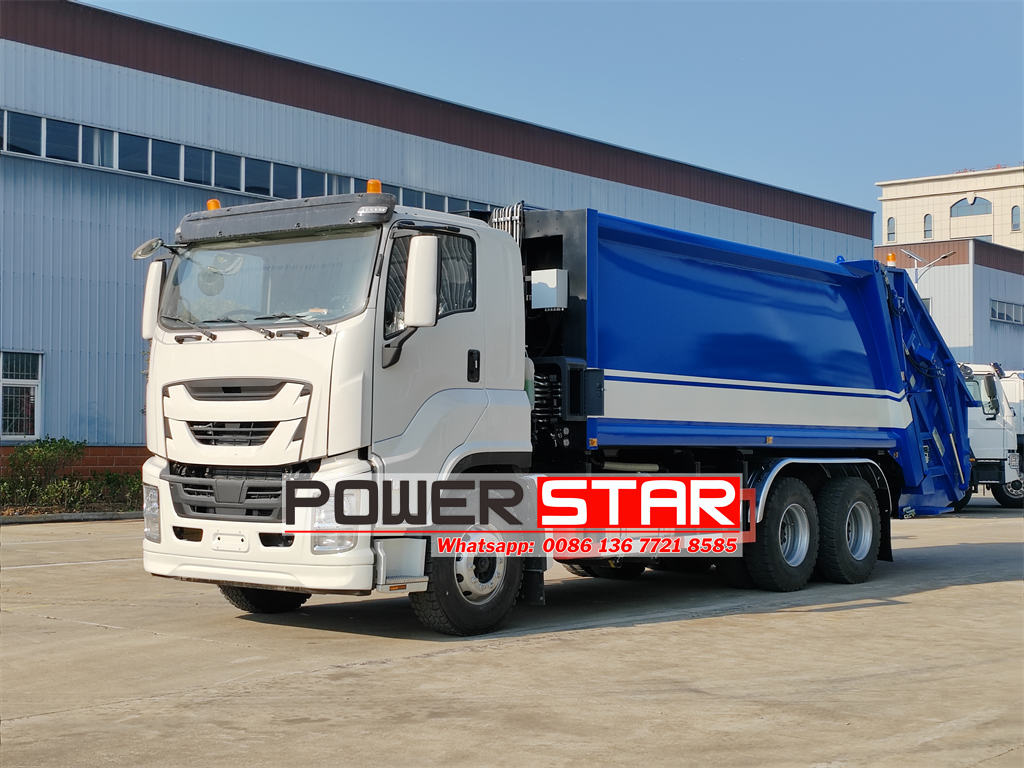

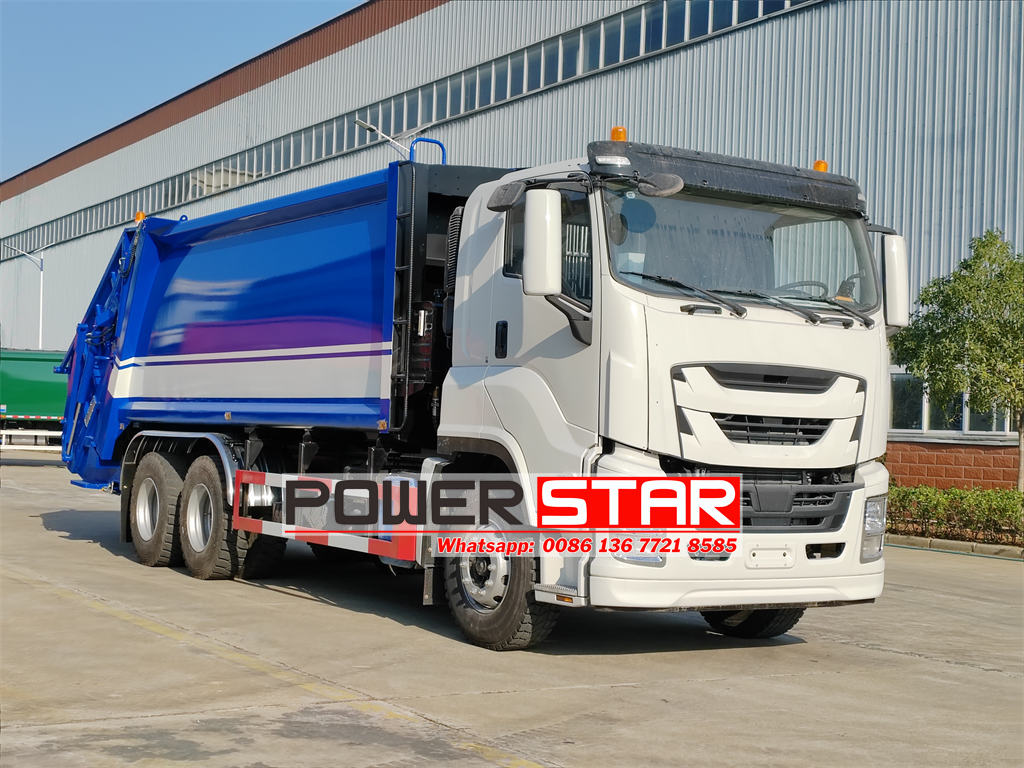

The Isuzu Giga 20cbm rear load garbage truck is a highly efficient garbage disposal vehicle specially designed for urban sanitation. With overall dimensions of 10610x2550x3450mm, it is equipped with a 6UZ1-TCG61 engine that complies with the Euro 6 emission standard, delivering an output power of up to 278kw (380hp), coupled with a FAST 12-speed manual transmission, providing strong and environmentally friendly power. The compression box has a volume of 20CBM, with a garbage compression density of 0.9±0.05 T/m³. It is equipped with a hydraulically controlled garbage bin lifting device, suitable for various sizes of garbage bins, offering extremely high operational efficiency.
Work capacity:
20 CBMEngine power:
380 HPEngine type:
6UZ1-TCG61Axle drive:
6×4Gear box:
FAST 12-speed, manualRemarks:

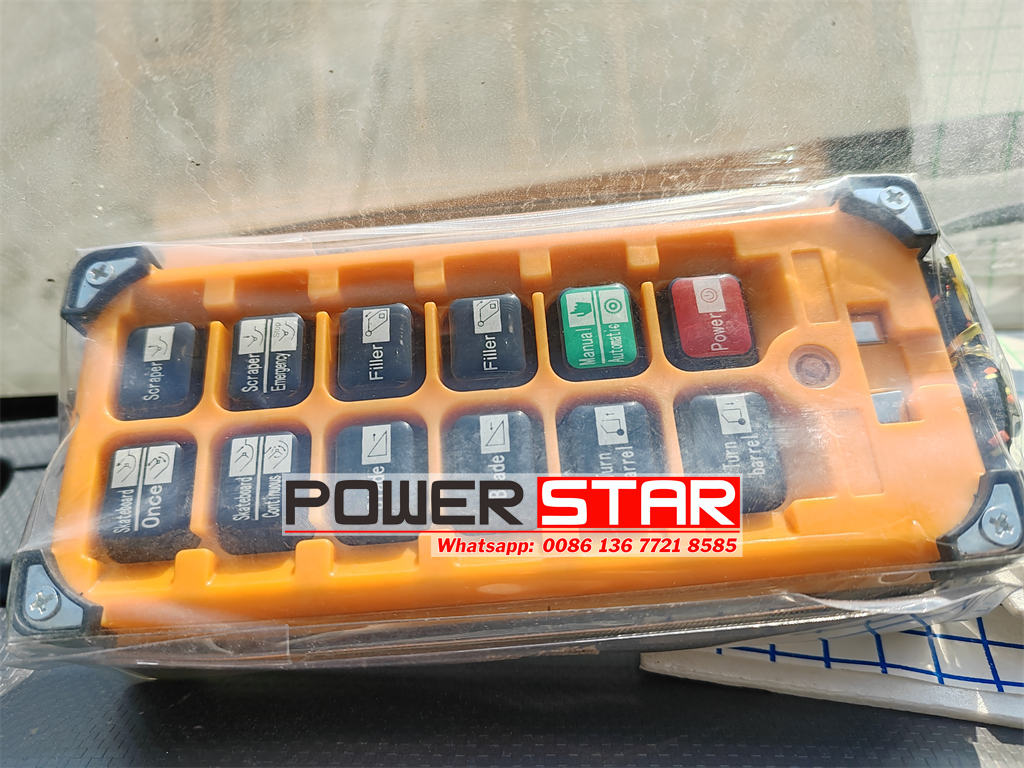

Equipped with remote control boxIn urban sanitation equipment, compression garbage trucks are an indispensable and vital tool. The ISUZU GIGA 20CBM garbage compactor truck has become the first choice for many sanitation departments and waste management companies due to its excellent performance, high operational efficiency, and environmentally friendly design.

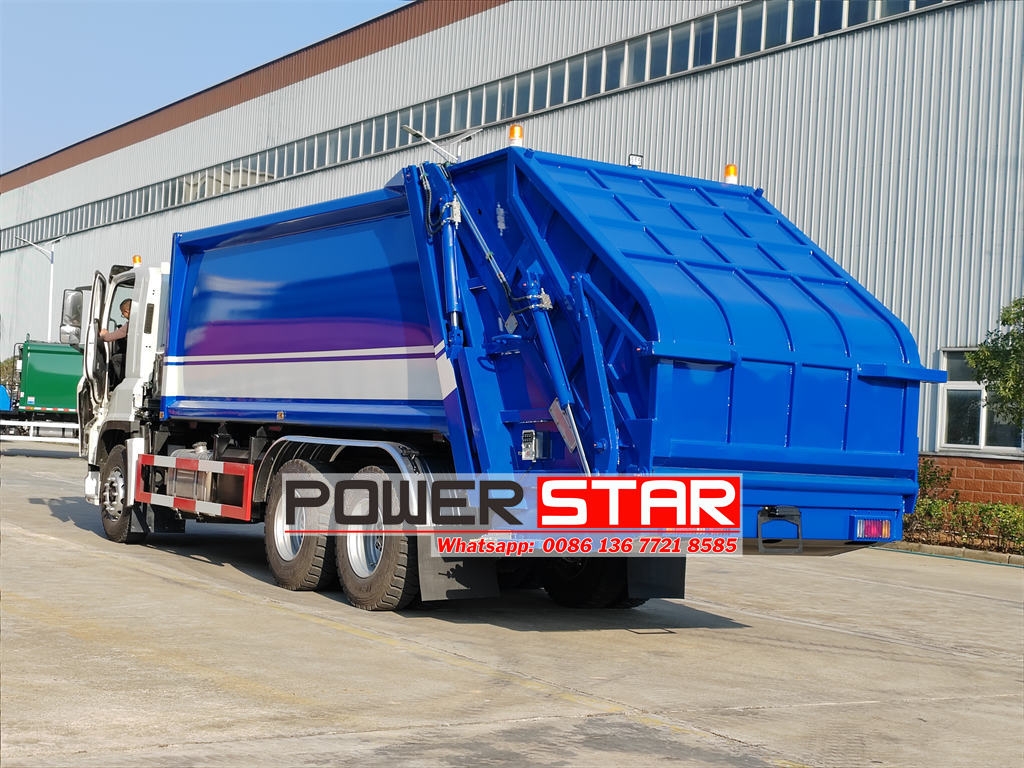

The overall dimensions of the ISUZU GIGA rear loader garbage truck are 10610x2550x3450mm, and its spacious body design provides ample operating space. The vehicle's curb weight is 15,700kg, with a maximum gross vehicle weight (GVW) of up to 34,000kg and a loading capacity of up to 18,300kg, allowing it to handle a large amount of garbage at once, significantly improving operational efficiency. The vehicle is equipped with a 6UZ1-TCG61 engine, a high-performance engine that complies with the Euro 6 emission standard. With a displacement of 9,839ml and an output power of up to 278kw (380hp), this engine provides strong power support for the vehicle. Whether it's garbage collection, compression, or transportation, this engine can easily handle the task, ensuring operational efficiency.

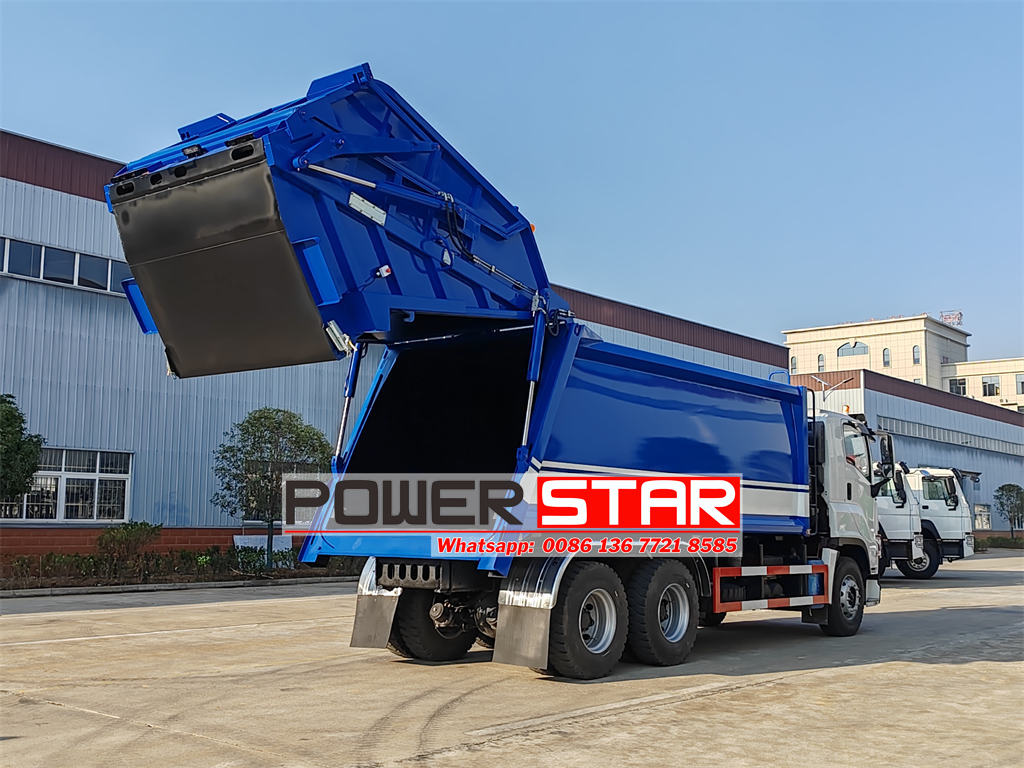

As a compression-type garbage truck, the ISUZU GIGA solid waste compactor truck stands out in terms of operational performance. Its compactor body has a volume of 20CBM, and the tailgate volume is 2CBM, allowing it to handle a large amount of garbage at once. The compartment is made of 6mm T420 special steel, which has extremely high strength and durability, capable of withstanding long-term high-intensity operations. The vehicle is equipped with high-quality hydraulic system components, with a single loading cycle time of no more than 25 seconds, a tailgate lifting time of no more than 15 seconds, and an unloading cycle time of no more than 110 seconds, making it highly efficient in operation.
● 50 units Isuzu rear loader trucks in stock, 5 ~22CBM
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu road sweeper truck factory
● More than 30 years professional manufacturer experience
Product Specifications
|
Vehicle Description |
|||
|
Overall dimensions |
10610x2550x3450mm |
||
|
GVW |
34000kg |
||
|
Curb weight |
15700kg |
||
|
Loading weight |
18300kg |
||
|
Chassis brand |
ISUZU |
||
|
Traction type |
6*4; Left hand drive |
||
|
Chassis Description |
|||
|
Chassis model |
QL5340GXF |
||
|

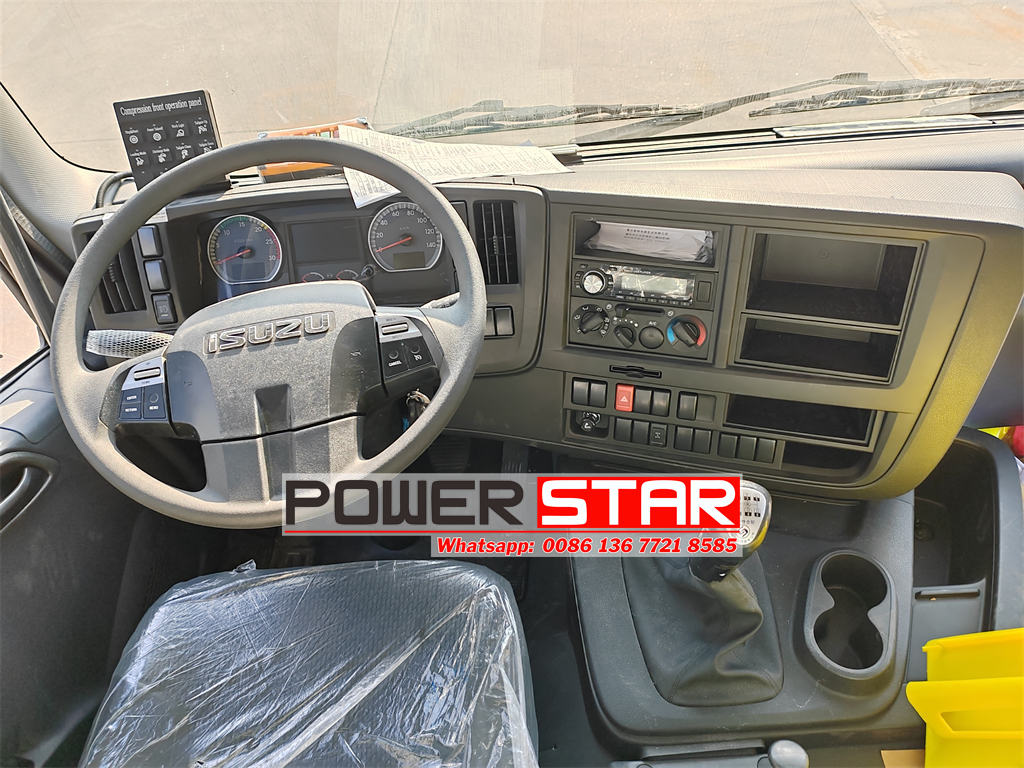

Cab |
ISUZU GIGA VC61 cabin, 2 seats, one sleeper berth, with A/C |
||
|
Wheelbase |
4600+1370mm |
||
|
Tire specification |
315/80R22.5 |
||
|
Tire quantity |
10+1 units |
||
|
Engine |
Engine model |
6UZ1-TCG61 |
|
|
Emission level |
Euro 6 |
||
|
Displacement/output |
9839ml/278kw |
||
|
Horse power |
380hp |
||
|
Gear box |
Model |
FAST 12-speed, manual |
|
|
Number of gears |
12 forward gears& 2 reverse |
||
|
Brake system |
Full air brake |
||
|
Axle |
Front |
8000kg |
|
|
Rear |
26000kg |
||
|
Fuel tanker |
Type |
Aluminum alloy steel tank, with lockable cap |
|
|
Capacity |
400L |
||
|
Upper-body Specifications |
|||
|
Compactor body volume |
20CBM |
||
|
Material & thickness |
Side |
6mm T420 special steel |
|
|
Floor |
6mm T420 special steel |
||
|
Tailgate (hopper) volume |
2CBM |
||
|
Loading system |
Hydraulic controlled, suitable for 240L, 660L, 1000L bins |
||
|
Control system |
Electrically Controlled Hydraulic + Manual Hydraulic |
||
|
Garbage compact density |
0.9±0.05 T/m³ |
||
|
Sewage water tank |
Rear |
About 400L, at the bottom of tailgate |
|
|
Front |
About 500L, under the compactor body |
||
|
Tailgate lifting angle |
≥95° |
||
|
Loading single cycle time |
≤25 S |
||
|
Tailgate lifting time |
≤15 S |
||
|
Unloading cycle time |
≤110 S |
||
|
Hydraulic pressure system working pressure |
20 Mpa |
||
|
Gear pump |
China famous brand |
||
|
Multi-way valve |
China famous brand |
||
|
Hydraulic oil cylinder |
China famous brand |
||
|
Hydraulic rubber hose |
China famous brand |
||
Product Structure

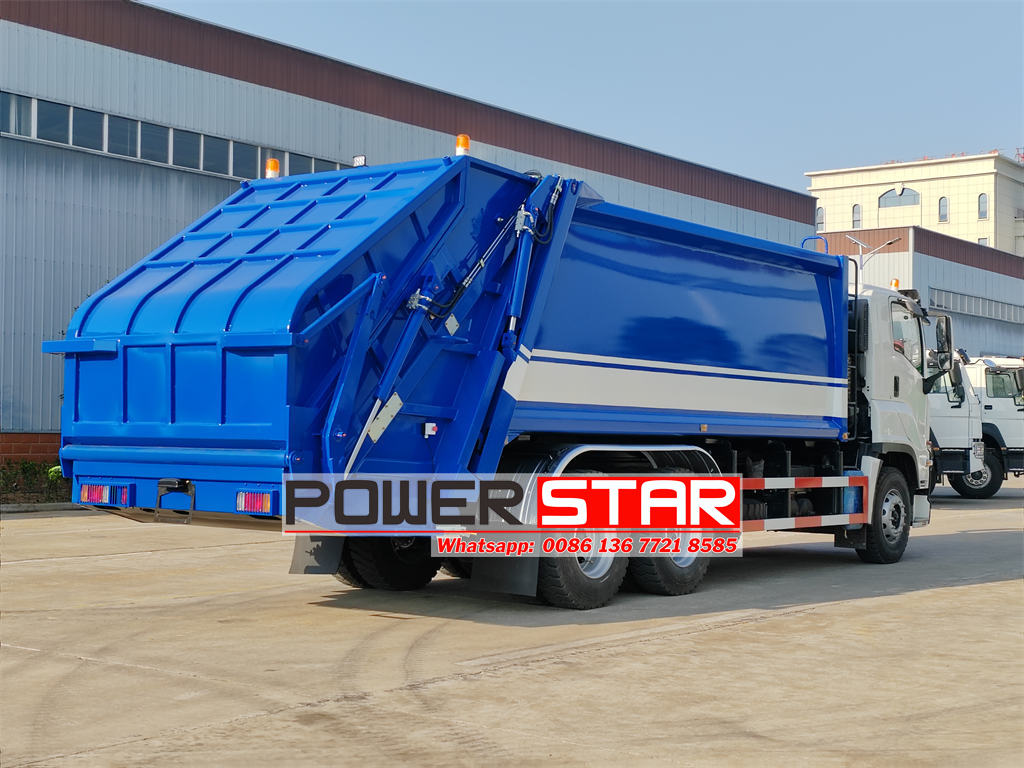

Compactor Body
The compactor body of the ISUZU GIGA garbage compactor truck is constructed by welding high-strength steel plates and reinforcing beams to form a sturdy frame structure. The side plates are made from full sheets without longitudinal welding seams, and the upper and lower reinforcing beams are integrally formed with the side plates through cold bending with specialized equipment, significantly enhancing rigidity and avoiding weld fatigue failure issues caused by traditional welding processes. A large-capacity sewage collection box is equipped at the front lower part to enhance sewage storage capacity. The overall compactor structure is aesthetically pleasing, lightweight, evenly stressed, highly durable, and resistant to deformation, ensuring stable performance of the vehicle during long-term high-intensity operations.

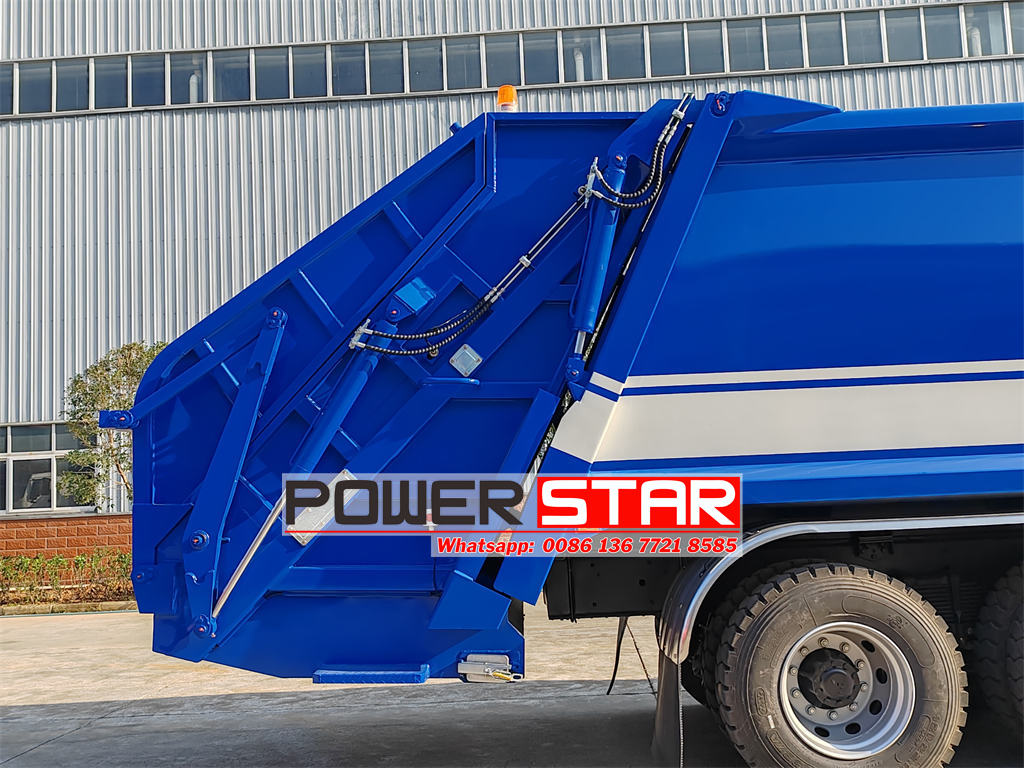

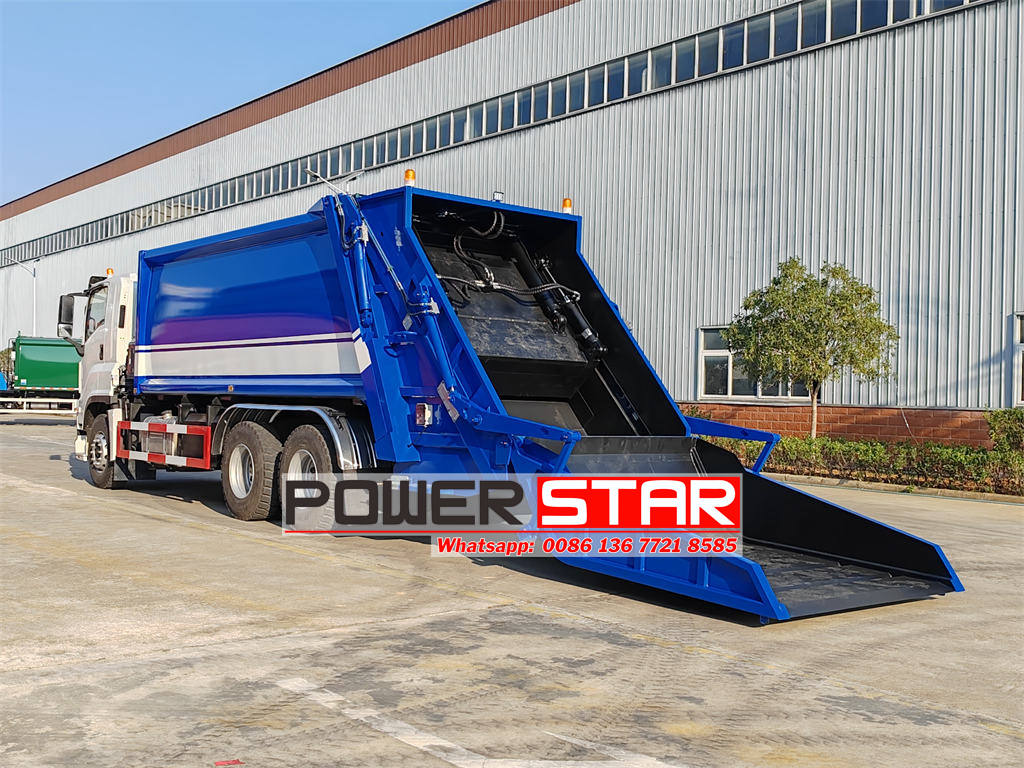

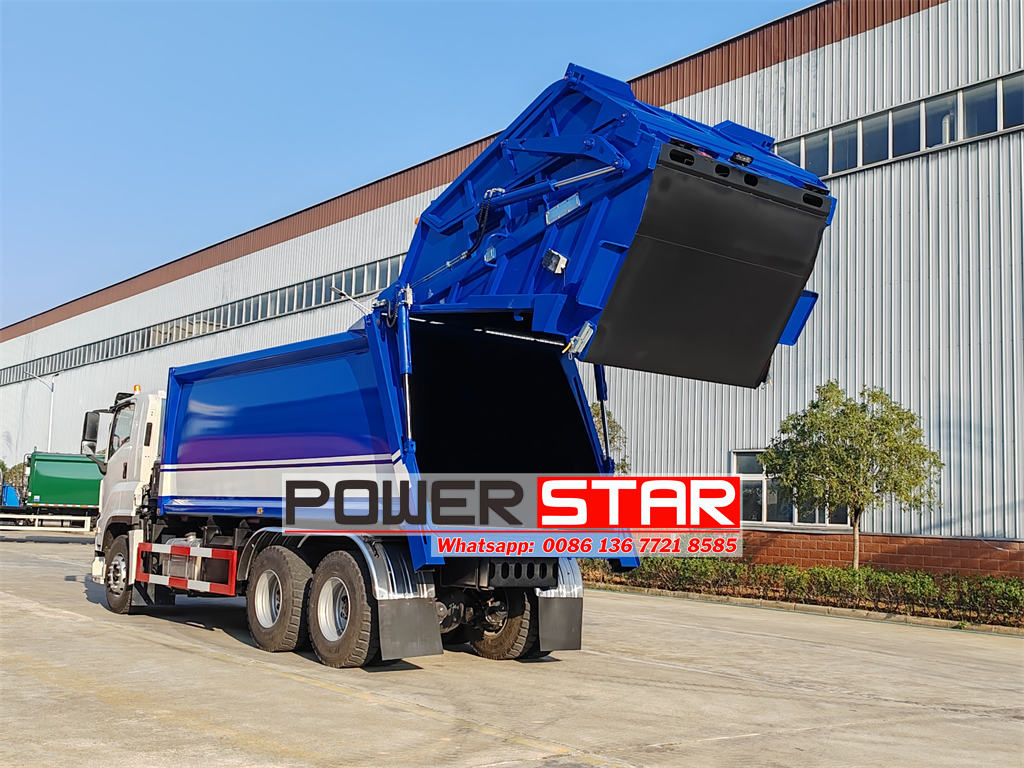

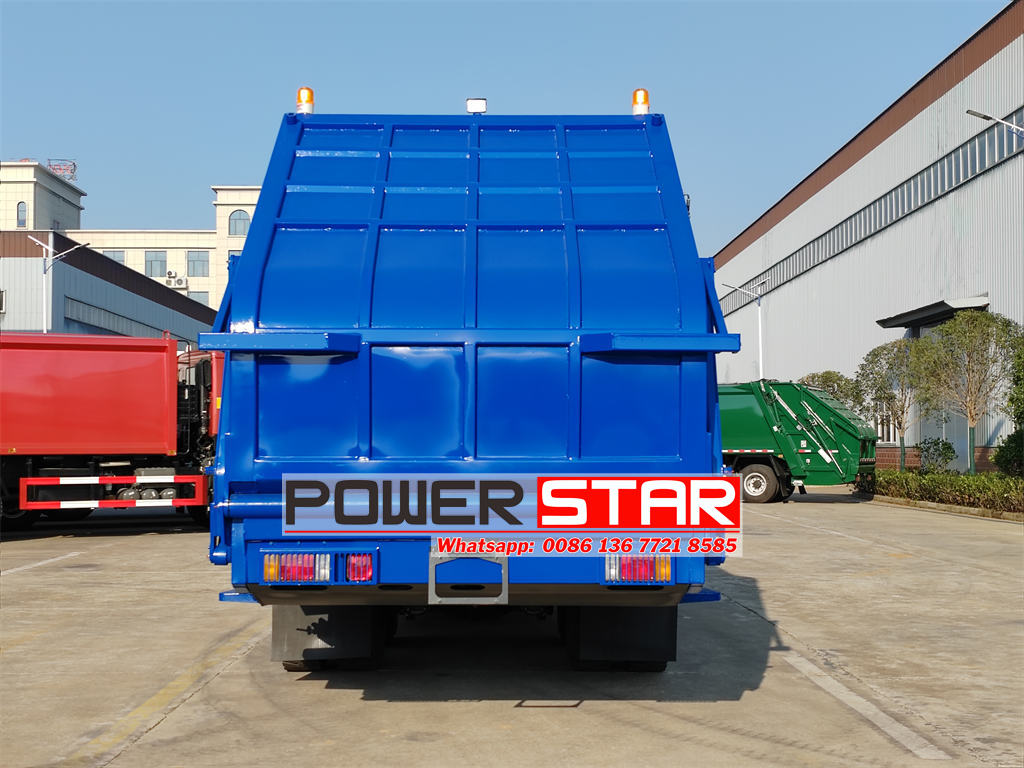

Tailgate

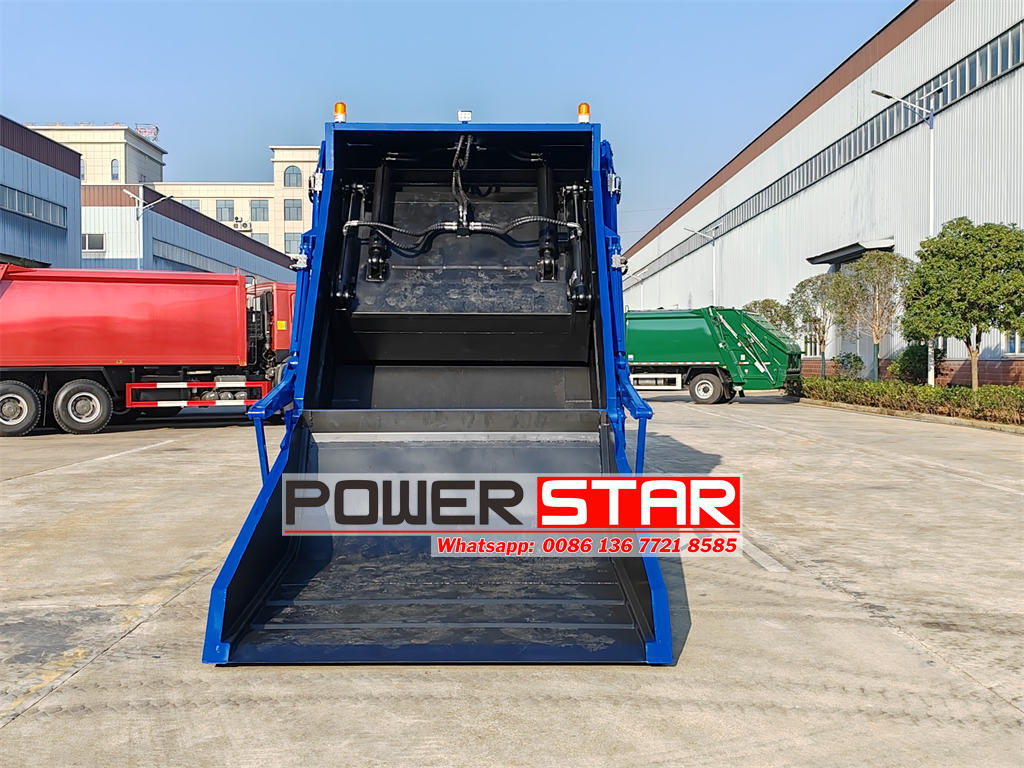

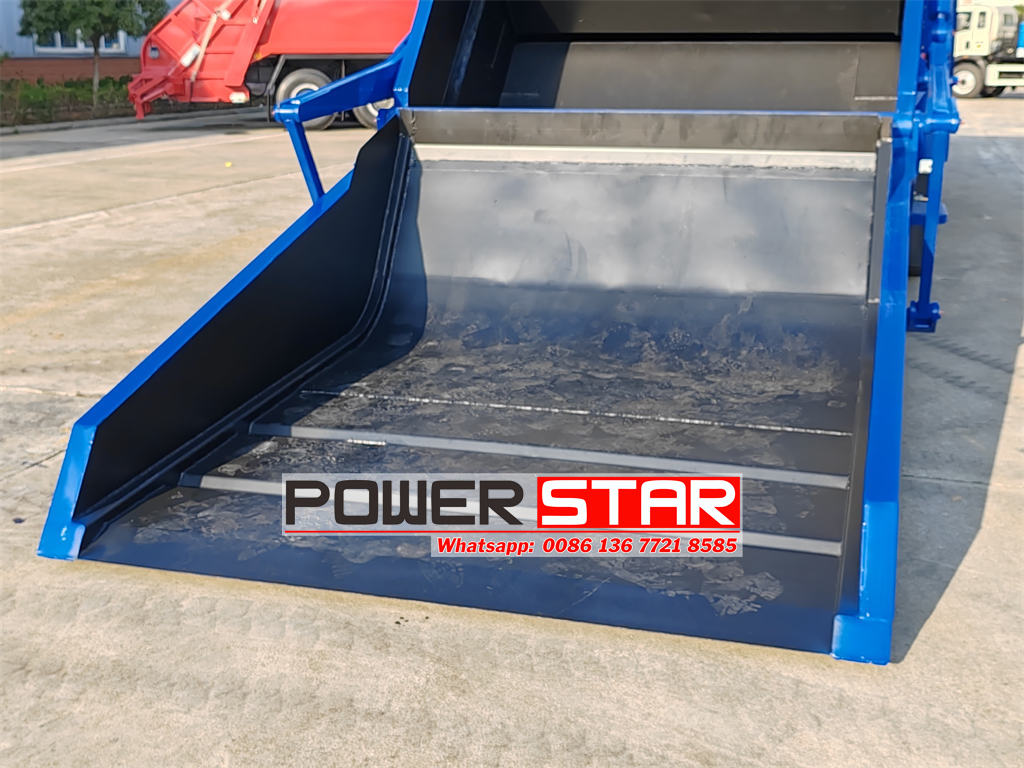

The tailgate assembly of the ISUZU GIGA rear loader refuse truck is ingeniously designed, consisting of core components such as the tailgate shell, slide plate, and scraper blade. The tailgate chute and the lower arcuate plate are made of high-strength, wear-resistant materials, and the arcuate plate is equipped with drainage holes to ensure that sewage flows into the lower large-capacity storage box, avoiding spillage. Integral nylon sliders are equipped on both sides of the slide plate, providing self-lubrication and high stability. The stress-bearing parts of the scraper blade are locally reinforced, resulting in a sturdy yet lightweight structure. The overall design is efficient and durable, meeting the rigorous demands of garbage compression and transportation.

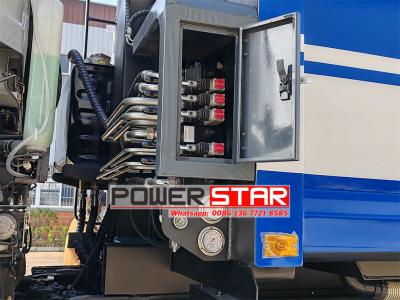

Hydraulic System

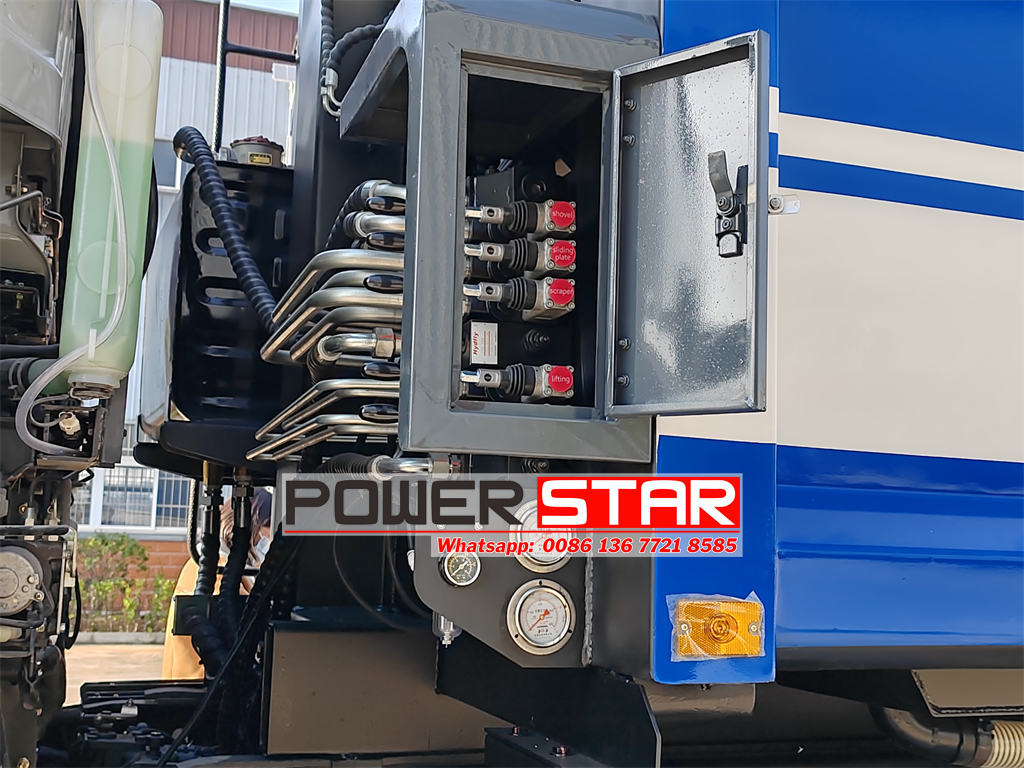

The hydraulic system of the ISUZU GIGA mobile refuse compactor utilizes high-quality components to ensure efficient and stable operation. The hydraulic cylinders are sourced from reputable Chinese brands, and the seals are imported from the UK, offering high durability. The hydraulic gear pump employs a well-known aluminum alloy gear pump, known for its reliable performance. The overall hydraulic system is meticulously designed and delivers excellent performance, suitable for high-intensity sanitation operations.
Electrical Control System

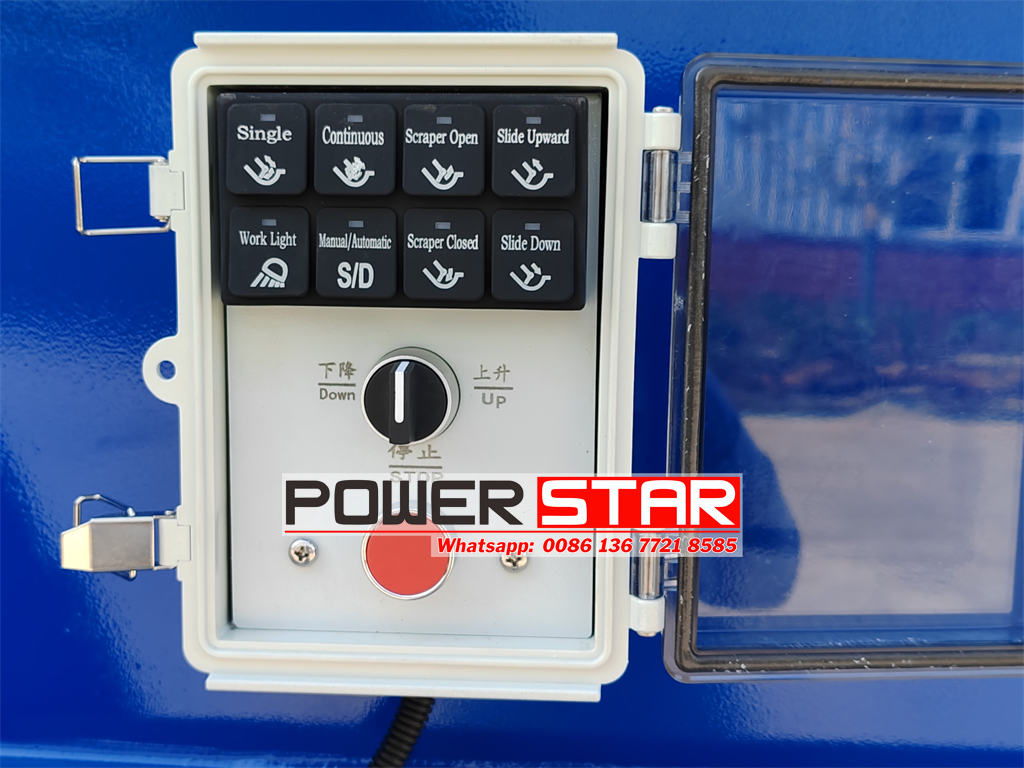

The electrical control system of the ISUZU GIGA rear end loader truck adopts a modular design, primarily comprising a control box assembly, front and rear operation keypads, proximity switch sensors, and vehicle wiring harnesses. The components are connected through aviation plugs and automotive-grade waterproof plugs, featuring high integration and easy installation. The system has an IP67 protection rating, is water and corrosion-resistant, and adapts to a wide voltage range of 9~36VDC. The keypad has a lifespan of over 1 million presses, ensuring stable and reliable performance. The backlight function facilitates nighttime operation, and the overall design is aesthetically pleasing, widely used in the fields of engineering machinery and sanitation equipment, ensuring efficient and stable operation of the vehicle in various environments.
