ISUZU GIGA Freezer van trucks with CARRIER unit

Isuzu GIGA reefer van truck chiller frozen truck freezer-truck

Details

ISUZU GIGA Reefer Van Truck with CARRIER Refrigerated Unit

CARRIER refrigerator unit 12 ton load ISUZU GIGA


Introduction


ISUZU GIGA Reefer Van Truck (also called ISUZU GIGA Refrigerated van Truck, GIGA ISUZU Freezer Trucks, ISUZU GIGA CHILLER TRUCKS  ) suitable used for the transportation of frozen food (refrigerated vehicle ), dairy products (milk transport vehicle), vegetables and fruits (fresh goods transport vehicle), vaccine drugs.



Advantages


  100% custom-made
  3 cbm to 40 cbm available
  Short delivery time 7~30 days
  Easy operation & Easy maintenance
  15 years spare parts & Technical support



Main Parameters


Manufacturer

PowerStar Trucks Industry Co., Limited

Product Name

ISUZU 10-12Ton Vegetable Freezer Body truck

Vehicle Brand Series

ISUZU

Vehicle Model

PST5220LC

Production Time

25 days

Chassis parameters

Overall dimensions

mm

9000*2500*3560

Gross weight

kg

22,000

Kerb weight

7,500

Wheelbase

mm

5600

Driving type

4*2

Chassis model

ISUZU GIGA

Tire size

11.00R20

Number of Tires

6+1

Passengers in cab

3

Engine

Engine model

6UZ-TCG50

Type of fuel

Diesel

Power

380HP

Max speed

Km/h

95

Emission standard

EURO 5,6

Cooling performance

Cargo Body Size

7600*2200*2000 mm

Panel Material

FRP + PU Foam + FRP 105mm

Panel Structure

All Closed Sandwich

Side Door Type

On Right side wall

Single Opening

Rear Door Type

Full Size Double Opening Rear Door

Flooring

Antiskid and abrasion resistant

Refrigeration Unit

Carrier SUPRA 850

Body Space Temp

-15 degree~ +20 degree

Marker Light

2 sets white on front,

2 sets Red on rear

Celling Light

2 sets of 12/24V LED

Control Panel

English

Painting

Two primers, and one final paint coating

Color & LOGO

According to wish

Factory standard

  “U” shape Sub Frame, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps...

Documents

  English operation manual, Spare parts list, and all necessary export docs.

Optional equipment

1, Refrigeration brand: Carrier, Thermoking, DAIKIN  (with any brand)

2, Rear vision camera

3, Aluminium flooring, Hanging system

4, Optional Dual temperature, multi compartment

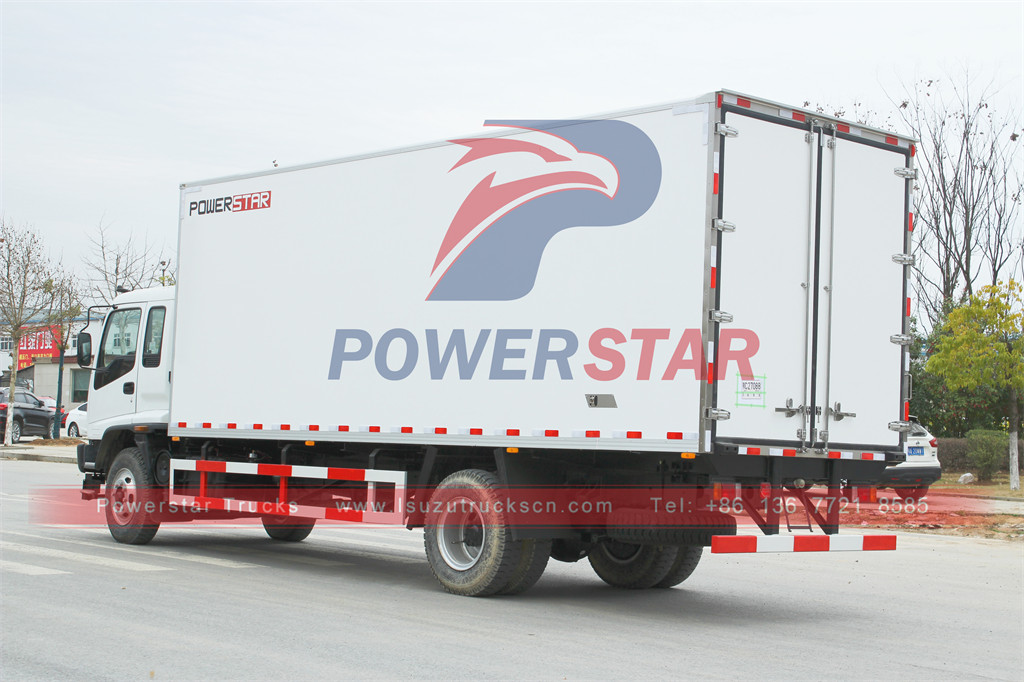

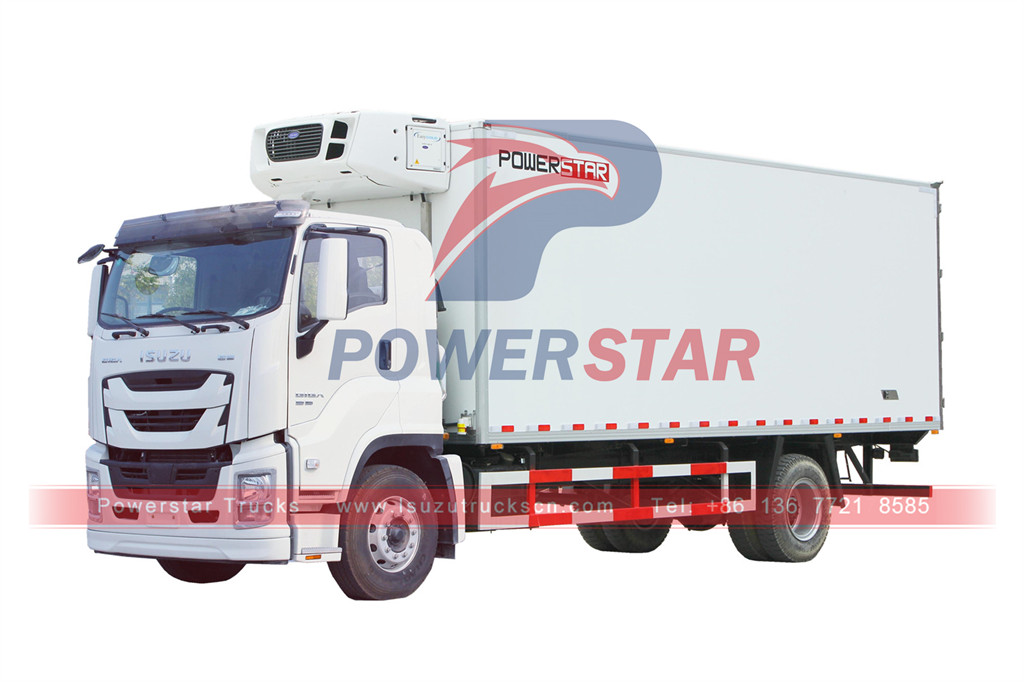

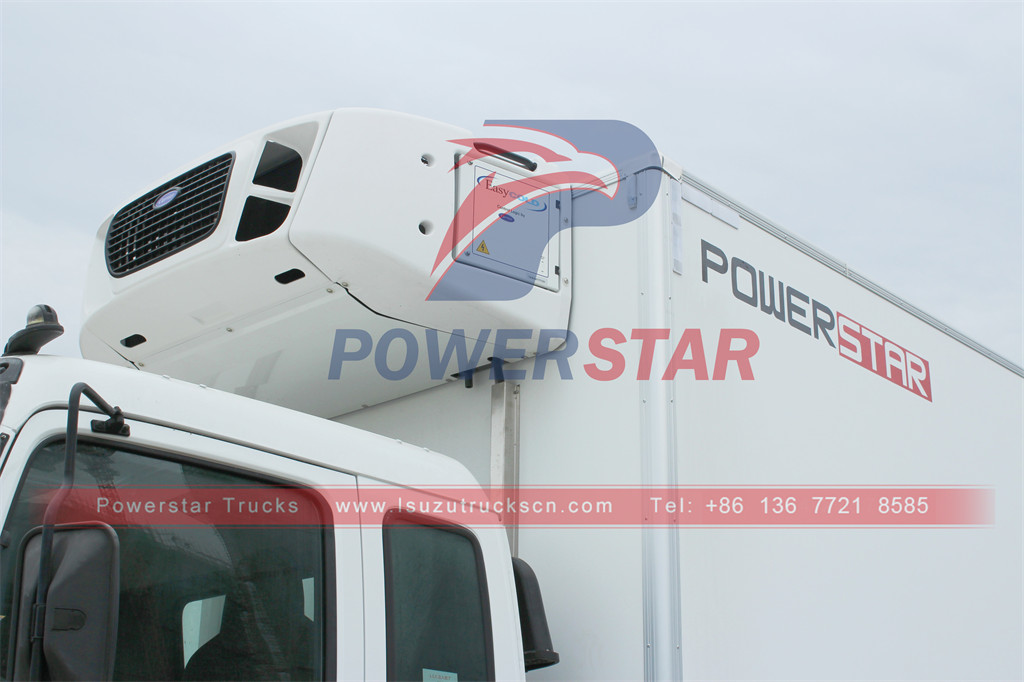

  CARRIER refrigerator unit 12 ton load ISUZU GIGA

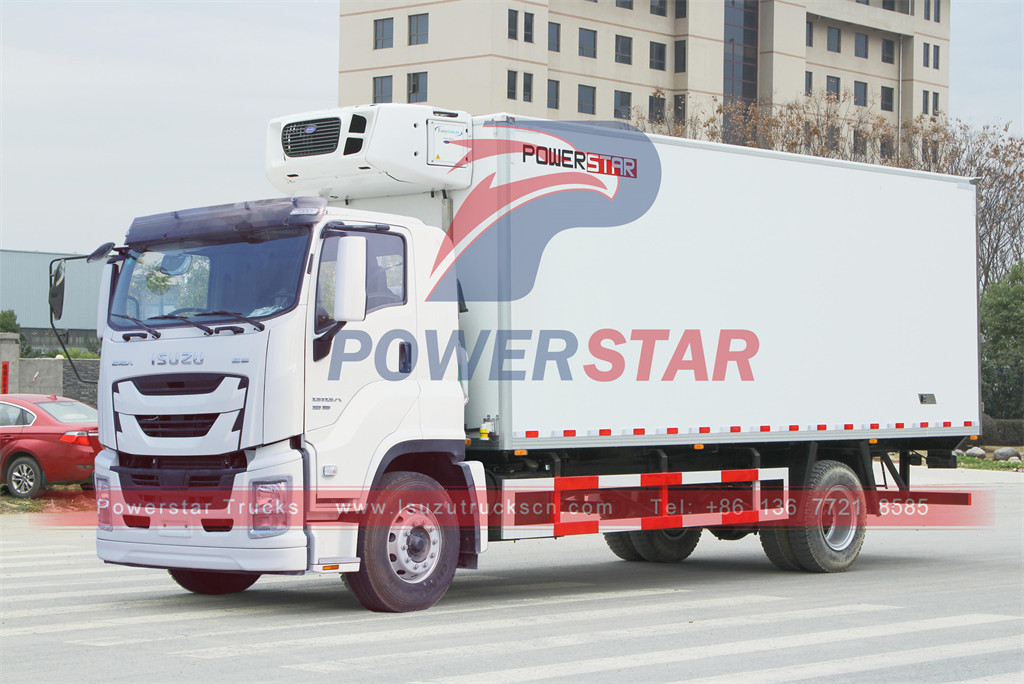

CARRIER refrigerator unit 12 ton load ISUZU GIGA

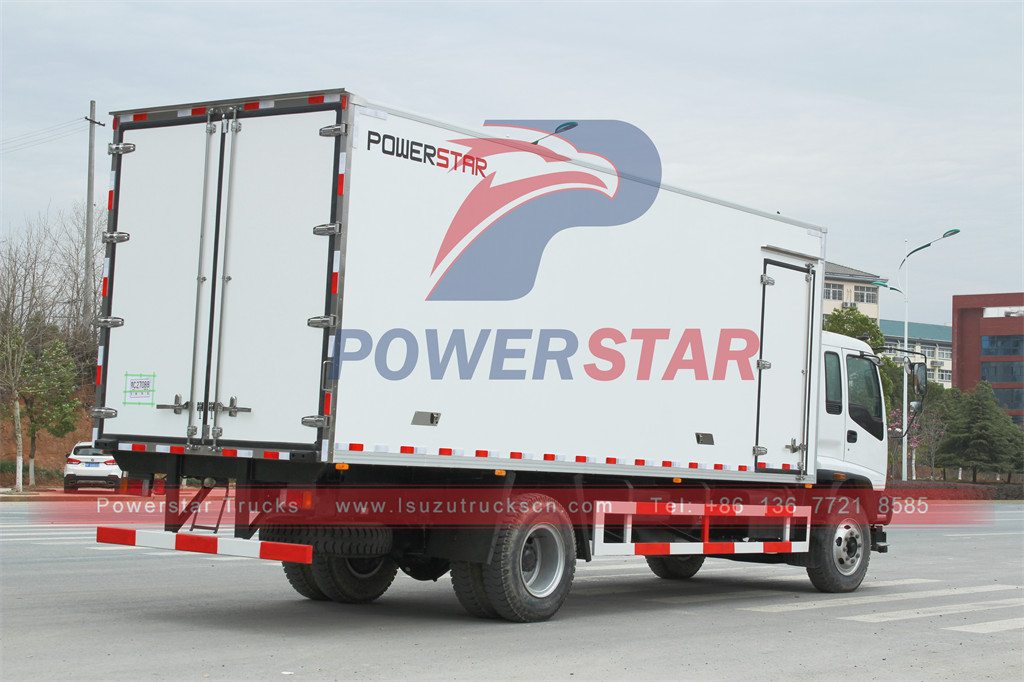

CARRIER refrigerator unit 12 ton load ISUZU GIGA



CARRIER refrigerator unit 12 ton load ISUZU GIGA


Key words:  ISUZU GIGA Reefer Truck, GIGA Freezer Truck, GIGA chiller van truck with CARRIER Supra 850 unit, ISUZU GIGA 4x2 refrigerated trucks
