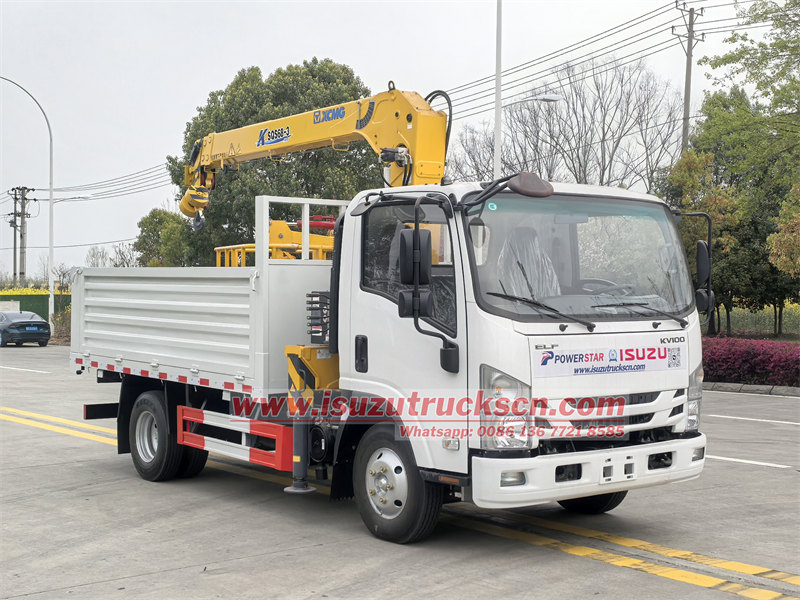

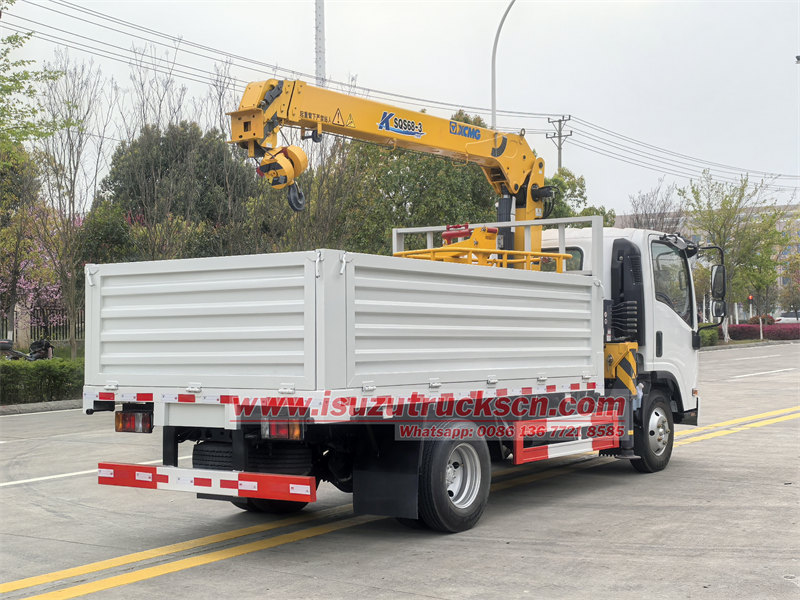

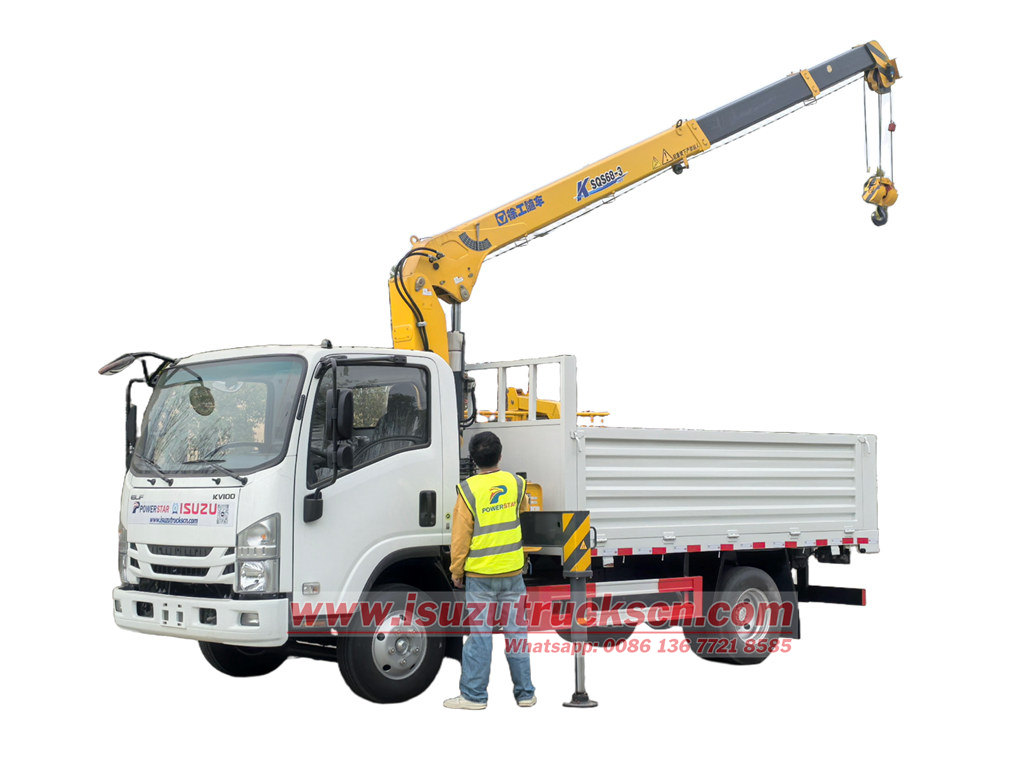

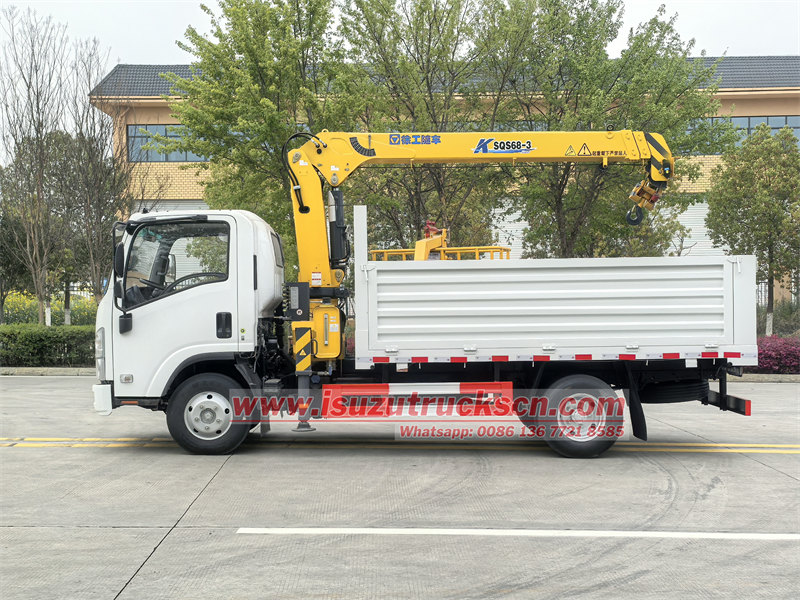

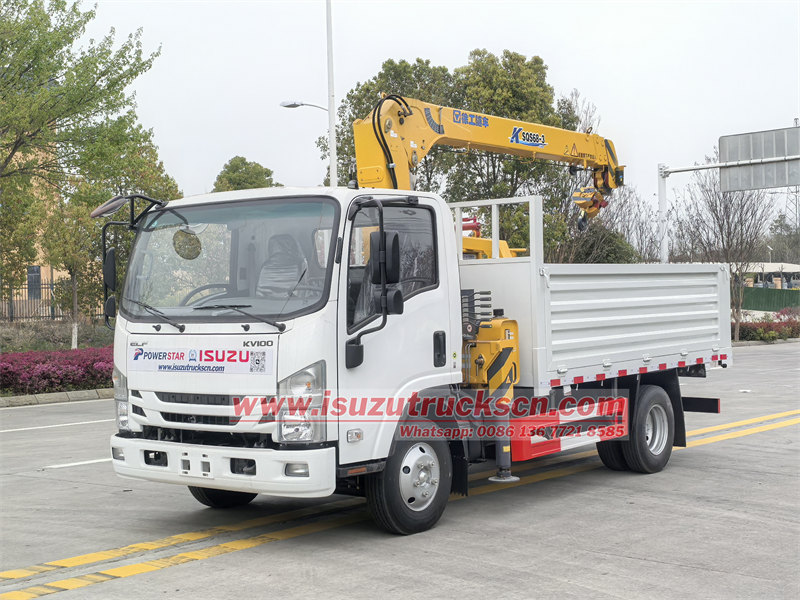

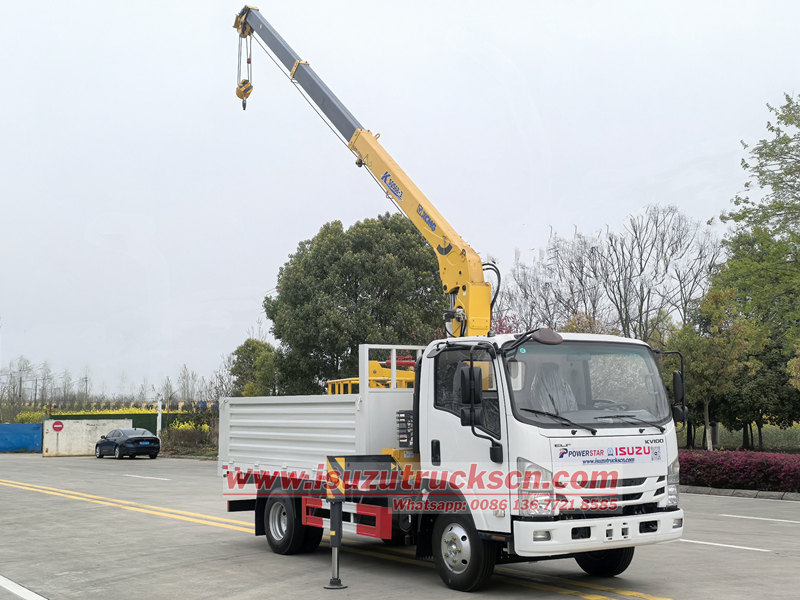

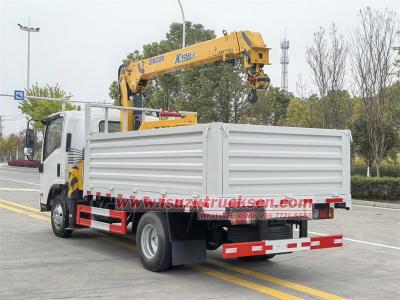

The ISUZU KV100 Truck-Mounted Crane is a multifunctional special-purpose vehicle that combines versatility in one unit. Equipped with a robust diesel engine, it features a telescopic boom crane and an aerial work platform, capable of lifting up to 3,200KG with a maximum lifting height of 9.5 meters. The cargo box, constructed from durable carbon steel, ensures strength and reliability. With its compact design and exceptional performance, this vehicle is widely applied in construction, logistics, municipal maintenance, and other fields, making it an ideal choice for efficient operations.
Manufacturer:
Powerstar TrucksWork capacity:
3200 kgDimension:
6200 x 2250 x 2850mmCabin type:

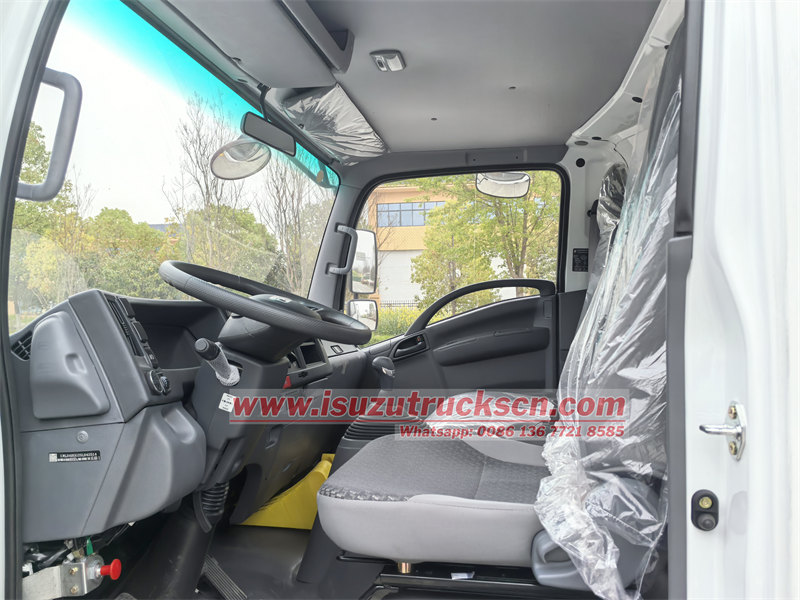

Isuzu ELF KV100 light chassis cabin，3 seatsWheelbase:
3360mmEngine power:
120 HPEngine type:
4KH1CN6LBAxle drive:
4×2Gear box:
MSB 5-speed, manualRemarks:
Equipped with aerial work platformThe ISUZU 3.2 Ton Truck-Mounted Crane is a multifunctional engineering vehicle built on the original ISUZU chassis, integrating cargo lifting, aerial work, and material transportation capabilities. Powered by a 4x2 drive system and a Euro 6-compliant 4KH1CN6LB diesel engine with a 3.0-liter displacement, it delivers 120 horsepower for robust performance. Measuring 6,200×2,250×2,850mm (L×W×H) with a 3,360mm wheelbase, the vehicle offers excellent maneuverability and adaptability for urban operations in confined spaces.

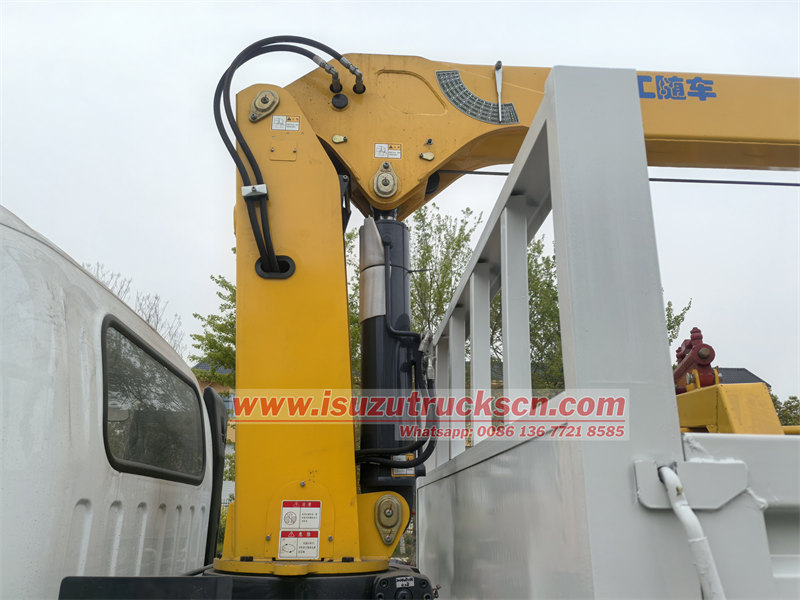

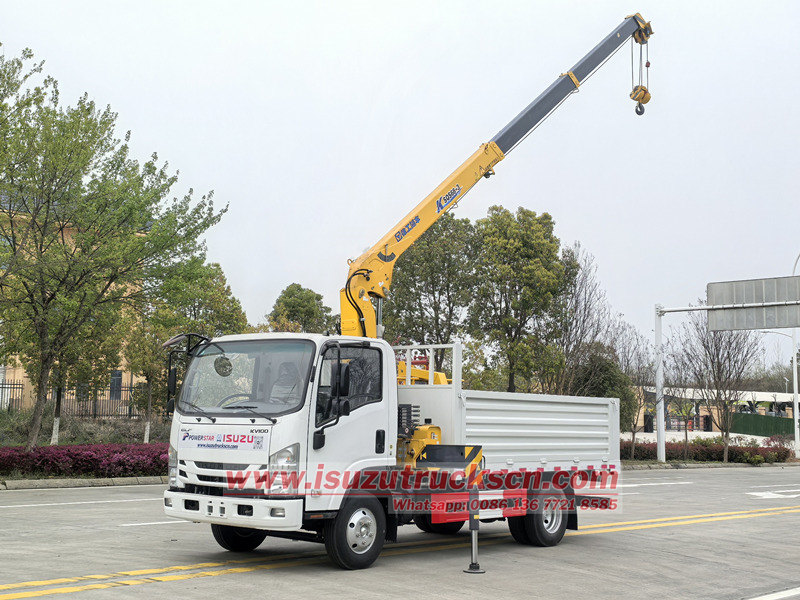

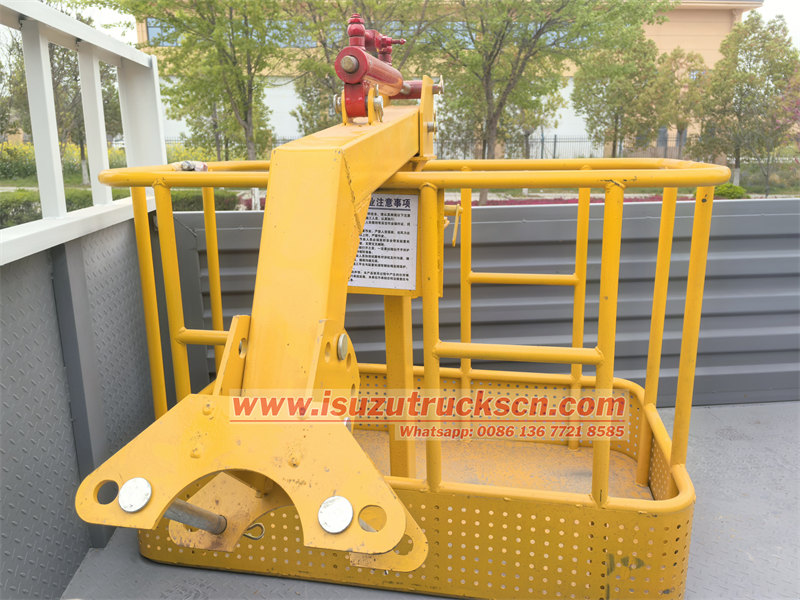

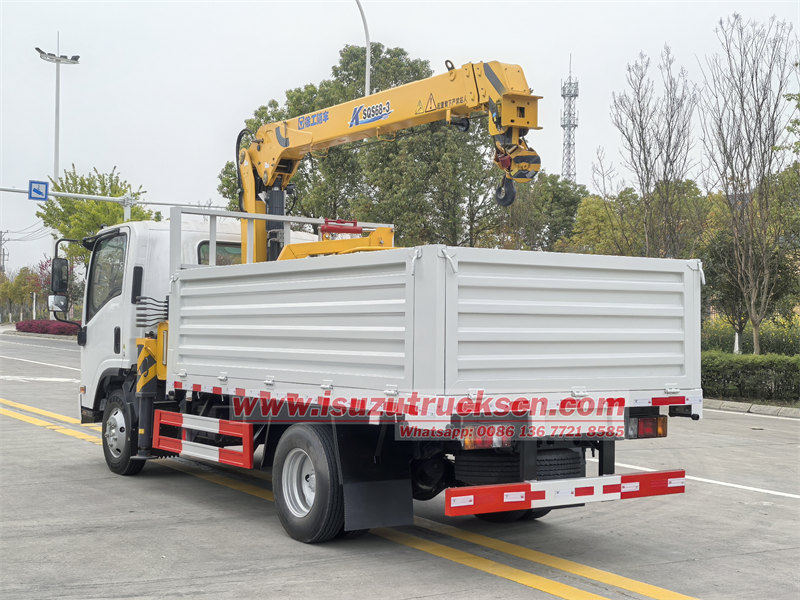

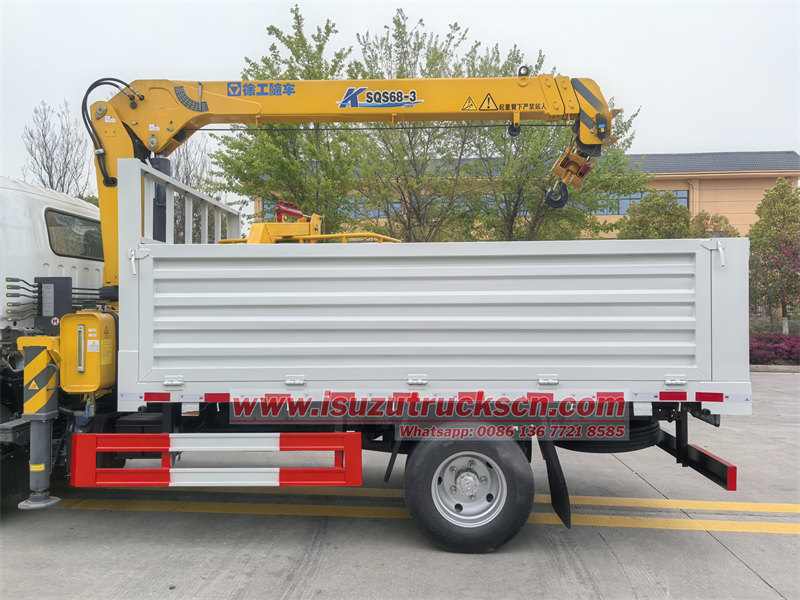

The upper body of the ISUZU 3.2 Ton Boom Crane Truck showcases professional engineering design. The core SQS68-3 telescopic boom crane features a three-section arm, supporting a maximum lifting capacity of 3.2 tons, a 7.7-meter working radius, and a 9.5-meter lifting height. Its 360° full rotation, coupled with a 20Mpa hydraulic system, ensures precise and stable lifting operations. An additional 200kg-rated aerial work platform provides a secure workspace for tasks such as electrical maintenance and streetlight repairs. The 3.6-meter carbon steel cargo box, reinforced with 3mm side plates and a 4mm floor plate, balances strength and weight efficiency.
The ISUZU KV100 Light Crane Truck finds extensive applications across industries. In construction sites, it excels at lifting building materials and equipment; in logistics parks, it streamlines cargo handling and transportation; and in municipal maintenance, its aerial work platform simplifies tasks like streetlight repair and billboard installation. Whether for lifting, transporting, or aerial work, the ISUZU hydraulic boom crane truck stands out as an indispensable partner, delivering unique advantages in diverse operational scenarios.
● 30 years experience on ISUZU boom crane truck designing
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● Be designed according to your requirements
Product Specifications
|
Chassis Specifications |
||
|
Chassis Brand |
ISUZU |
|
|
Driving wheel |
4x2 |
|
|
Driving type |
Left Hand Driving |
|
|
Dimension(Lx W x H) (mm) |
6200*2250*2850 |
|
|
Approaching angle/Departure angle(°) |
27/16 |
|
|
Overhang(front/rear) (mm) |
1240/2555 |
|
|
Wheel base (mm) |
3360 |
|
|
Leaf spring |
8/6+5 |
|
|
Max speed(km/h) |
90 |
|
|
Gross vehicle weight |
7300 kg |
|
|
Loading weight |
3 Ton |
|
|
Engine |
Model |
4KH1CN6LB; 4- stroke direct injection diesel engine, 4 cylinders in line with water cooling |
|
Fuel type |
Diesel |
|
|
Horse Power |
120hp (88kW) |
|
|
Displacement(L) |
3.0 |
|
|
Emission |
EURO 6 |
|
|
Fuel tanker capacity (L) |
100 |
|
|
Transmission |
Model |
MSB 5-speed |
|
Brake system |
Service brake |
Dual circuit compressed air brake |
|
Parking brake |
Spring energy, compressed air operating on rear wheels |
|
|
Front axle |
2.5 T |
|
|
Rear axle |
4.8 T |
|
|
Color |
Optional |
|
|
Tyre |
7.00R16, 6+1 Spare |
|
|
Crane Specifications |
||
|
Crane Model |
XCMG SQS68-3 |
|
|
Crane Type |
Telescopic boom |
|
|
Boom Sections |
3 |
|
|
Crane loading capacity |
3200KG |
|
|
Max Lifting Height |
9.5 m |
|
|
Max. working radius |
7.7 m |
|
|
Recommend Power |
14KW |
|
|
Crane Weight |
1229KG |
|
|
Installation space |
850mm |
|
|
Rotation Angle |
360° All Rotation |
|
|
Max Oil Flow of Hydraulic System |
25 L/min |
|
|
Max Pressure of Hydraulic System |
20 Mpa |
|
|
Aerial bucket |
200 kg payload |
|
|
Cargo box specifications |
||
|
Box dimensions |
3600×2200×600mm |
|
|
Material |
Carbon steel |
|
|
Thickness |
Side plate: 3mm; floor plate: 4mm |
|
